Old 07-26-2009, 05:15 PM   #81
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Ordering stainless pipe right now! lol
SKMetalworks is offline   Reply With Quote
Old 07-26-2009, 05:27 PM   #82
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

premier miata in the nation??? Getting there.
hustler is offline   Reply With Quote
Old 07-26-2009, 06:56 PM   #83
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default


you suck


Wait...look at those maps...wtf? At 2BAR it looks like the GT2860rs is more efficient. WTF?

Last edited by hustler; 07-26-2009 at 07:32 PM.
hustler is offline   Reply With Quote
Old 07-26-2009, 10:15 PM   #84
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,350
Default

Quote:
Originally Posted by ThePass View Post
Bravo Andrew. Bravo.

Emilio: "damn it, even with my amazing grip Savington is faster than the OGK... I need boost!"
*Emilio installs Rotrex, enter 200+ whp in OGK*
Savington: "Oh I was just getting started..."
*Built motor + GT2871R = Emilio takes his place in Savington's rearview mirror again*
More that just a Rotrex going in

I must say though, Sav's manifold/turbing housing set up looks quite the business.
emilio700 is online now   Reply With Quote
Old 07-26-2009, 10:28 PM   #85
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by hustler View Post
Wait...look at those maps...wtf? At 2BAR it looks like the GT2860rs is more efficient. WTF?
they both look to be around 75% at 30 lb/min... which point were you looking at?
y8s is offline   Reply With Quote
Old 07-26-2009, 10:53 PM   #86
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

If you are looking at the efficiency at the center efficiency island, or the 'sweet spot', the 2860 is at 77% and the 2781 is at 76%. But if you look over at the right side of the map, the 2871 holds its efficiency longer; looking at 2.25 pressure ratio @ 35 lb/min of flow, the 2871 is at 72% and the 2860 is at 68% (and falling fast). The 2860 is also spinning about 25K RPM faster.
ZX-Tex is offline   Reply With Quote
Old 07-26-2009, 11:15 PM   #87
Newb

Join Date: Mar 2009
Posts: 8
Total Cats: 0
Default

dope manifold/dp setup, i hope he made a jig so he can make these any time
tkblazer is offline   Reply With Quote
Old 07-26-2009, 11:56 PM   #88
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by y8s View Post
they both look to be around 75% at 30 lb/min... which point were you looking at?
duh...sorry, at 25lb/min. Sav and I were comparing at 300whp/15psi.
hustler is offline   Reply With Quote
Old 07-26-2009, 11:59 PM   #89
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by tkblazer View Post
dope manifold/dp setup, i hope he made a jig so he can make these any time
the problem is intercooler piping. I'd have that **** right now if I could find someone to make 2 pipes for me but everyone in Dallas wants $500+. Its crazy how similar they are though.
hustler is offline   Reply With Quote
Old 07-27-2009, 12:00 AM   #90
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

then he better run more boost to prove he bought the right turbo.
y8s is offline   Reply With Quote
Old 07-27-2009, 04:08 AM   #91
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,336
Default

Wrong map fagglio. You posted the 48-trim map.

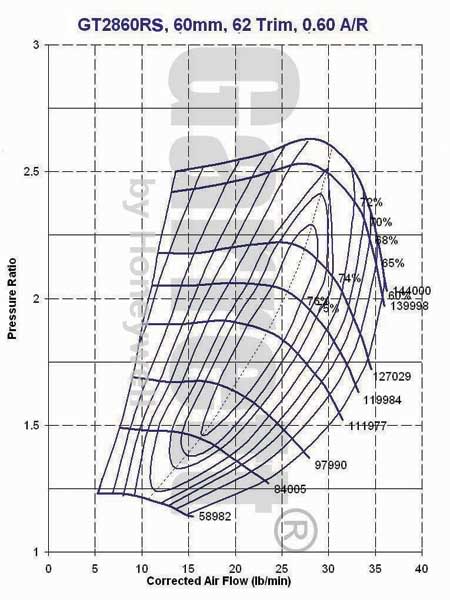

yourz:
Name:  739548-1comp_e.jpg
Views: 4
Size:  43.6 KB

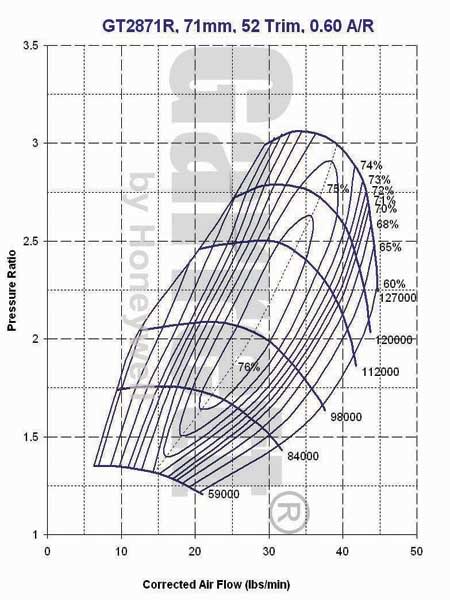

minez:
Name:  472560-15comp_e.jpg
Views: 6
Size:  44.7 KB
Savington is offline   Reply With Quote
Old 07-27-2009, 05:42 AM   #92
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Nice map. I expect to see at least 325hp at the flywheel at 20psi boost.
Laur3ns is offline   Reply With Quote
Old 07-27-2009, 05:55 AM   #93
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,336
Default

Quote:
Originally Posted by Spookyfish View Post
Nice map. I expect to see at least 325hp at the flywheel at 20psi boost.
I expect to see that at 15psi. max.
Savington is offline   Reply With Quote
Old 07-27-2009, 06:17 AM   #94
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Savington View Post
I expect to see that at 15psi. max.

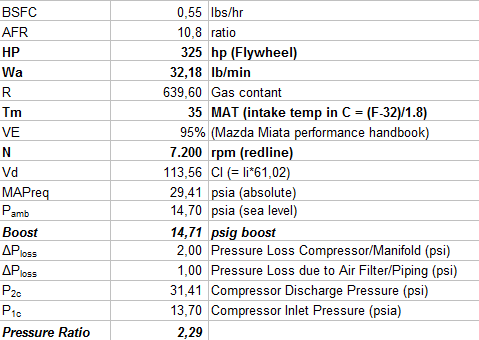

Care to share some data? I just went through some calculations. For 325hp with 11.5AFR and a BSFC of 0.55lbs/hr you need around 35lb/min flow.

Add a 95F MAT and 7200rpm redline. You'd need 99% volumetric efficiency to produce 325hp at 15psi on 1860cc. A standard 1.6 engine has a 88% VE. A 99 head means it's from 1999, not that it's 99% VE
Laur3ns is offline   Reply With Quote
Old 07-27-2009, 06:32 AM   #95
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,336
Default

You do realize that turbocharged engines routinely eclipse 100% VE, right? I'm basing my power goals mostly on what Hustler saw in his car. 262 on a Dyno Dynamics on pump gas at 15psi. You said flywheel horses, so factoring in 15% losses, that puts his car at 301.3bhp. I am running a larger turbo and 100 octane.
Savington is offline   Reply With Quote
Old 07-27-2009, 06:43 AM   #96
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Savington View Post
You do realize that turbocharged engines routinely eclipse 100% VE, right?
Sure, but in that formule, it's about the VE of the engine that is going to be charged, without the turbo that is.

Source:
TurboByGarrett.com - Turbo Tech103

88% VE:
Mazda Miata performance handbook - Google Boeken

If you drop the AFR to 10.8, you'd get there if your head is 95% VE (99 head, valvejob):
Attached Thumbnails
AbsurdFlow + GT2871R + TiAL pornography-savturbogoal.png
Laur3ns is offline   Reply With Quote
Old 07-27-2009, 08:14 AM   #97
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,336
Default

No offense, but I ******* hate horsepower formulas. Every single one of them is pure, unadulterated bullshit. Paul made 300whp at 14psi on a 2560R. I've seen a guy make 275whp at 14psi on a 2871R, a '94 head, and a fucked bottom end (bolt went through it). Matt makes 257whp at 9.5psi. Can you honestly tell me that the formulas you use can validate all of those cases?
Savington is offline   Reply With Quote
Old 07-27-2009, 08:38 AM   #98
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

I kept thinking about Paul's 300whp on a 2560 while I was punching those numbers. Apparently there are many more variables involved.
Laur3ns is offline   Reply With Quote
Old 07-27-2009, 08:48 AM   #99
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,336
Default

VE is so hard to approximate. You would think that when you drop compression, for instance, VE would decrease, but a drop in compression will normally ADD torque (and thus power) to a turbo car.

I despise formulas that calculate horsepower for that reason - they are never detailed enough.
Savington is offline   Reply With Quote
Old 07-27-2009, 08:56 AM   #100
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Paul also did that on a dynojet, you're going to do it on a Mustang. I was on a DD.
hustler is offline   Reply With Quote
