Old 04-09-2016, 10:45 PM   #1
Newb
Thread Starter

Join Date: Sep 2015
Posts: 28
Total Cats: 0
Default Can my "tune" be improved? any feedback guys?

Hi guys just recently finished playing around with megasquirt thru tunerstudio and played around with the AFR. and Ve table the spark i havent touched yet. The afr table is similar to one of the tables i found on the forums for a na miata 90-93. The VE table is tuned by the "autotune" feature by the tunerstudio. my question is how can i improve? and where? i have my settings set at includeAFRtarget(at 14.7) in the General settings. Also i have a problem with my idle it seems to be running alittle high around 1100 sometimes at 1300, i havent tweaked the closed loop idle at the moment(no a/c miata) i have my idle screw set all the way in it went from 1300 to 1100-900 so its set at 900-1100rpm from idle. does having the idle screw all the way in bad? how can i lower my rpms without adjusting the idle screw? Thanks so much guys!! any help is appreciated








Attached Thumbnails

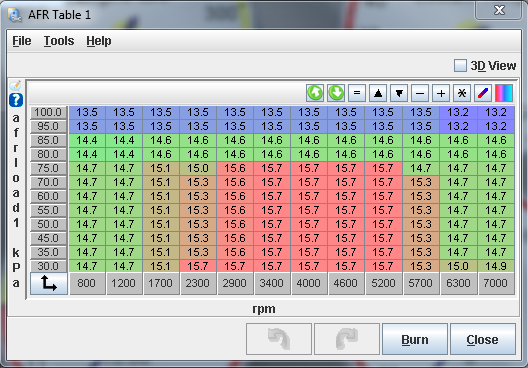

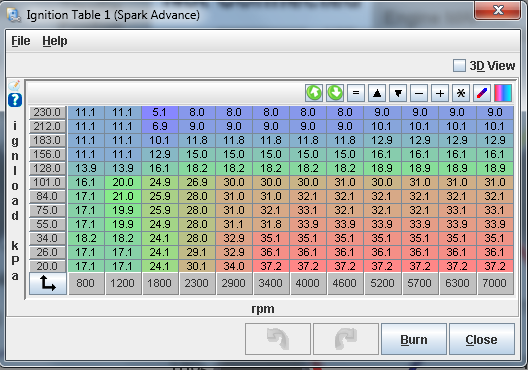

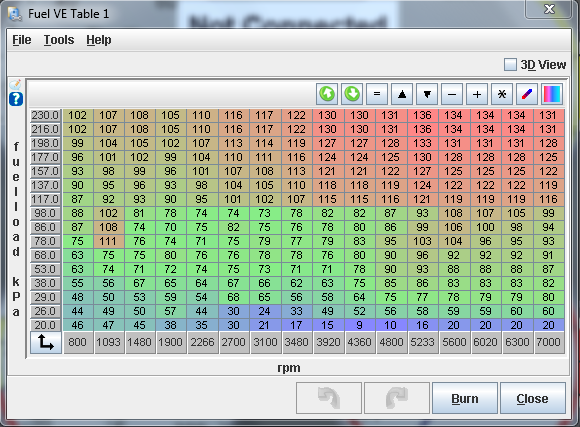

Can my "tune" be improved? any feedback guys?-80-afr_edb8f7ea82812aa4f54e8e77cd23d2410a5c5540.png   Can my "tune" be improved? any feedback guys?-80-ignition_7b9ff68e6bade1d1837ef3306581db3bfdbcd16a.png   Can my "tune" be improved? any feedback guys?-80-ve_2e7f174c3fb92d49008d00ee0204cf09adae1415.png
RuckRider is offline   Reply With Quote
Old 04-09-2016, 11:47 PM   #2
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

Set your idle screw up so it idles just below your target with no IAC. Consider the IAC as just adding air as needed, not as full idle control, which is what works best for me. Idle control is more about timing and fuel more than anything else.

On a non A/C car, you can have excellent idle just by tuning your own sort of feedback loop in your timing table with no IAC at all, at the expense of possibly needing a little pedal for a short time on cold startup.

Edit: you have a lot of timing at idle. Reducing advance there will lower your idle speed.
Stealth97 is offline   Reply With Quote
Old 04-10-2016, 12:28 AM   #3
Newb
Thread Starter

Join Date: Sep 2015
Posts: 28
Total Cats: 0
Default

Quote:
Originally Posted by Stealth97 View Post
Set your idle screw up so it idles just below your target with no IAC. Consider the IAC as just adding air as needed, not as full idle control, which is what works best for me. Idle control is more about timing and fuel more than anything else.

On a non A/C car, you can have excellent idle just by tuning your own sort of feedback loop in your timing table with no IAC at all, at the expense of possibly needing a little pedal for a short time on cold startup.

Edit: you have a lot of timing at idle. Reducing advance there will lower your idle speed.
how do i adjust the IAC? sorry im new to ms so im not too familiar with the settings yet, my idle screw is all the way in now was around 2 and a quarter turn before(stock ecu)
RuckRider is offline   Reply With Quote
Old 04-10-2016, 09:32 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

if you idle screw is all the way in and you're not idling at 500rpm, you havent tuned.
Braineack is offline   Reply With Quote
Old 04-10-2016, 01:26 PM   #5
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

Quote:
Originally Posted by RuckRider View Post
how do i adjust the IAC? sorry im new to ms so im not too familiar with the settings yet, my idle screw is all the way in now was around 2 and a quarter turn before(stock ecu)
I'm saying this sincerely, please spend some time reading the mega manual. There is a very steep learning curve, and I think I put it plainly, no offense.

It's in startup/idle settings. Set your IACsettings to Warmup PWM first, then go to your Warmup PWM table, you'll see a dot to represent your current place in the table, and adjust the idle DC at that point.

Once it idles at that point make your Warmup PWM table flat, and then tune the idle speed as the car warms up, as the table references coolant temp.
Stealth97 is offline   Reply With Quote
Old 04-10-2016, 07:37 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

can your completely untuned base map be improved? yes absolutely
should you do your homework and learn at least the basics so you can differentiate tuning functions from a turd on the sidwalk? yes absolutely
18psi is offline   Reply With Quote
