Default D14 and D16 always on

I noticed that when I power up the MS2 D14 and D16 are always on, I am running the improved spark output mod.

I have yet to test everything with jimstim and tunerstudio, but just wondering should these be on all the time?

This even happens when I pull the MS2 expansion card.

I looked for a short in the U1 as well as the led drive transistors. Everythign checks out fine...
2004GS is offline   Reply With Quote
Old 01-24-2012, 10:13 AM   #2
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Be sure spark output is set to going high / inverted.
Matt Cramer is offline   Reply With Quote
Old 01-24-2012, 10:28 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

the LEDs will appear to "look" always on. Test them back to 5v and you can see them clicking on and off rapidly.
Braineack is offline   Reply With Quote
Old 01-24-2012, 11:34 PM   #4
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2006
Location: Ontario, Canada
Posts: 84
Total Cats: 0
Default

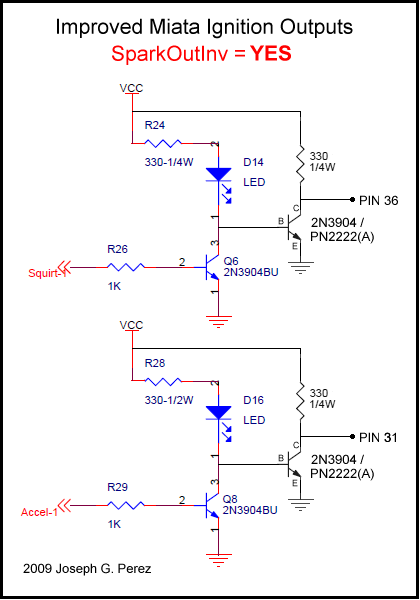

Please confirm my understanding of the above diagram. Using D14 led drive as an example.

Cpu output not active, 0V @ Q6 base, Q6 switch off

5V @ 2N3904 base, 2N3904 switch on, D14 to ground (led glowing red)

0V potential @ 2N3904 collector, igniter coil not active.

So basically cpu signal off -> led "on" -> Coil inactive

Therefore even if the cpu is removed form the board and power is applied the led will still be active.
