since im bored...im goign to throw that into a MSQ table...
Braineack is offline   Reply With Quote
Old 03-31-2008, 11:55 AM   #42
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

here:



you can see how he adds a lot more timing back in, I think we can get away with it too...when i look at an old map, when i first dynoed with MS i was hitting 20 at 12psi. We all jsut need to stop being cheap ******** and tune that **** yo.
Braineack is offline   Reply With Quote
Old 03-31-2008, 12:16 PM   #43
Senior Member
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

i should finally be getting my car out of storage in the next few weeks, so i'll be able to report on some of these mods with a '93 greddy turbo'd whip... :-)
devin mac is offline   Reply With Quote
Old 03-31-2008, 12:37 PM   #44
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Braineack View Post
here:

it looks so pretty in rainbow. I should note that there's a few things going on in my map.

1. high boost, low RPM: who cares
2. low boost, high RPM: cruise. advanced a lot. basically lean your maps out to 15 or 16:1 and then use timing to get you the EGT you want.
3. < 20 kPa: compression braking.
4. < 1000 rpm: idle / off-idle.

Scott I'd actually change that 1000 column to 1300 or something so your idle isn't crossing a boundary into high advance. Or maybe even ditch the 500 column, make it 1300, and put a 1800 ish column between 1300 and 2300 and run about 2 degrees less than the pink cells there.

similar for the vac rows (0-34 kpa). it's a lot of resolution for idle and overrun. maybe go 0, 30, 55, etc. if you look at my map, it has basically 5 points (4 zones) across the load range. mostly the space between is linearly interpolated. idle, off-boost, transition, boost.
y8s is offline   Reply With Quote
Old 03-31-2008, 12:49 PM   #45
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,769
Total Cats: 18
Default

Sam, if this can be done with out pinging I bet there is alot more power still in the car.

Wow what a difference from my map and yours!

Yours on top.
Attached Thumbnails

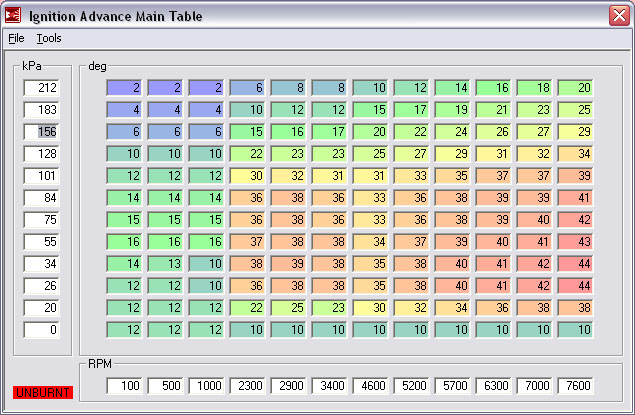

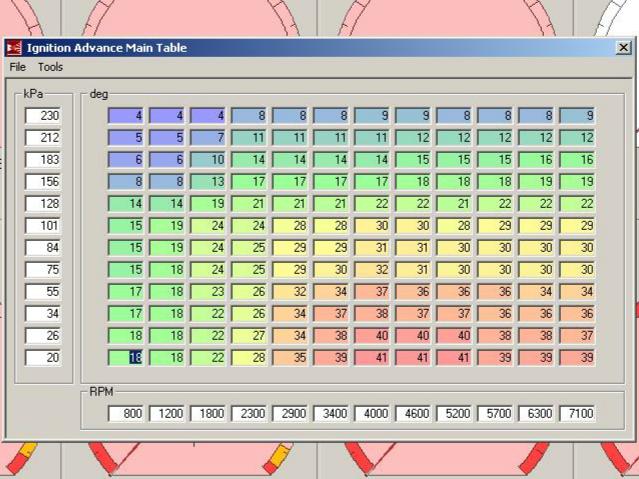

Dyno Tuning, Take a Look FM we want your timingz-y8s_spark.jpg   Dyno Tuning, Take a Look FM we want your timingz-myspark-map.jpg
IcantDo55 is offline   Reply With Quote
Old 03-31-2008, 12:49 PM   #46
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

you have the file for that? after i get my fuel map real good i want to try this map on my stock motor. How much tuning is needed on the fuel map after you do a change to spark?
240_to_miata is offline   Reply With Quote
Old 03-31-2008, 12:50 PM   #47
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

I looked at Y8s's timing and then the DIY PNP default timing map. I thought there is no reason to be MORE conservative than DIY on timing so I came up with a hybrid spark map between the 2. might load it in my car today and give it a whirl.

Y8S


DIY


Hybrid
paul is offline   Reply With Quote
Old 03-31-2008, 12:57 PM   #48
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

if anyone wants those vex files they are stored in the same directory as those images
paul is offline   Reply With Quote
Old 03-31-2008, 12:57 PM   #49
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

would these more aggressive maps work fine on a N/A engine with the MSPnP?
johndoe is offline   Reply With Quote
Old 03-31-2008, 01:01 PM   #50
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Quote:
Originally Posted by johndoe View Post
would these more aggressive maps work fine on a N/A engine with the MSPnP?

why give up all the resolution? i use this on my NA 94 with HiRes MSPNP



.vex file is there if you want it
paul is offline   Reply With Quote
Old 03-31-2008, 01:20 PM   #51
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

yeah, that makes sense. I'll try that out when the MS gets here and before the turbo goes on.
johndoe is offline   Reply With Quote
Old 03-31-2008, 01:31 PM   #52
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Got a question about the hybrid map. There is a dip in the advance in the 3400-5200 rpm columns, with most of it in the 4600 column and 4000 column. I am assuming this is because it is the peak torque region of the motor and hence higher cylinder pressures require some timing reduction.

I cruise at 3500-4000 in 5th on the highway, sometimes more . So, in the lower vacuum regions of the map, say up to 55 or 75 kpa, would it be a good idea to add back some advance in order to provide better cruise efficiency? Or would it be too much timing still? Not talking about knock limits for cruise, just best efficiency.

Thanks
ZX-Tex is offline   Reply With Quote
Old 03-31-2008, 02:02 PM   #53
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Getting ants in pants here. Anyone have any suggestion on what timing I could run on CA gas? I want to take one of these tables, subtract out X degrees across the board and go try it.

And when do I get worried about EGT? My gauge was not pegged racing this turbo'ed mustang the other day on the freeway, but was close.
AbeFM is offline   Reply With Quote
Old 04-02-2008, 01:19 AM   #54
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,769
Total Cats: 18
Default

Another "noobe" tuning question...what relationship does the timing table have to the VE table? If I just plug in one of the above tables, is it going to play havoc with my AF?
IcantDo55 is offline   Reply With Quote
Old 04-02-2008, 10:08 AM   #55
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

not really....




this was literally spark only changes....i went from, IIRC, 10 to 19 and made about 20rwhp.
Braineack is offline   Reply With Quote
Old 04-02-2008, 10:10 AM   #56
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by IcantDo55 View Post
Another "noobe" tuning question...what relationship does the timing table have to the VE table? If I just plug in one of the above tables, is it going to play havoc with my AF?
There isn't much relationship between the two. However, downloading an aggressive timing map for someone else's car and blindly plugging it into your ECU can be a little dangerous. A map that's the perfect level of aggression for a different engine may be too advanced for another.
Matt Cramer is offline   Reply With Quote
Old 04-02-2008, 10:58 AM   #57
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

^I've gotta agree.
But I'll caveat with saying that a bone stock 1.6 or 1.8 BP engine is so simple a device that you're gonna be damn close on with the majority of setups we run around here.

I wouldn't take the fuel table for a 2.0FM stroker running a T4 and drop it into my car... but it'd probably still be driveable and be moderately safe if nothing more than rich up top and a little lean at tip-in.

I think we've gotten to the point specifically with tuning MS for the Miata that some of the smarter guys could probably build you a complete MSQ from scratch just by knowing which turbo and injectors you're running and be 90% close.

I think this thread specifically has helped a lot with guy understanding the spark tables and just how much room there is to play. I personally can't wait to see what another 7*-8* of timing will buy me. I think I'm just gonna load up Paul's hybrrid table and be done with it.
samnavy is offline   Reply With Quote
Old 04-02-2008, 11:03 AM   #58
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

I gotta agree too. I posted mine so everyone could see where there's postential room for improvement over what they have.

That said, an "aggressive map" for a 10:1 compression turbo car is probably not that aggressive
y8s is offline   Reply With Quote
Old 04-02-2008, 11:05 AM   #59
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Sam, I very much disagree and think it's a less than good idea to assume that Paul's spark map is wise to run. At minimum, he has a different motor, manifold, turbo, and exhaust....
Ben is offline   Reply With Quote
Old 04-02-2008, 11:07 AM   #60
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by samnavy View Post
I think we've gotten to the point specifically with tuning MS for the Miata that some of the smarter guys could probably build you a complete MSQ from scratch just by knowing which turbo and injectors you're running and be 90% close.
I actually dont agree with that. way too many variables. the MSPNP map on my stock miata needed plenty of tuning. while you may get into the ballpark, no map will be perfect on first startup.

Quote:
Originally Posted by samnavy View Post
I think this thread specifically has helped a lot with guy understanding the spark tables and just how much room there is to play. I personally can't wait to see what another 7*-8* of timing will buy me. I think I'm just gonna load up Paul's hybrrid table and be done with it.
we pretty much as all using a DIY or FM base map for spark, which is safe and conservative. This is where the power is unlocked and where you'd wanna play the most with with dyno time on a loaded dyno. It's also very dangerous to play with...so take heed and be careful, paul's map is fairly advanced compared to most, while you may get away with it, it could be a ticking time bomb. I got away with 19-20 of timing at 12psi, last time i was on the dyno I swear I was pinigng at 15 at the same boost....
Braineack is offline   Reply With Quote
