Old 04-02-2008, 11:15 AM   #61
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

^I learn something new every day. Thanks guys.
samnavy is offline   Reply With Quote
Old 04-02-2008, 11:52 AM   #62
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

You know, my hydra map is 90% the same as FM's base hydra map for a "2001 with big turbo". I added no more than 3-4 degrees anywhere.

Jeremy's less conservative with the hydra maps than FM's previous stuff. maybe he'll post about it.
y8s is offline   Reply With Quote
Old 04-02-2008, 01:08 PM   #63
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I'll add something to the title to help provoke them to look at the thread then.
cjernigan is offline   Reply With Quote
Old 04-02-2008, 01:24 PM   #64
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,329
Default

Quote:
Originally Posted by badboy88000 View Post
hey andrew, whats your spark table looking like? im curious as i just modeled off teh DIY maps, but i was curious about adding a little more timing on the lower end as the car feels somewhat sluggish at the low end.

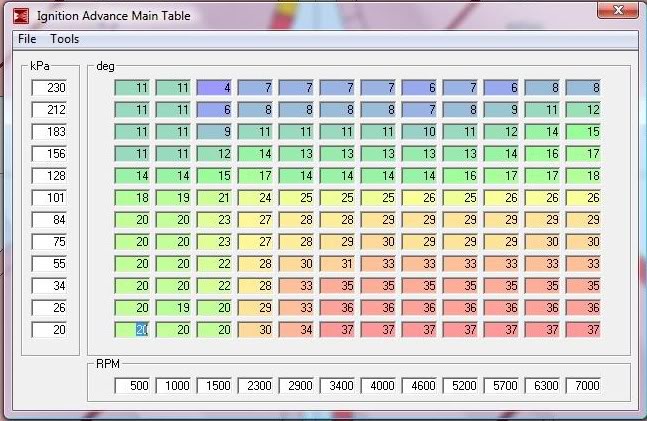

If you access the secret dialog box in MegaTune, and type in "produce me the shittiest, most conservative timing map possible" you will magically get what I run.

Name:  sparkmap11-20.jpg
Views: 46
Size:  80.1 KB

Seriously, though, I think there's something more than just my bad gas going on here. My car used to ping on the stock ECU pre-turbo with 15 degrees of advance and 91 octane, so I am going to check whether my pulley is seriously off the mark or something. After looking at all these maps, the 2 octane points shouldn't make that big of a difference.

By the way, I still detonate every so often on that map.
Savington is online now   Reply With Quote
Old 04-02-2008, 03:38 PM   #65
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

You G this playah wantz youz to pick the map that is da bomb quit wid all this whack maps and post da best too much **** its crazee my homeyz tired of loding all da maps for me yo.
ZX-Tex is offline   Reply With Quote
Old 04-03-2008, 10:25 AM   #66
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by paul View Post
I made the spark table with help from Turbo Tim. kinda copied his spark table up top but left my DIY PNP rows down in vacuum
And my ignition map started as AEM's default map for the B16 Honda with 440cc injectors. My fuel map I carried over from the Link. But that was years ago when I ran the 1.6 and I'm sure it changed a lot since. I know from the dyno days with the old setup that adding a few degrees didn't change torque or hp at all so I backed it back down to what I gave paul. My new setup is a lot more lazy so I'm going to compare my entire map to Y8S' and try to get some more midrange.
TurboTim is offline   Reply With Quote
Old 04-03-2008, 11:15 AM   #67
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

This thread is awesome.
Saml01 is offline   Reply With Quote
Old 04-03-2008, 11:37 AM   #68
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by Savington View Post
...After looking at all these maps, the 2 octane points shouldn't make that big of a difference.

By the way, I still detonate every so often on that map.
Time for WI?
kotomile is offline   Reply With Quote
Old 04-03-2008, 12:14 PM   #69
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Gosh, I've got lots to learn! My MS should be in the car in a couple of weeks, hopefully I understand half of this by then.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 04-03-2008, 01:04 PM   #70
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

The best part of all of this is that as much as everyone preaches getting on a dyno, no one has a dyno tuned spark map. I mean actually sat on a steady state dyno and tuned the entire map. Should be interesting when someone finally has one.
cjernigan is offline   Reply With Quote
Old 04-03-2008, 01:05 PM   #71
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

uhm. I do.
Mine was done on a dynapack by Jerry Hoffman (Foundsoul-white shirt) and Scott Sigel (SigelRacing-black shirt). DIY now has that same dyno in house.

Ben is offline   Reply With Quote
Old 04-03-2008, 01:20 PM   #72
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

But where is the screenshot of your timing map? Is that private information?
cjernigan is offline   Reply With Quote
Old 04-03-2008, 01:21 PM   #73
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

hes posted it before....get with it!!!! and i sat with y8s for two hours as he steady state tuned his maps.....i planned on doing it this month on my last car before i killed it.
Braineack is offline   Reply With Quote
Old 04-03-2008, 01:25 PM   #74
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Yeah I'm pretty sure I've seen it, but that was like 3k posts ago though man I'm aging or something. Guess i could go look for bens map for the heck of it.
cjernigan is offline   Reply With Quote
Old 04-03-2008, 02:33 PM   #75
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Braineack View Post
hes posted it before....get with it!!!! and i sat with y8s for two hours as he steady state tuned his maps.....i planned on doing it this month on my last car before i killed it.
true. but i mostly did fuel. in retrospect I should have left fuel alone and just done timing. hard though. no car likes to sit at 6500 rpm and 10 psi with no airflow for a minute or two while you **** around.
y8s is offline   Reply With Quote
Old 04-03-2008, 02:43 PM   #76
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

I'm using one of Pauls Hybrid N/A spark maps on my setup, while it needs a lot of fuel adjustments, the car does pull very nicely to redline in all gears without any knock I can hear. Needs more turbo.
elesjuan is offline   Reply With Quote
Old 04-03-2008, 03:00 PM   #77
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

You NE dyno day guys should stop by and pick up the 5 gallon drum of Torco I have and mess around with it on the dyno. See how much more timing and boost you can get out of adding 16-32 oz to the tank.

Frank
fmowry is offline   Reply With Quote
Old 04-03-2008, 03:06 PM   #78
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,329
Default

Quote:
Originally Posted by kotomile View Post
Time for WI?
I still feel like I should be able to run more without WI. I am definitely planning a WI setup, probably with 25% meth, but I'd rather solve the problem for real vs. just throwing more octane at it.
Savington is online now   Reply With Quote
Old 04-03-2008, 07:20 PM   #79
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Plugged in a modded version of Pauls map today (thanks). Seems to run good. Cant tell much yet, roads wet.
IcantDo55 is offline   Reply With Quote
Old 04-03-2008, 08:33 PM   #80
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

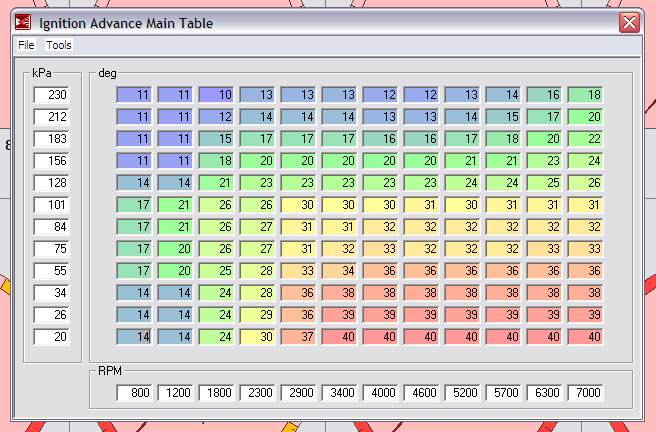

This is my sparkmap, and it will be the 2nd and final time I post it. This is the result of careful tuning on a load based dyno by competent personnel. It's specific to my car, my mods, and my local fuel. It's also aggressive as ****, and is the key to why my car makes so much power. I whole heartedly do not like sharing maps because I'm afraid of what a will do with it. Use extreme caution!!! Don't blow your **** up. This map is shown for informative and comparative purposes only. I'm also running a tad bit rich under boost.
Attached Images
File Type: bmp sparkmap_dynofinal.bmp (830.3 KB, 1364 views)
Ben is offline   Reply With Quote
