Old 06-19-2013, 09:49 AM   #21
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by 18psi View Post
not bad. post plot

kinda expected more than [email protected] with a 2560
Agree on that. my big fat mother of turbo on a stock motor was able to make 100 hp at 3200.

Ben, what's your VVT map look like down there?
y8s is offline   Reply With Quote
Old 06-19-2013, 10:13 AM   #22
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

What would these numbers be on a Dynapack?
JasonC SBB is offline   Reply With Quote
Old 06-19-2013, 10:38 AM   #23
hrk
Junior Member
iTrader: (6)

Join Date: Oct 2005
Location: Atlanta GA
Posts: 335
Total Cats: 2
Default

Quote:
Originally Posted by y8s View Post
Agree on that. my big fat mother of turbo on a stock motor was able to make 100 hp at 3200.
Same turbo and plumbing on stock -96 motor and spring wastegate made 100 hp at 3200 rpm previously. So it actually went down 200 rpm with new built engine and 99 manifold.

Yes, these numbers would be on DIYAutotune Dynapack.

Sorry Zabac and JayL, Flipside manifold fits, but the throttlebody didn't and the timeframe prevented modifying this combination to fit with everything.

Old dyno:

Thank you DIYAutotune for your support!

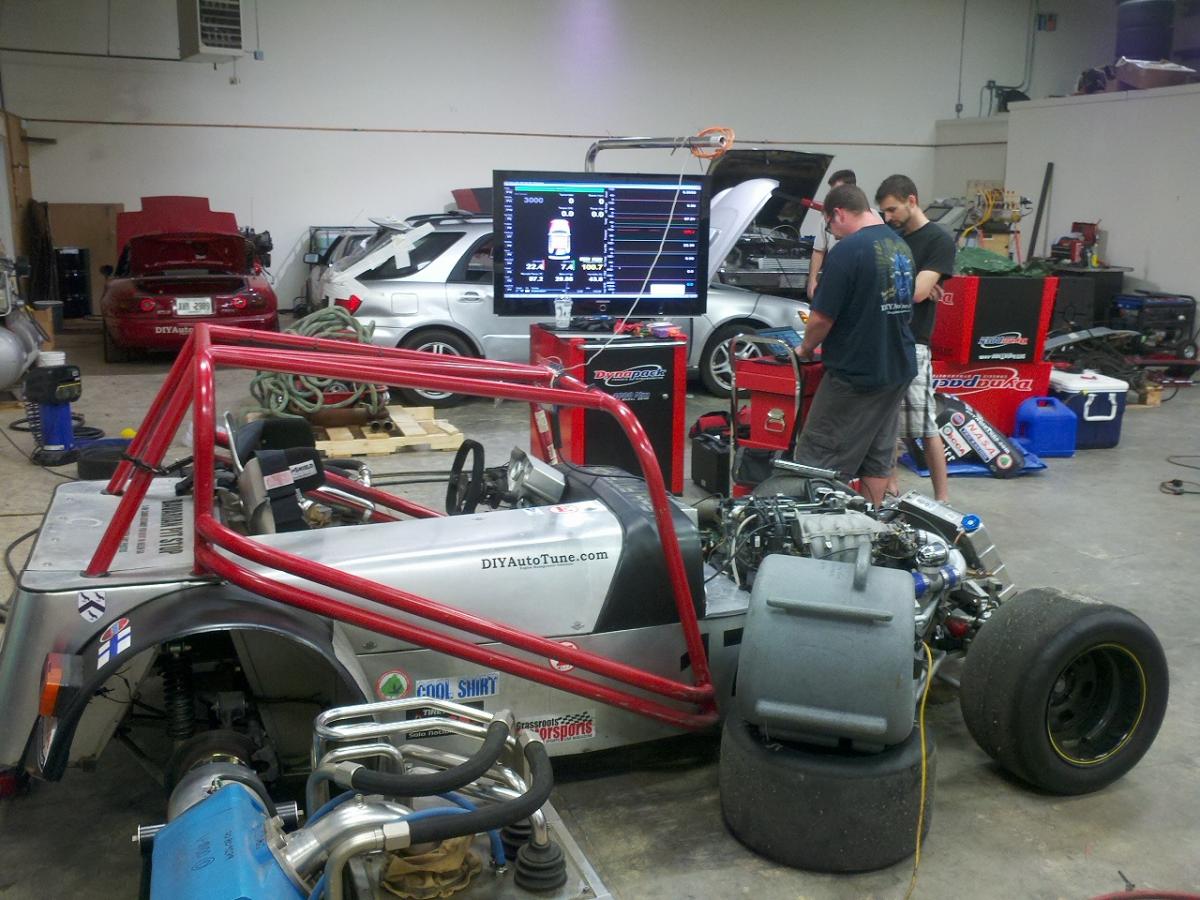

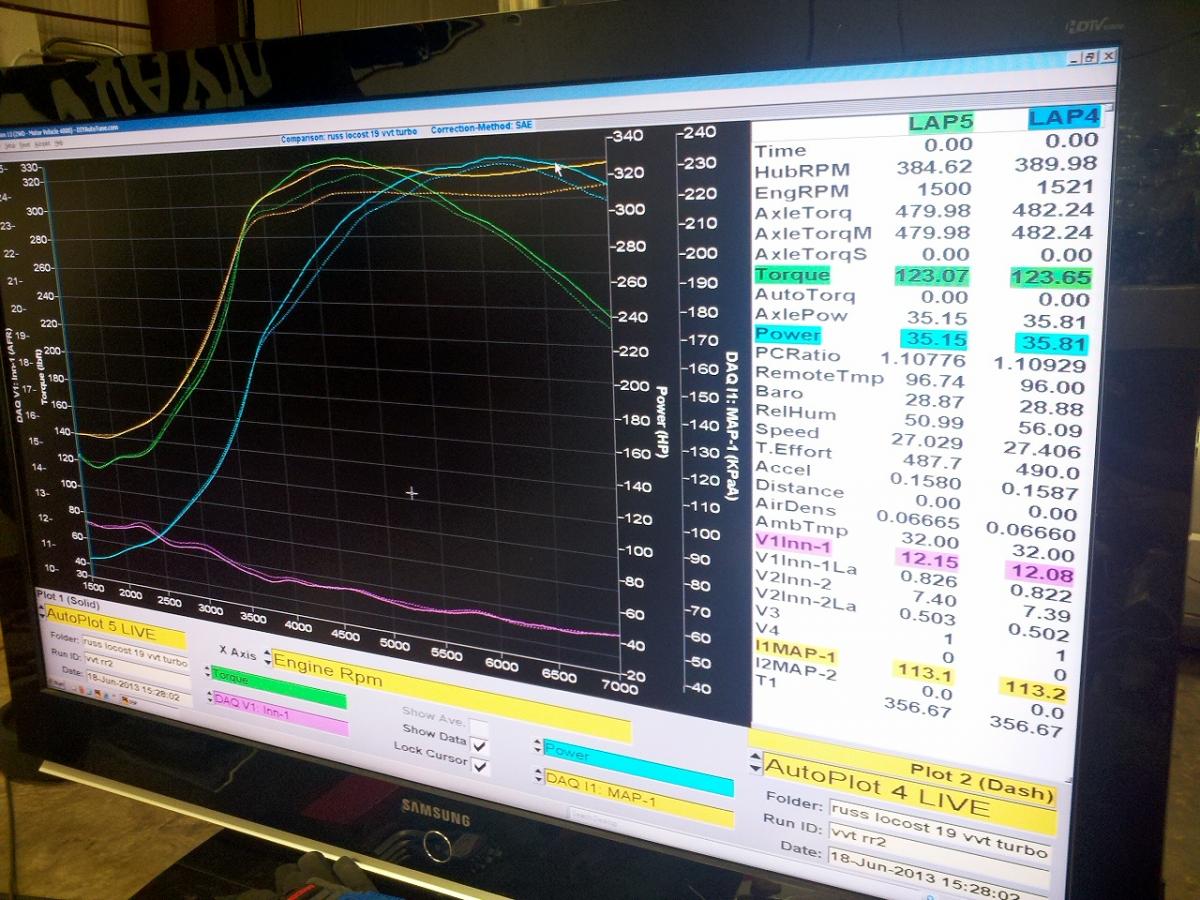

Here are couple cellphone pictures with graph.
Attached Thumbnails
VVT + VICS + Boost + MS3X = ??-2013-06-18_16-25-56_343.jpg   VVT + VICS + Boost + MS3X = ??-2013-06-17_15-16-26_954.jpg
hrk is offline   Reply With Quote
Old 06-19-2013, 11:02 AM   #24
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

And what does your locost weigh?
m2cupcar is offline   Reply With Quote
Old 06-19-2013, 11:24 AM   #25
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

I needz 2560. Also, 230whp at 8psi with a stock 96 motor? Seems a bit optimistic, no?
Fireindc is offline   Reply With Quote
Old 06-19-2013, 11:27 AM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by Fireindc View Post
I needz 2560. Also, 230whp at 8psi with a stock 96 motor? Seems a bit optimistic, no?
not at all.
Braineack is offline   Reply With Quote
Old 06-19-2013, 11:31 AM   #27
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by JasonC SBB View Post
What would these numbers be on a Dynapack?
Who's dynapac? It could be + or - ~40 hp depending on how the dynapac is setup. The two I've used that are setup how they come from dynapac would be about 10% lower on hp and torque than a dynojet. But I guess diy has a dynapac.
Leafy is offline   Reply With Quote
Old 06-19-2013, 11:42 AM   #28
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

A stock Miata makes under 100whp on our dyno. Your standard 12psi GT2560R FMII or BEGi S3 will make ~240 whp.

The straight exhaust and proper external wastegate on Heikki's locost allow the turbo to perform more efficiently than on a standard Miata. He's also .040 overbore, forged bottom end, valve springs, SUBs, etc etc.

This is the first turbo VVT car on our dyno, and it's the highest power BP engine we've tuned to date. I wasn't sure how VICS and VVT would play together, but turning on VICS resulted in a 10ft lb improvement from 3600 up.
Ben is offline   Reply With Quote
Old 06-19-2013, 01:45 PM   #29
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Quote:
Originally Posted by y8s View Post
Agree on that. my big fat mother of turbo on a stock motor was able to make 100 hp at 3200.

Ben, what's your VVT map look like down there?
I failed and confused tq and hp. Its at like 180-190tq at 3k from what it looks like, which is not bad at all.
18psi is offline   Reply With Quote
Old 06-19-2013, 01:48 PM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

there's nothing bad about that dyno plot AT ALL--except for being right-side-up maybe.
Braineack is offline   Reply With Quote
Old 06-19-2013, 01:52 PM   #31
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Yeah. Looks great. And I sold my squaretop. And ben probably still has his since he totally blew me off when I tried to buy his back in the day.
18psi is offline   Reply With Quote
Old 06-19-2013, 01:57 PM   #32
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

I would be interested to see the timing map for this.
soviet is offline   Reply With Quote
Old 06-19-2013, 03:55 PM   #33
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by 18psi View Post
Yeah. Looks great. And I sold my squaretop. And ben probably still has his since he totally blew me off when I tried to buy his back in the day.
Sorry man, didn't blow you off. We had a baby so daddy was busy and distracted.
Ben is offline   Reply With Quote
Old 06-19-2013, 04:09 PM   #34
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

No worries man, I'm just giving you a hard time. I ended up finding one anyway
18psi is offline   Reply With Quote
Old 06-19-2013, 08:03 PM   #35
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Displacement? Is it a +1mm overbore?

Compression ratio?

Last edited by JasonC SBB; 06-19-2013 at 08:55 PM.
JasonC SBB is offline   Reply With Quote
Old 06-19-2013, 09:14 PM   #36
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

The MAP/RPM curve looks odd for a 2560 with a nice open exhaust. Mine (FM2, FM 3" exhaust, 2560, built engine, 99 head) makes 200kpa by 3350 RPM, whereas that graph shows 3700.

It is a 2560, right? Not a typo for a 2860?

--Ian
codrus is offline   Reply With Quote
Old 06-20-2013, 12:37 AM   #37
hrk
Junior Member
iTrader: (6)

Join Date: Oct 2005
Location: Atlanta GA
Posts: 335
Total Cats: 2
Default

Quote:
Originally Posted by JasonC SBB View Post
Displacement? Is it a +1mm overbore?

Compression ratio?
1.5 MM overbore actually, block filler used in water jackets up to waterpump to add stiffness .
Wiseco pistons with 8.8 compression ratio after decking and adjusting the squish and compression ratio.

turbo info on my for sale ad:
The compressor has GARRET A/R 60 M24 1-1 on the casting.
The bearing housing has
HJ 01 06J
14411-69F00
466541-1
Turbine housing has Garret 2
turbine inlet flange is 72 mm x 45 mm with holes for 10 mm studs. T25.

https://www.miataturbo.net/miata-par...ops-etc-69843/

Same log manifold made from weld-els used in this setup.
hrk is offline   Reply With Quote
Old 06-20-2013, 03:16 AM   #38
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

any head work?
soviet is offline   Reply With Quote
Old 06-20-2013, 08:29 AM   #39
hrk
Junior Member
iTrader: (6)

Join Date: Oct 2005
Location: Atlanta GA
Posts: 335
Total Cats: 2
Default

Quote:
Originally Posted by soviet View Post
any head work?
Homemade porting and deshrouding, evening out the compression, milling it clean, +1 valves, Inconel exhaust, Mazdacomp subs, Supertech single spring set. Also made room for bigger cams in the future. Some photos in the build thread.

Trying to avoid high rpm float/7500 rpm harmonics issues with lighter weight followers and heavier springs. The Supertech valves are heavier than stock.

The way the power curve is, I should not spend any time above 7000 unless it is short straight between turns and I can avoid shifting twice.
hrk is offline   Reply With Quote
Old 06-20-2013, 10:22 AM   #40
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Was VVT tuned in the spoolup area? (3000-4000 RPM)
JasonC SBB is offline   Reply With Quote
