Default Wideband placement is important

You never place it on the side of the exhaust pipe - only between 10 and 2 o'clock. Why? Because when condensation forms on it...

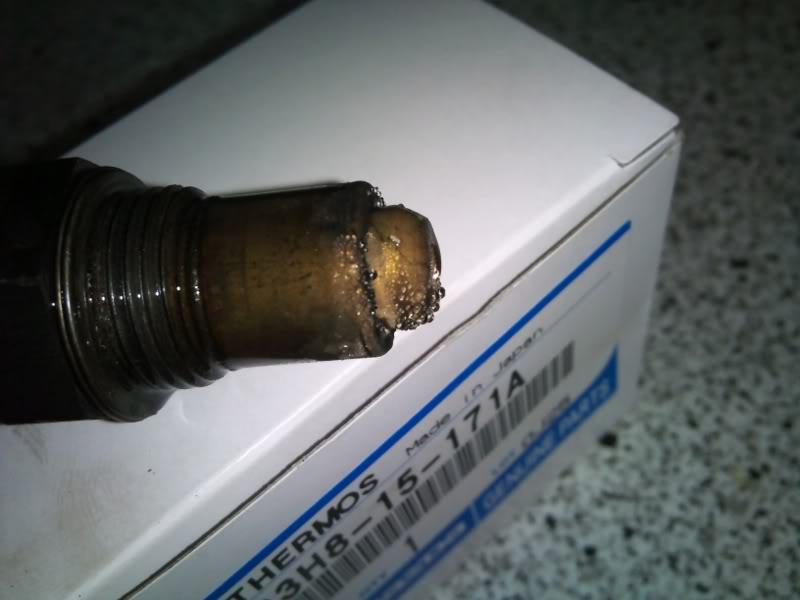

Name:  DSC_0146_1.jpg
Views: 9
Size:  41.1 KB

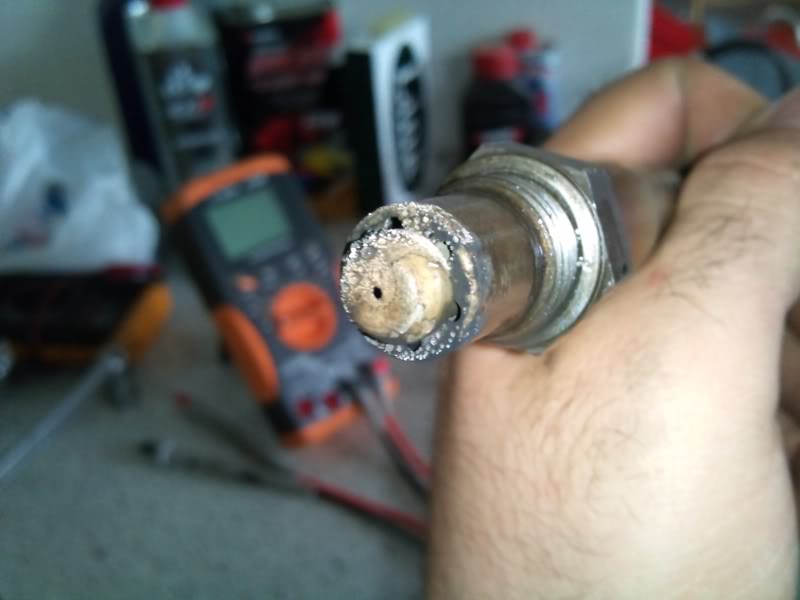

Name:  DSC_0145_1.jpg
Views: 8
Size:  36.9 KB

...you don't want the condensation dripping down inside the sensor. This sensor pictured here was brand new and damaged after idling for 20 minutes, then cooling down for another 10-15 minutes (the sensor was fitted by the exhaust shop and contrary to my specific instructions).

So do resist the temptation and place it properly.
Reverant is online now   Reply With Quote
Old 06-01-2011, 04:27 PM   #2
Junior Member

Join Date: Mar 2011
Location: Tallahassee, FL
Posts: 279
Total Cats: 3
Default

Sorry to see that happened but thank you for the tip!
spitefulcheerio is offline   Reply With Quote
Old 06-01-2011, 04:43 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

what postion was that fit in? mines closer to 2:30 and I've never had condensation form on mine. But yeah, never below 9 and 3.
Braineack is offline   Reply With Quote
Old 06-01-2011, 04:58 PM   #4
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Between 4 and 5, on the downpipe, stock 94 1.8.
Reverant is online now   Reply With Quote
Old 06-01-2011, 06:05 PM   #5
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default



The shop is buying you a new sensor, yes?
matthewdesigns is offline   Reply With Quote
Old 06-01-2011, 06:11 PM   #6
Junior Member

Join Date: Mar 2011
Location: Tallahassee, FL
Posts: 279
Total Cats: 3
Default

they better. It's obviously their fault
spitefulcheerio is offline   Reply With Quote
Old 06-08-2011, 09:06 PM   #7
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

Yes, if they didn't follow your instructions and your sensor was ruined as a result, they should buy you a new one!
skidude is offline   Reply With Quote
Old 06-12-2011, 07:51 AM   #8
Junior Member

Join Date: May 2011
Location: UK
Posts: 47
Total Cats: 0
Default

how was it reading in this condition?
mine has been mounted at around the 3:30 - 4 position (against my instruction!) but the readings seem fine and it's been in for a month or so... might pull it out and check this weekend
skinny is offline   Reply With Quote
