Default Crusher

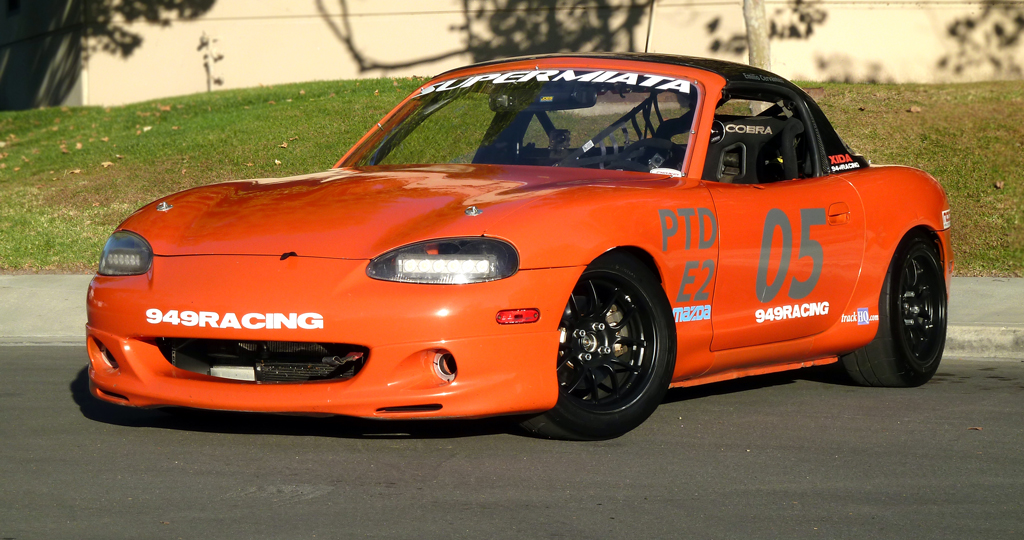

Some of you have already seen pics of our new enduro car. Just wanted to post a few more detailed pics for those that are interested.

The car is built specifically for the NASA 25 hours at Thunderhill Dec 3-4. It's an E2 car mapped from PTD. The VVT engine is purpose built, tuned exactly to the 148whp we are capped at for the class power to weight ratio.

The car's job is to gain the most track position for the least amount of fuel. Within that, the car must be able to run hard for 25 hours, at night, in the rain. It needs to be easy to diagnose and service. It needs to have the best possible safety equipment.

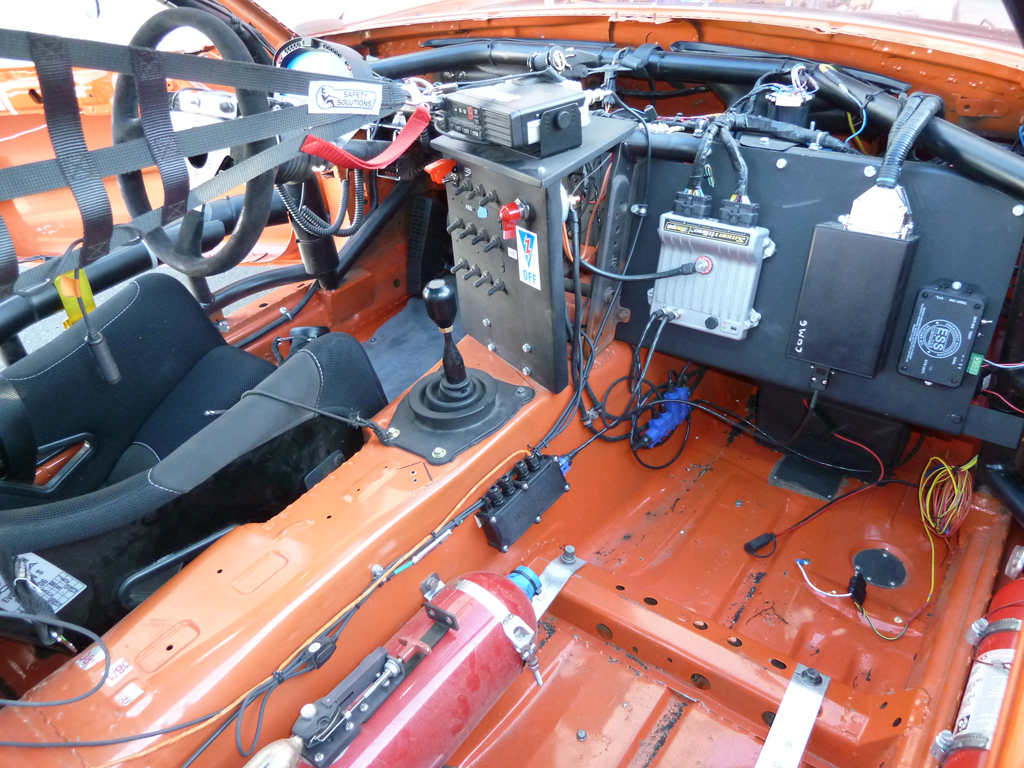

The car has no fuses or relays, instead relying on a solid state power switching unit, the Smartwire by Racepak. The fuse box you see in the engine bay is empty. Just an emergency spot to tap into hot leads in the engine bay should the need arise. The little box on the tunnel below the shifter is a Racepak USM (Universal Sensor Module) for our fuel level sender.
We were fiddling with the capacitor for the sequential COP conversion, hence the electrical tape (orange!) sliced open there. ESS Automatic fire system not completely installed in this photo.

More details on the build can be found on our blog; Behind the Wheel.

Center spot LED light bars not mounted in these pics




Attached Thumbnails
Crusher-crusher_enginebay.jpg   Crusher-crusher_interior_2.jpg   Crusher-crusher_electronics_panel.jpg   Crusher-crusher_washed_2.jpg

Last edited by emilio700; 11-05-2011 at 03:27 AM.
emilio700 is offline   Reply With Quote
Old 11-04-2011, 03:28 AM   #2
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Car is a blast to drive. I'm glad to be part of the team!
crashnscar is offline   Reply With Quote
Old 11-04-2011, 03:33 AM   #3
Junior Member
iTrader: (2)

Join Date: Jun 2011
Location: Tyler, TX
Posts: 254
Total Cats: 0
Default

Can't see pics.... :/
85z28 is offline   Reply With Quote
Old 11-04-2011, 03:52 AM   #4
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Its beautiful. Good luck with everything.

I wish I could do this!
turotufas is offline   Reply With Quote
Old 11-04-2011, 04:04 AM   #5
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Its kinda baller and I'm definitely getting a boner. Is it an actual NB2?
Reverant is offline   Reply With Quote
Old 11-04-2011, 04:55 AM   #6
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,324
Total Cats: 1,344
Default

Quote:
Originally Posted by Reverant View Post
Its kinda baller and I'm definitely getting a boner. Is it an actual NB2?
Effectively, yes. Rules allow swapping parts between NB1 and NB2 since they are both on the same line. You just have to replace whole assemblies like in SCCA solo. So this car has both NB1 and NB2 parts.

Quote:
Originally Posted by crashnscar View Post
Car is a blast to drive. I'm glad to be part of the team!
Fixed a bunch of stuff since you drove it. Misfire was bad cam angle sensor. New trans. Dash display all set up. Fuel gauge calibrated.

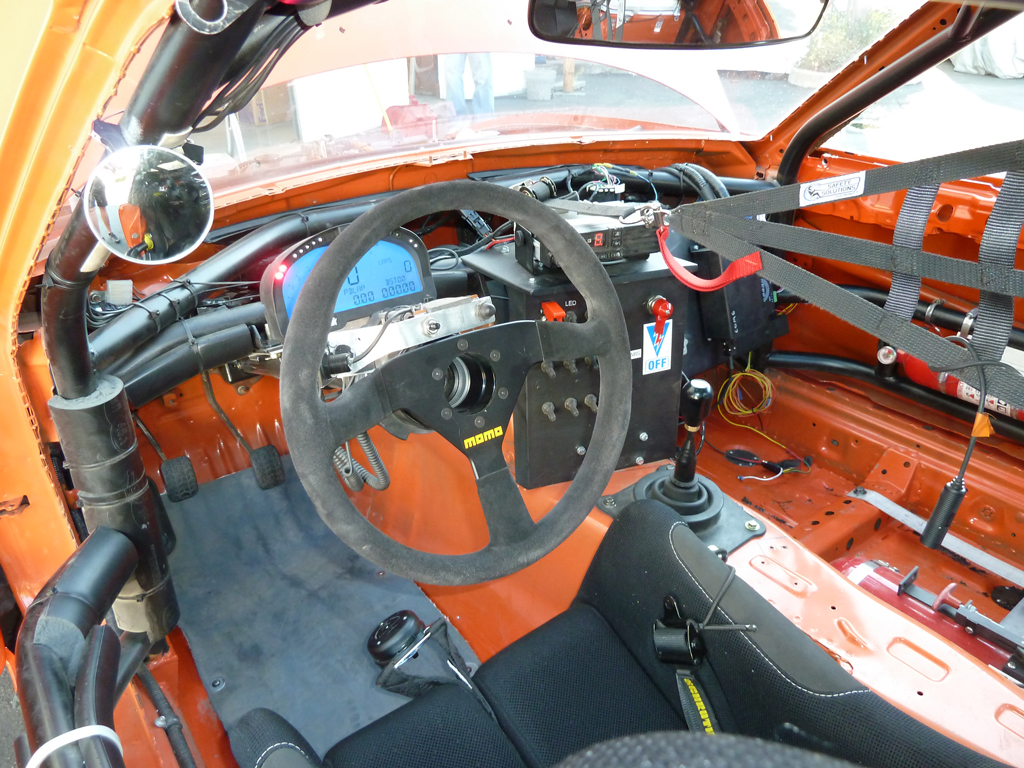

Bigger diameter steering wheel (350 from 330) gives a lot more leverage. New front subframe fixed alignment issue so we could raise it up to get proper bump travel and more camber. Yup, it's fun to drive!
emilio700 is offline   Reply With Quote
Old 11-04-2011, 08:38 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

it's missing something vital.
Braineack is offline   Reply With Quote
Old 11-04-2011, 09:45 AM   #8
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Beautiful car, Emilio. Your pictures show extreme attention to detail.

Are you running ABS?

I'm also really curious about your motor. Are you going to share your build plan at some point? I'm curious what made 148hp, and on what dyno... and what (if any) combinations you found made more power. I assume you probably don't want to give up certain info before the event, and that's cool too.
Ben is offline   Reply With Quote
Old 11-04-2011, 10:05 AM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Ben View Post
Are you running ABS?
ABS for those 5am, rainy moments where slight of mind meets racecar driver.

Cool car, needs more orange though.
hustler is offline   Reply With Quote
Old 11-04-2011, 11:25 AM   #10
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

enduro car means inboard side mirrors. nice.

now about those aerodynamically-challenged 6UL wheels... time to make the 0CD (zero coeff of drag, not obsessive compulsive disorder) wheel design...

is this the vvt car you called me about? are dyno plots still top secret?
y8s is offline   Reply With Quote
Old 11-04-2011, 11:28 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by hustler View Post
Cool car, needs more mt.net decals

Braineack is offline   Reply With Quote
Old 11-04-2011, 11:42 AM   #12
Junior Member

Join Date: Aug 2011
Location: Lakeland, FL
Posts: 76
Total Cats: 0
Default

That is the most simple engine bay i have seen in my entire life. looks like a dream to work on.
smbstyle is offline   Reply With Quote
Old 11-04-2011, 11:44 AM   #13
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,324
Total Cats: 1,344
Default

Quote:
Originally Posted by Ben View Post
Beautiful car, Emilio. Your pictures show extreme attention to detail.

Are you running ABS?

I'm also really curious about your motor. Are you going to share your build plan at some point? I'm curious what made 148hp, and on what dyno... and what (if any) combinations you found made more power. I assume you probably don't want to give up certain info before the event, and that's cool too.
Yup, ABS. No brainer for the rain. Also reduces of driver error flat spots in the dry. About .5- .7 sec slower at sprint pace but we almost never need to push that hard in enduros. The abs can be toggled off by the driver and has a brake bias **** next to the radio (not in these pics).

NASA performance touring has two classing options. One which assess a points value for every modification with a 19pt cap to stay within a class. The second classing option allows builders to submit dyno sheets with actual whp and skip adding up points for each mod. When dyno classed, you have a nearly free reign for the engine as long as you stay under your self imposed whp cap. I can tell you that Crusher makes good torque with a broad powerband. Think WRC

We are not a big time pro team but our approach to the challenge of endurance racing is. Thus, we will keep some of the more innovative details of Crusher within the team until we have reached our racing goals.

Last edited by emilio700; 11-05-2011 at 03:18 AM. Reason: F7
emilio700 is offline   Reply With Quote
Old 11-04-2011, 11:56 AM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Crusher is a bad bitch......Very nice indeed.
If I understood your wrc comment correctly than this thing probably has the best n/a miata torque curve imagineable
18psi is offline   Reply With Quote
Old 11-04-2011, 12:08 PM   #15
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by 18psi View Post
If I understood your wrc comment correctly than this thing probably has the best n/a miata torque curve imagineable
I have seen the dyno plot for this car.

I was impressed.

That's all I'm allowed to say.


And yeah, it is a very well put-together piece of machinery. This is the car I did some minor tweaking on the ECU of a few weeks ago, and even though it was still in pieces at the time (no doors / windshield / fenders / etc) you could really tell that all the folks who wrenched on it had done top-notch work. A lot of high-dollar race cars look great from 15 feet away, this one looks great up-close as well.
Joe Perez is offline   Reply With Quote
Old 11-04-2011, 12:17 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by Joe Perez View Post
I have seen the dyno plot for this car.

I was impressed.

That's all I'm allowed to say.
I heard it will make you rethink your entire exisitence.
Braineack is offline   Reply With Quote
Old 11-04-2011, 12:23 PM   #17
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Very nice, and you have my best wishes for competition!
Seefo is offline   Reply With Quote
Old 11-04-2011, 12:50 PM   #18
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Cool stuff!

What AFR's are you running?
JasonC SBB is offline   Reply With Quote
Old 11-04-2011, 12:51 PM   #19
Junior Member
iTrader: (2)

Join Date: Dec 2009
Posts: 127
Total Cats: 4
Default

Quote:
Originally Posted by emilio700 View Post
Yup, ABS. No brainer for the rain. Also reduces of driver error flat spots in the dry. About .5- .7 sec slower at sprint pace but we almost never need to push that hard in enduros. The abs can be toggled off by the driver and has a brake bias **** next to the radio (not in these pics).
I always thought modern day ABS was faster then not having ABS. Given that you guys have a brake bias valve so brake balance is not a issue, how does the ABS make you .5-.7 seconds slower?
AnnorexicRoadster is offline   Reply With Quote
Old 11-04-2011, 12:52 PM   #20
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by y8s View Post
now about those aerodynamically-challenged 6UL wheels... time to make the 0CD (zero coeff of drag, not obsessive compulsive disorder) wheel design...
What will happen to brake cooling?

Quote:
is this the vvt car you called me about? are dyno plots still top secret?
I guess you should use VVT to limit topend power to the rules.
JasonC SBB is offline   Reply With Quote
