Old 11-06-2014, 03:59 PM   #301
Junior Member

Join Date: Dec 2012
Location: Charlotte, NC
Posts: 233
Total Cats: 14
Default

Quote:
Originally Posted by OneTwo View Post
I wonder if these would work. Seem small enough and takes an H7 bulb.

My Hella Lights :: FF 75
I use those in the RX7. Whatever version of them I have was considerably brighter than the factory RX7 lights/bulbs. I even night drove with them through Robbinsville, NC without issue.
Supe is offline   Reply With Quote
Old 11-07-2014, 01:50 PM   #302
Junior Member
iTrader: (2)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 362
Total Cats: 21
Default

Awesome, thanks for the feedback. I have been exchanging a few emails with Blackbird lighting to see what a universal kit would run, but I have a feeling its going to be more than I want to spend.

These Hella's seem like a pretty viable option, especially given the price tag. I did a bit more digging and found that you can increase the light output in the Hella units with some mods too.
OneTwo is offline   Reply With Quote
Old 11-13-2014, 12:34 PM   #303
Junior Member

Join Date: Dec 2012
Location: Akron/Cleveland Ohio
Posts: 155
Total Cats: 0
Default

I pulled the popups on my track car and run El Cheapo autozone plastic driving lights mounted on aluminum brackets. Certainly lighter than the OEM lights, but the light output is pathetic. I don't like driving it at night, they don't throw light very far at all and the pattern sucks. Certainly wouldn't attempt any night time track driving with them, but they are at least DOT and bright enough to not get pulled over, which was really my only intention in case I needed to drive it at night. Those Hellas look pretty nice in comparison.
sbcrx007 is offline   Reply With Quote
Old 02-15-2015, 01:22 PM   #304
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Thread bump.

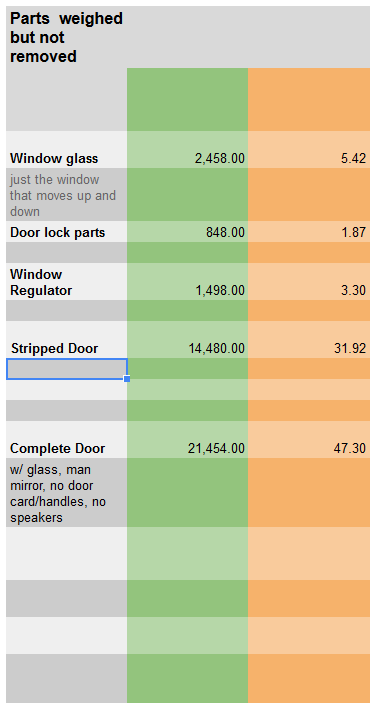

I am replacing my drivers side door after an accident backing out of my garage. I used it as an excuse to get accurate weights for a bunch of door parts:

The car is a '95 with manual windows and manual mirrors

asmasm is offline   Reply With Quote
Old 02-17-2015, 01:02 AM   #305
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

The weight of a door in grams is pretty hard for a reader to visualize thank goodness you included conversion to lbs.

Yeah, even a gutted door is beefy. Much weight to be saved there.

-Ryan
ThePass is offline   Reply With Quote
Old 02-17-2015, 01:40 AM   #306
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Quote:
Originally Posted by ThePass View Post

Yeah, even a gutted door is beefy.

-Ryan

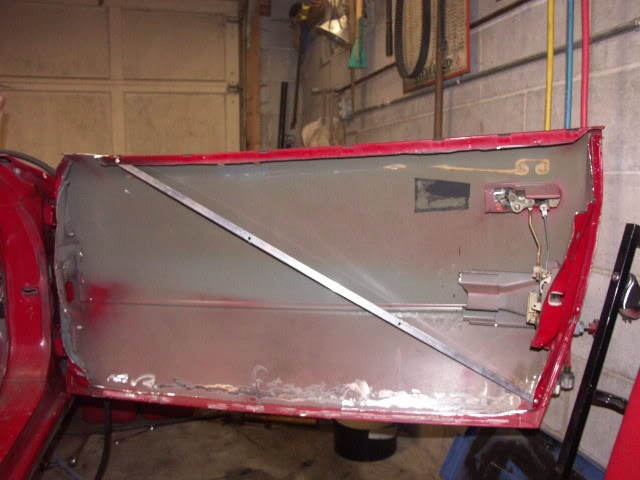

My gutted doors are not beefy
Attached Thumbnails
Where to remove weight from a track only car?-image.jpg
guttedmiata is offline   Reply With Quote
Old 02-17-2015, 01:47 AM   #307
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Definitely less beef. Might be some pork or lamb mixed in with that one.

That's about as drastic as one goes with the oem door. Mind sharing the weight of that one?

-Ryan
ThePass is offline   Reply With Quote
Old 02-17-2015, 12:13 PM   #308
Junior Member

Join Date: Jan 2009
Posts: 173
Total Cats: 28
Default

I'm running the CCP fiberglass doors and according to my highly accurate bathroom scale they were less than 5lb each before I bolted on the latch and hinges, compared to my gutted door that was just over 20lbs each. Though I wouldn't recommend the doors unless you have a full cage, preferably with a NASCAR style door bar as there is no structure in them to protect you.
unk577 is offline   Reply With Quote
Old 02-18-2015, 11:47 PM   #309
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Quote:
Originally Posted by ThePass View Post
Definitely less beef. Might be some pork or lamb mixed in with that one.

That's about as drastic as one goes with the oem door. Mind sharing the weight of that one?

-Ryan
Sorry, no idea.
guttedmiata is offline   Reply With Quote
Old 03-01-2015, 03:52 AM   #310
Senior Member
iTrader: (8)

Join Date: Oct 2010
Posts: 581
Total Cats: 4
Default

So who gor rid of the whole trunk floor ? Did you add some aero work while doing it ?
joyrider is offline   Reply With Quote
Old 03-01-2015, 11:25 AM   #311
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Yeah, 1993somethingsomething has. And some cool aero to boot. Don't have a link right now though.
aidandj is offline   Reply With Quote
Old 03-05-2015, 01:20 AM   #312
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Quote:
Originally Posted by joyrider View Post
So who gor rid of the whole trunk floor ? Did you add some aero work while doing it ?


I haven't weighed it yet but I'd be surprised if the bucket section alone is 5 lbs. The weight seems to be mostly in the boxed sections.
BenR is offline   Reply With Quote
Old 03-05-2015, 01:33 AM   #313
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by aidandj View Post
Yeah, 1993somethingsomething has. And some cool aero to boot. Don't have a link right now though.
post #242

cyotani is offline   Reply With Quote
Old 03-06-2015, 04:13 PM   #314
Junior Member

Join Date: Jan 2009
Posts: 173
Total Cats: 28
Default

Quote:
Originally Posted by joyrider View Post
So who gor rid of the whole trunk floor ? Did you add some aero work while doing it ?
On our 97' chumpcar the trunk floor weighed 9lbs. Replaced it with the thinnest sheet of aluminum(excluding foil) I could find and riveted it in.
unk577 is offline   Reply With Quote
Old 05-11-2015, 12:56 PM   #315
Junior Member

Join Date: Feb 2015
Posts: 67
Total Cats: 1
Default

For a racer or a track only car, do most of you: 1) remove the rear bumper understructure? 2) build a nerf bar out of tube steel? Or, do you run with the factory Aluminum bumper bracing?
speedj is offline   Reply With Quote
Old 05-11-2015, 01:43 PM   #316
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I'm guessing this is an NB, since NAs don't have the aluminum piece.

I'd say leave the factory. Free, requires zero time, lighter than Steel, and won't transmit as much force to the chassis in a smaller impact.
curly is offline   Reply With Quote
Old 05-11-2015, 06:17 PM   #317
Junior Member

Join Date: Mar 2010
Location: Durham, NC
Posts: 406
Total Cats: 19
Default

Racers will leave OEM so they don't cave in the bumper covers in bump drafting. Less important for a HPDE car.
FatKao is offline   Reply With Quote
Old 05-11-2015, 08:11 PM   #318
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,309
Total Cats: 1,328
Default

Quote:
Originally Posted by FatKao View Post
Racers will leave OEM so they don't cave in the bumper covers in bump drafting. Less important for a HPDE car.
Yup. All the SPM's have OEM front and rear bumper supports for "convincing". Our HPDE cars have none.
emilio700 is offline   Reply With Quote
Old 09-28-2015, 06:34 PM   #319
Newb

Join Date: Apr 2010
Posts: 4
Total Cats: 0
Default

Quote:
Originally Posted by ThePass View Post
Does anyone have a reason NOT to go this route?

I wanted to get a lithium battery until I spoke with a Miata racer in COMSCC (summer 2015) who said that his caught ablaze. The fire crew just filled his trunk with water and waited for it to burn out. No serious damage, but he is back to lead. I am not saying it will, but I have not heard of lead on fire.

I read the whole thread, but I did not notice the intake manifold brace. Is that one obvious? I plan not to remove but drill it. I am in the camp that it must have some useful purpose even for track cars.

I am putting my DE NB on a diet this off season. I have been pondering what is truly necessary for me and it is enlightening.
proctorsilex is offline   Reply With Quote
Old 09-28-2015, 09:04 PM   #320
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Drilling the intake manifold brace is probably a waste of time. I weighed it at 1.72lb when I removed it. Best case scenario from drilling it you remove .5 lb.
asmasm is offline   Reply With Quote
