Old 10-31-2012, 03:33 PM   #221
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,109
Total Cats: 48
Default

how are you guys opening the doors when you gut them out, are you making a bracket to hold the door handle and support the linkage ?
ctdrftna is offline   Reply With Quote
Old 10-31-2012, 03:40 PM   #222
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Plastic coated steel wire and u-bolts. Run them from the latch towards the front of the door. Simplest solution
Oscar is offline   Reply With Quote
Old 10-31-2012, 04:17 PM   #223
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,109
Total Cats: 48
Default

picture of this ?
ctdrftna is offline   Reply With Quote
Old 10-31-2012, 04:26 PM   #224
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,109
Total Cats: 48
Default

nevermind , used google
Attached Thumbnails
Where to remove weight from a track only car?-door_frame2.jpg
ctdrftna is offline   Reply With Quote
Old 10-31-2012, 06:06 PM   #225
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by ctdrftna View Post
how are you guys opening the doors when you gut them out, are you making a bracket to hold the door handle and support the linkage ?
Bluetooth.
hustler is offline   Reply With Quote
Old 12-05-2012, 02:59 AM   #226
Junior Member
iTrader: (2)

Join Date: Jun 2008
Posts: 121
Total Cats: 4
Default

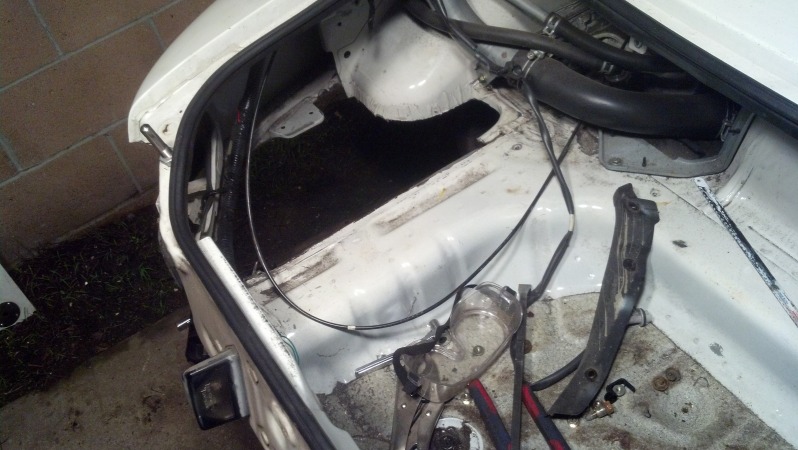

I'll weigh it tmrw, but its a few pounds - maybe 4-5? Its the jack hole I'll replace with a flat piece of tiny gauge sheet metal and chop off that little bracket still there. Just a little weigh loss thought for those on the "quest". I am thinking about cutting the trunk "scoop" pan out too and doing some very thin gauge stuff there too. Keep the frame rails and build a small piece for the wing mount.
Attached Thumbnails
Where to remove weight from a track only car?-34rzo5z.jpg
Mr. Wob is offline   Reply With Quote
Old 12-07-2012, 09:46 PM   #227
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Nice Mr. Wob. I'm considering doing that once I find out if it's allowed in my class. Update when you have the weight of the removed section. Are you going to weld or rivet the new sheet in?
ThePass is offline   Reply With Quote
Old 01-01-2013, 04:16 AM   #228
Newb

Join Date: Mar 2010
Location: Sulphur, La
Posts: 15
Total Cats: 0
Default

Curious of weight reduction of a lot of these aero things. I was debating riveting in CF in the trunk dip, but didn't know if there is any flex in the area.
nuwing is offline   Reply With Quote
Old 01-07-2013, 11:17 AM   #229
Junior Member

Join Date: Jul 2012
Location: Campbell, CA
Posts: 65
Total Cats: 0
Default

I've seen the trunk floor replaced with lightweight sheet-metal on Miata race cars over at TC Design Fab, looks like a legitimate way to go, at least for "XP" class Auto-X.
Ski_Lover is offline   Reply With Quote
Old 02-23-2013, 07:34 PM   #230
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,904
Total Cats: 109
Default

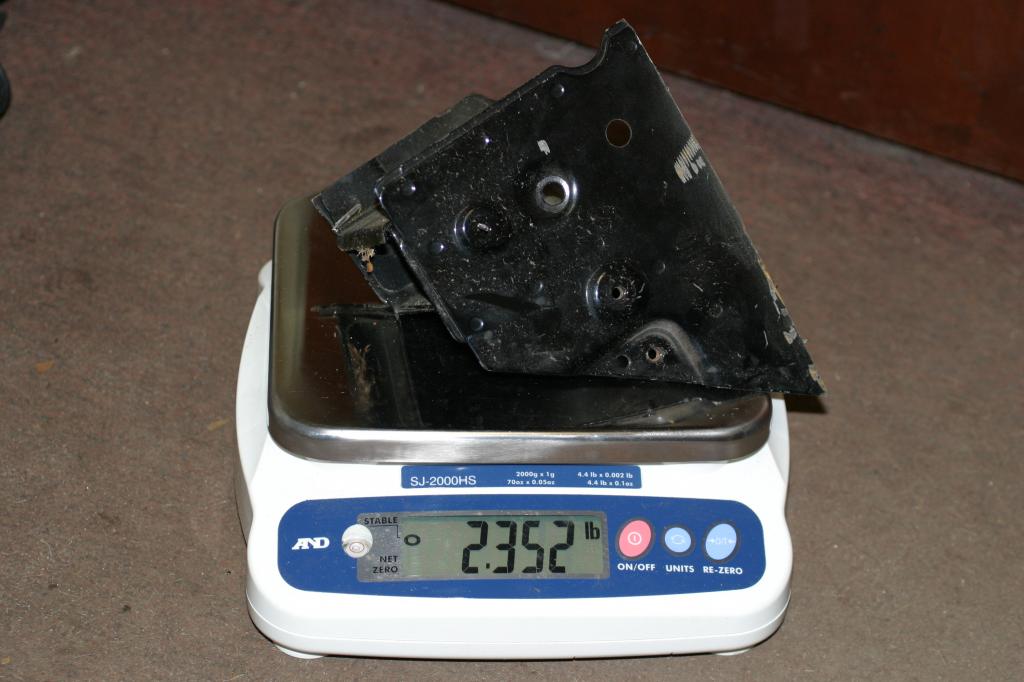

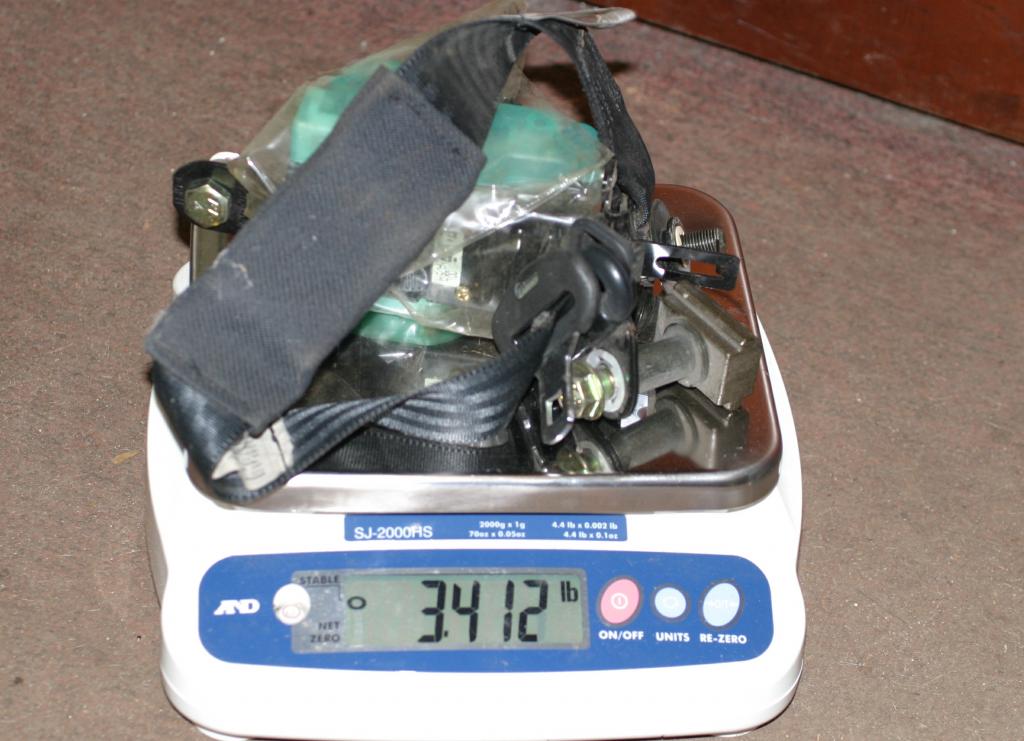

This is what I netted from removing the seat belts and seat belt towers.

A total of about 11.5 pounds


Attached Thumbnails
Where to remove weight from a track only car?-img_7225_zps690eff66.jpg   Where to remove weight from a track only car?-2013-02-23214200_zps129349bd.jpg
miata2fast is online now   Reply With Quote
Old 02-23-2013, 08:32 PM   #231
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Quote:
Originally Posted by Ski_Lover View Post
I've seen the trunk floor replaced with lightweight sheet-metal on Miata race cars over at TC Design Fab, looks like a legitimate way to go, at least for "XP" class Auto-X.
The way to go for XP would be no trunk floor at all. Don't know why you'd replace it with anything when it's not required.
guttedmiata is offline   Reply With Quote
Old 11-28-2013, 06:45 PM   #232
Junior Member

Join Date: Dec 2010
Location: Greenville SC
Posts: 87
Total Cats: 0
Default

This is dang long thread, and I surely haven't read all eleventy hunderd pages, so ya'll forgive me if this has been mentioned already.

My buddy FourEagles is a Colin Chapman disciple. He has "added lightness" to his 90 Miata in the most unusual ways. He drilled holes in his ignition switch key. Drilled holes in his bell housing. Dang, he's got holes in his hood and trunk braces. Course he also took out heavy stuff like his convertible top. His, street driven stock engine car could run with my stock weight, m45 powered 91 just due to his lower curb weight.
Another buddy, an ex motorcycle racer, worked on my track car years ago for a full Saturday. Nothing he took out was huge, but at the end of the day he had 18 pounds worth of crap in a box that was ends of long bolts, excess wires, scrapped off undercoating, unused brackets, light bulbs etc etc. Real silly stuff, I thought, until I saw the total weight he had accumulated.

Made me a believer in the back packer philosophy of ounces makes pounds.
Team DNR is offline   Reply With Quote
Old 11-28-2013, 06:49 PM   #233
Junior Member

Join Date: Dec 2010
Location: Greenville SC
Posts: 87
Total Cats: 0
Default

Quote:
Originally Posted by Mr. Wob View Post


I'll weigh it tmrw, but its a few pounds - maybe 4-5? .
While you were cutting that bracket out, did you ever wonder how much that piece of sound deadener (asphalt? visible in the picture) stuck to the bottom weighs?

Last edited by Team DNR; 11-28-2013 at 06:51 PM. Reason: typo
Team DNR is offline   Reply With Quote
Old 12-02-2013, 04:28 PM   #234
Newb

Join Date: Feb 2013
Posts: 31
Total Cats: 0
Default

Great read so far. Has anyone thought of cutting all of the brackets underneath the dash or what about cutting away the rear quarter and replacing it with an aftermarket over?
WeebleWobble is offline   Reply With Quote
Old 12-02-2013, 05:31 PM   #235
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,904
Total Cats: 109
Default

Quote:
Originally Posted by Team DNR View Post
While you were cutting that bracket out, did you ever wonder how much that piece of sound deadener (asphalt? visible in the picture) stuck to the bottom weighs?
When you combine it with the same tar that is on the inside fire wall and the drain plugs in the interior floor, it is a pretty good sized wad of tar. It is worth going after.

Using a heat gun and various sized scrapers makes pretty quick work of removing it.
miata2fast is online now   Reply With Quote
Old 12-03-2013, 11:17 AM   #236
Junior Member

Join Date: Dec 2010
Location: Greenville SC
Posts: 87
Total Cats: 0
Default

Quote:
Originally Posted by WeebleWobble View Post
Great read so far. Has anyone thought of cutting all of the brackets underneath the dash or what about cutting away the rear quarter and replacing it with an aftermarket over?
We've cut out the rear quarters and put a fiberglass overlay panel on. Primary purpose of this was to get the wider track (+4"), and cover the slicks, but with the thin race fiberglass vs the steel we removed it has to weigh less - I just didn't thnk to do this while we were modding the car.
Team DNR is offline   Reply With Quote
Old 12-03-2013, 11:22 AM   #237
Junior Member

Join Date: Dec 2010
Location: Greenville SC
Posts: 87
Total Cats: 0
Default

Quote:
Originally Posted by miata2fast View Post
When you combine it with the same tar that is on the inside fire wall and the drain plugs in the interior floor, it is a pretty good sized wad of tar. It is worth going after.
This is really reaching for small gains, but another place is the chip guard on the lower sides of the car. Obviously, this is mainly worth while if you are going to be repainting the car.

To go totally nuts, strip the tub, and dip it to remove all caulk and sound deadener that Mazda put on the thing. While it is naked, you can seam weld it too! I did it for my Prod car, but kick myself for not doing a before and after weight to see what we did.

Last edited by Team DNR; 12-03-2013 at 11:23 AM. Reason: Editing by Forum
Team DNR is offline   Reply With Quote
Old 12-03-2013, 07:14 PM   #238
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,904
Total Cats: 109
Default

I spent a whole month stripping every bit of seam sealer and undercoating on the car. Someone told me it cost them $1,900.00 to do it chemically. It seems like a lot until you try to do it manually. If I ever do this again, I am going to pony up and pay to have it done.
miata2fast is online now   Reply With Quote
Old 12-04-2013, 12:02 AM   #239
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

Quote:
Originally Posted by Team DNR View Post
To go totally nuts, strip the tub, and dip it to remove all caulk and sound deadener that Mazda put on the thing. While it is naked, you can seam weld it too!
Emilio did it on one of his cars too, if I remember correctly the tub lost ~30lbs. Maybe he can chime in with the exact figure.
Rennkafer is offline   Reply With Quote
Old 12-04-2013, 01:45 AM   #240
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Problem is, there's some areas that I want silicone, undercoating, etc. so if you strip it all off, you'll be adding it back to certain areas later. Nice thing about it though is having a bare tub to weld to without having to prep for hours first..

-Ryan
ThePass is offline   Reply With Quote
