Old 04-05-2016, 12:53 AM   #121
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,473
Total Cats: 114
Default

guys drilling out the front upper urethane to 7/8" hows that been working out? should the drill bit be slightly under size to ensure tight fit? I'm thinking of doing it to some front uppers.
bbundy is offline   Reply With Quote
Old 04-05-2016, 12:54 AM   #122
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,919
Total Cats: 1,433
Default

Pretty sure Sean drill them out on the lathe with a 7/8s bit. But wait for him to respond.
aidandj is offline   Reply With Quote
Old 04-05-2016, 09:46 AM   #123
Junior Member
iTrader: (4)

Join Date: Oct 2012
Posts: 89
Total Cats: 8
Default

949 site says the ES bushings are 88A except for the front uppers which they say are 95A. Thinking I've seen that somewhere else too but don't remember where off hand. I've used Prothane and ES both and don't really recall any real difference but didn't do them both at the same time.

https://949racing.com/energy-suspens...ngs-miata.aspx

I'm also getting ready to drill out my front uppers for the bushings so am in for any tips. Think freezing them was mentioned along with using a lathe for higher speed.
julio is offline   Reply With Quote
Old 04-05-2016, 10:33 AM   #124
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,833
Total Cats: 561
Default

Quote:
Originally Posted by bbundy View Post
guys drilling out the front upper urethane to 7/8" hows that been working out? should the drill bit be slightly under size to ensure tight fit? I'm thinking of doing it to some front uppers.
I have yet to do any Miata bushings, but I have some universal ES bushings ive experimented with. New sharp bit, highest spindle speed you have, 1200rpm has worked ok for me. Use a 7/8" bit, since the poly deflects so much it will drill out slightly undersized anyway. And if it didn't, they crush a little when you install them since they are 0.010" oversized, so the ID will shrink anyway.

Quote:
Originally Posted by julio View Post
I'm also getting ready to drill out my front uppers for the bushings so am in for any tips. Think freezing them was mentioned along with using a lathe for higher speed.
I havnt tried it yet, but I think freezing them is a good idea. You almost have to use a lathe, as there is no other good way to hold it without it distorting, like in a vise; and you need to hold it true to the drill axis.
hi_im_sean is offline   Reply With Quote
Old 04-05-2016, 10:36 AM   #125
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,919
Total Cats: 1,433
Default

You could use a drill press if you wanted to I bet.
aidandj is offline   Reply With Quote
Old 04-05-2016, 11:14 AM   #126
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

You gonna hold it in a lathe chuck in a drill press? Either that or you need someone to mill you some soft jaws, maybe some steel pipe nipples...
deezums is offline   Reply With Quote
Old 04-05-2016, 11:18 AM   #127
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,919
Total Cats: 1,433
Default

I would actually suggest doing it in the control arm. Or buying some pipe. Press it in. Freeze it. Drill it.
aidandj is offline   Reply With Quote
Old 04-06-2016, 07:33 PM   #128
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,119
Total Cats: 256
Default

Making sleeves out of pipe makes sense to me.
Mobius is offline   Reply With Quote
Old 04-06-2016, 07:33 PM   #129
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,919
Total Cats: 1,433
Default

This is pure speculation and by no means a tested idea. Just how I thought about doing it.
aidandj is offline   Reply With Quote
Old 04-07-2016, 12:50 PM   #130
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Whatever I used to pull my rubbers out was a super snug fit on the rubber bushings, I think I already posted the picture a page or so ago.

I also don't think freezing it in a home fridge is going to do much of anything. You need nitrogen or dry ice at the least.
deezums is offline   Reply With Quote
Old 04-07-2016, 12:51 PM   #131
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,919
Total Cats: 1,433
Default

Someone do it for science.
aidandj is offline   Reply With Quote
Old 04-07-2016, 01:01 PM   #132
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,833
Total Cats: 561
Default

I will when i have science time
hi_im_sean is offline   Reply With Quote
Old 04-07-2016, 10:24 PM   #133
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,473
Total Cats: 114
Default

More info on sleeve diameter questions. after loking at cast in part numbers on my V8r bushings comparing the font and number scheme I think they are Prothane not ES. question is does anybody know the sleeve diameters for the Prothane miata Kit? if they are like the V8r they are all 7/8"
bbundy is offline   Reply With Quote
Old 04-07-2016, 10:30 PM   #134
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,833
Total Cats: 561
Default

Quote:
Originally Posted by bbundy View Post
More info on sleeve diameter questions. after loking at cast in part numbers on my V8r bushings comparing the font and number scheme I think they are Prothane not ES. question is does anybody know the sleeve diameters for the Prothane miata Kit? if they are like the V8r they are all 7/8"
Prothane kit
RUCA-O: 0.750"
FUCA: 0.813"
Everything else: 0.875"

ES is the same
hi_im_sean is offline   Reply With Quote
Old 04-08-2016, 01:56 AM   #135
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,473
Total Cats: 114
Default

Quote:
Originally Posted by hi_im_sean View Post
Prothane kit
RUCA-O: 0.750"
FUCA: 0.813"
Everything else: 0.875"

ES is the same
dam. .813 how the hell did an engineer arrive at that size? Hm how much can be forced in there I wonder. Urathane is not really soft though.

off the shelf Whiteline FUCA 7/8" $63 for just the front uppers from summit. not exactly a cheap addition.

Whiteline W52208A Control arm - upper inner bushing
bbundy is offline   Reply With Quote
Old 04-08-2016, 11:58 AM   #136
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,833
Total Cats: 561
Default

Quote:
Originally Posted by bbundy View Post
dam. .813 how the hell did an engineer arrive at that size? Hm how much can be forced in there I wonder. Urathane is not really soft though.

off the shelf Whiteline FUCA 7/8" $63 for just the front uppers from summit. not exactly a cheap addition.

Whiteline W52208A Control arm - upper inner bushing
No idea who the hell came up with that, Id guess it wasn't an Enginear (lol). More than likely, it was a bushing already in existance from another platform that they reused so they didn't have to make new molds... or something.

To complicate the issue, that location happens to have the largest pivot bolt in the car at 15mm, so its also the smallest wall thickness sleeve. For the poly retrofit guys, using a 0.750" sleeve, its running on the ragged edge of wall thickness at about 0.080". Must use high tensile material there. 4130 drawn tubing has worked great so far. No need to tighten that bolt past 40lb ft.
hi_im_sean is offline   Reply With Quote
Old 04-08-2016, 08:38 PM   #137
afm
Senior Member
iTrader: (3)

Join Date: Nov 2015
Location: Berkeley, CA
Posts: 566
Total Cats: 54
Default

I'm running Delrin in my FUCAs now (mega FSM torque specs have nothing on the nice ~9/64" thick cr-mo sleeve), so I will try enlarging my unused FUCA ES bushings this weekend with:
- freezer
- 7/8" drill bits
- size G hand reamer

I think the drill bits will work fine. I have spare SAE 863 bushings, so I'll just enlarge the hole enough to get a nice tight fit on the bronze.
afm is offline   Reply With Quote
Old 04-10-2016, 12:50 AM   #138
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 419
Total Cats: 8
Default

just a little update. i installed the rest of my bronze kit and i now bottom out HARD. time to increase the springs another 100 lbs. 900/600 or just cut the bs and do 1000/700?
Twibs415 is offline   Reply With Quote
Old 04-10-2016, 09:45 AM   #139
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,833
Total Cats: 561
Default

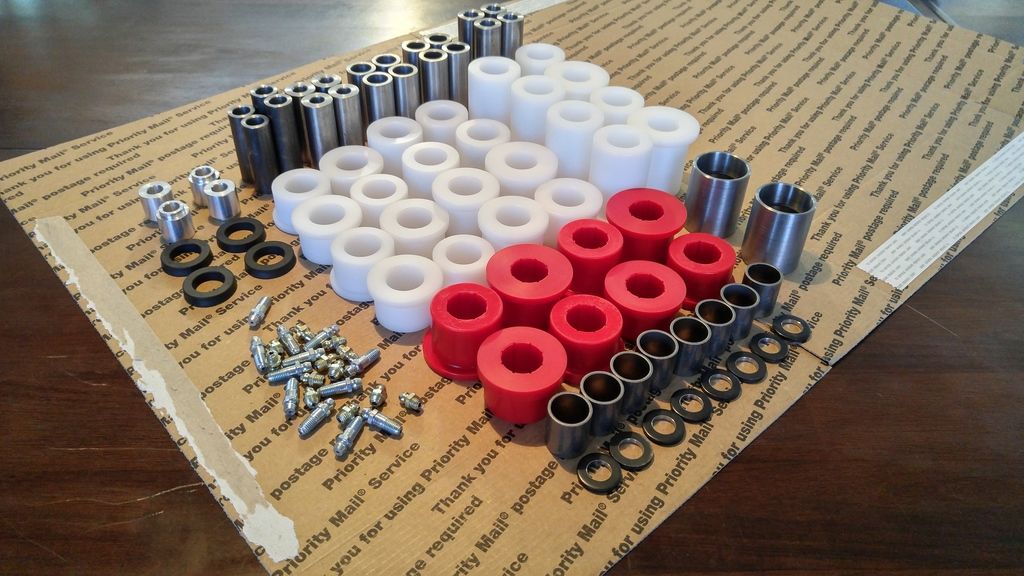

Attached Thumbnails
The Miata Bushing MEGAthread: Heirarchy, DIY delrin dimensions, info and discussion-80-20160409_163109_hdr_zpszew2yttl_91e161e19aec325f1a94ee3503f224883e2c8d41.jpg
hi_im_sean is offline   Reply With Quote
Old 04-11-2016, 06:51 PM   #140
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Quote:
Originally Posted by hi_im_sean View Post
No idea who the hell came up with that, Id guess it wasn't an Enginear (lol). More than likely, it was a bushing already in existance from another platform that they reused so they didn't have to make new molds... or something.

To complicate the issue, that location happens to have the largest pivot bolt in the car at 15mm, so its also the smallest wall thickness sleeve. For the poly retrofit guys, using a 0.750" sleeve, its running on the ragged edge of wall thickness at about 0.080". Must use high tensile material there. 4130 drawn tubing has worked great so far. No need to tighten that bolt past 40lb ft.
Part of the reason why I just made new bushings out of aluminum for that spot.
Leafy is offline   Reply With Quote
