The Miata Bushing MEGAthread: Heirarchy, DIY delrin dimensions, info and discussion

Suspension, Brakes, Drivetrain discuss the wondrous effects of boost and your miata...
Sponsored by:
Sponsored by:

The Miata Bushing MEGAthread: Heirarchy, DIY delrin dimensions, info and discussion


Old 05-08-2016, 11:49 PM
  #161
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,473
Total Cats: 1,621
Default

Originally Posted by Arca_ex View Post
Hey speak for yourself mine is only like 86dB at 50ft wide open throttle lol.
Originally Posted by Arca_ex View Post
my car is a purpose built race car and NVH is already abysmal
o'rly?
aidandj is offline
Old 05-09-2016, 12:00 AM
  #162
idiotloserfuckfacegarbo
iTrader: (13)

Join Date: Sep 2010
Posts: 2,004
Total Cats: -104
Default

Originally Posted by aidandj View Post
Hopefully thumpetto will give us a good idea of them in a fully loaded car.
I'll try my best!

Fully loaded it is!!! 2445 pounds without the hardtop, or rollbar, or supercharger/piping, or driver Although, I have been talking with carbon miata...

I'm so jealous of the 2000 pound miatas out there
thumpetto007 is offline
Old 05-09-2016, 12:34 AM
  #163
Newb

Join Date: Apr 2016
Posts: 13
Total Cats: 0
Default

These will be going in with 10kg front and 6kg rear MCA XR with dampers set pretty stiff. And I use a bucket seat. So comfort isn't a huge concern for me, mind you I think the sparco sprint series is actually better than the factory seat for comfort 😕.
Besides, second car on the way for daily duties. Any one got comments on wear? Not that I'm worried. More curious what to budget for for replacement.
ED_MX5 is offline
Old 05-09-2016, 01:50 AM
  #164
Senior Member
iTrader: (1)

Join Date: Jan 2013
Location: Chandler, AZ
Posts: 926
Total Cats: 141
Default

Originally Posted by aidandj View Post
o'rly?
Yeah.

Vibration/Harshness is pretty bad but it's not anywhere near as loud and obnoxious as most Miata track cars.
Arca_ex is offline
Old 05-16-2016, 01:02 PM
  #165
Senior Member

Join Date: Jun 2015
Location: TAMPA, FL
Posts: 784
Total Cats: 18
Default

My wife has said that I can have xidas once the car is running. The car is still running the OEM bushings from 1997. Should I upgrade to these fancy bushings at the same time since I'll have the car up on jackstands anyway? Also, how DIYable is this? I have hand tools, air tools but that's about it.

This is mostly a street car with occasional track.
AlwaysBroken is offline
Old 05-16-2016, 01:04 PM
  #166
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,473
Total Cats: 1,621
Default

You should upgrade bushings at the same time, there are a variety of good choices out on the market that will perform significantly better than your OEM rubbers.

A press is a godsend with delrin bushings, not sure I would try it without one.

Otherwise all you need is a 1/2 chuck corded drill, the right size drill bit for boring out the bushings, and a 1/4-28 tap.

I would not hesitate to run delrin bushings on a street car.

Last edited by aidandj; 05-16-2016 at 02:26 PM.
aidandj is offline
Old 05-16-2016, 02:02 PM
  #167
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,501
Total Cats: 1,040
Default

Originally Posted by aidandj View Post
You should upgrade bushings at the same time, there are a variety of good choices out on the market that will perform significantly better than your OEM rubbers.

A press is a godsend with delrin bushings, not sure I would try it without one.

Otherwise all you need is a 1/2 chuck corded drill and a 1/4-20 tap.

I would not hesitate to run delrin bushings on a street car.
1/4-28

And you will need a press
hi_im_sean is offline
Old 05-16-2016, 02:51 PM
  #168
Senior Member

Join Date: Jun 2015
Location: TAMPA, FL
Posts: 784
Total Cats: 18
Default

Well the wife handed me a pile of harbor freight coupons this morning, it must be a sign from god to buy a press.
AlwaysBroken is offline
Old 05-16-2016, 03:01 PM
  #169
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,473
Total Cats: 1,621
Default

aidandj is offline
Reply
Leave a poscat -1 Leave a negcat
Old 05-17-2016, 05:22 AM
  #170
Junior Member

Join Date: Jul 2014
Location: Canberra, sort of
Posts: 286
Total Cats: 14
Default

Originally Posted by aidandj View Post
A press is a godsend with delrin bushings, not sure I would try it without one.
Originally Posted by hi_im_sean View Post
And you will need a press
I did my SADFAB ones with a vice, easy peasy. YMMV.
Gee Emm is offline
Old 05-20-2016, 02:55 PM
  #171
Senior Member

Join Date: Jun 2015
Location: TAMPA, FL
Posts: 784
Total Cats: 18
Default

I have a pretty big vice which looks like it could function in place of a press.

Does the sadfab Full Enchilada kit include everything one one would need to go from OEM to completely optimal?

Cut and paste from sadfab:
Full Enchilada
Delrin + LCA bronze + Spherical + LCA poly Kit
$610
AlwaysBroken is offline
Old 05-20-2016, 03:10 PM
  #172
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,473
Total Cats: 1,621
Default

Yes. A few tools will also be needed.

1/4-28 tap and matching drill bit.
1/2" chuck corded drill
7/8" drill bit.

Last edited by aidandj; 05-20-2016 at 03:38 PM.
aidandj is offline
Old 05-20-2016, 04:43 PM
  #173
afm
Senior Member
iTrader: (3)

Join Date: Nov 2015
Location: Berkeley, CA
Posts: 802
Total Cats: 252
Default

Originally Posted by AlwaysBroken View Post
I have a pretty big vice which looks like it could function in place of a press.

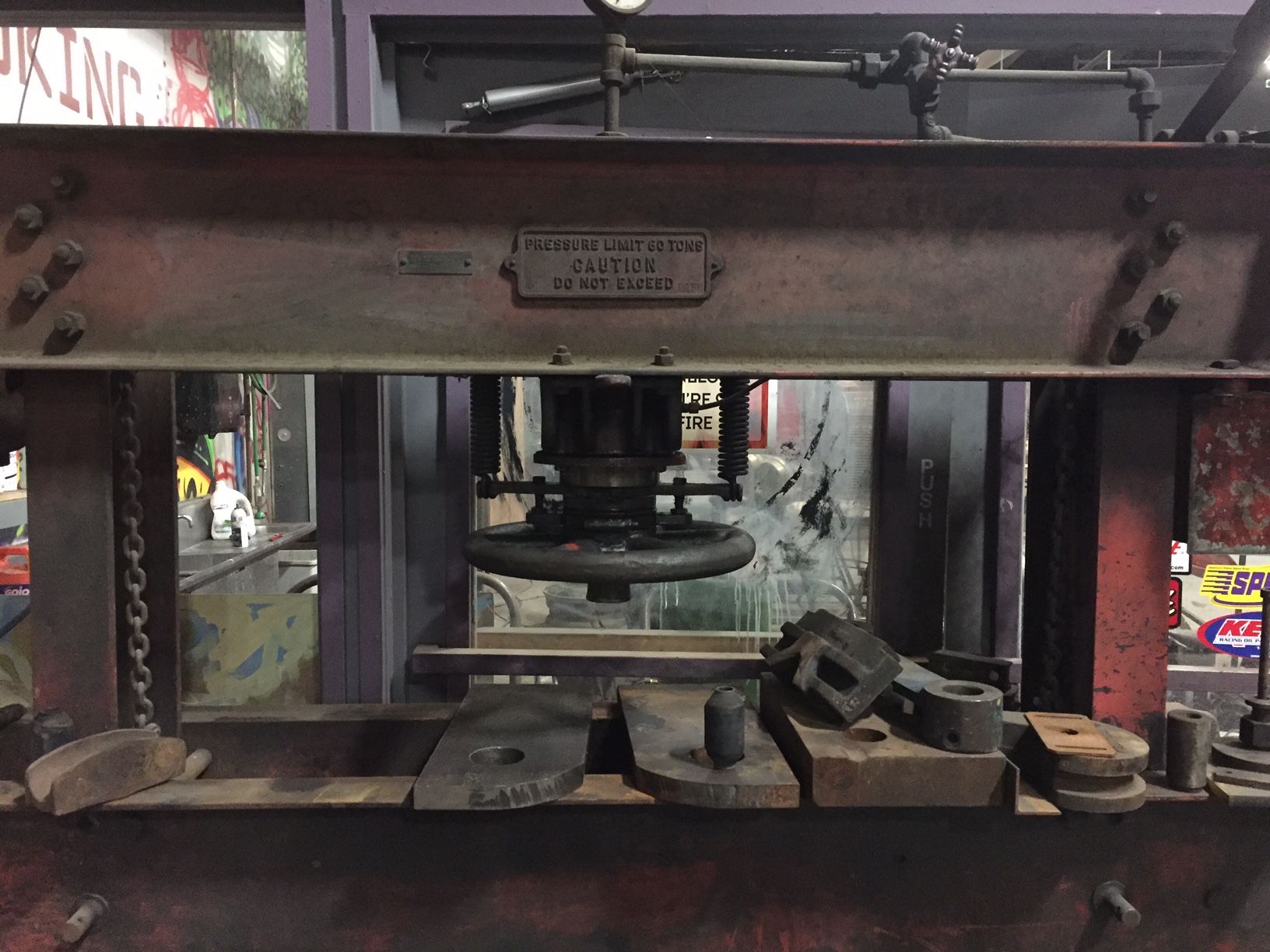

I found my vice (6" wide jaws) to be faster and easier to install the Delrins, even though I have this guy to use:



Big pic, but the press won't fit in fewer pixels.
Attached Thumbnails The Miata Bushing MEGAthread: Heirarchy, DIY delrin dimensions, info and discussion-80-img_1143_2a8d438ef3c176751085c9c2b5248823ad47d9d7.jpg
afm is offline
Old 05-26-2016, 08:52 PM
  #174
Senior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 627
Total Cats: 60
Default

Quick question for you guys. How tight should the rear knuckle be against the lower delrin bushings? The bushings are pressed in all the way but the knuckle would not go on.

*This is after I realized that I had pressed one side in wrong by installing the bushings from the outside in instead of inside out. I was pressing in the other side and started thinking, "what the hell is retaining the bushing with this arrangement?" Yes, I went full retard*

After taking care of that little mishap I went to get the knuckle in and it was filing off the delrin from the face of the bushings. I took a block sander and shaved off some material from both sides. It went in without too much grief but it is still rather tight. You have to really manipulate the knuckle in order for it to move. How much stiction should this thing have? I stopped sanding it thinking it would wear in and of course since I can still take more material off but not put it back on. Duh!

BTW, I bought this to replace my Prothane kit. Which after three years, no maintenance, but only 12k miles or so, it did not bind or squeak or deteriorate. Maybe sub-tropical weather conditions are kind to polyurethane.

And thanks for taking the time to put this kit together. While my experience with poly was not negative, I can definitely see the new bushings being superior. And of course, having a thousand zerk fittings for maintenance will make them superior for longer.
hector is offline
Old 05-26-2016, 09:20 PM
  #175
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,501
Total Cats: 1,040
Default The Miata Bushing MEGAthread: Heirarchy, DIY delrin dimensions, info and discussion

Having recently done my third install, Im noticing there is variation of up to a mm, in spacing between the bushing bores of the RLCA-O. I have recently relaxed the flange size a little because a few people, including me on 1 car, have had the issue you describe. The fix is to do exactly what you did, I used an 80 grit block on the last car i installed these in. They should be tight in any case, and they will wear in, so I wouldnt be to worried about the current level of stiction.

Edit- did you check for burs and weld blobs on the edge of the bushing bore where the flange seats? Every other rlca I've done needed some file work there.

Last edited by hi_im_sean; 05-26-2016 at 09:36 PM.
hi_im_sean is offline
Old 05-26-2016, 09:39 PM
  #176
Senior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 627
Total Cats: 60
Default

Yes the bushing bore edges were flat. Something tells me I took care of this when I swapped in poly many moons ago.
hector is offline
Old 06-01-2016, 02:26 PM
  #177
Supporting Vendor

SADFab's Avatar

Join Date: Apr 2016
Posts: 97
Total Cats: 37
Default

We are now a supporting vendor of Miataturbo! Contact us for any information about the bushing kits. We can help you figure out how to make your own, or build something for you if you don't have the means yourself.
SADFab is offline
Old 06-19-2016, 08:26 PM
  #178
Newb

Join Date: Oct 2014
Posts: 25
Total Cats: -11
Default

How tight should the inner steel bushings in the Energy urethanes be? I went to re-lube for the first time and had to drive the inner sleeve out with a sledge and steel pin. Cleaned out all the old lube, polished the steel sleeve to a mirror finish, lubed it and reinstalled. It still required a hammer and drift, but not quite as bad as removing. This normal, or can you guys finger press the sleeves in after re-lubing?
MX5JER is offline
Old 06-19-2016, 11:42 PM
  #179
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,501
Total Cats: 1,040
Default

Yes its normal, but not desirable. That issue is the basis of this thread, did you read it at all?
hi_im_sean is offline
Old 06-20-2016, 01:33 AM
  #180
Newb

Join Date: Oct 2014
Posts: 25
Total Cats: -11
Default

Ummm, I have now, and thanks for answering. The bronze over steel conversion kits -- did you ever start doing the exchange thing for the front bushings that needed drilling? Also, do you only sell the entire package, or can we buy piecemeal?
MX5JER is offline
