Post your DIY aero pics


Old 05-25-2012, 08:33 PM
  #101
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,673
Total Cats: 635
Default

Its for heat evacuation. Heat's shoved in the front, through your awesome ducting, through your awesome radiator, then it sits in the engine bay, eventually finding it's way past the engine, below the firewall, and out past the transmission and exhaust somewhere.

The extraction vents are hopefully placed in a lower pressure zone of the hood, meaning the aero over the vents "suck" the heat out directly after it's past through the radiator.

That's a layman's explanation anyways, bottom line is it works.
curly is offline
Old 05-25-2012, 08:58 PM
  #102
Newb
iTrader: (1)

Join Date: Jul 2011
Posts: 16
Total Cats: 0
Default

Originally Posted by curly View Post
Its for heat evacuation. Heat's shoved in the front, through your awesome ducting, through your awesome radiator, then it sits in the engine bay, eventually finding it's way past the engine, below the firewall, and out past the transmission and exhaust somewhere.

The extraction vents are hopefully placed in a lower pressure zone of the hood, meaning the aero over the vents "suck" the heat out directly after it's past through the radiator.

That's a layman's explanation anyways, bottom line is it works.

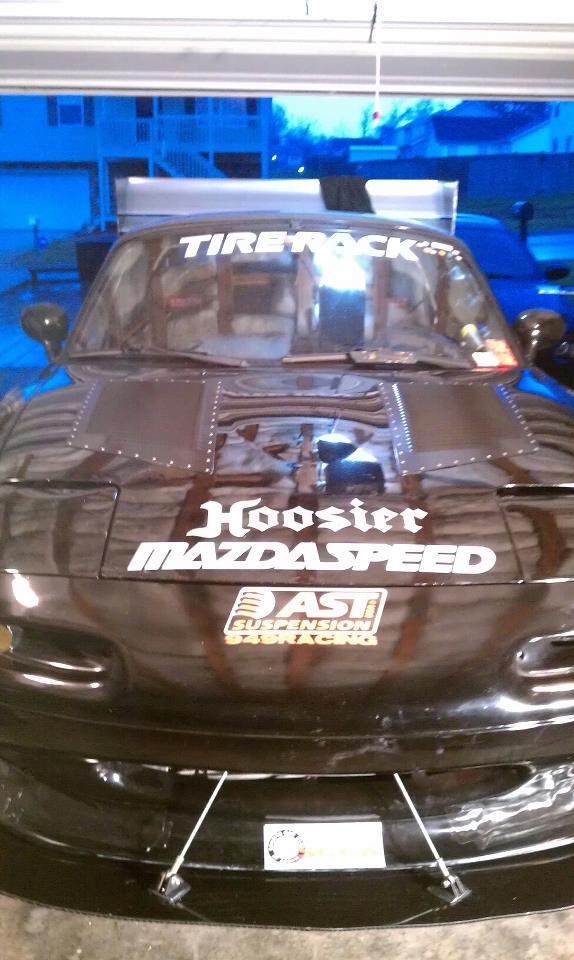

(The extraction vents are hopefully placed in a lower pressure zone of the hood) when i first saw them thats what I thought there's no way to know if where they are located will help heat/ air expulsion, there is, was a guy on here that put on, what to me looked like the most useful vents ive ever seen
https://www.miataturbo.net/attachmen...ine=1328449248
mikaelhgn is offline
Old 05-26-2012, 04:41 AM
  #103
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,378
Total Cats: 60
Default

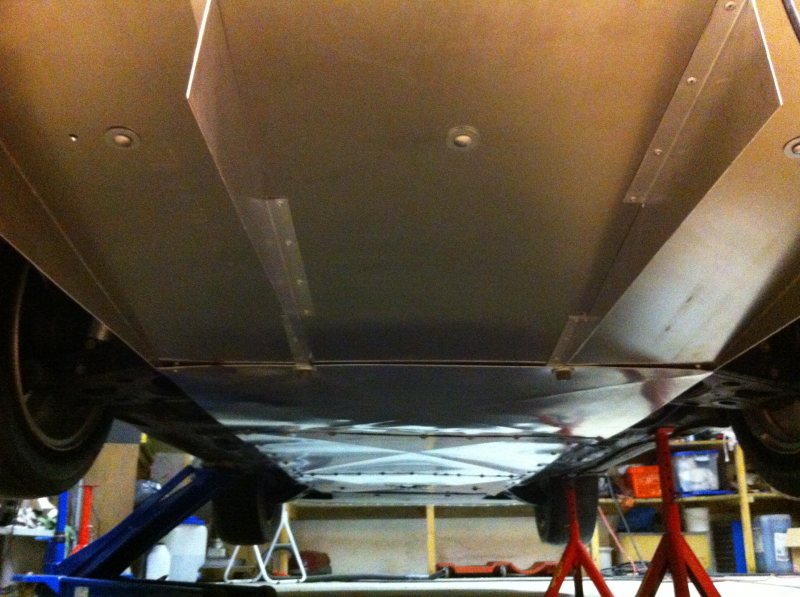

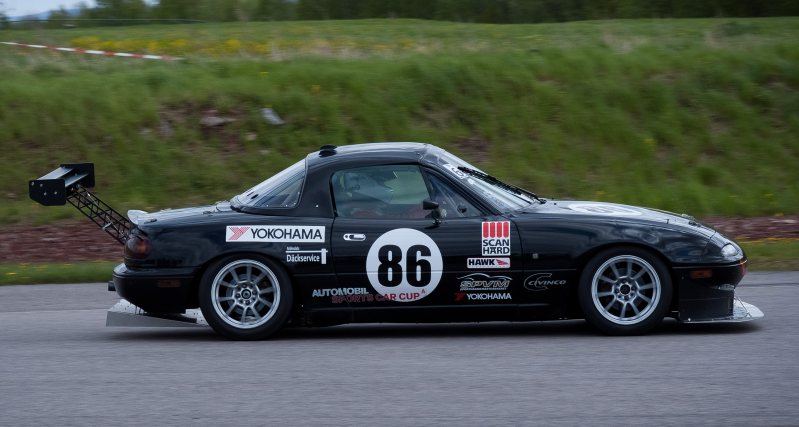

Just for kicks, the homemade aero of a frieds. It's "a bit understeered" at the moment

Attached Thumbnails Post your DIY aero pics-h_pihl_side-view.jpg   Post your DIY aero pics-h_pihl_flat_floor.jpg
NiklasFalk is offline
Old 05-26-2012, 09:21 AM
  #104
573
Junior Member
iTrader: (2)

573's Avatar

Join Date: Nov 2011
Location: Troy, Michigan
Posts: 252
Total Cats: 16
Default

What's the point of putting the wing so far back? I understand the whole clean air thing, but wouldn't placing the wing that far back cause the rear wheels to act like a fulcrum and lighten the front?
573 is offline
Old 05-26-2012, 03:20 PM
  #105
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 18
Default

Originally Posted by 573 View Post
What's the point of putting the wing so far back? I understand the whole clean air thing, but wouldn't placing the wing that far back cause the rear wheels to act like a fulcrum and lighten the front?
Yes, it will lighten the front, but it also can work synergistically with the diffuser and reduce drag. Of course its impossible to know if its actually doing so without good testing.

TBH I'm surprised the whatever sanctioning body he's under allows it to be so far back. Most require a wing not extend rearward past the body.
Handy Man is offline
Old 05-26-2012, 03:27 PM
  #106
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 798
Total Cats: 25
Default

He did say it was a bit 'understeered'. If you level the wing out, you could probably get the proper downforce with less drag than a wing mounted over the wheels with a stronger AOT. Does that pass the physics 101 sniff test?
mr_hyde is offline
Old 05-26-2012, 04:25 PM
  #107
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Posts: 1,582
Total Cats: 18
Default

Originally Posted by NiklasFalk View Post
neat underbody
what's being done about exhaust, diff, and trans heat?
rccote is offline
Old 05-26-2012, 04:57 PM
  #108
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

Originally Posted by 573 View Post
What's the point of putting the wing so far back? I understand the whole clean air thing, but wouldn't placing the wing that far back cause the rear wheels to act like a fulcrum and lighten the front?
The wing has a low pressure region underneath it that works strongly on the airflow behind the car.
motormechanic is offline
Old 05-26-2012, 06:29 PM
  #109
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,378
Total Cats: 60
Default

Originally Posted by rccote View Post
what's being done about exhaust, diff, and trans heat?
Notice the gap between the diffusor and bumper. There is an airflow above the floor/diffusor.

But it has not been run for that long, so we'll see what brakes first.
NiklasFalk is offline
Old 05-27-2012, 02:31 AM
  #110
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Posts: 1,582
Total Cats: 18
Default

Originally Posted by NiklasFalk View Post
Notice the gap between the diffusor and bumper. There is an airflow above the floor/diffusor.

But it has not been run for that long, so we'll see what brakes first.
I figured that might be the case. I assume the air supplying the space above the underbody is coming from the nose. I'm curious how much actual flow is there and what the tunnel temps are like.
rccote is offline
Old 05-27-2012, 03:32 AM
  #111
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 940
Total Cats: 40
Default

Has anyone ever quantified all this extra aero with lap times, seat of the pants feel..eg: I can now take so and so corner with 300 more revs/ a higher gear, I can brake 30 m later than I used to previously..... etc...

All this aero fascinates and tempts me but it's hard to know to go to the extra effort, cost and drama if it is only for minimal gains....
mx5-kiwi is offline
Old 05-27-2012, 04:01 AM
  #112
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,380
Total Cats: 835
Default

Also the wing will provide more leverage that far back. Force x distance = more momentum around the point. Meaning it will "twist" the car more therefore providing more force against the rear tires.
triple88a is online now
Old 05-27-2012, 05:17 AM
  #113
Senior Member

Join Date: Aug 2009
Location: melbourne aus
Posts: 515
Total Cats: 90
Default

Having a wing that far back is more effective - meaning you can use a smaller less downforce/drag wing.

I plan on mounting mine far back too.
lightyear is offline
Old 05-27-2012, 07:49 AM
  #114
Junior Member

Join Date: Jan 2009
Posts: 131
Total Cats: 5
Default

What do you do about the ~50% of upforce at the front tires that you get as a result of the rear mount? Is front downforce available at such low l/d ratios that you don't have to care about adding another 50%?
damir130 is offline
Old 05-27-2012, 08:32 AM
  #115
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 18
Default

Originally Posted by mx5-kiwi View Post
Has anyone ever quantified all this extra aero with lap times, seat of the pants feel..eg: I can now take so and so corner with 300 more revs/ a higher gear, I can brake 30 m later than I used to previously..... etc...

All this aero fascinates and tempts me but it's hard to know to go to the extra effort, cost and drama if it is only for minimal gains....
Not the most technical, but my experience:

No aero: Car is balanced
Just a splitter: over 50mph the car oversteers like crazy
Splitter and wing: car is balanced again
Handy Man is offline
Old 05-27-2012, 03:31 PM
  #116
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,378
Total Cats: 60
Default

Originally Posted by mr_hyde View Post
He did say it was a bit 'understeered'.
Reduced attack angle the frist time did not help, but lowering the car half an inch made wonders and balance became decent.
Aero opens a new dimension of options, and possibilities to screw up
NiklasFalk is offline
Old 05-27-2012, 05:49 PM
  #117
Senior Member

Join Date: Aug 2009
Location: melbourne aus
Posts: 515
Total Cats: 90
Default

Dual element wings like the one on that car are for high downforce, and should be used on low speed tracks. He could try removing the second element/top wing part. I think aero is something you have to balance out. So get as much on the front, then adjust the rear to suit.
lightyear is offline
Old 05-27-2012, 10:55 PM
  #118
Junior Member

Join Date: Nov 2008
Posts: 145
Total Cats: -1
Default

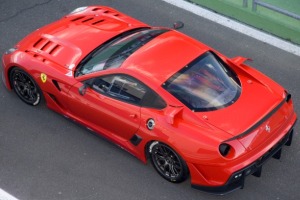

The only aero mod I have done is purchase my hard top a few months back. My inspiration come from this. I so want to build those sail panels for my hard top. Also the electric fans pulling air from under the car, and the hood, and, and, and, ---- it I really just want that car.
Attached Thumbnails Post your DIY aero pics-2ferrari-599xx.jpg
DOHCPanther is offline
Old 05-28-2012, 02:54 AM
  #119
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,378
Total Cats: 60
Default

Originally Posted by lightyear View Post
Dual element wings like the one on that car are for high downforce, and should be used on low speed tracks. He could try removing the second element/top wing part. I think aero is something you have to balance out. So get as much on the front, then adjust the rear to suit.
Before lowing the car he tried to remove the top element and lowering the attack angle to negative (but still low grip at the front).
Lowering made the front work much better so the initial wing setup made it balanced (cut 2 secs on a one minute track right away).
NiklasFalk is offline
Old 05-28-2012, 05:19 PM
  #120
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,380
Total Cats: 835
Default

Originally Posted by DOHCPanther View Post
The only aero mod I have done is purchase my hard top a few months back. My inspiration come from this. I so want to build those sail panels for my hard top. Also the electric fans pulling air from under the car, and the hood, and, and, and, ---- it I really just want that car.
Why not just buy a sucker car?
triple88a is online now
