Sorry if this has already been answered. What is the black sensor on the turbo compressor? It looks like that Mitsubishi sensor the stock miata uses for hot restarts.
ScottyP3821 is offline   Reply With Quote
Old 01-28-2014, 09:49 AM   #322
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,924
Total Cats: 93
Default

The boost control solenoid?
Leafy is offline   Reply With Quote
Old 01-28-2014, 09:55 AM   #323
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,523
Total Cats: 1,565
Default

the boost controller or the wastegate?
Braineack is offline   Reply With Quote
Old 01-28-2014, 11:30 AM   #324
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,514
Total Cats: 253
Default

boost control solenoid, blow off valve, turbo speed sensor
soviet is offline   Reply With Quote
Old 01-28-2014, 11:39 AM   #325
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,924
Total Cats: 93
Default

boost control solenoid, blow off valve, turbo speed sensor, turboencabulator, IWGA
Leafy is offline   Reply With Quote
Old 01-28-2014, 11:51 AM   #326
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

As everyone mentioned looking at it from the top clockwise: boost control valve (black hoses), blowoff valve (blue hose) and the one on the bottom is the speed sensor showing the turbine speed which will come handy on the dyno to see where the speed is sitting and if it is stalling under power.
bcrx7 is offline   Reply With Quote
Old 01-28-2014, 01:09 PM   #327
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

Quote:
Originally Posted by bcrx7 View Post
As everyone mentioned looking at it from the top clockwise: boost control valve (black hoses), blowoff valve (blue hose) and the one on the bottom is the speed sensor showing the turbine speed which will come handy on the dyno to see where the speed is sitting and if it is stalling under power.
Ahh nice. Are you worried about compressor heat melting it at all? The one I have is made out of plastic unless yours is different

EDIT seeing as its directly on the compressor. I guess it would be ok with some sort of barrier between it and the compressor.
ScottyP3821 is offline   Reply With Quote
Old 01-28-2014, 01:20 PM   #328
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,924
Total Cats: 93
Default

Quote:
Originally Posted by ScottyP3821 View Post
Ahh nice. Are you worried about compressor heat melting it at all? The one I have is made out of plastic unless yours is different

EDIT seeing as its directly on the compressor. I guess it would be ok with some sort of barrier between it and the compressor.
This is how every EFR turbo ships.
Leafy is offline   Reply With Quote
Old 01-28-2014, 01:36 PM   #329
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

Quote:
Originally Posted by Leafy View Post
This is how every EFR turbo ships.
Ok thanks.
ScottyP3821 is offline   Reply With Quote
Old 01-28-2014, 02:23 PM   #330
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

The compressor doesn't (well shouldn't) get any hotter than 200F, and that doesn't melt that sensor. If that sensors starts melting, there are more serious issues happening than the sensor
bcrx7 is offline   Reply With Quote
Old 01-28-2014, 04:19 PM   #331
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

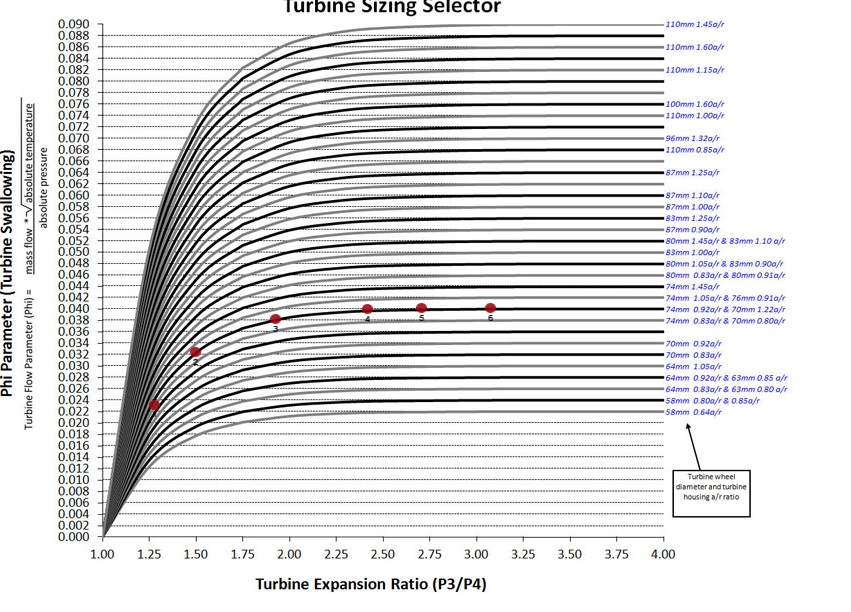

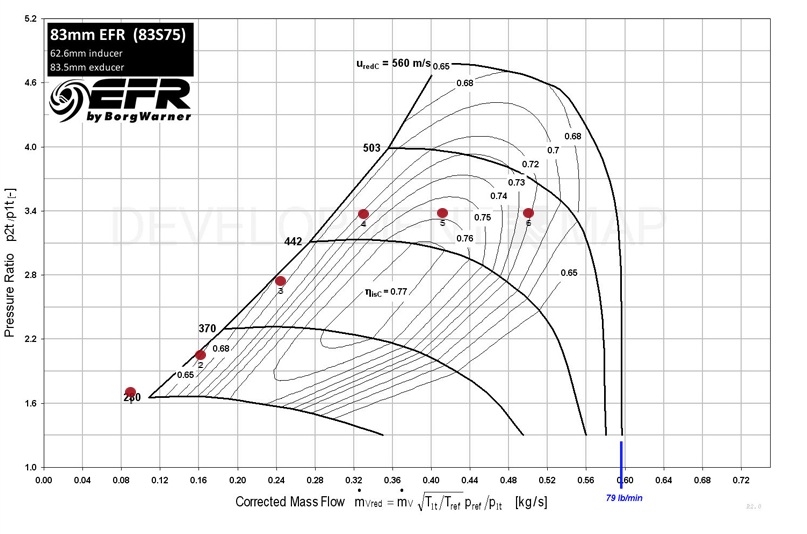

Well correction to my earlier comment about the compressor temperature: I have run the calculator both for the air temp as well as the surge curiosity!

The compressor outlet at 7000RPM and 34PSI will be 380F! That is of course the air temp inside and outside should be fairly lower.

As far as surge, I have managed to get a map that will work between 4000rpm to redline.

According to calculations 34PSI is going to be 599hp and 450ft.lb. of torque!



Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-compressor.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-turbine.jpg
bcrx7 is offline   Reply With Quote
Old 01-28-2014, 04:56 PM   #332
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,514
Total Cats: 253
Default

34 psi eh

you're the man
soviet is offline   Reply With Quote
Old 01-28-2014, 05:57 PM   #333
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

I would rather run less, but realistically would not happen for 599 (let's call it 600hp). Now not sure how much the calculator takes into account the effect of running high octane/E85 as there can be much added timing which will help VE. It does recommend values for the turbine efficiency to be increased by 10-15% at lower RPM range with twin-scroll but I did stay on the conservative side. It's all on paper (well on a site) but people have achieved much higher numbers from these EFR's than just paper. I mean you got 458whp from a 6758, so a compressor with additional 16mm should do the trick and get me to that 600hp (and that's at crank!)
bcrx7 is offline   Reply With Quote
Old 04-08-2014, 08:23 PM   #334
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,924
Total Cats: 93
Default

Havent heard anything from this thread in a while. But also. Quattro S1 on board.

Leafy is offline   Reply With Quote
Old 04-08-2014, 08:36 PM   #335
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Yeah. I've been picking at the interior slowly and started to look at finishing the body work and the flat bottom. But no pictures and a little bit less work since i've been working on another project in the shop. In addition looking at starting a CNC/Machining business with a friend and that is keeping us busy.
bcrx7 is offline   Reply With Quote
Old 04-23-2014, 01:59 PM   #336
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

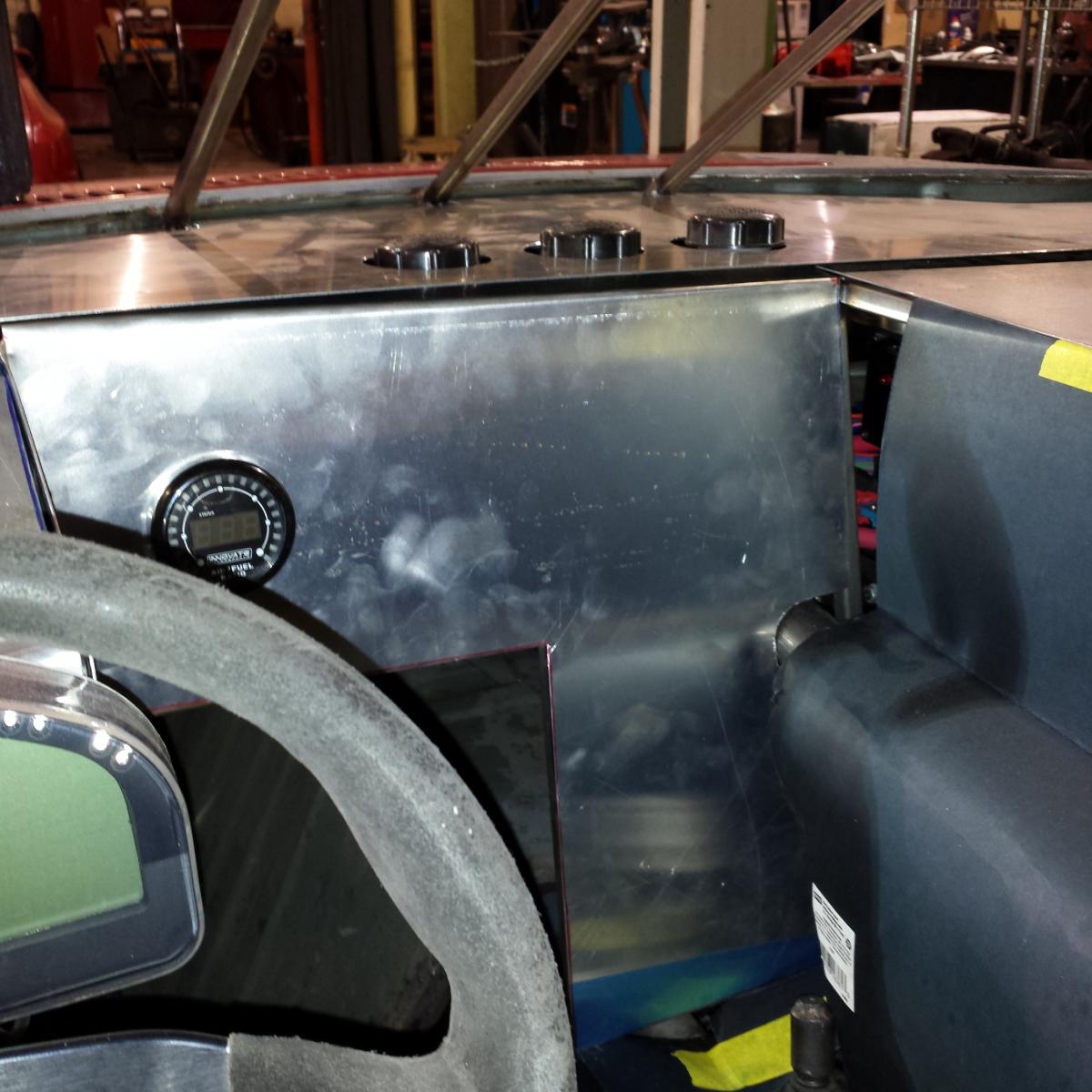

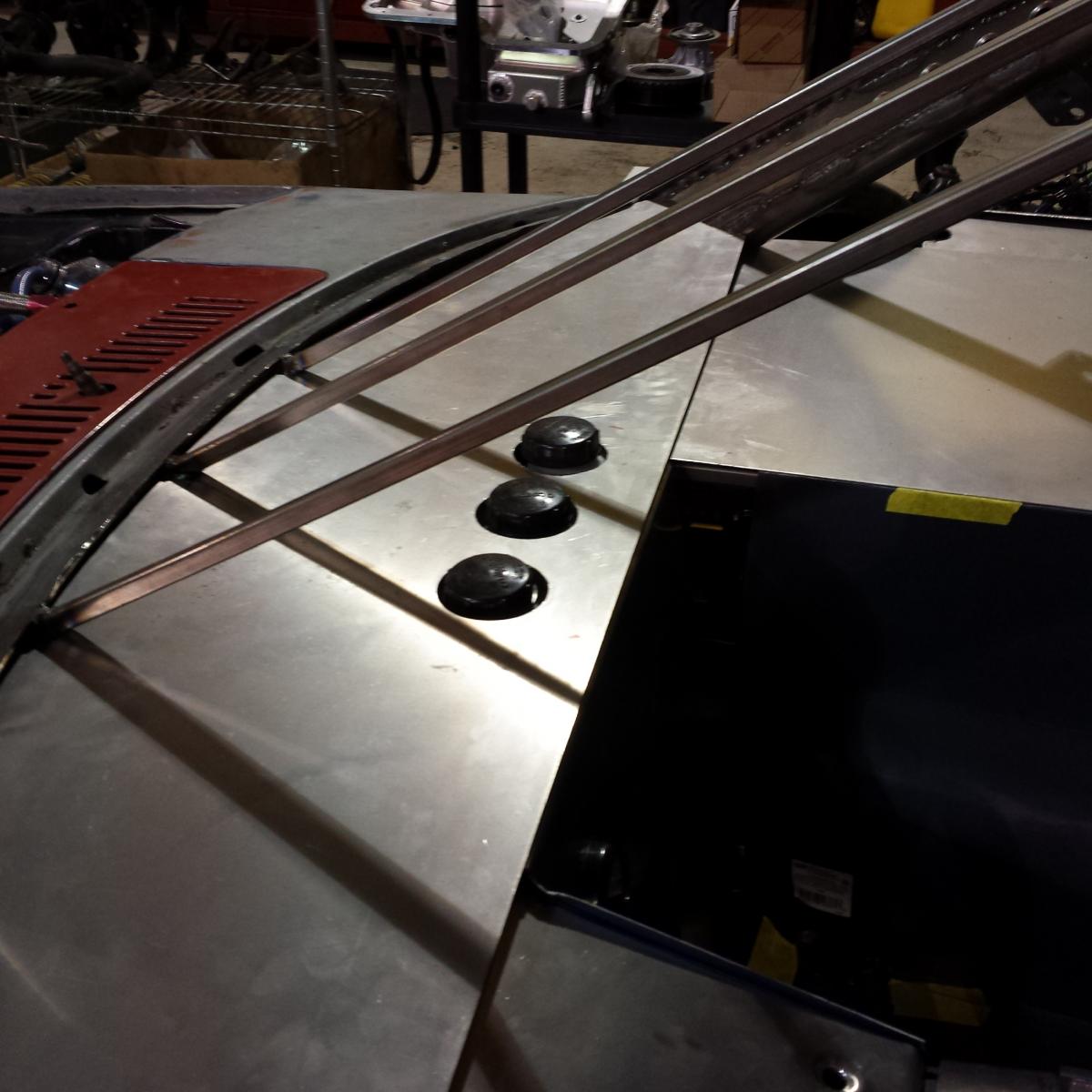

Some more pictures and proof that I have been slowly (really freaking slowly) working on it. Been mostly working on a customer's MR-S and semi-tubing the back half of that as well as putting MegaSquirt in a couple of race cars. Fun stuff!



Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_20140329_184016.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_20140329_184123.jpg
bcrx7 is offline   Reply With Quote
Old 04-23-2014, 02:12 PM   #337
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,444
Total Cats: 2,264
Default

just when we almost forgot about this awesome thread, you update it

loving it, as always
18psi is offline   Reply With Quote
Old 04-23-2014, 04:04 PM   #338
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Thanks man! I just remembered I need to put in that knock sensor you sent me!
bcrx7 is offline   Reply With Quote
Old 08-06-2014, 08:03 PM   #339
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,667
Total Cats: 67
Default

sooo its been a few months. did it rape boost yet?
shlammed is offline   Reply With Quote
Old 08-06-2014, 08:10 PM   #340
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Unfortunately it is in storage until we found a new place to work on it. I had some issues with the shop owner (now ex-friend) is the short version

Getting some parts for it now and going to bite the bullet and change the front to double wishbone!
bcrx7 is offline   Reply With Quote
