Old 05-05-2015, 10:43 AM   #3801
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Nothing definitive, but I strongly suspect that the first machine shop's seat cutting machine (which was new) was out of calibration somehow -- cutting the wrong angles.
hornetball is offline   Reply With Quote
Old 05-12-2015, 03:57 PM   #3802
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

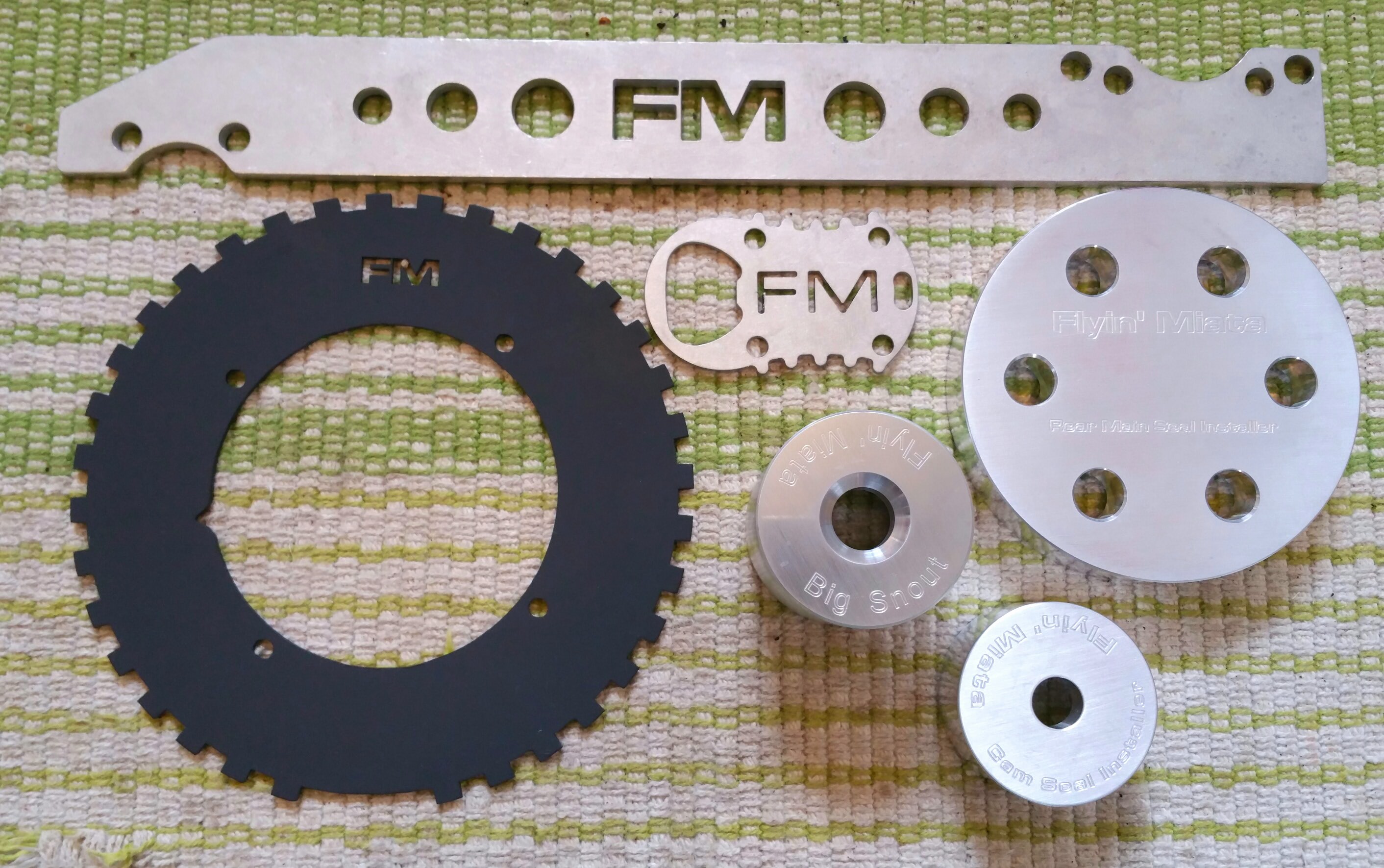

Title this as: Tools I should have bought at the beginning of my rebuild.

Plus a 36-2 timing wheel to go with my ATI damper, 2 cam seals, two rear coolant gaskets, 99 head gasket, valve cover gasket, front main seal... Lots o' gaskets and seals.

v
Jeffbucc is offline   Reply With Quote
Old 05-12-2015, 04:01 PM   #3803
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,901
Total Cats: 487
Default

Ninja key makes a decent keychain bottle opener. That's about it. I also don't see why loosening the front cam cap isn't easier than using the above tool, especially because you've probably loosened it to get the old one out. Rest of those tools are invaluable. Rms and FMs especially. And the crank tool. OMG the crank tool. Although I've done long nose and short nose 1.6, na8 and NB, still have yet to use all three bolt patterns...
curly is online now   Reply With Quote
Old 05-12-2015, 04:06 PM   #3804
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

I've heard really mixed reviews on the ninja tool. Some can't live without it, others hate it. Figured I'd find thr answer for myself. If it doesn't work, it was cheap and its a great bottle opener as stated.

The crank tool and RM are two I'm really happy I spent money on. Not scared of that job now.
Jeffbucc is offline   Reply With Quote
Old 05-12-2015, 05:33 PM   #3805
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Just heard back from the machine shop after they hot tanked the head and did a leakdown test/inspection for damage.

First thing he says is, "boy you certainly got some heat into this sucker didn't yah!"

-minor warping on top and bottom of the head, not significant(at least not enough to cause a head gasket leak)
-leakage on both the intake and exhaust valves due to valve seat damage

He said it honestly wasn't terrible, and mostly all the damage was localized to the #1 cylinder valves.

So now the options I go through

Is inconel worth the extra money?

My shopping list in my head
Stainless supertech exhaust and intake valves
Light double springs
new valve stem seals
Spring retainers(not sure I want to spend the money on titanium)

What else am I missing here? I got a rough quote @ $400 for all the work.

Hornet what did your recent machine shop machine the valve seats to? 45-55 thousands?
Jeffbucc is offline   Reply With Quote
Old 05-12-2015, 07:35 PM   #3806
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

They went to the fattest value in the book. 60 on the exhaust. I can't remember what it was on the intake. The new head is holding up great though. So nice to not worry about it.

I'm wondering if your #1 cylinder is lean? Maybe send off the injectors for cleaning/flow testing while you're down?
hornetball is offline   Reply With Quote
Old 05-12-2015, 07:41 PM   #3807
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by hornetball View Post
They went to the fattest value in the book. 60 on the exhaust. I can't remember what it was on the intake. The new head is holding up great though. So nice to not worry about it.

I'm wondering if your #1 cylinder is lean? Maybe send off the injectors for cleaning/flow testing while you're down?
Can't imagine a lean condition being caused by the injectors only because of how new the ID1000s are. Maybe I had a lean condition on the old RC750s? Not sure, too many variables at play here. Injectors. My tuning, wideband failure headed back from an autocross, my tuning...did I mention my tuning?

60 on exhaust? Damn, well, if it works, it works.

Shop owner said, give me your specs, I'll do whatever you like as long as I don't think it is a poor choice.
Jeffbucc is offline   Reply With Quote
Old 05-12-2015, 07:47 PM   #3808
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Exhaust seats are always fatter to transfer the heat.
hornetball is offline   Reply With Quote
Old 05-12-2015, 08:44 PM   #3809
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Quote:
Originally Posted by Jeffbucc View Post
Not sure, too many variables at play here. Injectors. My tuning, wideband failure headed back from an autocross, my tuning...did I mention my tuning?
This scares the absolute crap out of me, I have this exact same paranoia. I've stacked the deck as best I can but the tune is going to make or break me
EO2K is offline   Reply With Quote
Old 05-12-2015, 08:47 PM   #3810
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by EO2K View Post
This scares the absolute crap out of me, I have this exact same paranoia. I've stacked the deck as best I can but the tune is going to make or break me
Get it road worthy, stay out of boost, get a pro to tune it, maintain said tune.

That's what I'd do if done over again. I got an AEM Meth kit to deter anymore lean events. Will probably run mostly water through it for detonation reasons but will add some Meth to raise the octane a little as well.

Like you I'm going in both arms swinging this time.
Jeffbucc is offline   Reply With Quote
Old 05-12-2015, 09:14 PM   #3811
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,271
Default

RC's are arguably the crappiest injectors on the market. I wouldn't doubt that they ran lean/rich/bad.
18psi is offline   Reply With Quote
Old 05-12-2015, 09:56 PM   #3812
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,890
Total Cats: 1,268
Default

There should be a federal law mandating that e85 be available everywhere.
aidandj is offline   Reply With Quote
Old 05-12-2015, 09:59 PM   #3813
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by aidandj View Post
There should be a federal law mandating that e85 be available everywhere.
I'd like access to 93 octane as well. Damn you Utah!
Jeffbucc is offline   Reply With Quote
Old 05-12-2015, 10:19 PM   #3814
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Quote:
Originally Posted by aidandj View Post
There should be a federal law mandating that e85 be available everywhere.
Its been a while but I seem to remember it already has some pretty solid gov't subsidies attached, and all in all its pretty terrible for the environment overall...

...but probably still "better" than regular dinosaur juice. I still wants it tho.
EO2K is offline   Reply With Quote
Old 05-12-2015, 11:42 PM   #3815
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,271
Default

Move to Suckramental

Well run so much ALLOFIT that you'll be twisting off input shafts on 6 speeds like my buddy
18psi is offline   Reply With Quote
Old 05-13-2015, 09:32 AM   #3816
Junior Member

Join Date: May 2014
Location: North St Paul, MN
Posts: 397
Total Cats: 23
Default

Quote:
Originally Posted by EO2K View Post
Its been a while but I seem to remember it already has some pretty solid gov't subsidies attached, and all in all its pretty terrible for the environment overall...

...but probably still "better" than regular dinosaur juice. I still wants it tho.
Yeah corn isn't the answer. There are better plants to get E85 type of fuel from. Brazil has been using sugar cane for like 20 years with a much better yield. However, it is a step in the right direction. Also, it smells better.


Jeff, that sucks about your engine but it is good that you know it could be worse. Excited to see what you do.
ofspunk7 is offline   Reply With Quote
Old 05-17-2015, 03:30 PM   #3817
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

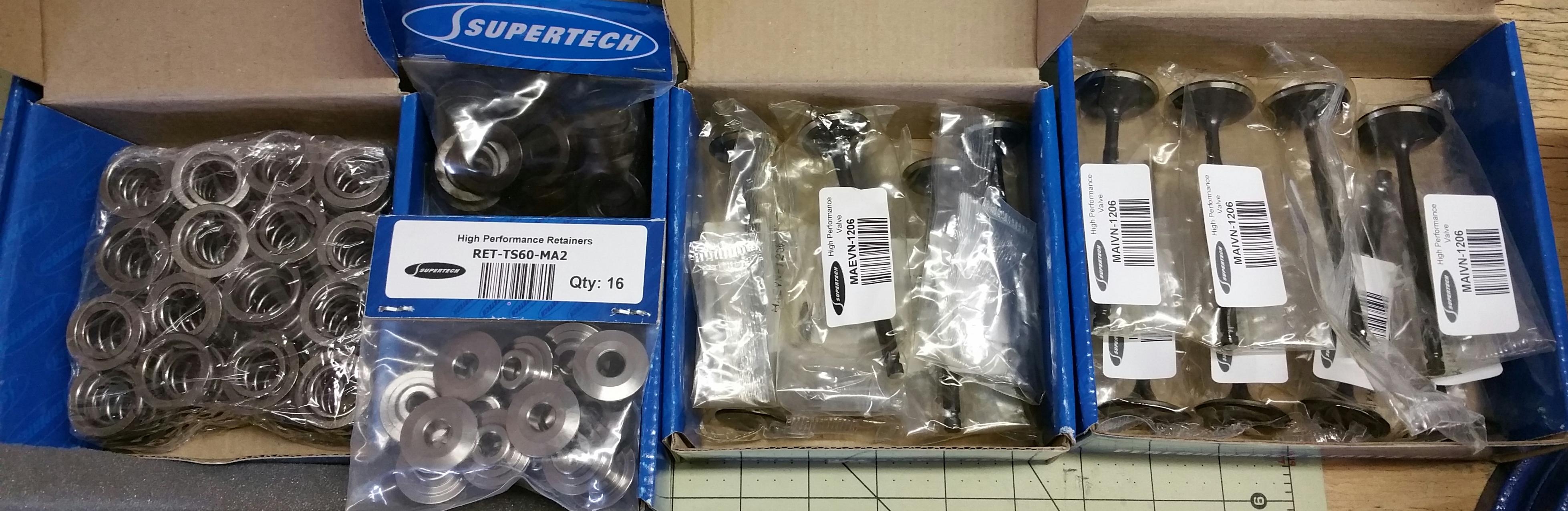

Supertech all the things!
+1 exhaust/intake stainless valves
Double light springs
Titanium retainers

Goes to the machine shop Monday and hopefully gets done fast!

Jeffbucc is offline   Reply With Quote
Old 05-18-2015, 11:10 AM   #3818
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,931
Total Cats: 0
Default



Congrats
Efini~FC3S is offline   Reply With Quote
Old 05-18-2015, 11:19 AM   #3819
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,271
Default

done right the 1st time. yes
18psi is offline   Reply With Quote
Old 05-18-2015, 12:50 PM   #3820
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by 18psi View Post
done right the 1st time. yes
Let us hope so Vlad, ended up spending more than I wanted to, but wanted to not worry in the future.

Going to take Hornet's advice and go for .060 seat thickness on the exhaust valves. Shoot for 74 lbs of spring pressure, but what I'm still unsure of is the intake valve seat width. Seem to have a hard time pulling up much info on how thick people are going on the intake side of the seat. After reading several of Emilio's posts on the subject, it sounds as if they go on the thick side on both intake and exhaust and have far fewer issues.

Figure 74-80 lbs will be good(with oem spring seats)for 20 psi of boost to retain enough spring pressure.
Jeffbucc is offline   Reply With Quote
