Old 03-26-2014, 10:38 AM   #1801
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Oof, that seems overboard. Naivete' caused me to spend as much as I did on the Moroso catch can, but I got mine for a good(relative I know) price. Spending 300+ on one is crazy unless, as FAB said, application needs it.

Also the tags of this thread are killing me, I never noticed them before.
Jeffbucc is offline   Reply With Quote
Old 03-26-2014, 10:40 AM   #1802
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,457
Total Cats: 607
Default

For whatever it's worth, their single can setup is pretty reasonably priced compared to the Mishi units.
concealer404 is offline   Reply With Quote
Old 03-26-2014, 11:21 AM   #1803
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 935
Total Cats: 395
Default

Jeff in true plant-the-seed fashion - Linky

That dual catch can is where it's at - although most "dual" can setups are linked to each other so that the second can catches anything that get's by your first can. Way better setup for road race cars that spend time in corners and might suffer from spillage back into the system.
FAB is offline   Reply With Quote
Old 03-26-2014, 11:25 AM   #1804
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by FAB View Post
Jeff in true plant-the-seed fashion
That dual catch can is where it's at - although most "dual" can setups are linked to each other so that the second can catches anything that get's by your first can. Way better setup for road race cars that spend time in corners and might suffer from spillage back into the system.
Quote:
There are no words that need to be said to convince you this is a good choice. Get rid of that old discolored plastic tank.
You put that in there just for me didn't you!
Jeffbucc is offline   Reply With Quote
Old 03-26-2014, 11:26 AM   #1805
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Quote:
Originally Posted by Jeffbucc View Post
Also the tags of this thread are killing me, I never noticed them before.
We luv u Jeff.

BTW, just to be contrarian, I don't run a catch can and am glad I don't. I lost a ring on #2 last Friday. I knew something was up immediately when I popped the hood to cool off coming off track. Normally, there is just a bit of oil around the breather to wipe up after a 30 minute session. This time there was a lot more. That led to a compression check . . . 185/100/175/185.

If I were running a catch can, would I have caught it this quickly?

hornetball is offline   Reply With Quote
Old 03-26-2014, 11:39 AM   #1806
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 935
Total Cats: 395
Default

Quote:
Originally Posted by Jeffbucc View Post
You put that in there just for me didn't you!
The product description is indeed tailored to twist your rubber arm.
FAB is offline   Reply With Quote
Old 03-26-2014, 11:41 AM   #1807
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

Quote:
Originally Posted by concealer404 View Post
If you're going to spend a dickload of money on a catch can setup, there is no substitute:


Universal Dual Catch Can Kit


This is very true my buddy has their single can model it is one of the highest quality catch cans i have ever seen. The thing that impressed me the most was the threads which often people neglect to notice.
ScottyP3821 is offline   Reply With Quote
Old 03-26-2014, 11:57 PM   #1808
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

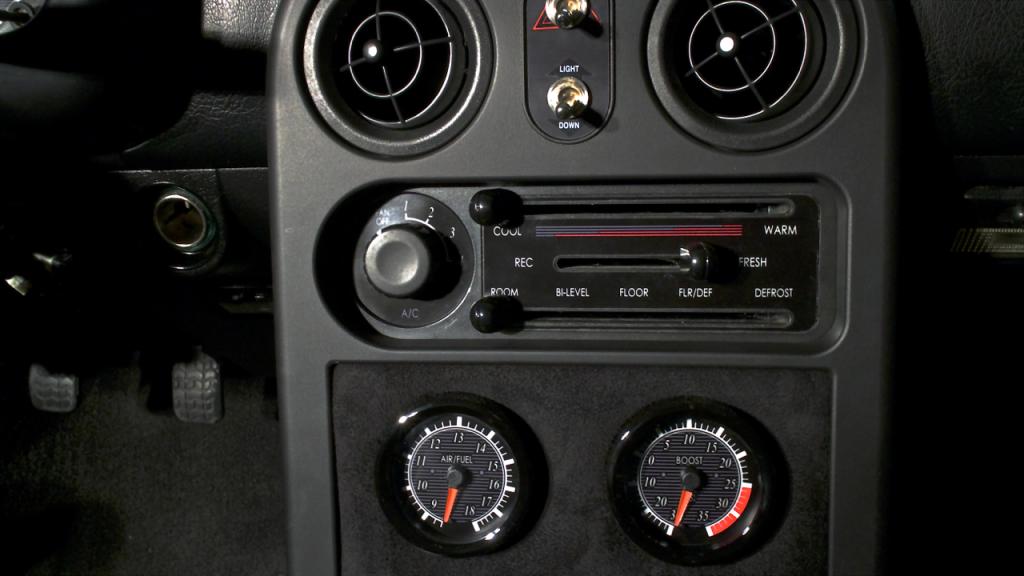

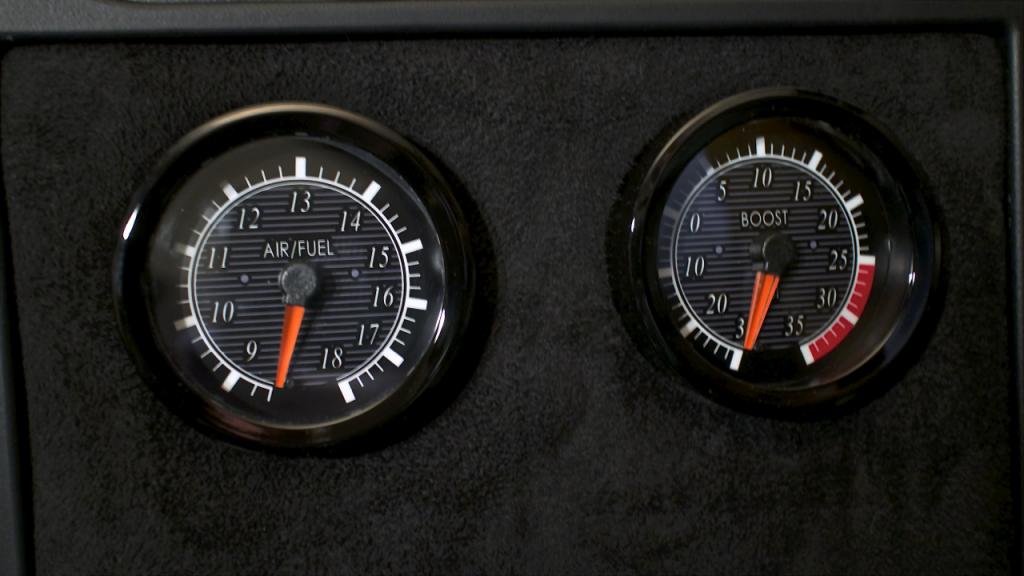

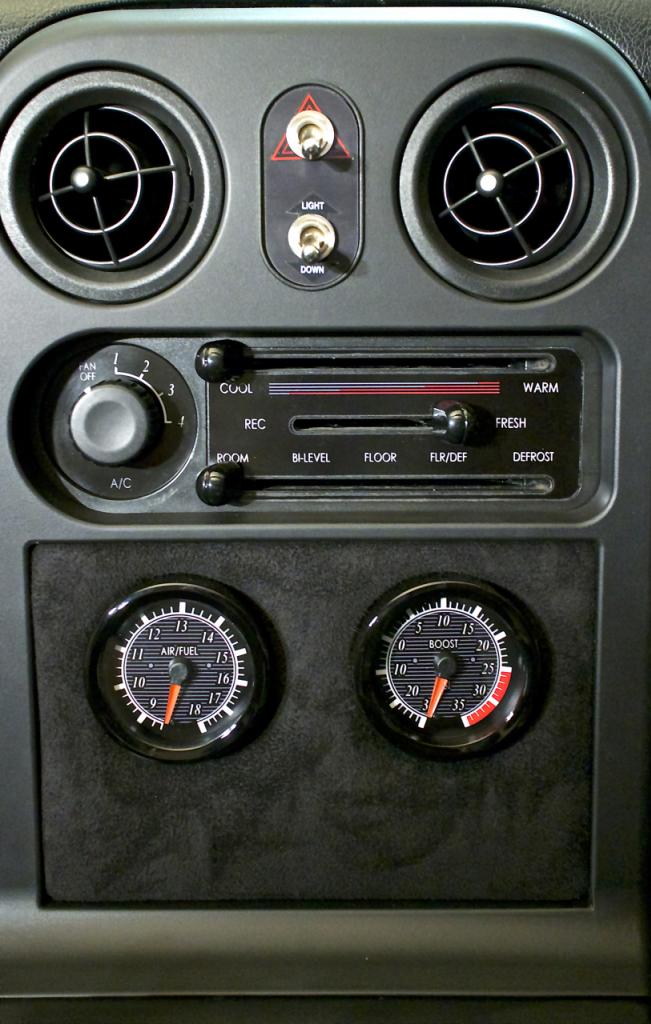

I love you Levrimiter

They look so good, as Walter says, "It really ties the room together."

******' Aye Walter

I hate taking photos of reflective surfaces, makes me wish I had a polarized filter for my camera.





Attached Thumbnails
93' Miata stolen and flipped build thread-img_2401.jpg   93' Miata stolen and flipped build thread-img_2389.jpg   93' Miata stolen and flipped build thread-img_2399.jpg
Jeffbucc is offline   Reply With Quote
Old 03-27-2014, 12:25 AM   #1809
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,901
Total Cats: 487
Default

I see a dust spec. No really, the boost gauge is pointing right at it!
curly is offline   Reply With Quote
Old 03-27-2014, 01:34 AM   #1810
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by curly View Post
I see a dust spec. No really, the boost gauge is pointing right at it!
Reflections and lens flare a la JJ Abrams!

Attached Thumbnails
93' Miata stolen and flipped build thread-dramadestroy.gif
Jeffbucc is offline   Reply With Quote
Old 03-27-2014, 02:24 AM   #1811
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

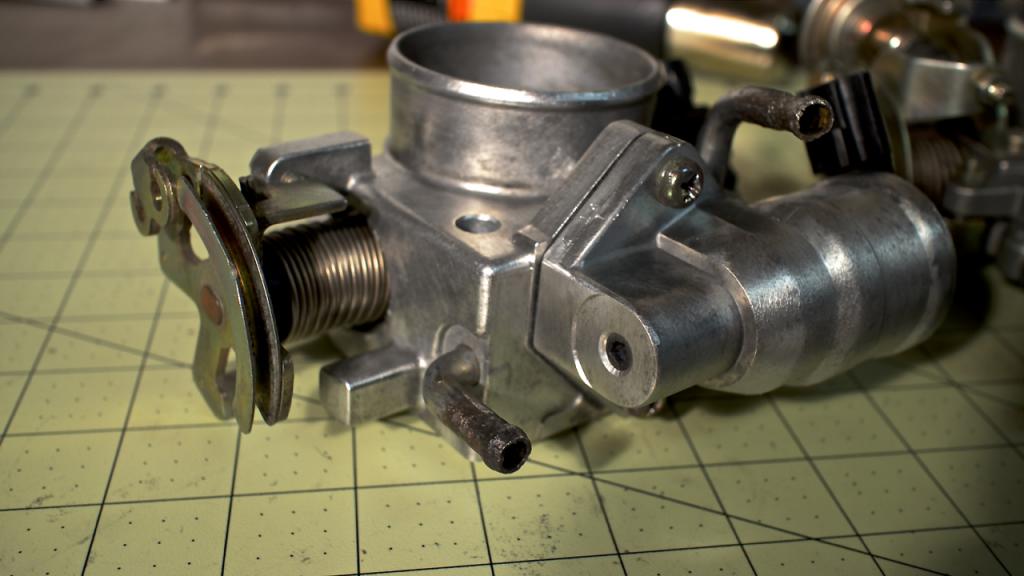

Throttle body wire brushed and cleaned up. I took a file to the IAT ports to help take the rust/jagged edges off it after the photo.

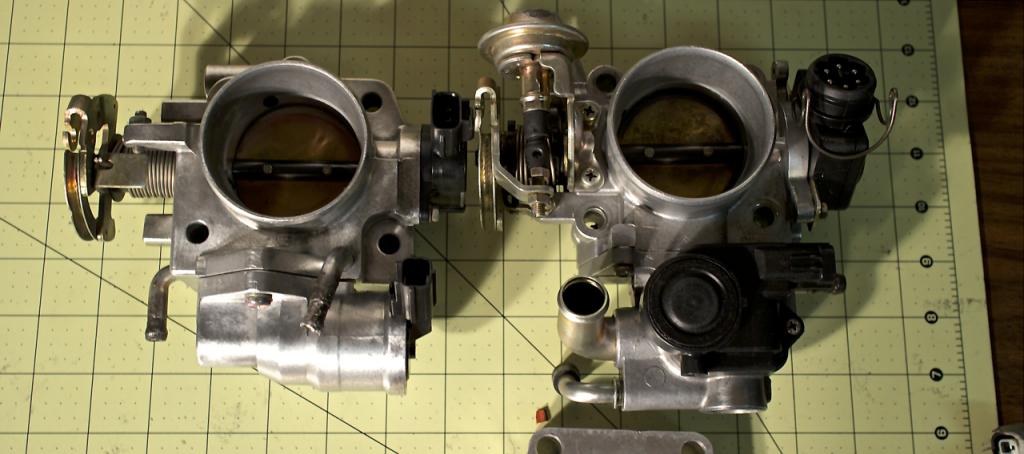

99 1.8 next to the Old & huge 1.6 throttle body



Lots of wire wheeling. I really should have bought a bench wire wheel a long time a go.

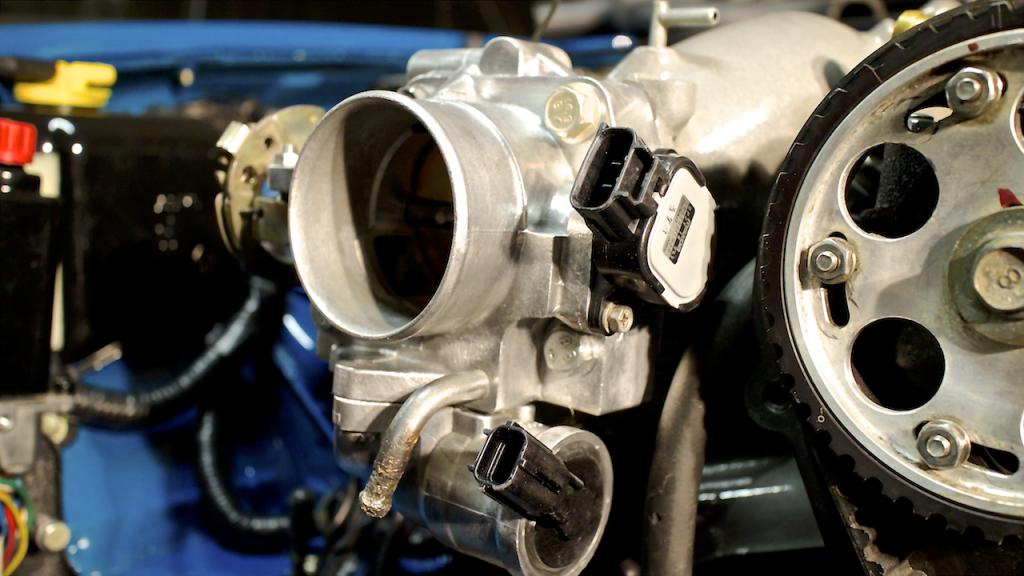

On. Need to do the wiring tonight. It dawned on me that I don't have any female connectors for the 99 so I am hoping I can find a connector on the spare CO car harness to scavenge.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_2409.jpg   93' Miata stolen and flipped build thread-img_2410.jpg   93' Miata stolen and flipped build thread-img_2411.jpg
Jeffbucc is offline   Reply With Quote
Old 03-27-2014, 03:45 AM   #1812
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,487
Total Cats: 79
Default

Just a little help for your wiring,
for my 1996 car wth VVT engine I made some small PNP adapter harnesses for IAT and TPS

Here is a little wiring scheme (also applies to the 99-00 TPS/IAT) with all the part numbers for the connectors (Ballenger should have them in stock)

TPS


my adapter:

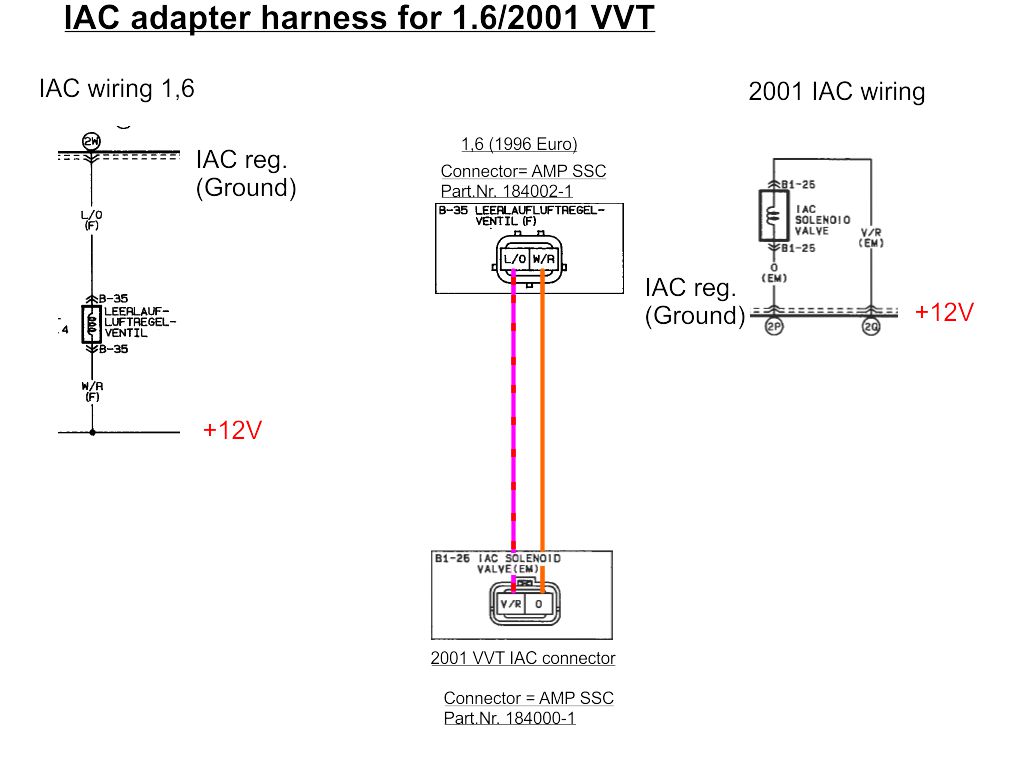

For the IAC I wanted to do the same - but I realized that I just need a different connector housing as both the NA as well as the NB connetors are AMP SSC parts with just different keyways
(read here: https://www.miataturbo.net/engine-pe...3/#post1047691

Below that was the original plan - but try to get the correct housing and just swap the housings...
Attached Thumbnails
93' Miata stolen and flipped build thread-iac_adapter_harness_1-6_2001.jpg
Zaphod is offline   Reply With Quote
Old 03-27-2014, 07:04 AM   #1813
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

I'm just annoyed that the connectors are just BARELY different from other 2&3 pin connectors on the NA harness. They are so close to just working perfectly. Now I get to wait another week for connectors...Not sure why I didn't consider this when I ordered it. Oh well!
Jeffbucc is offline   Reply With Quote
Old 03-27-2014, 08:20 AM   #1814
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Finished up some wiring last night.

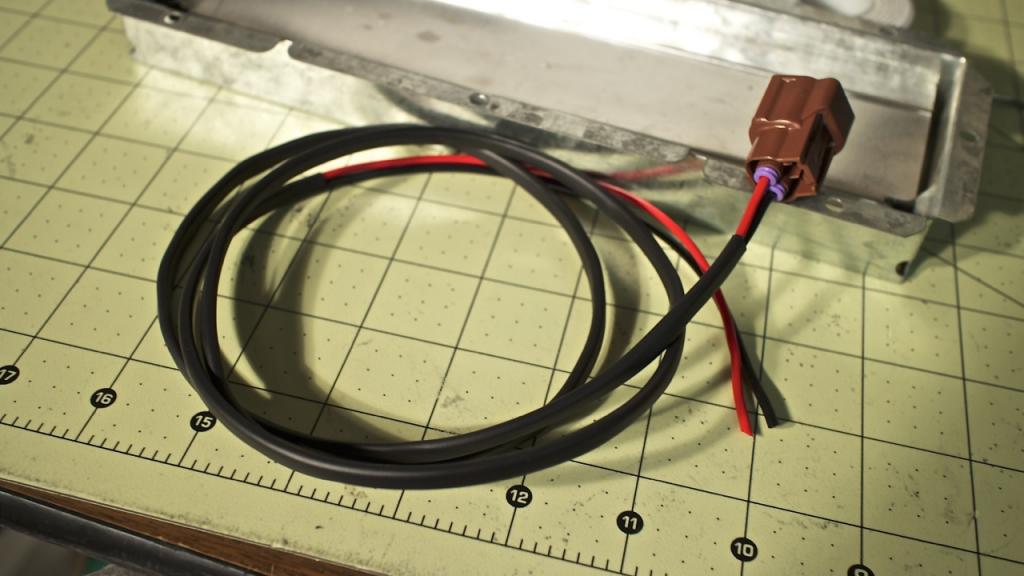

New Vic's connector and proper wiring

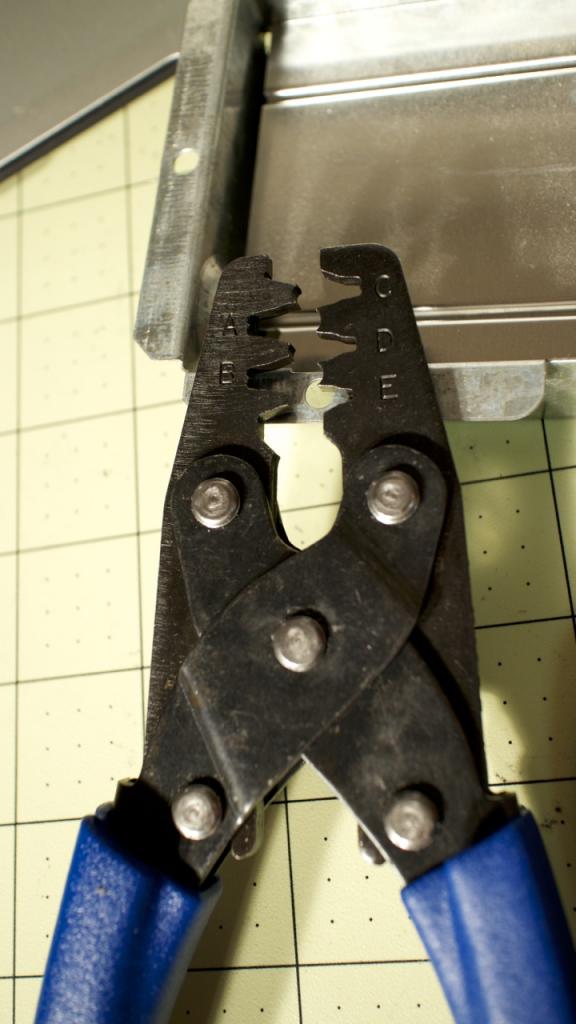

Actually having the right crimp tool is holy hell amazing.

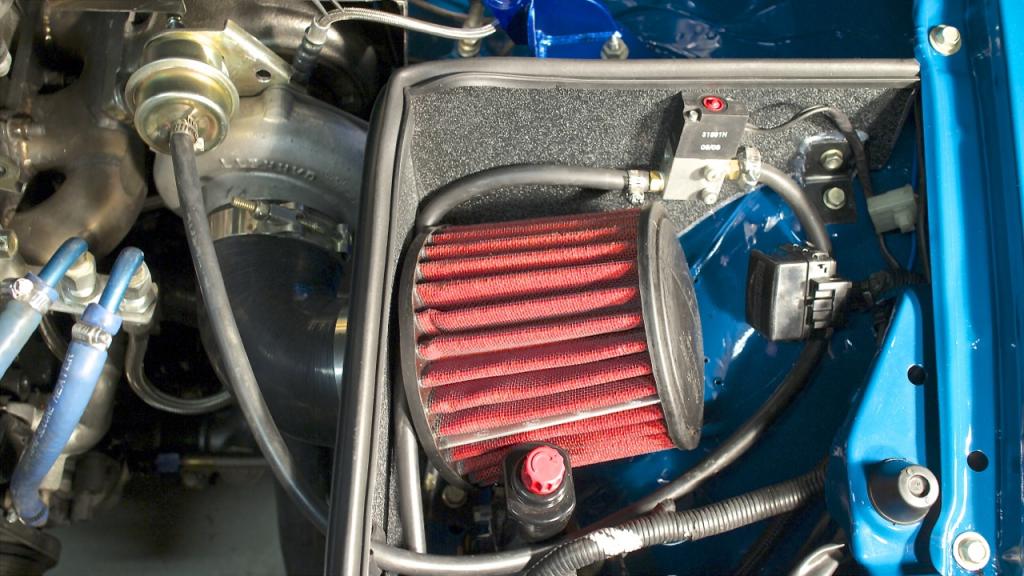

EBC mounted. I was going to route the IWG hose closer to the turbo but decided to play it safe and route it farther away.



Friends don't let friends use electrical tape rather than heat shrink. Took me almost 45 minutes to strip it all off. It was about 10 layers thick. This is just the injector harness tape!

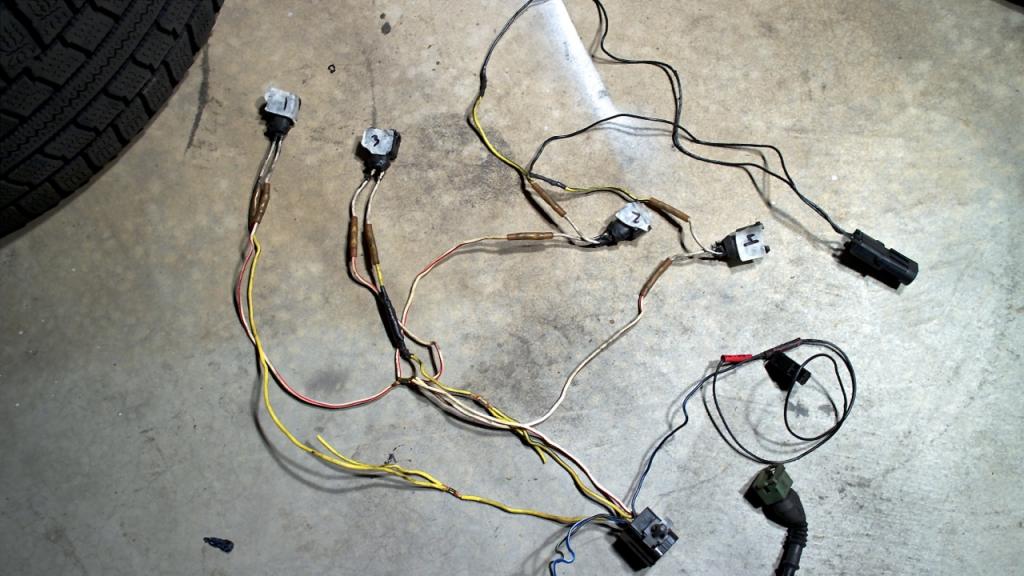

I'm no pro but this looks a little sketchy for your injectors.



So I'm going to try to finish up cleaning up this harness correctly today.
Attached Thumbnails
93' Miata stolen and flipped build thread-img_2412.jpg   93' Miata stolen and flipped build thread-img_2413.jpg   93' Miata stolen and flipped build thread-img_2421.jpg   93' Miata stolen and flipped build thread-img_2414.jpg   93' Miata stolen and flipped build thread-img_2420.jpg


Last edited by Jeffbucc; 03-27-2014 at 09:05 AM.
Jeffbucc is offline   Reply With Quote
Old 03-27-2014, 09:47 AM   #1815
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,457
Total Cats: 607
Default

You've got the tools... i'd just rebuild that entire harness from scratch.
concealer404 is offline   Reply With Quote
Old 03-27-2014, 11:35 AM   #1816
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Quote:
Originally Posted by concealer404 View Post
You've got the tools... i'd just rebuild that entire harness from scratch.
Seriously this. Ballenger has all the connectors you need on their Miata page. I'm in the process of doing something similar right now, but my harness isn't nearly as trashed as yours. For legit automotive grade GXL wire in multi color and gauge packs of sensible lengths, check out WireBarn.com. I ordered a bunch of wire from them and its worked out great for a bunch of projects.
EO2K is offline   Reply With Quote
Old 03-27-2014, 02:08 PM   #1817
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,449
Total Cats: 473
Default

Those are some ugly coolant tubes on that TB. What's up with that?
turbofan is offline   Reply With Quote
Old 03-27-2014, 02:13 PM   #1818
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

I noticed that too. My spare TB looks like that but the one that came with my car is perfect.
EO2K is offline   Reply With Quote
Old 03-27-2014, 02:52 PM   #1819
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

Jeff you need to set your gauge needles
vteckiller2000 is offline   Reply With Quote
Old 03-27-2014, 03:33 PM   #1820
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by concealer404 View Post
You've got the tools... i'd just rebuild that entire harness from scratch.
That's the plan Sam! Sorry if I didn't make that clear. In no way, is any part of that harness staying in the car.

Quote:
Originally Posted by turbofan View Post
Those are some ugly coolant tubes on that TB. What's up with that?
No clue, fo the price of the TB, I ignored it.

Quote:
Originally Posted by vteckiller2000 View Post
Jeff you need to set your gauge needles
I thought AEM gauges self centered? If not, I do!
