Old 02-20-2012, 01:14 AM   #81
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

Its alive!

99mx5 is offline   Reply With Quote
Old 02-20-2012, 01:17 AM   #82
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,412
Total Cats: 2,250
Default

NICE.
when is the dyno day?
18psi is offline   Reply With Quote
Old 02-20-2012, 01:33 AM   #83
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

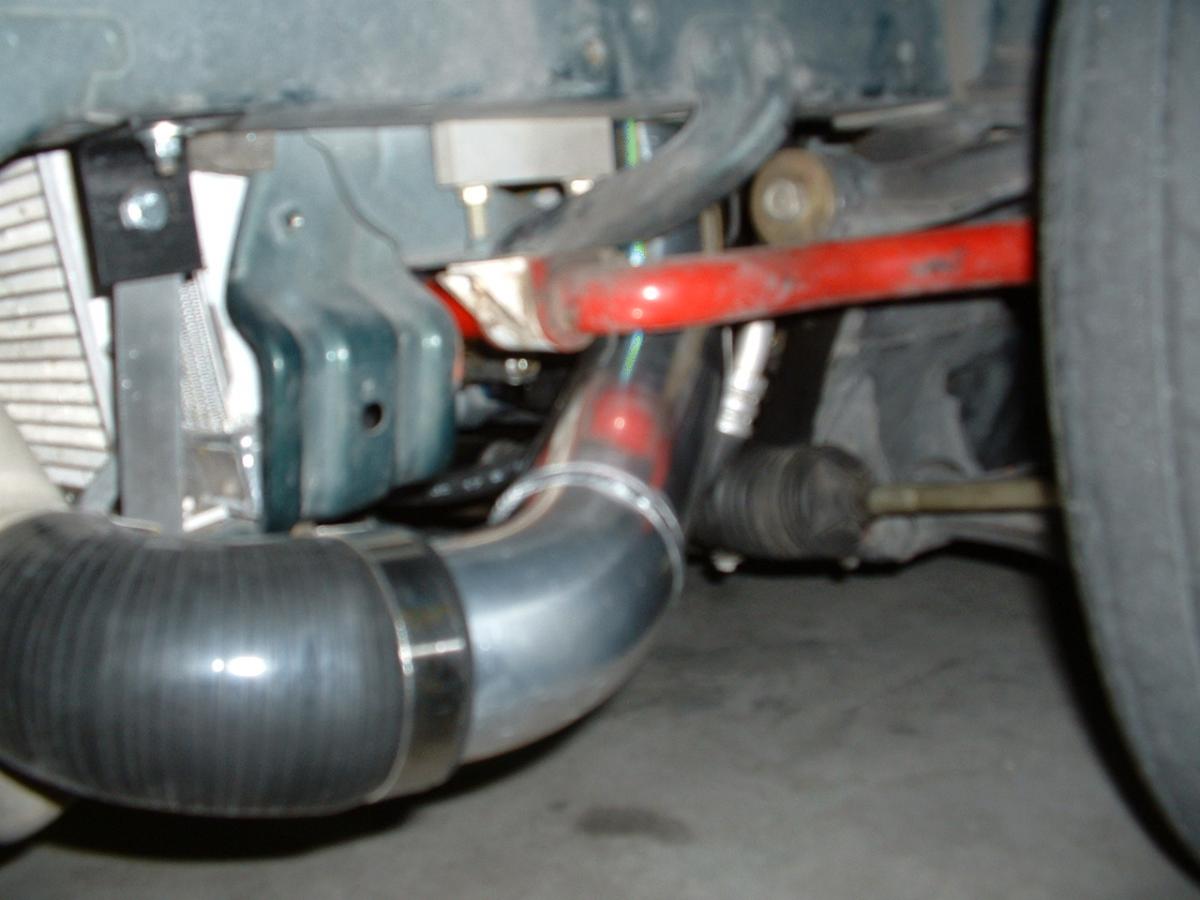

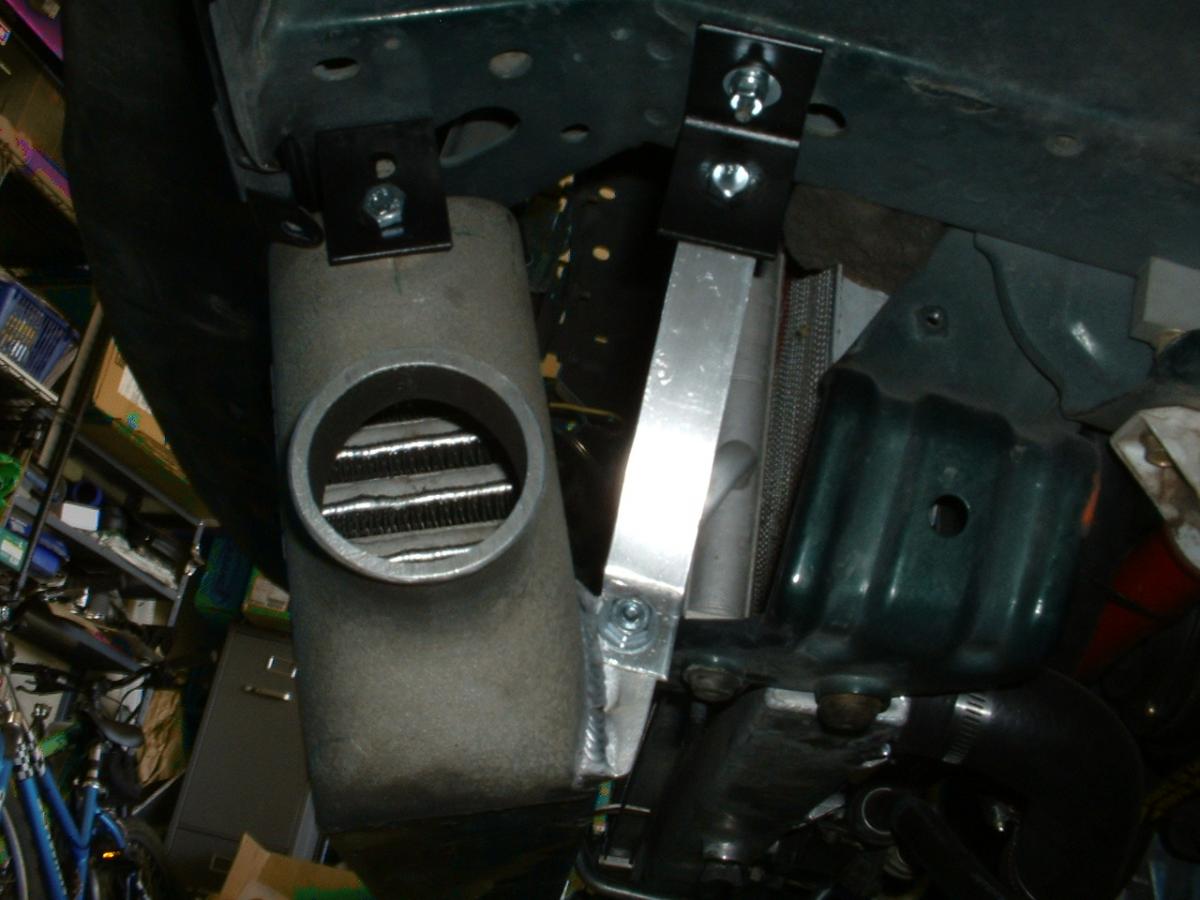

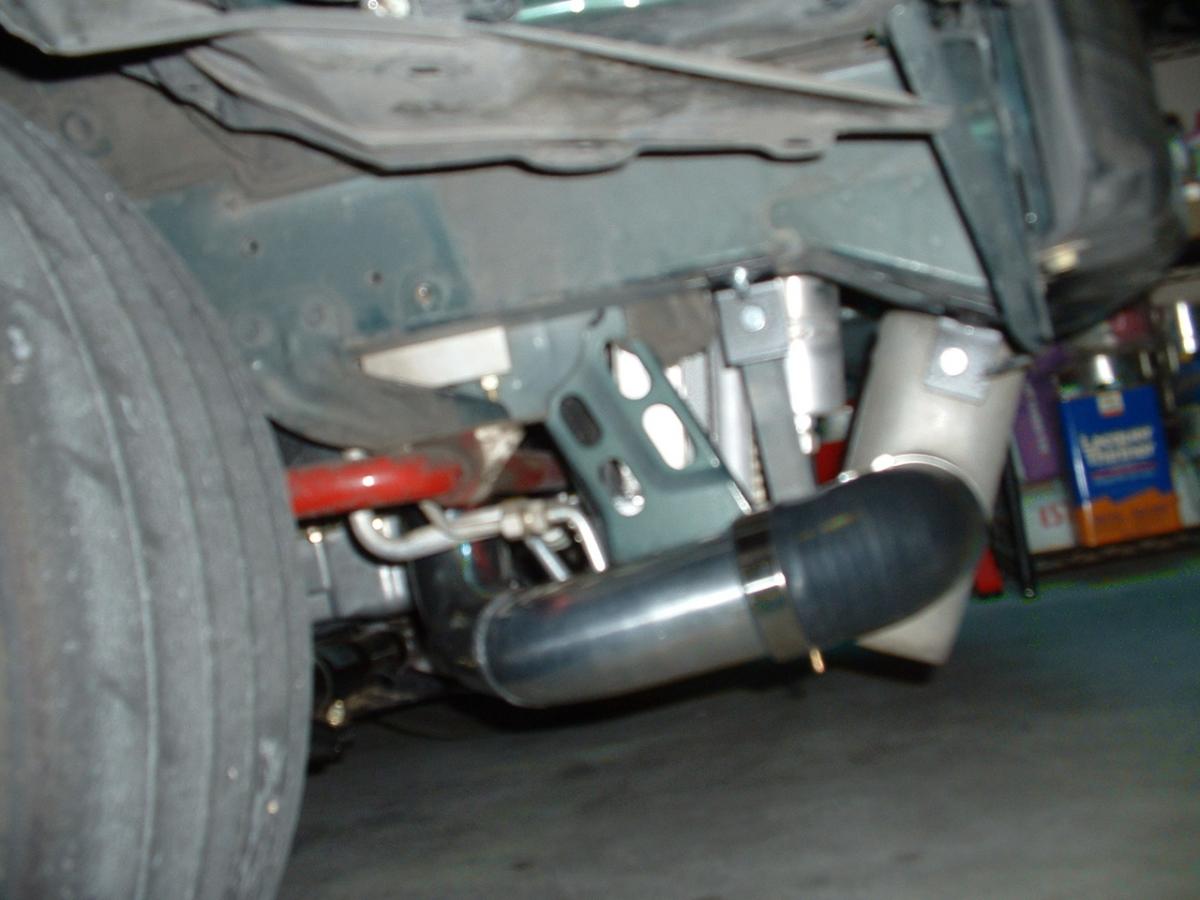

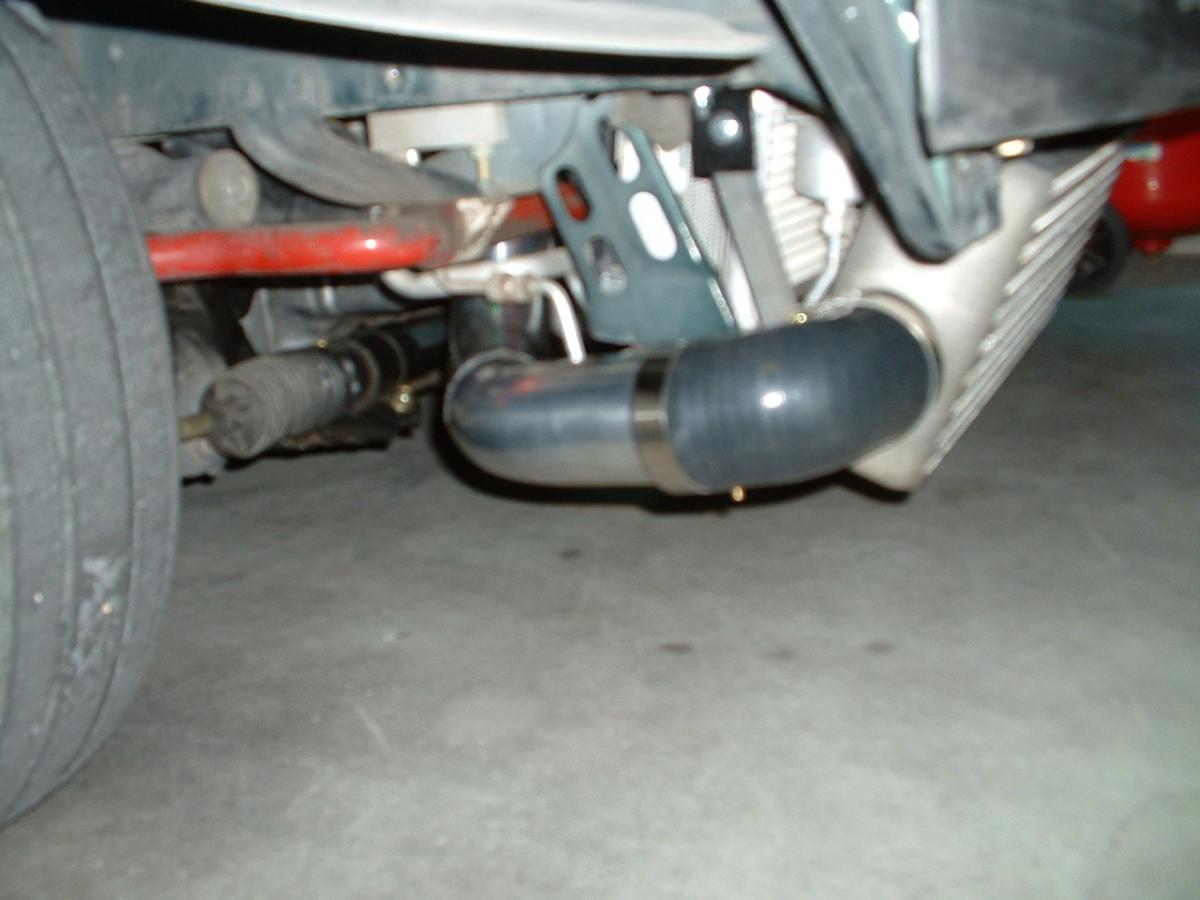

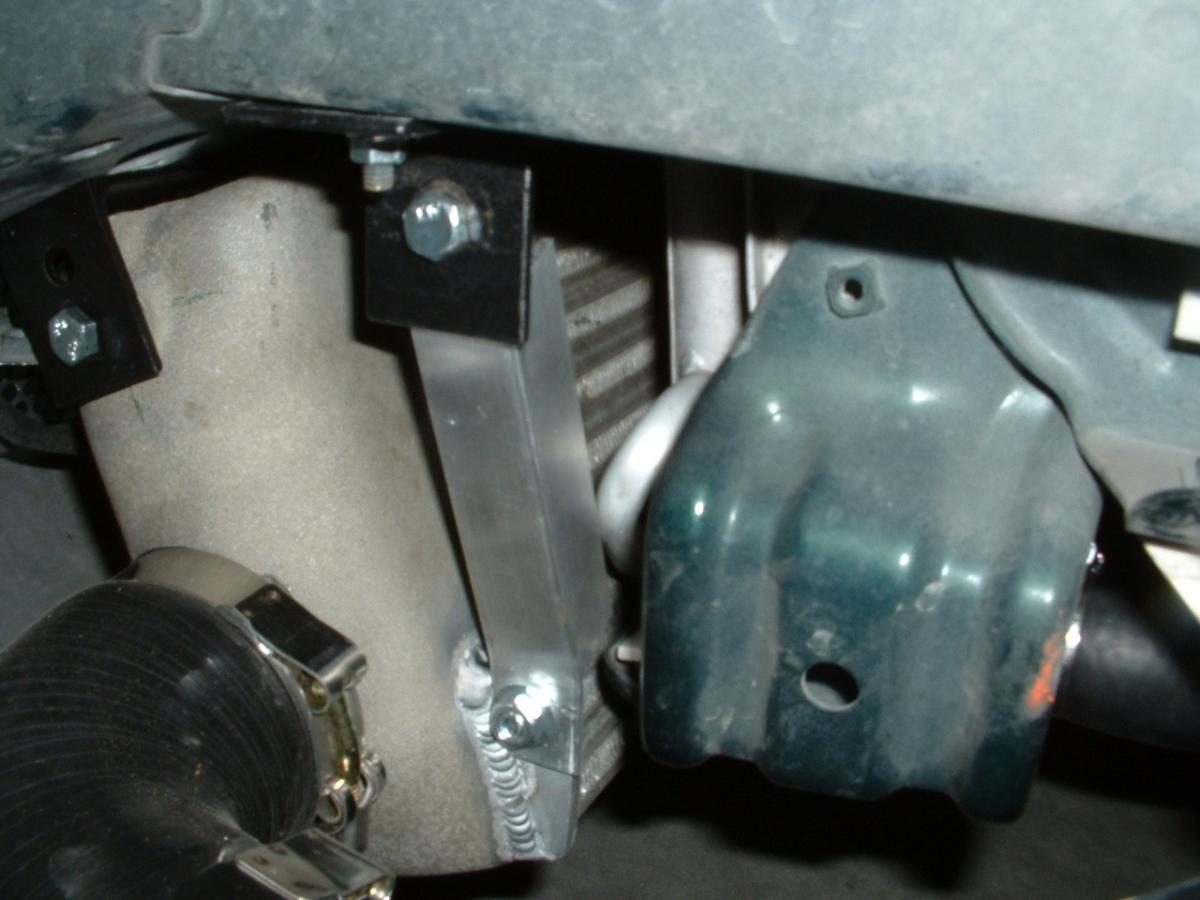

Here's how I mounted the intercooler. I made four brackets out of angle iron and bolted it to the chassis. The front mounts use the mounting hole of the intercooler. I made brackets and had them welded to the lower part of the intercooler. I made supports out of angle aluminum and connected them to the lower brackets.

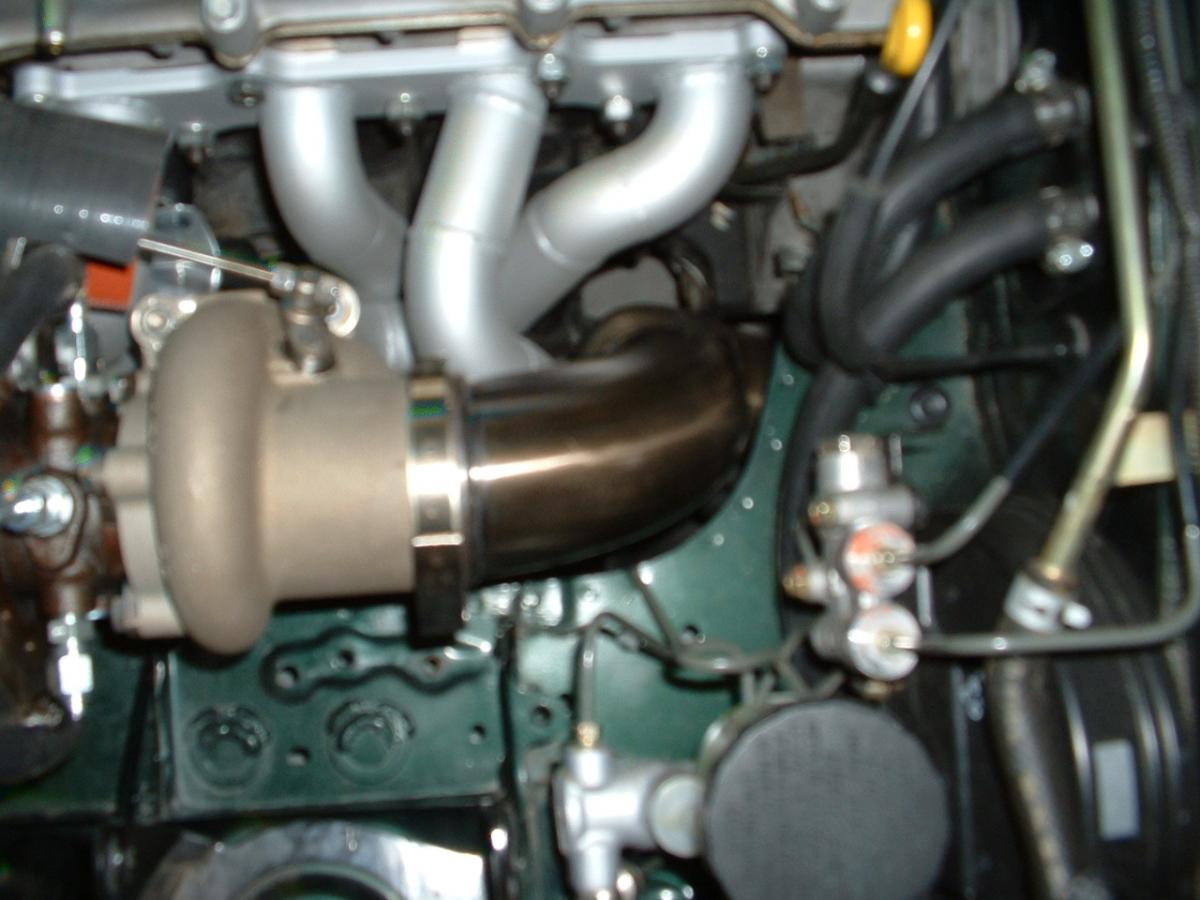

I made custom charge pipes and had them welded.

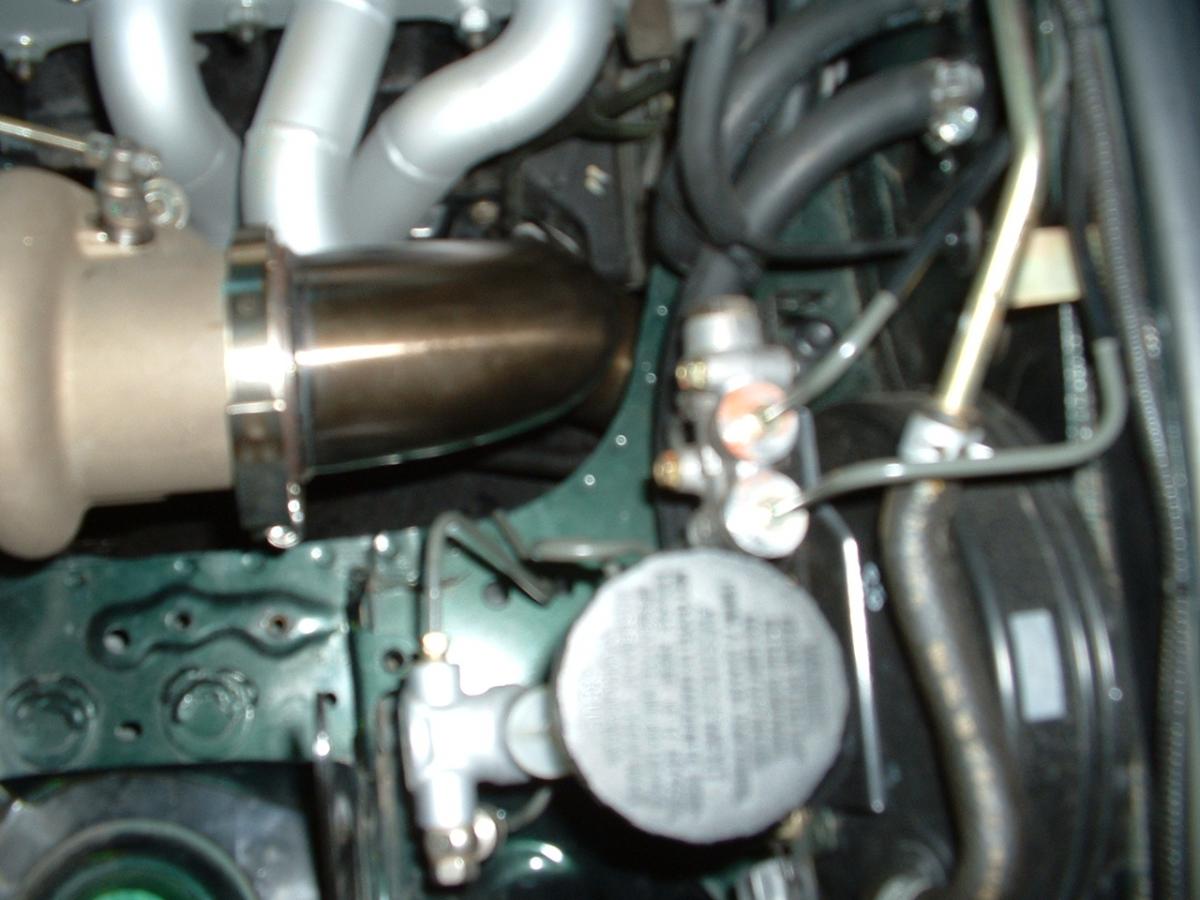

There is about a half inch of space from the DP and the engine bay shelf.

Next is to make the DP heat shield and a cold air box and a good tune.
Attached Thumbnails
99mx5 EFR build-dscf0064.jpg   99mx5 EFR build-dscf0072.jpg   99mx5 EFR build-dscf0078.jpg   99mx5 EFR build-dscf0079.jpg   99mx5 EFR build-dscf0082.jpg

99mx5 EFR build-dscf0086.jpg
99mx5 is offline   Reply With Quote
Old 02-20-2012, 02:11 AM   #84
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

Sweet. I hope to make track days this year down there, got a new truck to tow the miata so I don't have to drive it 8 hours lol


When will your first one be?
jbrown7815 is offline   Reply With Quote
Old 02-20-2012, 10:32 AM   #85
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,049
Total Cats: 337
Default

Somehow I feel my car is responsible for all of this.

BTW, you should order some temp strips to see what/where you need heat shielding. I use "G", 8-point strips from McMaster. I get Alcon strips from HRP world for the brakes.
hustler is offline   Reply With Quote
Old 02-20-2012, 12:19 PM   #86
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

Your car definitely was an influence. Thanks for the tip, will do.

I took it out for a spin and it really pulls. The boost is virtually instantaneous. First gear is gone in a flash. I have to install the oil catch can breather, heat shield for turbine/DP and install the intake temp sensor bung.
99mx5 is offline   Reply With Quote
Old 02-20-2012, 03:43 PM   #87
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,514
Total Cats: 253
Default

need spooool data! 4th gear pull go go go go.
soviet is offline   Reply With Quote
Old 02-20-2012, 04:22 PM   #88
Senior Member
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

looks awesome, man! congrats on taking it for a spin. I'm getting so antsy looking at these build threads...
devin mac is offline   Reply With Quote
Old 02-23-2012, 01:29 AM   #89
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

Thx

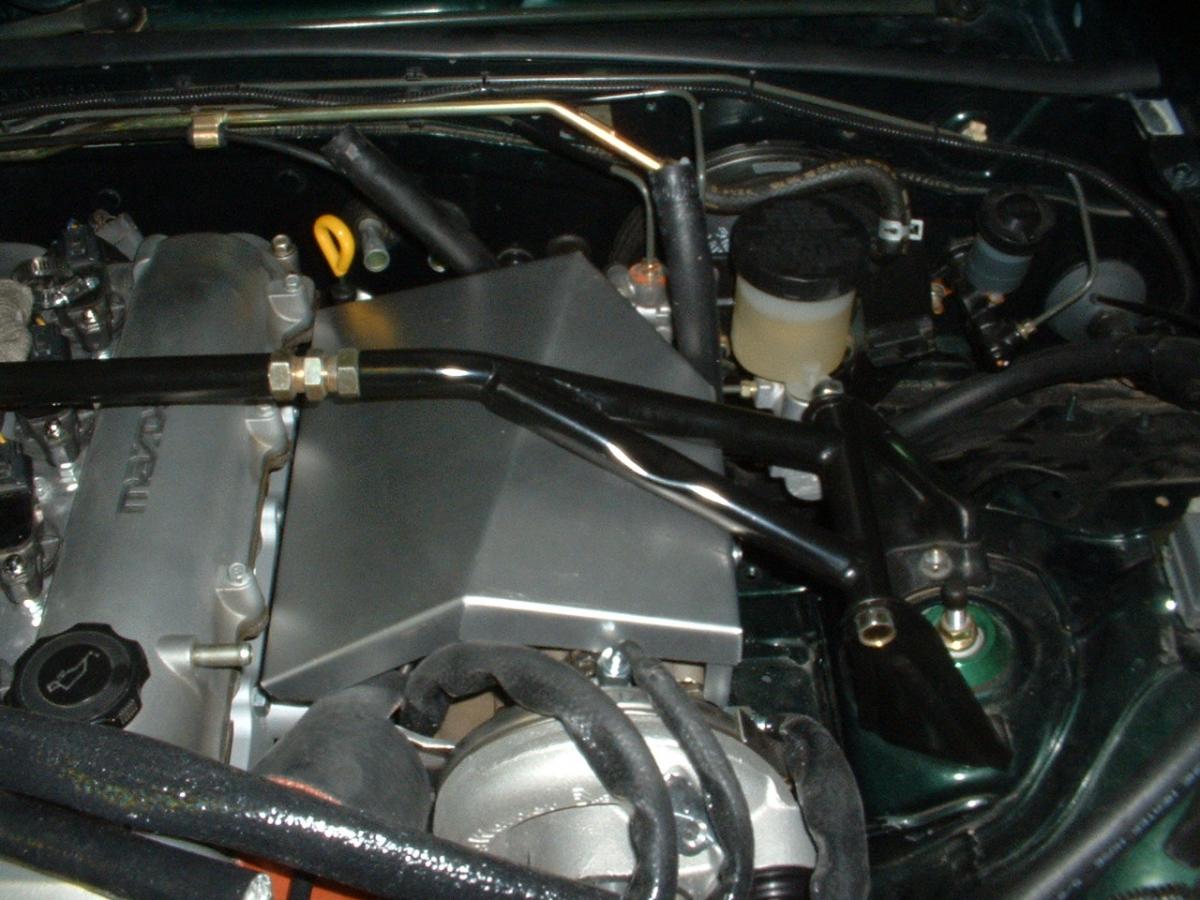

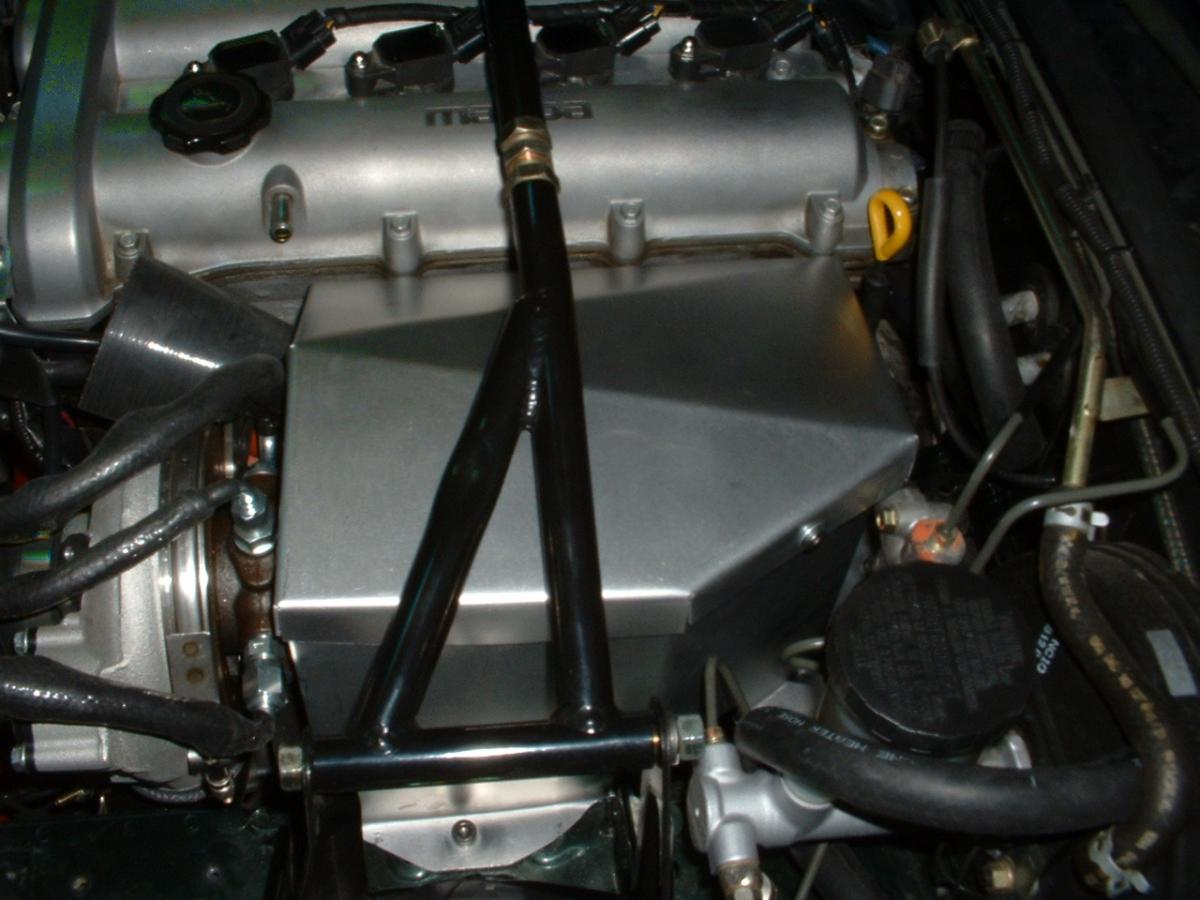

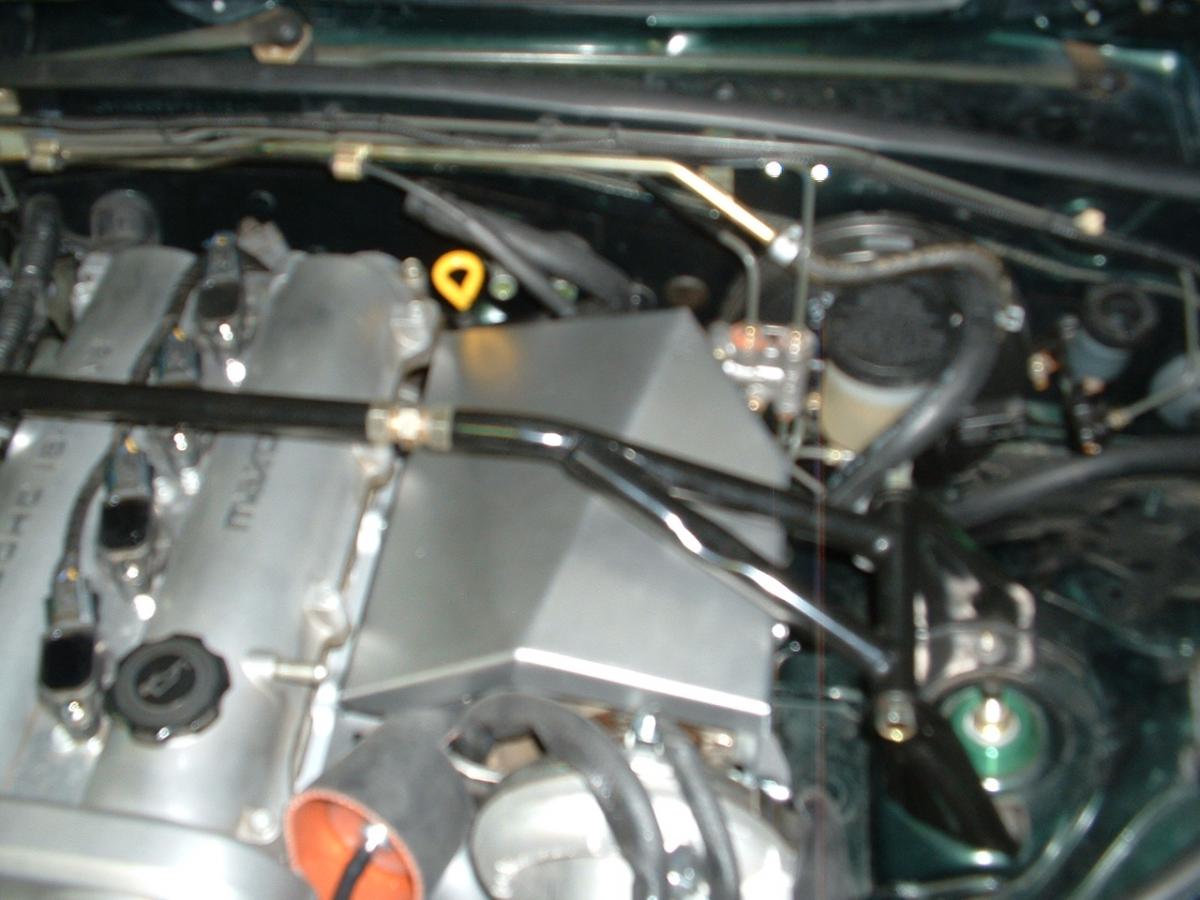

I made a heat shield for the turbine and exhaust.

Next step is to fab the intake box
Attached Thumbnails
99mx5 EFR build-dscf0098.jpg   99mx5 EFR build-dscf0103.jpg   99mx5 EFR build-dscf0100.jpg
99mx5 is offline   Reply With Quote
Old 02-23-2012, 02:28 AM   #90
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

Does your stock undertray fit with that intercooler?
wittyworks is offline   Reply With Quote
Old 02-23-2012, 03:54 PM   #91
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

I will make an undertray to replace the original. I had to remove the bumper intake ducting and bumper liners to fit the intercooler and the charge pipes. The intercooler is positioned to clear the AC drier and bumper.
99mx5 is offline   Reply With Quote
Old 02-24-2012, 04:07 AM   #92
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

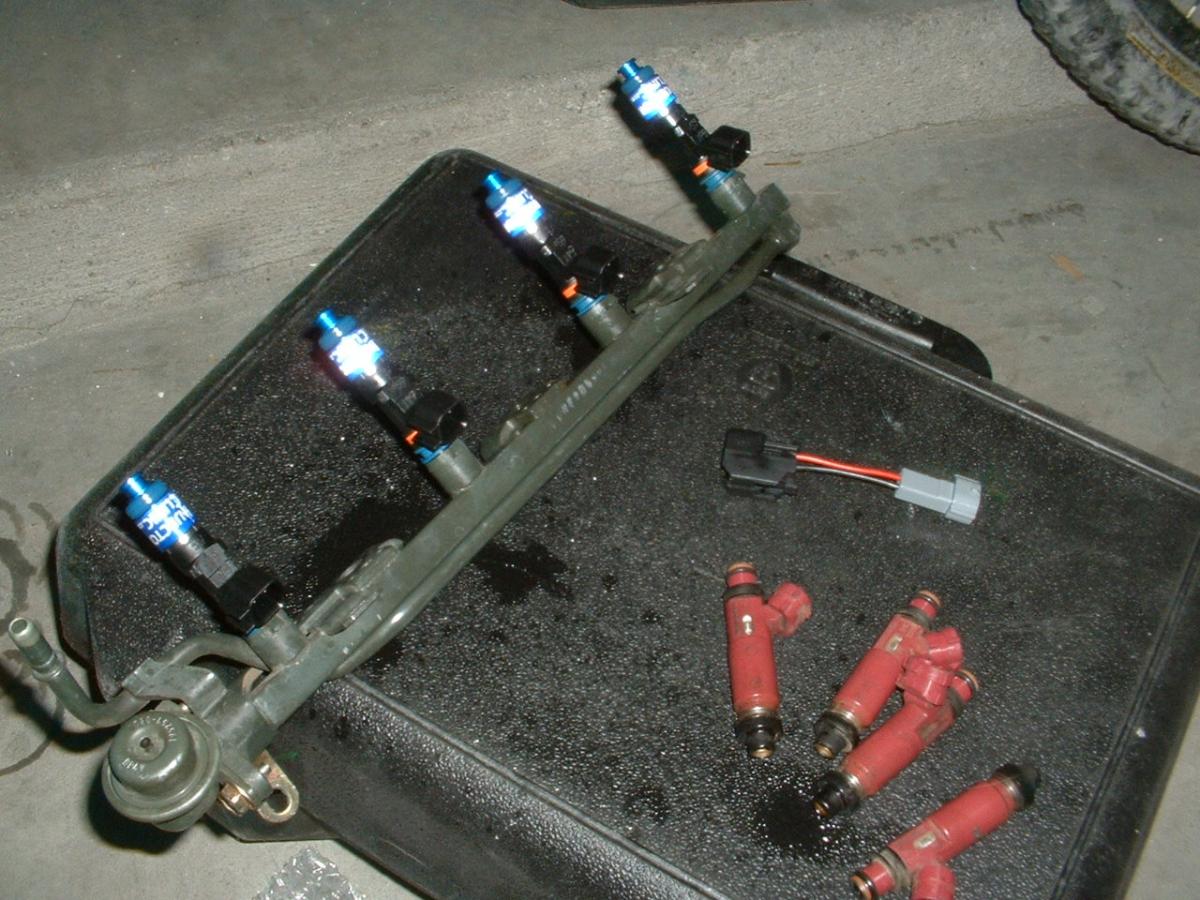

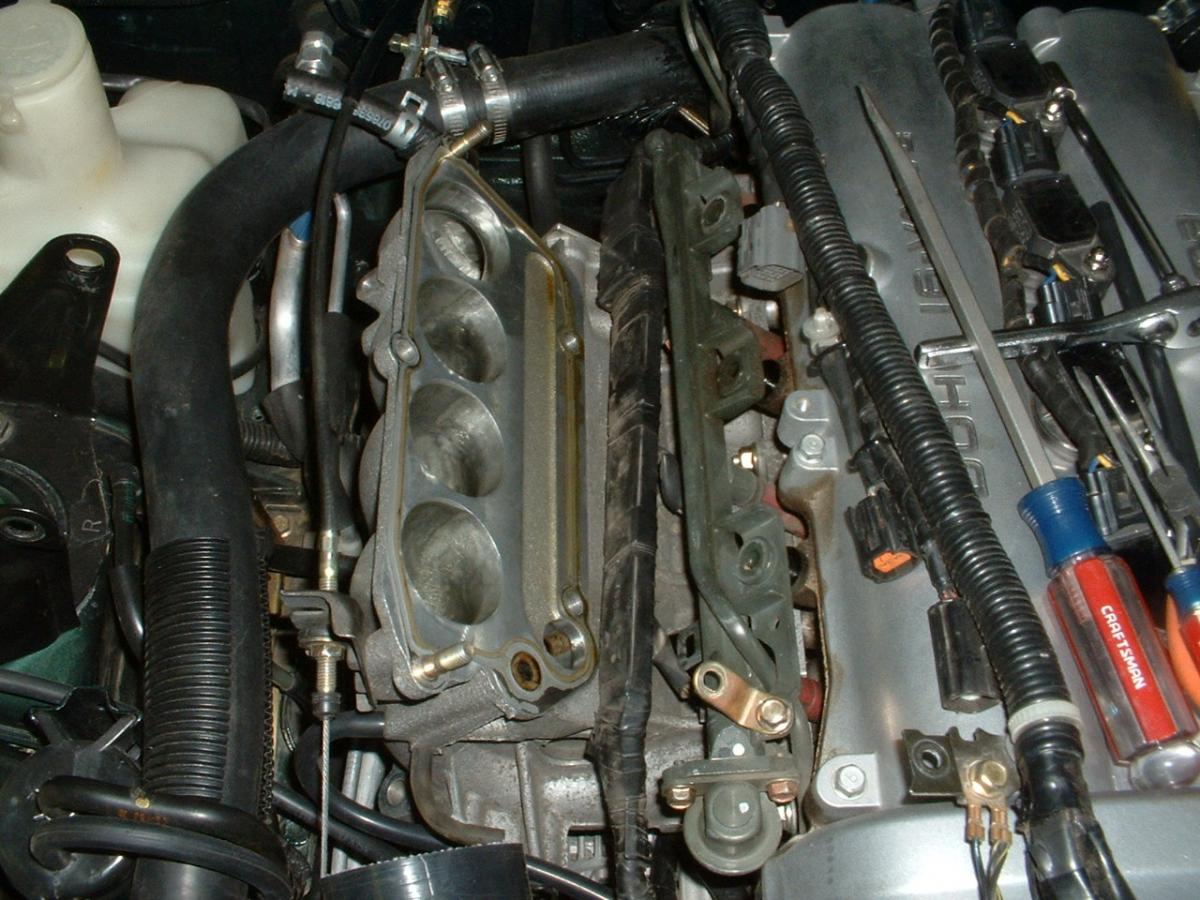

Tonight I installed the FIC 650cc injectors. I tweaked my Req_fuel and changed the Cranking PW settings. I was able to start the car and set the A/F ratio for idle.
Attached Thumbnails
99mx5 EFR build-dscf0104.jpg   99mx5 EFR build-dscf0105.jpg
99mx5 is offline   Reply With Quote
Old 02-24-2012, 04:11 AM   #93
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

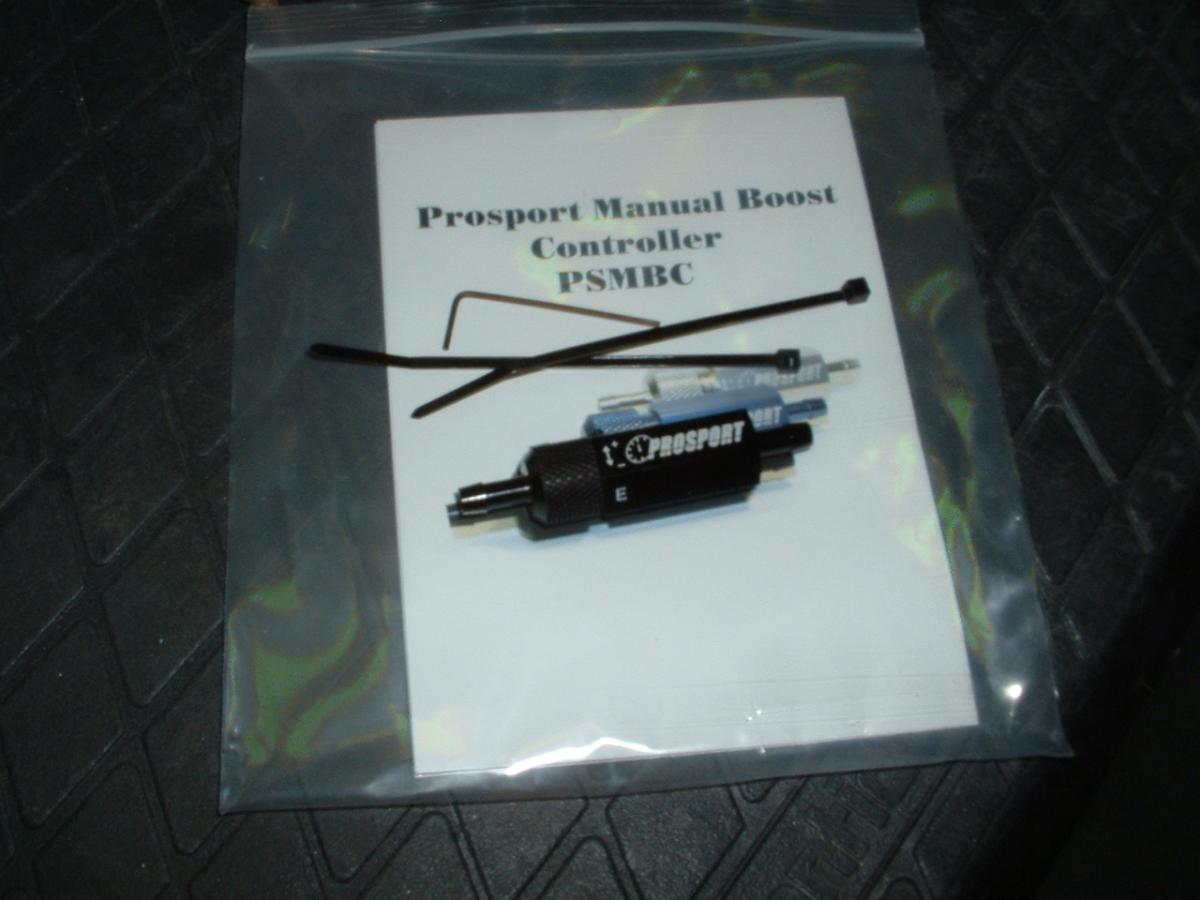

My Prosport MBC arrived. Now I need to wait for the boost gauge to tweak it. Tomorrow, I'll get the IAT sensor bung welded and re-install the coldside charge pipe.
Attached Thumbnails
99mx5 EFR build-dscf0097.jpg
99mx5 is offline   Reply With Quote
Old 02-25-2012, 02:53 AM   #94
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

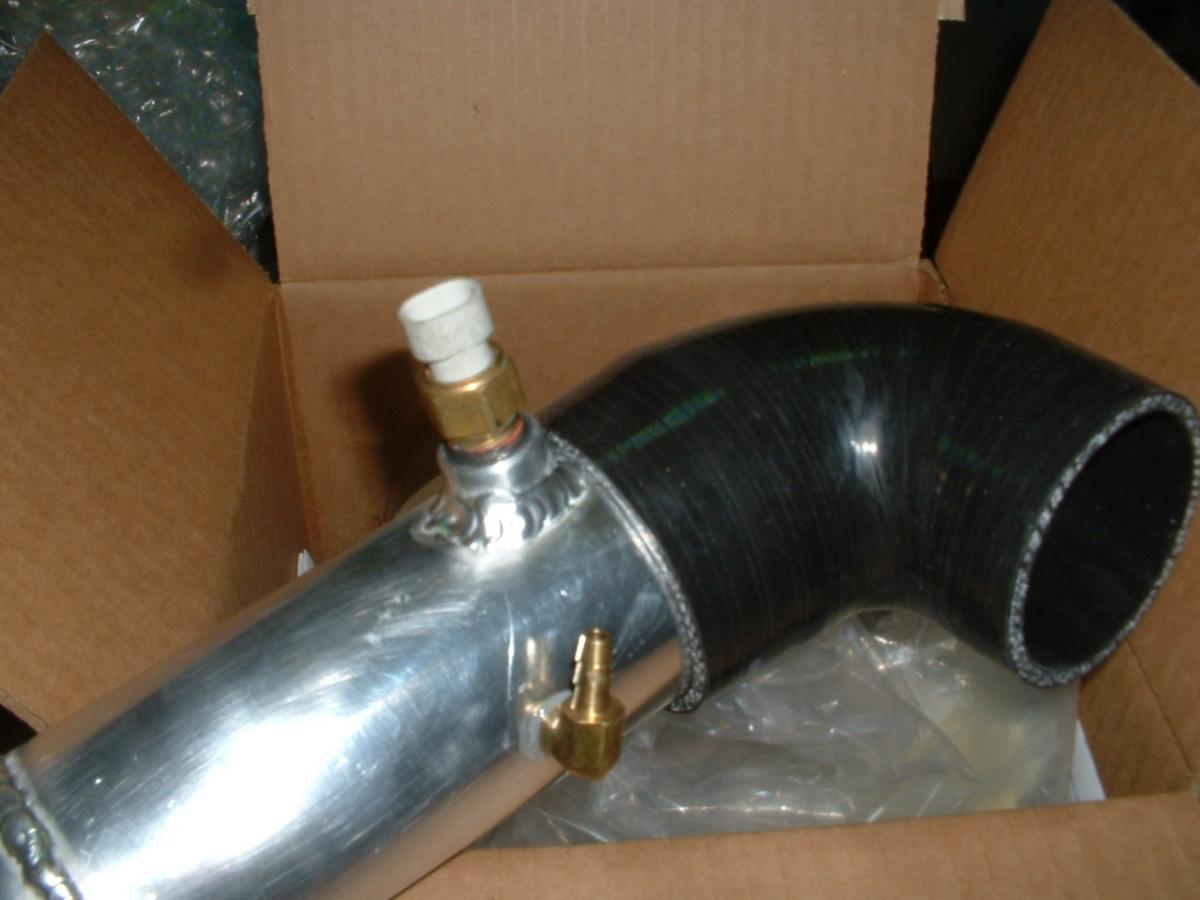

The intake charge pipe is completed with the IAT sensor bung and wastegate hose barb.

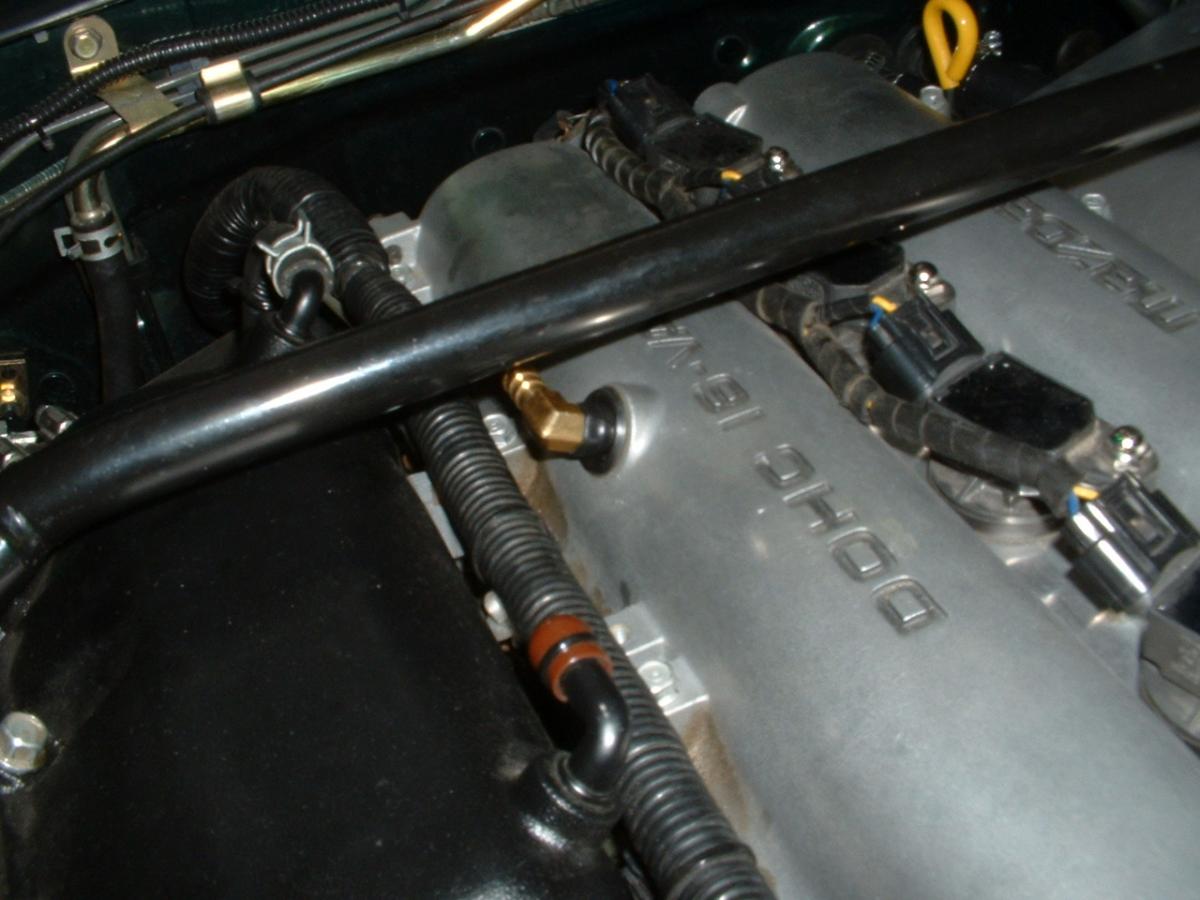

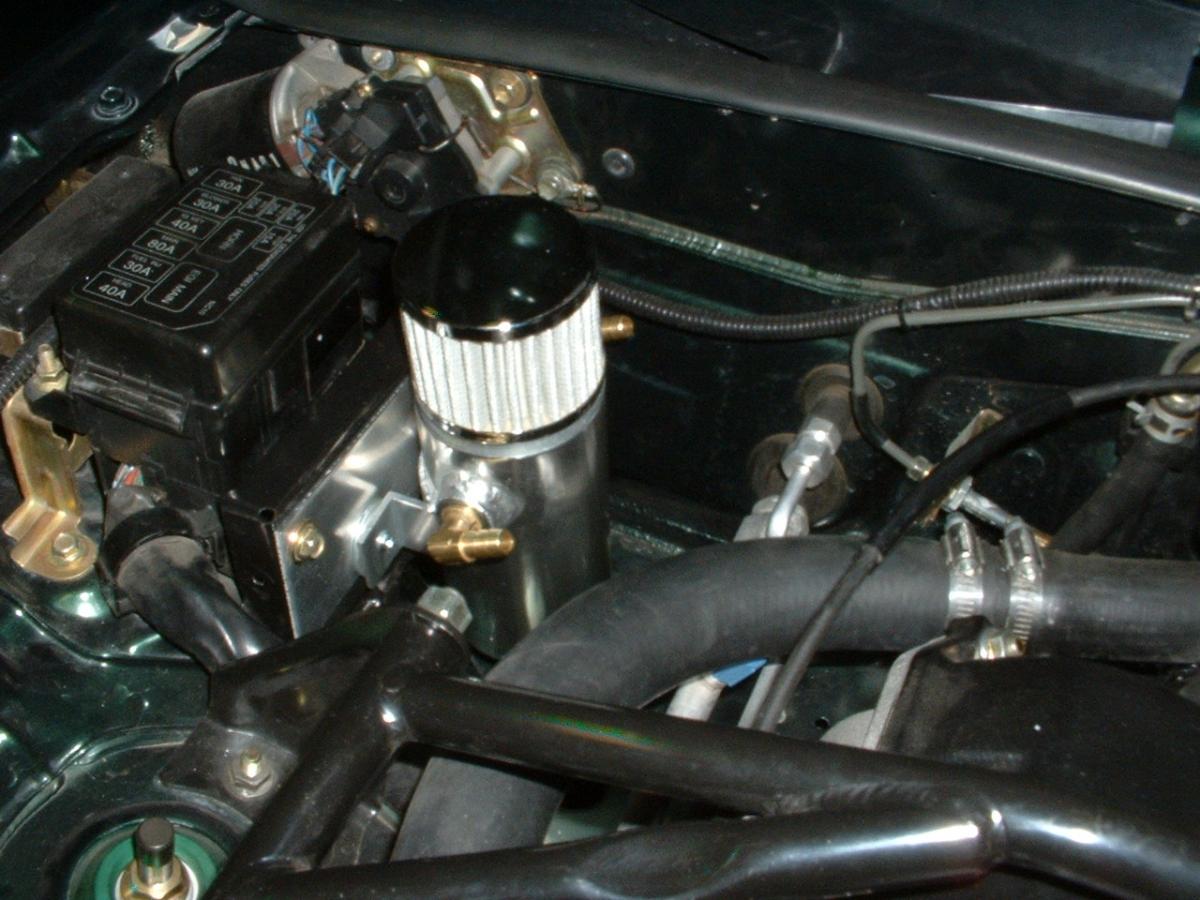

I installed the crankcase oil catch can/breather and installed a barb to replace the PCV fitting.

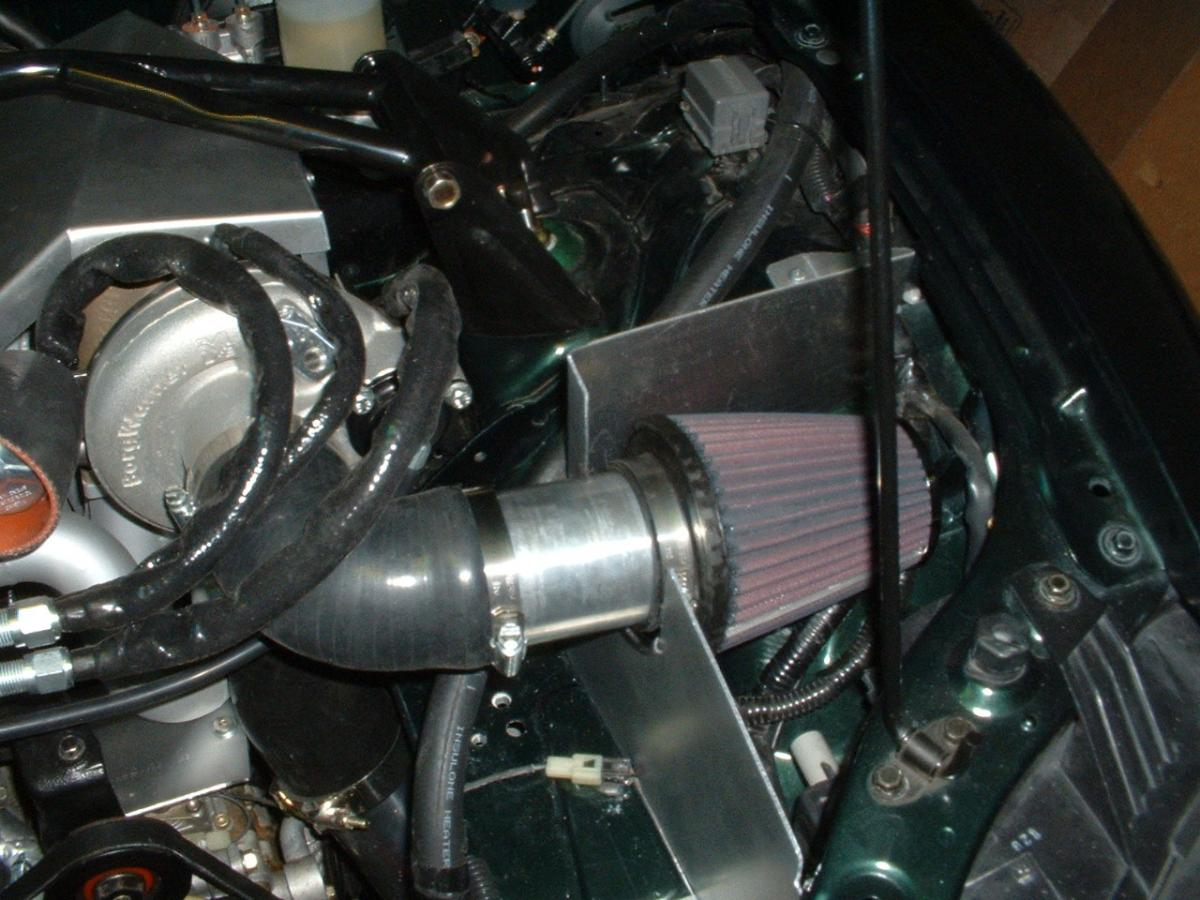

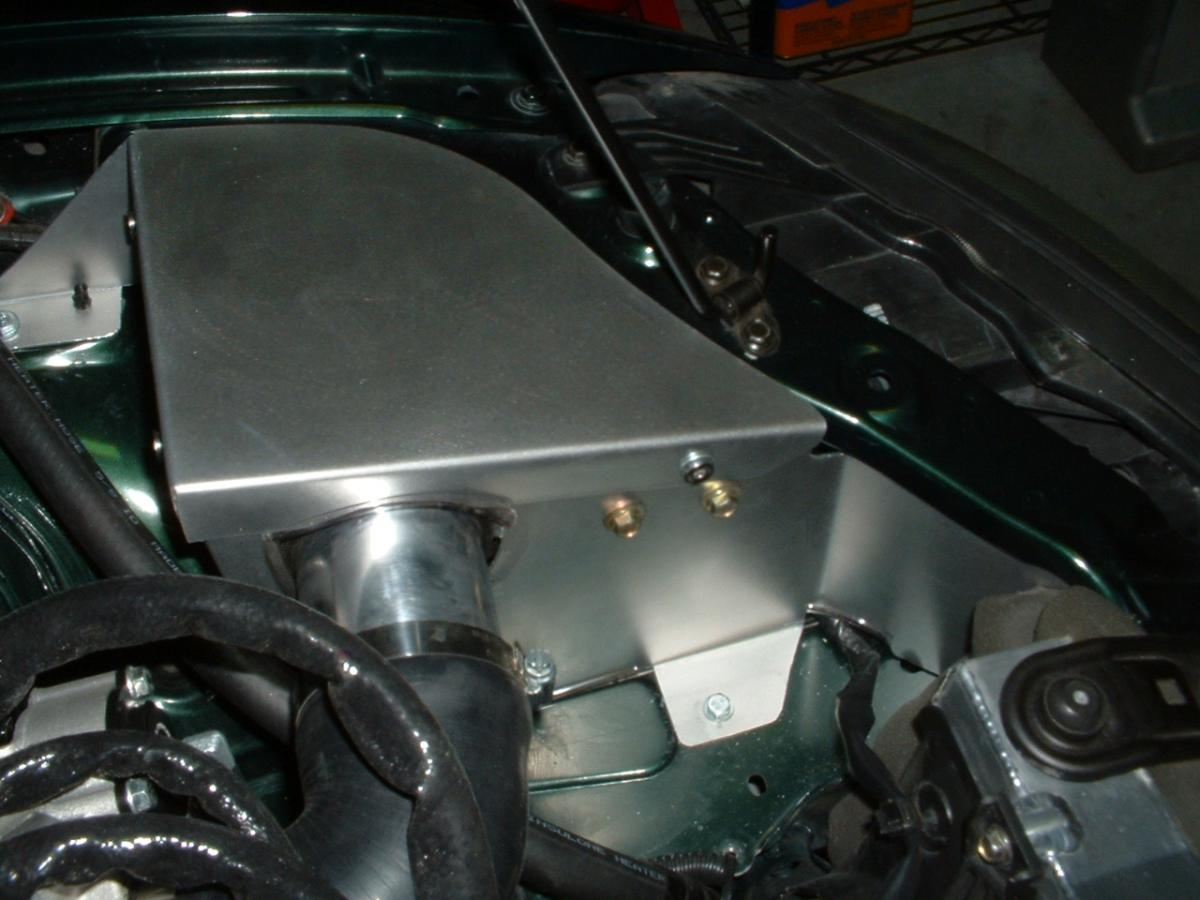

I started to make the cold air intake box. Today I made the base and tomorrow I'll make the lid.
Attached Thumbnails
99mx5 EFR build-dscf0108.jpg   99mx5 EFR build-dscf0109.jpg   99mx5 EFR build-dscf0110.jpg   99mx5 EFR build-dscf0107.jpg
99mx5 is offline   Reply With Quote
Old 02-25-2012, 02:55 AM   #95
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,049
Total Cats: 337
Default

Kill the crank-case vent on the passenger side, it will pour oil on right corners. I run only the driver's side with a -10 hose and it vents just fine, with no oil in the tank.
hustler is offline   Reply With Quote
Old 02-25-2012, 01:12 PM
Alameda
This message has been deleted by curly.
Old 02-25-2012, 01:40 PM   #96
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

Ah, I was copying your setup. It must have been an old pic.
Thanks for the heads up.
99mx5 is offline   Reply With Quote
Old 02-26-2012, 01:43 AM   #97
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

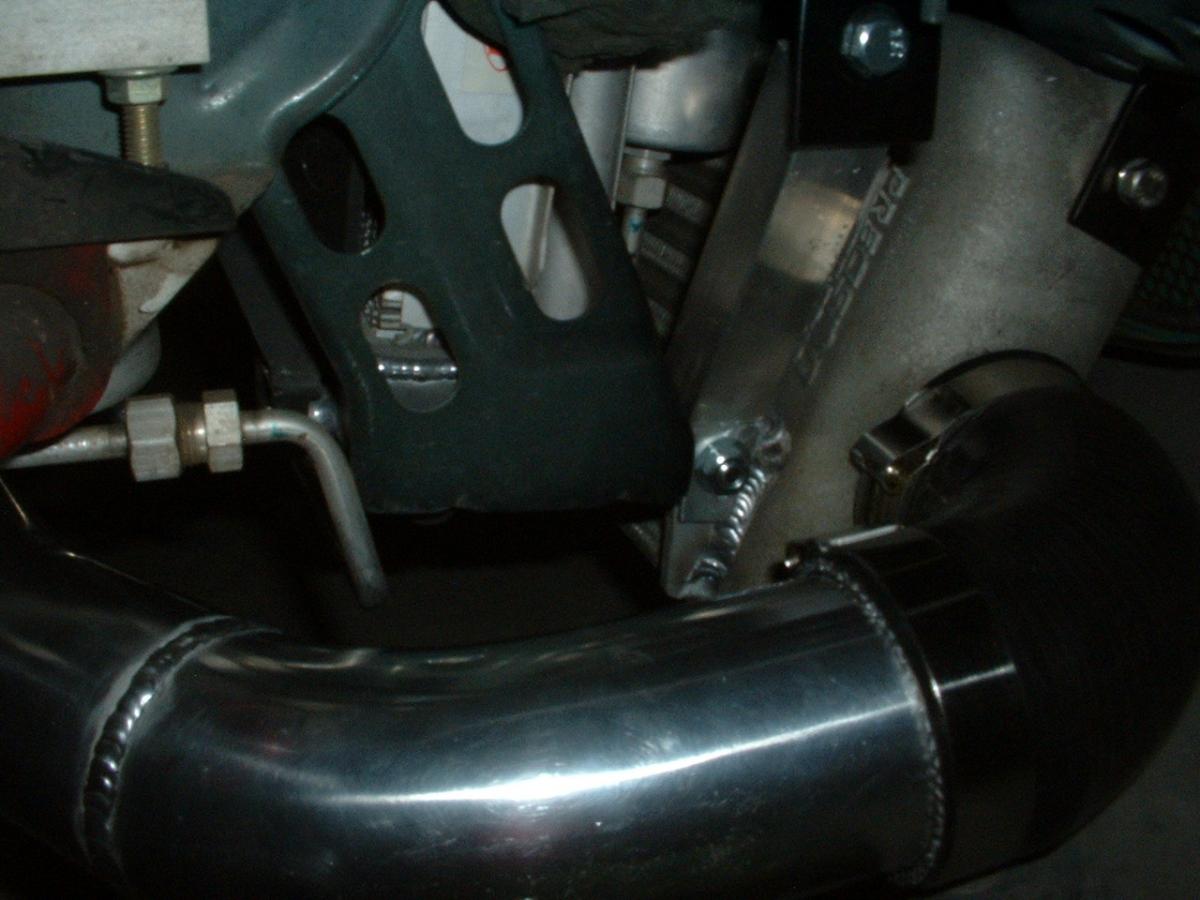

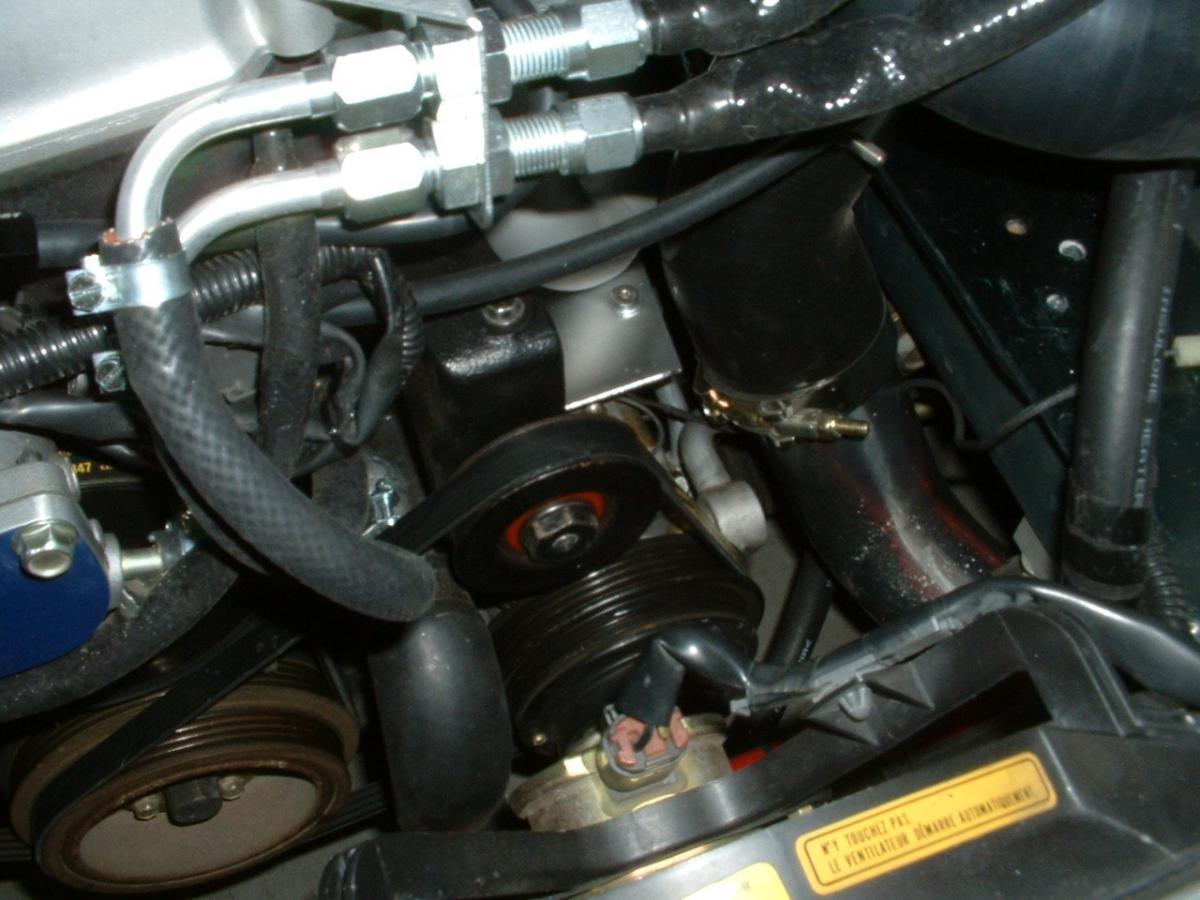

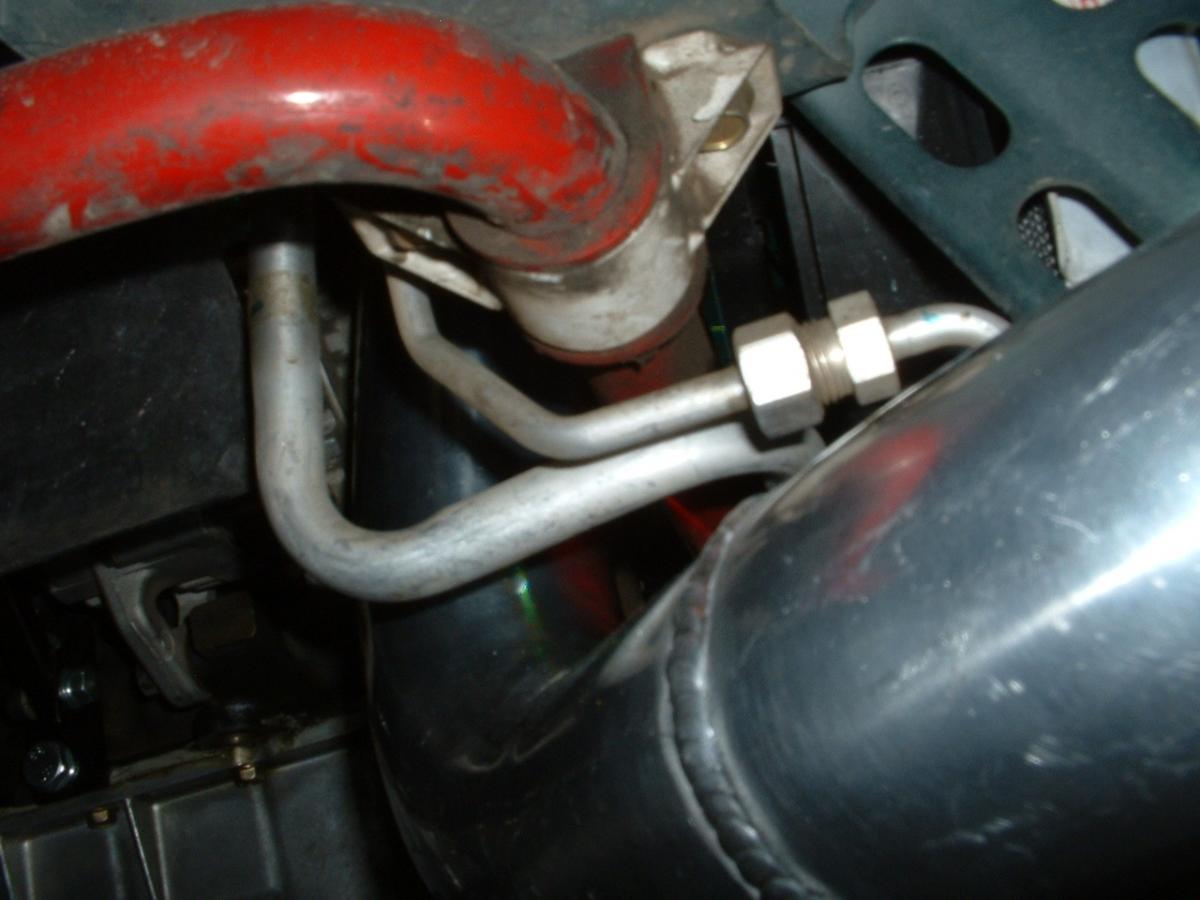

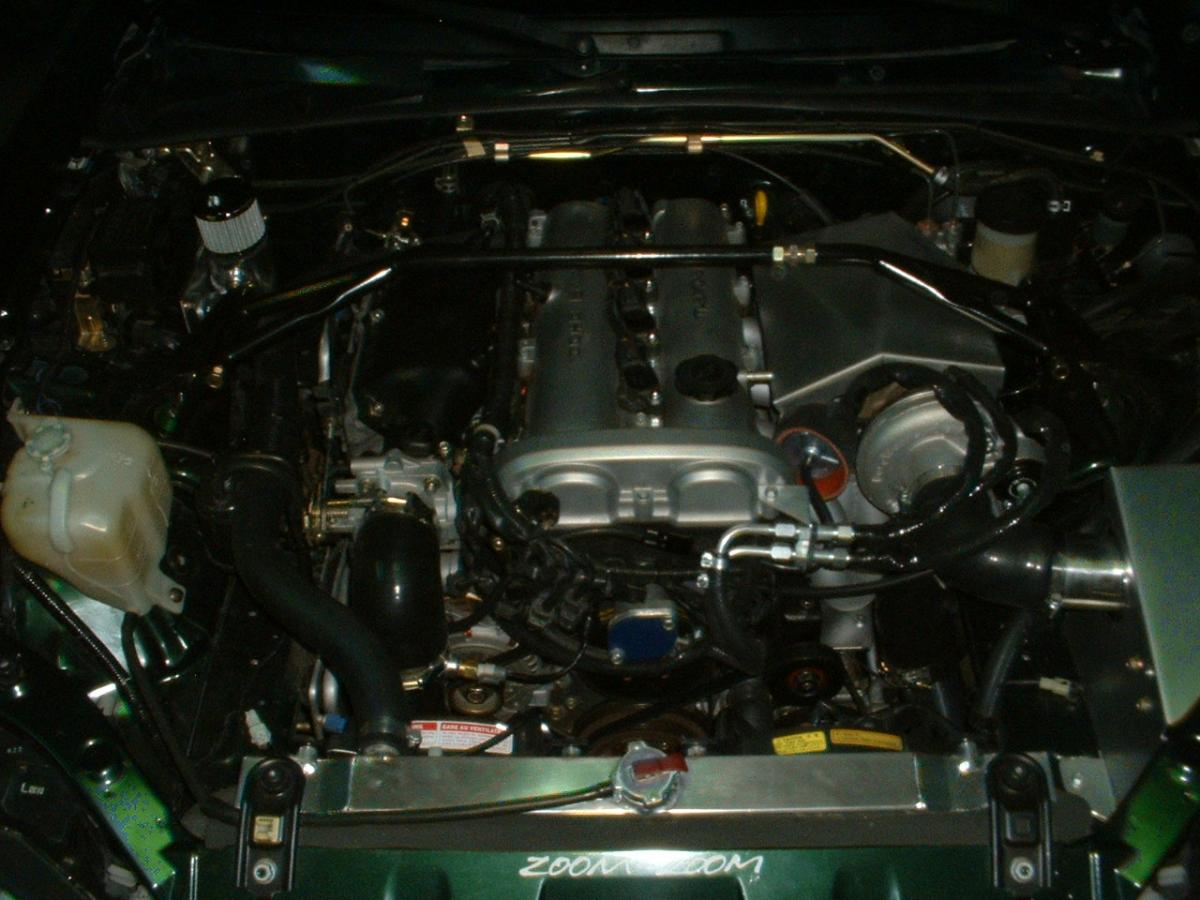

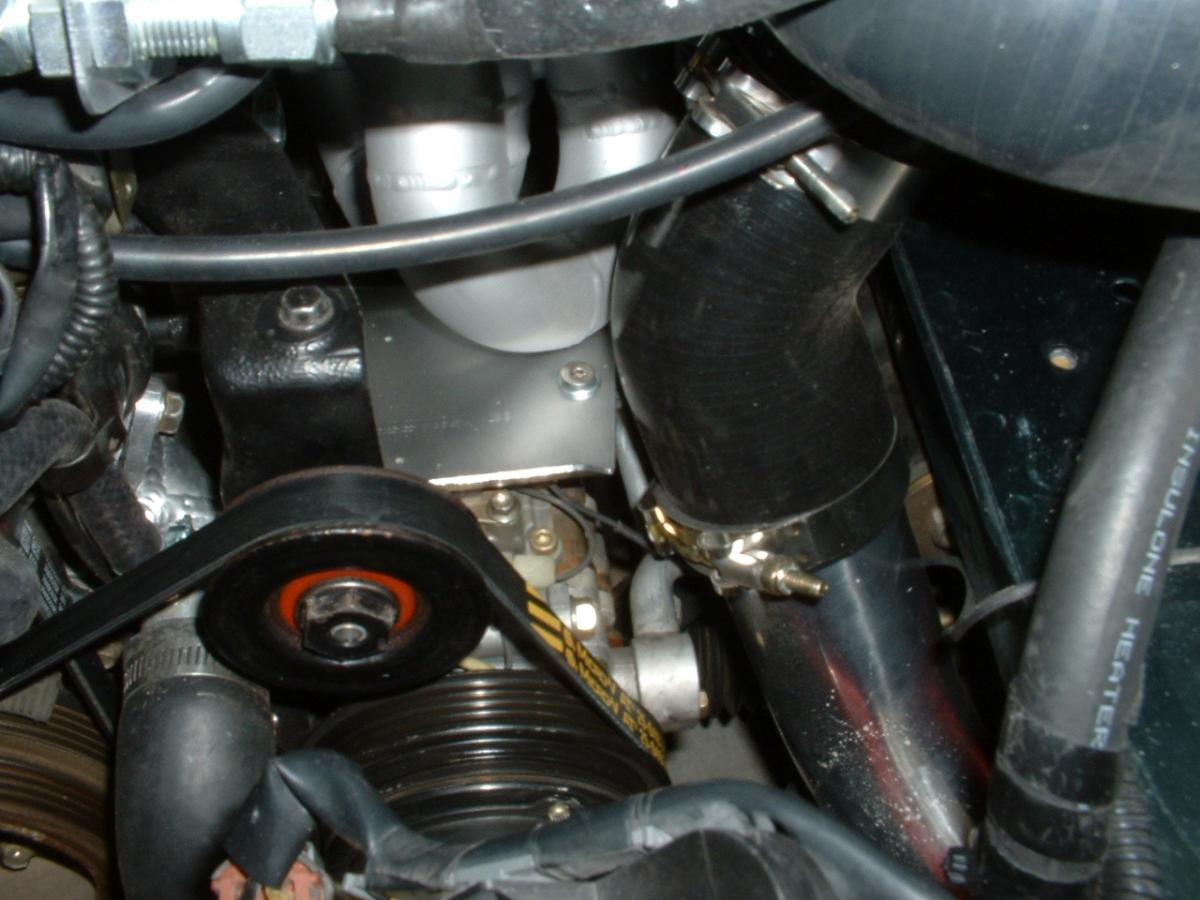

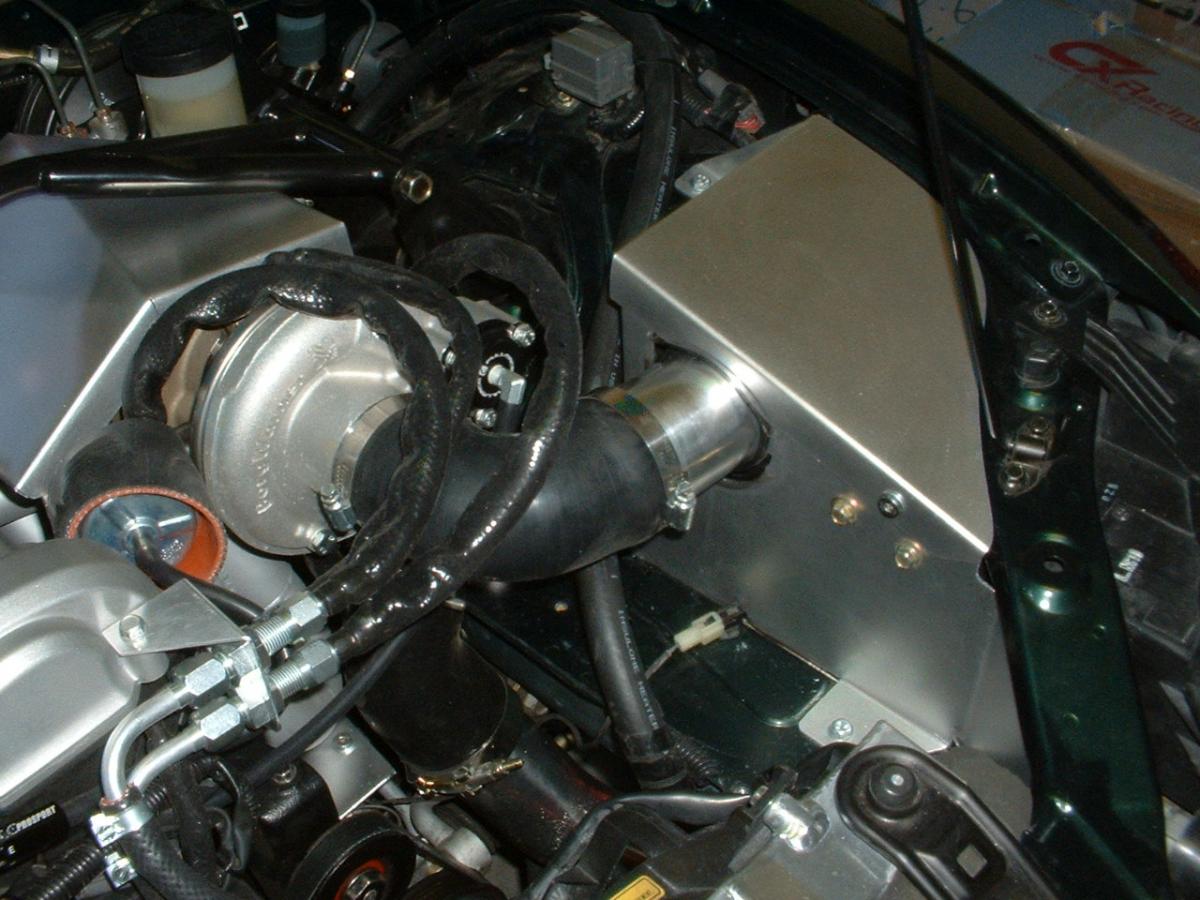

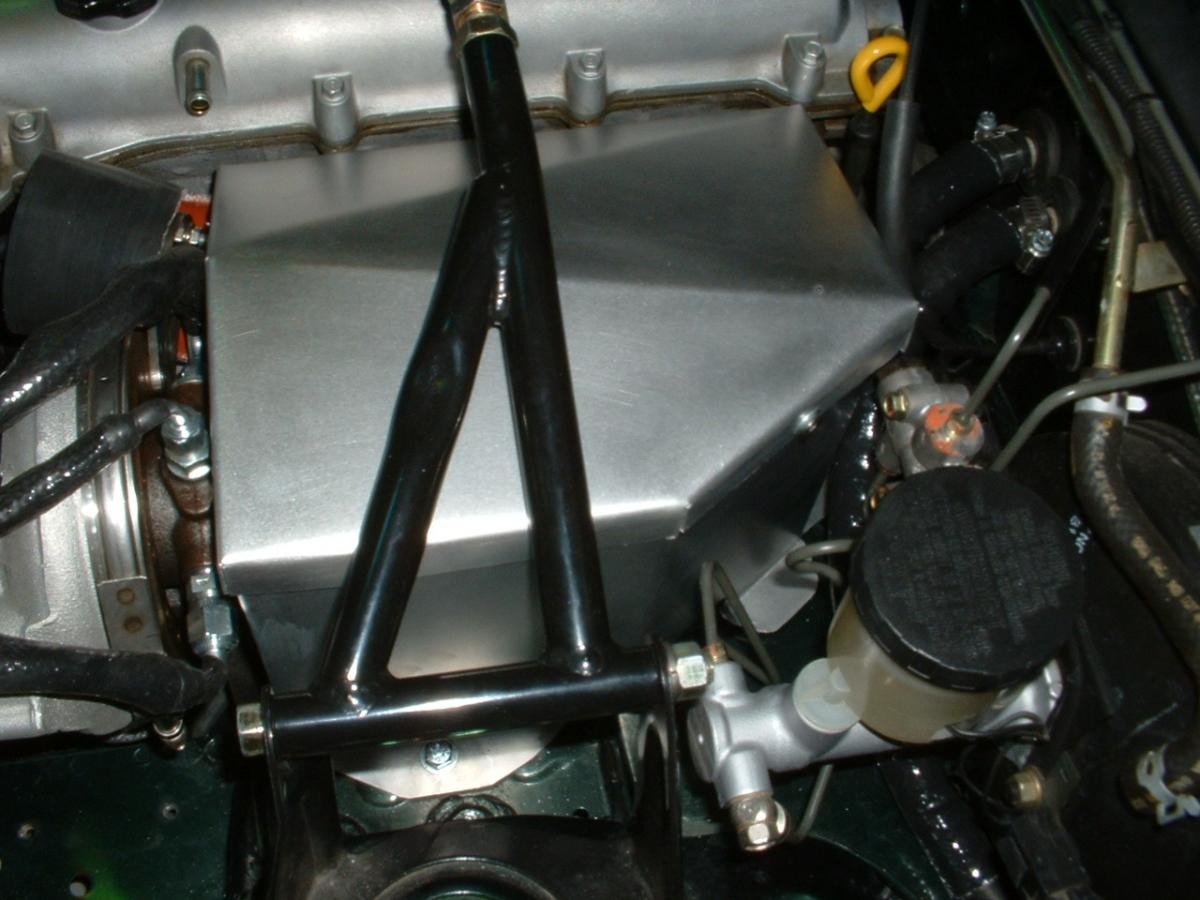

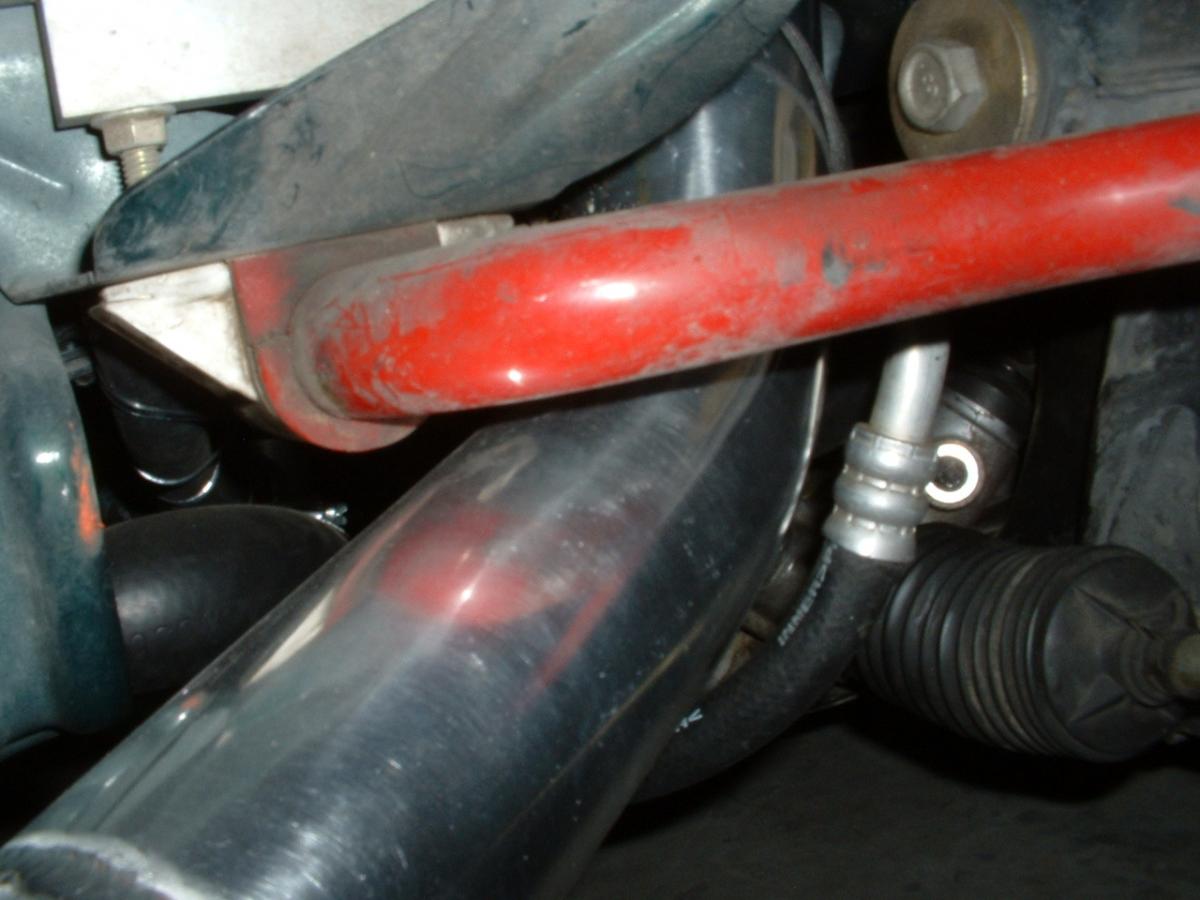

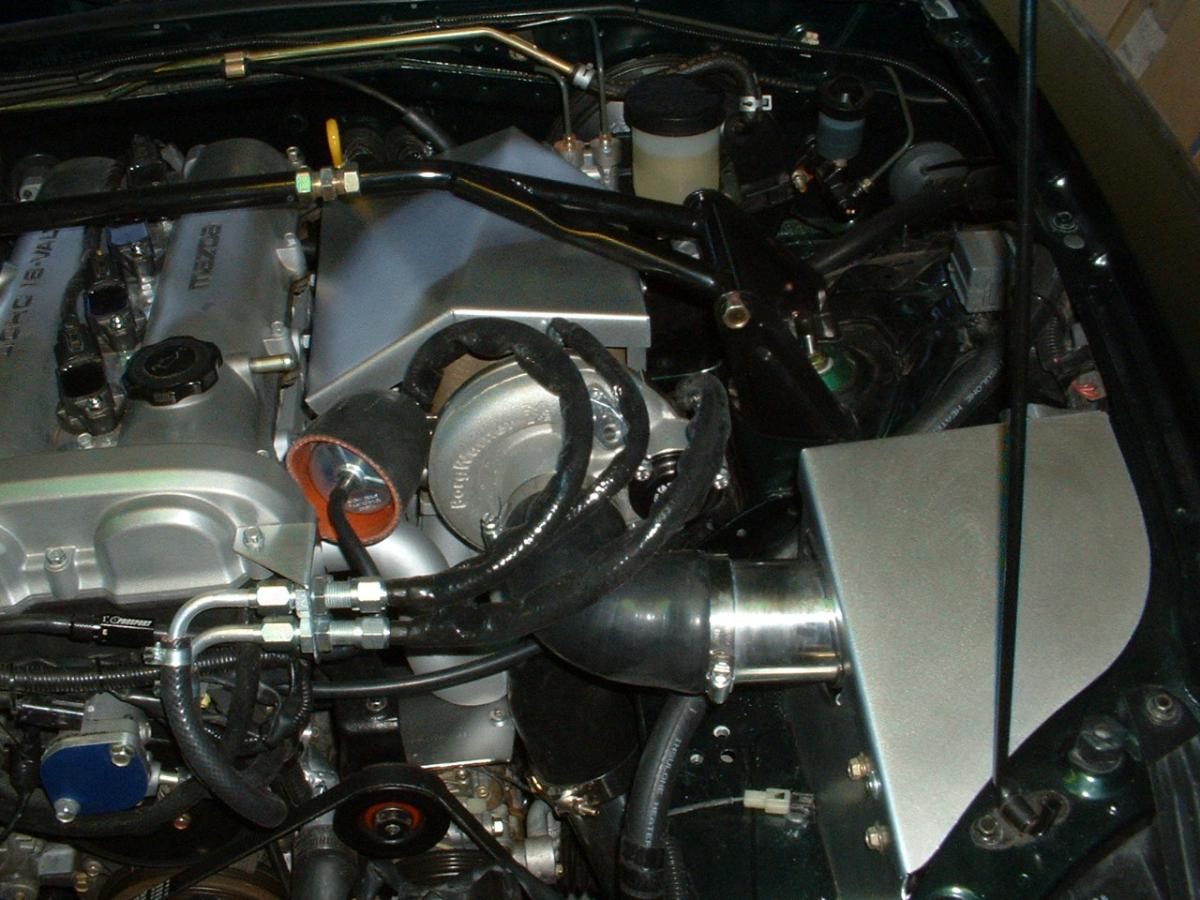

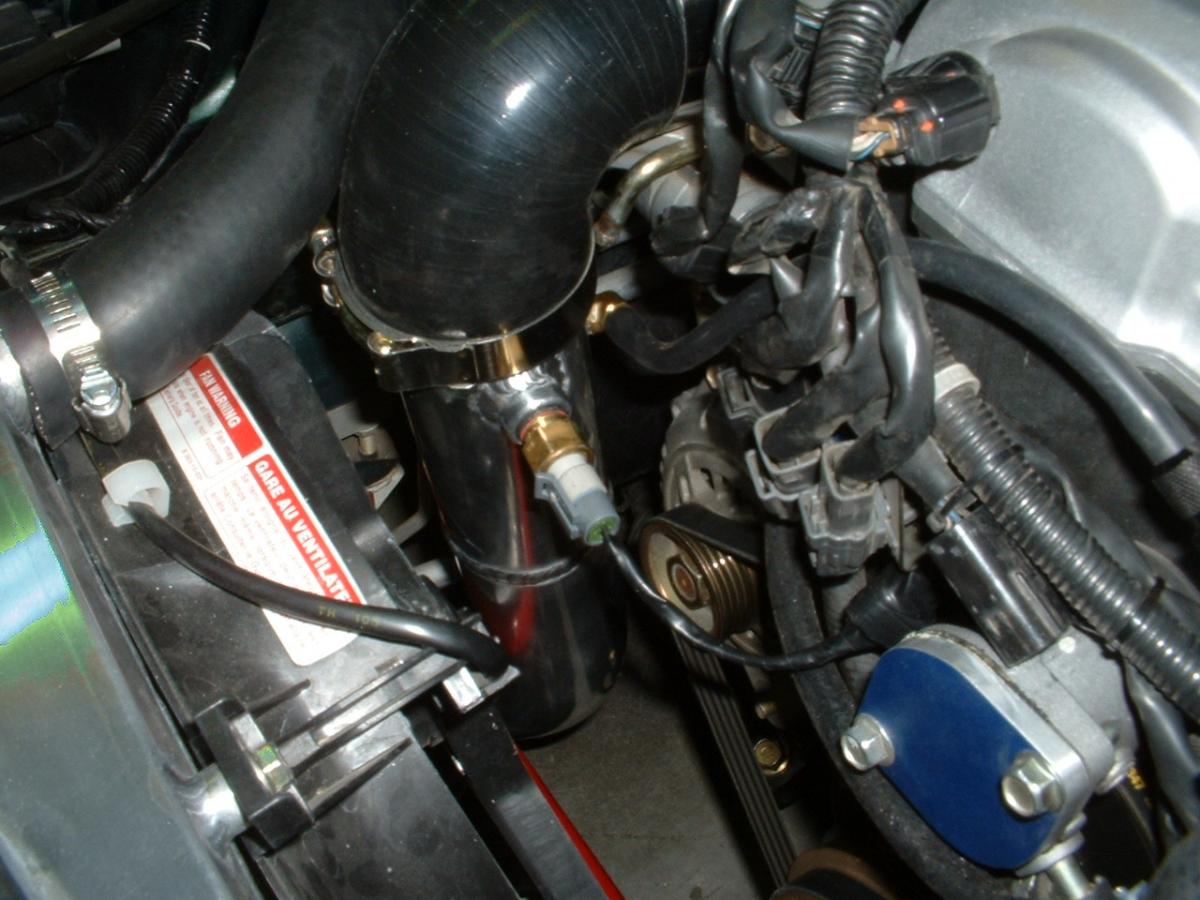

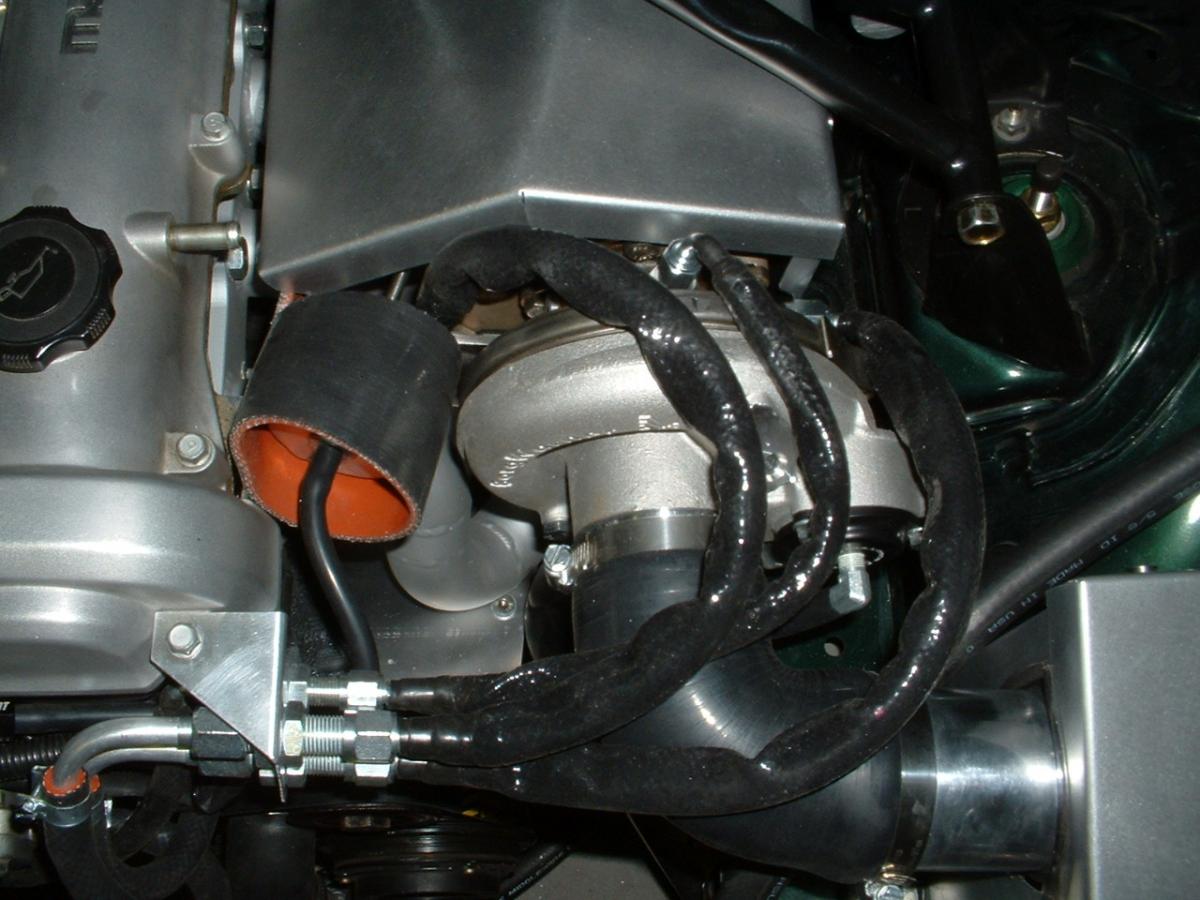

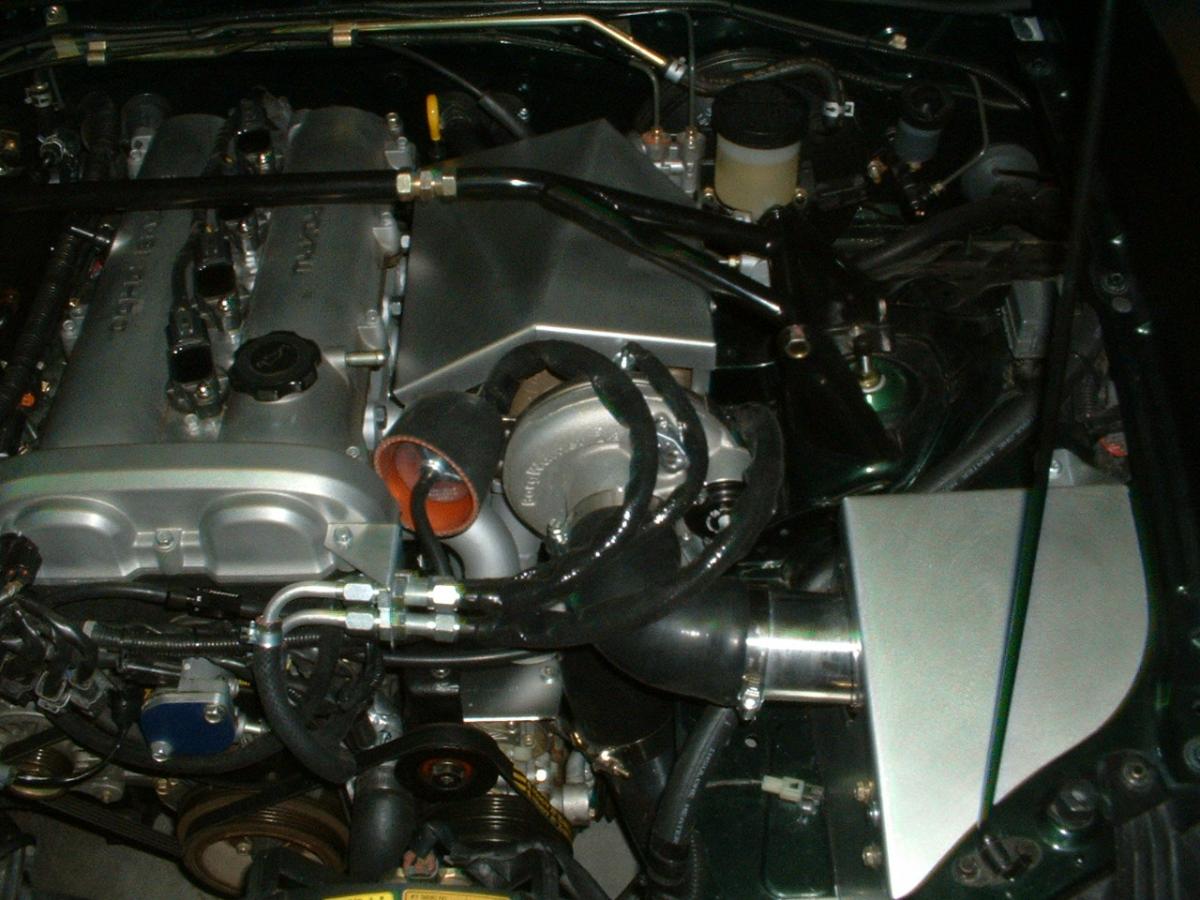

Today I finished the fabrication and install work in the engine bay. The only thing left to do in the engine bay is the breather hose and the heater line shutoff valve.

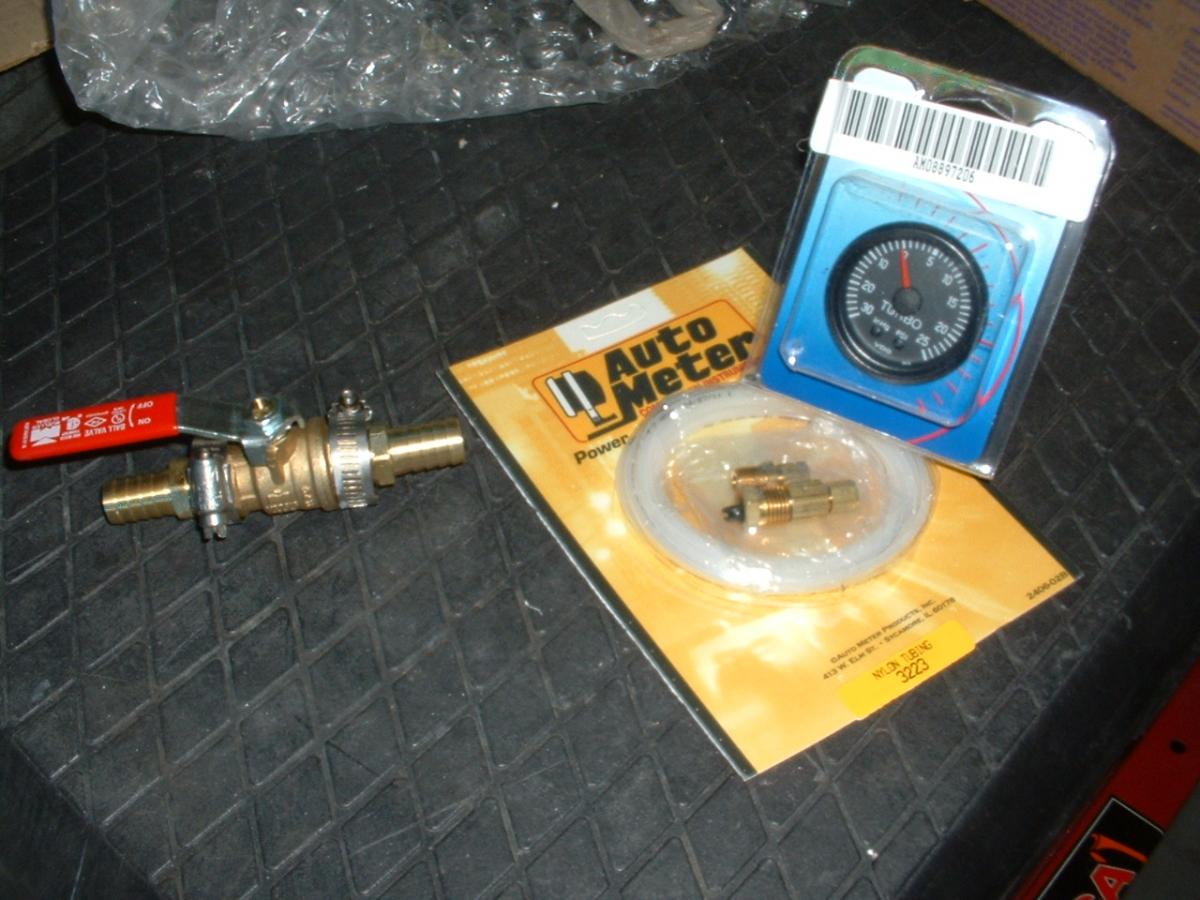

Tomorrow I'll install the boost gauge, and the new A/F gauge. On to the pics
Attached Thumbnails
99mx5 EFR build-dscf0128.jpg   99mx5 EFR build-dscf0129.jpg   99mx5 EFR build-dscf0130.jpg   99mx5 EFR build-dscf0131.jpg   99mx5 EFR build-dscf0132.jpg

99mx5 EFR build-dscf0133.jpg   99mx5 EFR build-dscf0134.jpg   99mx5 EFR build-dscf0135.jpg   99mx5 EFR build-dscf0136.jpg   99mx5 EFR build-dscf0137.jpg

99mx5 EFR build-dscf0138.jpg   99mx5 EFR build-dscf0139.jpg   99mx5 EFR build-dscf0143.jpg   99mx5 EFR build-dscf0144.jpg   99mx5 EFR build-dscf0145.jpg

99mx5 EFR build-dscf0146.jpg
99mx5 is offline   Reply With Quote
Old 02-26-2012, 01:45 AM   #98
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,412
Total Cats: 2,250
Default

sorry if you already posted, but what kinda rad is that?
18psi is offline   Reply With Quote
Old 02-26-2012, 01:51 AM   #99
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

You aren't the first one to ask. It's a PWR radiator.
99mx5 is offline   Reply With Quote
Old 02-26-2012, 02:14 AM   #100
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -30
Default

I'm going to *attempt* to copy a lot of your stuff. Great thread. : - )
pusha is offline   Reply With Quote
