Old 04-01-2012, 03:16 PM   #181
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,107
Total Cats: 351
Default

Also, get rid of that rigid mounted oil pressure sender thingy, I've seen them break before.
hustler is offline   Reply With Quote
Old 04-01-2012, 03:20 PM   #182
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

this is great. throwing rods at 160kpa, lol.
soviet is offline   Reply With Quote
Old 04-01-2012, 03:26 PM   #183
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,741
Total Cats: 2,481
Default

I bet you're glad you built yours right about now huh
18psi is offline   Reply With Quote
Old 04-01-2012, 04:04 PM   #184
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

Quote:
Originally Posted by hustler View Post
Also, get rid of that rigid mounted oil pressure sender thingy, I've seen them break before.
I made a support bracket for it. More pics are in post #78.



The bores on the spare block look great and have no scratches or ridges. should they be bored to the next size up or just rehoned?
99mx5 is offline   Reply With Quote
Old 04-01-2012, 04:09 PM   #185
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,107
Total Cats: 351
Default

bauce.
hustler is offline   Reply With Quote
Old 04-02-2012, 04:30 PM   #186
Junior Member

Join Date: Apr 2011
Location: Las Cruces, NM
Posts: 253
Total Cats: 11
Default

This car is/was a blast, I hate having no WHP's...
Stock is offline   Reply With Quote
Old 04-07-2012, 11:04 PM   #187
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

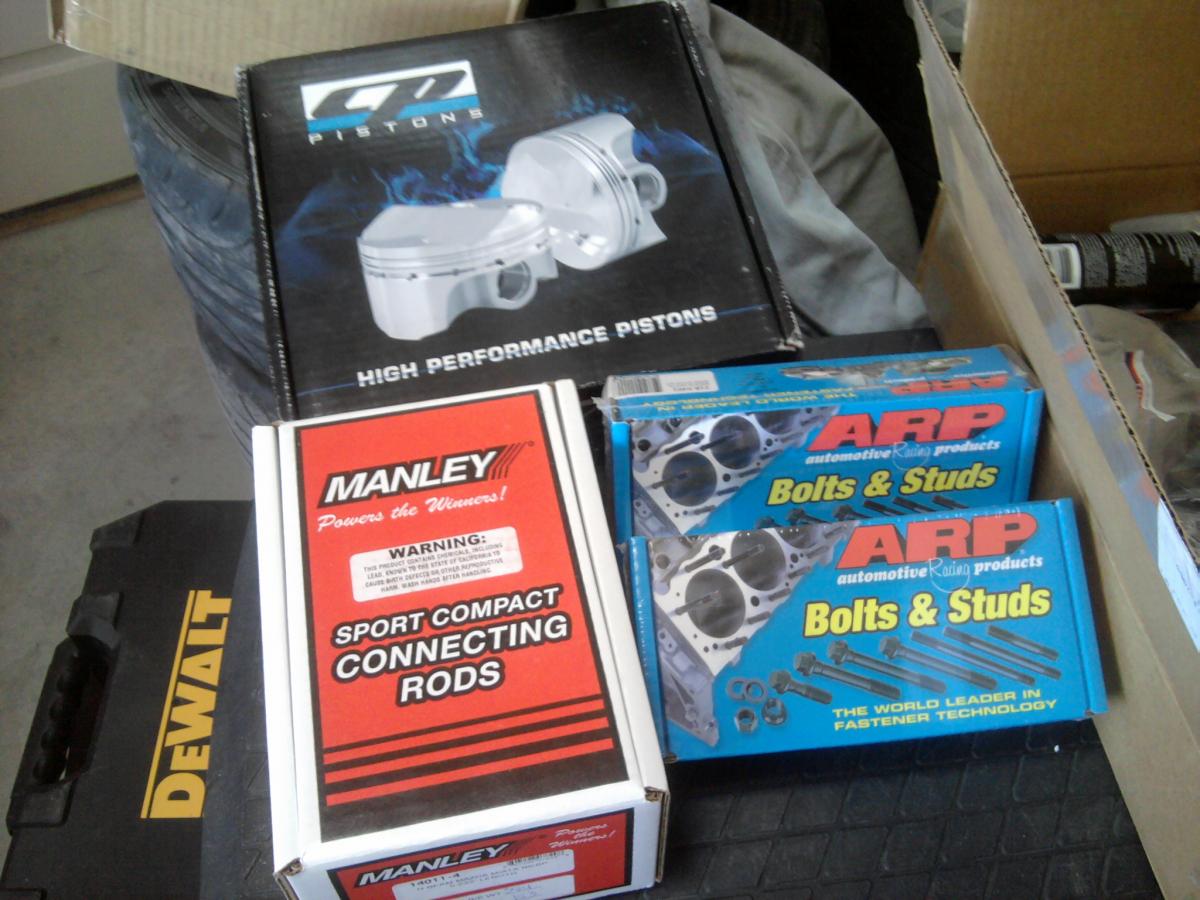

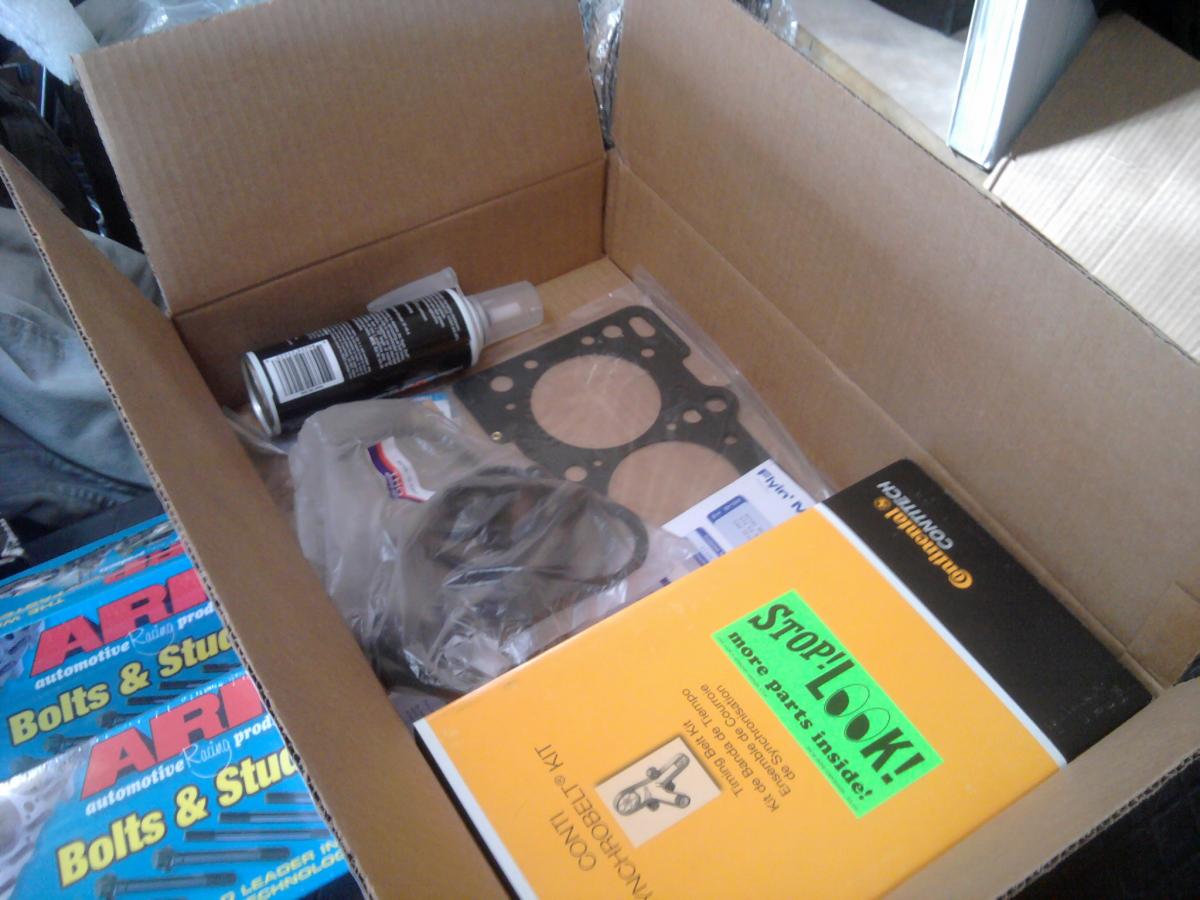

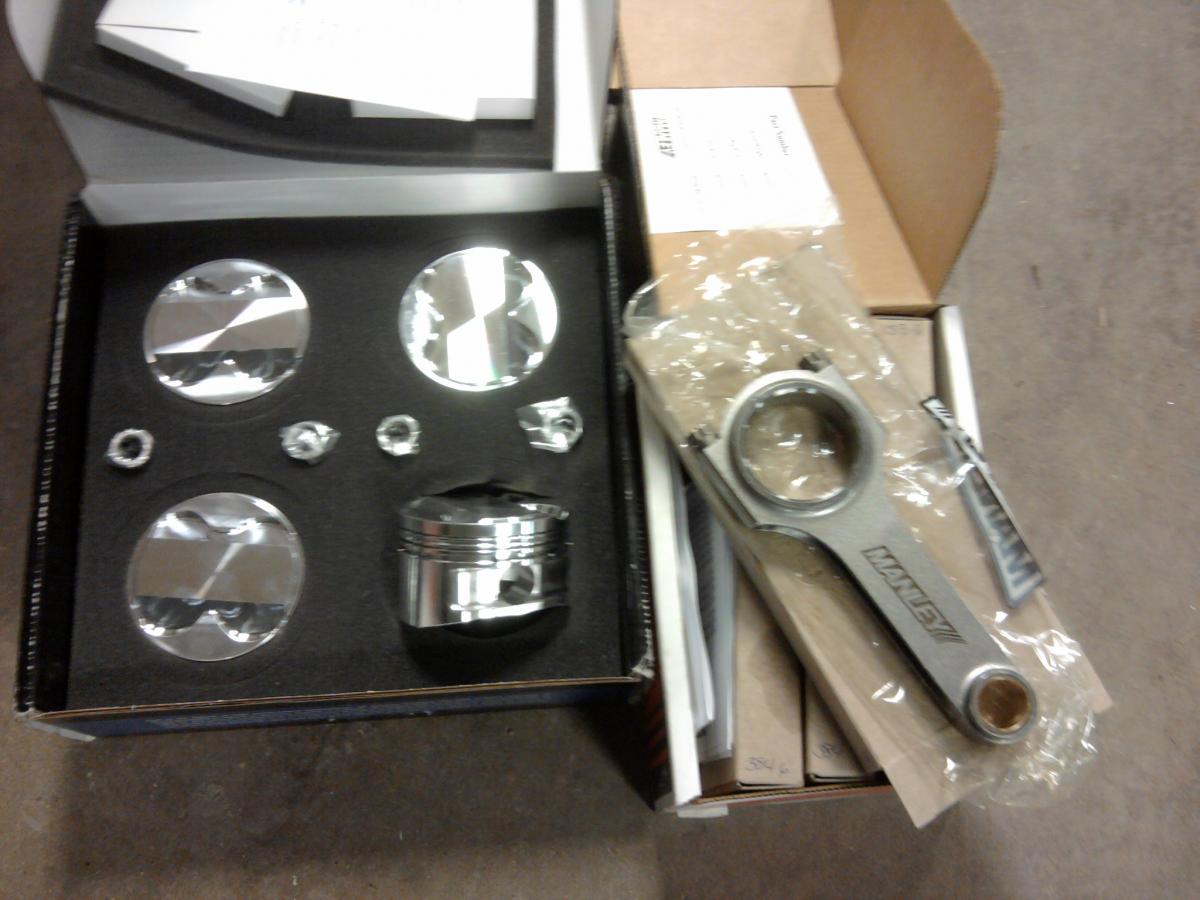

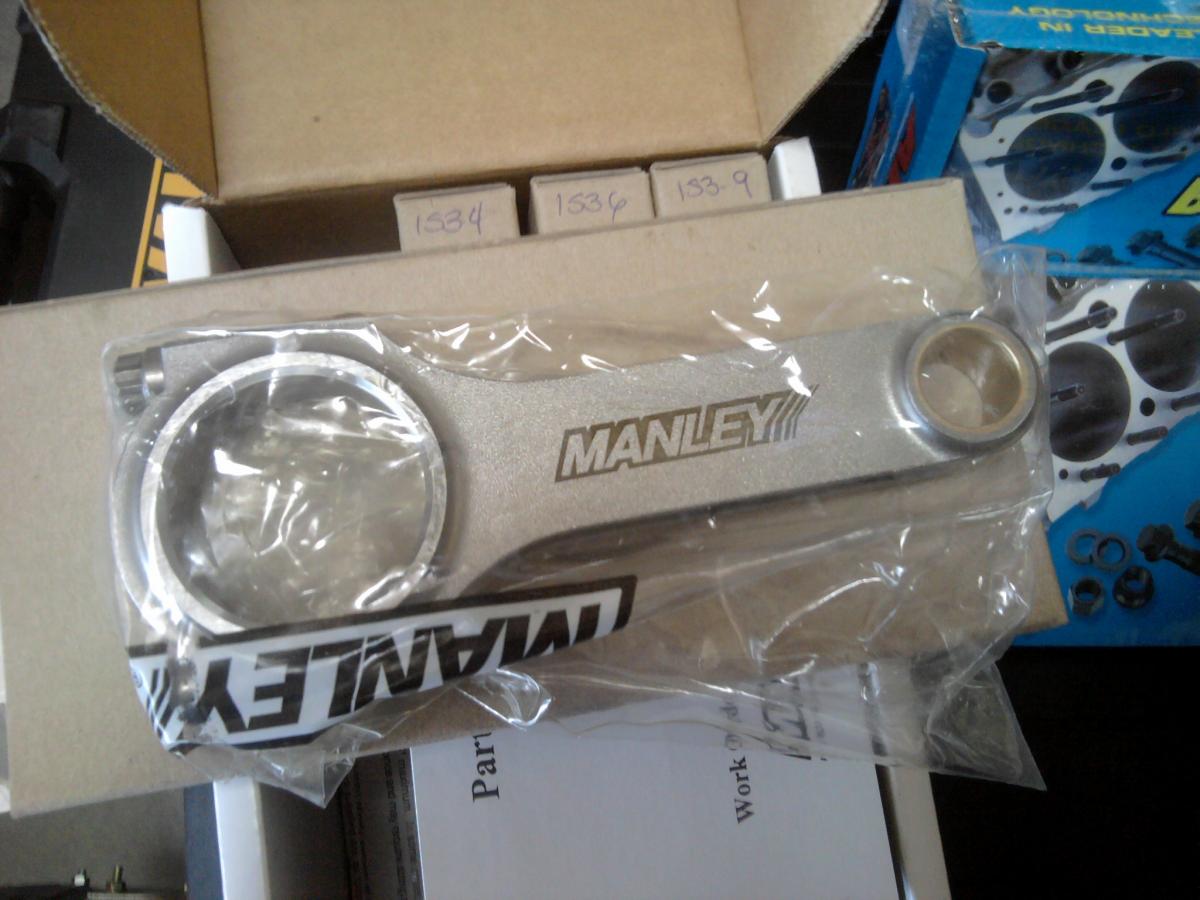

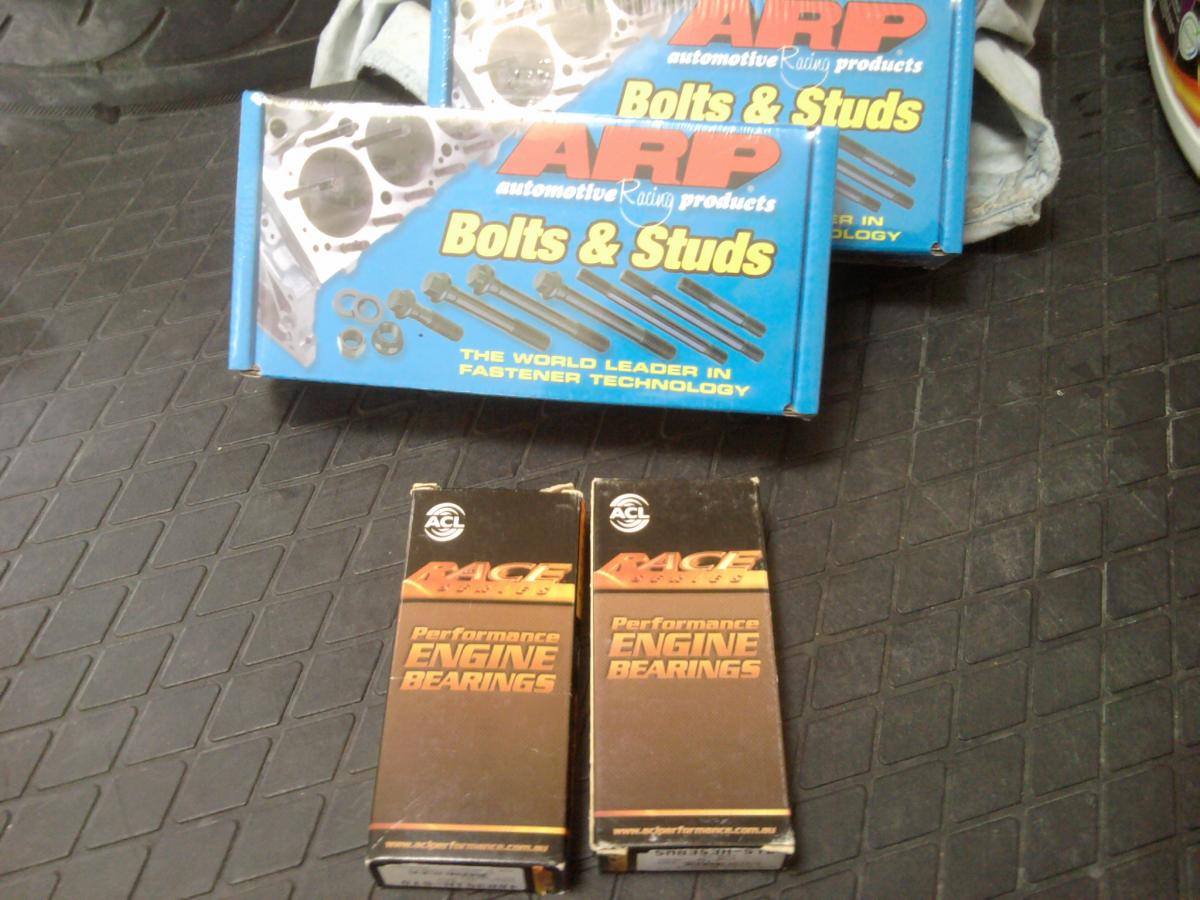

Some new parts arrived! The block will be taken to the machine shop on Monday.
Attached Thumbnails
99mx5 EFR build-img_20120406_164742.jpg   99mx5 EFR build-img_20120406_164747.jpg   99mx5 EFR build-img_20120406_210310.jpg   99mx5 EFR build-img_20120406_164813.jpg   99mx5 EFR build-img_20120407_141409.jpg


Last edited by 99mx5; 04-07-2012 at 11:20 PM.
99mx5 is offline   Reply With Quote
Old 04-07-2012, 11:17 PM   #188
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

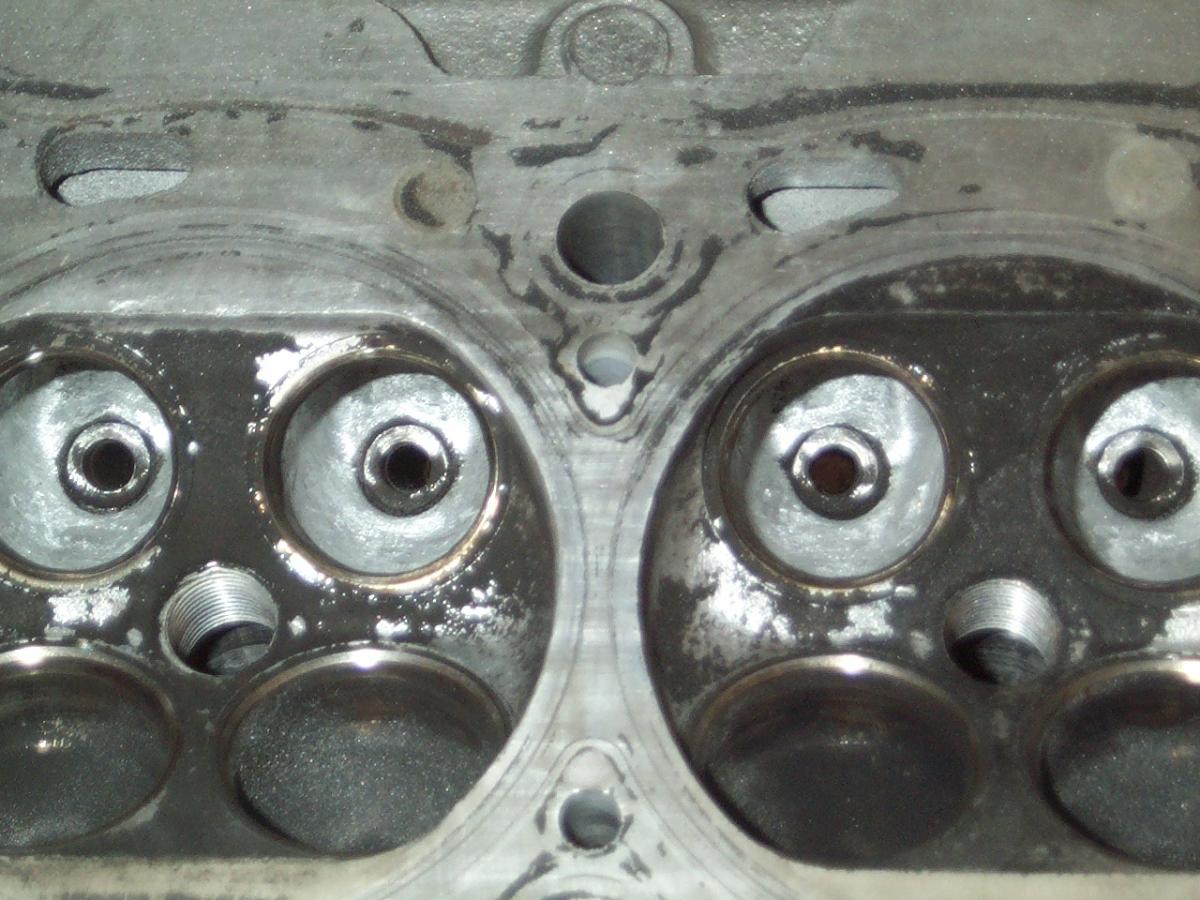

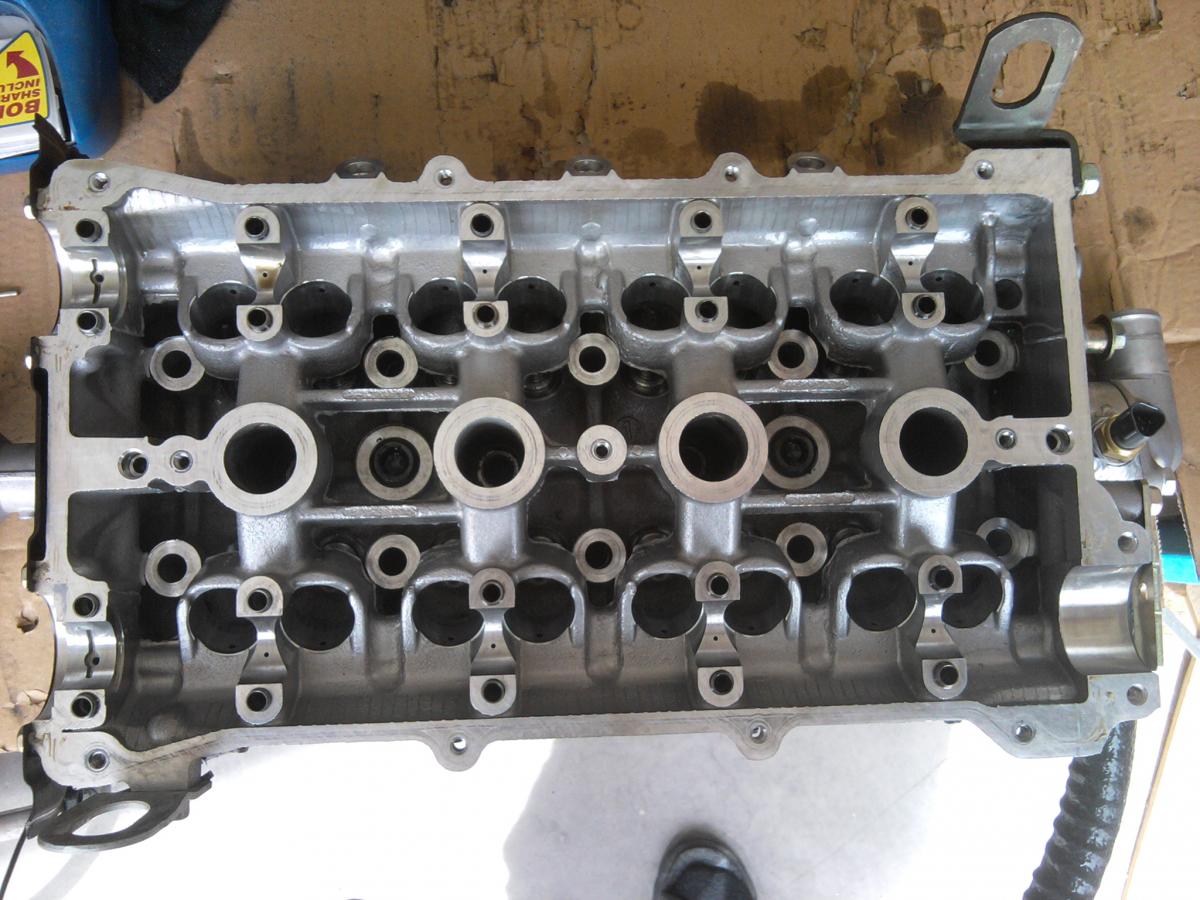

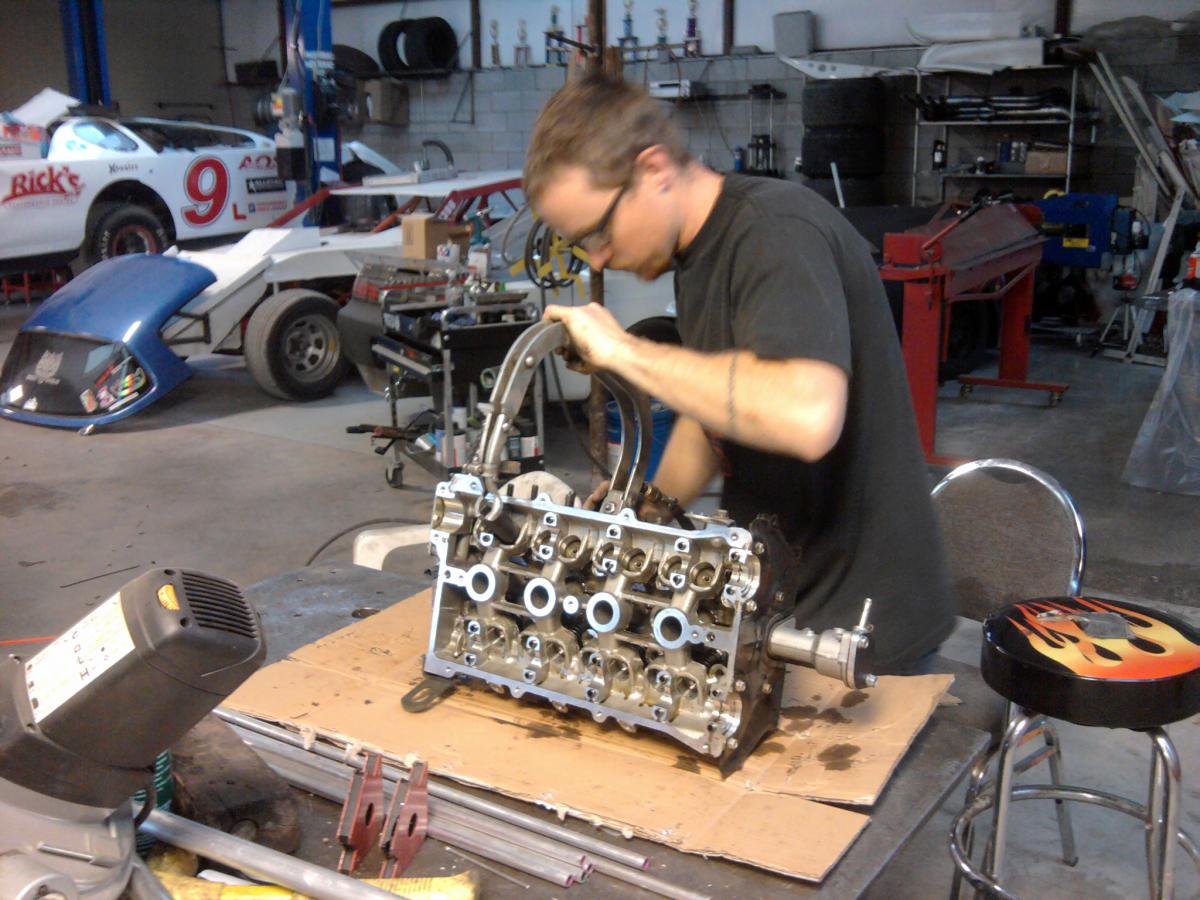

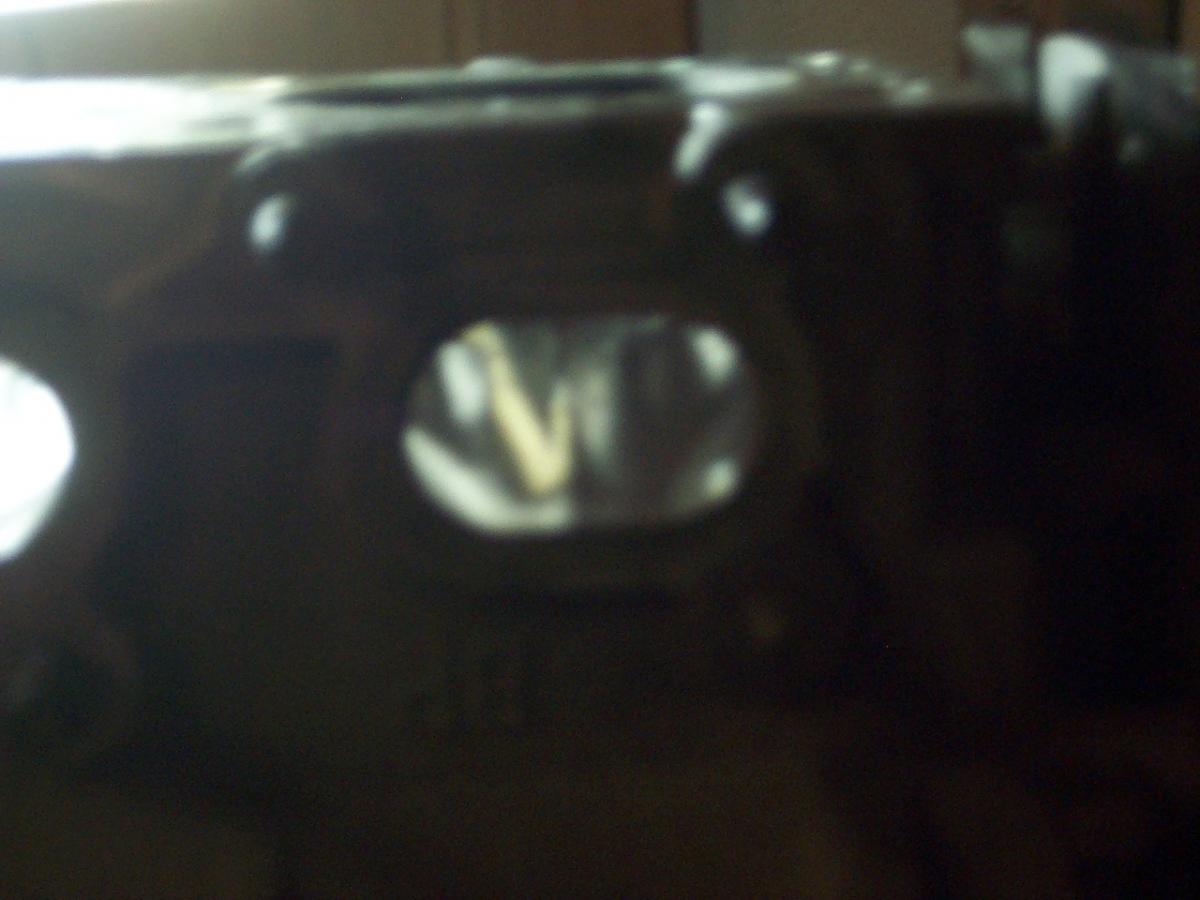

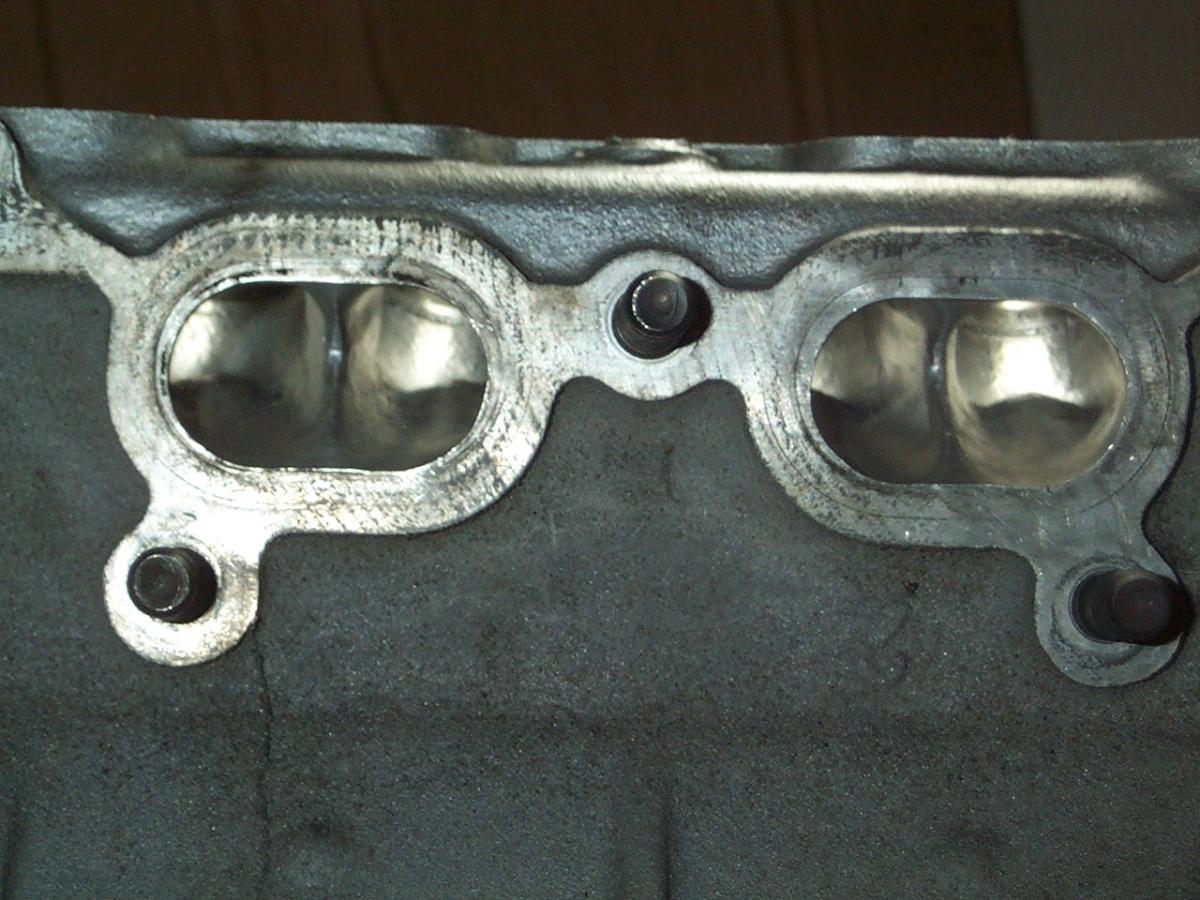

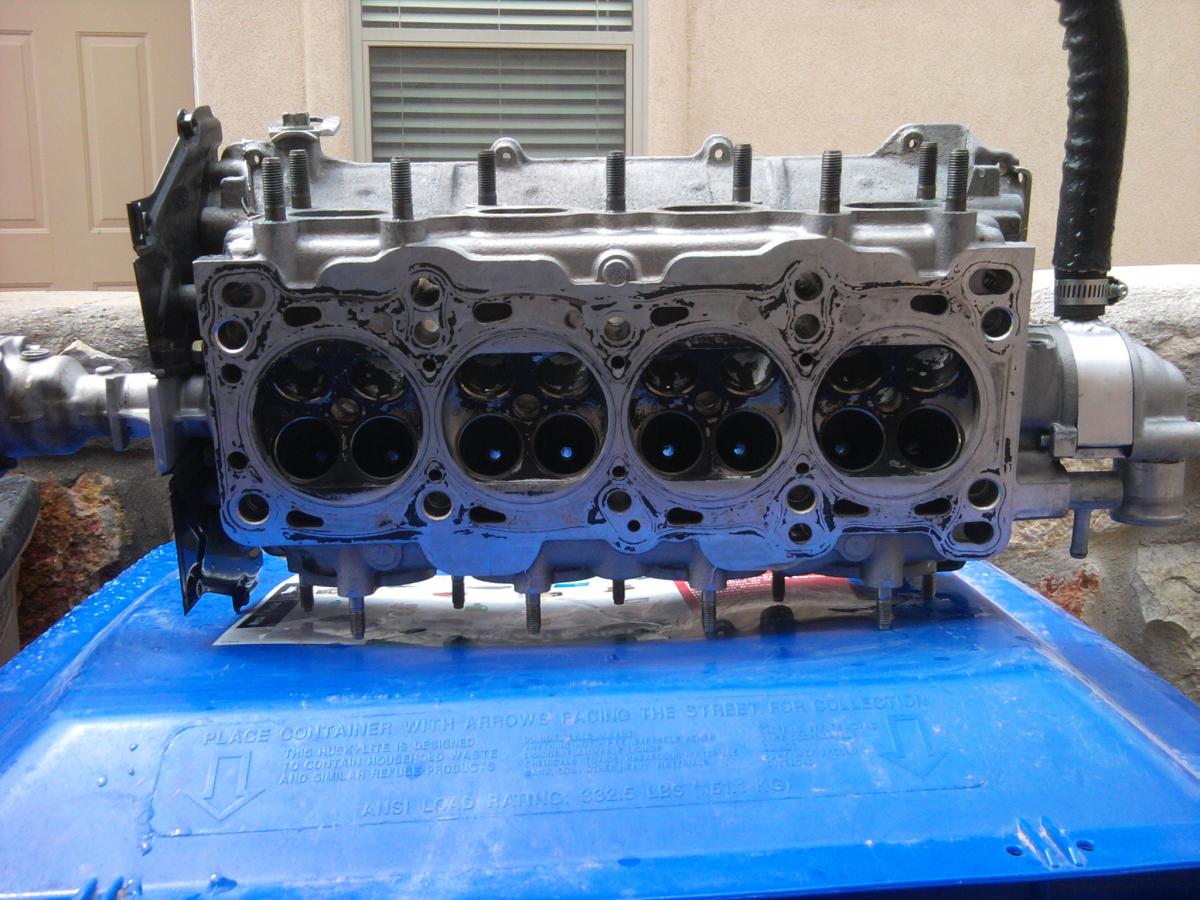

Last night we removed the valves and springs from the head. Today I washed the head and cleaned up the exhaust ports. I smoothed the ports and removed the casting flash. I used a small Dremel wire brush to polish the surface after smoothing the ports.


Edit, I hate my camera...
Attached Thumbnails
99mx5 EFR build-img_20120406_190032.jpg   99mx5 EFR build-img_20120407_133224.jpg   99mx5 EFR build-img_20120407_141923.jpg   99mx5 EFR build-dcp_5082.jpg   99mx5 EFR build-dcp_5081.jpg

99mx5 EFR build-dcp_5092.jpg
99mx5 is offline   Reply With Quote
Old 04-08-2012, 12:31 PM   #189
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,573
Total Cats: 925
Default

What's the source/PN on the Manley rods? I haven't noticed many other BP folks using them. If you don't mind me asking, what's the budget for your engine build?

I'm enjoying the engine pr0n, keep it up!
EO2K is offline   Reply With Quote
Old 04-08-2012, 12:53 PM   #190
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

wittyworks is offline   Reply With Quote
Old 04-08-2012, 12:55 PM   #191
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,107
Total Cats: 351
Default

Quote:
Originally Posted by Stock View Post
This car is/was a blast, I hate having no WHP's...
How was the space-docking?
hustler is offline   Reply With Quote
Old 04-08-2012, 01:17 PM   #192
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,573
Total Cats: 925
Default

Quote:
Originally Posted by wittyworks View Post


Honestly, that's not that bad plus its a manufacturer I'm familiar with from the domestic engine side of the fence.
EO2K is offline   Reply With Quote
Old 04-08-2012, 02:28 PM   #193
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

I got the rods and pistons from THMotorsports. I used a 5% coupon "5offFive" code to get an even better deal.

Here is the rod link:
http://thmotorsports.com/manley/manl.../i-527221.aspx
99mx5 is offline   Reply With Quote
Old 04-10-2012, 02:30 AM   #194
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

Today the block and crankshaft was taken to the machine shop. Hopefully, I will have them back later this week.

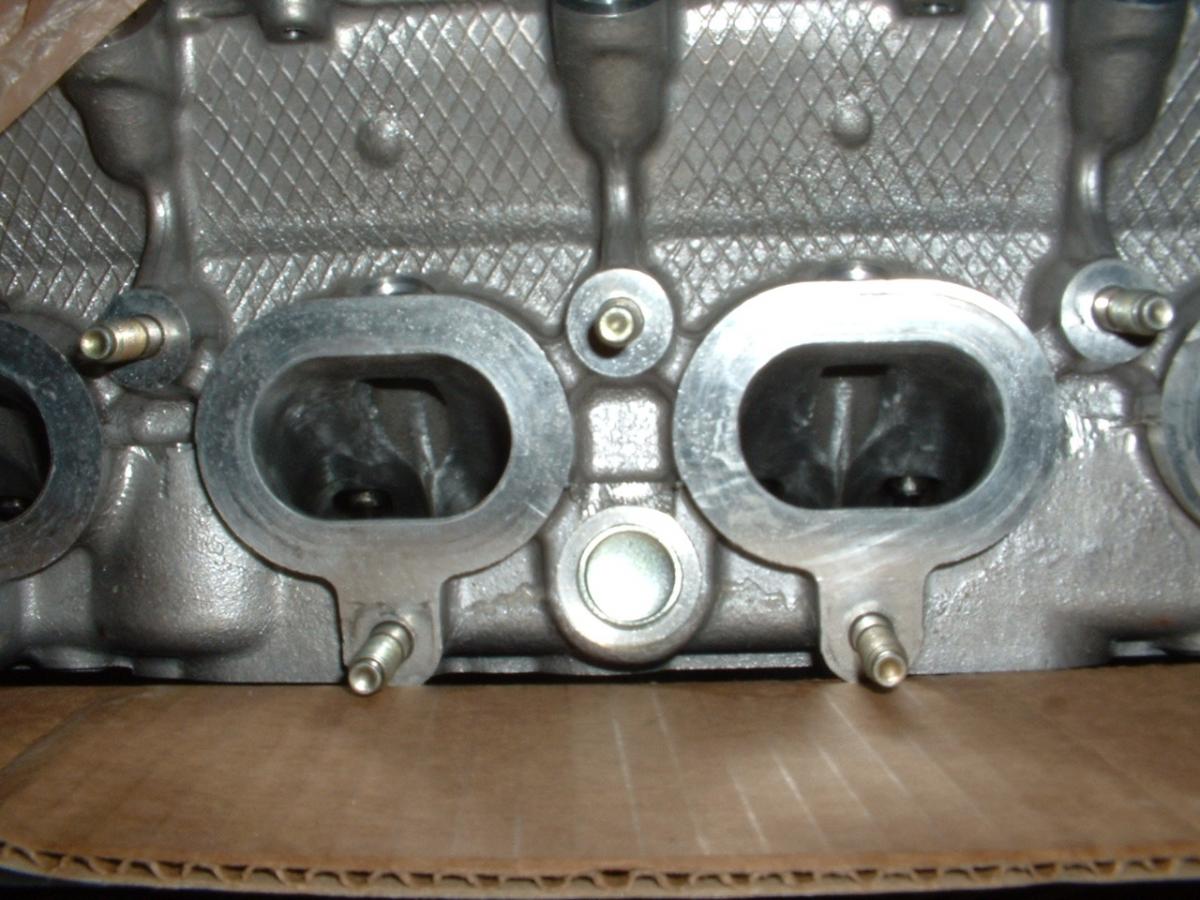

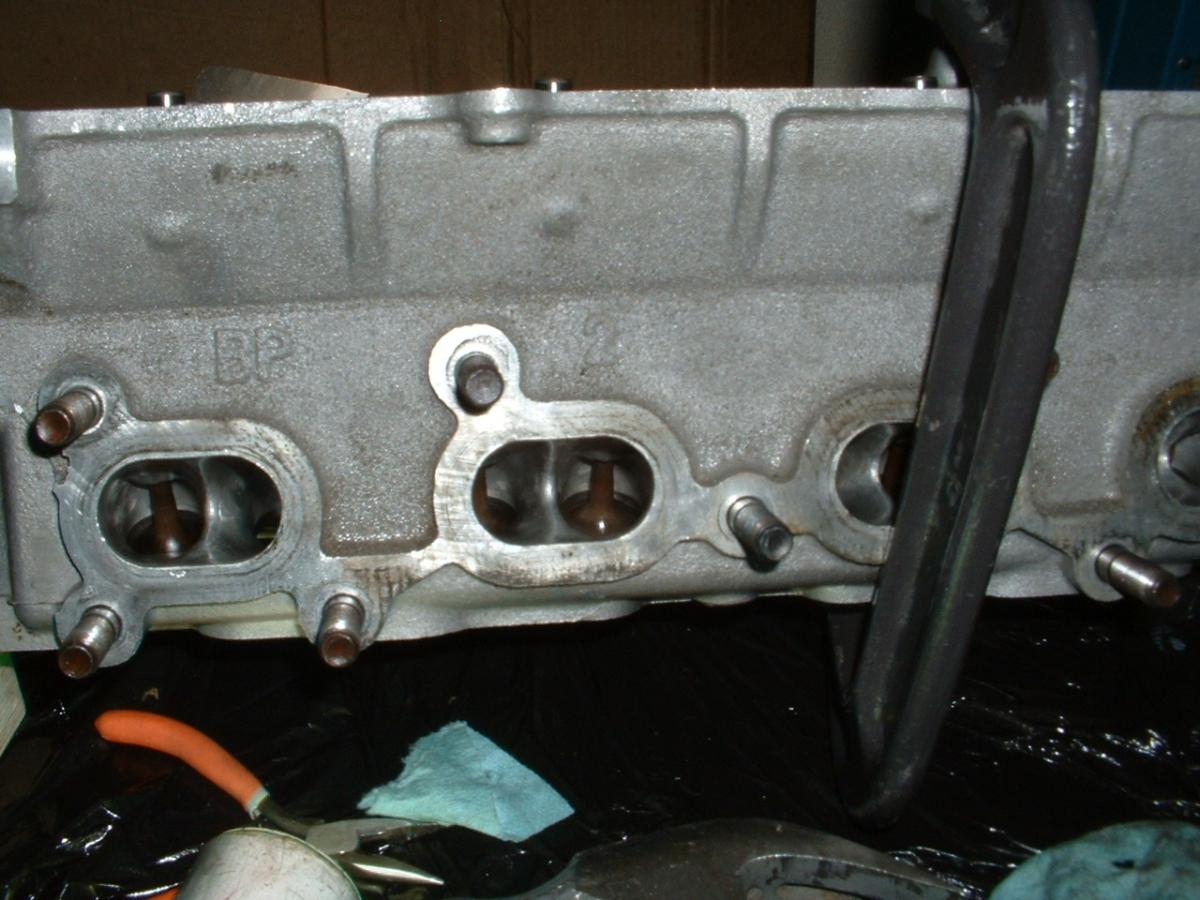

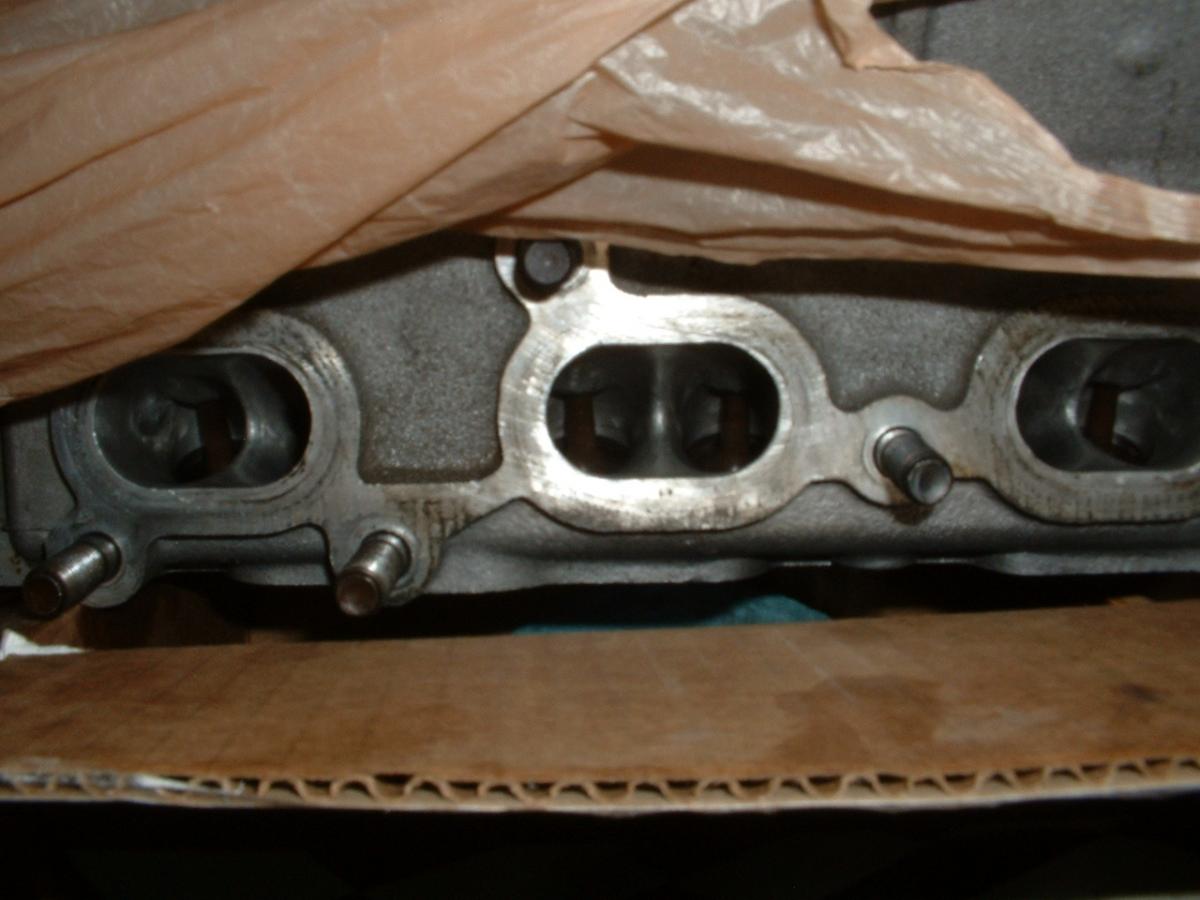

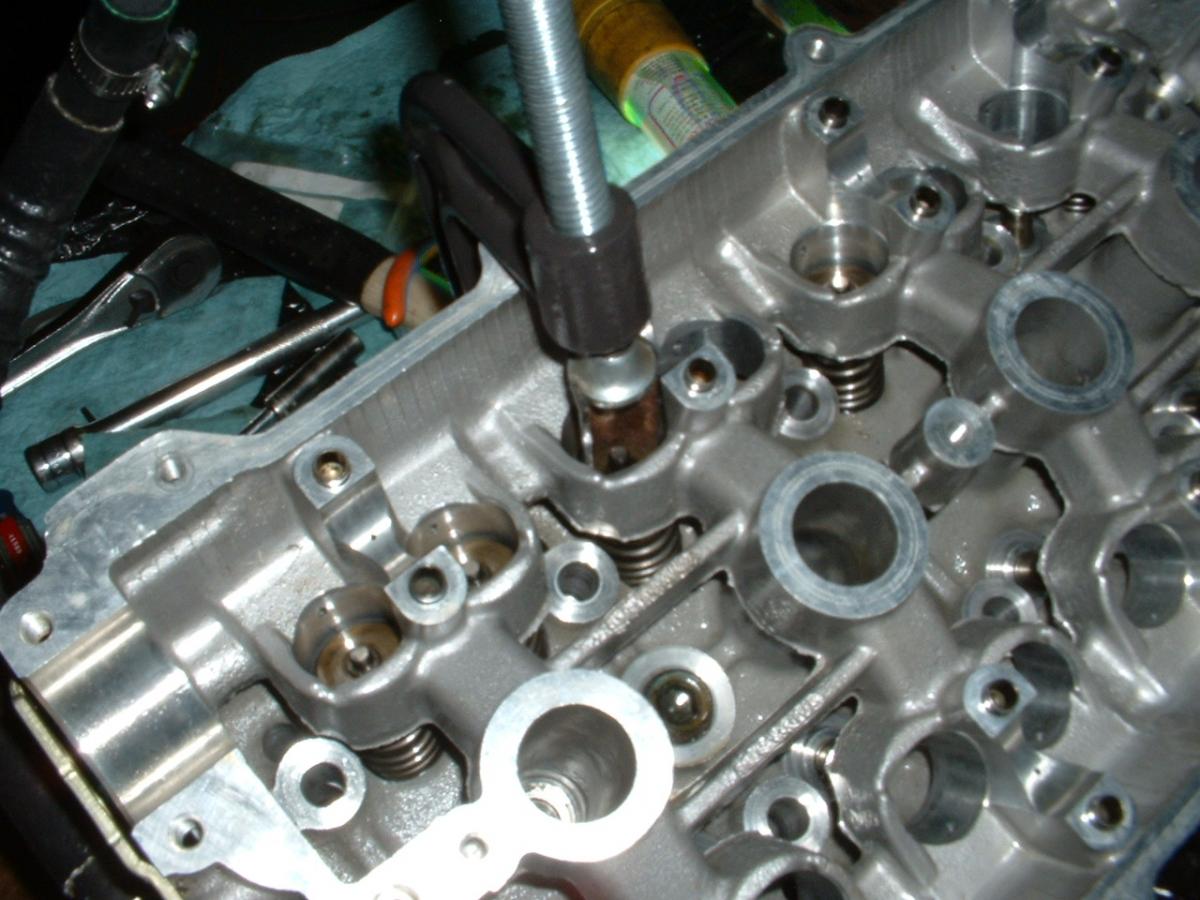

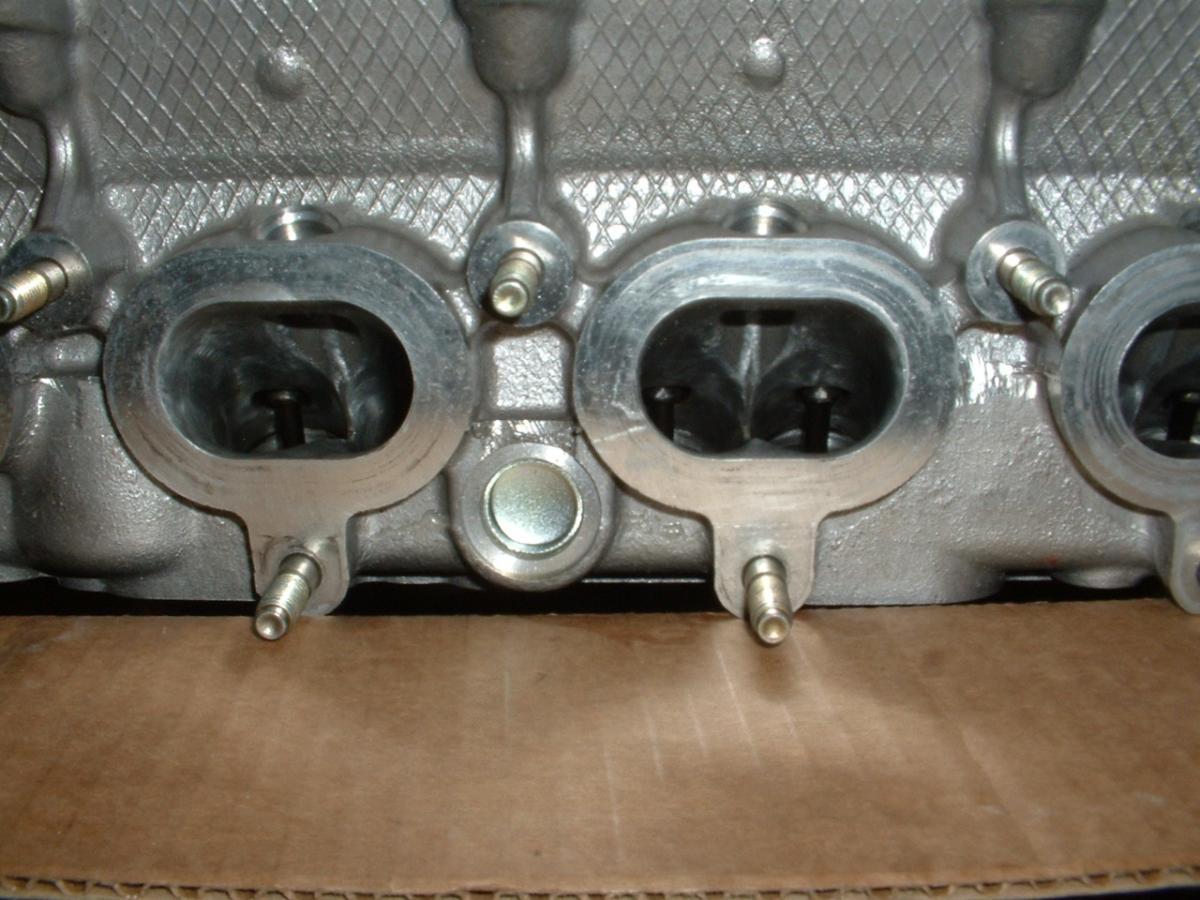

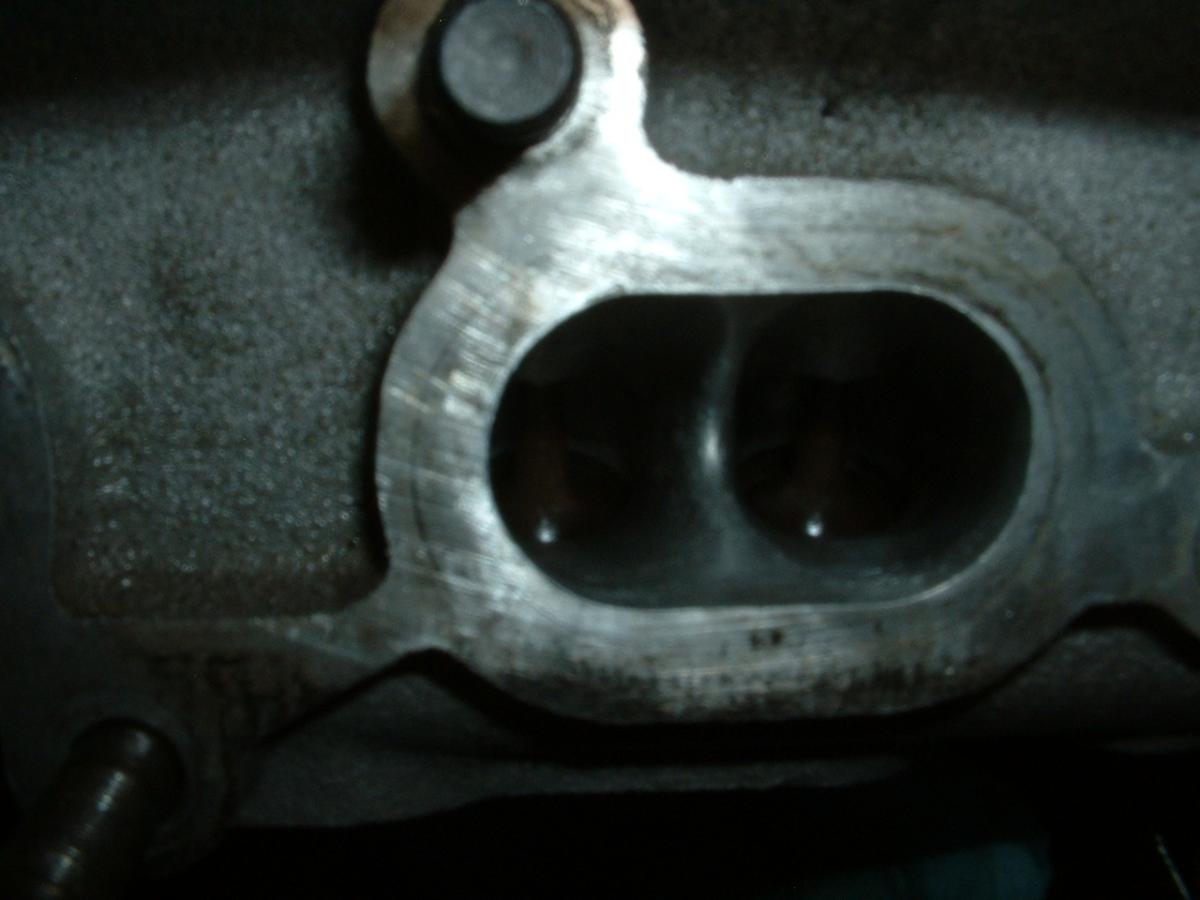

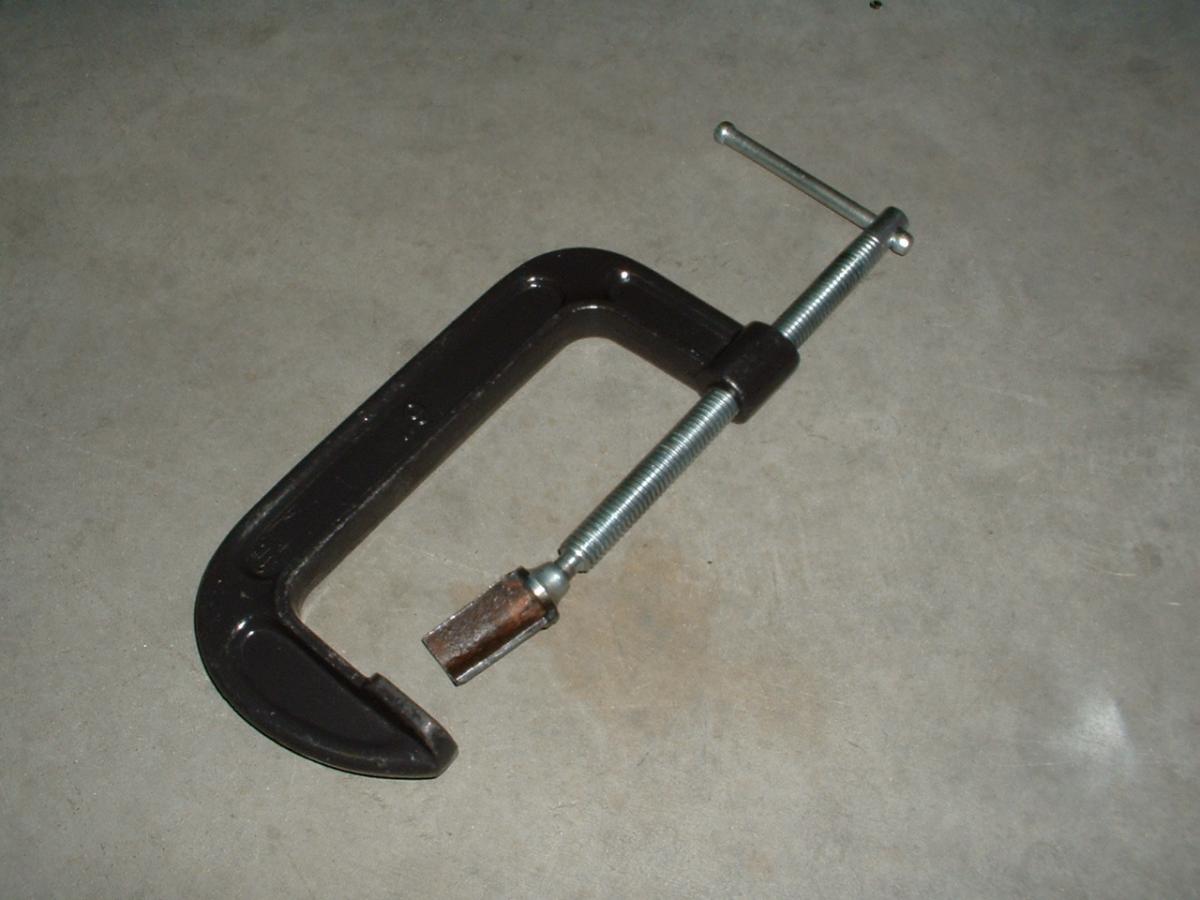

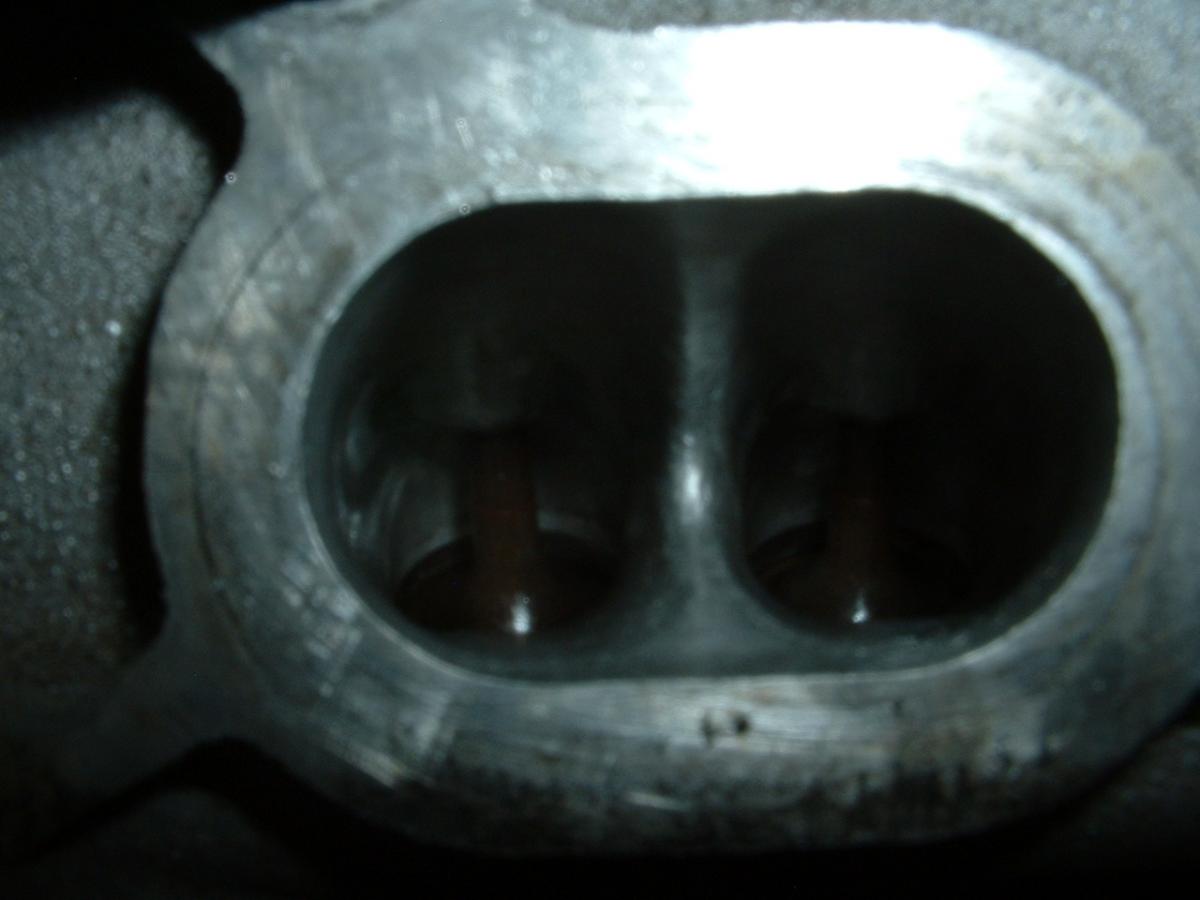

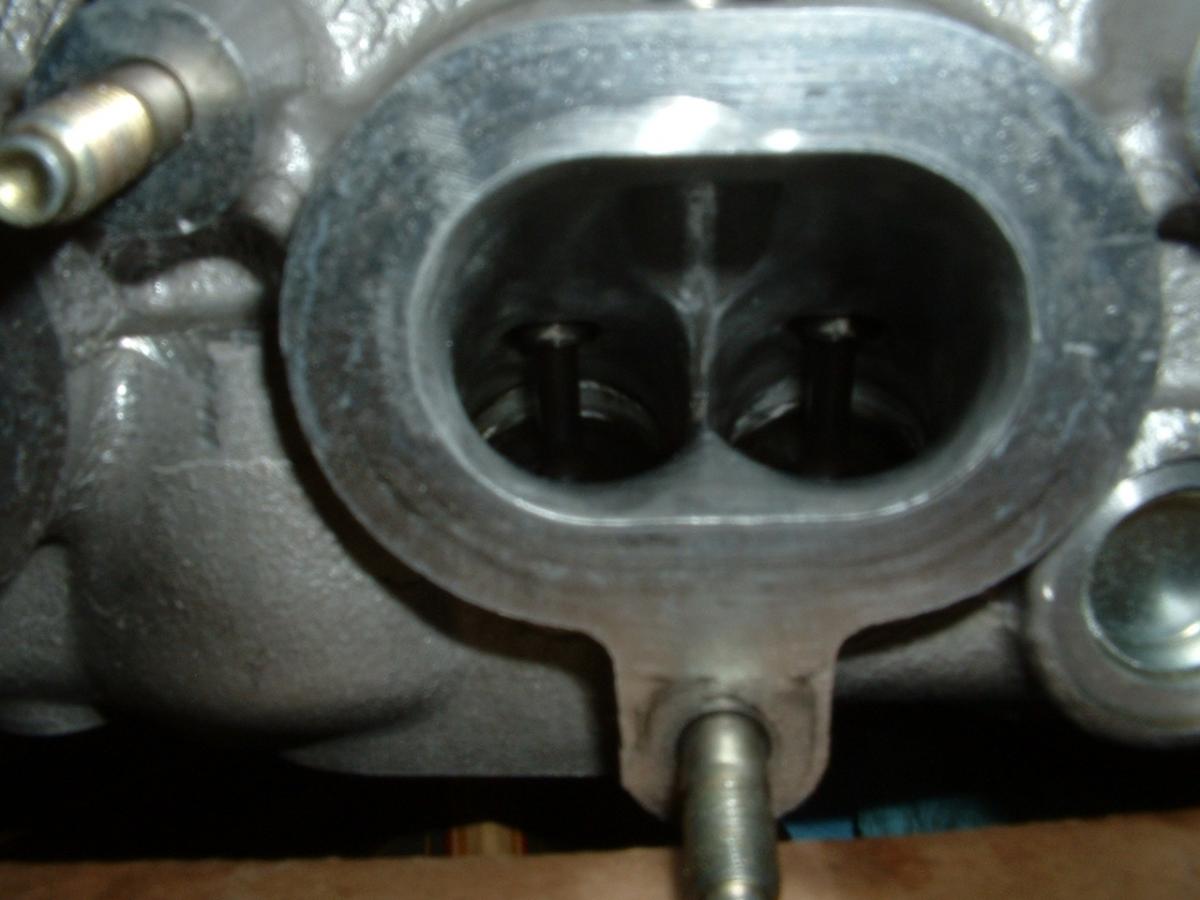

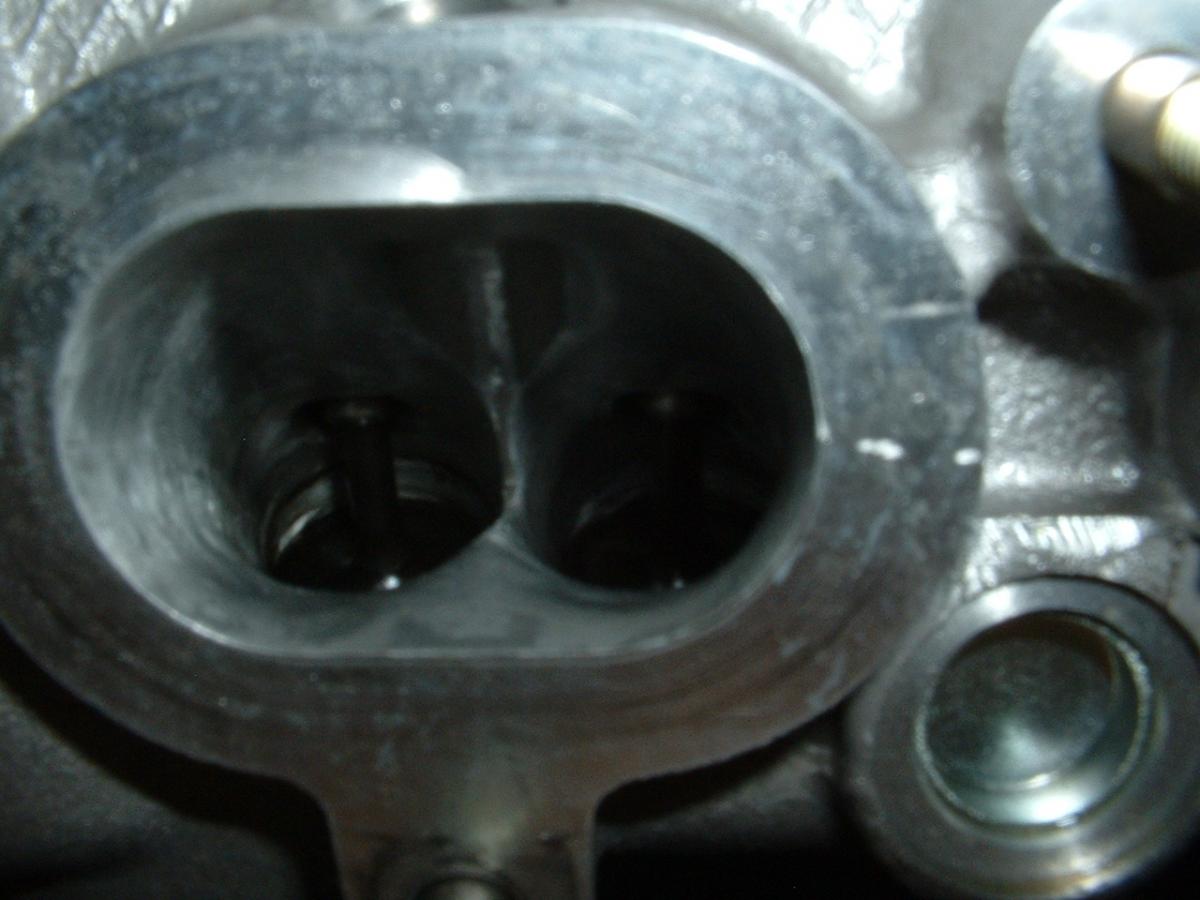

I smoothed out the head ports and installed new valve seals and installed the valves. I had to make my own spring compressor tool. I welded a piece of angle iron to a large C-clamp to compress the valves and used a spacer on the valve end. It worked like a charm.

Tomorrow I will install the valve shims and cams.
Attached Thumbnails
99mx5 EFR build-dscf0165.jpg   99mx5 EFR build-dscf0162.jpg   99mx5 EFR build-dscf0174.jpg   99mx5 EFR build-dscf0173.jpg   99mx5 EFR build-dscf0172.jpg

99mx5 EFR build-dscf0171.jpg   99mx5 EFR build-dscf0170.jpg   99mx5 EFR build-dscf0169.jpg   99mx5 EFR build-dscf0168.jpg   99mx5 EFR build-dscf0163.jpg

99mx5 is offline   Reply With Quote
Old 04-10-2012, 08:58 AM   #195
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,483
Total Cats: 1,701
Default

your valve spring compressors suck.
Braineack is offline   Reply With Quote
Old 04-12-2012, 09:43 AM   #196
Junior Member

Join Date: Apr 2011
Location: Las Cruces, NM
Posts: 253
Total Cats: 11
Default

Quote:
Originally Posted by hustler View Post
How was the space-docking?
Oh you know, the usual. Messy yet ever so satisfying.

Stock is offline   Reply With Quote
Old 04-12-2012, 12:46 PM   #197
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

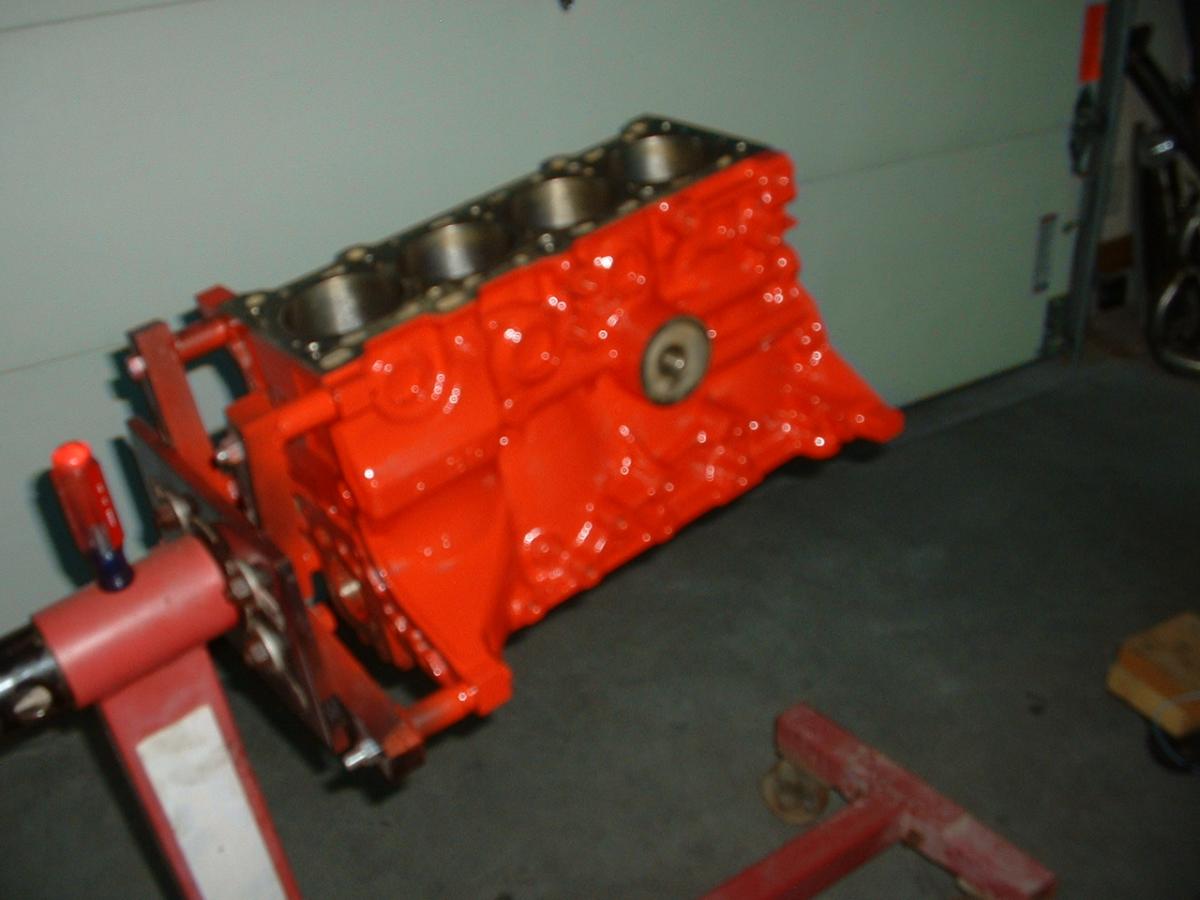

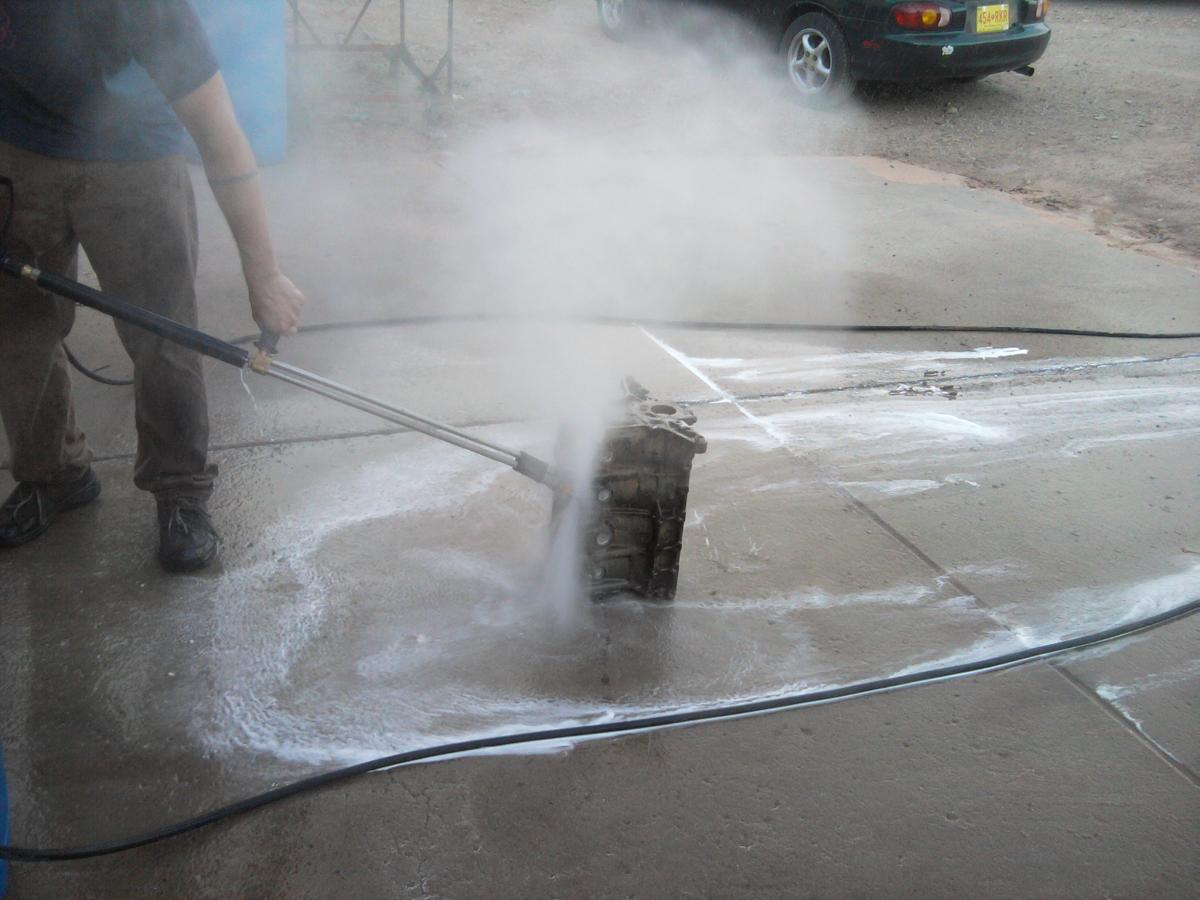

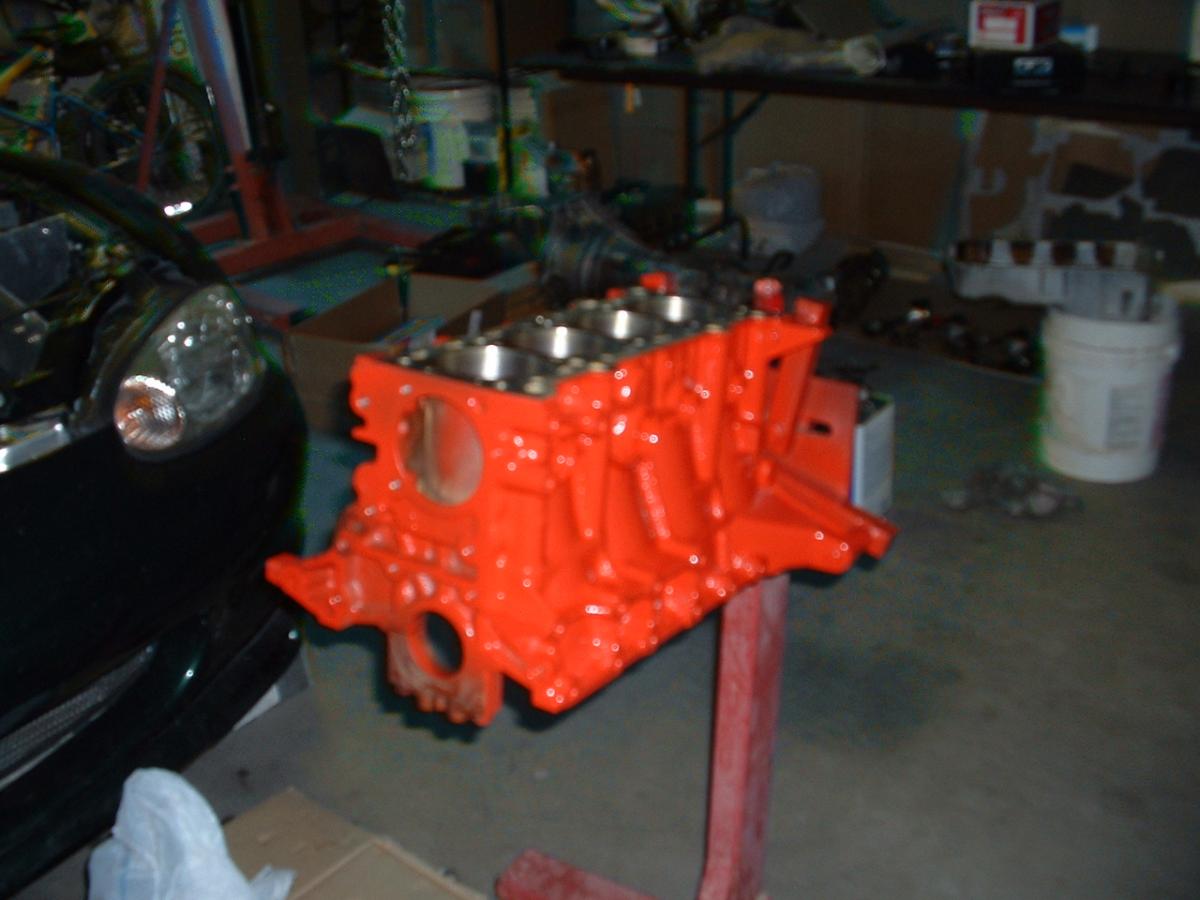

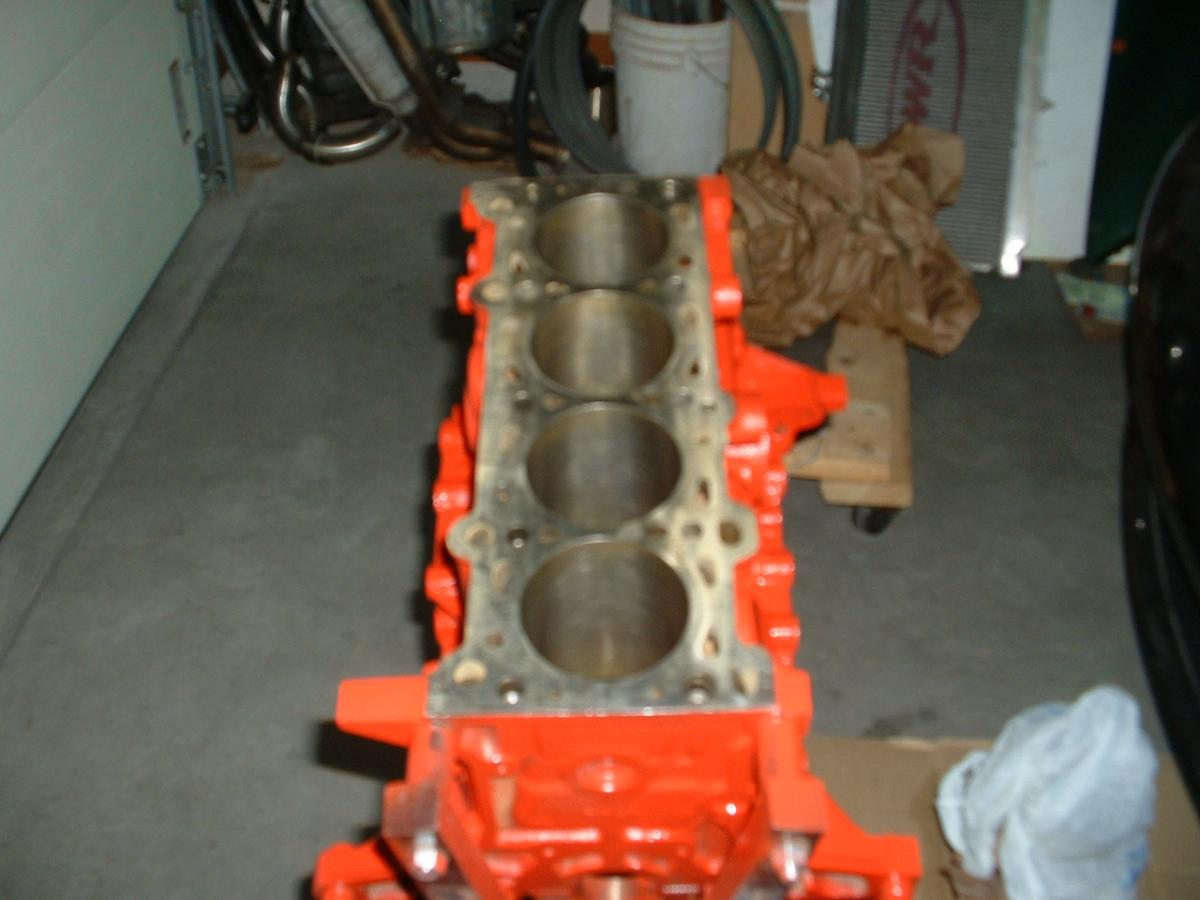

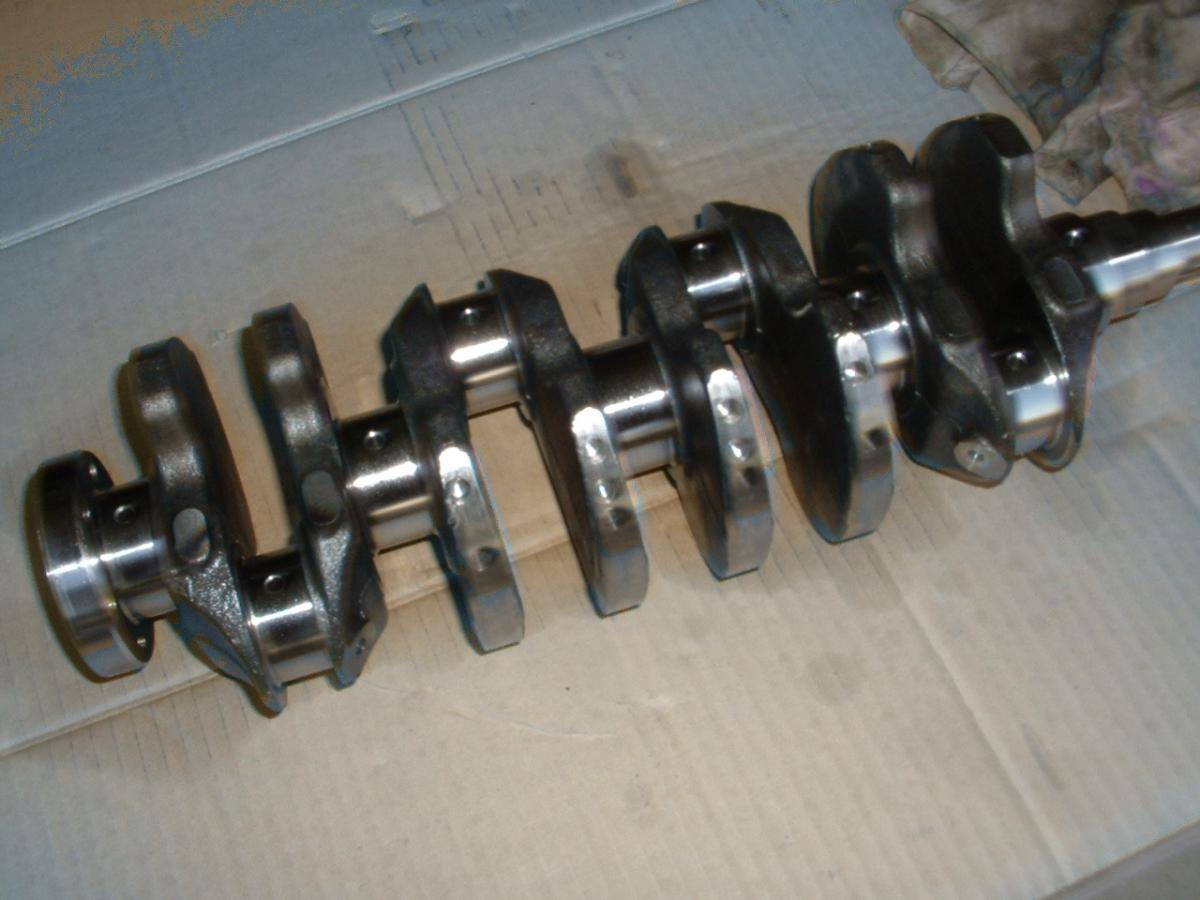

I got the block, crank, pistons and rods back from the machine shop. Both parts checked out fine. The crank was micro-polished and balanced along with the pistons and rods. The block was hot-tanked and honed. We pressure washed the block and then I painted it red.
Attached Thumbnails
99mx5 EFR build-img_20120410_184645.jpg   99mx5 EFR build-dscf0176.jpg   99mx5 EFR build-dscf0178.jpg   99mx5 EFR build-dscf0180.jpg   99mx5 EFR build-dscf0182.jpg

99mx5 EFR build-dscf0185.jpg

Last edited by 99mx5; 04-12-2012 at 01:11 PM. Reason: Typo
99mx5 is offline   Reply With Quote
Old 04-12-2012, 12:53 PM   #198
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,483
Total Cats: 1,701
Default

looks like you spent time learning how to focus your camera too! great work!
Braineack is offline   Reply With Quote
Old 04-12-2012, 01:09 PM   #199
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

Haha! Thar is true, thanks! Although it does have problems focusing from time to time.
99mx5 is offline   Reply With Quote
Old 04-12-2012, 02:09 PM   #200
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Quote:
Originally Posted by 99mx5 View Post
I got the block, crank, pistons and rods back from the machine shop. Both parts checked out fine. The crank was micro-polished and balanced along with the pistons and rods. The block was hot-tanked and honed. We pressure washed the block and then I painted it red.
If you don't mind teasing a Canadian what did that machine work cost you?
Landrew is offline   Reply With Quote
