Old 02-27-2012, 01:53 AM   #101
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

Thanks bro.

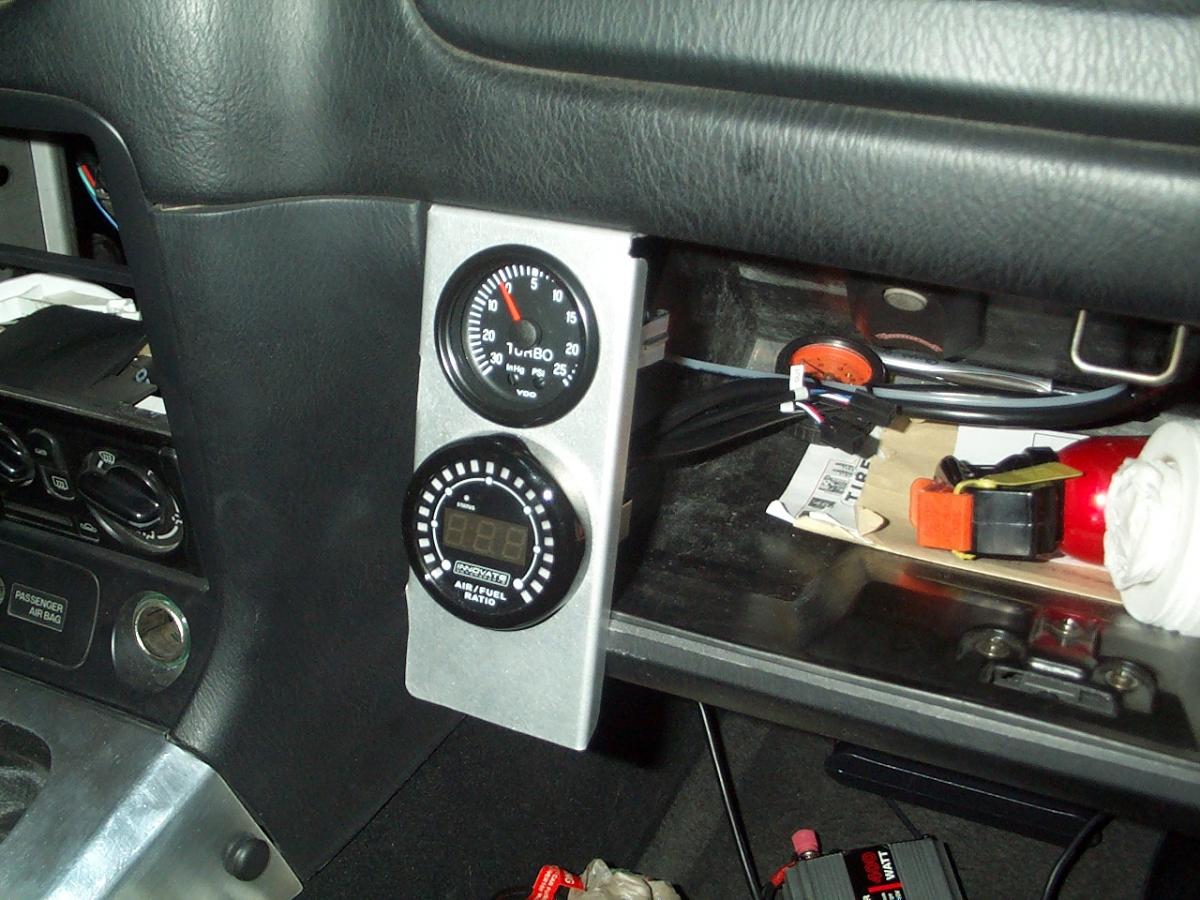

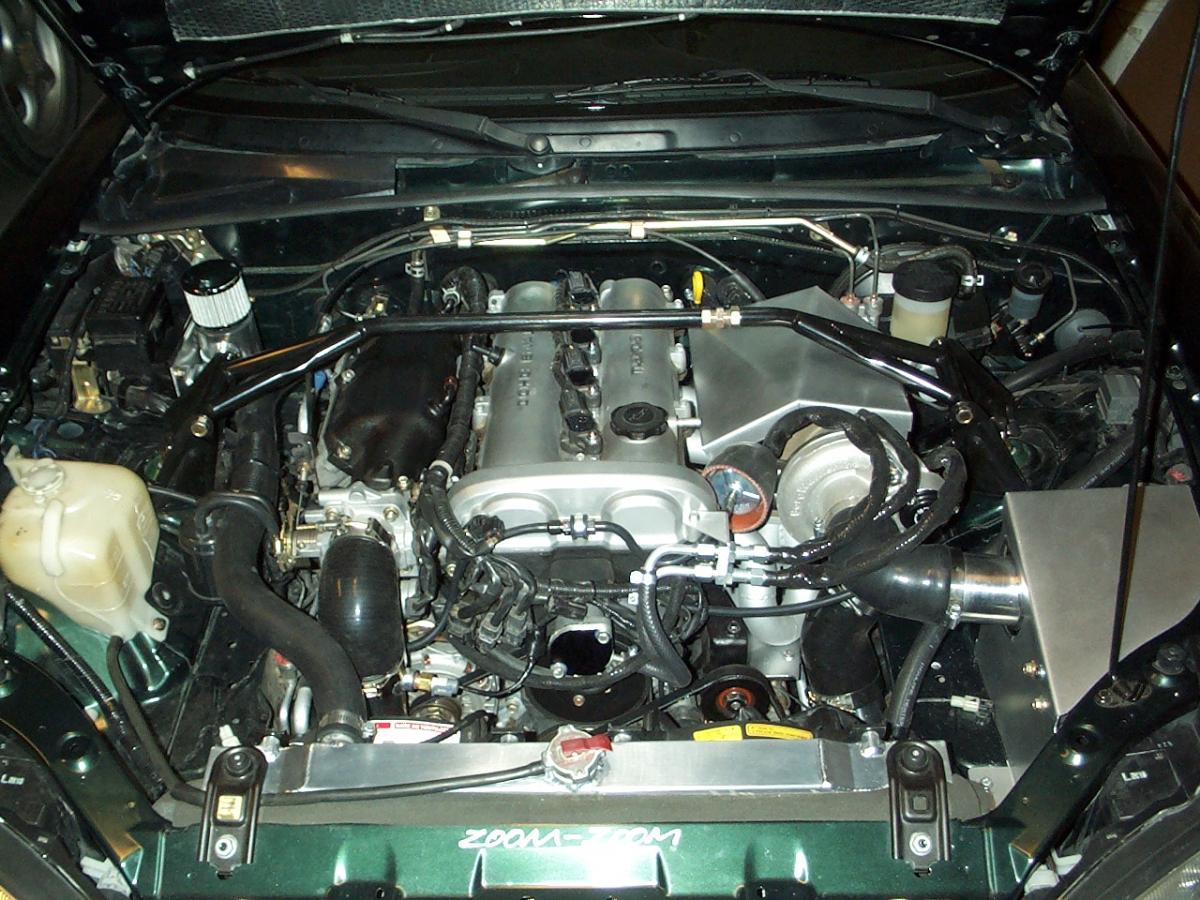

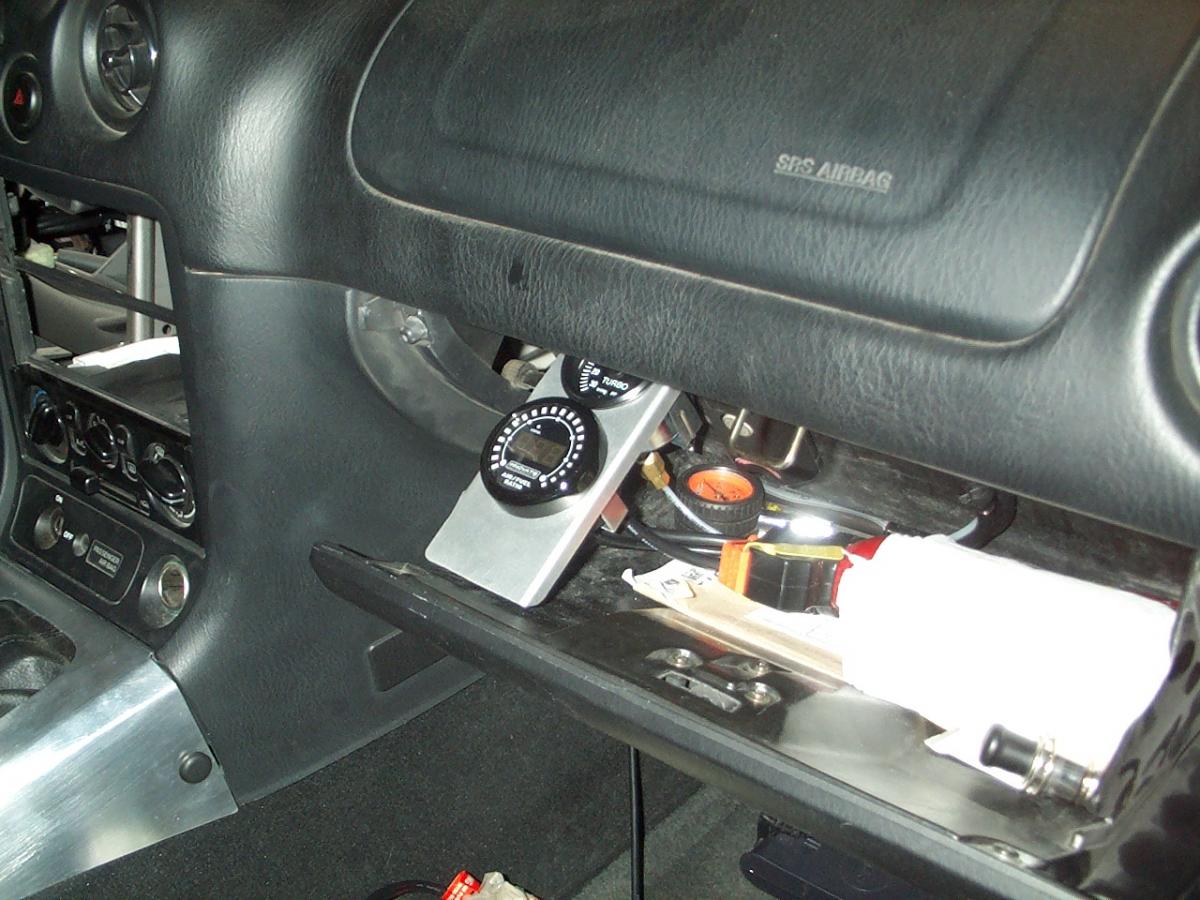

Today I flashed the ECU, installed the boost controller, boost gauge and MTX-L wideband. I also redid all of the wiring. I made a removable gauge panel for the glovebox. Also is a clearer pic of the engine bay.
Attached Thumbnails
99mx5 EFR build-dcp_5010.jpg   99mx5 EFR build-dcp_5012.jpg   99mx5 EFR build-dcp_5014.jpg
99mx5 is offline   Reply With Quote
Old 02-27-2012, 06:59 PM   #102
Newb
iTrader: (1)

Join Date: Nov 2011
Posts: 16
Total Cats: 0
Wink

Quote:
Originally Posted by 99mx5 View Post
Thanks bro.

Today I flashed the ECU, installed the boost controller, boost gauge and MTX-L wideband. I also redid all of the wiring. I made a removable gauge panel for the glovebox. Also is a clearer pic of the engine bay.
i see some dust on that dash and in the glove box. better get on that, you have a reputation to uphold.
mrluckys is offline   Reply With Quote
Old 02-28-2012, 01:11 AM   #103
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

LOL, At least the engine bay is clean.
I've been spending too much time under the car to clean it. The car is uncharacteristically dirty while I drive it around to tune it.

I took it around this evening to autotune it. Its running smoother as I go. It is currently limited to 10PSI with overboost protection with fuel cutoff. It pulls smoothly. I'm still autotuning idle and cruise cells. I have EGO and acceleration enrichment turned off.
99mx5 is offline   Reply With Quote
Old 02-29-2012, 02:41 AM   #104
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

I have been having AFR fluctuations while autotuning for several days now with the autotune pulling fuel too much fuel and making it lean. Tonight I finally got to the root of the problem. The TPS was making "noise" and activating TPS-based enrichment. As soon as I changed the activation threshold out of the noise range, the AFRs stabilized and the idle was steady. I learned something new today, data logs are awesome!

Now to finally make a correct autotune.
99mx5 is offline   Reply With Quote
Old 03-01-2012, 05:20 PM   #105
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

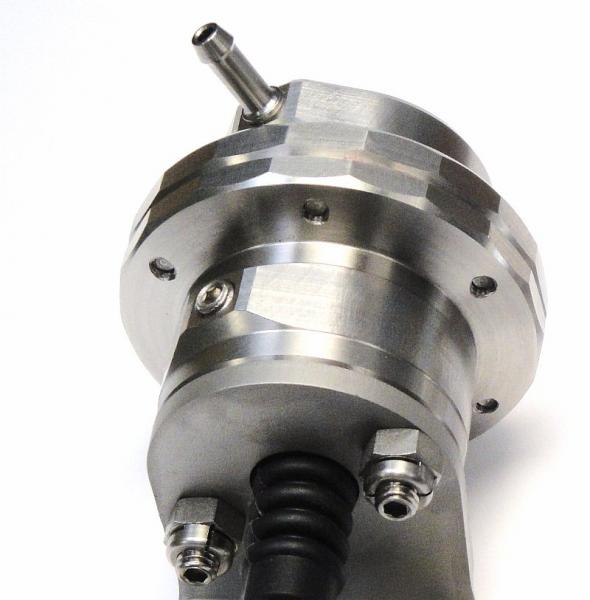

So far so good. The car idles well and accelerates well. My only issue is too much boost (for now). I decided to get the adjustable wastegate actuator from full race. I can change springs for more boost as needed.

Attached Thumbnails
99mx5 EFR build-efr-dual-port-internal-wg-actuator-content-1.jpg
99mx5 is offline   Reply With Quote
Old 03-05-2012, 04:44 AM   #106
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Great thread

99mx5: Is it possible to route 3.5” downpipe with that manifold? Abe is building same manifold to me and I’m wondering if I should go with 3” or 3.5”…
muoto is offline   Reply With Quote
Old 03-05-2012, 05:08 AM   #107
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Awesome stuff. You only need one blockoff plate for the EGR. Block off the 2 ports where the EGR valve bolts on. The other single port won't leak.

You're running too much boost because of the stock 'medium boost' wastegate actuator right? How much boost is it running on the stock wastegate actuator? I don't want to bolt mine on to find out that it makes too much boost for my stock 04 motor.

Muoto, if this is an EFR 6258, the outlet of the turbine housing is a 3" compact v-band. 3.5" would probably be overkill if you're planning on a 2560.
Bryce is offline   Reply With Quote
Old 03-05-2012, 06:22 AM   #108
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Bryce View Post
Muoto, if this is an EFR 6258, the outlet of the turbine housing is a 3" compact v-band. 3.5" would probably be overkill if you're planning on a 2560.
I was thinking to move EFR 6258 later on. I know the outlet is 3 so I have to expand in to 3.5 after the v-band flange
muoto is offline   Reply With Quote
Old 03-05-2012, 02:55 PM   #109
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

Thanks for the comments!
I am currently in contact with Full race and Forge about the actuator size to check for fitment. I plan to get the actuator with the 5+ spring and the extra spring kit.

You are right Bryce. I already made both plates, so I just blocked both of the EGR ports.

I I have not gone beyond 10 PSI at this point. I have the MS set to cut fuel at 10 PSI. It hits it really quickly. Stock block fail.

Muoto, I don't think there is a real need to go to 3.5" It will only make exhaust routing more difficult.
99mx5 is offline   Reply With Quote
Old 03-05-2012, 09:39 PM   #110
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

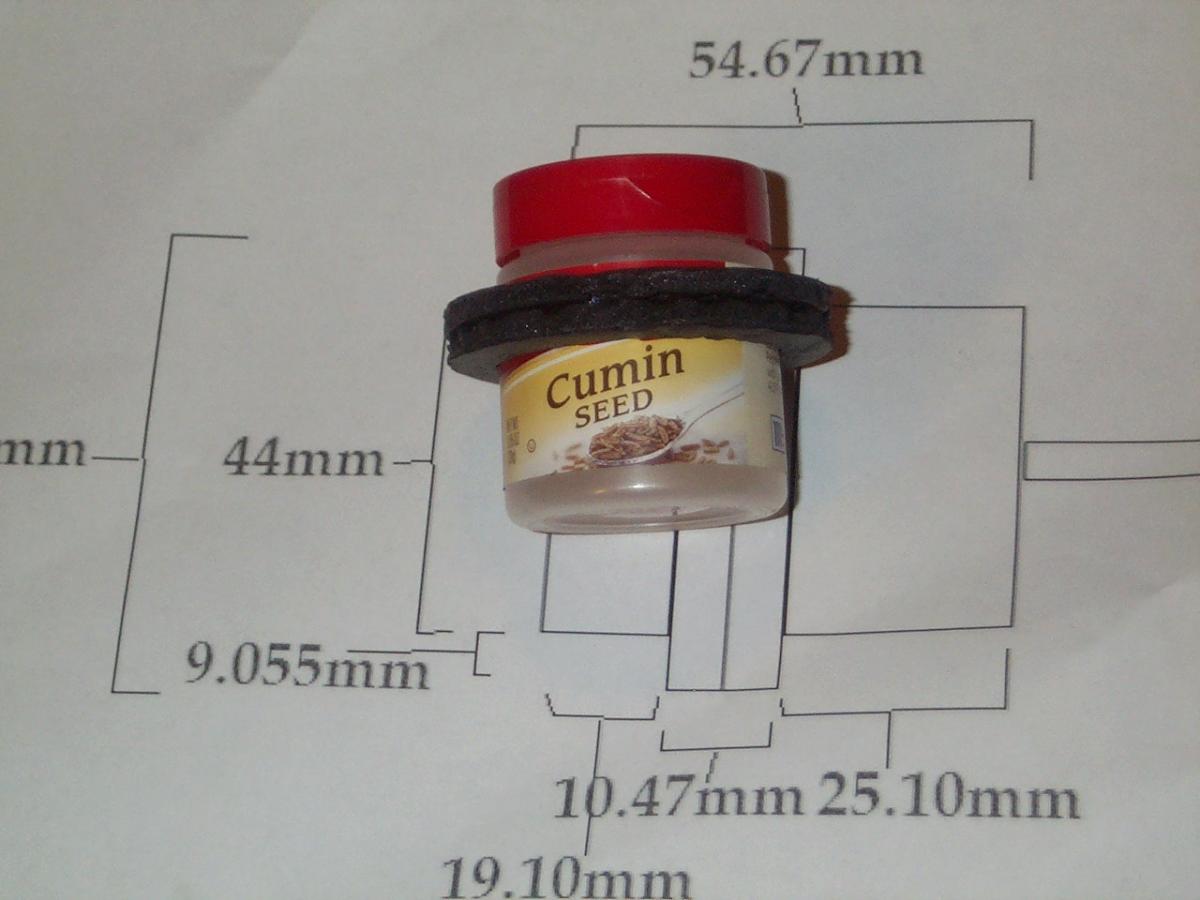

I made a mockup of the Forge actuator based on the external dimensions given to me by Forge so that I can verify fitment. LOL at the perfect bottle to test.
Attached Thumbnails
99mx5 EFR build-dcp_5022.jpg
99mx5 is offline   Reply With Quote
Old 03-05-2012, 09:52 PM   #111
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Haha. Have you tried driving with the wastegate wired open?
Bryce is offline   Reply With Quote
Old 03-05-2012, 10:00 PM   #112
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

Nope, I haven't. I'm thinking it would kill the spool. The plan is to get the Forge with the 5+ PSI actuator spring and use the MBC to open it up around 9PSI or less if needed.
99mx5 is offline   Reply With Quote
Old 03-07-2012, 09:35 PM   #113
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

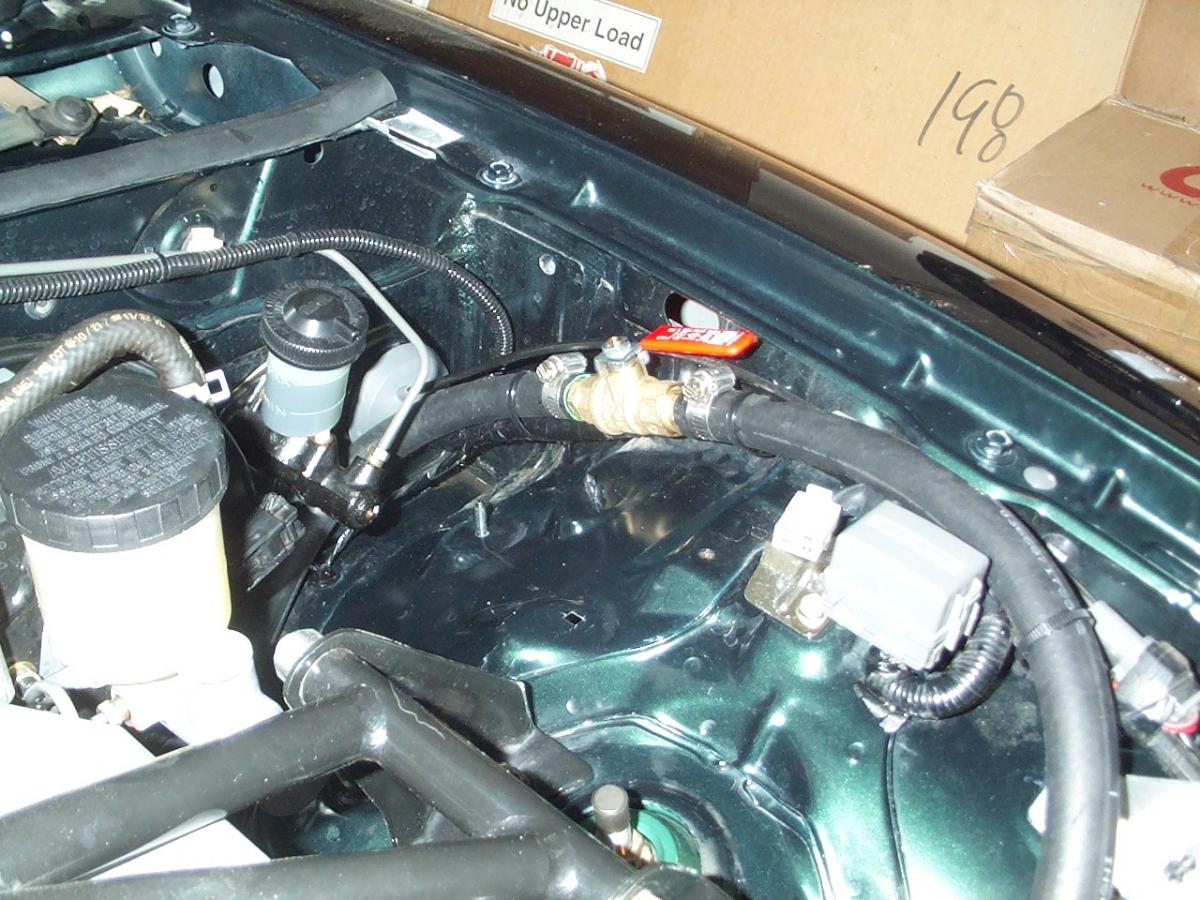

Today I added the heater line shutoff valve. With it in the off position, Only cool coolant will go into the engine.
Attached Thumbnails
99mx5 EFR build-dcp_5027.jpg
99mx5 is offline   Reply With Quote
Old 03-10-2012, 12:04 PM   #114
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Do you have an alternate path for coolant to flow when the thermostat is closed?

You should post a 4th gear spool log, like, now.
Bryce is offline   Reply With Quote
Old 03-10-2012, 07:23 PM   #115
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,702
Total Cats: 2,478
Default

/\ +1
18psi is offline   Reply With Quote
Old 03-12-2012, 07:53 PM   #116
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

I removed the little "flow stopper" on the thermostat and made the bypass hole bigger. It will allow coolant flow while the car warms up. I planned to close the heater flow circuit after the car is warmed up, but this will prevent any problems in case I leave it closed on a cold start.
99mx5 is offline   Reply With Quote
Old 03-13-2012, 01:47 AM   #117
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

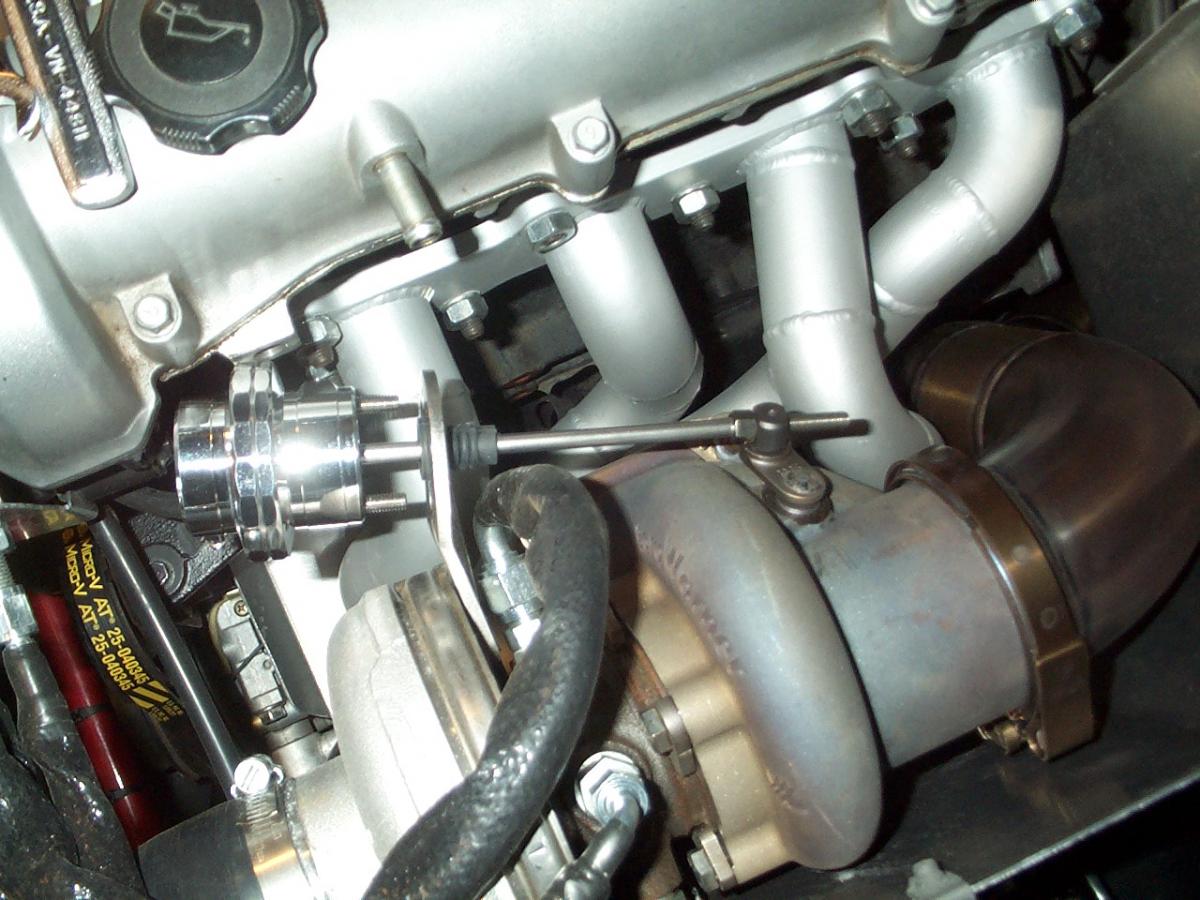

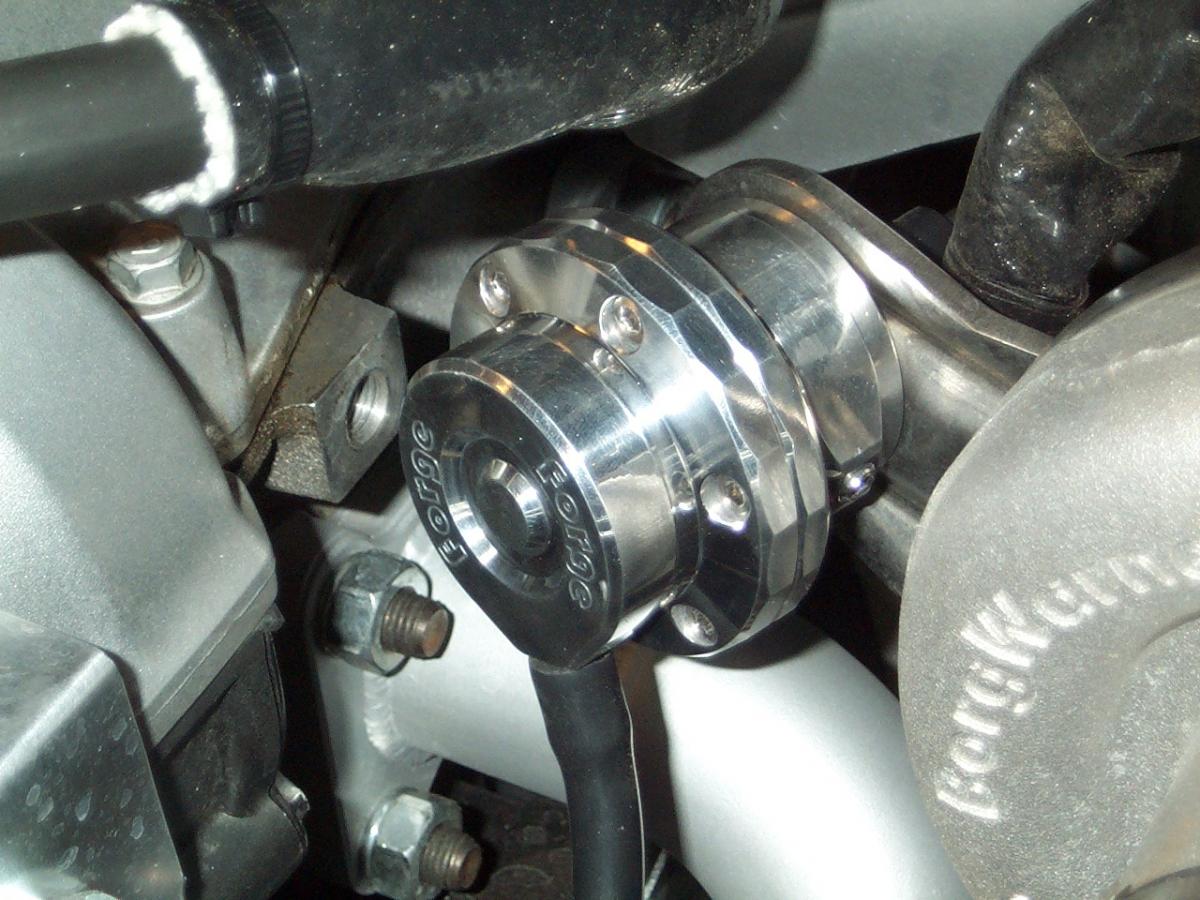

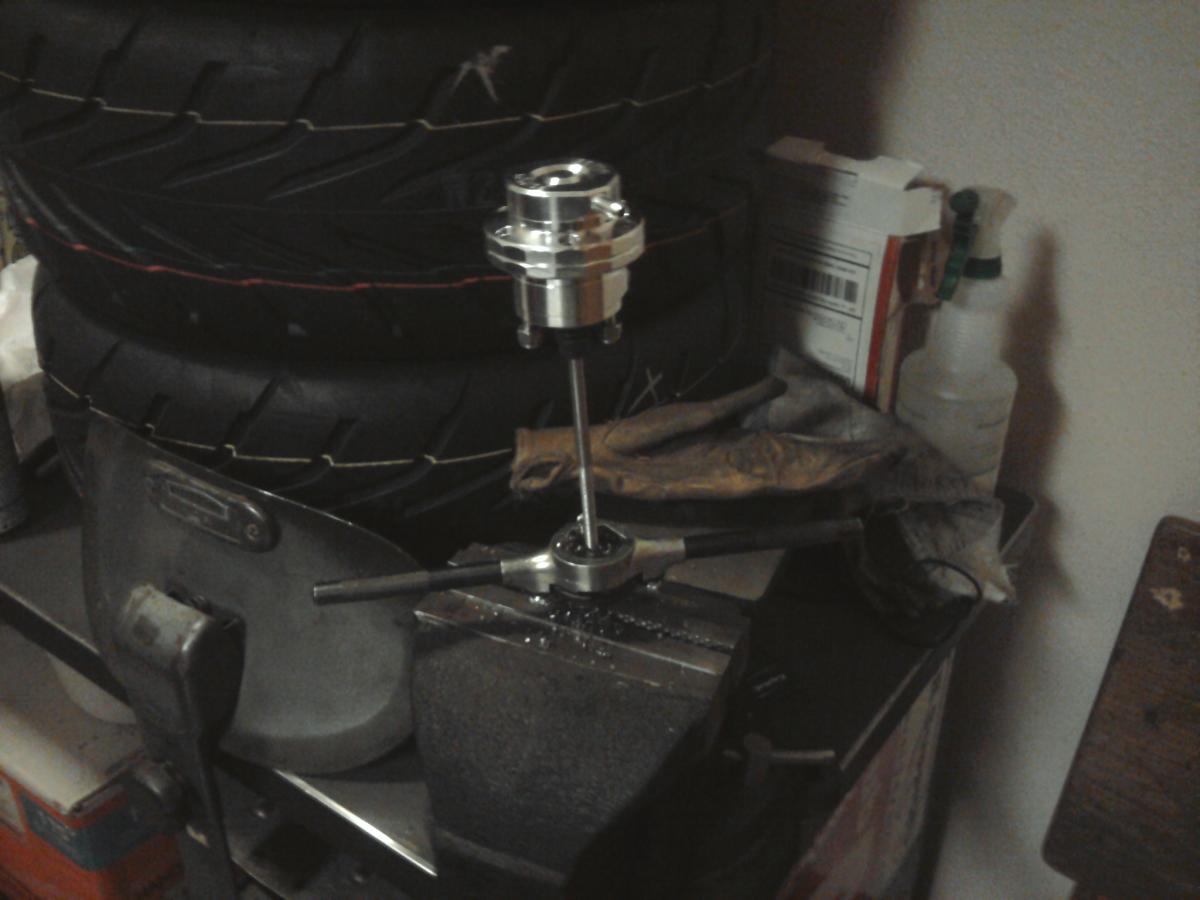

Forge wastegate actuator installed. when you buy it you have to cut more threads on the shaft because it is too long.
Attached Thumbnails
99mx5 EFR build-img_20120312_201442.jpg   99mx5 EFR build-dcp_5033.jpg   99mx5 EFR build-dcp_5028.jpg
99mx5 is offline   Reply With Quote
Old 03-13-2012, 01:50 AM   #118
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,702
Total Cats: 2,478
Default

check that actuator for leaks if you haven't already.
a guy on nasioc received a leaky one with his borg and it made his life hell
18psi is offline   Reply With Quote
Old 03-13-2012, 01:50 AM   #119
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

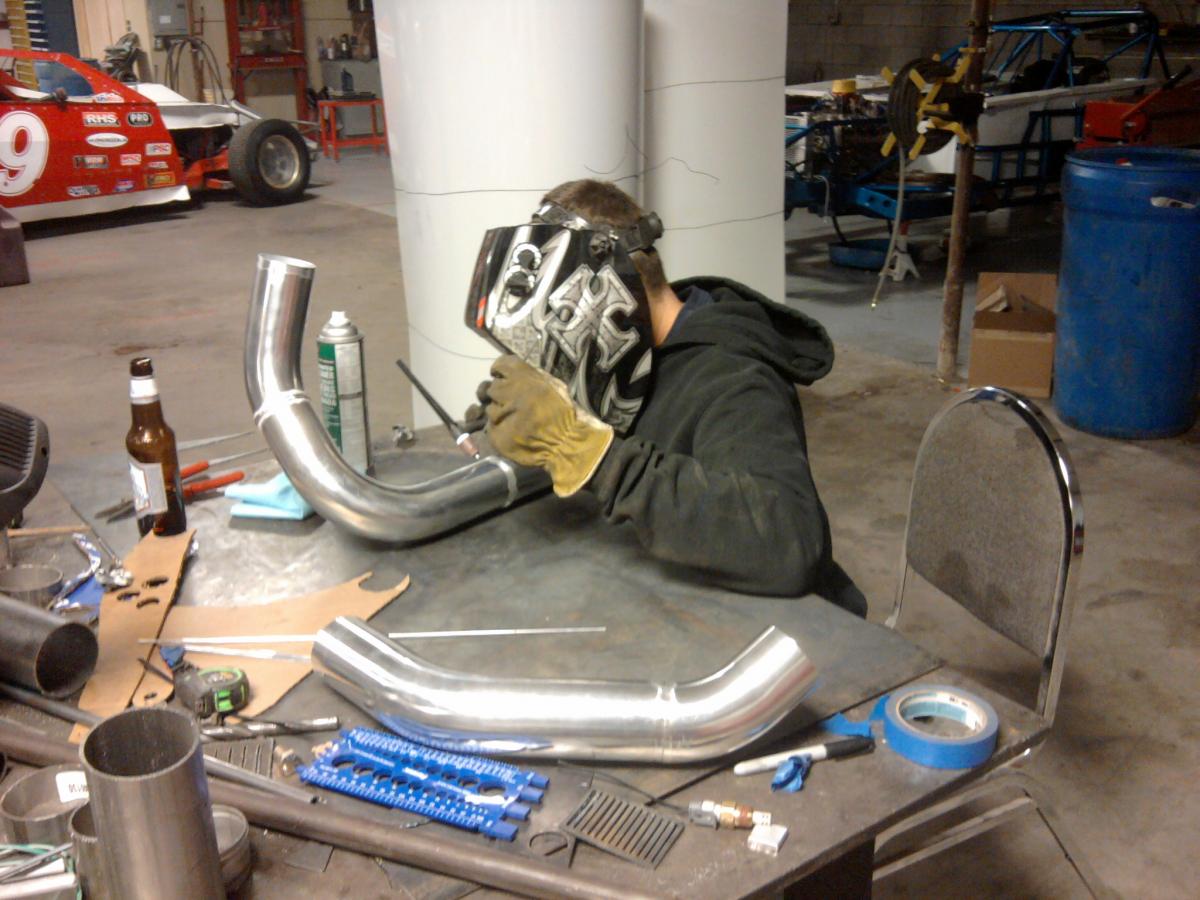

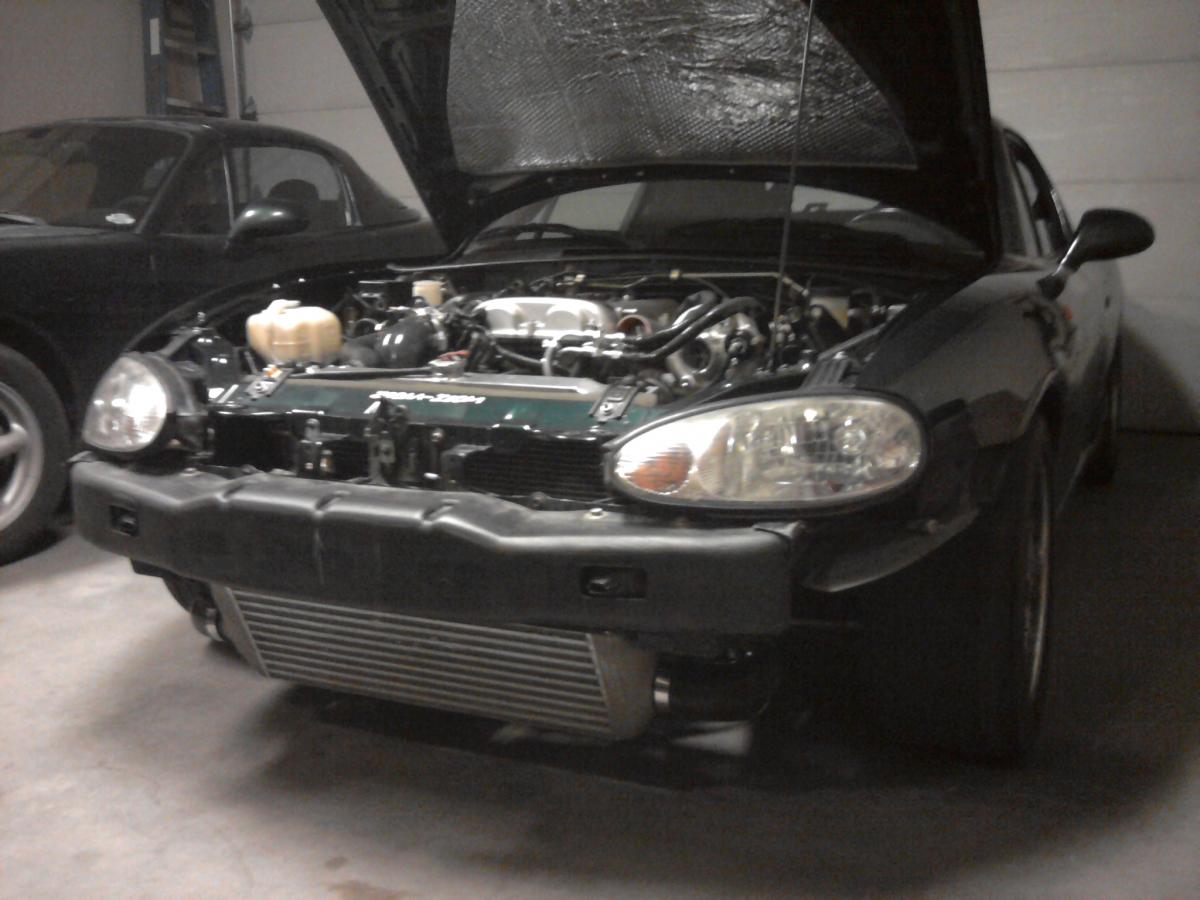

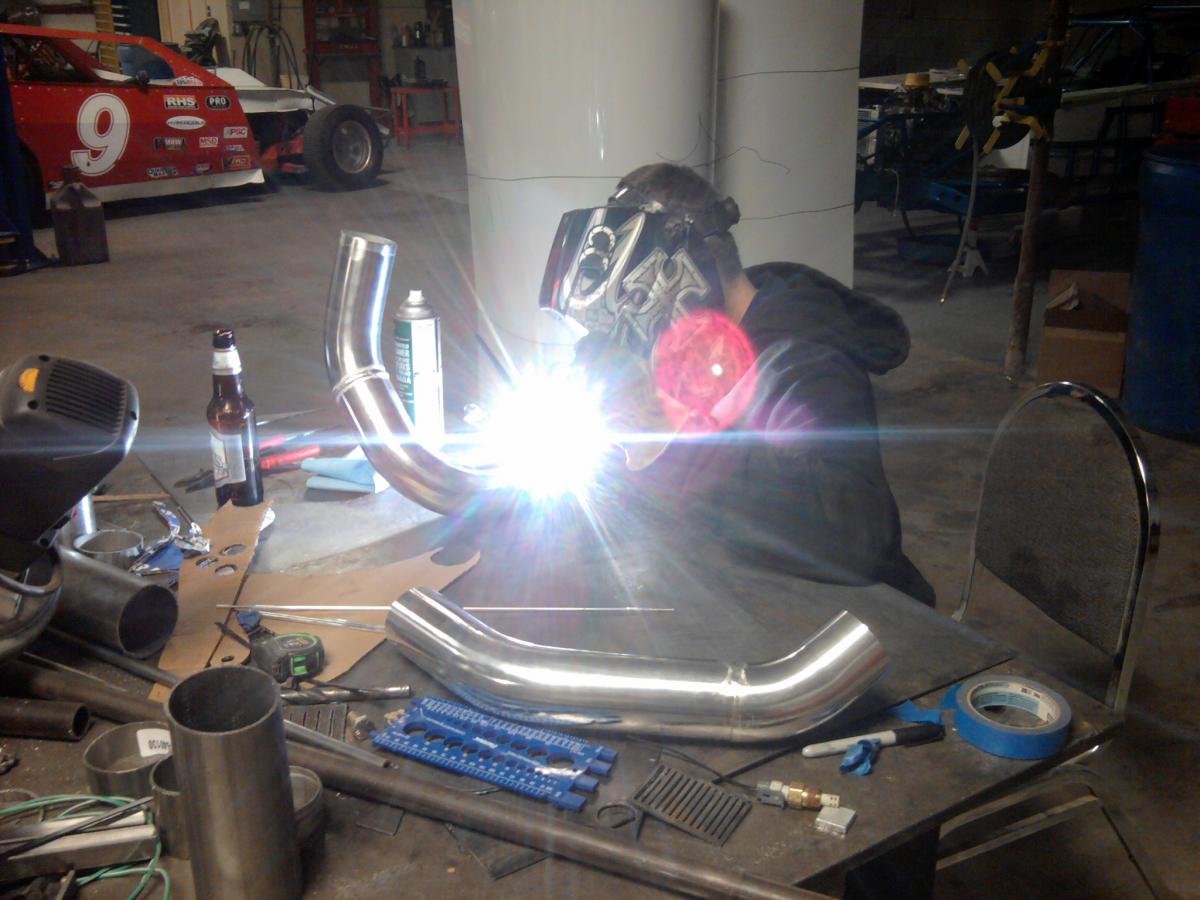

some pics of the intercooler piping being welded and the intercooler mounted.
Attached Thumbnails
99mx5 EFR build-img_20120218_195510.jpg   99mx5 EFR build-img_20120218_195515.jpg   99mx5 EFR build-img_20120219_195113.jpg
99mx5 is offline   Reply With Quote
Old 03-13-2012, 01:53 AM   #120
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,384
Total Cats: 242
Default

Quote:
Originally Posted by 18psi View Post
check that actuator for leaks if you haven't already.
a guy on nasioc received a leaky one with his borg and it made his life hell
Thanks for the tip. So far, all is well. It was opened to install a new spring and the seals were greased.
99mx5 is offline   Reply With Quote
