Originally Posted by ofspunk7
Damn. 40 mins of lapping
There's a group I go to Thunderhill with that doesn't use run groups. The track is open from 9-12, then 1-5. Go out when you want, stay out as long as you want, come in when you want. It's awesome. It really spoils you for normal track days.

--Ian
Old Jul 19, 2015 | 06:18 PM
  #2322
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

I would never stop!
<br />
<br />That was a great weekend. We found an old spec Miata racer who ran a group down with us so we could play. It was a blast following him. I finished the day with a 2:14.7 on a fast lap.
<br />
<br />I'm definitely at the limit of grip on these tires...and I love it. The car is very neutral and when it let's go its a nice controlled 4 wheel slide. Only had one off all weekend, same as last year, turn 3. Too much entry speed, car started to rotate so I pointed it straight and ran off into the dirt.
<br />
<br />Some minor electrical gremlins with my vei gauge to figure out but otherwise I love the way the car is. I would need more grip if I wanted more power.
<br />
<br />Ran 4psi all weekend. Just enough to pass BMWs on the straights but not too much for the straights.
<br />
<br />Ian what group is that. I want to run with them.
Old Jul 19, 2015 | 07:36 PM
  #2323
curly's Avatar
Cpt. Slow
iTrader: (25)

Joined: Oct 2005
Posts: 15,197
Total Cats: 1,398
From: Oregon City, OR
Default

You need a push to pass button. 4psi is weaksauce. Just for straights because rocketship.
Old Jul 19, 2015 | 08:48 PM
  #2324
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

4psi was perfect for playing with the spec miatas. I did run full boost a couple times after a cobra pointed me by and didn't lift twice.
Old Jul 19, 2015 | 09:39 PM
  #2325
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

Klamath Falls and the misfires are back. This could get interesting...
Old Jul 20, 2015 | 02:30 AM
  #2326
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

Pretty nasty squeel in neutral that goes away when I push the clutch in. Throwout bearing right?
<br />FML the trans was out last week.
Old Jul 20, 2015 | 02:39 AM
  #2327
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

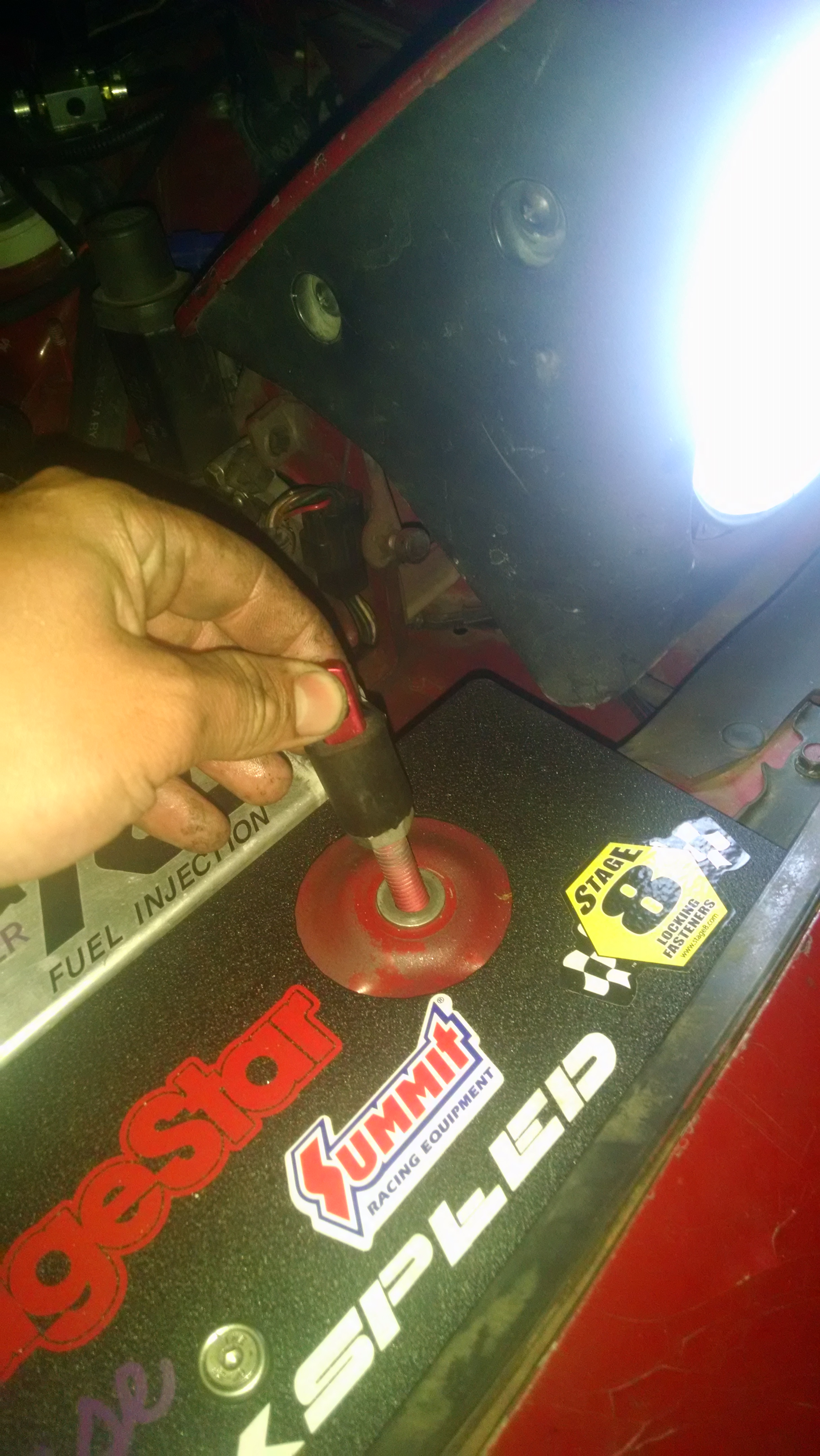

Noticed this on the road:
<br />
<br />
<br />
<br />Found this:
<br />
<br />
<br />
<br />Less than an hour left. I need to park in the garage, and leave the car for a day or 2 lol.
Attached Thumbnails Aidan's loose oily bunghole actually runs a track lap-b8fhhi0.jpg
Old Jul 20, 2015 | 03:35 AM
  #2328
deezums's Avatar
Elite Member
iTrader: (3)

Joined: May 2014
Posts: 3,146
Total Cats: 206
From: Kansas
Default

I thought TOB squeal only came about when the clutch is in, since it's the only time it's loaded against the pressure plate. I may be wrong, though.
Old Jul 20, 2015 | 03:37 AM
  #2329
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

Then what squeel is in neutral?
Old Jul 20, 2015 | 03:49 AM
  #2330
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Safe and sound.</p><p></p>
Attached Thumbnails Aidan's loose oily bunghole actually runs a track lap-ayrefoil.jpg
Old Jul 20, 2015 | 04:07 AM
  #2331
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Picture dump! (They are all pretty boring. Click for bigger versions that can zoom)</p><p><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /></p>
Attached Thumbnails Aidan's loose oily bunghole actually runs a track lap-fs4jbohl.jpg   Aidan's loose oily bunghole actually runs a track lap-bpi8ofnl.jpg   Aidan's loose oily bunghole actually runs a track lap-g4asrawl.jpg   Aidan's loose oily bunghole actually runs a track lap-4o4yozjl.jpg   Aidan's loose oily bunghole actually runs a track lap-70aakqyl.jpg

Aidan's loose oily bunghole actually runs a track lap-gbxrhkfl.jpg   Aidan's loose oily bunghole actually runs a track lap-bvqvzkhl.jpg   Aidan's loose oily bunghole actually runs a track lap-veifa98l.jpg   Aidan's loose oily bunghole actually runs a track lap-hbbas0jl.jpg   Aidan's loose oily bunghole actually runs a track lap-nbunppgl.jpg

Aidan's loose oily bunghole actually runs a track lap-owcoigsl.jpg   Aidan's loose oily bunghole actually runs a track lap-1nxmivol.jpg
Old Jul 20, 2015, 04:07 AM
This message has been deleted by curly. Reason: double post
Old Jul 20, 2015 | 05:40 AM
  #2332
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

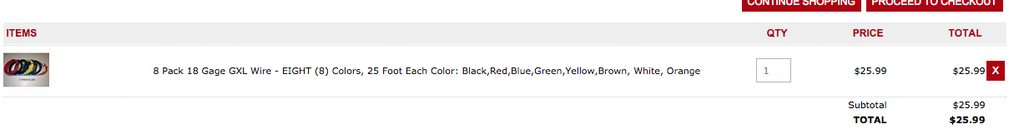

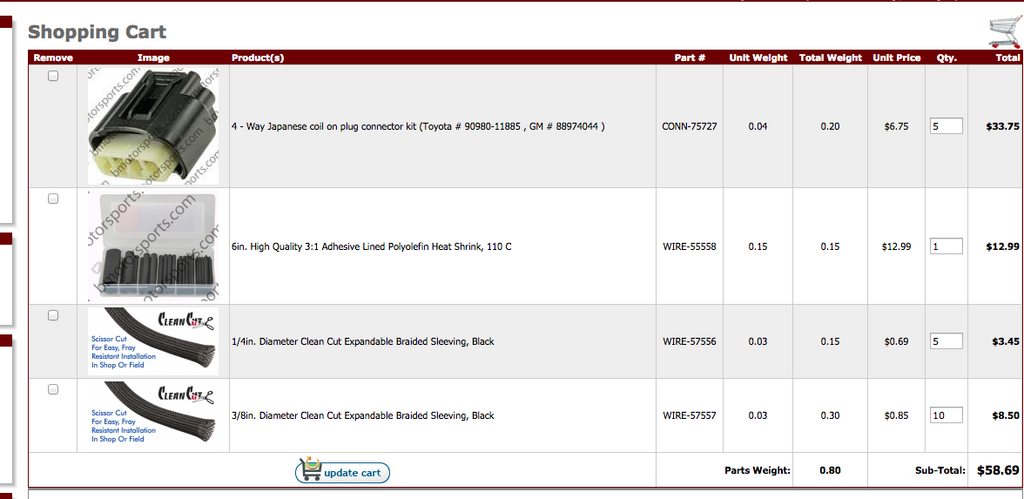

<p>Thanks to @Jeffbucc I have my new harness all ordered. If it gets here by Wed I can throw it together and run autocross on sunday *fingers crossed*</p><p>Now its bed. I bet @hi_im_sean is just waking up.</p><p>Name:  KQc3kvth.png
Views: 36
Size:  22.5 KB<br />Name:  TEvthuAh.png
Views: 34
Size:  73.5 KB</p>
Old Jul 20, 2015 | 09:33 AM
  #2333
hi_im_sean's Avatar
SadFab CEO
iTrader: (3)

Joined: Sep 2012
Posts: 4,560
Total Cats: 1,143
From: your mom's house phoenix, AZ
Default

Originally Posted by aidandj
<p>Thanks to @Jeffbucc I have my new harness all ordered. If it gets here by Wed I can throw it together and run autocross on sunday *fingers crossed*</p><p>Now its bed. I bet @hi_im_sean is just waking up.</p><p>
Monday is my Sunday, I slept in late until 6 today


Neutral noise could still be TOB. It could be stiff and getting close to siezure causing it to slip against the clutch fingers or fork making a squeal, but as soon as it loads up it gets forced to turn and it quieted down.
Old Jul 20, 2015 | 11:04 AM
  #2334
curly's Avatar
Cpt. Slow
iTrader: (25)

Joined: Oct 2005
Posts: 15,197
Total Cats: 1,398
From: Oregon City, OR
Default

Yes they squeal while they have no pressure, then quiet up when they're up against the pressure plate. It's a TOB.

If you didn't adjust your clutch pedal perfectly, a long weekend like this could destroy a perfectly good TOB.
Old Jul 20, 2015 | 11:09 AM
  #2335
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

Hmm that could have been it. I also think I accidentally put in the TIB from the auction car instead if the one I bought last year.
<br />Real question:
<br />Can I run like this for a few more months, and what's the worst thing that can happen?
Old Jul 20, 2015 | 11:27 AM
  #2336
EO2K's Avatar
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

Originally Posted by aidandj
what's the worst thing that can happen?
I had a Mustang do this once. TOB sizes up and ceases to function as a bearing and becomes a very dull cutter on a 200+ HP lathe. It then attempts to machine the fingers on the pressure plate or the transmission input shaft. Or both if you don't catch it fast enough. Because its not a cutter, it fails spectacularly at both tasks.
Old Jul 20, 2015 | 11:32 AM
  #2337
hi_im_sean's Avatar
SadFab CEO
iTrader: (3)

Joined: Sep 2012
Posts: 4,560
Total Cats: 1,143
From: your mom's house phoenix, AZ
Default

Its good practice to make sure the clutch fork isnt loaded when everything is at rest after any clutch work.

Get under the car and see if there is any free play in the fork. If there isnt, make it so, and that may buy you some time.
Old Jul 20, 2015 | 11:35 AM
  #2338
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

Damn. I guess I'll pull it next week some time.
Old Jul 20, 2015 | 11:46 AM
  #2339
hi_im_sean's Avatar
SadFab CEO
iTrader: (3)

Joined: Sep 2012
Posts: 4,560
Total Cats: 1,143
From: your mom's house phoenix, AZ
Default

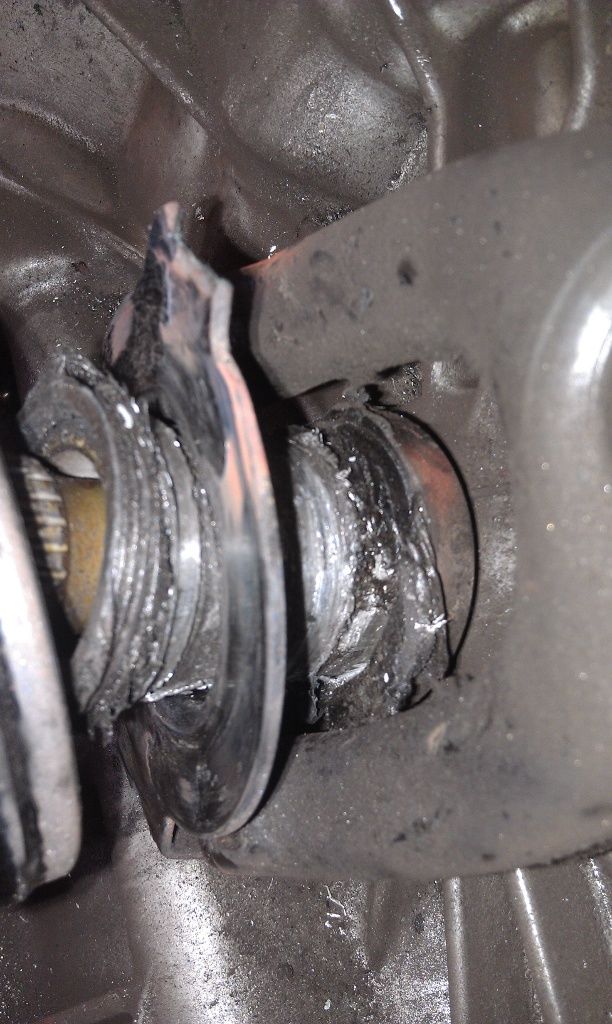

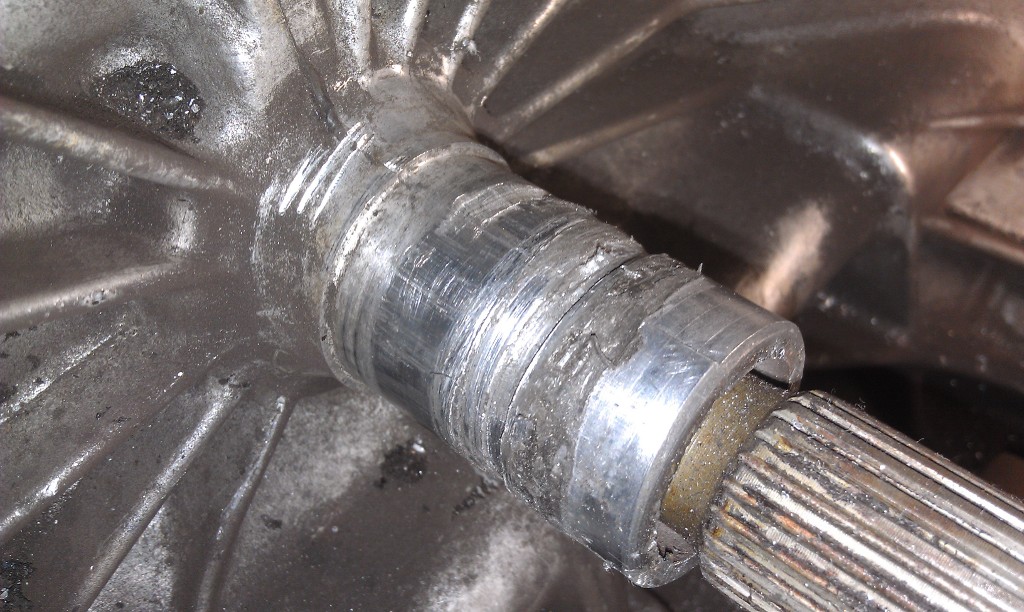

Just to scare you more, I have a theory that when the bearing siezes and starts to "lathe" the fingers, it transfers much more radial load to the fingers. This causes them to start breaking off.





This sort of thing can happen too





Bwuahahahahaha

Attached Thumbnails Aidan's loose oily bunghole actually runs a track lap-0r3ywtqs4umxhictfnmo.jpg   Aidan's loose oily bunghole actually runs a track lap-80-y2e9dj8wuq1x3ydpqel_4dea7167390ab1c314af0f4287b0ac2501d45426.jpg
Old Jul 20, 2015, 11:47 AM
This message has been deleted by curly. Reason: double post
Old Jul 20, 2015 | 11:50 AM
  #2340
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

Stahp!!!
<br />How long before that happens.
<br />Who can come help next week?
