I thought when using stock bushings, the bolts would rotate inside the sleeve, rather than not and "twisting" the rubber..
Reply
-1
-1
Thread Starter
Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Reply
0
0
Thread Starter
Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
The sleeve is held to the subframe. Rubber is the only thing that moves.
Reply
0
0
Thread Starter
Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA

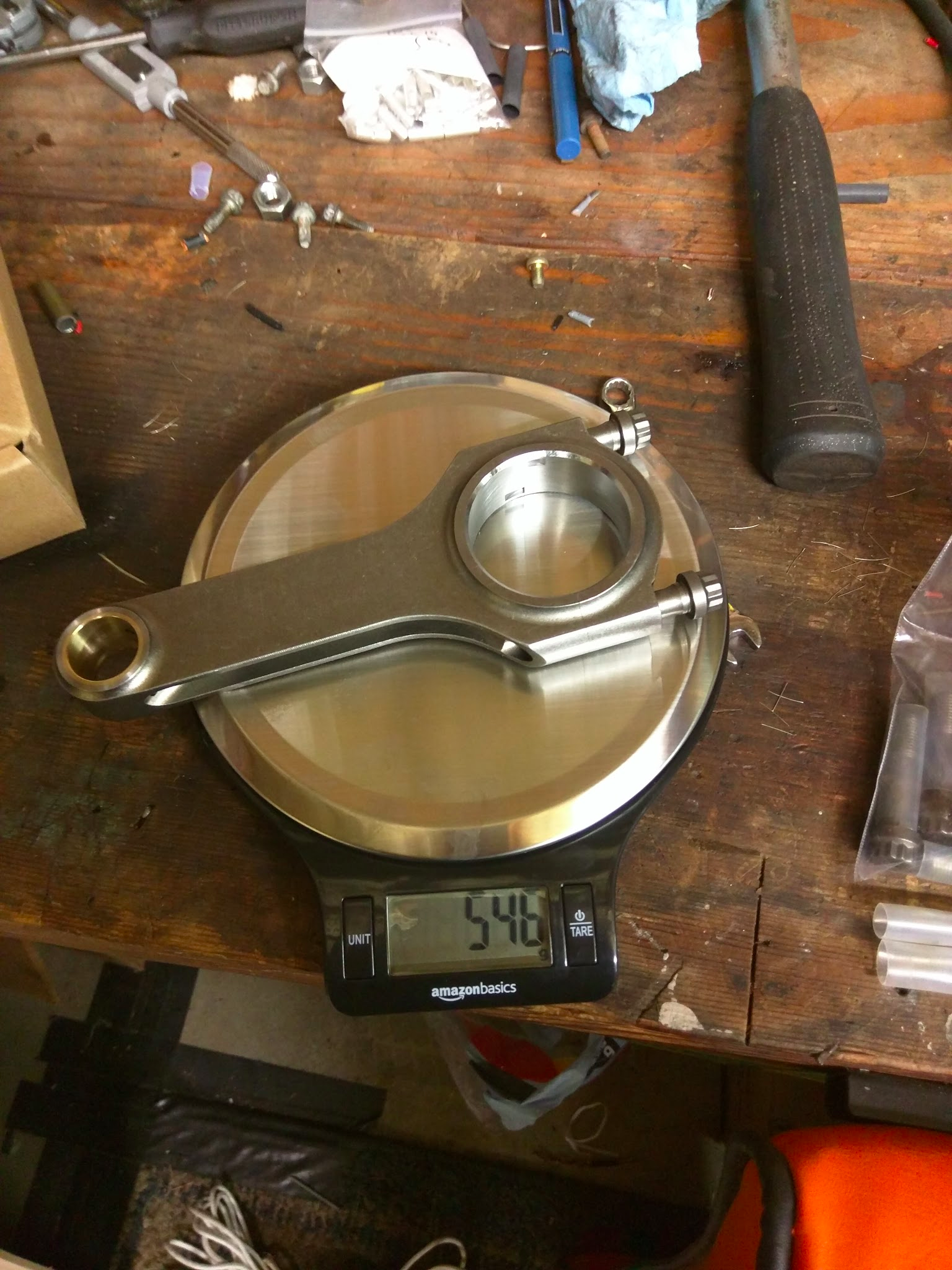

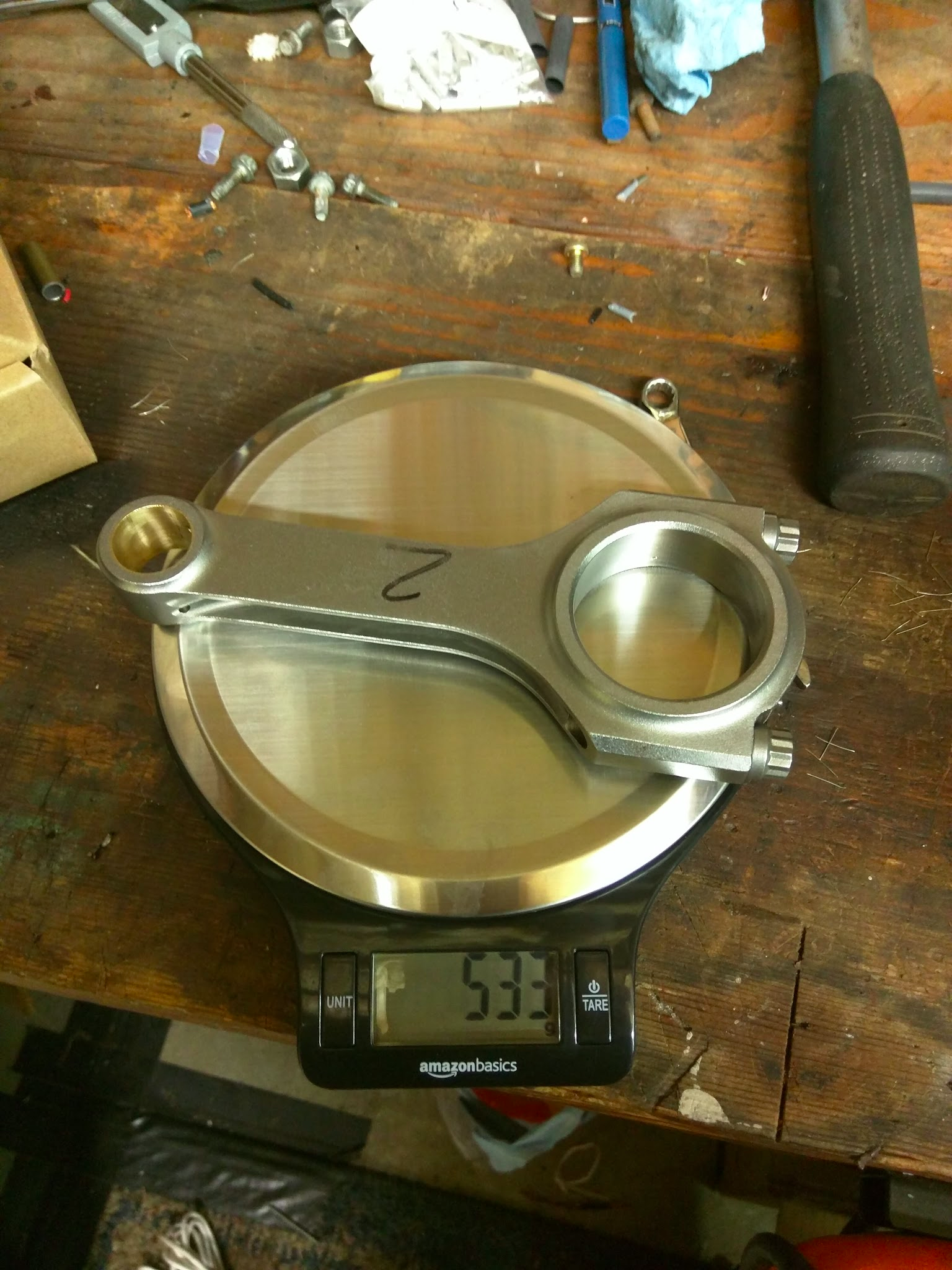

One ebay rod and one eagle rod weighed.
Thats 1.175 lbs for the eagle rods and 1.203 lbs for the ebay rods for us americans.
Doesn't sound like much but one definitely feels heavier than the other.
Thats 1.175 lbs for the eagle rods and 1.203 lbs for the ebay rods for us americans.
Doesn't sound like much but one definitely feels heavier than the other.
Reply
0
0
Thread Starter
Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA

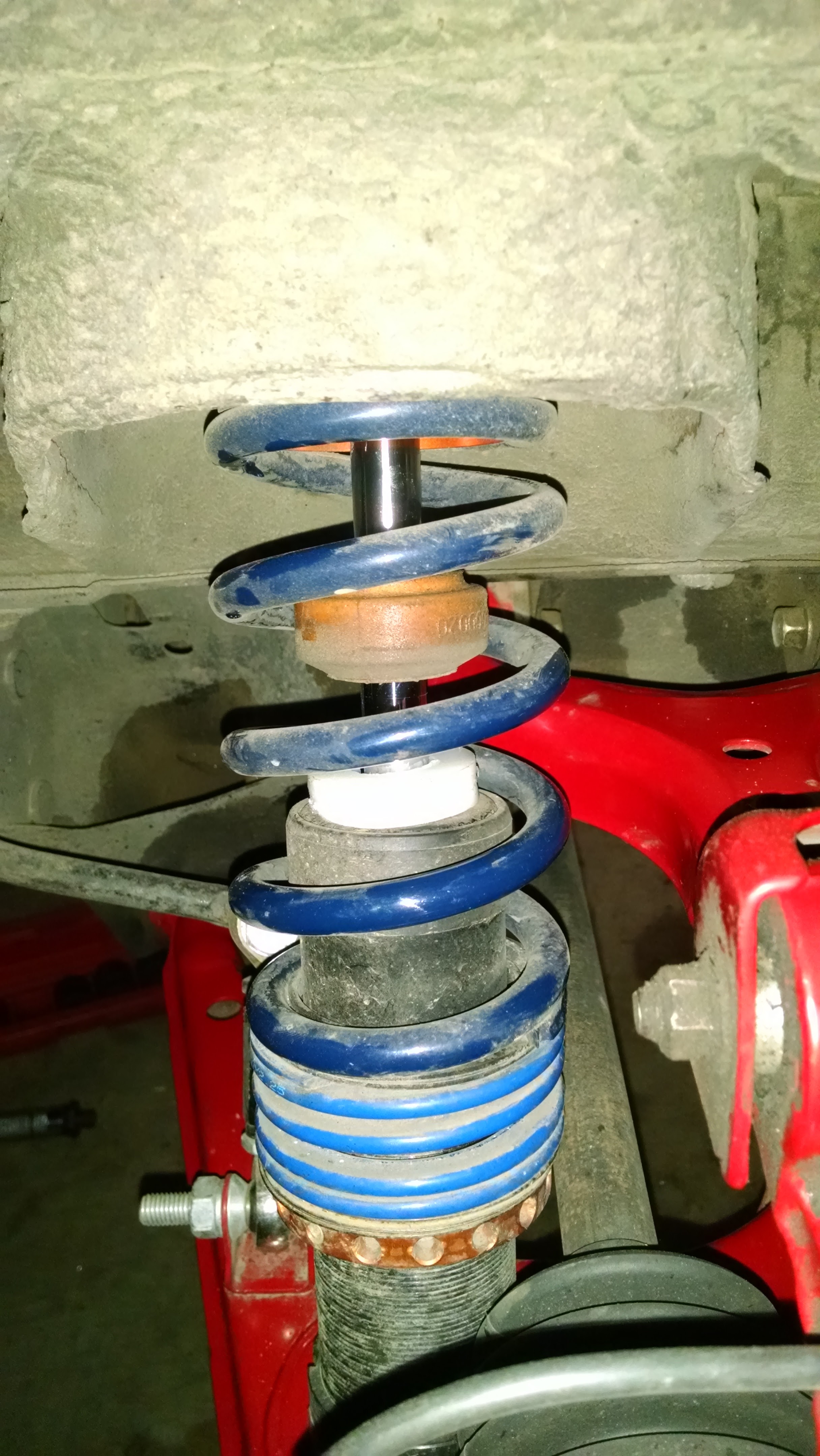

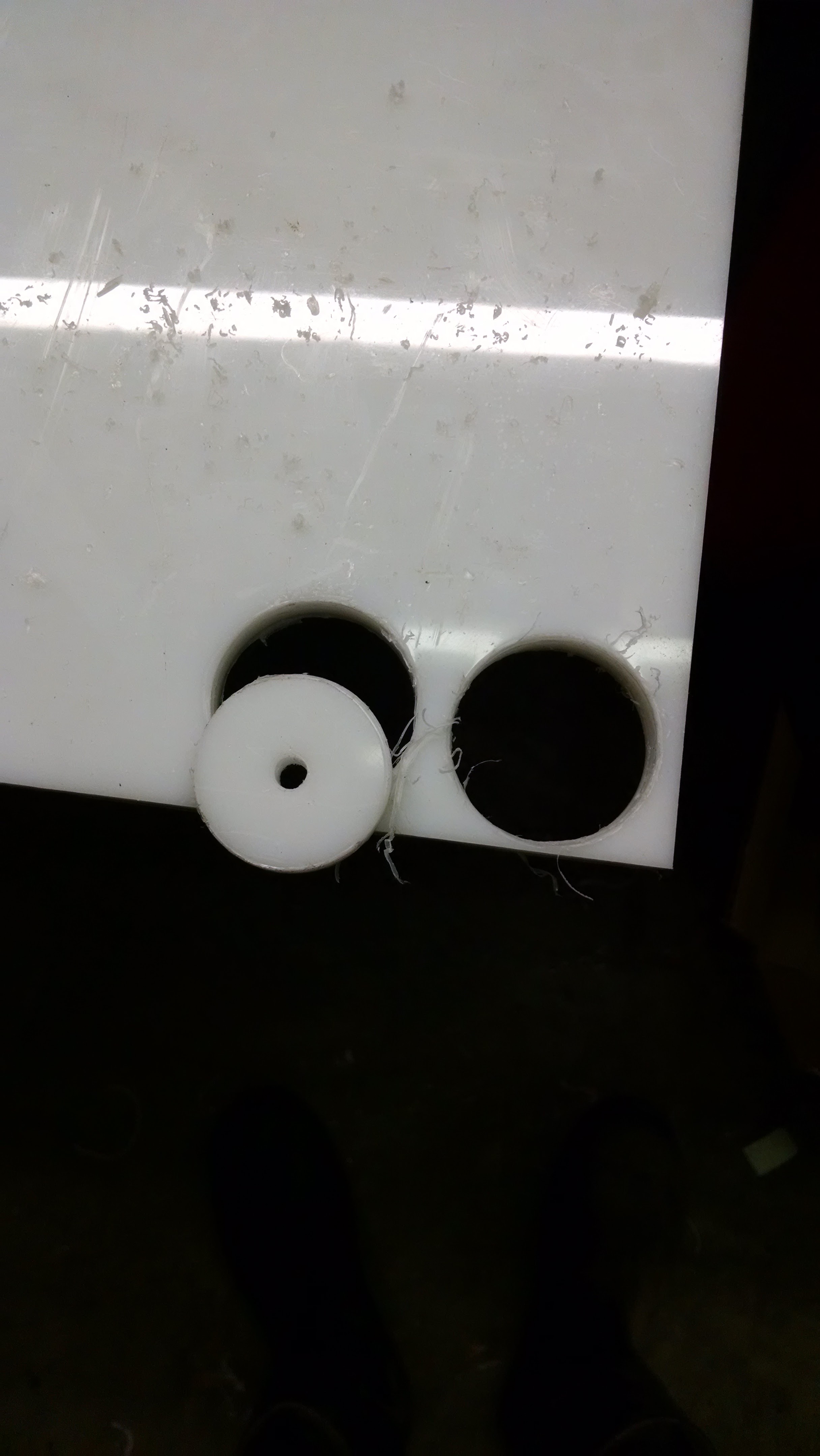

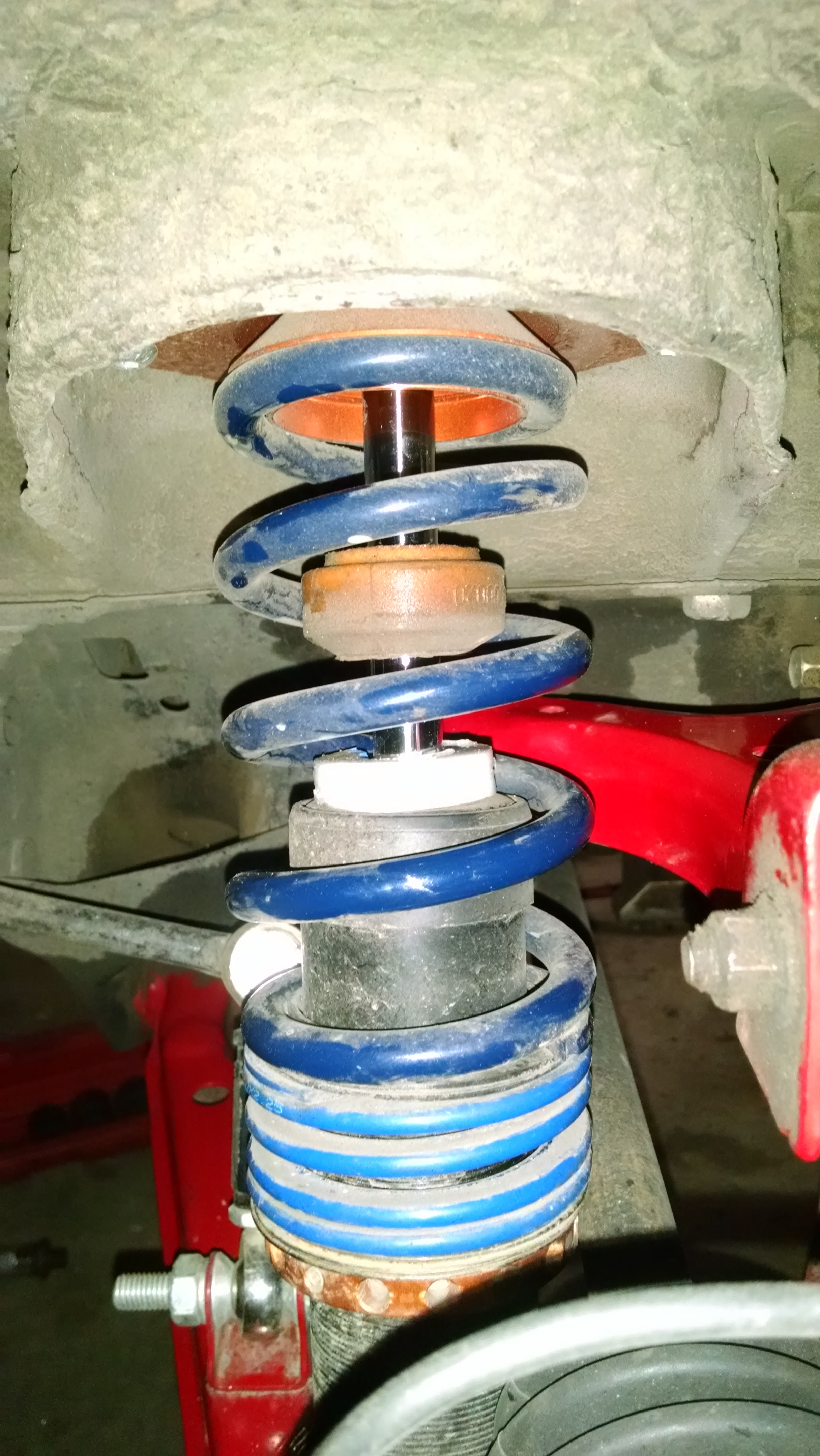

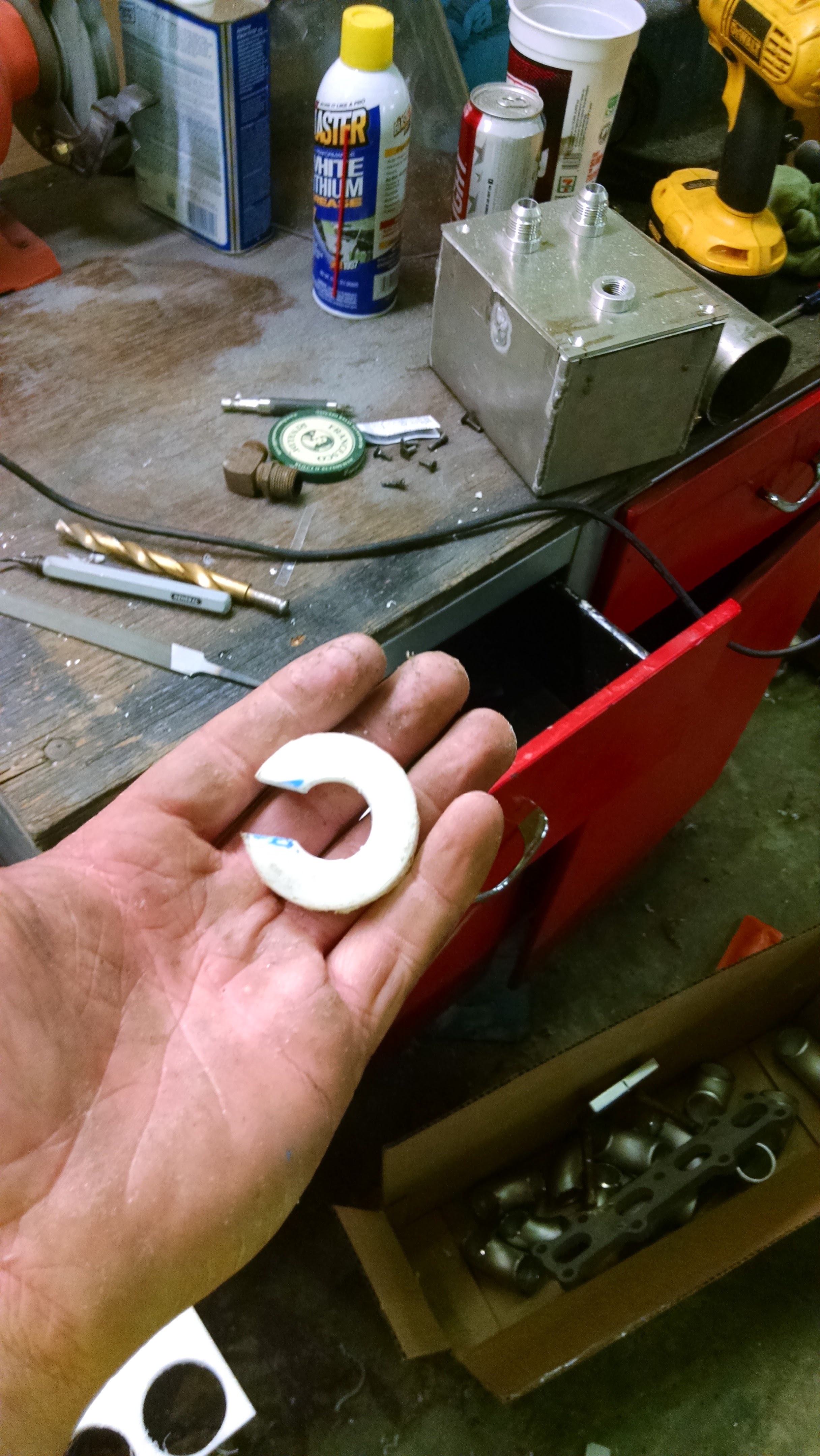

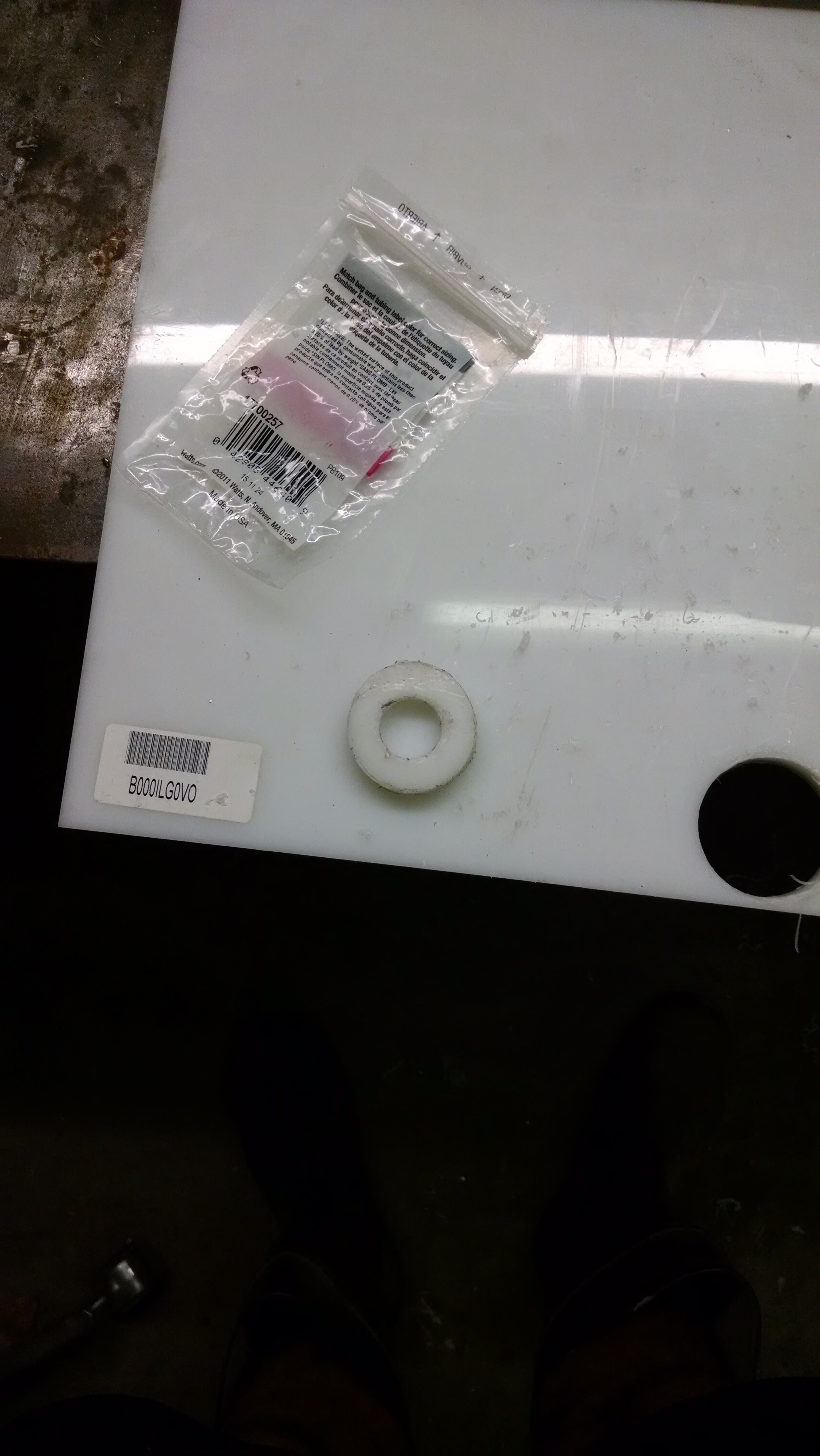

I built 2 more sets of those spacers. So I have a lot of adjustment if I need to keep moving it up.
Changed pads and oil. car is basically ready for the trip. Need to put the front wheels back on and load the trailer.
Pulled the soft top today. Going to run without it for a while and see how I like it. I've been working on getting a CCP fastback with a couple guys and want to know how I will like no soft top.
Need to finish my bikini top too.
Changed pads and oil. car is basically ready for the trip. Need to put the front wheels back on and load the trailer.
Pulled the soft top today. Going to run without it for a while and see how I like it. I've been working on getting a CCP fastback with a couple guys and want to know how I will like no soft top.
Need to finish my bikini top too.
Reply
0
0

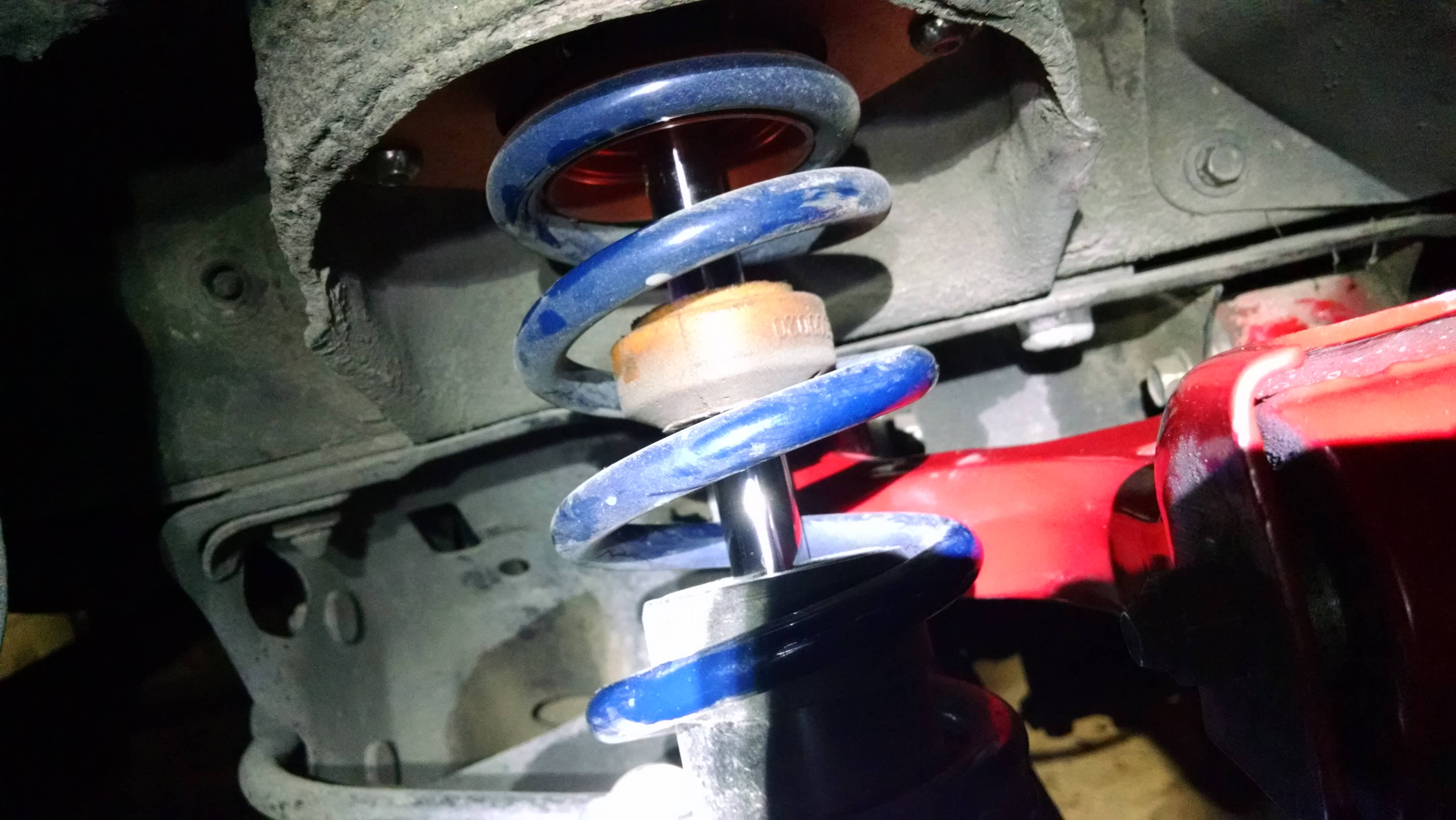

Rear Xida geometry for the NA/NB is engineered to get every last mm of bump travel. A hit big enough to have the control arms contact, we would consider a crash. Control arms flex. Static, everything clears with the bump stops compressed. If it becomes an issue, build a shock mount spacer to lower the BCM. Do not add a travel limiter. If running NB mounts, add the extra bushing we include with every Xida kit. Install it under the mount, stacked on top of the existing bushing.
__________________
Reply
0
0
Thread Starter
Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Thanks for the response Emilio. I'm running the billet spherical mounts. Are you saying to space the mount away from the body? Edit: just realized BCM was billet coaxial mount. That makes sense.
Is there any worry of lowering the upper mount and allowing too much shock travel?
Stupid question fail.
I'm not sure I'll have time to build a spacer before Laguna, we will see.
ORP has some decent sized curbs that drop straight to dirt. Maybe 4-6 inches. If you are off line you can drop a wheel into the dirt and then smack the curb real good.
Stupid question fail.
I'm not sure I'll have time to build a spacer before Laguna, we will see.
ORP has some decent sized curbs that drop straight to dirt. Maybe 4-6 inches. If you are off line you can drop a wheel into the dirt and then smack the curb real good.
Last edited by aidandj; Sep 25, 2016 at 05:06 PM.
Reply
0
0
Thread Starter
Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA

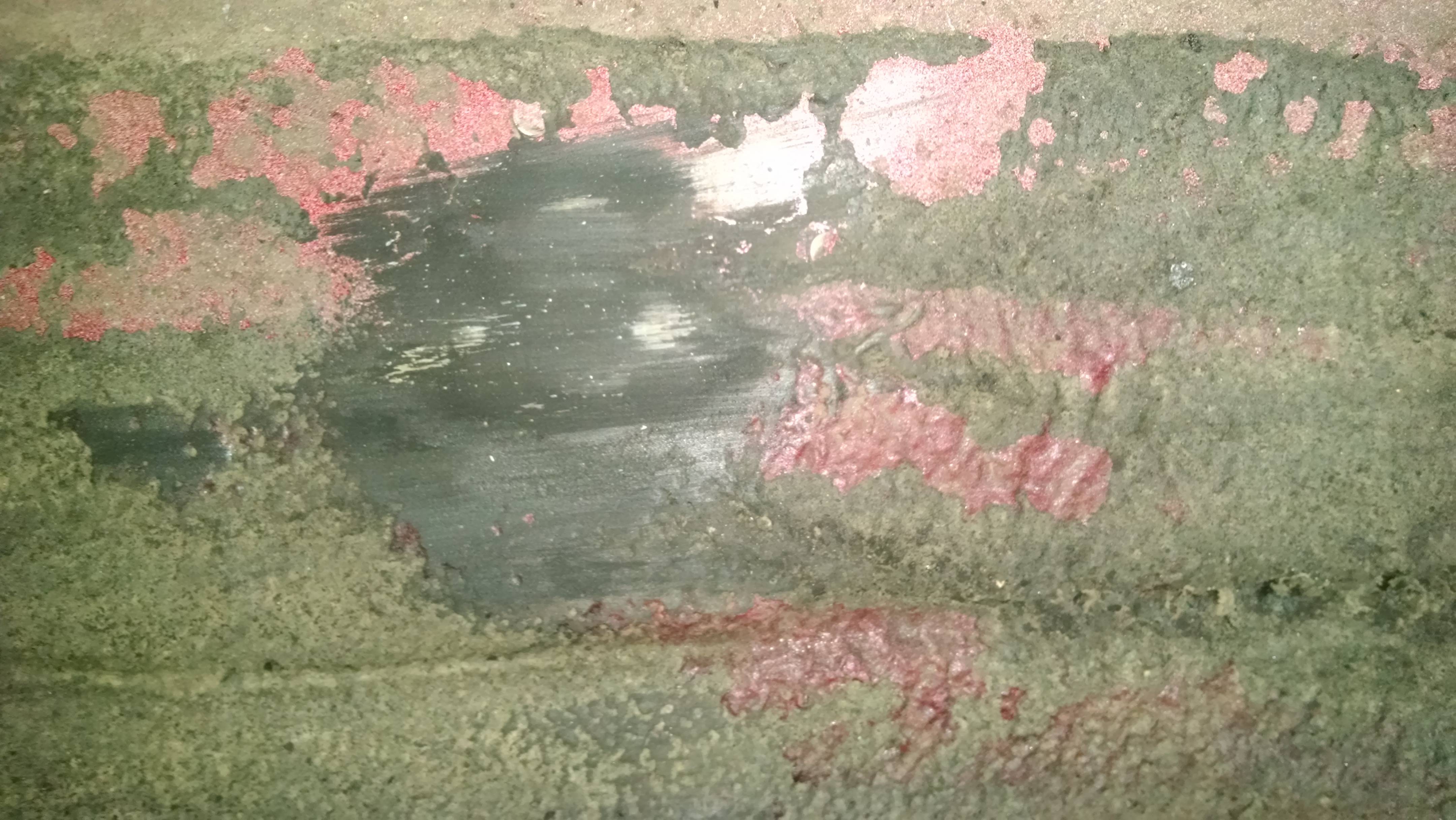

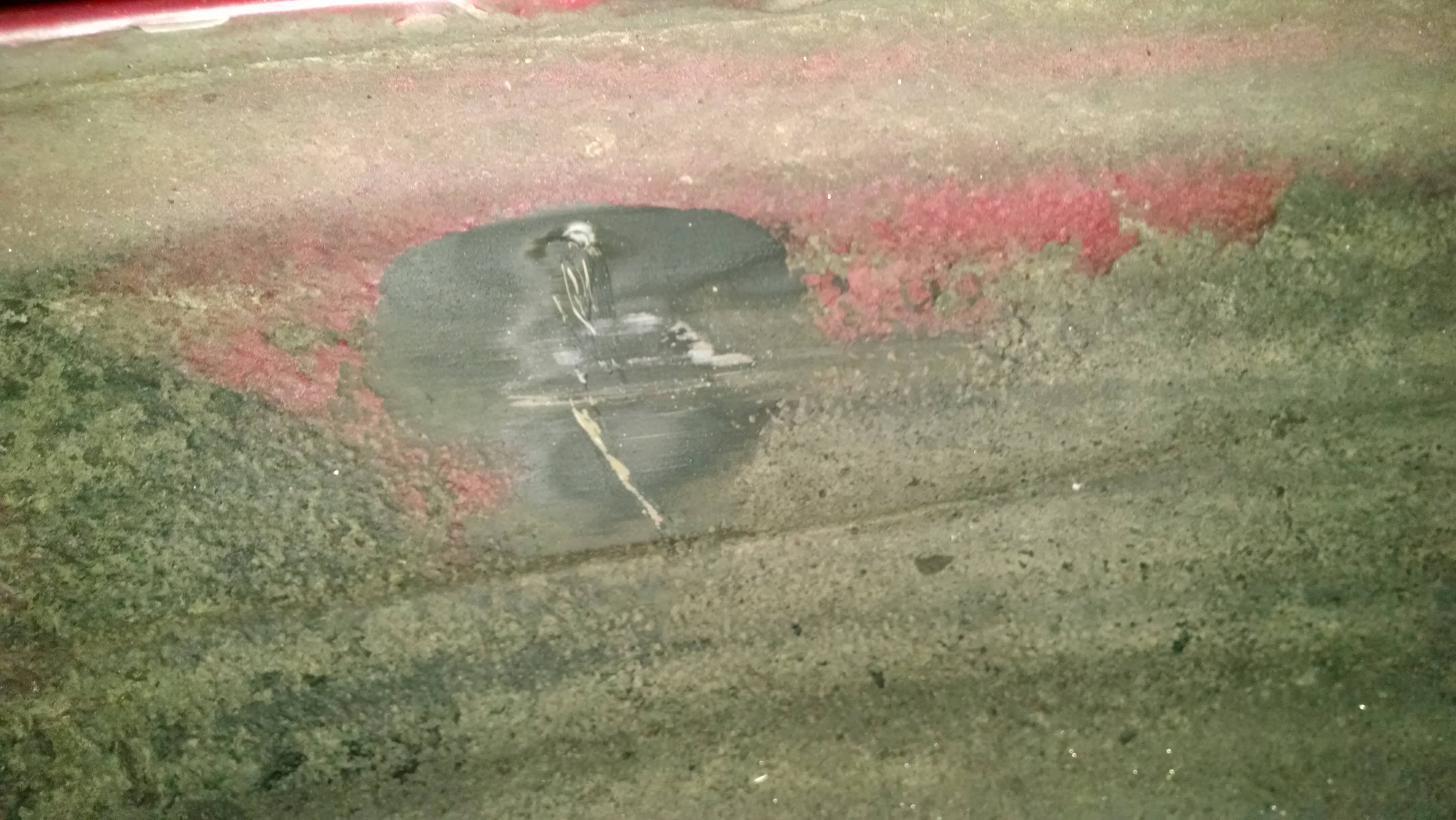

I should also note that the car has taken hard curbs on both sides, and only one side is making contact. This is 190k mile chassis with questionable background. I would not be surprised if something was tweaked somewhere.
