Aidan's loose oily bunghole actually runs a track lap

Thread Tools

Search this Thread

Old May 16, 2017 | 09:52 PM
  #9541
wackbards's Avatar
Senior Member
iTrader: (2)

Joined: Nov 2015
Posts: 1,426
Total Cats: 267
From: Seattle
Default

What's your air/oil separator situation? Is it plumbed back to draw vacuum from the intake manifold? You could splice in a clear piece of tubbing to see if it's drawing a ton of oil into the manifold.
Old May 16, 2017 | 10:33 PM
  #9542
bahurd's Avatar
Elite Member
iTrader: (8)

Joined: Apr 2013
Posts: 2,408
Total Cats: 316
Default

What's the intake runners look like before the head. Any staining or film that you can feel?
Old May 16, 2017 | 10:35 PM
  #9543
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

There is a coating. But it's mostly dry carbon (I didn't clean the intake mani that well before installing.) Not a lot of wet. I know some oil is getting through. But just picked up a new separator.
Old May 17, 2017 | 12:18 PM
  #9544
sixshooter's Avatar
Moderator
iTrader: (12)

Joined: Nov 2008
Posts: 22,204
Total Cats: 3,560
From: Tampa, Florida
Default

Supertech valve stem seals?
Old May 17, 2017 | 01:42 PM
  #9545
psyber_0ptix's Avatar
Elite Member
iTrader: (4)

Joined: Mar 2012
Posts: 4,648
Total Cats: 544
From: Northern VA
Default

Sorry I'm a bit new to the Supertech valve stem seal issues since it wasn't on my radar till now. They are known to fail prematurely?
Old May 17, 2017 | 01:43 PM
  #9546
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

See here

https://www.miataturbo.net/engine-pe...ls-leak-93186/
Old May 17, 2017 | 03:27 PM
  #9547
ridethecliche's Avatar
Elite Member
iTrader: (2)

Joined: Aug 2016
Posts: 3,890
Total Cats: 146
From: New Fucking Jersey
Default

Re: Rice sound for det.

You should only be able to hear it with det cans and it shouldn't happen during decel right? I think my intake filter vibrates at certain rpms due to the resonant frequency and it has scared the crap out of me before because it sounds like an angry swarm of bees.
Old May 17, 2017 | 05:12 PM
  #9548
turbofan's Avatar
Supporting Vendor
iTrader: (1)

Joined: Sep 2010
Posts: 8,146
Total Cats: 1,087
From: Lake Forest, CA
Default

I think your car is definitely detonating on decel.
__________________
Ed@949Racing/Supermiata
www.949racing.com
Old May 17, 2017 | 05:17 PM
  #9549
farpolemiddle's Avatar
Senior Member

Joined: May 2016
Posts: 584
Total Cats: 95
From: Lents, Oregon
Default

I too am interested in if this is a Supertech valve stem seal issue since I was planning on doing mine soon.
Old May 17, 2017 | 05:27 PM
  #9550
EO2K's Avatar
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

You should come visit the sthupertech valve stem seal thread: https://www.miataturbo.net/engine-pe...ls-leak-93186/
Old May 17, 2017 | 06:09 PM
  #9551
bahurd's Avatar
Elite Member
iTrader: (8)

Joined: Apr 2013
Posts: 2,408
Total Cats: 316
Default

Curious @aidandj did you happen to measure your valve guides when the head was refreshed and also seat to guide runout? Valves are new right?
Old May 17, 2017 | 06:11 PM
  #9552
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

Head is used. Ran fine before rod knock. I lapped the valves and called it a day.

It was cleaned and decked obviously.
Old May 17, 2017 | 07:55 PM
  #9553
ridethecliche's Avatar
Elite Member
iTrader: (2)

Joined: Aug 2016
Posts: 3,890
Total Cats: 146
From: New Fucking Jersey
Default

Originally Posted by turbofan
I think your car is definitely detonating on decel.
Given my luck the past few days, I'd believe it.
Old May 17, 2017 | 08:48 PM
  #9554
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

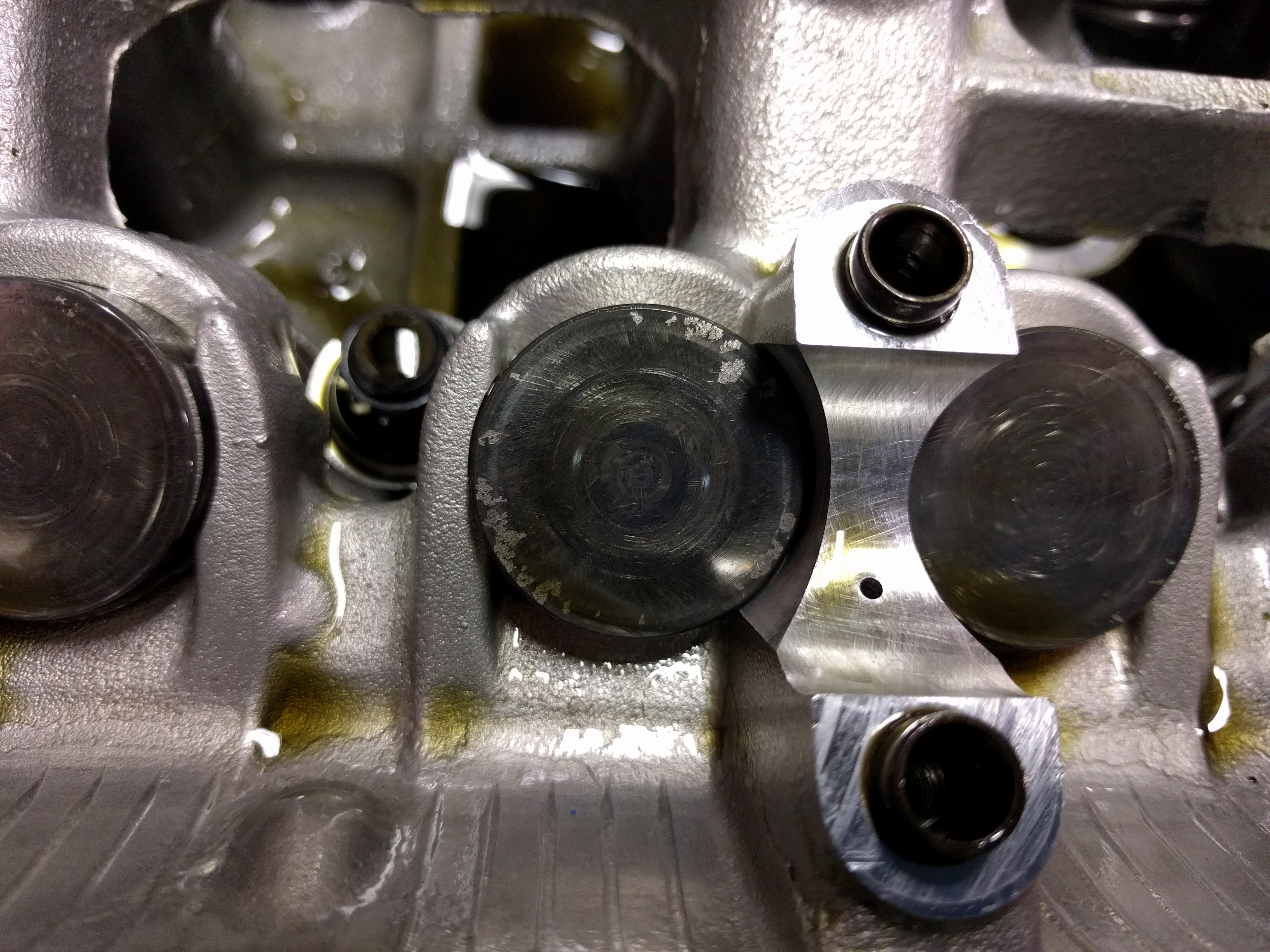

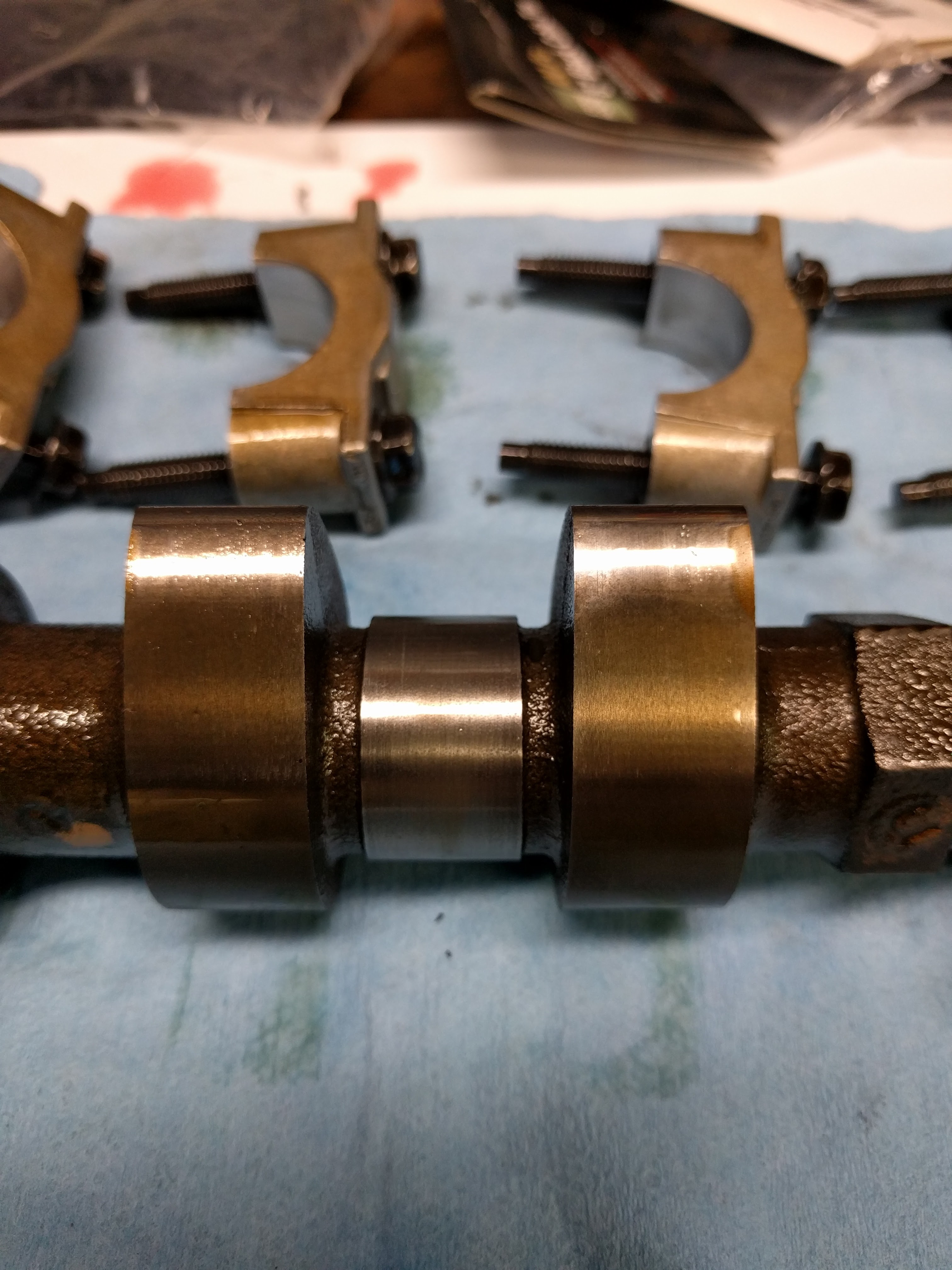

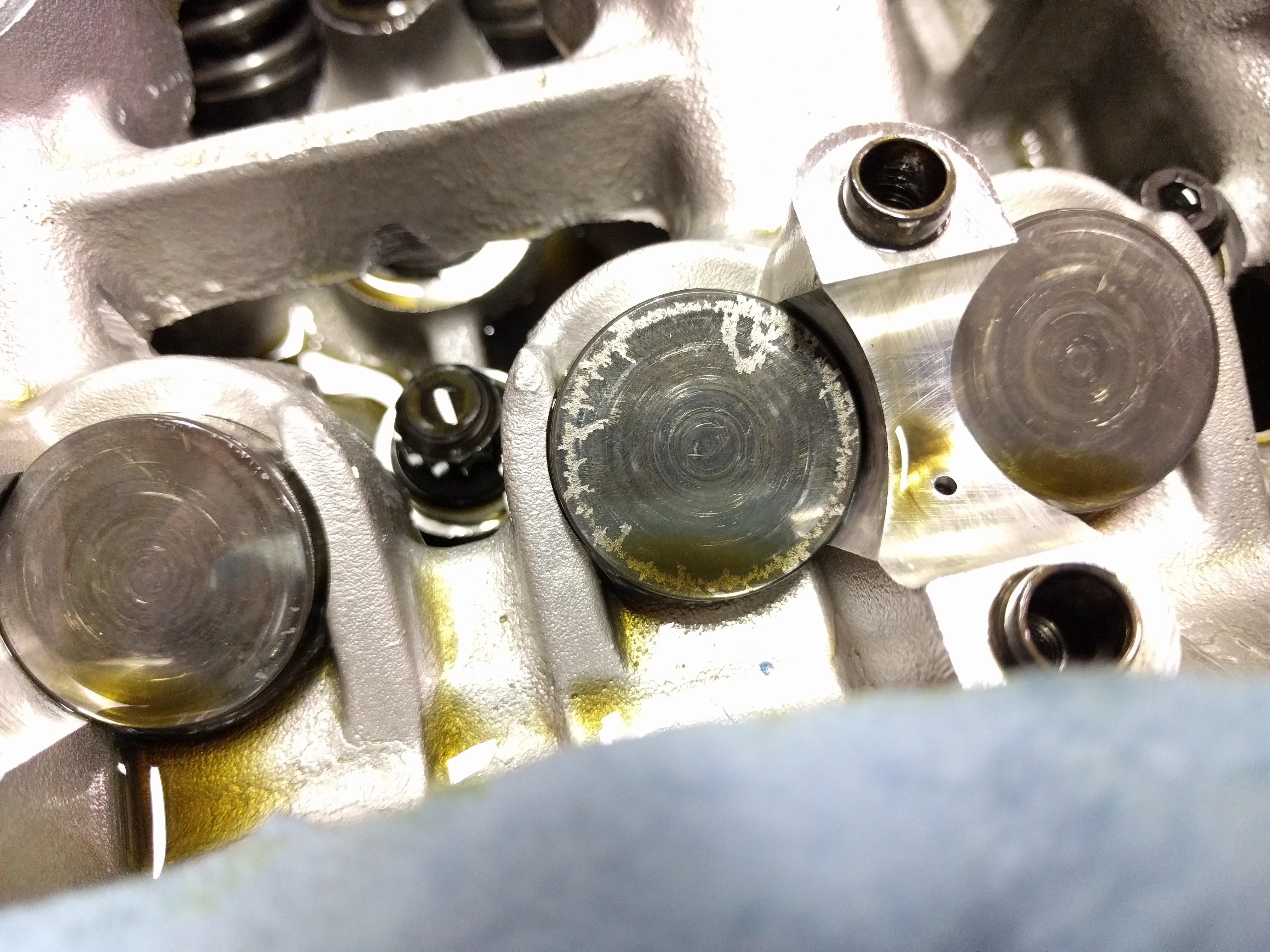

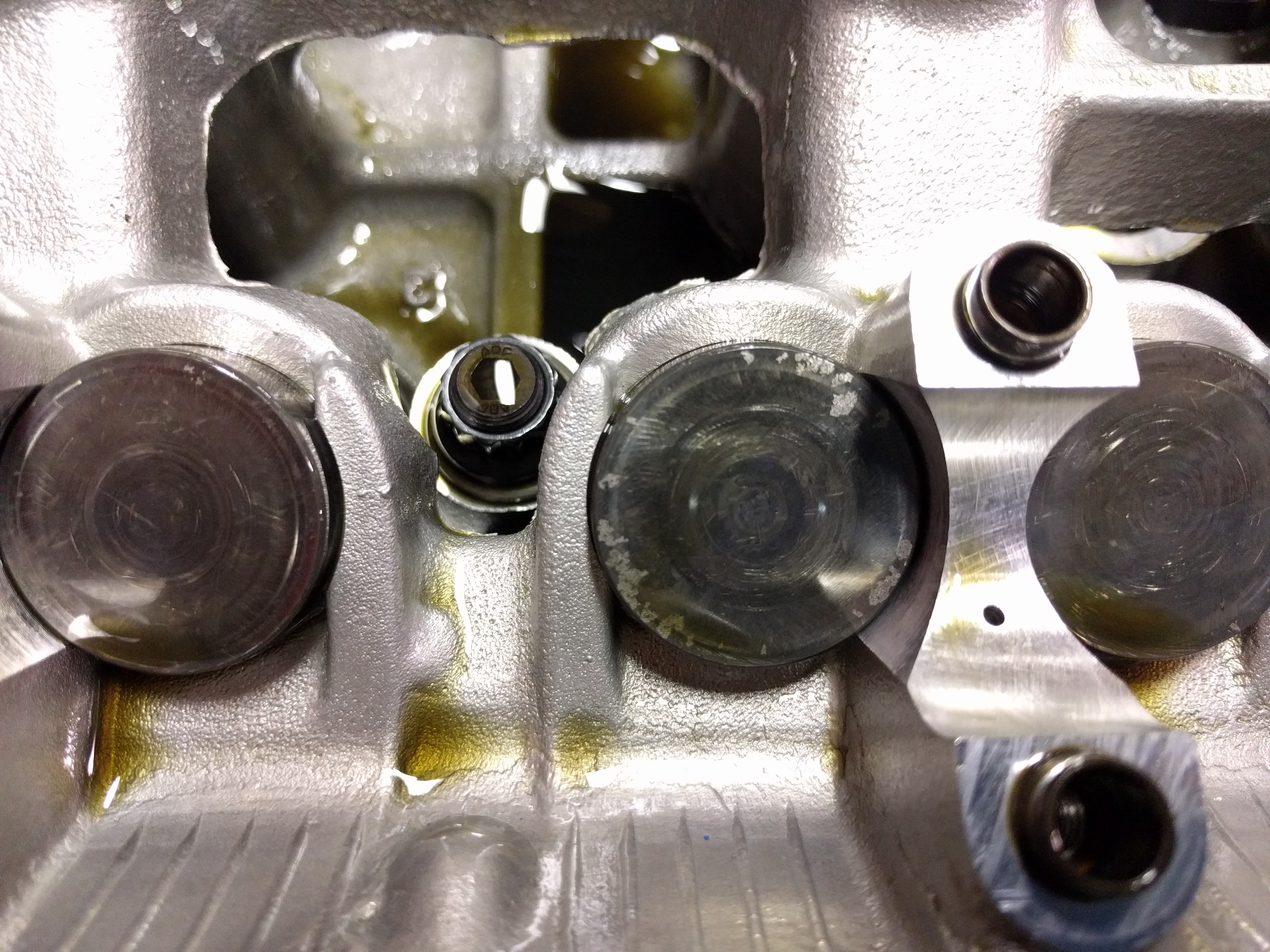

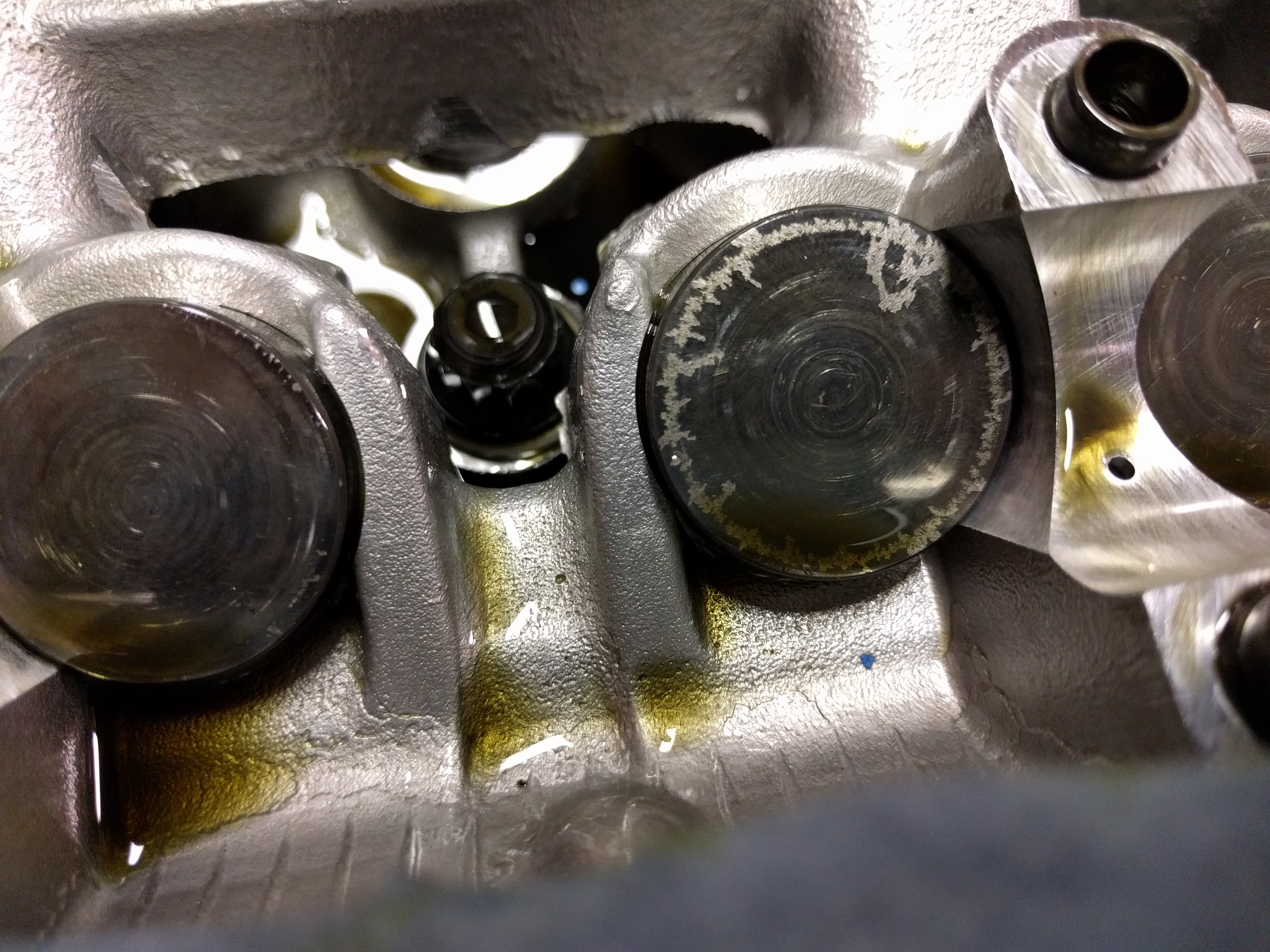

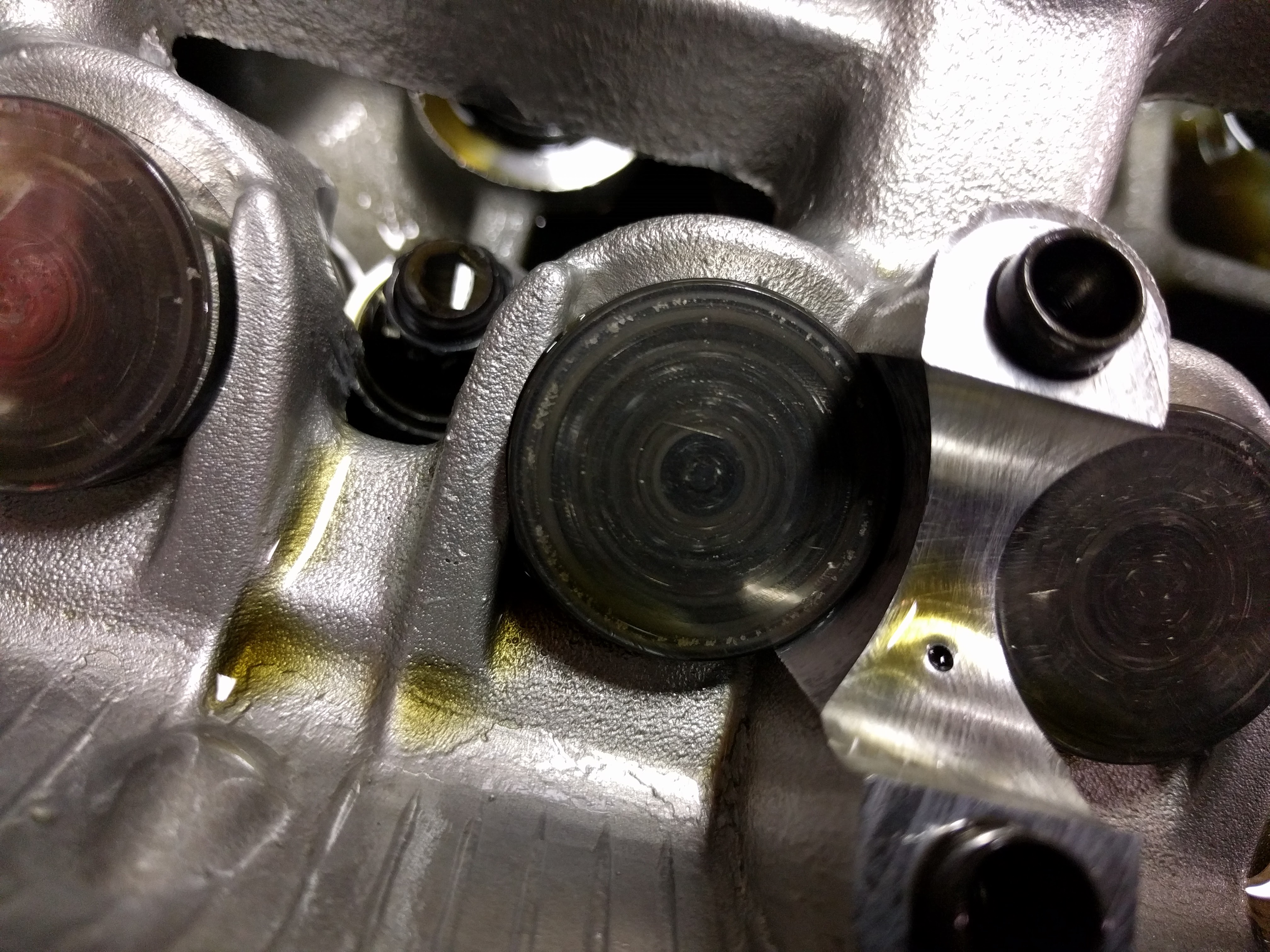

Cool.

Name:  RDuUD0D.jpg
Views: 35
Size:  1.70 MB
Name:  zEyA17W.jpg
Views: 36
Size:  2.12 MB
Name:  2cBJleb.jpg
Views: 34
Size:  1.89 MB
Name:  cnq2l0m.jpg
Views: 34
Size:  2.09 MB
Name:  RC6uR3k.jpg
Views: 35
Size:  1.97 MB
Name:  gl0UwNJ.jpg
Views: 31
Size:  1.10 MB
Old May 17, 2017 | 08:48 PM
  #9555
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

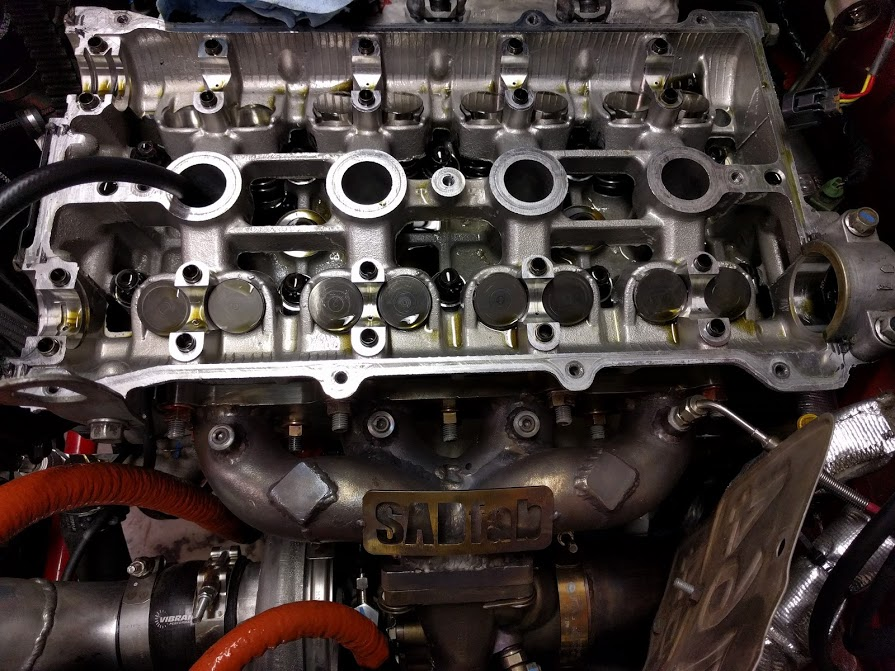

Exhaust side seems fine

Name:  tW8YOa8.png
Views: 31
Size:  1,012.3 KB
Old May 17, 2017 | 08:50 PM
  #9556
EO2K's Avatar
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

The **** is that ****? FOD?
Old May 17, 2017 | 08:54 PM
  #9557
turbofan's Avatar
Supporting Vendor
iTrader: (1)

Joined: Sep 2010
Posts: 8,146
Total Cats: 1,087
From: Lake Forest, CA
Default

what he said ^
__________________
Ed@949Racing/Supermiata
www.949racing.com
Old May 17, 2017 | 08:55 PM
  #9558
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

Not sure yet. Currently trying to decide if I should get some new ones overnighted, or toss some stock shim over buckets in. Looks like 4 or 5 total are damaged.
Old May 17, 2017 | 08:56 PM
  #9559
Leafy's Avatar
Elite Member
iTrader: (1)

Joined: Jun 2012
Posts: 9,491
Total Cats: 105
From: NH
Default

I forgot you were on SUBs and I was just going to say to flip those shims over and go.
Old May 17, 2017 | 09:07 PM
  #9560
rleete's Avatar
Elite Member
iTrader: (21)

Joined: Jun 2007
Posts: 6,794
Total Cats: 1,342
From: Rochester, NY
Default

Looks like metal deposition, rather than damage. What do your pistons look like?
