Old 05-17-2017, 09:08 PM   #9561
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,384
Total Cats: 1,601
Default

See above for pictures of pistons.
aidandj is offline   Reply With Quote
Old 05-17-2017, 09:10 PM   #9562
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,384
Total Cats: 1,601
Default

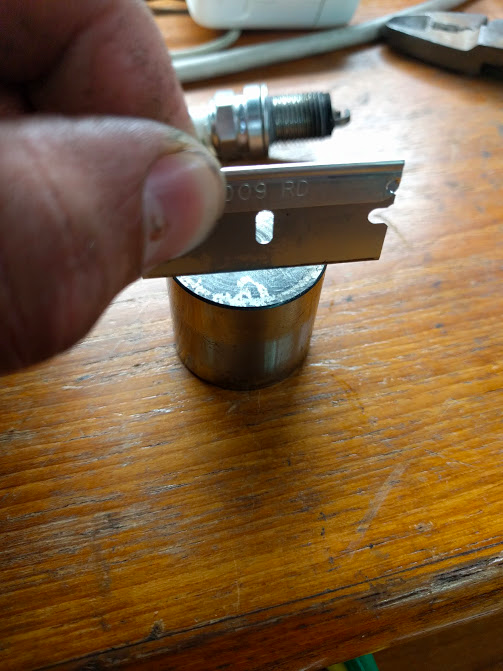

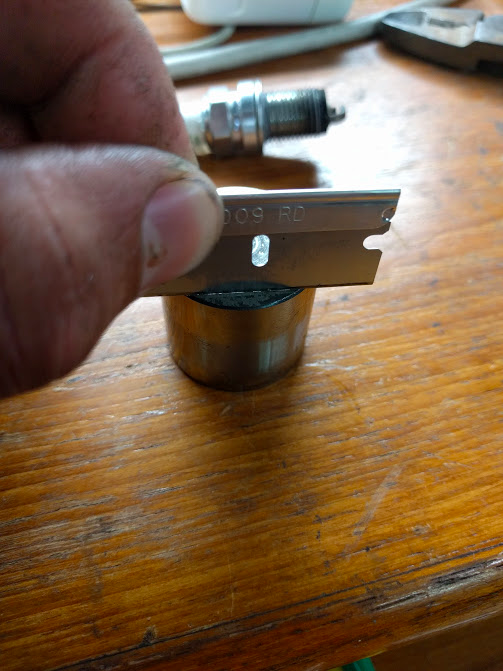

Its definitely pitting.




Light shines through on the damaged area.
aidandj is offline   Reply With Quote
Old 05-17-2017, 09:16 PM   #9563
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,953
Total Cats: 758
Default

Quote:
Originally Posted by aidandj View Post
See above for pictures of pistons.
Wasn't on this page. You expect me to sift through back pages?

Strange looking pitting. Looks more like Lichtenberg patterns than FOD.
rleete is offline   Reply With Quote
Old 05-17-2017, 09:17 PM   #9564
Elite Member
iTrader: (2)

Join Date: Aug 2016
Location: Woostuh, MA
Posts: 3,575
Total Cats: 101
Default

Quote:
Originally Posted by rleete View Post
Looks like metal deposition, rather than damage. What do your pistons look like?
https://www.miataturbo.net/build-thr...7/#post1414941
ridethecliche is offline   Reply With Quote
Old 05-17-2017, 09:18 PM   #9565
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 747
Total Cats: 86
Default

Ok, can somebody tell us what that is? I am in the process of building pretty much the same setup and don't want this. Nope, not at all.
Ted75zcar is offline   Reply With Quote
Old 05-17-2017, 09:27 PM   #9566
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,384
Total Cats: 1,601
Default

So its definitely some sort of pitting. Occurred on 6 lifters. 2 pretty bad. 3 a few spots of it. And 1 just 2 small places. I'll take better pictures in a bit. Pretty pissed right now.

Exhaust lifters all look 100% fine. Cam journals look great, cam lobes all look fine.
aidandj is offline   Reply With Quote
Old 05-17-2017, 10:20 PM   #9567
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,823
Total Cats: 266
Default

I would put stock shims back in it. My guess is there is a material problem with those buckets, and you probably caught it early enough to save the cam. I would clean off any specs of metal stuck to the lobes and polish them, then go back with stock shims.
patsmx5 is offline   Reply With Quote
Old 05-17-2017, 10:20 PM   #9568
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,418
Total Cats: 575
Default

That's really weird. Typically the cam hits near the center, and fwiw the cams tend to spin the bucket a little. No where near that pitting though.
curly is offline   Reply With Quote
Old 05-17-2017, 10:24 PM   #9569
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,384
Total Cats: 1,601
Default

Right? I have no idea what caused it. Especially because the exhaust side looks perfect. But we all know how this market works. It was definitely my fault.....

I'm going to order 6 more tomorrow. Maybe overnight them. Not sure.

Replacing valve seals currently. Using my leakdown tester yo pressurize the cylinder. Leakdown number on cyl 1 looks good at least.

aidandj is offline   Reply With Quote
Old 05-17-2017, 10:34 PM   #9570
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,823
Total Cats: 266
Default

Quote:
Originally Posted by aidandj View Post
Right? I have no idea what caused it. Especially because the exhaust side looks perfect. But we all know how this market works. It was definitely my fault.....

I'm going to order 6 more tomorrow. Maybe overnight them. Not sure.

Replacing valve seals currently. Using my leakdown tester yo pressurize the cylinder. Leakdown number on cyl 1 looks good at least.
My best guess is the lifters are too soft. For sure your fault!

I think it's a lifter problem, cause stock lifters/stock cams don't do that. Are you ordering the same brand lifters as before to replace these?
patsmx5 is offline   Reply With Quote
Old 05-17-2017, 10:36 PM   #9571
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,384
Total Cats: 1,601
Default

These are lifters from Mazda Motorsports Development. Figured at least something under the Mazda name wouldn't fail me...but who knows.

$10 a piece. And I'll call tomorrow and see what they know about the failures.
aidandj is offline   Reply With Quote
Old 05-17-2017, 10:36 PM   #9572
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,384
Total Cats: 1,601
Default

Does anyone know what color the OEM valve stem seals match up to. I have green and grey seals.
aidandj is offline   Reply With Quote
Old 05-17-2017, 10:42 PM   #9573
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,418
Total Cats: 575
Default

Pretty easy to check hardness. I'd grab a stock shim and have the two tested. If you've ever used a spring loaded center punch it's like that but calibrated and then you measure the "crater" diameter.
curly is offline   Reply With Quote
Old 05-17-2017, 10:44 PM   #9574
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,384
Total Cats: 1,601
Default

A razor blade doesn't scratch the surface. So they aren't made out of cheese. I'm still stumped on why the exhaust lifters look so perfect compared to intake.
aidandj is offline   Reply With Quote
Old 05-17-2017, 11:08 PM   #9575
Elite Member

Join Date: Sep 2015
Location: San Jose, CA
Posts: 1,528
Total Cats: 103
Default

Thats so strange.
MiataMan00 is offline   Reply With Quote
Old 05-17-2017, 11:17 PM   #9576
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,384
Total Cats: 1,601
Default

Anyone who has installed valve stem seals lately. Is there 1 "click" or 2? When you push them down.
aidandj is offline   Reply With Quote
Old 05-18-2017, 12:33 AM   #9577
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,384
Total Cats: 1,601
Default

Welp. Lost a valve keeper down the engine. This is going to be fun.
aidandj is offline   Reply With Quote
Old 05-18-2017, 12:37 AM   #9578
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,823
Total Cats: 266
Default

Man you're having some bad luck!

From memory there is one firm click, and they are seated. I used a couple light taps with a hammer (I used an extension and deep set socket to push them onto the guide) to make sure they were completely seated.
patsmx5 is offline   Reply With Quote
Old 05-18-2017, 12:42 AM   #9579
Elite Member

Join Date: Sep 2015
Location: San Jose, CA
Posts: 1,528
Total Cats: 103
Default

where did it vanish to? I has to be in the head somewhere right?
MiataMan00 is offline   Reply With Quote
Old 05-18-2017, 12:45 AM   #9580
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,384
Total Cats: 1,601
Default

Nope. Fell into the block
aidandj is offline   Reply With Quote
