Old 10-21-2011, 10:55 AM   #181
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

I need to make one of these cowl covers and delete my wipers that would solve a whole lot of problems. I like the look a lot this thing looks sweet.
Sean is offline   Reply With Quote
Old 10-21-2011, 11:34 AM   #182
Elite Member
Thread Starter
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

I took those two pics of the cowl cover for you, pretty much I just winged it. The wipers will be going back on but the plastic piece needs some more work before I put the wipers back on.
astroboy is offline   Reply With Quote
Old 11-08-2011, 03:46 PM   #183
Elite Member
Thread Starter
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

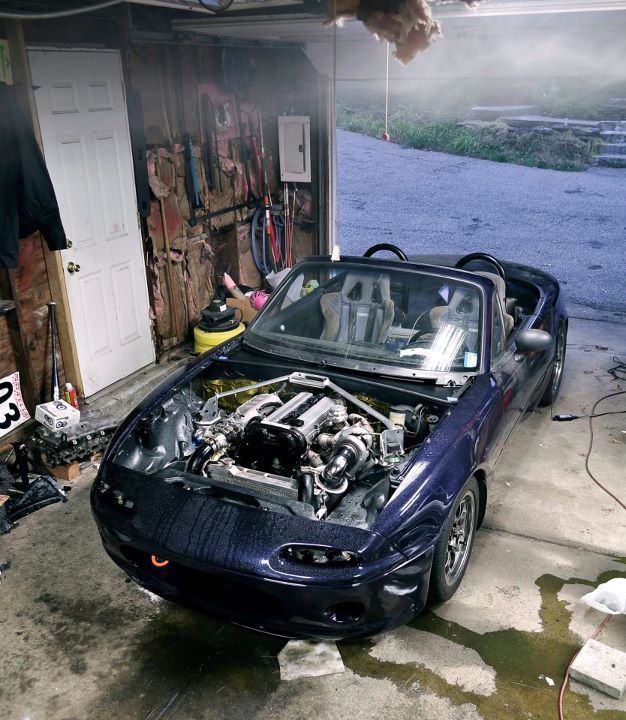

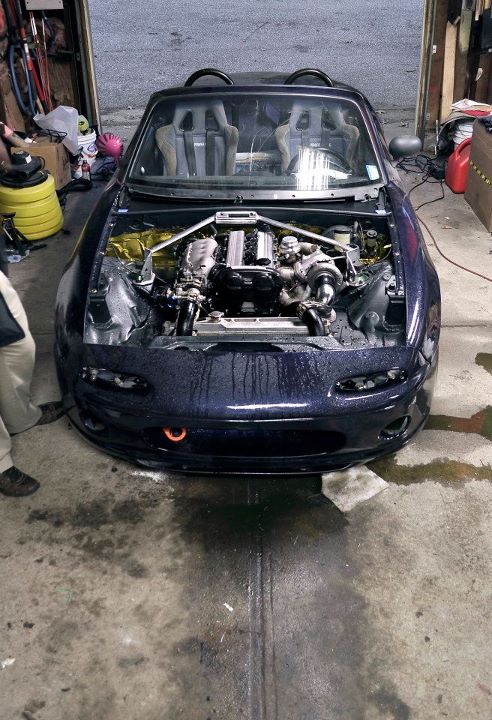

Soooooo about two weeks ago we started to tune her, found there's a vacuum leak somewhere and while trying to get the idle down blew the freeze plug out of the front of the head (only moments after Dave walked away from the front of the car and I questioned if we should shut it down). The timing of this event was quite epic.





Then I installed the side splitters, they are quite ****. I was suprised to see they came out and din't look stupid with the rb rear flares (I was expecting to have to modify them to make them flow with the rest of the car)



Shameless plug:
Also I am in the calendar for 2012 so vote for this guy! http://www.r2-limited.com/blog/?page_id=406
Attached Thumbnails

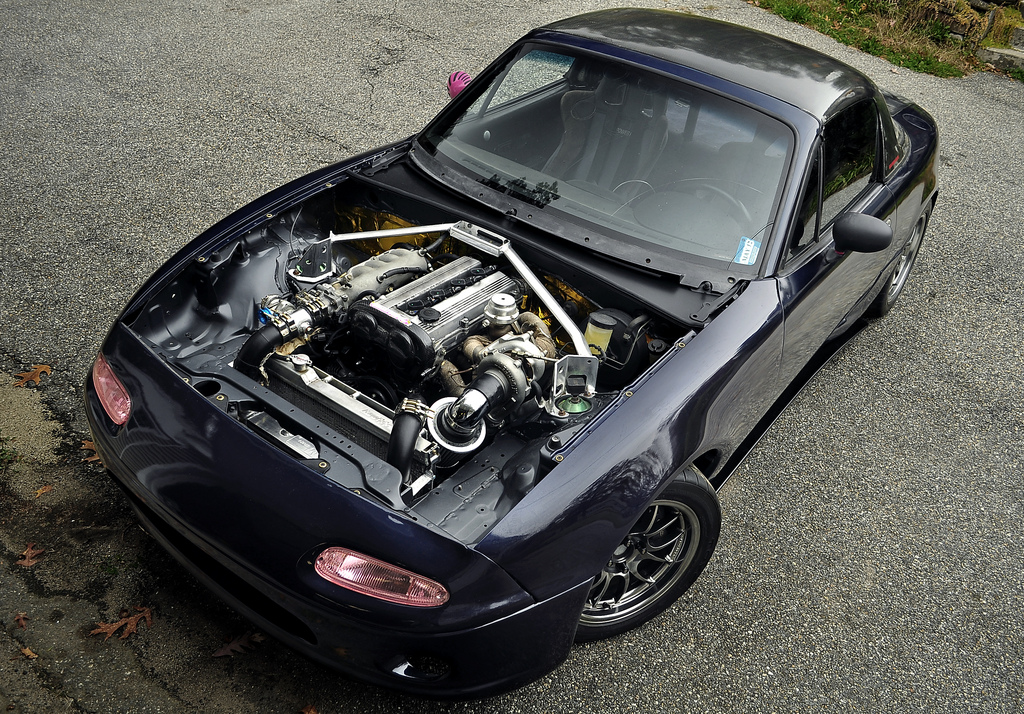

Astroboy's reliability build (pic intensive)-386848_258981644149182_100001120466954_735511_987687140_n.jpg   Astroboy's reliability build (pic intensive)-374075_258981524149194_100001120466954_735510_414251063_n.jpg   Astroboy's reliability build (pic intensive)-6324607034_173d37caa1_b.jpg
astroboy is offline   Reply With Quote
Old 11-08-2011, 07:41 PM   #184
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

Last picture looks like you are 10' tall, lol.

How do you blow out a freeze plug?
Bond is offline   Reply With Quote
Old 11-08-2011, 09:09 PM   #185
Elite Member
Thread Starter
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

I used the step ladder technique to get maximum vertical reach.

The freeze plug wasn't in quite perfect and what ended up happening is as the temps went up the pressure also did. The freeze plug was the weak point so it blasted out when the temp got too high.
astroboy is offline   Reply With Quote
Old 11-08-2011, 09:19 PM   #186
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

LOL at the epic freeze plug. We could have been hurt pretty bad, so id say timing was epic too.

You fix the **** yet? We cant do any more tuning till you get that done. Sry I didnt call you back. I forgot :(
240_to_miata is offline   Reply With Quote
Old 11-08-2011, 09:29 PM   #187
Elite Member
Thread Starter
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Nope, haven't gotten it done. Work has been pretty nuts along with shoots so I haven't had a chance. Also my Sentra needed a new wheel bearing, ball joint, axle, and all the seals. The water pump needs to be replaced so it is next on the chopping block along with timing chain guides, oil pump, and tensioners.
astroboy is offline   Reply With Quote
Old 11-09-2011, 12:54 AM   #188
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 259
Default

Quote:
Originally Posted by astroboy View Post
The freeze plug wasn't in quite perfect
Can you elaborate? I'm planing on installing a freeze plug for my reroute and I don't want my car spontaneously ejaculating coolant.
soviet is offline   Reply With Quote
Old 11-09-2011, 01:15 AM   #189
Elite Member
Thread Starter
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Yeah, if you don't drive it in perfectly flush with respect to the face of the head (where your driving the freeze plug into) it will weep and eventually, as I found out, blast out of the head like a steam line rupture.
astroboy is offline   Reply With Quote
Old 11-09-2011, 07:19 AM   #190
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

For the record, his temps just hit about 215*F... so nothing crazy
240_to_miata is offline   Reply With Quote
Old 11-18-2011, 09:54 PM   #191
Elite Member
Thread Starter
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

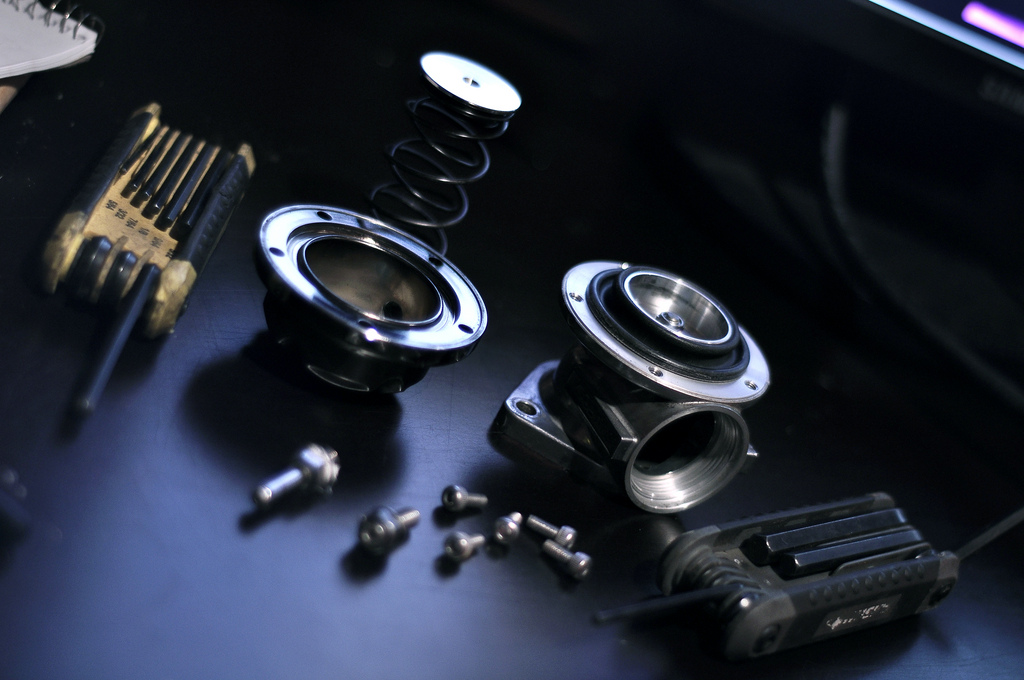

Just finished taking apart my diverter to find the cause of the pressure leak . I was fully expecting to find a ripped diaphragm but actually what happened (no idea how though) is one side of it got pushed down and was allowing air to get by. Set it straight and reassembled it...going to give it a go tomorrow to see if it still leaks. Next I need to figure out what is going on with the idle adjustment screw on the throttle body. Then throw the coolant blockoff plate on (just need to punch holes in it for mounting purposes), refill the system, and try try again.

Attached Thumbnails
Astroboy's reliability build (pic intensive)-6360732279_2e73dd0765_b.jpg
astroboy is offline   Reply With Quote
Old 11-19-2011, 09:44 AM   #192
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

What did you make for a plate? How thick?
240_to_miata is offline   Reply With Quote
Old 11-19-2011, 10:39 AM   #193
Junior Member
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

Sorry I didnt bother to read through all this, what are your power level goals? Very sick build BTW!
TheDriver is offline   Reply With Quote
Old 11-19-2011, 10:45 AM   #194
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,878
Total Cats: 1,790
Default

Sorry i didn't bother reading, are you a ******?
Braineack is online now   Reply With Quote
Old 11-19-2011, 10:59 AM   #195
Junior Member
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

Quote:
Originally Posted by Braineack View Post
Sorry i didn't bother reading, are you a ******?
Sure, I love stars and would like to think I am one sometimes But seriously, just saw the early build and didnt think it would hurt to ask. Sorry to get you started off on the wrong foot this morning
TheDriver is offline   Reply With Quote
Old 11-19-2011, 12:15 PM   #196
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by Braineack View Post
Sorry i didn't bother reading, are you a ******?
Oh good, so you got this? Great, I'm off to bed then.
curly is online now   Reply With Quote
Old 11-19-2011, 12:21 PM   #197
Elite Member
Thread Starter
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Quote:
Originally Posted by 240_to_miata View Post
What did you make for a plate? How thick?
1/4" thick aluminum (should expand at about the same rate as the head). I am contemplating buying some hex head fasteners and countersinking the holes so the mount flush but part of me says that will introduce a couple failure points that I don't want in my life.

Quote:
Originally Posted by TheDriver View Post
Sorry I didnt bother to read through all this, what are your power level goals? Very sick build BTW!
That's fine. My goal is a reliable 300whp car that I don't have to put a ton of boost into to achieve said power goal. If this setup doesn't get me close a little bw efr should get me the rest of the way there.

Quote:
Originally Posted by Braineack View Post
Sorry i didn't bother reading, are you a ******?
Sometimes people think I when I talk about this car
astroboy is offline   Reply With Quote
Old 11-19-2011, 12:22 PM   #198
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

God damn you turned around that car.
hustler is offline   Reply With Quote
Old 11-19-2011, 12:27 PM   #199
Junior Member
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

Quote:
Originally Posted by astroboy View Post
That's fine. My goal is a reliable 300whp car that I don't have to put a ton of boost into to achieve said power goal. If this setup doesn't get me close a little bw efr should get me the rest of the way there.
I'm starting a build as well, I dont know much about Borg Warner's turbos but I've heard a lot of good things, hope to get to/be at your level this time next year.
TheDriver is offline   Reply With Quote
Old 11-19-2011, 06:01 PM   #200
Elite Member
Thread Starter
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Quote:
Originally Posted by hustler View Post
God damn you turned around that car.
Thanks man.

Quote:
Originally Posted by TheDriver View Post
I'm starting a build as well, I dont know much about Borg Warner's turbos but I've heard a lot of good things, hope to get to/be at your level this time next year.
EFR's are good things to have in your life. Hopefuly your build will be running this time next year


The diverter still leaks by :( I'll have to take it apart again to see if I can pinpoint the source of the leak again.
