Old 03-28-2013, 10:47 AM   #161
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

the bottom line is there's only 2 correct settings for the wga:
over tightened - for those that want dat torque and spool
just tight enough - for everyone else..who want it to spool as soon as it physically can and hold the boost to redline

anything less than the above and you still run into creep all the time, and have a terrible setup that is slow spooling and gay. basically the worst of both worlds
18psi is offline   Reply With Quote
Old 03-28-2013, 10:50 AM   #162
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default

Quote:
Originally Posted by blaen99 View Post
See: Boost creep issues.

The only reason it hit 10psi is due to boost creep, not because the wastegate was closed Brainy. It should have gone no higher than 160ish kpa with how the wastegate was adjusted.
what's the wastegate rated for? 8psi?

It seems like there's a knee point at 8psi.
Braineack is online now   Reply With Quote
Old 03-28-2013, 10:51 AM   #163
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by 18psi View Post
See post above

*edit: and I know you can easily run 12psi on that sucker, just be conservative with the timing to keep cyl pressures down
Hmm.

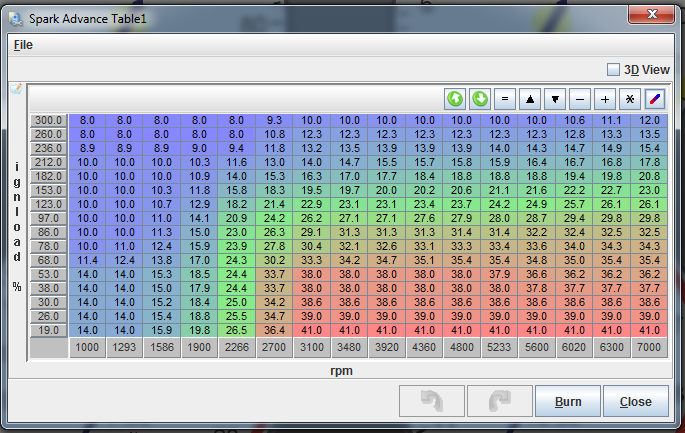

How conservative are we talking? Pic of Rev's basemap timing is enclosed. 'Cause my only issue is hitting boost cut head first - I ******* hate boost cut, jarring is an understatement.
Attached Thumbnails
Blaen's because 350hp build-timing.png
blaen99 is offline   Reply With Quote
Old 03-28-2013, 10:51 AM   #164
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

Drop peak load columns to like 13-14, dial in fuel, then raise as needed.
18psi is offline   Reply With Quote
Old 03-28-2013, 10:55 AM   #165
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

Its not like no one has ever run over 10psi on a stock block before.

adjust the wga so its snug and not loose. achieve teh spoolz. work with the pressure level it ends up with. probably like 12-13. if it still overshoots then you just need to port your hole....yes I went there
18psi is offline   Reply With Quote
Old 03-28-2013, 10:58 AM   #166
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by 18psi View Post
Drop peak load columns to like 13-14, dial in fuel, then raise as needed.
I may give this a shot today if I get the opportunity. I'm already creeping to ~12psi (180kpa) by 5200rpm though, which worries me.

I'm thinking Leafy has the right of it, and I just need to grow a pair and port the sucker.
blaen99 is offline   Reply With Quote
Old 03-28-2013, 11:00 AM   #167
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default

boost creep keeps the torque flat at redline!
Braineack is online now   Reply With Quote
Old 03-28-2013, 11:06 AM   #168
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

Quote:
Originally Posted by blaen99 View Post
I may give this a shot today if I get the opportunity. I'm already creeping to ~12psi (180kpa) by 5200rpm though, which worries me.

I'm thinking Leafy has the right of it, and I just need to grow a pair and port the sucker.
I told you this many posts ago.

Also I doubt it will go past 12-13 after 5200.
18psi is offline   Reply With Quote
Old 03-30-2013, 02:59 PM   #169
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Installed:

Rev MS3, seq ign/injection/etc. now wired and working amazazazazingly! Rev does superb work!

Ordered:

eBay rad, just like yours 18psi
Deatchswerks fuel pump
Inconel everything for fasteners on teh truboz - loving Nissan parts right now!
OBX Diff and attachment kit
Driveshaft

Ready:
RX7 rear half of carrier
Miata front half of carrier
Miata 3.9 R&P
Axles

Now I just need to figure out what all parts I need to order to install the diff: Just axle seals and bearings, right ladies? Can I go order off of rockauto without worry, or go Mazda OEM?
blaen99 is offline   Reply With Quote
Old 04-03-2013, 11:37 PM   #170
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Got the boost issues somewhat figured out now.

Setting up dyno time tomorrow! Dyno sheets will be posted!
blaen99 is offline   Reply With Quote
Old 04-04-2013, 06:55 PM   #171
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Dyno time is friday the 12th @3:30PST.

Expect a dyno sheet to be posted shortly thereafter - or maybe even during!
blaen99 is offline   Reply With Quote
Old 04-05-2013, 09:56 AM   #172
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Quote:
Originally Posted by blaen99 View Post
Dyno time is friday the 12th @3:30PST.

Expect a dyno sheet to be posted shortly thereafter - or maybe even during!
Depending on the results, A 4828 should be ordered by noon on the 13th...

Not to threadjack, but I am still waiting on your spool data (compared to the 2560) before I pull the trigger. I am also wondering what boost level you are going to be running at to hit your target.
Chiburbian is offline   Reply With Quote
Old 04-05-2013, 06:20 PM   #173
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Spool data was posted in this thread.
blaen99 is offline   Reply With Quote
Old 04-05-2013, 08:27 PM   #174
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Ordered: FM piping, Dem big boy intercooler, FM tool set for easy work.

I had a surprise visitor today to keep me company with the car build! I have no idea what the heck it is, beyond some kind of weird lizard.
Attached Thumbnails
Blaen's because 350hp build-cam00013%5B1%5D.jpg
blaen99 is offline   Reply With Quote
Old 04-06-2013, 01:18 PM   #175
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

we were promised dyno goodness...? oh... nm next friday. boo. ill be back
krissetsfire is offline   Reply With Quote
Old 04-06-2013, 03:13 PM
taixieu003
This message has been deleted by Braineack. Reason: spambot
Old 04-12-2013, 08:54 PM   #176
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

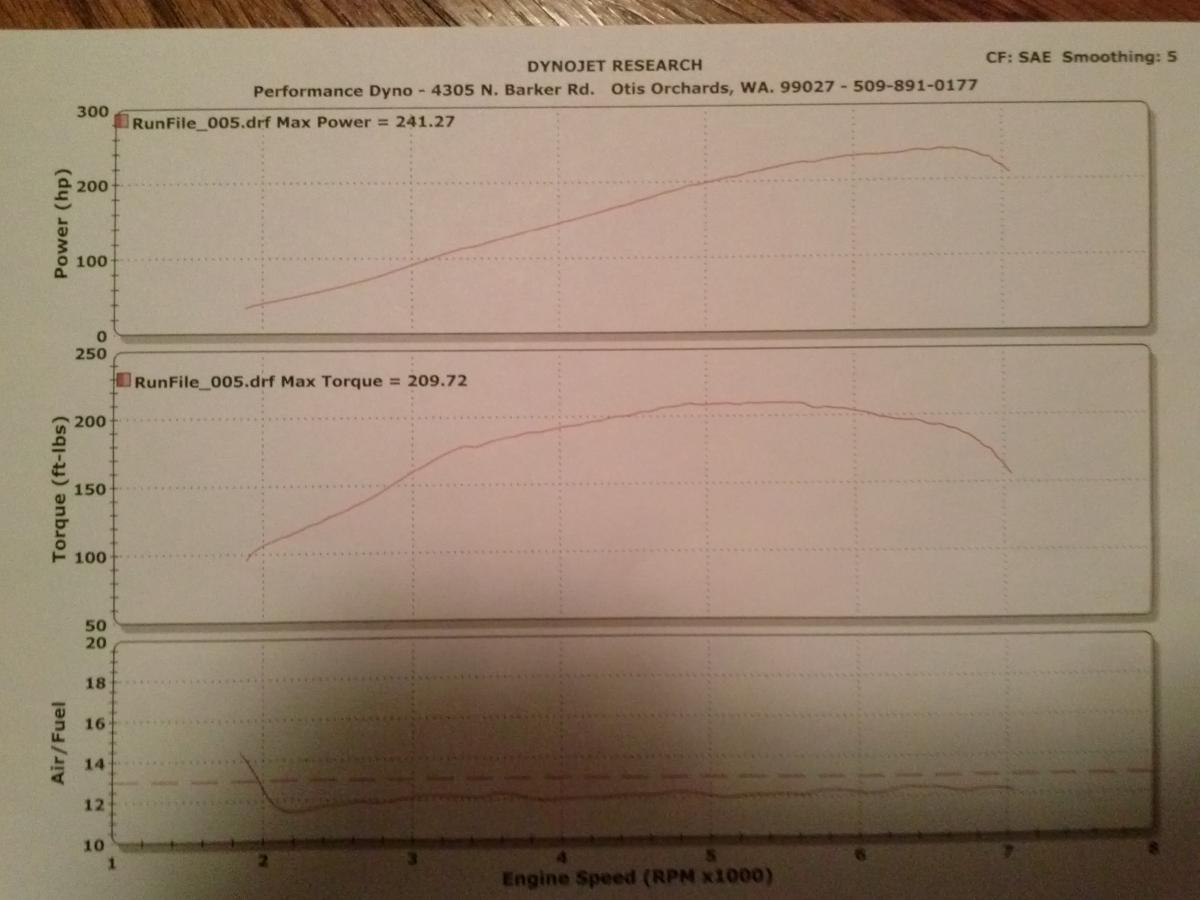

210rwtq, 241rwhp @ 165ish kpa (Double checked logs, yep)

Please remember that the operator/technician only hit >90% tps at around 2500rpm, so spools gonna be even more *** with what was discussed in this thread.

No such thing as tune or anything beyond Rev's basemap with some quick autotuning.

Also was very impressed with the shop. May go back there to actually properly tune it if I get around to building my engine.
Attached Thumbnails
Blaen's because 350hp build-cam00034%5B1%5D.jpg

Last edited by blaen99; 04-12-2013 at 09:11 PM.
blaen99 is offline   Reply With Quote
Old 04-12-2013, 09:30 PM   #177
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

Not bad at all, congrats man.

Looks like this sucker spools great even despite the 1.6fail, which makes it even more impressive.
18psi is offline   Reply With Quote
Old 04-12-2013, 09:36 PM   #178
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Maybe I am confused, but my quick conversion of kpa to psi results in about 21psi. What was your wastegate set at?
Chiburbian is offline   Reply With Quote
Old 04-12-2013, 09:38 PM   #179
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

....Somewhere around 10psi dude....

Subtract 100 from the figure given, then convert to psi for psi-equivalence.
blaen99 is offline   Reply With Quote
Old 04-12-2013, 09:41 PM   #180
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Ahh, I have never done the calculations in KPA before so I didn't even know what I was looking at.
