Old 07-17-2013, 06:16 PM   #201
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Quote:
Originally Posted by shuiend View Post
I have heard the "Supertech cause interference with VVT" rumor several times. I also think I have seen JasonCSBB post some math about it. I do not think I have ever seen a yes it is, and it will be a problem. I have ran that combo in a motor for 3 years and never had an issue in that department. I certainly would run the same combo in any other motor I am building for boost on pump gas
https://www.miataturbo.net/engine-pe...-engine-44493/

I recall emilio saying something to that effect in another thread though. Not sure. Don't want to find out the hard way either.
18psi is offline   Reply With Quote
Old 07-17-2013, 07:22 PM   #202
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by 18psi View Post
https://www.miataturbo.net/engine-pe...-engine-44493/

I recall emilio saying something to that effect in another thread though. Not sure. Don't want to find out the hard way either.
I've read that from several sources as well.

ST would be hands down the better option if not for the interference bit, plus I really like the idea of being able to remove oil squirters with the FM pistons.
blaen99 is offline   Reply With Quote
Old 11-18-2013, 08:17 PM   #203
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Long time no update!

TSE shortblock is ordered, VVT head + FM happy meal is waiting to go on. Rollbar and FM butterfly are going on. Deatchwerks pump is waiting to go in.

Next thread target update: Early march, when the shortblock is supposed to be delivered.
blaen99 is offline   Reply With Quote
Old 03-18-2014, 12:01 PM   #204
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

I am really interested in seeing what the ceiling is on this turbo on the BP. Btw, I did a pull today at about 9.6-10psi and got 199lb/ft of torque at 4100rpm. I can't wait to get it completely tuned and up the boost to abouts where you are at.
Chiburbian is offline   Reply With Quote
Old 03-18-2014, 04:15 PM   #205
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

I'm pretty confident this turbo will hit at least 350whp at this point with a log mani, .64 turbine, and generally not optimized for max power stuff. If I switched to a ramhorn, threw on a flat top, etc. I'm pretty confident 400whp wouldn't be a pipe dream.

Which, considering you can get 2560 spool characteristics out of it....
blaen99 is offline   Reply With Quote
Old 03-18-2014, 04:20 PM   #206
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

If trackspeed is going with a tubular "log" with their EFR kit then I am ok with keeping a log as part of my plan. I'd be thrilled with 350 on 93. I wonder if we can get more out of it on e85...

BTW - I know that I am simplifying in calling either the BEGI, FM, or upcoming trackspeed manifold a "log" but for the packaging purposes that is what I am calling it.
Chiburbian is offline   Reply With Quote
Old 04-08-2014, 12:42 AM   #207
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Double post.
blaen99 is offline   Reply With Quote
Old 04-08-2014, 12:42 AM   #208
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

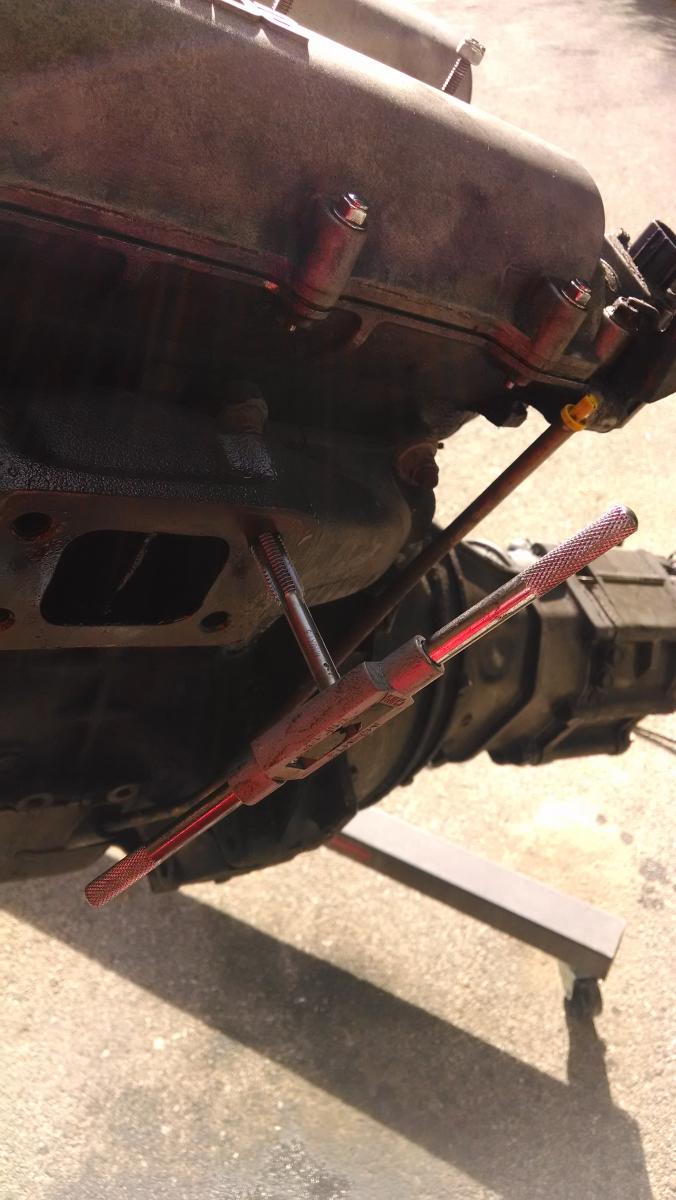

A teaser to my current build. Every single re-used item with threads is being chased in the build.

Every single re-used item.
Attached Thumbnails
Blaen's because 350hp build-chasing.jpg
blaen99 is offline   Reply With Quote
Old 04-08-2014, 12:43 AM   #209
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default



A teaser to my current build. Every single re-used item with threads is being chased in the build twice - once coming off, once going back on.

Every single re-used item.

This video should also illustrate why I need to move over to inconel hardware.


That's off of 5k pure street miles.
Attached Thumbnails
Blaen's because 350hp build-chasing.jpg
blaen99 is offline   Reply With Quote
Old 05-17-2014, 11:02 PM   #210
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

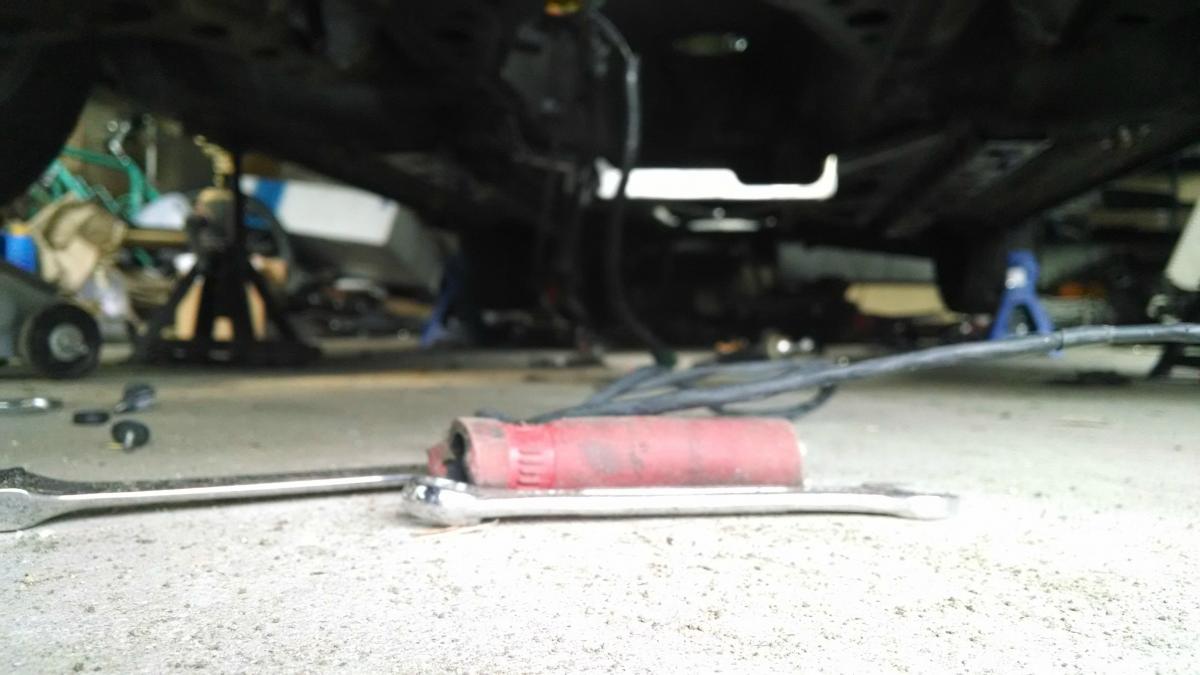

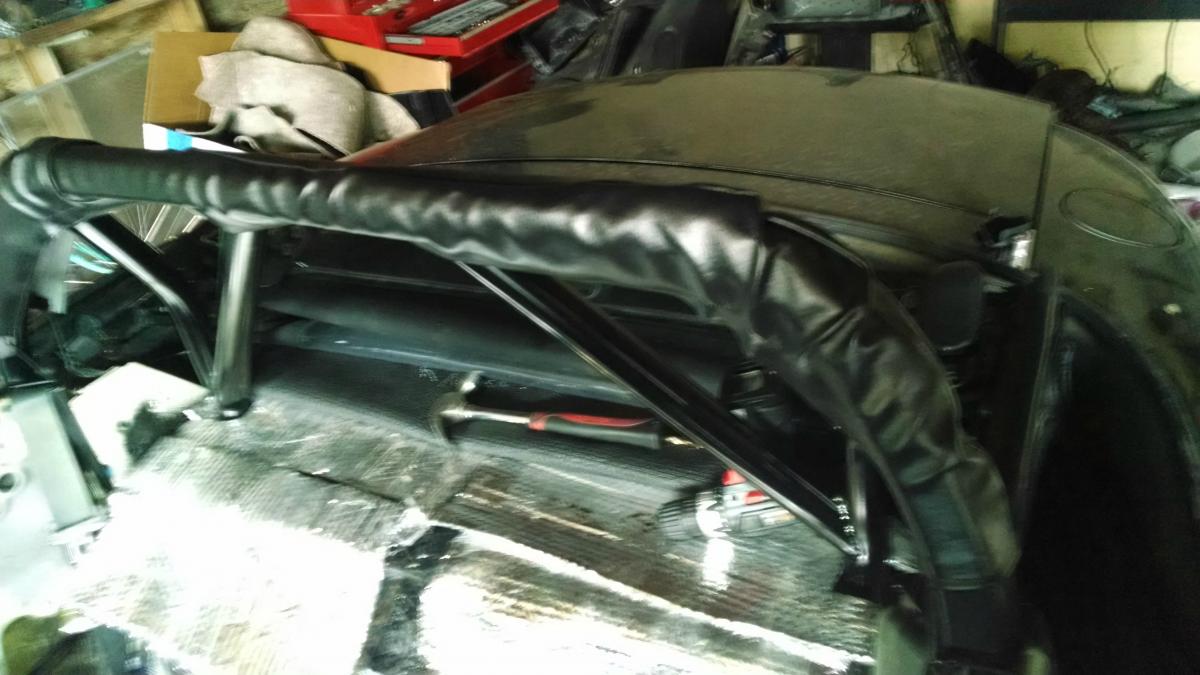

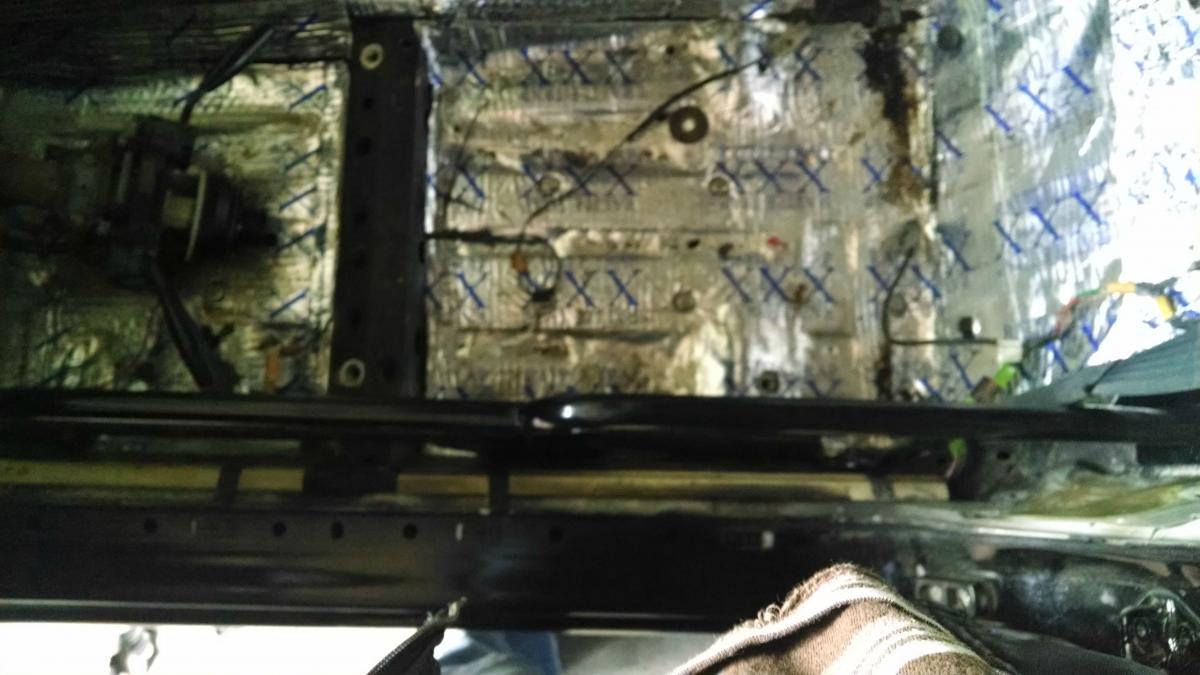

(Bad) pictures of the latest installs. Boss Frog Clearview Maxx, Boss Frog doorbars, and FM butterfly brace.

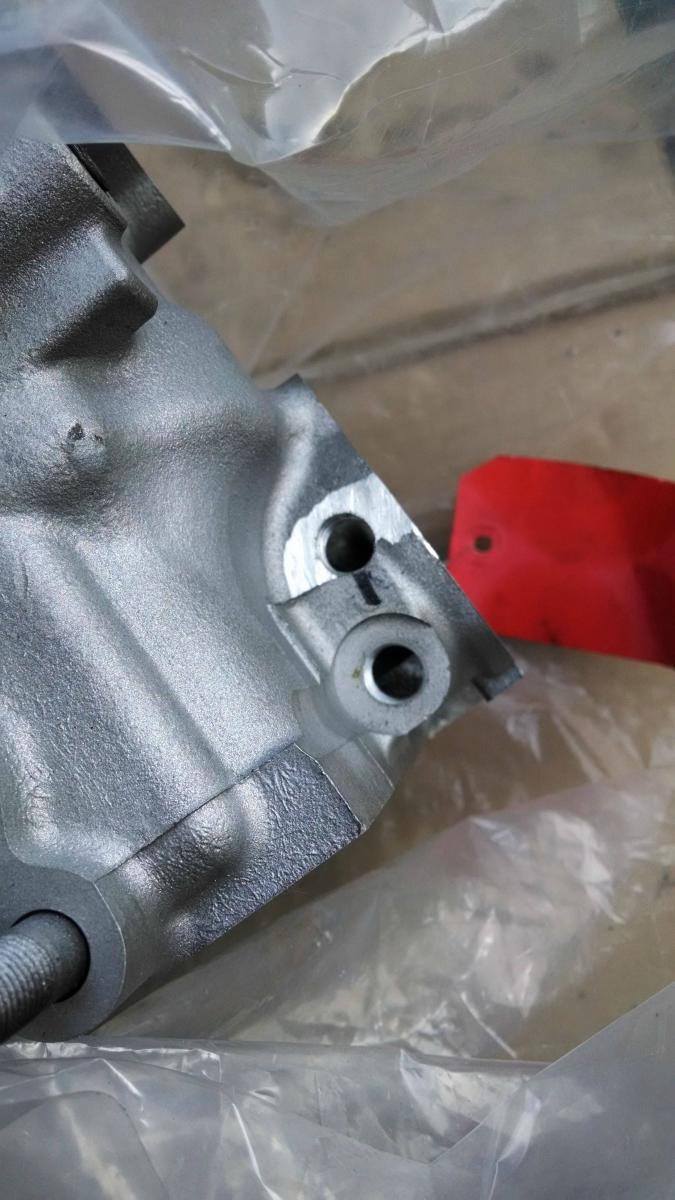

VVT head tapped for a coolant sensor and a coolant feed for the turbo.
Attached Thumbnails
Blaen's because 350hp build-eahmyav.jpg   Blaen's because 350hp build-pkar3gr.jpg   Blaen's because 350hp build-drumi89.jpg   Blaen's because 350hp build-x5obkza.jpg
blaen99 is offline   Reply With Quote
Old 05-18-2014, 12:34 AM   #211
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

What heat barrier is that? How happy are you with it?
Chiburbian is offline   Reply With Quote
Old 05-18-2014, 12:36 AM   #212
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

FAtmat Rattletrap.

Extremely unhappy. Go with another brand. If I could magically get all that crap out of the car (I tried and failed), I'd apply Second Skin's line of products.
blaen99 is offline   Reply With Quote
Old 05-18-2014, 12:37 AM   #213
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Quote:
Originally Posted by blaen99 View Post
FAtmat Rattletrap.

Extremely unhappy. Go with another brand. If I could magically get all that crap out of the car, I'd apply Second Skin's line of products.
What was so terrible about it?

This what you are talking about?
Insulate your car, truck or SUV with our automotive insulation materials Heat Wave Pro
Chiburbian is offline   Reply With Quote
Old 05-18-2014, 12:40 AM   #214
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

It's crappy compared to equivalent products.

And in your shoes, I'd go with Spectrum - Damplifier Pro - Heat Wave Pro fwiw
blaen99 is offline   Reply With Quote
Old 05-19-2014, 09:19 AM   #215
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by blaen99 View Post
That's off of 5k pure street miles.
I never had that issue, and i used 5/16" nuts on m10 studs.
Braineack is offline   Reply With Quote
Old 11-26-2014, 08:50 PM   #216
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

So, big news.

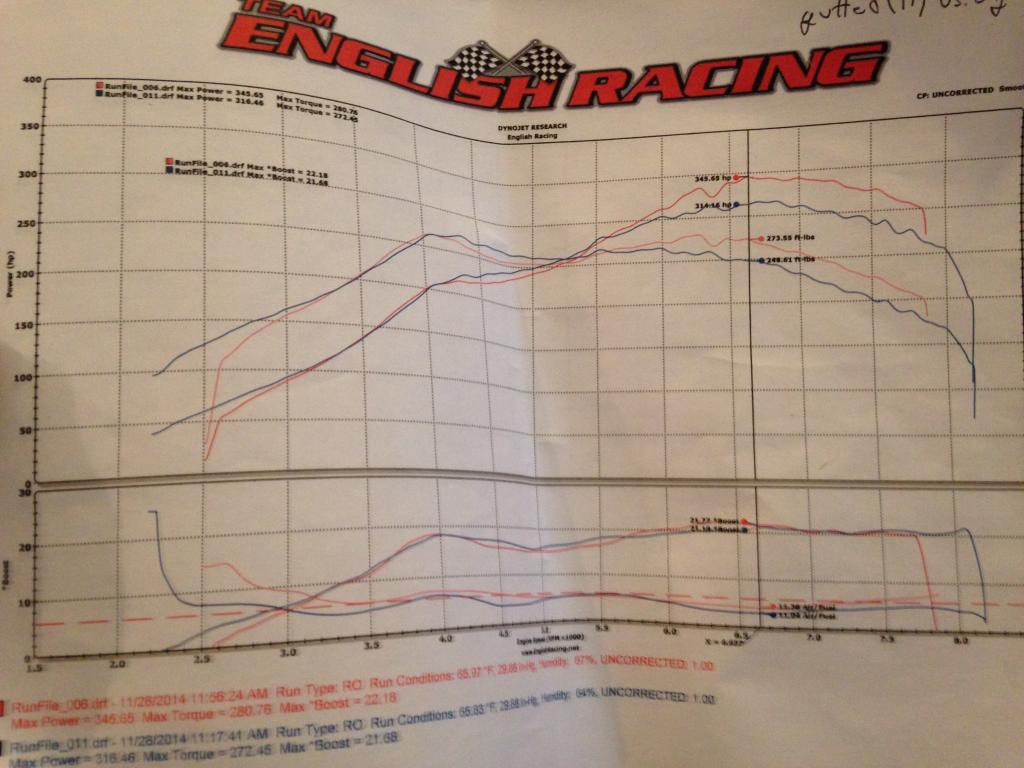

Thanks to Curly, I finally got back to back dyno results.

tl;dr, gutted manifolds SUCK.

I'll let Curly talk for the results, and the dyno for the back to back test...

Quote:
Originally Posted by curly
The good:

Gutted vs. stock intake plenum:

The manifold test was very interesting. We did all the initial tuning on the gutted manifold, including keeping torque down, tuning EBC, fuel, spark, etc. That netted us 316hp and 272ft/lbs. Swapped on the stock upper half and without touching the tune got the 345 and 280. Actually I think it was 290, but we turned the boost down to stay under 280ft/lbs as you asked. So yeah, more hp and same torque at 2 less psi.

But after 5600rpm (and I have the graphs to show you, and Aaron can send the actual dynojet files), the ungutted mani starts to climb while the gutted one starts to level off, for a peak difference of 30hp, and 25ft/lbs. Seen here:

Attached Thumbnails
Blaen's because 350hp build-128316d1417049232-blaen-begis-modern-art-dynoresults.jpg

Last edited by blaen99; 11-26-2014 at 09:01 PM.
blaen99 is offline   Reply With Quote
Old 11-26-2014, 09:01 PM   #217
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Through the magic of being a mod, I've edited your post to have a slightly less bent picture of the dyno print out.

Shop has sketchy wifi and I forgot to bring a USB key, hence the pictures of graphs.

So yeah, basically this was a back to back test. The tuner left for a potty break, and I swapped manifold tops. This was the 2nd or 3rd run after we were up and running again, cause I didn't want the cooler temps of the very first run to compare against the hotter runs of the gutted manifold.

The small torque gains seen with the gutted manifold from 4200-5500rpm is explained by a small drop in boost.

Otherwise it's as he quoted in my PM, about a 30hp/25ftlb difference between the two, from 5500 and up.
curly is offline   Reply With Quote
Old 11-26-2014, 09:06 PM   #218
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

I think we ran into conflicting edits then, Curly.

Gonna need some time to soak up the rest of the info and for final results, so that post'll be incoming, but I'm seriously impressed.
blaen99 is offline   Reply With Quote
Old 11-26-2014, 09:18 PM   #219
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

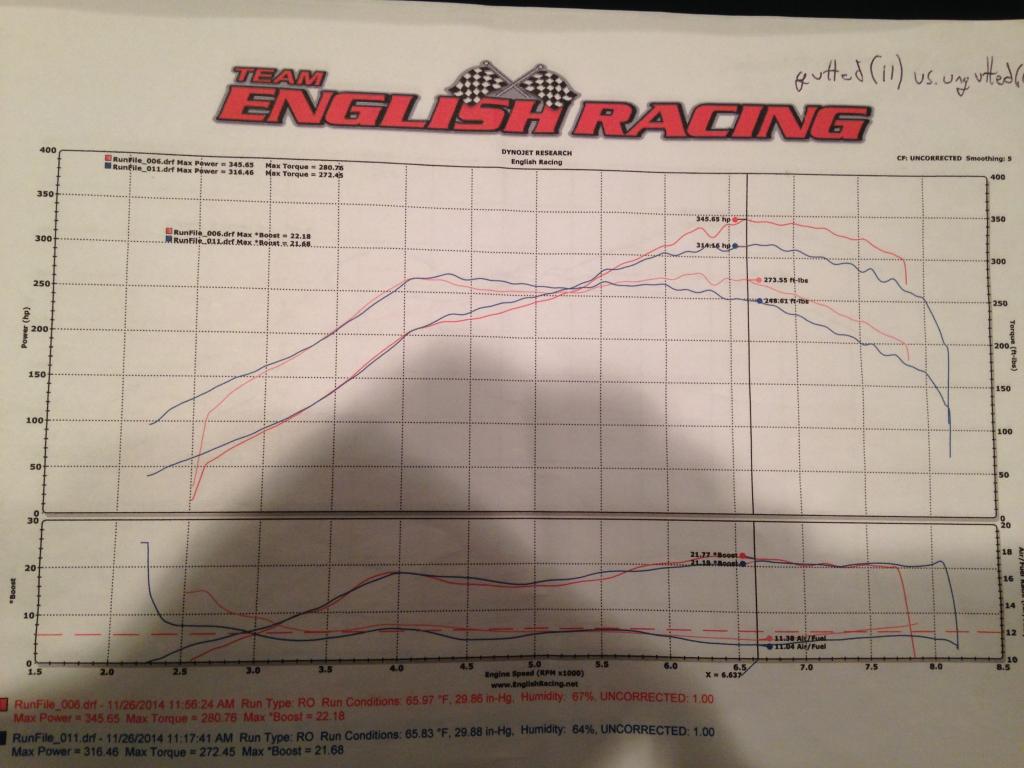

Oh, well here's a slightly better pic of the same graph, insert in your original post if you'd like:

Attached Thumbnails
Blaen's because 350hp build-83d0883d-1901-4eb9-939b-f3b316f1d875_zps66c8834b.jpg
curly is offline   Reply With Quote
Old 11-26-2014, 09:23 PM   #220
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Requesting a chance in thread title to '350rwhp club' due to final results then, Curly, or whatever else strikes your fancy.

I think I have only one thing from BEGi on my car at this point anyways.
blaen99 is offline   Reply With Quote
