Old 12-30-2010, 07:02 PM   #441
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by astroboy View Post
I am digging it and your doing a great job with the tecfhlex. Those wires look perfect. Where do you get it from?
ebay of all places- it was like 1/2 the price of all the online vendors I found.
mighty mouse is offline   Reply With Quote
Old 12-30-2010, 07:37 PM   #442
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Wow, that is really cheep for 25'! I was thinking it would be in the double digits at least. How much did you get?
astroboy is offline   Reply With Quote
Old 12-31-2010, 02:39 AM   #443
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

I ordered 25' of 1/8", 25' of 3/8", and 25' of 1/2". Probably more than I'll need, but I didn't want to run out.

Did more work today.

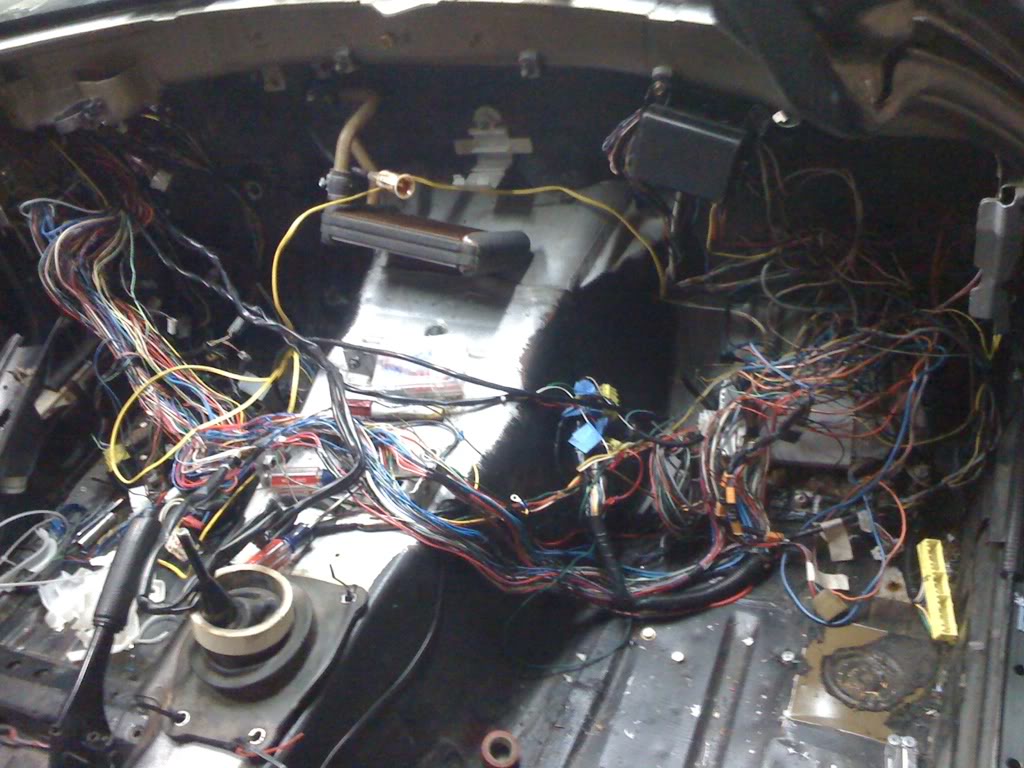

Slowly weeding out the unnecessary wiring in the main harness:
Name:  7b37e12a.jpg
Views: 8
Size:  126.2 KB

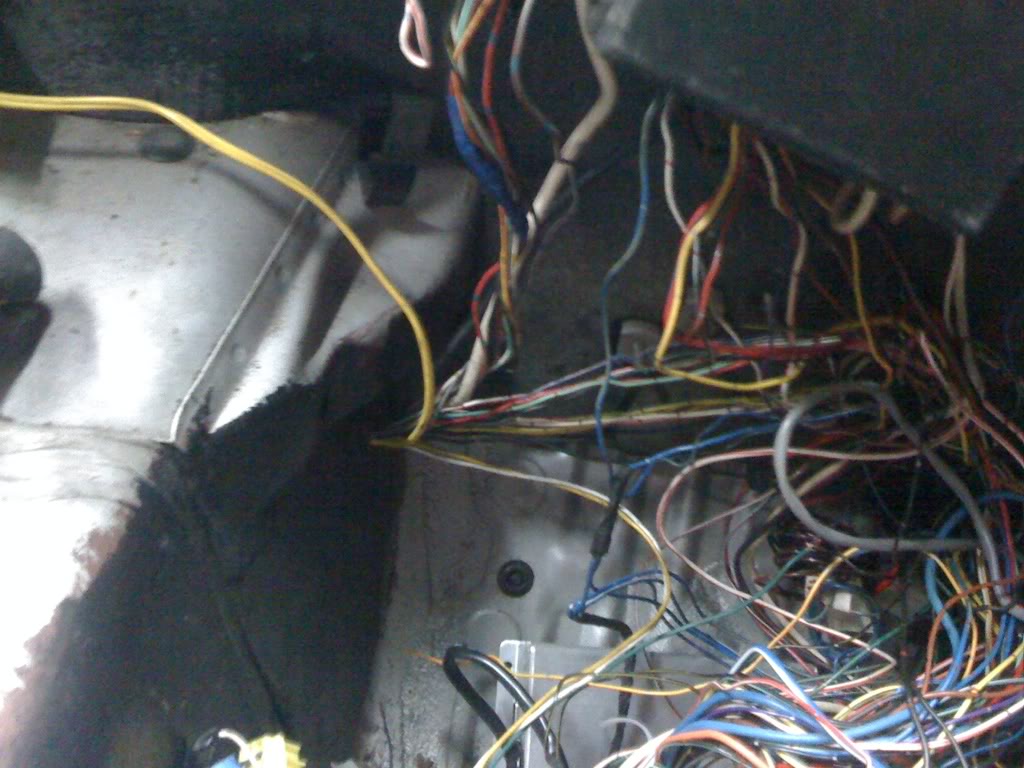

Here's a closeup shot of all the wiring going through the grommet in the firewall.
Name:  0533d457.jpg
Views: 7
Size:  105.5 KB

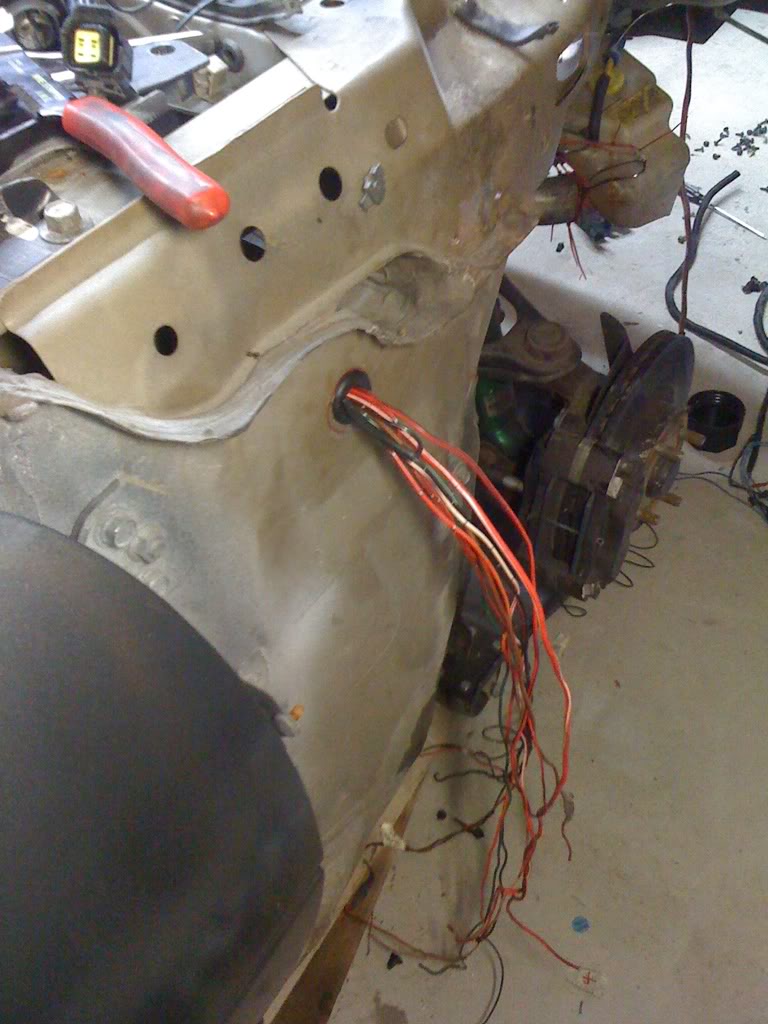

And the new grommet in the pass. side firewall which will hold the wiper motor harness, as well as the wiring for the pass. side lights.
Name:  4bea9440.jpg
Views: 7
Size:  102.0 KB

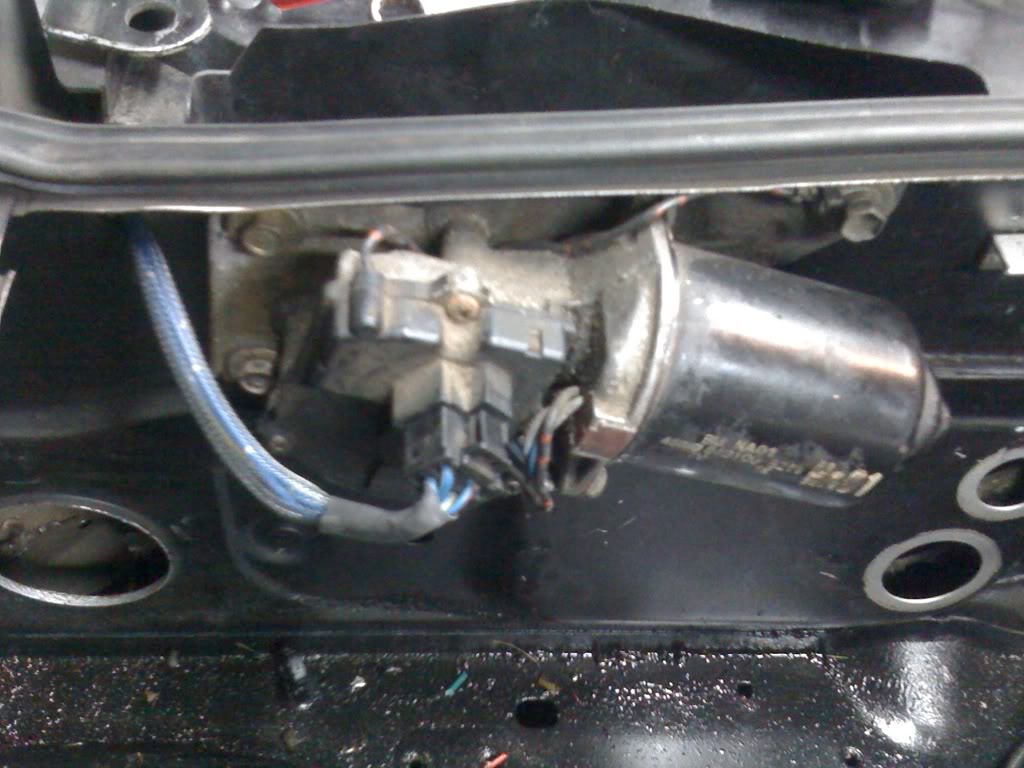

And the completed wiper motor harness- I used the hole in the firewall for the washer fluid nozzle for this new harness to pass through.
Name:  80156241.jpg
Views: 7
Size:  97.8 KB

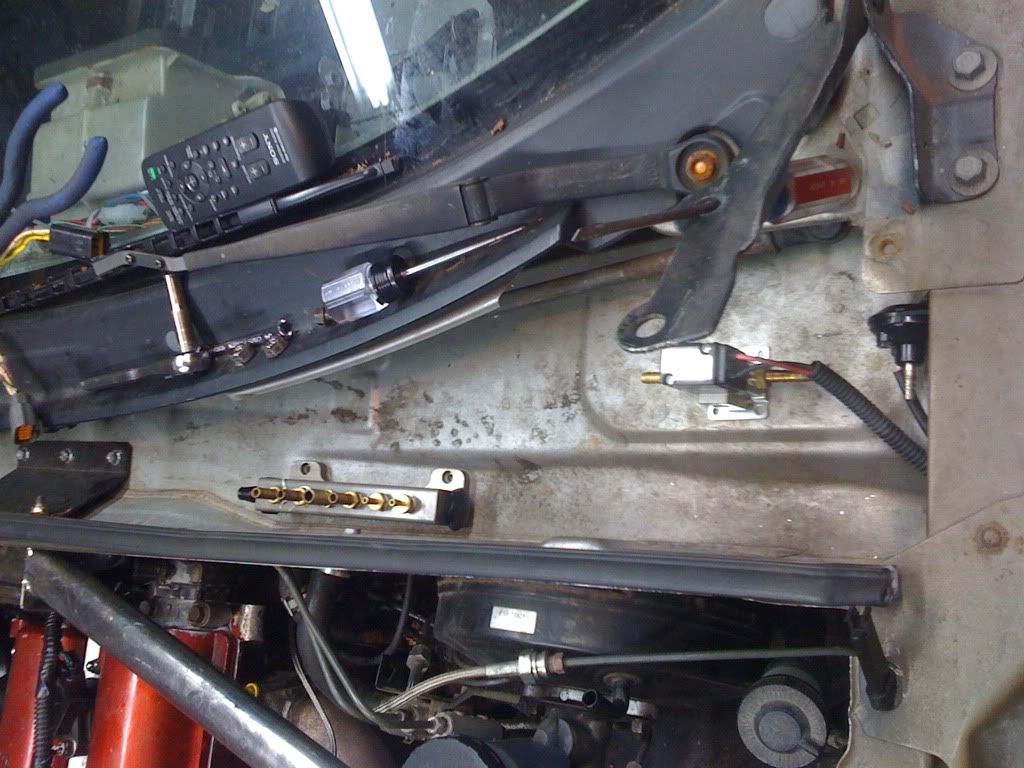

I will be moving the vacuum block and the 2 vacuum components for the Apexi AVCR to the shelf behind the firewall (which will end up being covered). I'm going to wait to mount them until I'm sure this is where they will end up.
Name:  569543f8.jpg
Views: 8
Size:  139.9 KB
mighty mouse is offline   Reply With Quote
Old 12-31-2010, 03:36 PM   #444
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

I like, that shelf makes for a good place to hide unsightly things. Are you goin all in (tucking brake lines)?
astroboy is offline   Reply With Quote
Old 01-01-2011, 02:43 PM   #445
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by astroboy View Post
I like, that shelf makes for a good place to hide unsightly things. Are you goin all in (tucking brake lines)?

You bet! I have everything I need already, just waiting to finish the wiring first.
mighty mouse is offline   Reply With Quote
Old 01-01-2011, 07:17 PM   #446
Senior Member

Join Date: Aug 2010
Location: San Luis Obispo, CA
Posts: 505
Total Cats: 0
Default

Wow! Just finished reading the thread. Car looks great!

Good choice on the DD.

Quote:
Originally Posted by mighty mouse View Post
No miata updates yet, but I do have news to report! I just picked this up on Tuesday to replace my jeep as a daily- 09 Mazdaspeed3 GT with 30k on the clock.

Also, what Volvo are the valve springs from?
scottyd is offline   Reply With Quote
Old 01-08-2011, 02:55 PM   #447
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

it's been so long I don't really remember to be honest- there are some threads here about them though.
mighty mouse is offline   Reply With Quote
Old 01-09-2011, 08:17 PM   #448
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Finished a few more connector harnesses running to the motor today, but I ran out of techflex :(. Sorry I didn't take any pics, they are coming out great though!
mighty mouse is offline   Reply With Quote
Old 01-14-2011, 06:50 PM   #449
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Took a break from the wiring and started on my brake line tuck today. It's coming along fantastic. I got the clutch line completed, however I think I am going to redo it as I had a better idea. I also mounted the prop valve inside the car and ran 2 of the 3 lines from the master cylinder inside the cabin (haven't mounted them to the prop valve just yet)
mighty mouse is offline   Reply With Quote
Old 01-14-2011, 07:43 PM   #450
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Pics or it didn't happen! I am going to put all of my lines in the cowl so it will be easy to work on them if a reason should ever arise, easy to adjust the proportioning, and they will be out of sight with a cover.
astroboy is offline   Reply With Quote
Old 01-21-2011, 12:35 AM   #451
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

I forgot to upload the pics of the brake tuck work, but this just arrived in the mail:



My first batch of AN fittings!
mighty mouse is offline   Reply With Quote
Old 01-23-2011, 09:11 PM   #452
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Finished a couple more connector harnesses, installed new alpine type R speakers in the doors, and also hacked up my DDM works gauge/radio panel so my head unit (also alpine) could fit- it was a little too big, nothing a cutoff wheel couldn't handle.
mighty mouse is offline   Reply With Quote
Old 02-10-2011, 03:23 PM   #453
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

I just realized that I never posted these pictures from the other weekend. Here is the start of my brake line tuck. The middle line isn't connected to anything in the cabin, hence why it looks out of alignment with the others, plus I haven't done any final tweaking either. I also wrapped each line in techflex as well. The bay will be getting a respray once things warm up, don't worry .



mighty mouse is offline   Reply With Quote
Old 02-10-2011, 04:04 PM   #454
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Looks good, how are you planning on doing the brake booster line?
astroboy is offline   Reply With Quote
Old 02-10-2011, 07:46 PM   #455
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

What kind of techflex?

I see several varieties

http://techflex.com/land_hitemp.asp
Faeflora is offline   Reply With Quote
Old 02-11-2011, 12:20 AM   #456
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by Faeflora View Post
What kind of techflex?

I see several varieties

http://techflex.com/land_hitemp.asp
Nothing fancy, just the basic stuff:
http://techflex.com/prod_overexp.asp

Quote:
Originally Posted by astroboy View Post
Looks good, how are you planning on doing the brake booster line?
I haven't decided yet to be honest, depends on where I end up locating the vacuum block.
mighty mouse is offline   Reply With Quote
Old 02-11-2011, 03:05 AM   #457
Senior Member

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Once i move into my new house i need to pull the car apart and rewire everything. Nice build you got going tho. Hope to see you crossing the border in to CT.
miatamike203 is offline   Reply With Quote
Old 02-17-2011, 12:41 PM   #458
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

It was brought to my attention today, that my car was featured on speedhunters! I'm honored it was chosen- here's the link for those that wish to check it out:

http://speedhunters.com/archive/2011...ted-miata.aspx
mighty mouse is offline   Reply With Quote
Old 02-17-2011, 01:53 PM   #459
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

Quote:
Originally Posted by mighty mouse View Post
It was brought to my attention today, that my car was featured on speedhunters! I'm honored it was chosen- here's the link for those that wish to check it out:

http://speedhunters.com/archive/2011...ted-miata.aspx
Just saw that on speedhunters, congrats.
rccote is offline   Reply With Quote
Old 03-13-2011, 09:53 PM   #460
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

I have finished about 99% of the wiring- all that's left is hooking up the gauges on the A pillar, which I have to wait until the dash is in to do. I finished the brake and clutch line tuck, and mounted the Apexi avcr modules and the vacuum block in the parcel shelf. I haven't been taking pictures, as I still don't have a camera- however I did finally order a new one, so I'm hoping it arrives soon.
mighty mouse is offline   Reply With Quote
