Old 12-11-2010, 11:27 AM   #421
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by astroboy View Post
So what are the winter plans? Good lookin shots also.
Mainly finishing all of the little things that I put off to get the car running, and figure out this oiling issue. I'm also going to finish the wire tuck, do a brake line tuck, install some new parts I've been stockpiling
mighty mouse is offline   Reply With Quote
Old 12-15-2010, 03:58 PM   #422
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

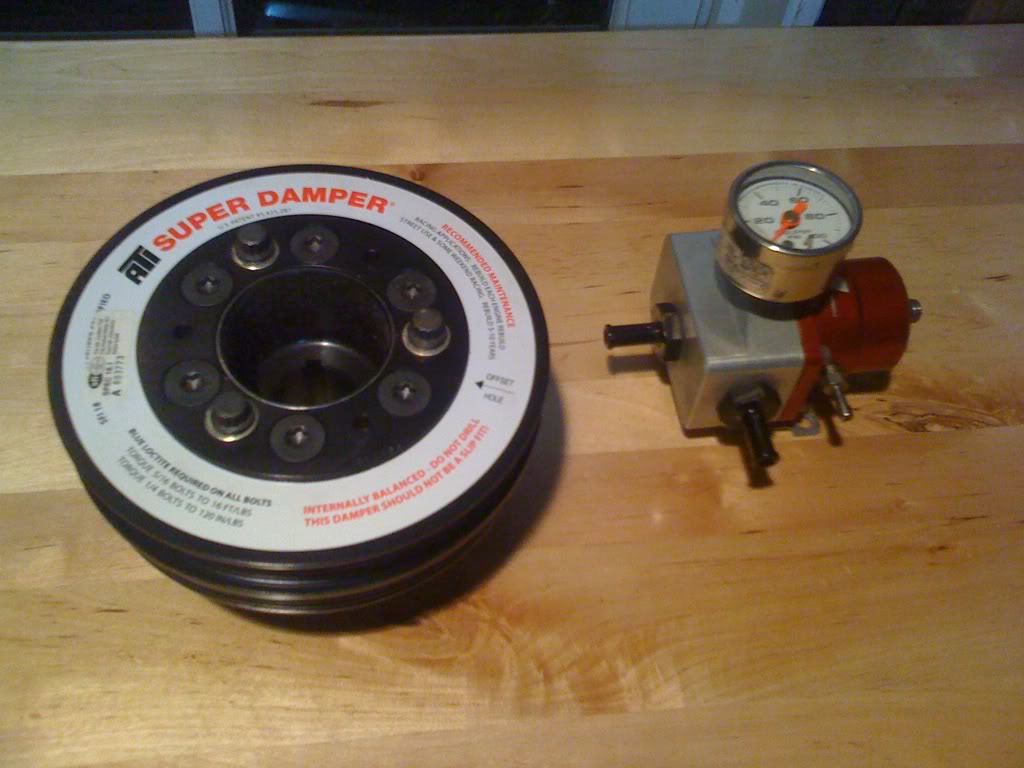

Took this shot last night of a few of the parts waiting to go on the car:

ATI Super Damper and an Aeromotive FPR:
Name:  072ddff5.jpg
Views: 8
Size:  80.6 KB
mighty mouse is offline   Reply With Quote
Old 12-15-2010, 06:26 PM   #423
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Is that the aeromotive 13109? I was looking at regulators recently, trying to find an aeromotive that could run 100psi. Didn't see one.

BTW you seem to know what you are doing but when installing the damper make sure your key is set properly.. see my build thread for associated damper woe.
Faeflora is offline   Reply With Quote
Old 12-15-2010, 06:32 PM   #424
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Sweet! I have been thinking about getting one of those dampers but I am not sure it will benefit my build as much as an accusump or something similar.
astroboy is offline   Reply With Quote
Old 12-15-2010, 09:26 PM   #425
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by faeflora View Post
Is that the aeromotive 13109? I was looking at regulators recently, trying to find an aeromotive that could run 100psi. Didn't see one.

BTW you seem to know what you are doing but when installing the damper make sure your key is set properly.. see my build thread for associated damper woe.
why do you need to run 100psi?
mighty mouse is offline   Reply With Quote
Old 12-15-2010, 10:48 PM   #426
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by mighty mouse View Post
why do you need to run 100psi?
Finer injector spray/atomization.
Faeflora is offline   Reply With Quote
Old 12-17-2010, 10:45 PM   #427
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

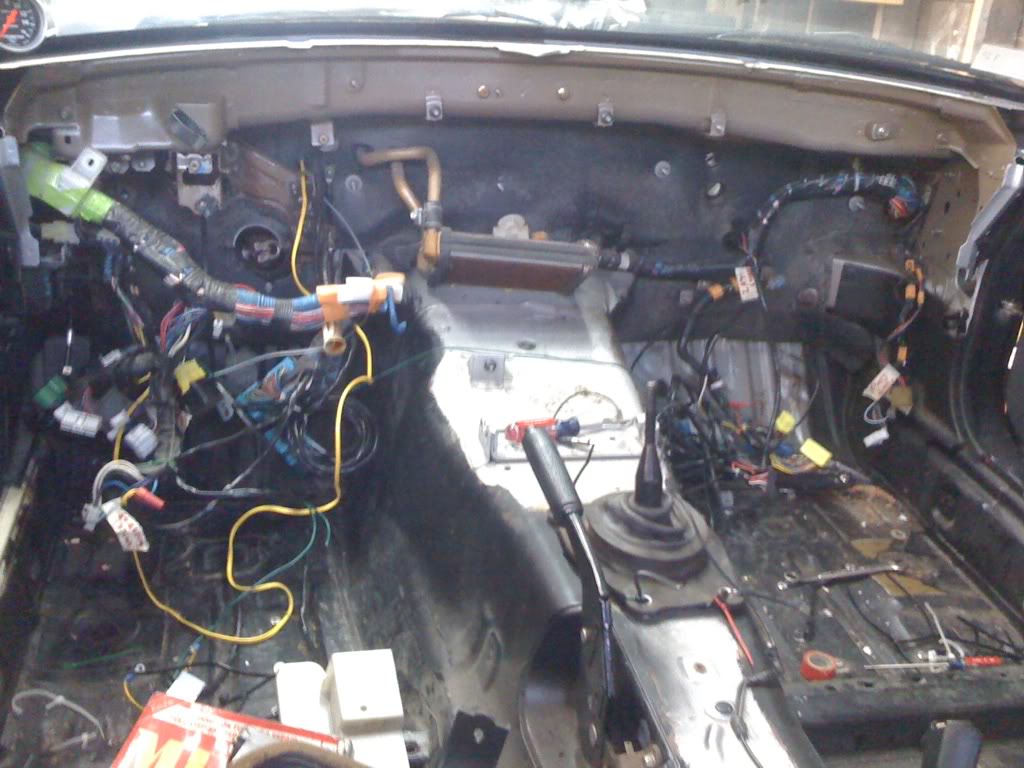

Got the car back to it's "normal" state today . Started with pulling the dash out (had to pull the front portion of the cage out in order to do so)...
Name:  85c32f08.jpg
Views: 7
Size:  108.7 KB

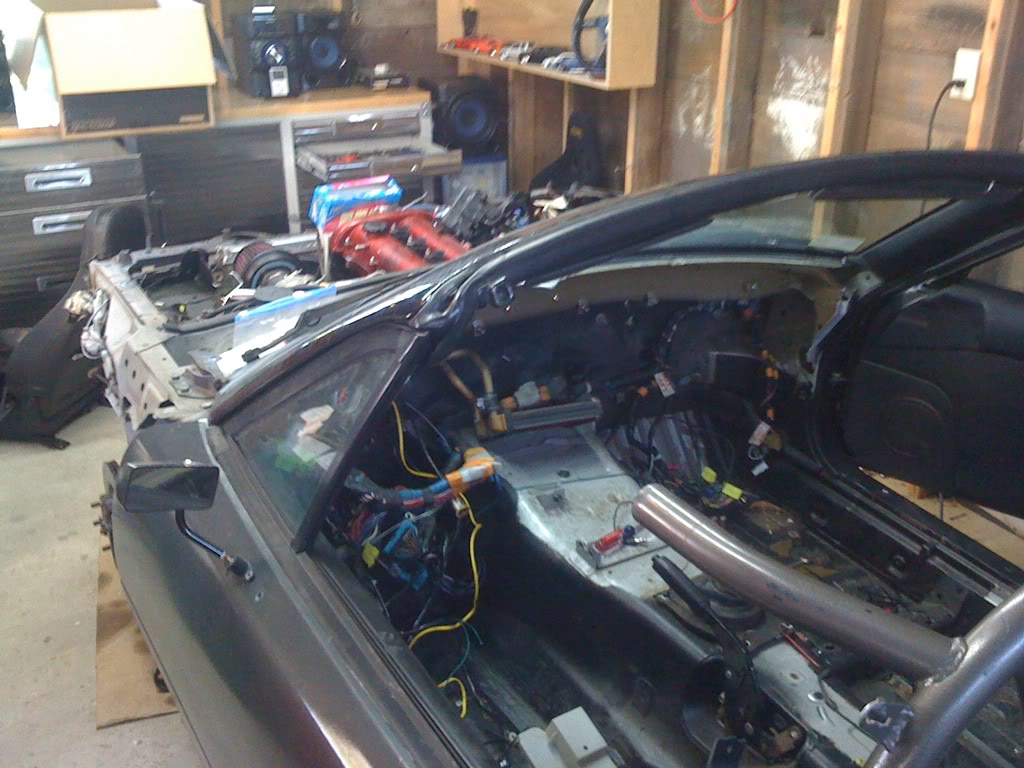

and then I removed the front bumper, and front fenders
Name:  85ef194a.jpg
Views: 7
Size:  113.3 KB

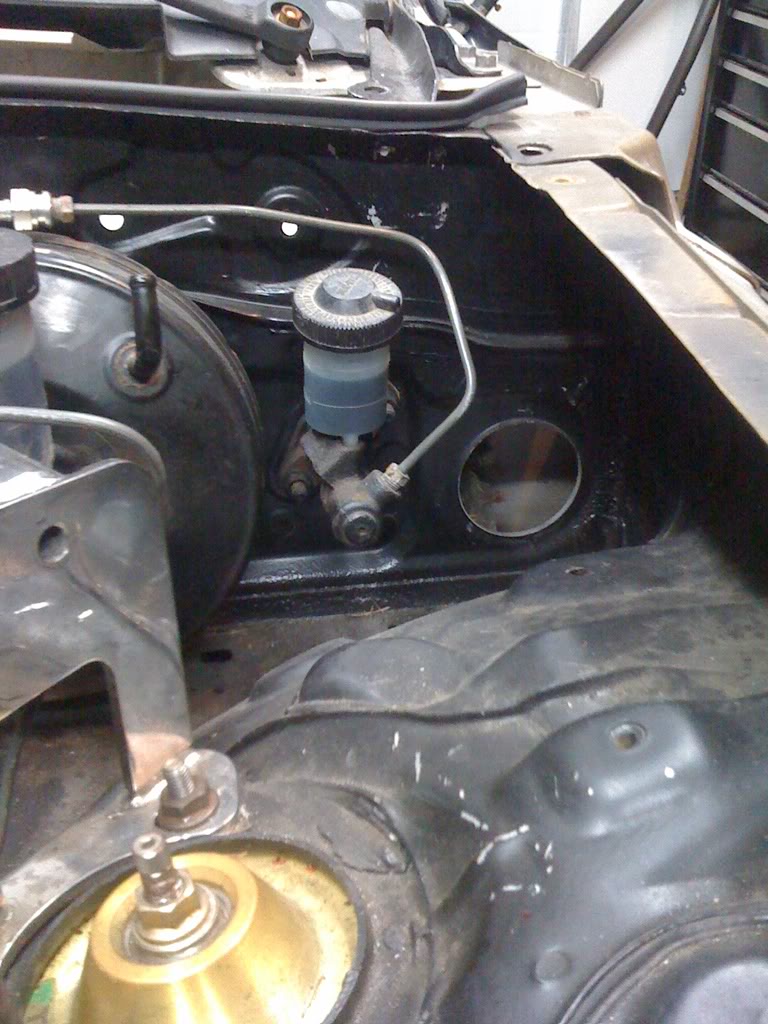

so that I could pull the entire wiring harness through the firewall to begin my "Proper" tuck...

drivers side:
Name:  90147f69.jpg
Views: 8
Size:  122.5 KB

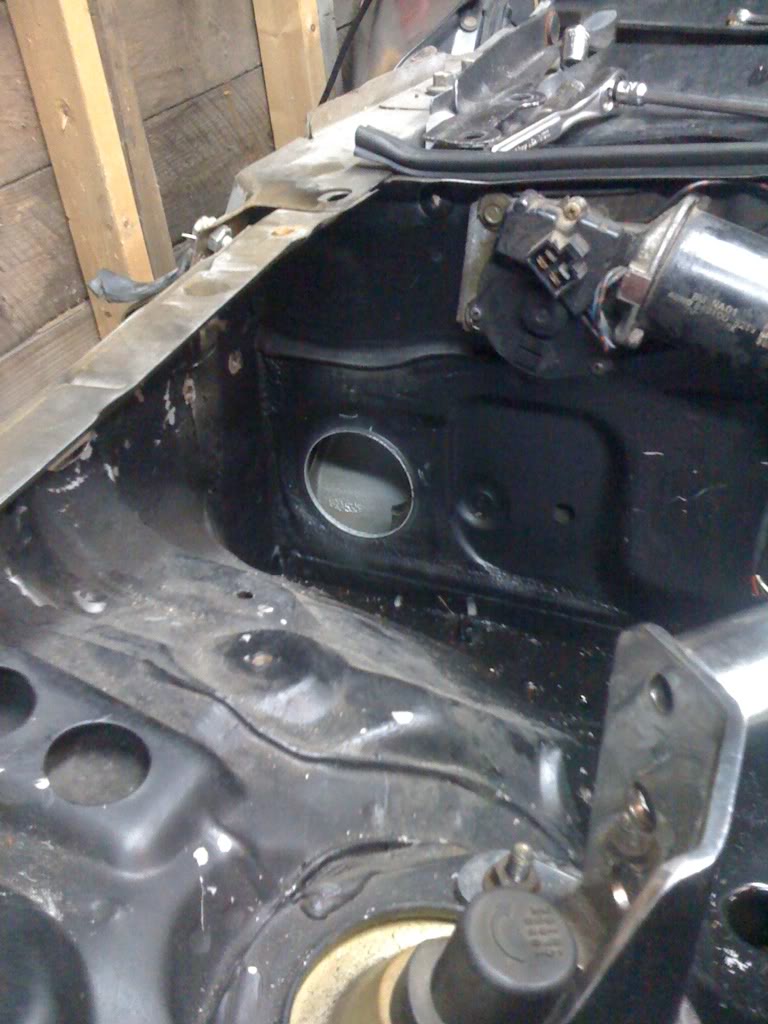

Passenger side:
Name:  16e3f635.jpg
Views: 7
Size:  100.1 KB

I still have to go through the harness and get rid of everything I don't need, along with tidying things up a bit. My goal is to hide absolutely everything. That's all for now!

Last edited by mighty mouse; 12-18-2010 at 11:06 AM.
mighty mouse is offline   Reply With Quote
Old 12-19-2010, 04:40 PM   #428
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Just finished delooming the harness, and I am officially airbag free- I stripped out all the wiring associated with the airbag, as well as got rid of the air bag module, the air bag capacitor/backup battery thing, and the cruise control module. I brought a few relays inside the firewall too. I still have a little tidying up left to do, but the majority of the big ticket items are taken care of. No pics as it looks like a disaster area
mighty mouse is offline   Reply With Quote
Old 12-19-2010, 04:45 PM   #429
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,171
Total Cats: 2,574
Default

Wire tuck: I like it. Going to make a world of difference looks wise.
18psi is offline   Reply With Quote
Old 12-20-2010, 05:47 PM   #430
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Got out of work a little early today, and I managed to separate the dash from the dash support bar, as well as to remove the pedal assemblies. I figure while I'm in here might as well clean and paint everything.
mighty mouse is offline   Reply With Quote
Old 12-20-2010, 08:56 PM   #431
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Holy hell! What are your plans with your bay? I'll be doing a pretty full tuck over the winter and am kicking around some ideas on how I am going to do mine.

How about a shot of your bay stripped out?
astroboy is offline   Reply With Quote
Old 12-20-2010, 10:41 PM   #432
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by astroboy View Post
Holy hell! What are your plans with your bay? I'll be doing a pretty full tuck over the winter and am kicking around some ideas on how I am going to do mine.

How about a shot of your bay stripped out?

yeah I've been a little lacking in the pic department, I'll have to take some more. I'm planning on tucking all of the wiring, brake lines, vac lines, etc etc. Anything I can relocate I'm going to do.
mighty mouse is offline   Reply With Quote
Old 12-26-2010, 06:37 PM   #433
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Small update:

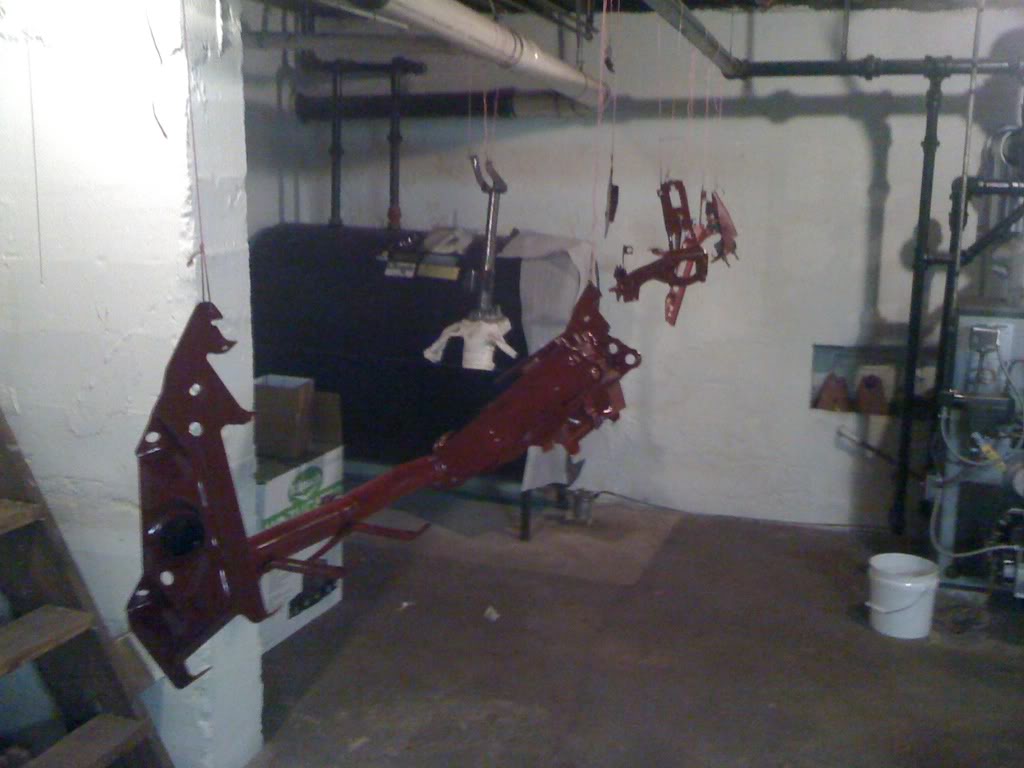

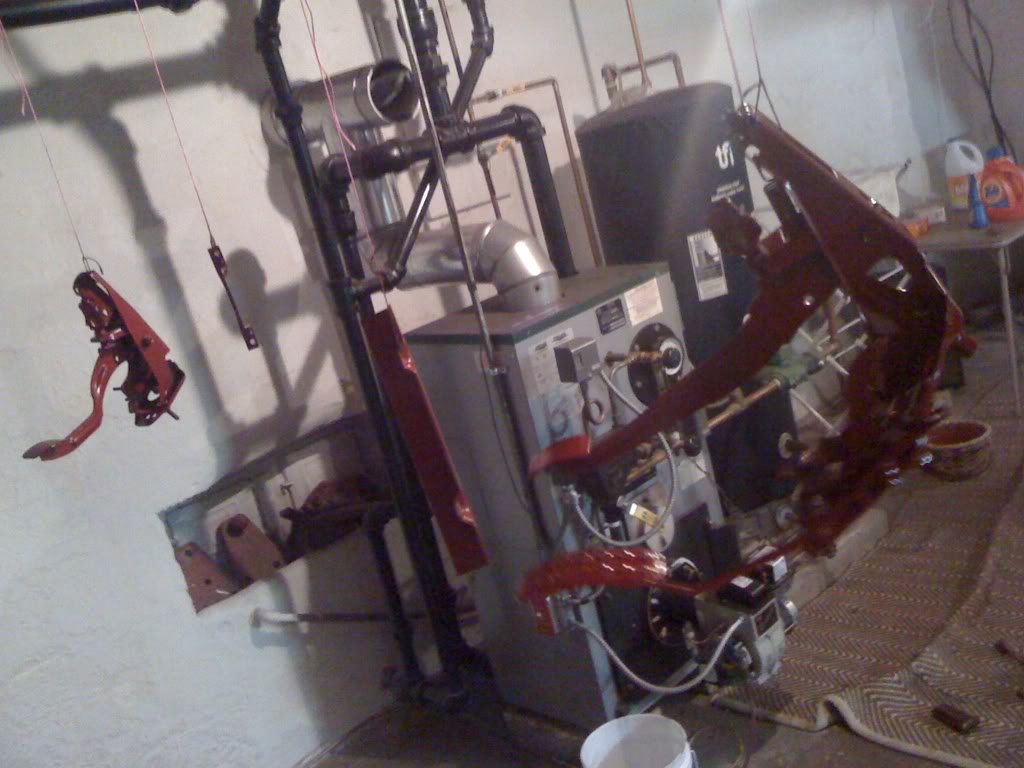

After removing the dash frame and pedal assemblies from the car, I brought them to the basement to clean them up and get the loose surface rust off. I also grabbed the steering column as it was starting to show some small rust spots. Once they had been prepped and the important stuff removed/tapped off, I primed and painted them with some spray paint I had lying around. Since the bracketry won't really be seen, color wasn't all that important... I painted the dash frame and the pedal assemblies fire engine red, and the steering column the same bronze hand-hammered paint I used for the roll cage. I think I'll probably go back and hit the pedals themselves with the hand-hammered paint as well. I figured since I had the car this far apart might as well take the time and get a coat of paint on all the bare metal.

Sorry for the crappy phone pics and the bad lighting in the basement.

Name:  93ddf3ad.jpg
Views: 7
Size:  71.1 KB

Name:  7b01b05e.jpg
Views: 7
Size:  91.9 KB

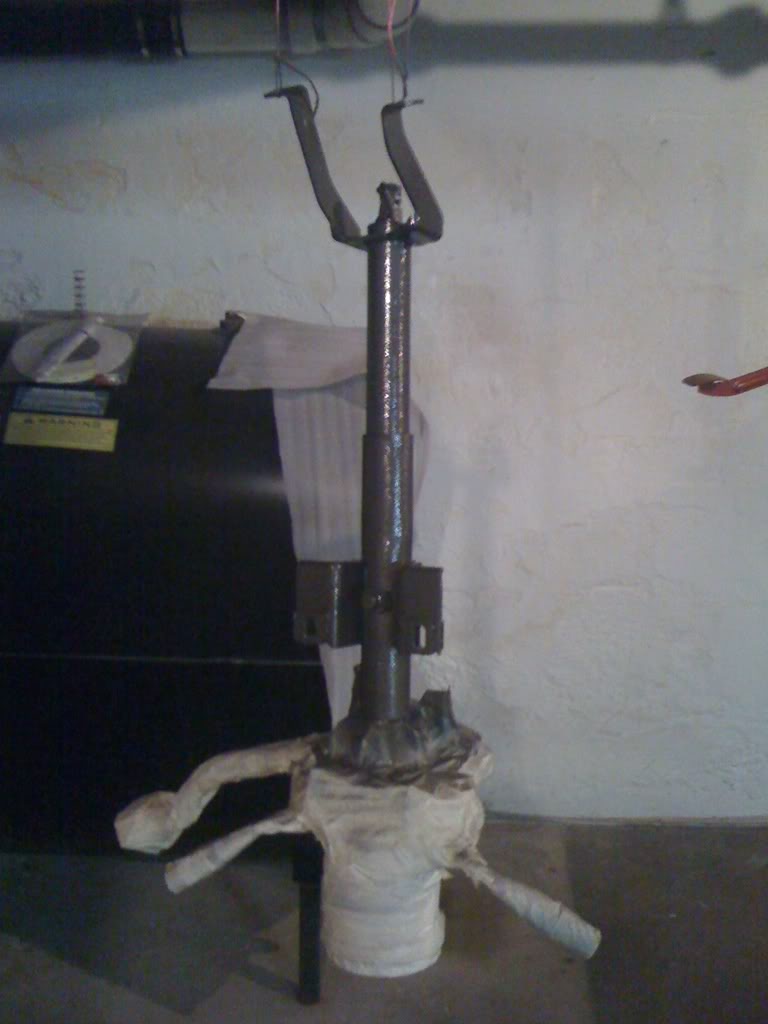

steering column:
Name:  f943e700.jpg
Views: 7
Size:  53.4 KB
mighty mouse is offline   Reply With Quote
Old 12-26-2010, 07:25 PM   #434
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Sweet. Good idea painting the column. How hard was it getting the dash and stuff out?
astroboy is offline   Reply With Quote
Old 12-26-2010, 07:42 PM   #435
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by astroboy View Post
Sweet. Good idea painting the column. How hard was it getting the dash and stuff out?
Really not bad at all. Took a few hours by myself. I was drinking beers and taking my time- with another set of hands and not having to remove the front 1/2 of a cage, I would say you could have it out in an hour.
mighty mouse is offline   Reply With Quote
Old 12-26-2010, 09:51 PM   #436
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Those suspended parts look great.


You should be a serial killer.
Faeflora is offline   Reply With Quote
Old 12-28-2010, 10:05 PM   #437
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Spent a little time out in the garage today.

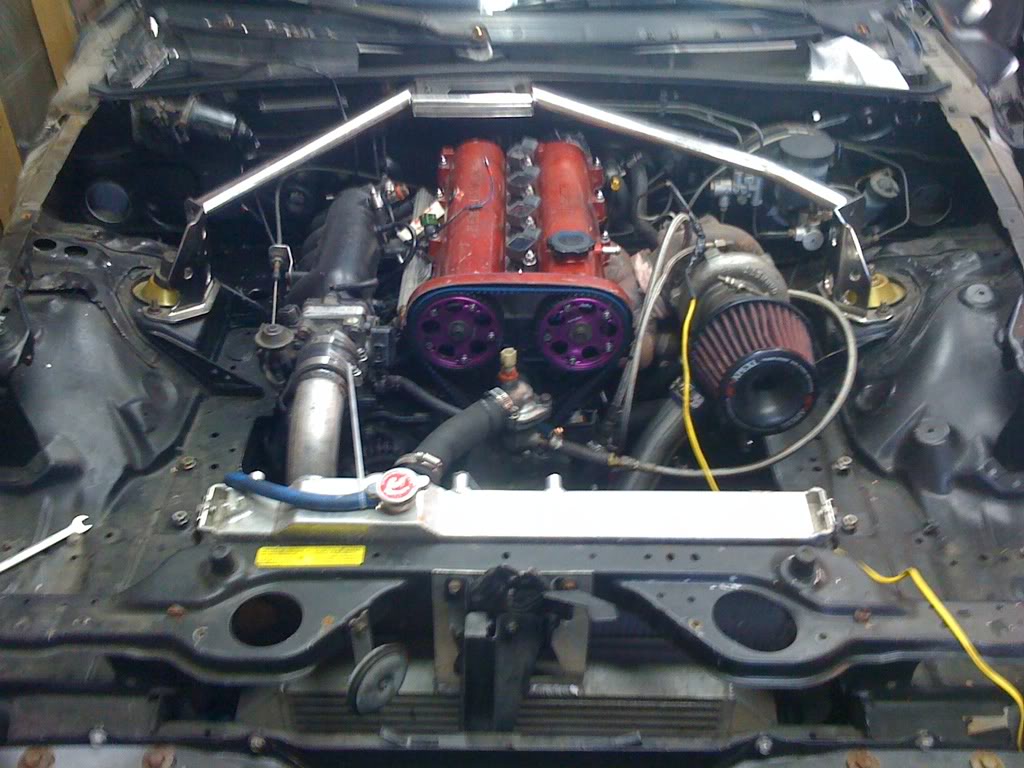

Here's a shot of the engine bay as it sat this morning:

Name:  d8de2547.jpg
Views: 9
Size:  123.4 KB

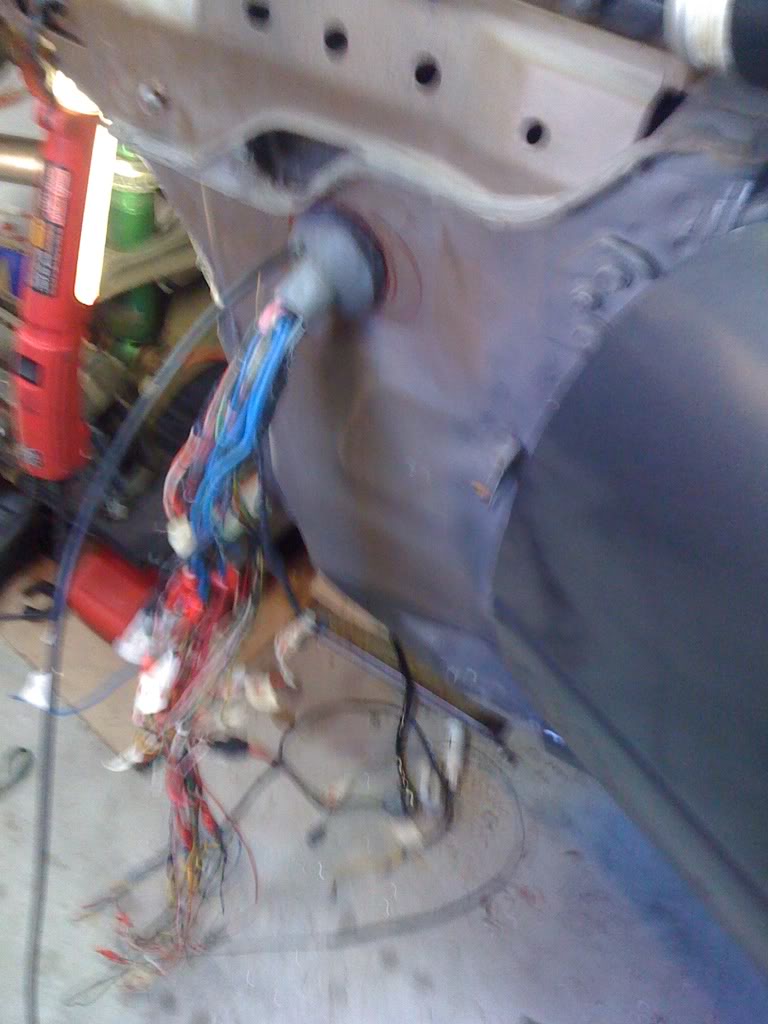

I got the driver's side wiring more or less ready to go. I moved all the relays to inside the cabin, and after some thought, will be moving the diagnostic box to inside the cabin as well. Here's a picture of the new location for the driver's side harness:

Name:  ddc60a06.jpg
Views: 7
Size:  83.2 KB

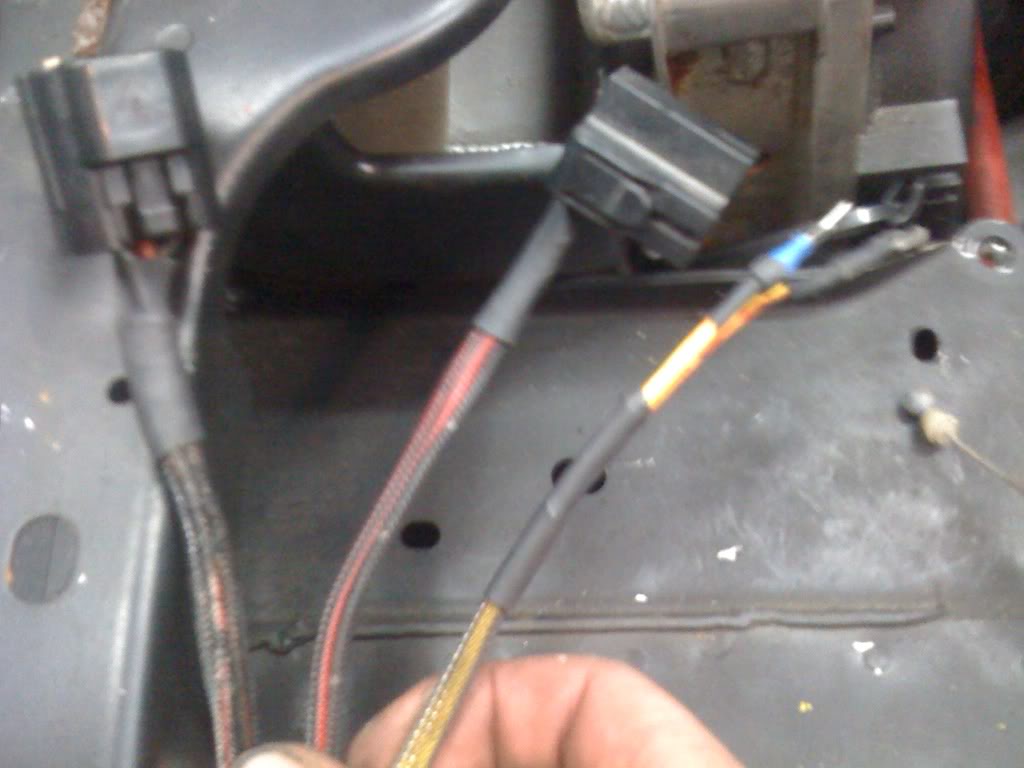

I stripped off the factory loom and electrical tape, split the harnesses, and redid them using techflex and heat-shrink tubing. Here's a closeup of the headlight connections and the fan harness (sorry for the poor quality pics).

Name:  873165f4.jpg
Views: 7
Size:  62.7 KB

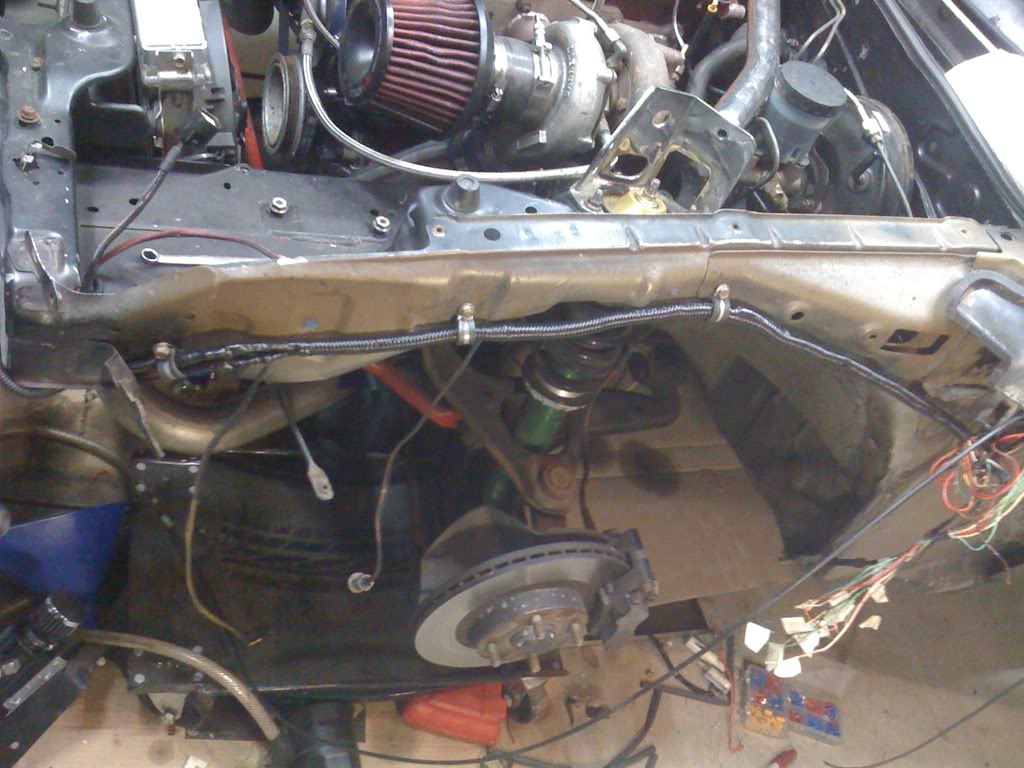

I reused the insulated pipe clamps from my last simple tuck again. So much cleaner now!
Name:  cdf8ba2a.jpg
Views: 7
Size:  113.7 KB

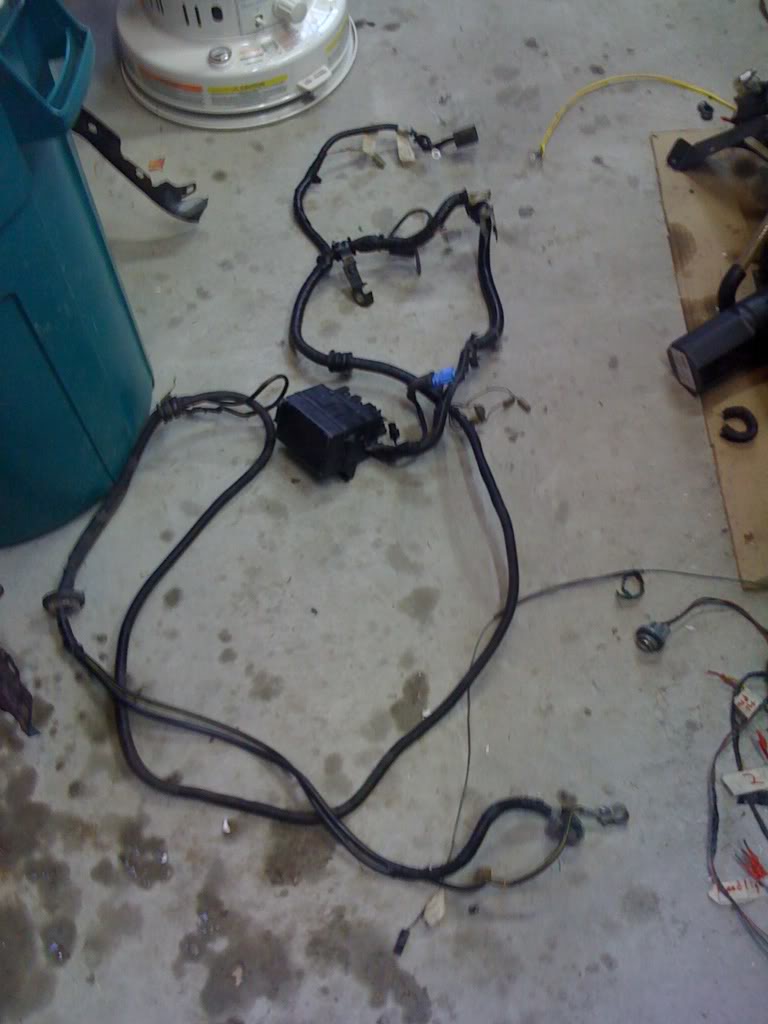

Got the fuse box completely out of the car, which turned out to be easier than I thought.

Name:  337c9baa.jpg
Views: 7
Size:  73.2 KB

I will be running the fuse box wiring through the grommet in the transmission tunnel on the passenger side. I stripped all the factory loom off the harnesses. I'm going to run them to their respective locations first before I cover them in techflex, just in case any of the wires need to be lengthened/shortened.
mighty mouse is offline   Reply With Quote
Old 12-28-2010, 10:11 PM   #438
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,171
Total Cats: 2,574
Default

already looks SOO much better.
looks like someone needs a brush and a ton of simple green though
18psi is offline   Reply With Quote
Old 12-29-2010, 01:09 AM   #439
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

Thats awesome man. I want to do that at some point. Keep it coming
leatherface24 is offline   Reply With Quote
Old 12-29-2010, 07:39 AM   #440
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

I am digging it and your doing a great job with the tecfhlex. Those wires look perfect. Where do you get it from?
astroboy is offline   Reply With Quote
