Old 05-22-2014, 10:43 AM   #1181
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by Erat View Post
The same place I took those two pictures above I also took this picture.

Funny thing is - That was honestly at this BBQ/Car meet. I still don't understand why. Xceeders are a unique bunch.
FAB is online now   Reply With Quote
Old 05-22-2014, 01:53 PM   #1182
Newb

Join Date: Mar 2014
Posts: 3
Total Cats: 0
Default

This thread is great. It really looks like you have taken some really unique solutions for items on you car. Looking forward to more updates. Just bought a Miata a few months ago and I have to say that the thing I love most about them it that everyone is not afraid to jump in and do their own work/fabrication.
gungriffin is offline   Reply With Quote
Old 05-29-2014, 12:21 AM   #1183
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Smallish update, still struggling to find time. Last weekend I spent 9 hours prepping and painting the rear of the car. Both rear quarters + dent repair + new bumper + modified deck lid.

At one point I painted professionally but it's been 7 years or so and these were not ideal painting environments (dusty garage).

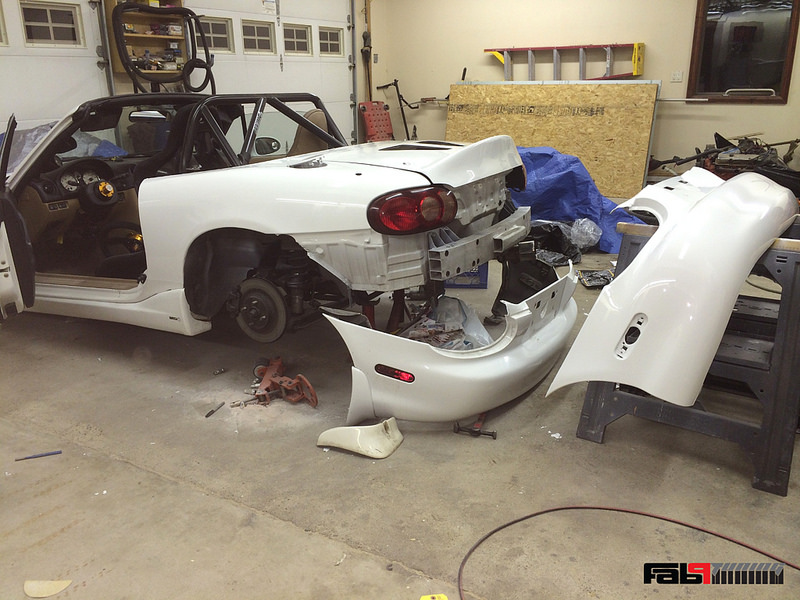

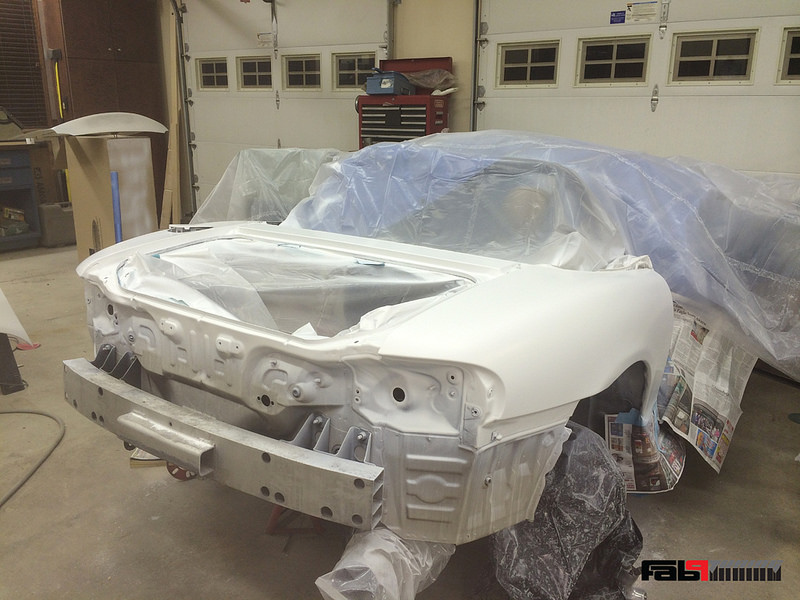

After some body work and sealer primer I applied a couple of coats of base trying my best to feather in the edges to make sure everything matched nicely.

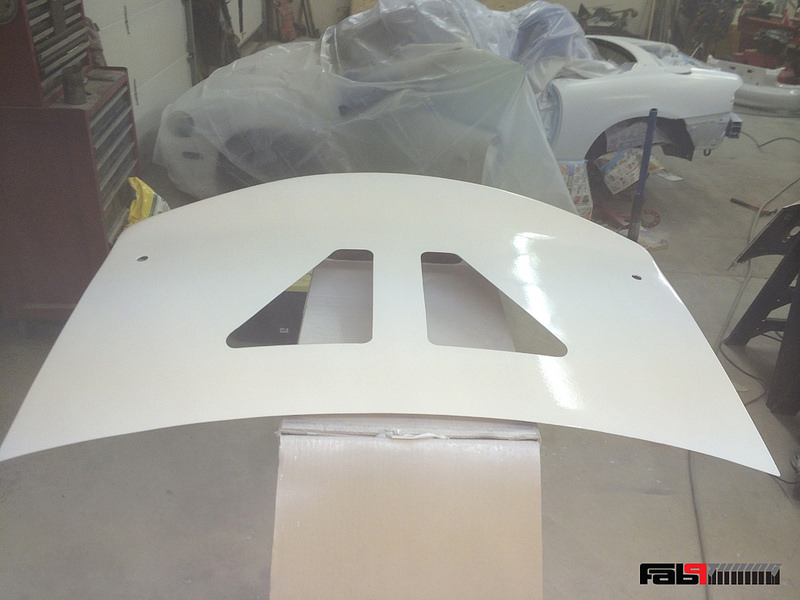

New deck lid saw very little prep work before paint. It was in pretty good shape.

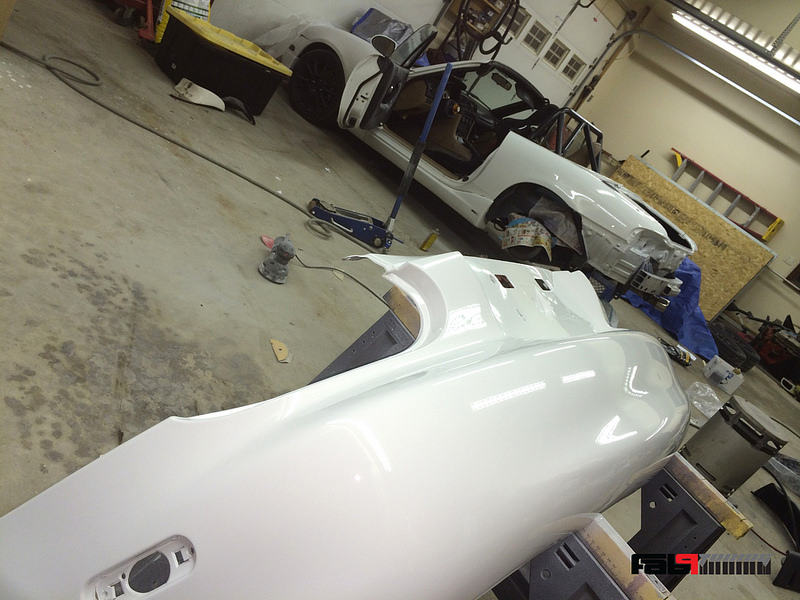

Filled the emblem holes and shot the rear bumper. At some point this will see the knife when I fabricate or install a rear diffuser.




I peeled the tape lines while the clear was still wet to make the break lines more seamless. Overall it came out incredible, regardless of the conditions it was painted in.



Made it just in time to attend a local BBQ/Car meet. Ran into a good friend of mine who just happened to be driving Jack Roush JR's race car...



Also - Just installed the ATi Damper, I ordered a dozen of them for inventory to support our recent price reduction so it was hard resist... I've been on thin ice with this motor on the stock damper. A dynamic ATi damper is really the only solid solution on the market. The solid-bonded, lightweight dampers or machined copies of the OE damper only have the ability to target one RPM range so I opted to go this route. I've learned far too much about engine harmonics to justify saving a few bucks.

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-14294691754_bbe0fa28f0_c.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-14108555269_0c6a8f813c_c.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-14108594740_624a7429e6_c.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-14295234175_4ef56cbca3_c.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-14291890641_6461d0bfa5_c.jpg

FAB is online now   Reply With Quote
Old 06-26-2014, 01:25 PM   #1184
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

A random hoonish video... that someone sent me the link to this morning. This must have been from my most recent trip to Mexico.

FAB is online now   Reply With Quote
Old 06-30-2014, 12:16 PM   #1185
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Alright so last week I had the car out and we really put her through the paces. Pull after pull of freeway (Usually 60-130) runs in the hot Mexico atmosphere... I felt the shift boot get warm and started to smell coolant... I rolled off the freeway (in Guadalajara). I pushed the clutch to the floor when the engine shut itself down.

Opened the bay up and there was coolant EVERYWHERE. Having no clue where it came from (didn't really care to look at the time), I called a tow truck to have the car quickly transported back to Michigan.

I've since had little time - Fab9 has kept me very busy keeping up with orders and with the recent development of our LS Truck Coil Conversion Kit LINK (feel free to contribute your .02).

So yesterday (sunday) I was able to push her in the garage - Compression results were as follows:
1: 158
2: 55
3: 55
4: 159

Sounds to me like a melted cylinder head but I was shortly relieved of this catastrophic thought.

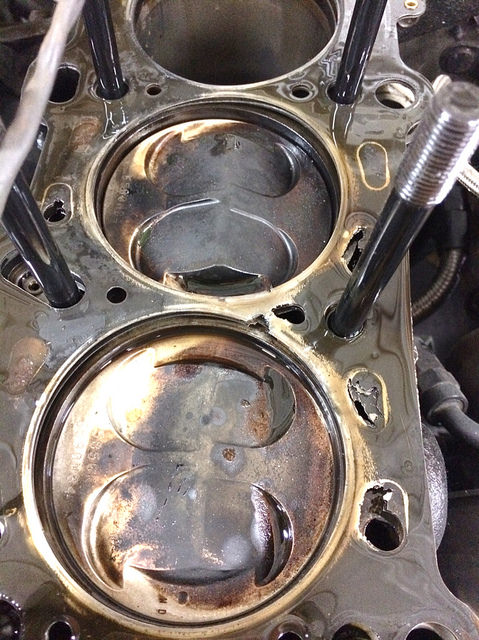

Turns out the OE MLS gasket melted. The coolant in the bay came from my heater core line that exploded once the system was pressurized from the gasket failure. I can't say that I blame the OE gasket, I'm just glad nothing else melted.

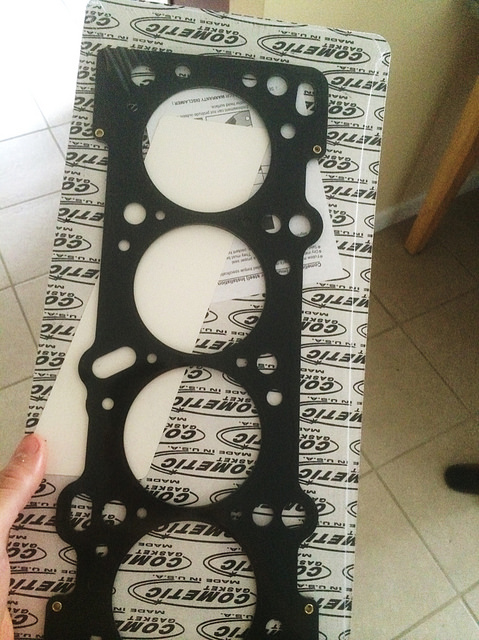

I actually stock a good number of Cometic gaskets, so this will be going in next Sunday when I have some free time.
Accessories & Hardware : Cometic MLS Head Gaskets

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-14520041636_08930f9a53_z.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-14356653819_1492ef3699_z.jpg
FAB is online now   Reply With Quote
Old 06-30-2014, 01:30 PM   #1186
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default

I've never seen that before. Are you sure the heater hose didn't go first from the radiant exhaust heat?
sixshooter is offline   Reply With Quote
Old 06-30-2014, 01:40 PM   #1187
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

Quote:
Originally Posted by FAB View Post
A random hoonish video... that someone sent me the link to this morning. This must have been from my most recent trip to Mexico.

ftfy
soviet is offline   Reply With Quote
Old 06-30-2014, 03:33 PM   #1188
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by sixshooter View Post
I've never seen that before. Are you sure the heater hose didn't go first from the radiant exhaust heat?
I'm sure it was a combination of the heat fatiguing the material and the pressure from a blown head gasket. That was the only piece of OE rubber in the cooling system. It was also shielded with a DEI wrap.
FAB is online now   Reply With Quote
Old 06-30-2014, 04:03 PM   #1189
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

Like I said via text - I haven't seen something like this happen before.
Looks like I'm not the only one.
What makes the cometic superior? Isn't it MLS just like the OEM?
18psi is offline   Reply With Quote
Old 06-30-2014, 04:05 PM   #1190
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Whats with all the coolant passages being fucked up on that head gasket?
Leafy is offline   Reply With Quote
Old 06-30-2014, 04:20 PM   #1191
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by Leafy View Post
Whats with all the coolant passages being fucked up on that head gasket?
Seems to me that they may have been blown through when the first cylinder to coolant passage was made by the gasket failure. I have to imagine the material was hot and more playable and the increased pressure might have been enough to blow through it.

I wasn't having cooling issues but the new gasket (without the coolant passages blocked on the first cylinder) will allow for better cooling. I must have been short handed on the older gaskets the last time I put this thing back together.
FAB is online now   Reply With Quote
Old 07-01-2014, 12:22 AM   #1192
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by Leafy View Post
Whats with all the coolant passages being fucked up on that head gasket?
Its because he didnt run the Hyper reroute.
triple88a is offline   Reply With Quote
Old 07-02-2014, 03:26 PM   #1193
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

i've never seen a gasket do that...but i do believe that happened prior to the line bursting....overheating lifts heads..
Alejo_NIN is offline   Reply With Quote
Old 07-02-2014, 04:26 PM   #1194
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by Alejo_NIN View Post
i've never seen a gasket do that...but i do believe that happened prior to the line bursting....overheating lifts heads..
It absolutely happened before the line burst. The line failed because of the failed head gasket allowing the cylinder pressure to pressurize the cooling system.
FAB is online now   Reply With Quote
Old 07-02-2014, 04:46 PM   #1195
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

I too have some trouble believing that Cometic will fix anything. But you are one of the hardest driving high hp miata guys so....
soviet is offline   Reply With Quote
Old 07-02-2014, 04:53 PM   #1196
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

he has a stack of gaskets...it'll be fine
Alejo_NIN is offline   Reply With Quote
Old 07-02-2014, 05:04 PM   #1197
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by soviet View Post
I too have some trouble believing that Cometic will fix anything. But you are one of the hardest driving high hp miata guys so....
Thanks - I think the real enemy here was EGT's. I don't log them but I have to imagine that gauge was deep into the no-no zone. It was pull after pull with some serious local cars and the little Miata was hurting some feelings that night.

I went through two tanks of E85 in a matter of hours. I could have ended up with some winter blend and this could have offset my ignition map. It's a high compression set of slugs this time around so it's easy to end up with some high cylinder temps in boost.

At any rate - the Cometic will be an improvement especially because of the coolant passages. As soon as I'm done with today's shipping I'll drag myself out there and slap it back together. Maybe it's time to de-tune until I get it back on the rollers.
FAB is online now   Reply With Quote
Old 07-02-2014, 05:17 PM   #1198
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

I know there aren't many turbo track cars near your power level, but I can't imagine a whole night of highway pulls would add up to the kind of abuse someone like bbundy puts his car through with a few laps on track. If they can run above 5000rpm for 45 minutes at a time (you know if his gearbox doesn't explode) and you melt a HG with highway pulls you may have another problem.
thenuge26 is offline   Reply With Quote
Old 07-02-2014, 05:41 PM   #1199
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

I do track the car a handful of times each season and although I could see why you might think that - but honestly the power is so unusable on a track that the car won't ever see the continuous load for the length of time it does on the freeway. In mexico.

Freeway roll racing - 2nd to 6th gear of full boost in an RPM window from roughly 6200 to 8300, then slow back down to do it again.
On our local track - I spend most of my time focusing on how to modulate the power to retain traction then coasting through the rest. It's never consistent, full load, high RPM driving.

Moral of the story - This power level doesn't make me faster around a road course. In fact I'm quite sure I'd kill my previous lap times if I unplugged my EBC but who want's less of it when it's just a casual open track day? The reasonable observation for me to make is that I'm simply asking too much from a 1.8L engine that produced very low numbers from the factory.

Last edited by FAB; 07-02-2014 at 05:53 PM.
FAB is online now   Reply With Quote
Old 07-02-2014, 05:58 PM   #1200
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

I guess my point is this: Lets say you did 10 pulls, and each lasted 6 seconds. That's 1 minute of high-power high-rpm pulls over the span of an hour or 2, correct?

Whereas on a track, one would spend at least 6 seconds a lap, so maybe 2 minutes (20 laps) in a 45 minute session. Your car may not do that, but Theseus or bbundy's car might. I know you're making more power than they are, but we're talking 4x stock power vs 4.5x stock power.


I'm not trying to put you down, I just don't see highway pulls being as stressful as a full track session with regards to heat buildup. Again not necessarily your track sessions, but the sessions of some of the more competitive cars/drivers out there.

But I've got no experience in high-hp cars in either so maybe I'm just talking out my ***.
thenuge26 is offline   Reply With Quote
