Old 04-29-2013, 07:46 AM   #1041
Elite Member
iTrader: (2)

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

well that's impressive...

Good luck. How deep are the scratches on the wall?
240_to_miata is offline   Reply With Quote
Old 04-29-2013, 09:38 AM   #1042
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

...and replacing the piston too right?
Braineack is offline   Reply With Quote
Old 04-29-2013, 09:51 AM   #1043
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Braineack View Post
...and replacing the piston too right?
Naw, it'll sand out.
Leafy is offline   Reply With Quote
Old 04-29-2013, 10:05 AM   #1044
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

lol I seriously cringed when you text me those pics Bryan

This is why I don't spin any of my econo-built motors past 7k
Or push a gt3076r to 25+ psi

"you're gonna have a bad time"

The up side though is that now it will be completely built and ready to make some nasty power.

I agree with both Bryan and Leo to a certain point. On the one hand plenty of people are making over 300 with stock head/valvetrain by keeping the limiter at 7-7.1, on the other he clearly had failure due to valve float (or so I'm convinced) at high pressure, flow, and rpm, so......
18psi is offline   Reply With Quote
Old 04-29-2013, 10:47 AM   #1045
Senior Member
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-37365881.jpg
redturbomiata is offline   Reply With Quote
Old 04-29-2013, 01:20 PM   #1046
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by Braineack View Post
...and replacing the piston too right?
lol ...this is a joke right? That will clearly buff out.. I have this amazing rubbing compound.
miatauser123 is offline   Reply With Quote
Old 04-29-2013, 01:20 PM   #1047
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

it'll buff out
18psi is offline   Reply With Quote
Old 04-29-2013, 01:27 PM   #1048
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Well you already have a broken con rod keychain, what are you going to do with the valve?
thenuge26 is offline   Reply With Quote
Old 04-29-2013, 01:39 PM   #1049
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

make a necklace out of all the borked internals
18psi is offline   Reply With Quote
Old 04-29-2013, 01:58 PM   #1050
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by thenuge26 View Post
Well you already have a broken con rod keychain, what are you going to do with the valve?
Already drilled a hole in it. It will be polished and added to my keys
miatauser123 is offline   Reply With Quote
Old 04-30-2013, 01:25 AM   #1051
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

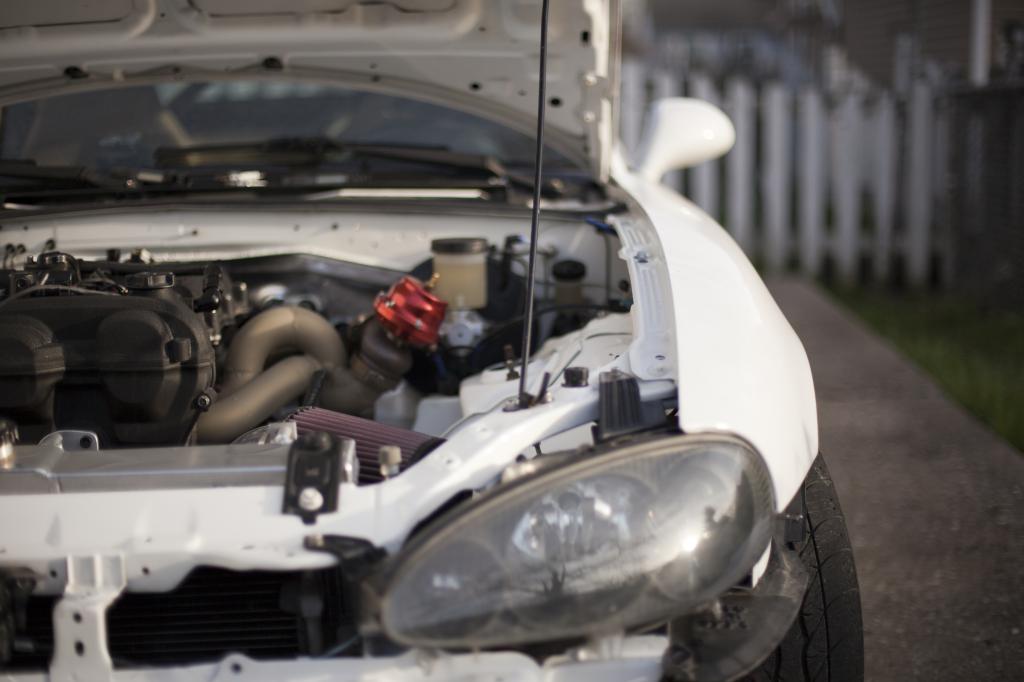

On the up side - she looks sexy even all blowed up.

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-miatabay_zpsfc61e45e.jpg
miatauser123 is offline   Reply With Quote
Old 04-30-2013, 10:40 AM   #1052
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,906
Total Cats: 112
Default

Quote:
Originally Posted by 18psi View Post
I agree with both Bryan and Leo to a certain point. On the one hand plenty of people are making over 300 with stock head/valvetrain by keeping the limiter at 7-7.1, on the other he clearly had failure due to valve float (or so I'm convinced) at high pressure, flow, and rpm, so......
I think the NBs are more susceptable considering they have a weeker valvespring than NAs.
miata2fast is online now   Reply With Quote
Old 04-30-2013, 10:12 PM   #1053
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Oo I wonder who might have taken this photo? Great shot!
FAB is offline   Reply With Quote
Old 04-30-2013, 10:28 PM   #1054
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

It looks like the valve got crushed facing vertically at some point. You can see witness marks on the head and the piston in the same spot. Think it'd be enough to bend an h beam?
flounder is offline   Reply With Quote
Old 05-01-2013, 02:44 PM   #1055
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,298
Total Cats: 22
Default

How did it sound? I know when I wrecked 3rd gear, **** was clunky and then LOUD AS HELL for about 5 minutes until all the teeth on 3rd broke off.
Der_Idiot is offline   Reply With Quote
Old 05-14-2013, 04:05 PM   #1056
Senior Member
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

So after seeing that piston in person yesterday all i can say is pictures dont do it any justice, seriously impressive amount of damage. good luck on that rebuild bryan
redturbomiata is offline   Reply With Quote
Old 05-15-2013, 11:36 AM   #1057
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

News:

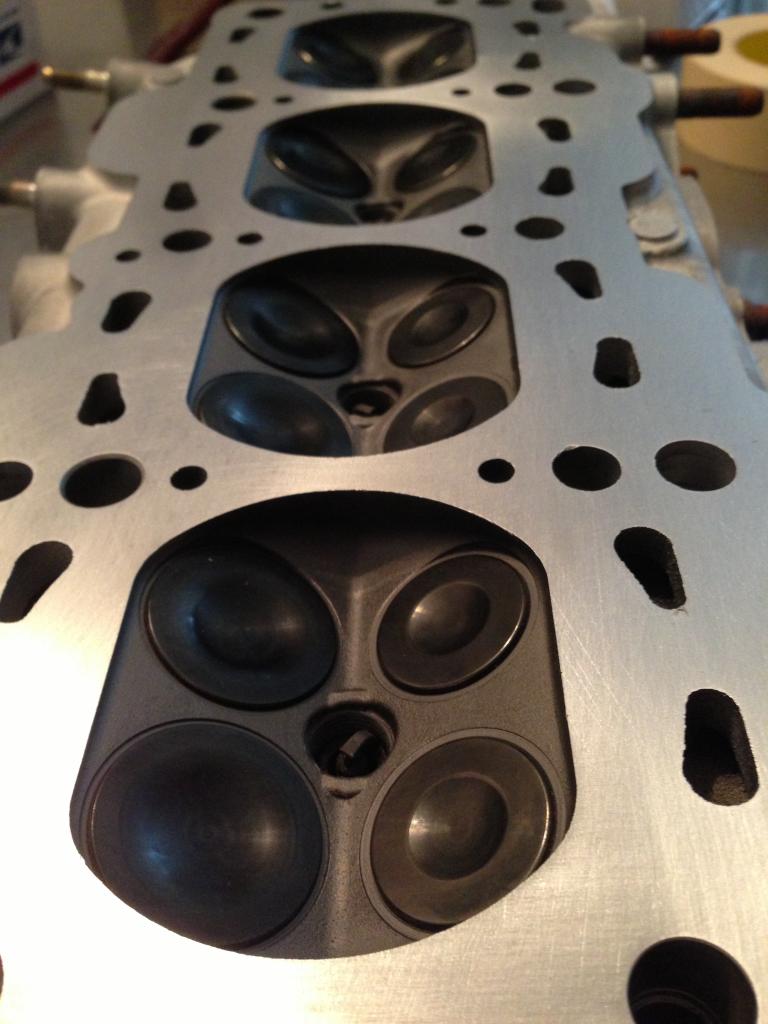

Picked up a new 2003 cylinder head. It was in great shape to start with but I quickly gutted it and had it decked and a valve job done. Then I installed the Supertech goodies – Dual springs, titanium retainers and valves. Now she’s sitting there waiting for the coolant reroute material and to assemble the rest.

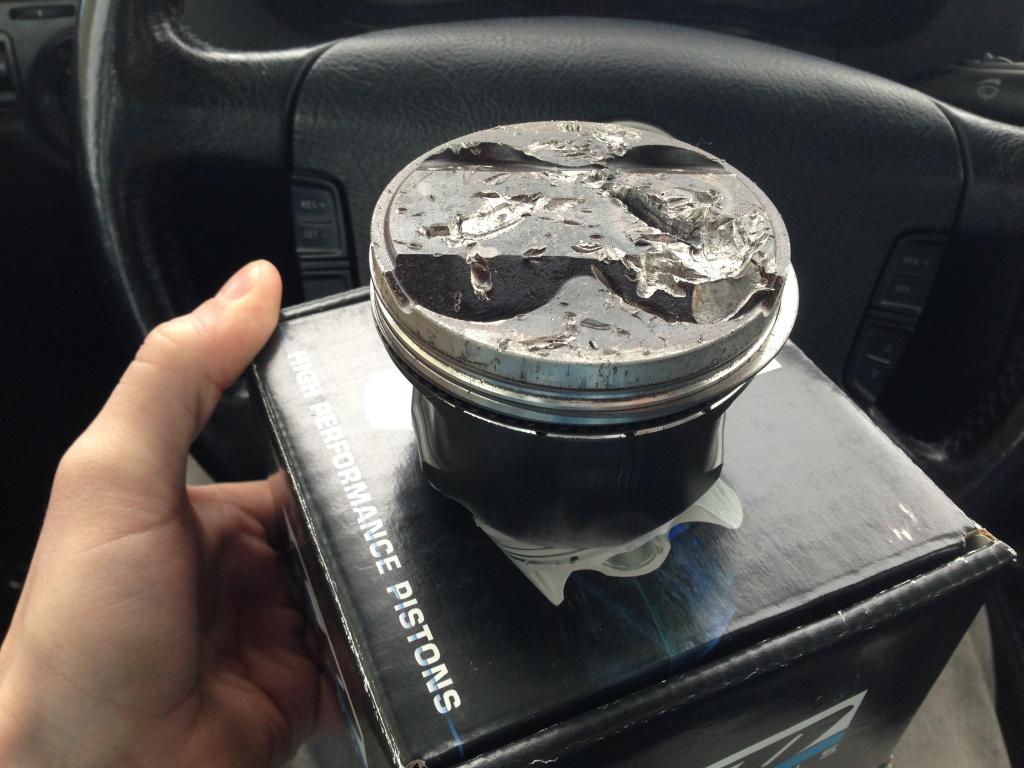

Ordered custom head gasket – Thicker .060” mil and a replacement CP piston. There was damage to the other 3 pistons but not anywhere near the way this guy looks:



It also turned out that my block was basically junk. After dropping the piston number 4 out I noticed some rather large dents in the walls.. Not worth trying to repair and even going a couple sizes larger in piston would likely not solve my problem. So.. SQUARE ONE.

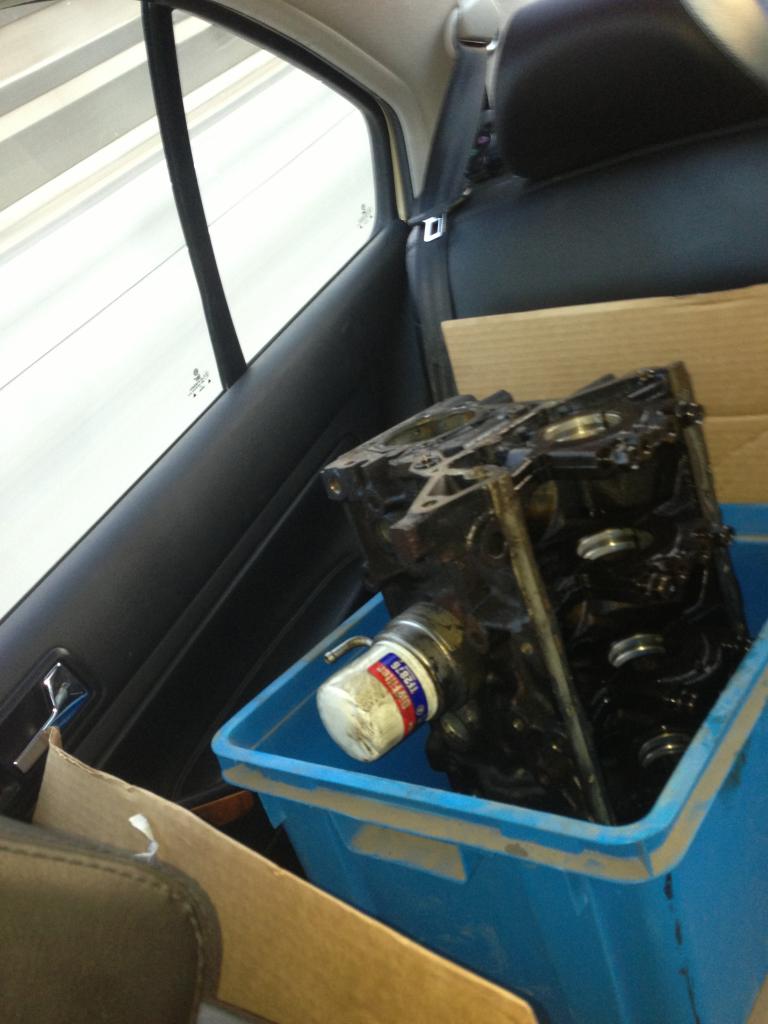

I picked up a bare block and dropped it off at my machine shop.. They are going to give me feedback on the 3 pistons that have seen some damage and I’ll go from there.

If the other pistons are junk I’ll likely return the one piston that matches and bore it over as large as I can get away with. Not the best way to make power but I’ll be able to get away with better clearances and have more surface area on the walls…

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture002_zps364b07bc.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture004_zps2906d517.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture_zpsa72e8ec2.jpg
miatauser123 is offline   Reply With Quote
Old 05-15-2013, 02:50 PM   #1058
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

I wouldn't re-use any of the pistons

If you're starting back from square one, and spending all this money, skimping on and re-using pistons with damage on them is asking for trouble
18psi is offline   Reply With Quote
Old 05-15-2013, 02:56 PM   #1059
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by 18psi View Post
I wouldn't re-use any of the pistons

If you're starting back from square one, and spending all this money, skimping on and re-using pistons with damage on them is asking for trouble
Well if they were in good shape there is no reason to replace them. It's not like I'm using the same rings.
miatauser123 is offline   Reply With Quote
Old 05-15-2013, 02:57 PM   #1060
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Dem768 View Post
There was damage to the other 3 pistons but not anywhere near the way this guy looks:
.
Leafy is offline   Reply With Quote
