Old 05-15-2013, 03:05 PM   #1061
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

ITT:

So awesome though, I'm very VERY happy to see you keep going at it. I've been on this forum a while and have seen hits like this end up in part-outs.
Fireindc is offline   Reply With Quote
Old 05-15-2013, 03:05 PM   #1062
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Yeah I'm talking about the head. Looks like the coating that is on top has been removed. Almost looks like it was sanded. So ill see what the machine shop says.
miatauser123 is offline   Reply With Quote
Old 05-15-2013, 03:10 PM   #1063
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

What CR were the pistons? If you are going full-time E85 it might be worth it to get new ones so you can run 10.5 or 11:1.
thenuge26 is offline   Reply With Quote
Old 05-15-2013, 03:12 PM   #1064
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Quote:
Originally Posted by Dem768 View Post
Well if they were in good shape there is no reason to replace them. It's not like I'm using the same rings.
I forget the term now (on pain meds from root canal), but something about fatiguing the metal makes it much more prone to failure later. It can be fine now, but wait til you're at 400+, doing a long 140+ pull on the freeway, and run into some det. All of a sudden that nearly insignificant chip caused by previous damage that was deemed OK by the shop is the cause of yet a 3rd rebuild.

Maybe I'm just overly paranoid. I dunno. But with the boatloads of money you're spending I just don't see another 380 or whatever being a big deal.
18psi is offline   Reply With Quote
Old 05-15-2013, 03:18 PM   #1065
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

I can't help but think any sharp points caused from the previous damage would make hot spots and be more prone to future detonation?
Amellrotts is offline   Reply With Quote
Old 05-15-2013, 04:08 PM   #1066
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Good news. Just got off the phone with the machine shop - He said they look great. The coating was compromised but he said that's what it's for - he is going to take the coating down and clean them up then I'll take them over to dart for a serious coating.

On the note of metal fatigue - These pistons have not been dented, chipped or manipulated in any way, I have the feeling you're picturing something much more severe than they actually are. No chips at all. It actually just looks identical to the wear caused by piston slap on the outer edges in an engine built with large tolerances. I wish I took a picture of the other pistons, you'd probably ask why I'm even thinking about replacing them.
miatauser123 is offline   Reply With Quote
Old 05-15-2013, 04:42 PM   #1067
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by Fireindc View Post
ITT:

So awesome though, I'm very VERY happy to see you keep going at it. I've been on this forum a while and have seen hits like this end up in part-outs.
Just saw this. Thanks man. Honestly there was a moment when I was completely drained and contemplated just selling all of it. There are so many other platforms that I could get this performance out of more reliably.. But in the end it's so much cooler to rape face in a Miata. Nobody ever expects it.
miatauser123 is offline   Reply With Quote
Old 05-15-2013, 04:43 PM   #1068
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

yeah I guess I was picturing some pitting or tiny gouges in the metal
18psi is offline   Reply With Quote
Old 05-15-2013, 04:44 PM   #1069
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Yeah not quite. It looks like something I could have done with sand paper.
miatauser123 is offline   Reply With Quote
Old 05-15-2013, 09:45 PM   #1070
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

Well. You said it. I want to rape face with a Miata. Valve springs, and valves will be ordered. Which should be sooner than later here. Currently waiting on FM to send me some stuff.
Erat is online now   Reply With Quote
Old 05-15-2013, 10:03 PM   #1071
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Hell yes Dem keep at it! I feel the same way about the Miata, no one expects to get their *** beat by a little convertible, and when it's a freaking Miata it just makes it that much more demoralizing. Lol
flounder is offline   Reply With Quote
Old 05-18-2013, 12:57 AM   #1072
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 266
Default

Indeed! I am not yet at the point where I can go Vette hunting on the straightaways, but I can already destroy most of them in the corners. It's almost as good as sex. Edit: this thread keeps delivering for what to do with engine 2.0.
Mobius is offline   Reply With Quote
Old 05-28-2013, 01:28 PM   #1073
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

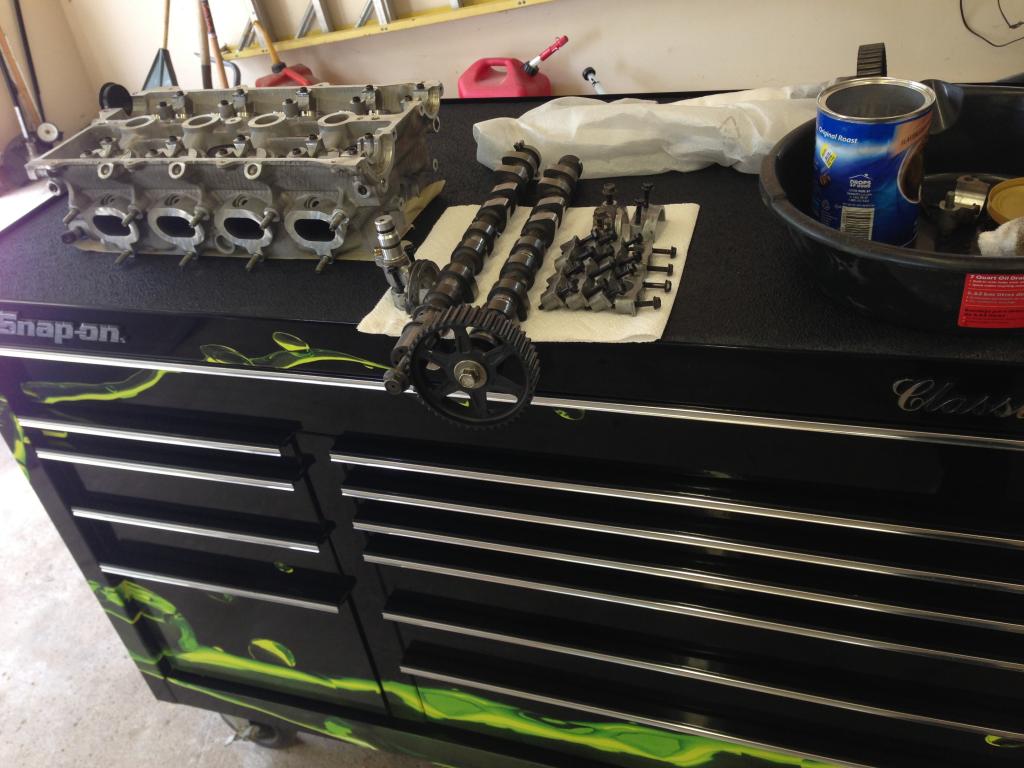

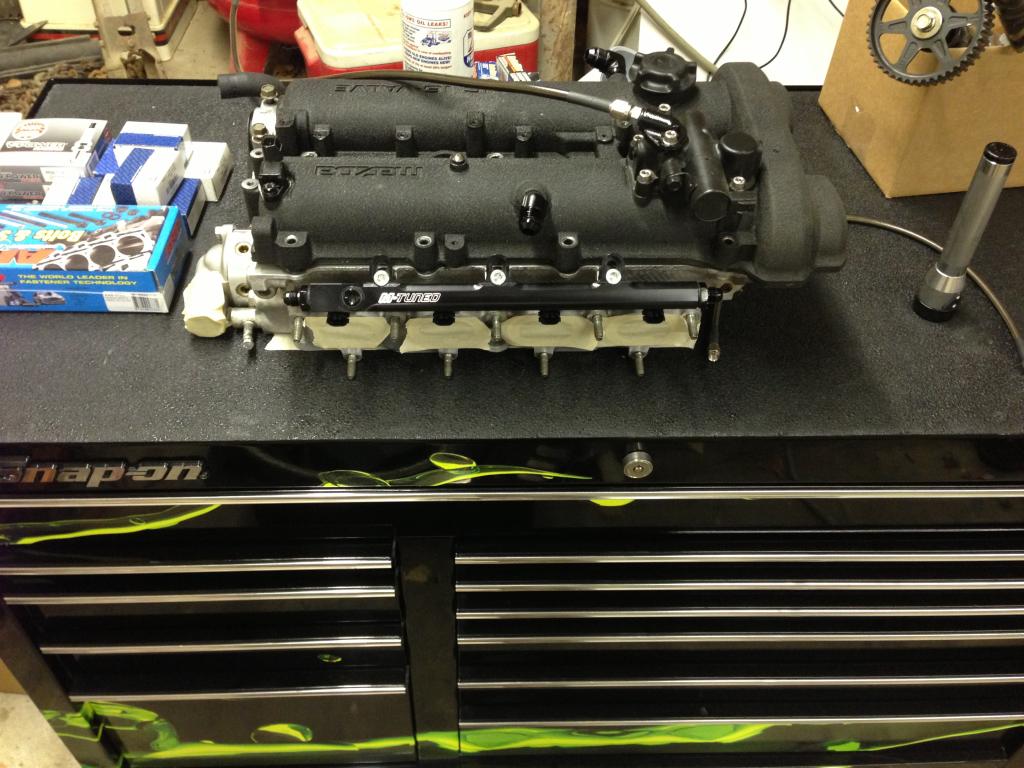

So my head was back from the machine shop freshly decked with my Supertech dual valve springs and valves installed. I cleaned up the cam caps polished the cam journals and installed them using Lucas engine assembly lube.

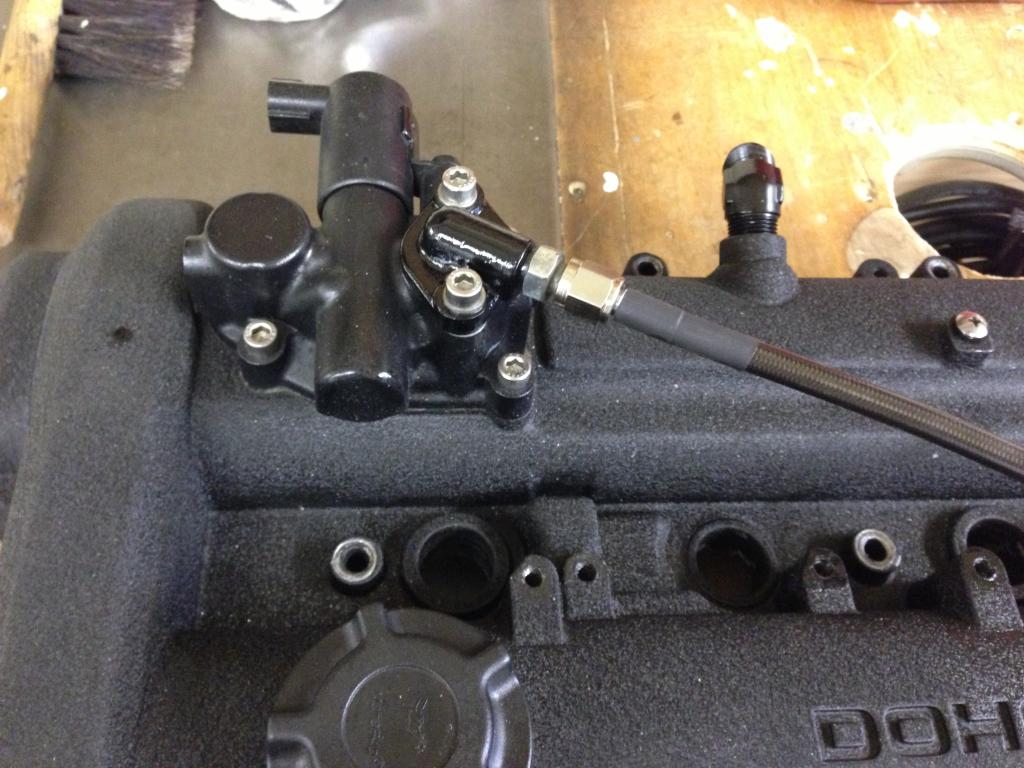

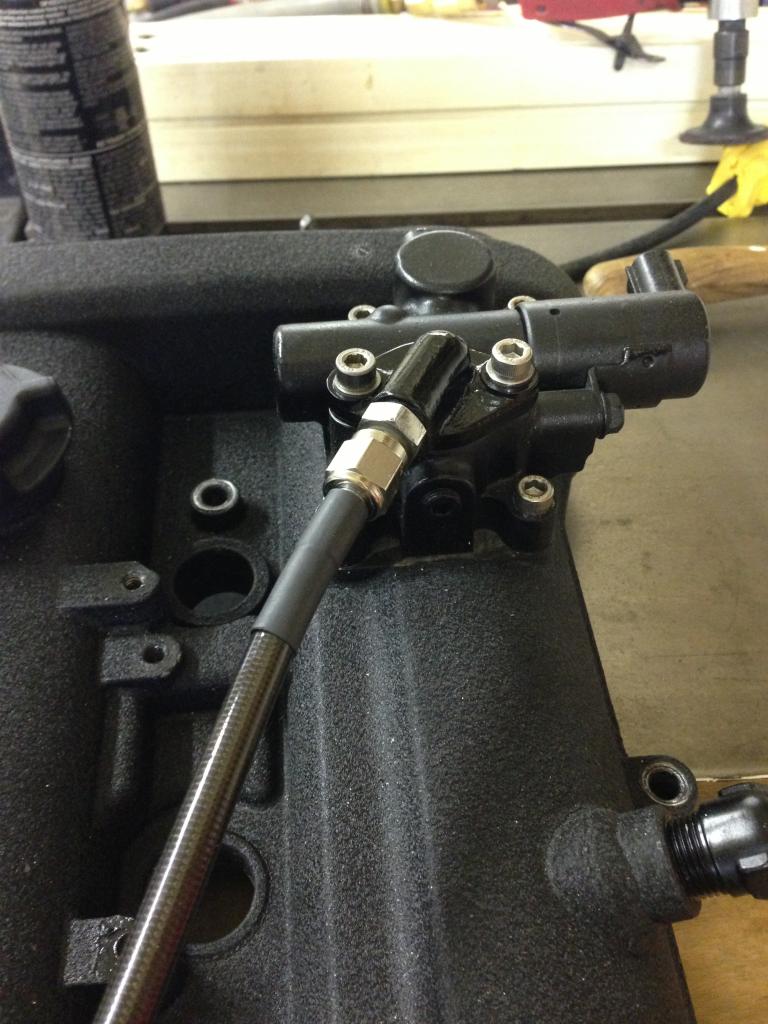

I was looking at the factory VVT setup and I’m actually annoyed by the hard line that runs to the solenoid on the valve cover, I never replace those copper crush washers and I’m pretty sure it was slightly leaking where it attaches to the block. So I decided to convert it to a braided line.

I basically tapped took off the fitting going to the solenoid and cut the line off, then drilled it out to install a -4 AN fitting.

I’ll likely use a banjo to AN fitting on the block to get rid of the rest of the factory setup. That way in order to remove the head it’s a simple -4AN fitting.





Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture002_zps14a04647.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture012_zps4d01cda3.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture003_zps3f15439a.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture006_zps40f6cf70.jpg
miatauser123 is offline   Reply With Quote
Old 05-28-2013, 04:02 PM   #1074
Newb

Join Date: Feb 2013
Posts: 23
Total Cats: 0
Default

Looks awesome. Really like your attention to detail
rx7autoxer is offline   Reply With Quote
Old 05-28-2013, 04:09 PM   #1075
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Sweet dude. ETA on getting it back together? I really cannot wait to see this thing rape face and represent miataturbo.net.
Fireindc is offline   Reply With Quote
Old 05-29-2013, 10:25 AM   #1076
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by Fireindc View Post
Sweet dude. ETA on getting it back together? I really cannot wait to see this thing rape face and represent miataturbo.net.
I'd say 2 weeks. I'm at the mercy of my machine guys at this point. The actual assembly should take no time though. I have every thing setup to be really servicable at this point.
miatauser123 is offline   Reply With Quote
Old 05-29-2013, 11:34 AM   #1077
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

Sexiness continues as always with this car! Love it dude!

Last edited by RyanRaduechel; 06-03-2013 at 12:06 PM.
RyanRaduechel is offline   Reply With Quote
Old 06-06-2013, 10:32 AM   #1078
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Aaaaand a small video of my car blowing up. No boom and he stopped the video too soon but you can absolutely hear the ticking on the way down.

miatauser123 is offline   Reply With Quote
Old 06-06-2013, 01:34 PM   #1079
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

It can only get better from here on! Still waiting for the machine shop?
FowlerMotorsports is offline   Reply With Quote
Old 06-18-2013, 11:05 AM   #1080
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Moved to next page.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture062_zps6638862b.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture063_zps6ce7ac10.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture061_zpsdd2347b0.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture_zps6fda3c2f.jpg

Last edited by miatauser123; 06-18-2013 at 12:25 PM.
miatauser123 is offline   Reply With Quote
