Old 08-04-2010, 04:30 PM   #401
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

Yay, Buffoon is making some progress
Bond is offline   Reply With Quote
Old 08-04-2010, 05:47 PM   #402
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Yay my hoe is heading home!!
buffon01 is offline   Reply With Quote
Old 08-05-2010, 09:59 PM   #403
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Im getting the timing belt on and Im having a problem please help I want to finish tonight and this looks wrong.

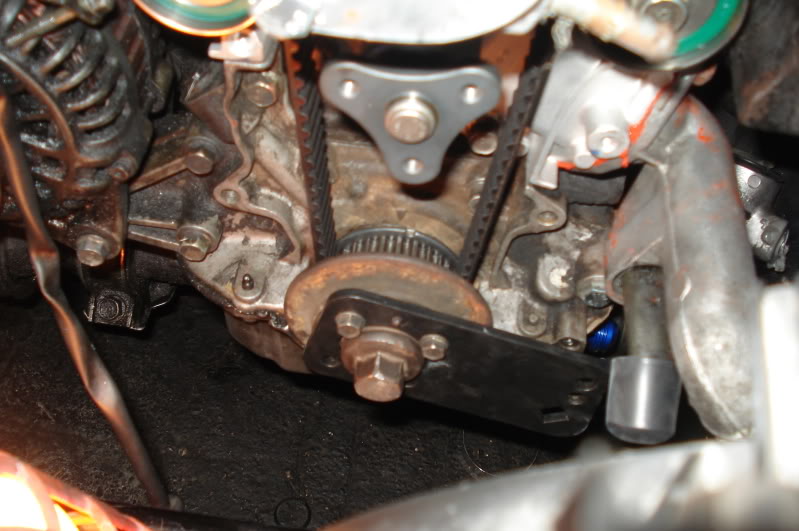

Name:  DSC09729.jpg
Views: 0
Size:  86.6 KB

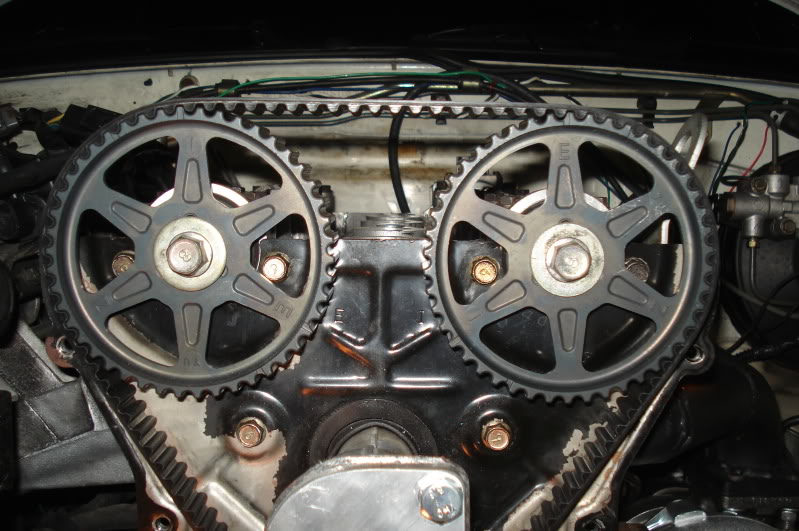

Name:  DSC09730.jpg
Views: 0
Size:  109.2 KB
buffon01 is offline   Reply With Quote
Old 08-05-2010, 11:22 PM   #404
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Intake Cam looks good, Exhaust cam looks a tooth off. Also you need to get the Crank on TDC. To hold the 2 cam gears in place put a 24mm open ended wrench on both gears and use vice grips to hold them together in place. Makes getting everything lined up easy.
shuiend is offline   Reply With Quote
Old 08-05-2010, 11:50 PM   #405
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

How about now? it looks right

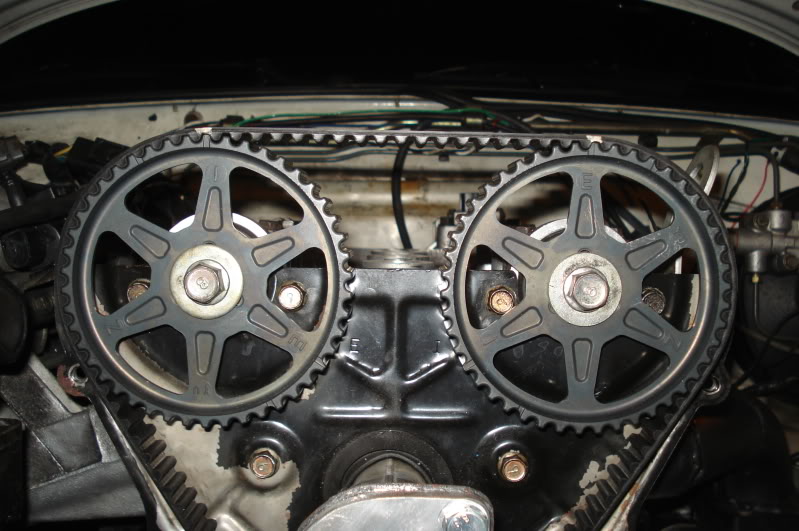

Name:  DSC09733.jpg
Views: 0
Size:  98.9 KB

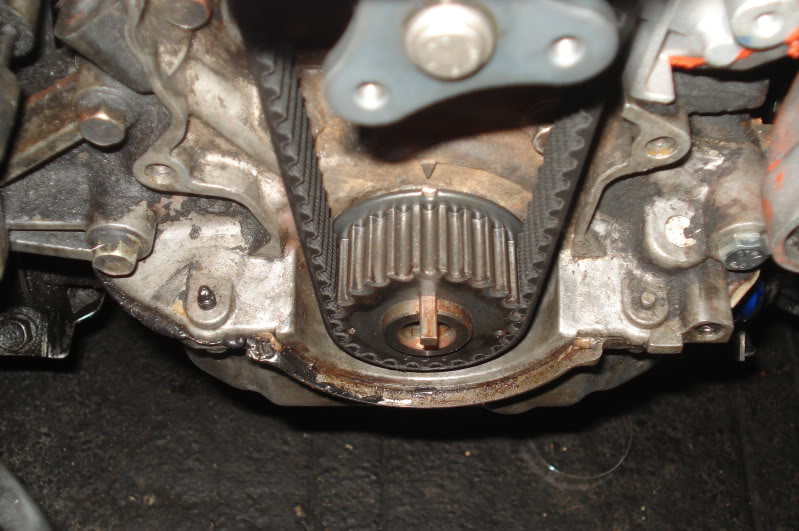

Name:  DSC09734.jpg
Views: 0
Size:  97.4 KB
buffon01 is offline   Reply With Quote
Old 08-05-2010, 11:58 PM   #406
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by buffon01 View Post
How about now? it looks right



Looks pretty good, You have rotated the crank 2 full times and it lines back up correct?
shuiend is offline   Reply With Quote
Old 08-05-2010, 11:58 PM   #407
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Looks good to me.
JayL is offline   Reply With Quote
Old 08-05-2010, 11:59 PM   #408
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by shuiend View Post
Looks pretty good, You have rotated the crank 2 full times and it lines back up correct?
Didnt know, that will check tomorrow. Thanks for the tip (no homo)
buffon01 is offline   Reply With Quote
Old 08-06-2010, 12:14 AM   #409
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by buffon01 View Post
Didnt know, that will check tomorrow. Thanks for the tip (no homo)
Then go back around 1 and 5/6th turns until the little notch is at the mark about about 10pm. Then let the tensioner pulley loose and that should be at the correct tensions.
shuiend is offline   Reply With Quote
Old 08-06-2010, 12:16 AM   #410
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by shuiend View Post
Then go back around 1 and 5/6th turns until the little notch is at the mark about about 10pm. Then let the tensioner pulley loose and that should be at the correct tensions.
May I ask whats the purpose of that? sorry
buffon01 is offline   Reply With Quote
Old 08-06-2010, 12:19 AM   #411
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by buffon01 View Post
May I ask whats the purpose of that? sorry
There is a correct spec of how tight the Timing belt should be. The factory manual can tell you what exactly it is and what not. I just know that going around 1 and 5/6 turns and loosening and tightening the tensioner is the way to get the correct tension. While I have done timing belts with just tensioning it right after timing is correct, it can't hurt to do it the correct way.
shuiend is offline   Reply With Quote
Old 08-06-2010, 12:31 AM   #412
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Thanks for the advice. I'll give that a try tomorrow
buffon01 is offline   Reply With Quote
Old 08-06-2010, 10:10 PM   #413
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

The intake cam is off big time. When it snaps into place, the markings are like 5 teeth forward. I tried adjusting them to fit the belt, but is just stupid they arent supposed to, right?

oh well im done for today :
buffon01 is offline   Reply With Quote
Old 08-07-2010, 05:31 AM   #414
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

Hey don't worry about it man, these things happen. Just don't get too discouraged and call it quits.
viperormiata is offline   Reply With Quote
Old 08-07-2010, 05:06 PM   #415
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

Make sure the cam gear is on the cam right. I messed up and had them on wrong and my engine wouldn't start. Very thankful we don't have interference engine
johnmatt is offline   Reply With Quote
Old 08-07-2010, 10:12 PM   #416
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Well it looks is all good to go. Im almost done. The only things left to is the drain, drill and tap the Spacer for temp sensor, finish the cold side piping (coming in this week), and the Artech's oil feed also coming in this week. Im so excited

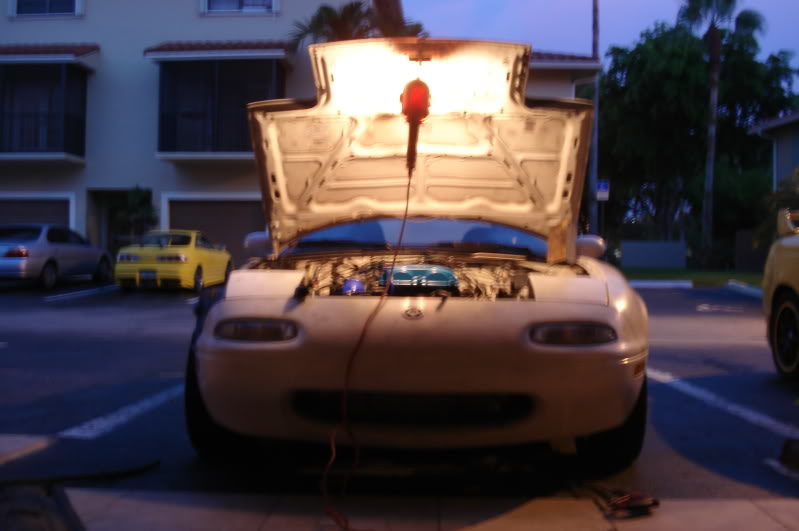

Name:  DSC09745.jpg
Views: 0
Size:  62.6 KB
buffon01 is offline   Reply With Quote
Old 08-08-2010, 02:09 AM   #417
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

lul at yellow teg.
FRT_Fun is offline   Reply With Quote
Old 08-09-2010, 12:15 PM   #418
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

So, whats the right procedure to start the car after it has sat for so long?
buffon01 is offline   Reply With Quote
Old 08-09-2010, 12:21 PM   #419
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default

Quote:
Originally Posted by buffon01 View Post
So, whats the right procedure to start the car after it has sat for so long?
turn the key?
Braineack is offline   Reply With Quote
Old 08-09-2010, 12:26 PM   #420
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

No special oil or **** like that?
buffon01 is offline   Reply With Quote
