Old 05-23-2010, 01:21 AM   #261
Junior Member

Join Date: Sep 2007
Posts: 68
Total Cats: 0
Default

Definitely looks like a Hialeah Condo.
arbinshire is offline   Reply With Quote
Old 05-30-2010, 01:29 AM   #262
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Quote:
Originally Posted by arbinshire View Post
Definitely looks like a Hialeah Condo.
Condo townhouse


this ******* shitted on my thread before getting boned banned
buffon01 is offline   Reply With Quote
Old 05-30-2010, 04:16 PM   #263
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Update.

I was cruising on the highway trying to tune some bugs out. All of a sudden I see my cruise AFR did to 12, wtf!? I then look at my dashboard, my aftermarket coolant gauge read 180*, and my stock temp gauge showed overheating-************!!!!!!!

The aftermarket temp gauge is post t-stat, and given that I have double checked both temps reading before with my laptop, and there wasnt any discrepancy in the readings, my t-stat took a ****!.

Now this is just the tip of Iceberg , on the to the best part. The water in the system, is gone yo! Since there are no leaks and smoke was coming from he front, and side of the engine/block and not from the header hoses, the only conclusion I can derive is that my head gasket is done.

Comments?
buffon01 is offline   Reply With Quote
Old 05-30-2010, 04:24 PM   #264
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default



Sorry man that sucks... if there is no water in the system and you drove it for any length of time that will not lead to good things. You really do have some **** luck.
FRT_Fun is offline   Reply With Quote
Old 05-30-2010, 04:29 PM   #265
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Is all good, look on the bright side. Im learning a lot

I have even considered dumping money on a building a motor and get rid of all this bs for good.
buffon01 is offline   Reply With Quote
Old 05-31-2010, 10:10 AM   #266
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Quote:
Originally Posted by levnubhin View Post
You're just too damn far south for me mang.
I've heard these words too many times....

Buffon, sorry to hear of your misfortunes. I'd consider taking a step back and making a detailed list of exactly what needs to be done. Assess any and all problems you have, along with anything in doubt, and anything which is still needing to get done.

Then slowly go over everything and redo anything needed. Proper planning and organization can go a long way.

GL
TonyV is offline   Reply With Quote
Old 05-31-2010, 11:05 AM   #267
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

Quote:
Originally Posted by buffon01 View Post
Is all good, look on the bright side. Im learning a lot

I have even considered dumping money on a building a motor and get rid of all this bs for good.
Stop considering and just build the motor. Then you can run MOAR BOOST!!!!
shuiend is offline   Reply With Quote
Old 05-31-2010, 02:21 PM   #268
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Yeah I just did the math I need another paycheck
buffon01 is offline   Reply With Quote
Old 06-07-2010, 11:17 PM   #269
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Update. So I started taking things apart. The head is almost out; all that is left to do is get that ******* bolt under the exhaust header out.

The fist thing I took apart was the t-stat housing as I thought a failure caused the t-stat to shut close and prevent flow through the system. However, there was no ******* t-stat O_O This, along with bills previously found in the car detailing a radiator change, that the car had overheating problems before hand. Thus making my belief that my headgasket is fucked after the overheat I had a few weeks ago.

Anyway here are some pics of what Ive done. I was able to work much as the weather has been **** lately. Also Im going with the ebay wp/tb kit and an autozone headgasket, any recommendations and tips are welcome.

Abra cadabra ....NO T-STAT


Water on the spark plugs

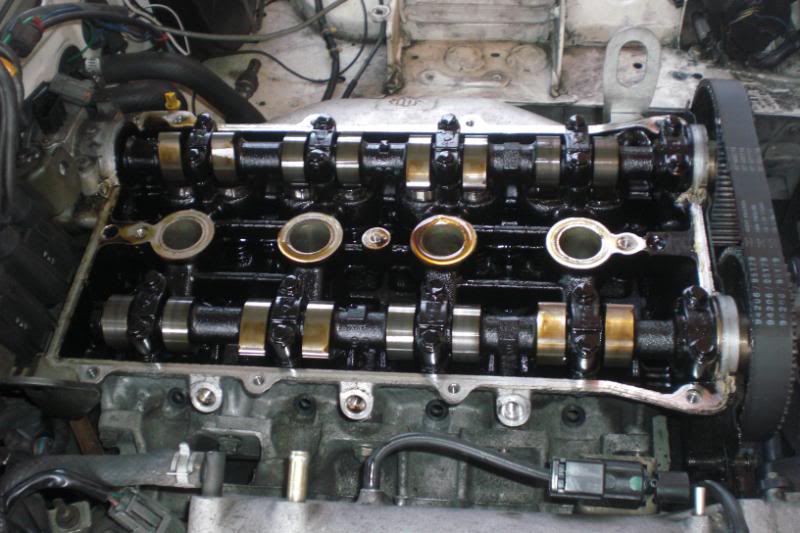

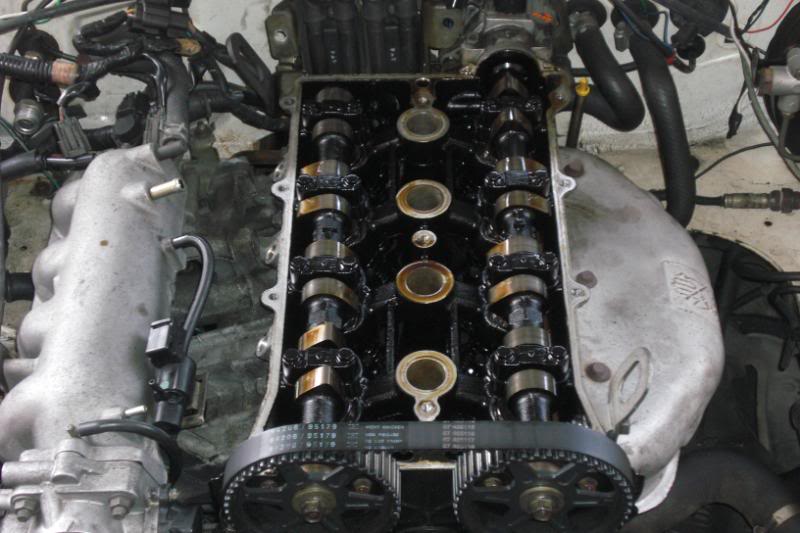

The head (no homo)
Name:  CIMG1872.jpg
Views: 0
Size:  76.4 KB

Name:  CIMG1871.jpg
Views: 0
Size:  72.3 KB
buffon01 is offline   Reply With Quote
Old 06-15-2010, 05:33 PM   #270
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Gheys, Im about to buy this

http://cgi.ebay.com/ebaymotors/MAZDA...Q5fAccessories

I need a second opinion.
buffon01 is offline   Reply With Quote
Old 06-15-2010, 05:36 PM   #271
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

levnubhin is offline   Reply With Quote
Old 06-15-2010, 06:01 PM   #272
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Bought.

I asked before any tips on head gasket installation?
buffon01 is offline   Reply With Quote
Old 06-16-2010, 04:16 PM   #273
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

That is one nasty looking head man
johnmatt is offline   Reply With Quote
Old 06-16-2010, 09:02 PM   #274
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by buffoon01 View Post
Bought.

I asked before any tips on head gasket installation?

Should be fine, but you might want to think about having that head hot tanked.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 06-16-2010, 10:12 PM   #275
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Quote:
Originally Posted by johnmatt View Post
That is one nasty looking head man
Why?

Quote:
Originally Posted by levnubhin View Post
Should be fine, but you might want to think about having that head hot tanked.
Why? where?
buffon01 is offline   Reply With Quote
Old 06-17-2010, 10:11 AM   #276
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

Cause it looks horrible. I'd hate to see what the rest of the motor looks like. Seafoam is your friend
johnmatt is offline   Reply With Quote
Old 06-17-2010, 10:46 AM   #277
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by buffoon01 View Post
Why?



Why? where?
See all that black? That's burnt oil. Take it to a head shop to have it cleaned. Maybe even new valve seals.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 06-17-2010, 10:56 AM   #278
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Yeah the problem now is finding a place that wont try to **** me. What is the norm for "head refresh" jobs? what should it included?
buffon01 is offline   Reply With Quote
Old 06-17-2010, 11:17 AM   #279
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

While you're messing with it you can always do alittle P&P on it while it's off
johnmatt is offline   Reply With Quote
Old 06-17-2010, 11:24 AM   #280
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Quote:
Originally Posted by johnmatt View Post
While you're messing with it you can always do alittle P&P on it while it's off
No coin for that.I've looked at the hakuna valve seals write up, it doesnt seem so complicated, has anyone done a DIY job? what is there to it?
buffon01 is offline   Reply With Quote
