Old 02-02-2012, 07:31 PM   #21
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

I'm hesitant to add one more spot to leak and take Abe's quality fab work and attention to detail away from the wastegate flapper area.

Also, replace that nut. The nylon won't last long.
curly is offline   Reply With Quote
Old 02-02-2012, 07:57 PM   #22
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

I'll probably be having the flanges welded on to eliminate that problemo
pusha is offline   Reply With Quote
Old 02-03-2012, 12:54 AM   #23
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Attached Thumbnails

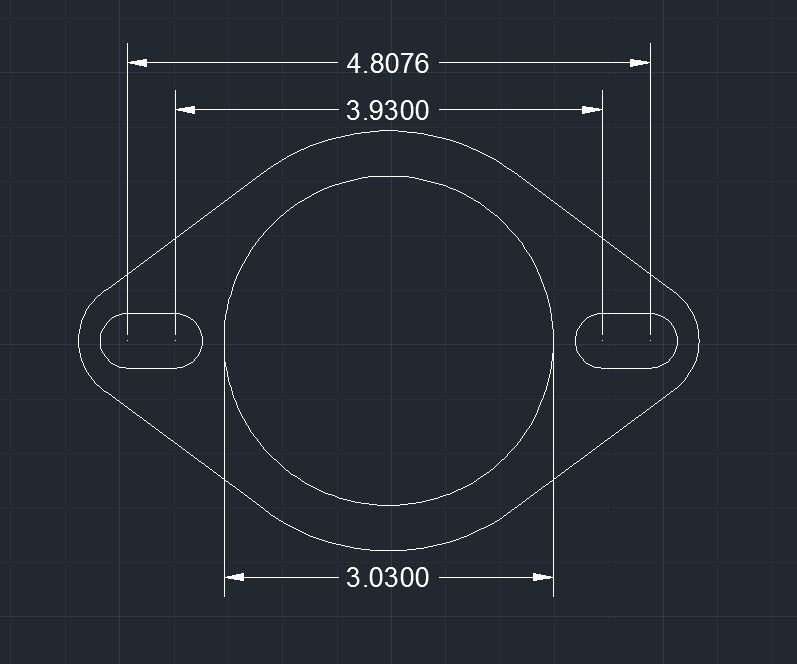

Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-ef2-300-sml.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-ef2-300-big.jpg
ARTech is offline   Reply With Quote
Old 02-03-2012, 03:33 AM   #24
Junior Member

Join Date: Sep 2011
Posts: 64
Total Cats: 0
Default Artech/1.6

What sorta improvements in performance do you expect vs a greddy manifold and turbo?
lightw8 is offline   Reply With Quote
Old 02-03-2012, 03:53 AM   #25
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

Quote:
Originally Posted by curly View Post
Keep in mind I'm upgrading from a TD04 that I actually like, I just want a new one
If you like the Greddy turbo, then why not do a 19t upgrade? You'll be set for a lot of power and you'll still have the turbo you already like.
viperormiata is offline   Reply With Quote
Old 02-03-2012, 09:54 AM   #26
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

Quote:
Originally Posted by lightw8 View Post
What sorta improvements in performance do you expect vs a greddy manifold and turbo?
Mainly in manifold design, downpipe design, etc. I hope to make the same power but have more breathing room up top.

Quote:
Originally Posted by ARTech View Post
[IMG]flange[/IMG]
Thanks, I'll measure mine when I take it off, probably some time closer to when you might be done with my setup, and I'll tell you if I need you to throw in an extra flange.

Quote:
Originally Posted by viperormiata View Post
If you like the Greddy turbo, then why not do a 19t upgrade? You'll be set for a lot of power and you'll still have the turbo you already like.
I like it's particular characteristics, but I don't like that's it's old, can't be swapped out so easily for better spool or more power, it's not water cooled, etc etc. It's not worth the time and money when for an older unit.
curly is offline   Reply With Quote
Old 02-03-2012, 06:41 PM   #27
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by pusha View Post
I'll probably be having the flanges welded on to eliminate that problemo
Welding stainless to cast = failure.
Faeflora is offline   Reply With Quote
Old 02-04-2012, 11:56 AM   #28
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

In for baller set-up
hustler is offline   Reply With Quote
Old 02-04-2012, 01:18 PM   #29
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

Id be baller if I could pick a turbo
curly is offline   Reply With Quote
Old 02-04-2012, 02:51 PM   #30
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

If you're not ready to shell out money for baller T2 turbos, I would absolutely go T3. The "legit" T2 turbos are retarded expensive, but the ebay ones always fall short on power.

T3 will give you access to a plethora of different turbos for all horsepower ranges and the prices are 1/2 and sometimes a 1/3 less.
viperormiata is offline   Reply With Quote
Old 02-04-2012, 03:09 PM   #31
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by curly View Post
Id be baller if I could pick a turbo
You will be hard pressed to find a "proper" GT2860rs from Chinaland.

Read this:
http://www.motoiq.com/magazine_artic...p-details.aspx
hustler is offline   Reply With Quote
Old 02-04-2012, 04:59 PM   #32
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Curly finally stepping up to the plate. Nice job man!

I think I sold my Greddy kit off in parts and did OK. I recouped the most money on the FM parts though.

Another big +1000 for Abe! I'll probably hit him up again for a new exhaust soon. Then I'll be selling this 3" enthuza dual setup I have.
Vashthestampede is offline   Reply With Quote
Old 02-04-2012, 08:36 PM   #33
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

Quote:
Originally Posted by Vashthestampede View Post
Then I'll be selling this 3" enthuza dual setup I have.
If it wasn't dual we'd be having a little chat.
curly is offline   Reply With Quote
Old 02-04-2012, 09:04 PM   #34
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

What about this one?
http://www.ebay.com/itm/New-Design-T...item3f0441846f

And Hustler, I think I did find a 2860RS, no?
http://www.ebay.com/itm/Godspeed-T25...item58920f0cde

At least they match up with Garrett's specs to the best of my knowledge.
curly is offline   Reply With Quote
Old 02-05-2012, 02:21 AM   #35
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Does Renown performance still have that T28 for sale in their thread? Its specs are pretty much a 2871.

Both of those are closer to GT2560 specs, but they at least have .86 A/R turbine.

What I don't like about the 2nd one is you'd still need a flange for the inlet/outlet of the compressor.....more money.

This one is pretty decent, only thing I wish it had was .86 turbine A/r, but I'm pretty sure there's a churbo that has 70/71mm compressor with .86 AR, just can't find it at the moment

http://www.ebay.com/itm/TURBO-CHARGE...item4ab3824fe8

nothing really wrong with .64 A/R though, just depends on what you'er going for.
aaronc7 is offline   Reply With Quote
Old 02-05-2012, 04:38 AM   #36
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

Is there anything wrong with a .42a/r?

Or t3s?
http://item.mobileweb.ebay.com/viewi...id=14184316342
curly is offline   Reply With Quote
Old 02-05-2012, 05:11 AM   #37
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

T3 is fine, but you're gonna want a small T3, as far as T3 frames go. Compare that tubine wheel to one of the T25 ones... 53mm vs 63mm, big diff. Without referencing, that's probably closer to 3071...probably bigger than what you want. Braineack is running a small 53 china....I forget the ddetails but its posted. I think I recall seeing clos512 oor whatever his name is, is running small T<e as well. If you think you'd wanna go bigger later, getting T3 now not a terrible idea (think bigger than 2871 or 350whp). T25 definitely more common around here....id probably just go with that for a little 1.8. Before I got my garrett I had the speedyracer honda 2870..I think if you search 2870 it comes up on ebay. Pretty good specs an reletively low wg spring pressure. Another proven one that's similar is the godspeed GT28.....86 AR too, only thing I didn't like was it advertised 14psi wg actuator, I think. Writing from my phone so just going off the top of my head, and forgive my typos.
aaronc7 is offline   Reply With Quote
Old 02-05-2012, 05:39 AM   #38
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

http://item.mobileweb.ebay.com/viewi...id=33391135900

Like so? Hopefully the mobile web link works. I do like that one, especially with the wastegate on the turbine housing.
curly is offline   Reply With Quote
Old 02-05-2012, 02:18 PM   #39
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by curly View Post
http://item.mobileweb.ebay.com/viewi...id=33391135900

Like so? Hopefully the mobile web link works. I do like that one, especially with the wastegate on the turbine housing.
Check the compressor and turbine wheel specs with Garrett's...I think both the turbine and the compressor are larger than the GT2860rs. I think you should find a GT2560 copy until you have a built engine to get a proper Garrett GT2860rs.
hustler is offline   Reply With Quote
Old 02-05-2012, 09:59 PM   #40
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

Ok, I've ordered my turbo.

I ignored all of you, but will wait until I officially measure it to tell you the sizes. Preliminary guesses put it at about a 2871 with a .86 A/R.
curly is offline   Reply With Quote
