Quote:
Originally Posted by miata39 View Post
Nice and simple intercooler piping, i like it....

Hoping the bbq paint lasts, if so ill do mine with that too.
No PS/AC FTW.

Just get the VHT, the BBQ paint is no cheaper. I just picked it up because I liked the idea aluminum color instead of silver or black, and I was at ACE hardware, not a car parts store.
curly is offline   Reply With Quote
Old 04-05-2012, 01:11 AM   #122
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

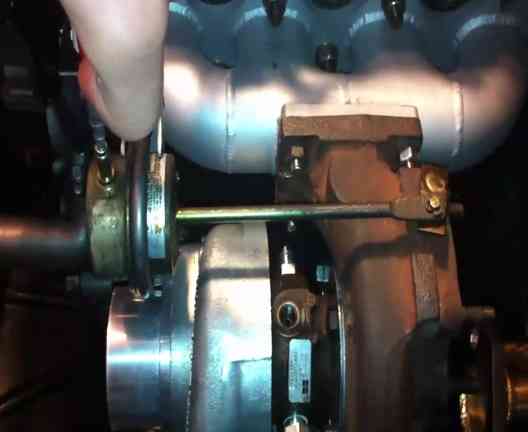

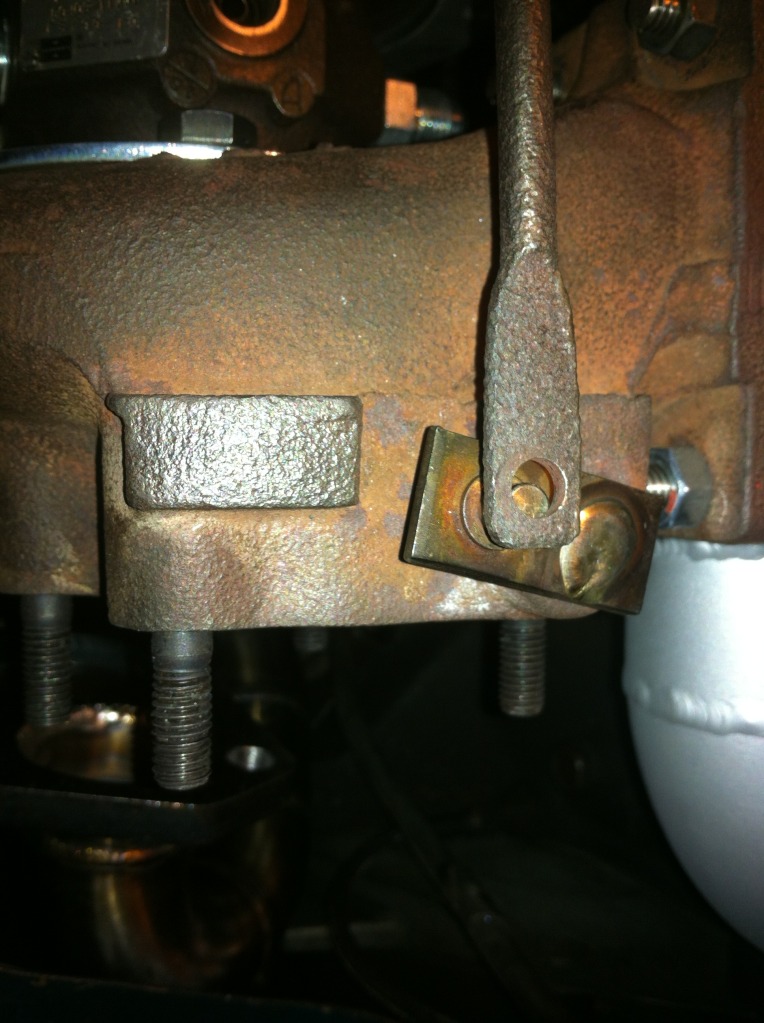

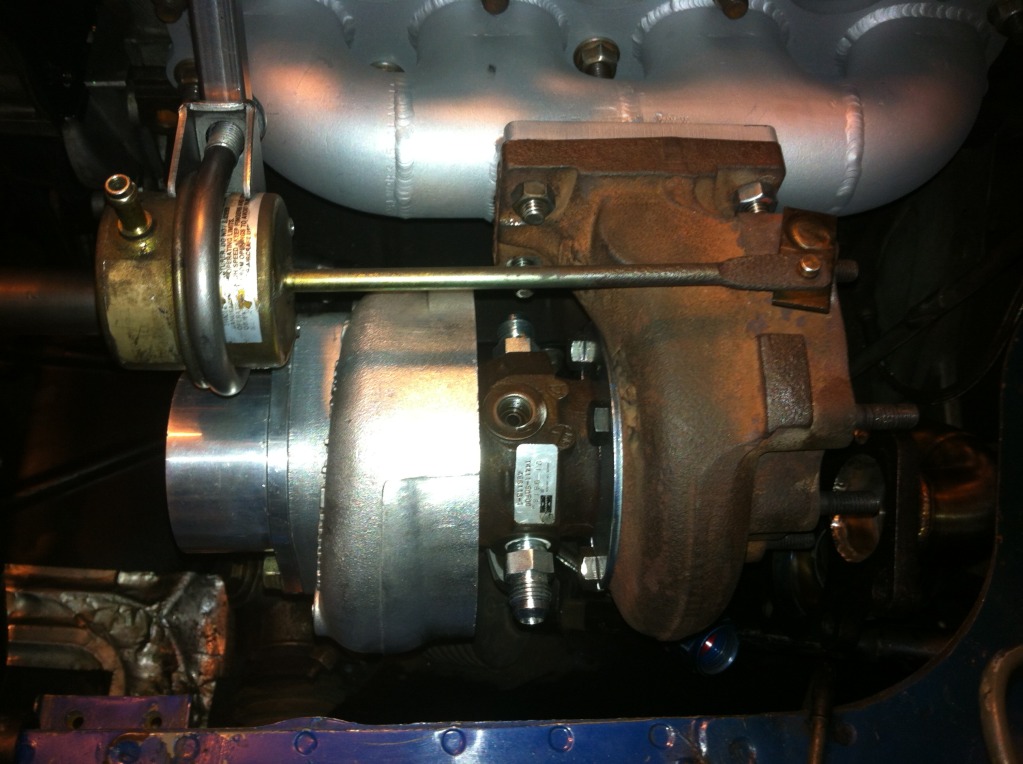

I hate wastegate flex. So here's my solution, hopefully it'll work out. Still have to cut it to length, deburr it, and possibly paint it.




I do have to stretch it a bit to slip it on, think it'll cause over boosting issues? I'm not sure what it's built for, but I'm aiming for 12ish psi, so I hope this is a 7-8psi can.



Attached Thumbnails

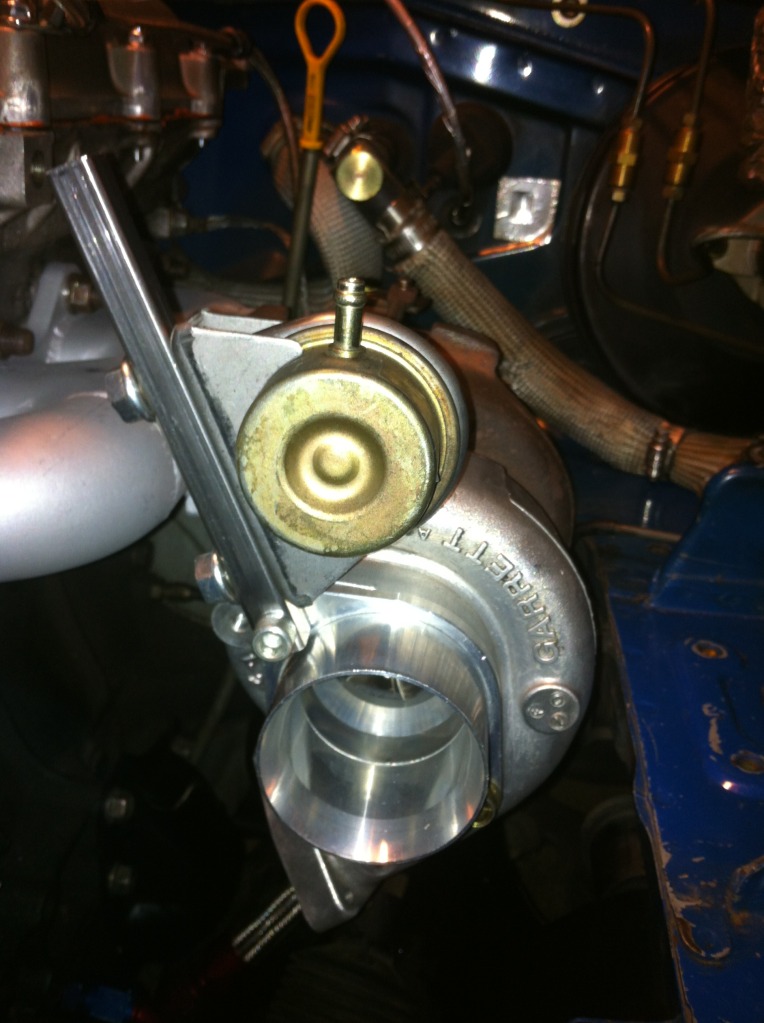

Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-img_1567.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-img_1568.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-img_1570.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-th_img_1571.jpg
curly is offline   Reply With Quote
Old 04-27-2012, 11:01 PM   #123
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

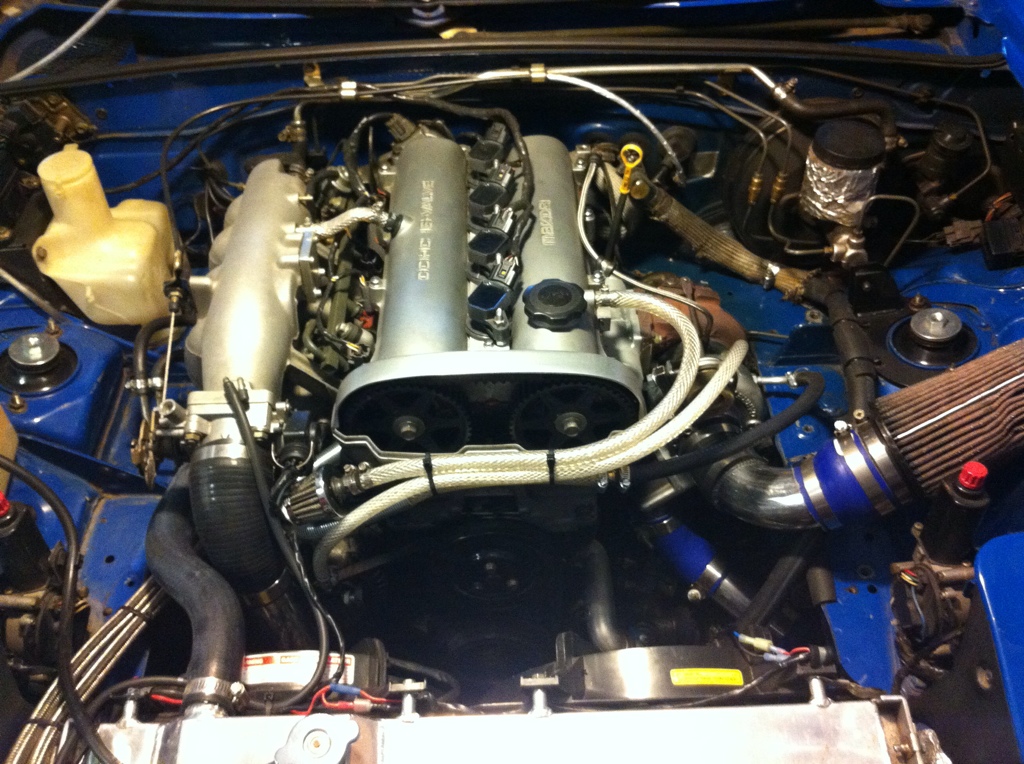

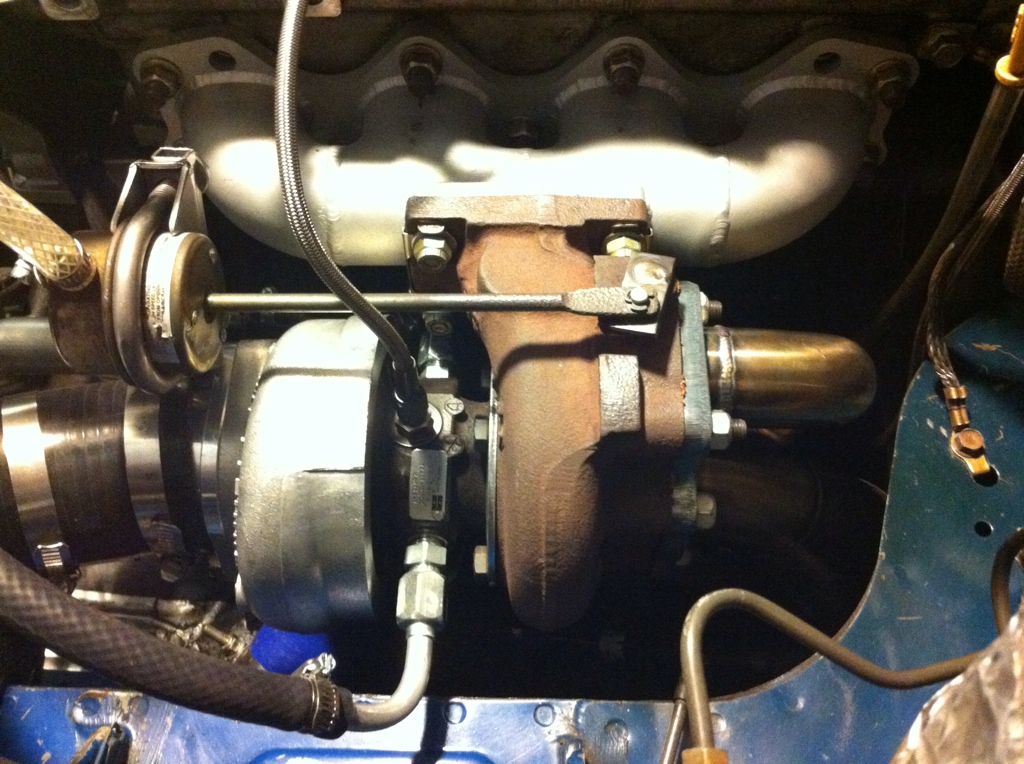

Annnnnndddddd done. Well, running at least.






Only victim in the test drive was a leaking water hose with a clamp I forgot to tighten. I'll eventually replace the whole length with one piece to get rid of the connection and to use better hose.

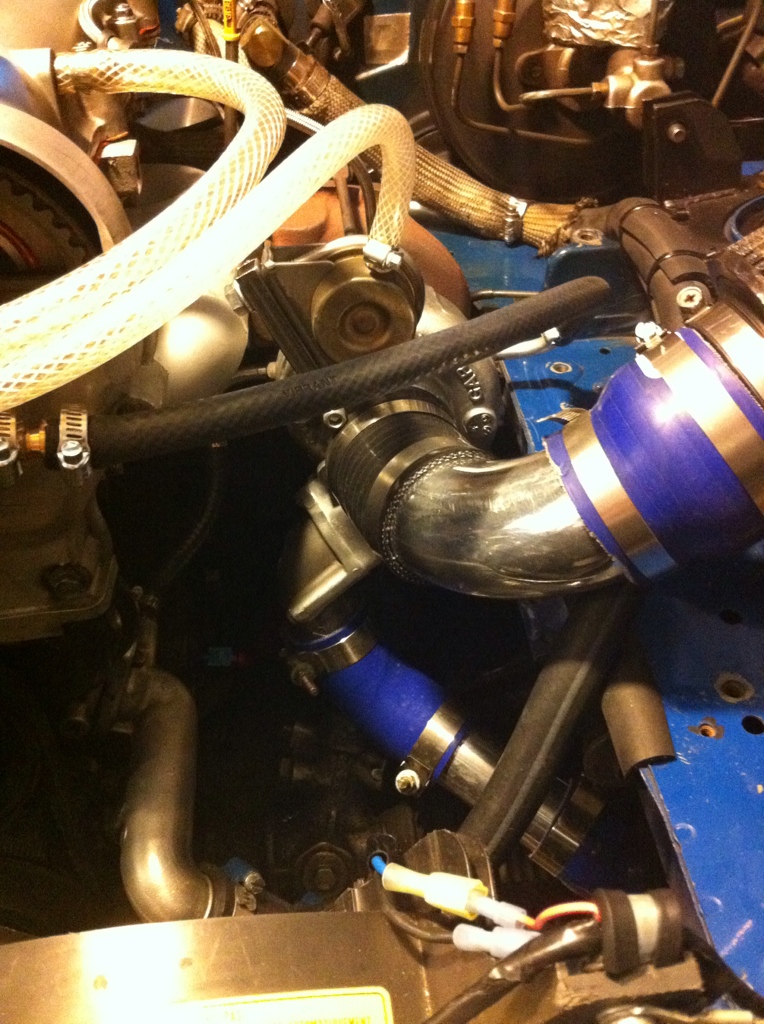

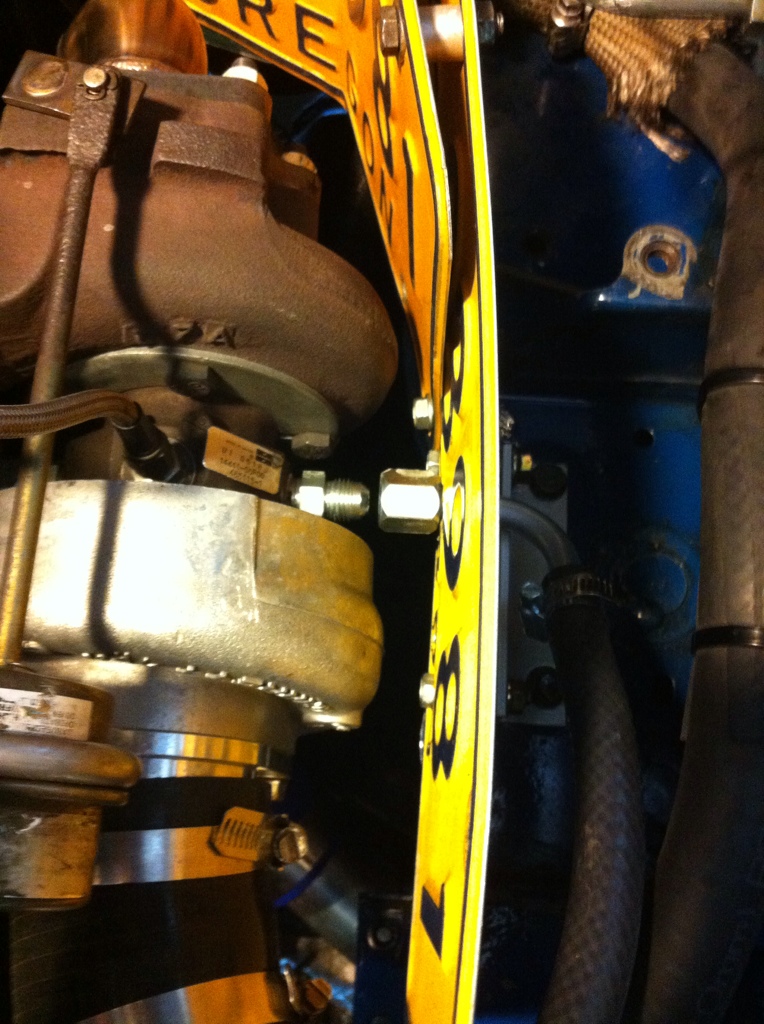

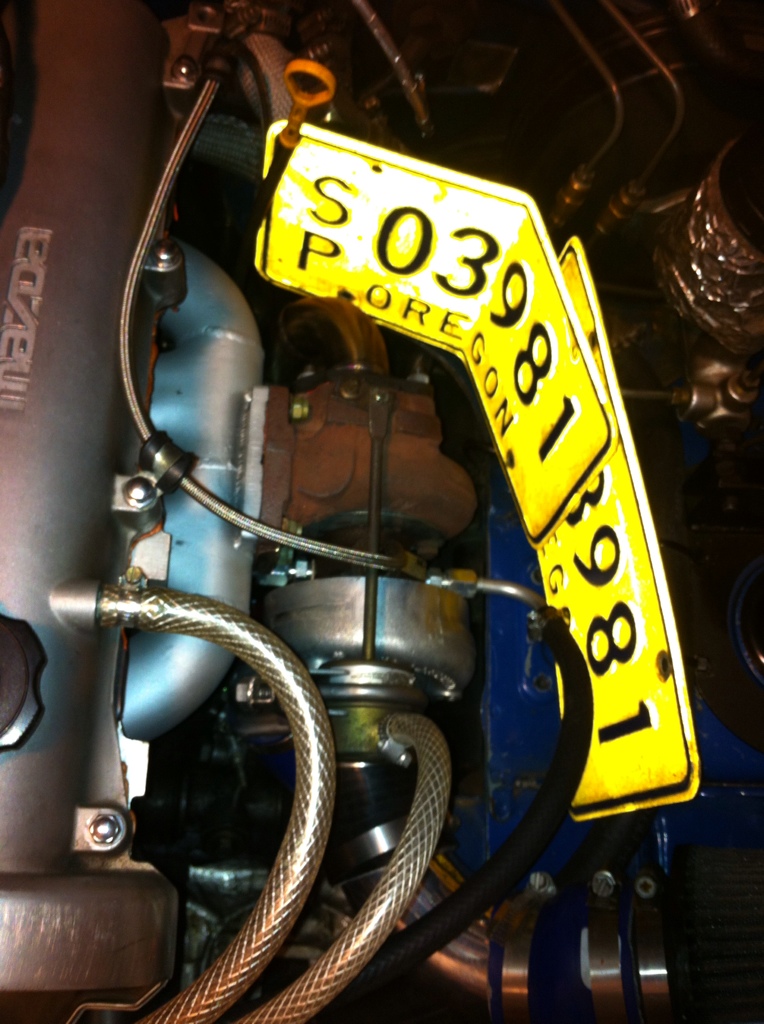

Here's the start of my heat shield. Dunno if I'm actually going to use license plates or if they're just for mock up. The water line will obviously go behind the heat shield. Held on with aluminum and angle iron eventually.
Attached Thumbnails

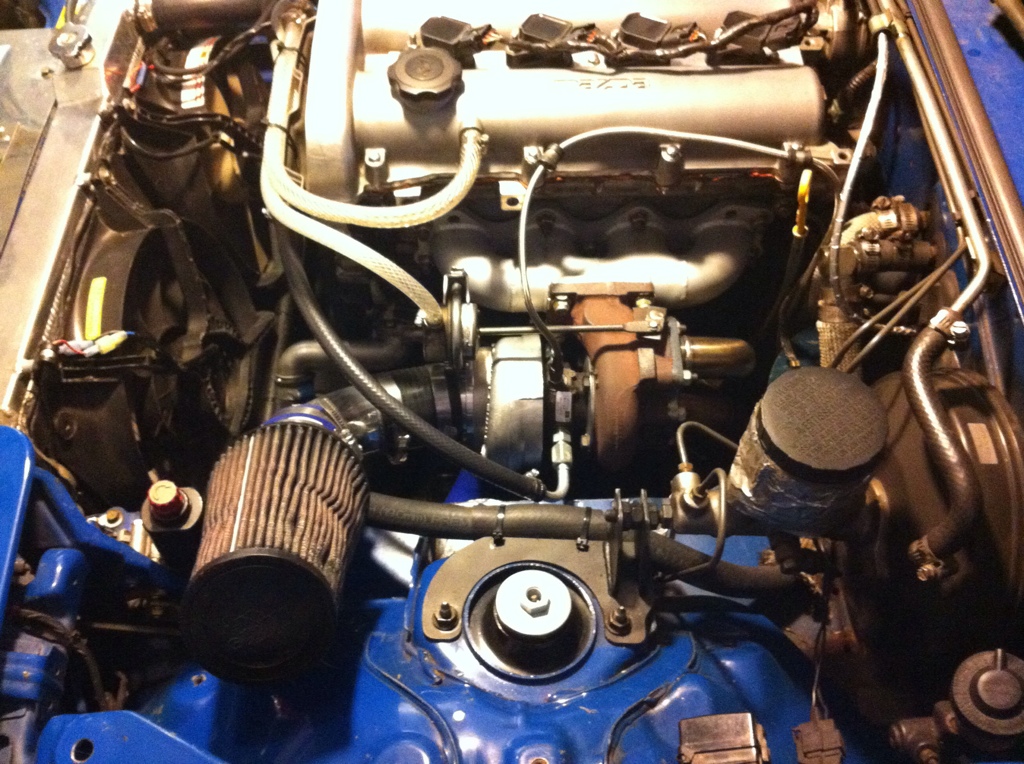

Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-ffb636b8.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-30506b52.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-aa73a293.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-7c83bad1.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-42249a19.jpg

curly is offline   Reply With Quote
Old 04-27-2012, 11:50 PM   #124
Junior Member
iTrader: (5)

Join Date: Feb 2011
Location: Chicago
Posts: 347
Total Cats: 6
Default

I like the plates, I vote they stay!
flying_solo is offline   Reply With Quote
Old 04-28-2012, 02:15 PM   #125
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Nice, I used my front license plate for a heatshield too. I was pulled over for no front plate so I opened the hood to show the occifer, but they were burned. Got a ticket anyway.
dgmorr is offline   Reply With Quote
Old 04-28-2012, 03:44 PM   #126
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Hmm, they're off a 1952 Chevy pickup, the first project vehicle my dad and I worked on together. They're kind of special (excuse the pun). I don't want them to get burned, but I don't mind bending them...we'll see.
curly is offline   Reply With Quote
Old 04-28-2012, 04:40 PM   #127
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by curly View Post
Manifold is painted with aluminum BBQ paint, I think 300* cooler than VHT, only 1200. I hope it lasts.
Manifold and DP are not stainless? Looks DAMN good either way!
EO2K is offline   Reply With Quote
Old 04-29-2012, 02:25 AM   #128
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

No, abe says it's more expensive, and even the best stainless (that can be used on a manifold) will eventually rust. So I went with mild, and painted only the manifold. The dp is partially stainless steel, I saw at least a few "SS 3xxx" tags on the pieces abe welded together, not sure if it's all stainless though. It's unpainted and will hopefully be okay.
curly is offline   Reply With Quote
Old 04-30-2012, 03:17 PM   #129
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by curly View Post
No, abe says it's more expensive, and even the best stainless (that can be used on a manifold) will eventually rust. So I went with mild, and painted only the manifold. The dp is partially stainless steel, I saw at least a few "SS 3xxx" tags on the pieces abe welded together, not sure if it's all stainless though. It's unpainted and will hopefully be okay.
Even on his stainless DPs he uses non-stainless for the flange (warp prevention?). At least that's what he was doing a few years back.

This was confirmed when I tried 'pickling' the exhaust not realizing the flange wasn't stainless ... the flange oxidized like a **** while the 3XX SS tubing looked untouched.

If it were mine, I'd at least coat the flange seeing as mines managed to rust sitting inside a garage for a year and a half unused.

-Zach
thasac is offline   Reply With Quote
Old 04-30-2012, 03:20 PM   #130
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

do you not have a prop valve?
Braineack is offline   Reply With Quote
Old 04-30-2012, 07:44 PM   #131
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by Braineack View Post
do you not have a prop valve?
He's running it near the trans tunnel I believe ... the info is in a brake thread somewhere.

-Zach
thasac is offline   Reply With Quote
Old 04-30-2012, 09:09 PM   #132
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by Braineack View Post
do you not have a prop valve?
I run "all of it" with my brakes.

Must find shittyest pictar for the brain...



Obviously there's no bipes anymore, but the center console is in right now, covering the bias control. It only comes out for race days, since I can actually daily the car now that it has MS. If I really want to.
Attached Thumbnails

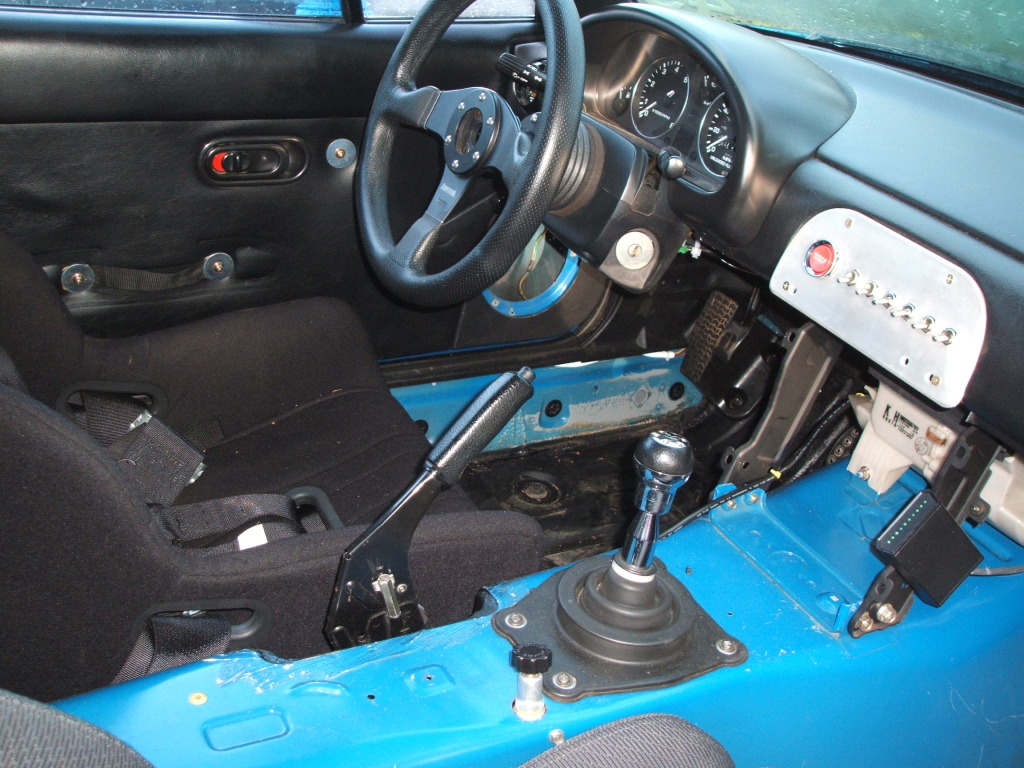

Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-dscf3295.jpg
curly is offline   Reply With Quote
Old 05-04-2012, 09:47 AM   #133
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

Curly, regarding that actuator arm. That's how mine looked on my gt2560 and it WAS overboosting. BUT, that wasn't the cause, it's should have a little pressure on it to keep it shut.
Erat is offline   Reply With Quote
Old 05-04-2012, 07:01 PM   #134
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by Erat View Post
Curly, regarding that actuator arm. That's how mine looked on my gt2560 and it WAS overboosting. BUT, that wasn't the cause, it's should have a little pressure on it to keep it shut.
Sounds right, because it's been running perfectly.

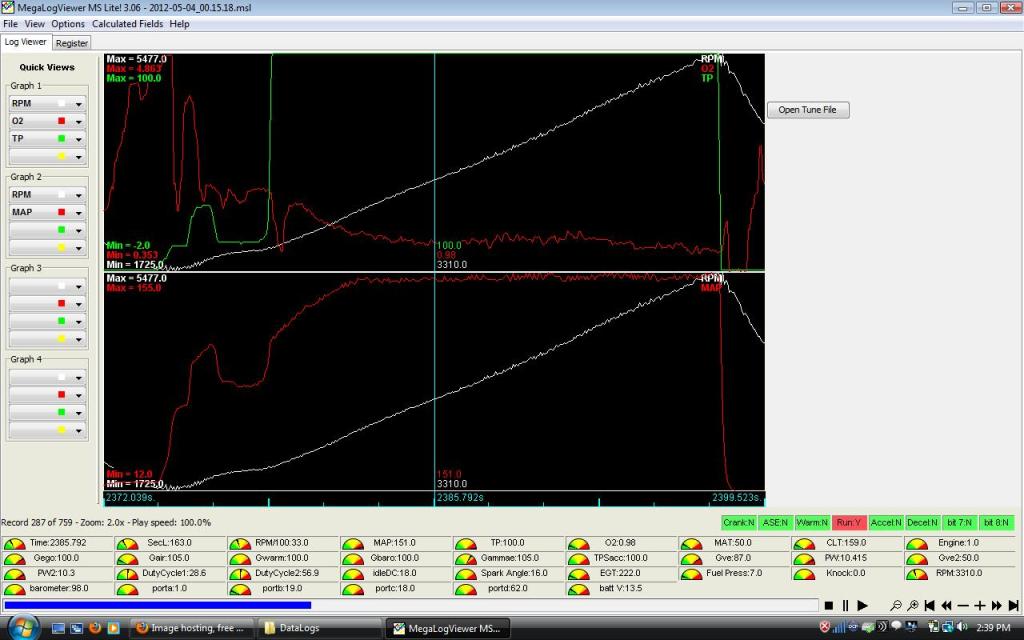

Here's a pic of my log, I haven't used megalog viewer in a while, is O2 supposed to be my AFR?



From the moment I stabbed the throttle to the max MAP reading is 4 time units in MLV, what is that, .4 seconds? This little SR20 is fast! Looking at the log and my tune, I have three rows of unused fuel cells up top. What's 150? I can't seem to manipulate the numbers to get the 7 or 8 psi it should be at. Once I up it to 10psi, which should be right around 200hp, I'll scale the fuel table to have only one row for a safety margin and be able to have a little extra resolution.

Found out my #4 injector is leaking, so with a choppy idle, I purchased $60 in injector seals () to take care of it before anything happens. Steep yes, but I wanna do around 3 track days this summer, so I want this taken care of now.

Otherwise after welding a few leaks in the exhaust and going for an hour long drive, nothing went wrong and the car is an absolute blast. I'll be tinkering around with the heat shield and a few other minor things until my injector seals come in on the 11th :(
Attached Thumbnails
Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-mlogpic.jpg
Attached Files
File Type: msq CurrentTune.msq (39.8 KB, 67 views)
File Type: msl 2012-05-04_00.15.18.msl (97.5 KB, 52 views)
curly is offline   Reply With Quote
Old 06-11-2012, 11:50 PM   #135
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Not what you want to see after a nice summer's drive:


In the past month or two, I've fixed:

leaky front main seal
leaky CAS o-ring
leaky oil cooler fitting (pass side)
leaky fuel injectors (didn't fix it)

and today was:

leaky fuel rail (that fixed it)
leaky oil cooler fitting (driver's side)
leaky coolant line.

All of that of course, on the day I sign up for a track day 4 weeks out.

Oh well, for the time being it's all leak free. Except the transmission, which needs it's output seal replaced
Attached Thumbnails
Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-a2f24832.jpg
curly is offline   Reply With Quote
Old 06-11-2012, 11:58 PM   #136
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

Did that line really back itself out from the fitting?
viperormiata is offline   Reply With Quote
Old 06-12-2012, 12:10 AM   #137
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Yup, hadn't touched a damn thing when I took the picture, aside from opening the hood.

Noticed it was over heating 1.5 miles from home, turned the fans on, heater on full, backed WAY off, and prayed it wasn't anything horrible. Unfortunately I was lured into a false sense of security when my mechanical gauge started to read lower when I turned the fans on. I think the fans just cooled the sensor, since it's right behind them. Lame.

I also have no idea if it was over heating before I noticed the gauges. I tend to be extremely observant, but you never know. I went back in my DD and searched the last 5 miles of my trip twice and found no indication of a huge puddle of coolant. I'm hoping it was only a slow leak, so there was still some coolant circulating till I was close to home.

Unfortunately the line runs behind the license plate and then takes a 90* turn towards my water source (intake manifold), and is under a little bit of tension. So as soon as it came loose, it was pried apart, as shown in the picture.
curly is offline   Reply With Quote
Old 06-12-2012, 12:28 AM   #138
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Awesome.

T25 > Churbo.
Nagase is offline   Reply With Quote
Old 07-25-2012, 01:48 PM   #139
Junior Member
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

im running pretty much the same as this set up.. did you just remove the coolant pipe from under the mani and loop it around?

how do you find the T25? any lag? whats the boost threshold like?

Cheers Curly
rhysmate is offline   Reply With Quote
Old 07-25-2012, 11:48 PM   #140
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by rhysmate View Post
im running pretty much the same as this set up.. did you just remove the coolant pipe from under the mani and loop it around?

how do you find the T25? any lag? whats the boost threshold like?

Cheers Curly
I'll address these one at a time.

The mixing manifold, which is what the hard line under the stock manifold goes into, was flipped 180* with a 90* hose and piece of straight pipe used to connect it to the lower radiator outlet. The old hole where the pipe entered needs a plate welded on top.

In that straight piece of pipe used I inserted a T connection to connect the old heater line.

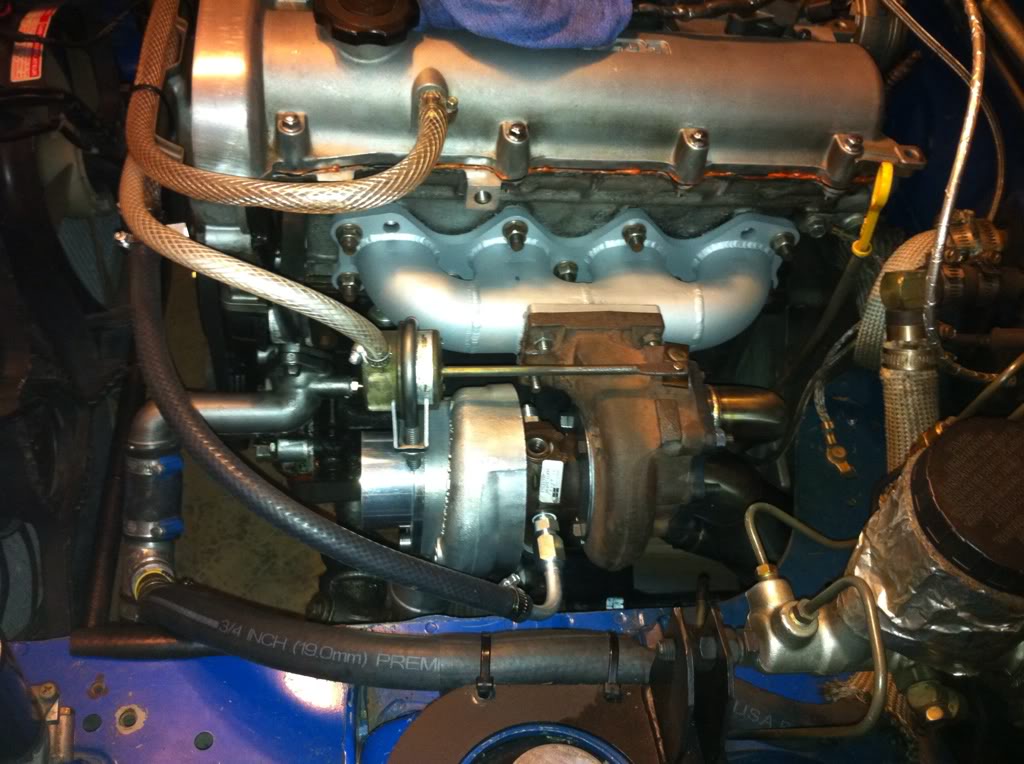

You can see that T connection here:

The stock water line outlet was pulled out, tapped for 1/8 NPT and a hose barb threaded in for the turbo coolant feed.

I found the T25 in the classifieds here.

Once you're above 3,000 rpm, which is basically any time cruising around the street or on the track, the boost builds almost immediately. Unless you're bashing your foot down, it builds pretty much just as fast as you apply the throttle.

Not sure what you're asking about with the boost threshold question. It's at 5psi by 2800rpms, 10psi by 3200.
Attached Thumbnails
Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-f11c39c5.jpg
curly is offline   Reply With Quote
