Old 02-09-2012, 04:08 AM   #61
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Ah, well post here when you know more. Or tell Abe to.

Edit: oh you're just buying the same turbo? And I'm doing the work? I get it now. I'll tell you when I know more.
curly is offline   Reply With Quote
Old 02-09-2012, 05:26 AM   #62
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Bingo, I'm leeching off of you for profit and easiness.
blaen99 is offline   Reply With Quote
Old 02-09-2012, 10:49 AM   #63
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Turbo hasn't come in yet, but I'll let you know as soon as it does.

For now, here's something I noticed. I know there chinachargers out there that use a non-standard DP flange. I was looking at the pics of the turbo you linked, and it doesn't quite look right:

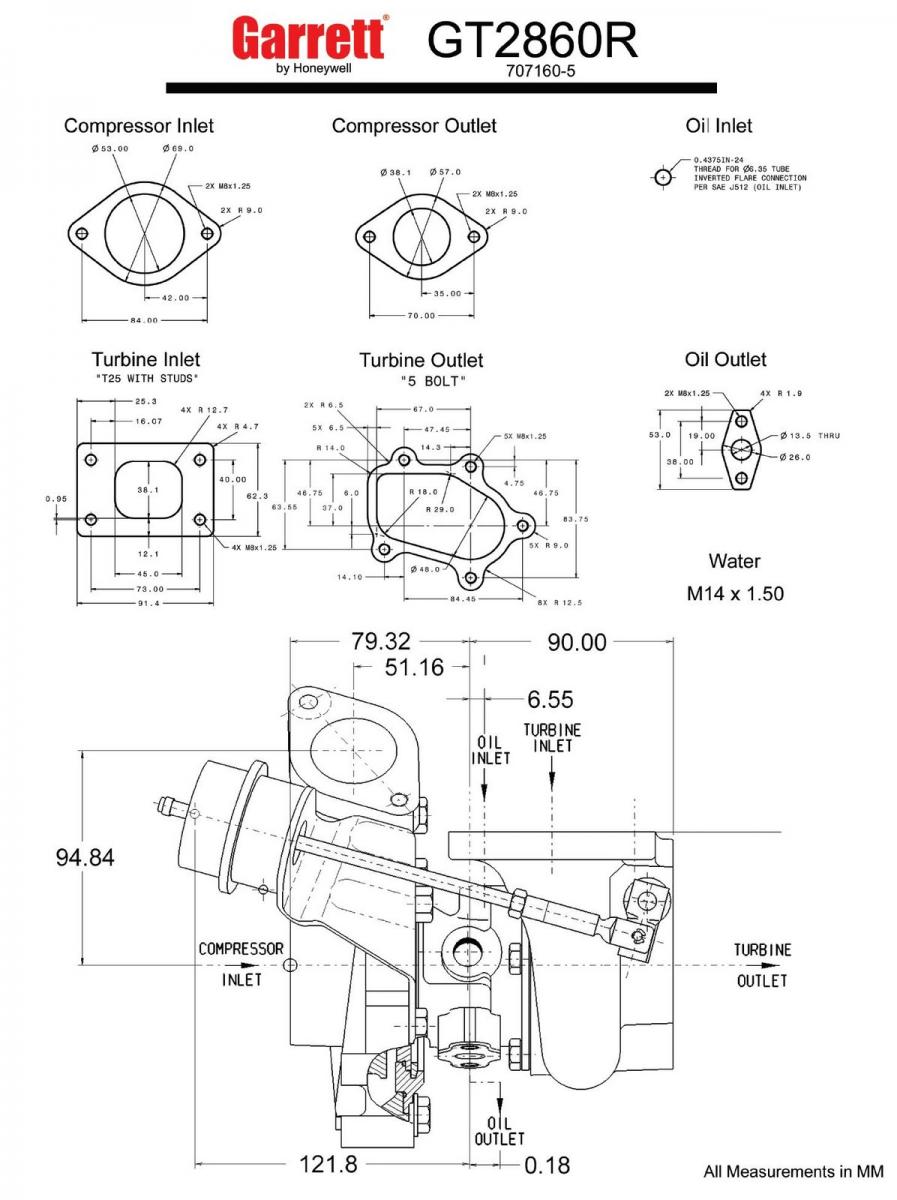

Garrett:

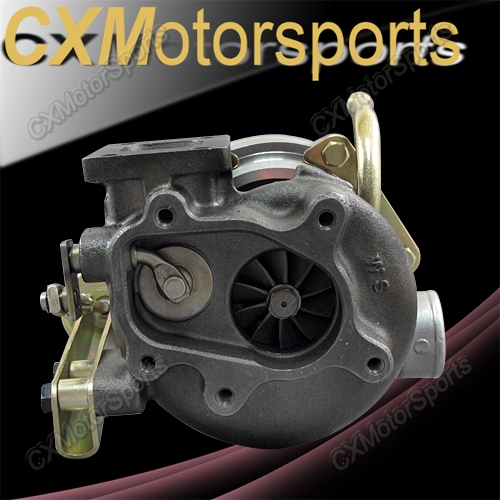

Churbo:



Hopefully I'm wrong, but if the flange is not a Garrett standard flange, I don't know where to get a one that fits. Can you find out from the seller?
Attached Thumbnails
Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-garrett-gt28r-turbo-707160-5-gt2860r-dual-ball-bearing-measurements-mm-turbocharger-flanges-d.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-cxm-trb-t28-2-4.jpg
ARTech is offline   Reply With Quote
Old 02-09-2012, 04:06 PM   #64
Reverse Cerberus
iTrader: (10)

mrryanbaker's Avatar

Join Date: Oct 2008
Location: Vancouver, WA
Posts: 131
Total Cats: 5
Default

Quote:
Originally Posted by ARTech View Post
Hopefully I'm wrong, but if the flange is not a Garrett standard flange, I don't know where to get a one that fits. Can you find out from the seller?
It actually is the correct flange, but the cavity is a different shape on the churbo so it makes that bottom bolt look way off. The Garrett dips toward that bolt, but the churbo doesn't.

I had one of these turbos, but sold it before I installed it because I wanted something that would make more power. The studs fit my fancy ARTech downpipe just fine.

Things in churbo land can change at any second though, so your mileage may vary.
mrryanbaker is offline   Reply With Quote
Old 02-09-2012, 06:00 PM   #65
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Says it was delivered? You're making me nervous.
curly is offline   Reply With Quote
Old 02-09-2012, 06:08 PM   #66
Reverse Cerberus
iTrader: (10)

mrryanbaker's Avatar

Join Date: Oct 2008
Location: Vancouver, WA
Posts: 131
Total Cats: 5
Default

Quote:
Originally Posted by curly View Post
Says it was delivered? You're making me nervous.
It was 6:45AM PST when he posted that, so just before 9AM his time. I don't think the postman gets up that early

You know how it is here in the NW, if you get the mail before it gets dark then you're having a good day.
mrryanbaker is offline   Reply With Quote
Old 02-09-2012, 06:13 PM   #67
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Is this not my flange? The second top bolt looks closer to the third, like in the eBay picture...
http://www.atpturbo.com/mm5/merchant...egory_Code=BCS
curly is offline   Reply With Quote
Old 02-09-2012, 09:14 PM   #68
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

I did get the turbo today, and it's definitely not a Garrett flange. Take a look:

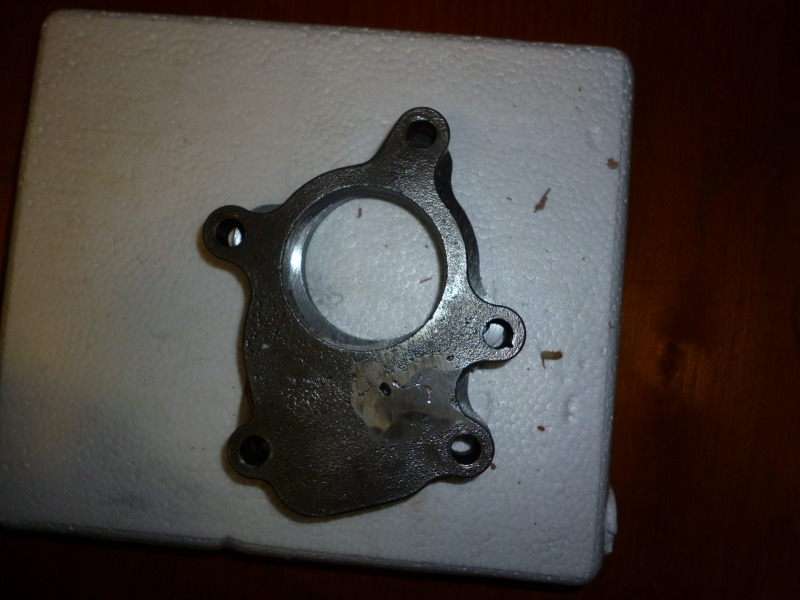

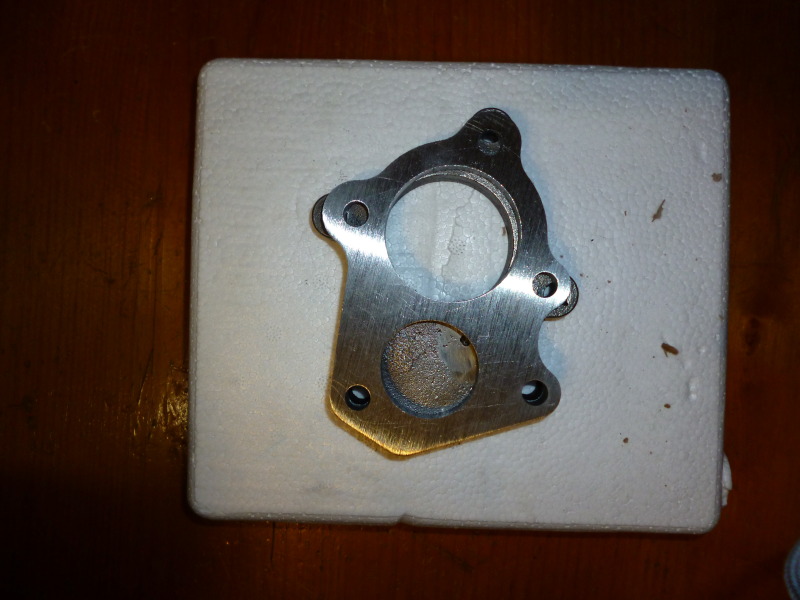

Garrett flange over the flange that came with the turbo

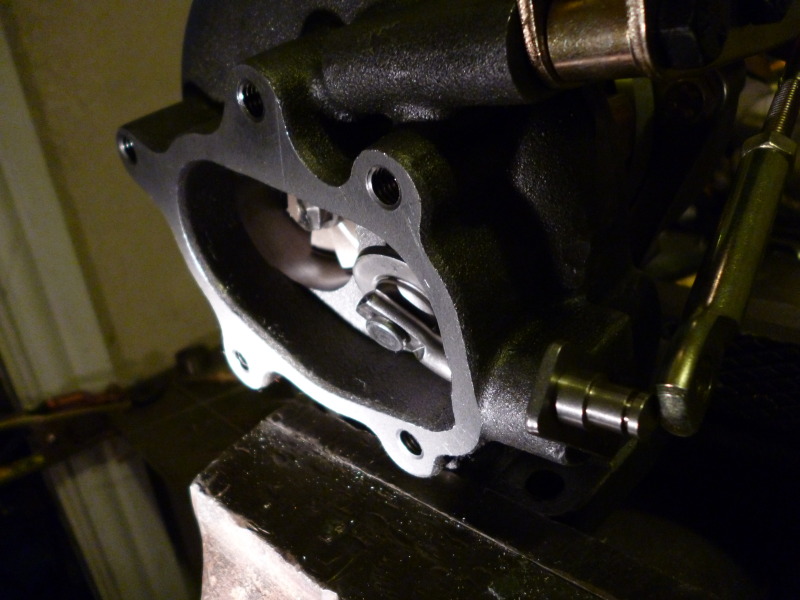

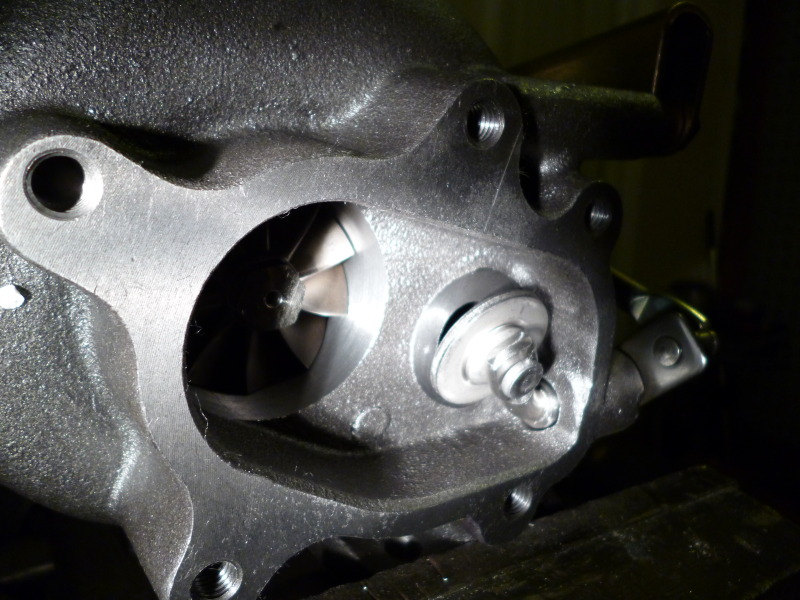

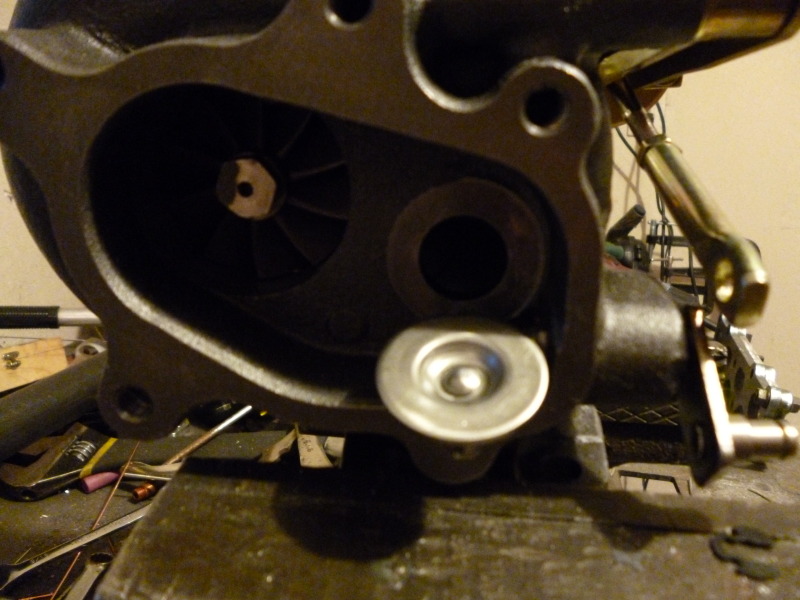

This turbo's flange, on top



So they did supply a flange, but it's a non separated flange. AFAIK no one makes a separated/divorced flange for this turbo, so the only DP I can make with the supplied flange will be a single exhaust pipe like this:



Also, the flange is a 1/2" solid cast piece. There is no cavity on the back side, so the WG flapper will be limited to just a few degrees of range. About this far open:





This along with a smaller than Garrett WG hole, I think, will lead to boost creep.

CXracing:

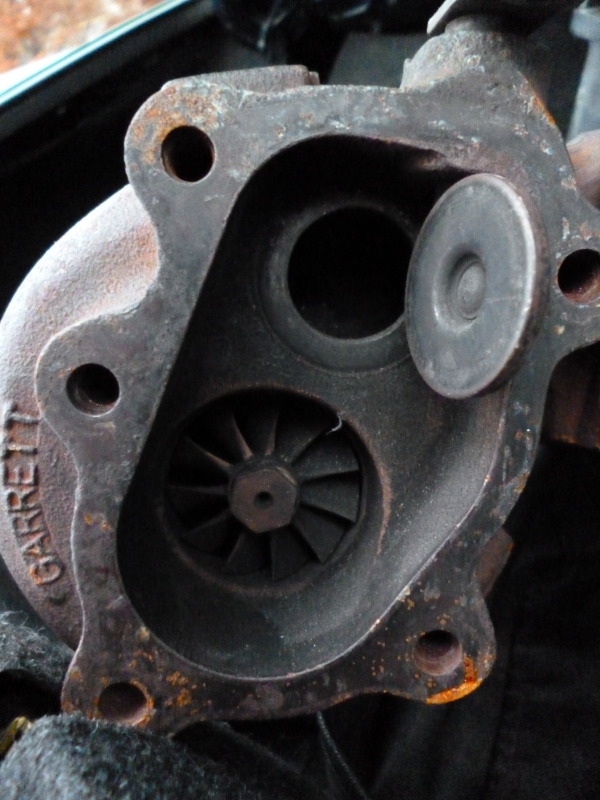

Garrett



So what do you think? Do you still want to use this turbo?
Attached Thumbnails
Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-p1020170.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-p1020171.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-109_0651.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-p1020179.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-p1020180.jpg

Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-p1020177.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-p1020178.jpg
ARTech is offline   Reply With Quote
Old 02-09-2012, 09:15 PM   #69
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

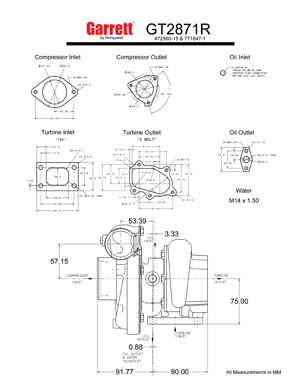

Is this the one I need?


edit: shitty picture, how'd you get that big one?
http://www.turbobygarrett.com/turbob...1847_1_new.pdf
Attached Thumbnails
Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-garrett_gt2871r_472560_15_771847_1_new.gif
curly is offline   Reply With Quote
Old 02-09-2012, 09:21 PM   #70
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Attached Thumbnails
Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-fls026-01.jpg
curly is offline   Reply With Quote
Old 02-09-2012, 09:47 PM   #71
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Neither of those will work.
ARTech is offline   Reply With Quote
Old 02-09-2012, 10:07 PM   #72
Junior Member
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

FWIW my 2871 chinacharger from BEGi fits Artech's 3" downpipe.
lsc224 is offline   Reply With Quote
Old 02-10-2012, 01:53 AM   #73
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by ARTech View Post
Neither of those will work.
So basically I don't wanna use the flange that came with the turbo. I worry about compatibility with either a replacement china charger or a genuine Garrett should I ever upgrade.

If we can find a Garrett flange that works, great, otherwise I'll be trying something else, and I'll definitely be communicating with you more about it.

Is this a known issue with chinachargers? I know the wastegate bracket is a new design, but BEGI sells the same downpipe for their chinachargers and garrett turbos, so I don't understand what the issue is.
curly is offline   Reply With Quote
Old 02-10-2012, 02:12 AM   #74
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,067
Total Cats: 253
Default

Quote:
Originally Posted by curly View Post
I don't understand what the issue is.
Not all chinachargers use the same flange, that's the issue. Begi only sells china turbos that use the standard Garrett flange.

18psi ran into a similar situation with his ebay 3076

Contact the seller of the turbo and ask for flange.
viperormiata is offline   Reply With Quote
Old 02-10-2012, 02:14 AM   #75
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I did contact them 20 minutes before they closed today, haven't heard back yet. I'm guessing if they do anything they'll offer another flange like the one I already have. That or this is a china error in machining or casting they haven't addressed with the new design.
curly is offline   Reply With Quote
Old 02-10-2012, 03:05 AM   #76
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Why couldn't we just grind out the material we don't want from the supplied flange?
blaen99 is offline   Reply With Quote
Old 02-10-2012, 03:18 AM   #77
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

You could take a hole saw and modify it, yes, but like I said you'd have a fairly custom downpipe that wouldn't work with anything else. I wanna be able to bolt the stock turbine housing on Hustler's turbo and bolt it on my setup when he's too chicken to continue tracking his car.

I really think this is a temporary casting flaw, something they'll fix down the line. For now I'll most likely return it for something else, which will probably require bolt on flanges for the compressor inlet/outlet.
curly is offline   Reply With Quote
Old 02-10-2012, 03:24 AM   #78
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by curly View Post
You could take a hole saw and modify it, yes, but like I said you'd have a fairly custom downpipe that wouldn't work with anything else. I wanna be able to bolt the stock turbine housing on Hustler's turbo and bolt it on my setup when he's too chicken to continue tracking his car.

I really think this is a temporary casting flaw, something they'll fix down the line. For now I'll most likely return it for something else, which will probably require bolt on flanges for the compressor inlet/outlet.
Got any ideas on what you plan on swapping for? I may follow your lead there, or I may just stick with this turbo as when I upgrade to a 1.8 engine, I'm going all Artech, so a fucked up DP doesn't matter much to me.
blaen99 is offline   Reply With Quote
Old 02-10-2012, 01:09 PM   #79
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by curly View Post
I really think this is a temporary casting flaw, something they'll fix down the line. For now I'll most likely return it for something else, which will probably require bolt on flanges for the compressor inlet/outlet.
I'm not so sure about that. I recall seeing quite a few of these cases come up on a handful of other forums as well - Civic and DSM forums more specifically.
dgmorr is offline   Reply With Quote
Old 02-10-2012, 01:17 PM   #80
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

No worries, I'm already on the hunt for something else.
curly is offline   Reply With Quote
