Default Donkey-MZR swapped NA

When you have several NC drop outs lying around the shop leftover from V8 conversions and you acquire a NA spec Miata roller, it's only natural to wonder what if?...Can we make all this work together using the stock parts we have on hand and a little fabrication? Anything is possible right?
Well we did. And the result was a fun, light, track car that's a blast to drive.
For its maiden voyage, we hauled it across country to Laguna Seca where we literally drove the tires off of it(old Hoosiers)



unk577 is offline   Reply With Quote
Old 07-08-2016, 02:32 PM   #2
Junior Member
iTrader: (1)

Downmented's Avatar

Join Date: Oct 2014
Location: Annapolis, MD
Posts: 485
Total Cats: 56
Default

Information please on mounting solution, trans and other custom bits required to get this in there. A friend and I have been considering a MZR DISI into an NA as well. Seems like youve done the leg work lol
Downmented is offline   Reply With Quote
Old 07-08-2016, 04:02 PM   #3
Junior Member
Thread Starter

Join Date: Jan 2009
Posts: 142
Total Cats: 23
Default

In short.. A mount less subframe from V8R, placed the engine, fabbed mounts, the fabbed a trans mount and diff mount since the is no longer a PPF, fabricated mounts for the NC radiator. Unless you are required to run a Mazda engine there are better options out there from a $ vs power,labor, support point of view.

The problem with the MZR-DISI is the high pressure fuel pump, it won't allow you to get the motor far enough back.

I will post more pics as soon as I get them downloaded

Last edited by unk577; 07-09-2016 at 08:00 AM.
unk577 is offline   Reply With Quote
Old 07-08-2016, 04:46 PM   #4
Junior Member
Thread Starter

Join Date: Jan 2009
Posts: 142
Total Cats: 23
Default

While at Laguna, Austin for tracktuned.com got some seat time and posted an article

http://www.tracktuned.com/feed/2015/...apped-na-miata


Last edited by unk577; 07-09-2016 at 11:29 AM.
unk577 is offline   Reply With Quote
Old 07-08-2016, 08:31 PM   #5
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

Can you take pictures showing the oil pan to rack clearance? Leafy has been doing a 2.5 swap - which has a lot more potential than the 2.0, but he had to move the rack forward for it to clear.
asmasm is offline   Reply With Quote
Old 07-08-2016, 08:37 PM   #6
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,841
Total Cats: 1,256
Default

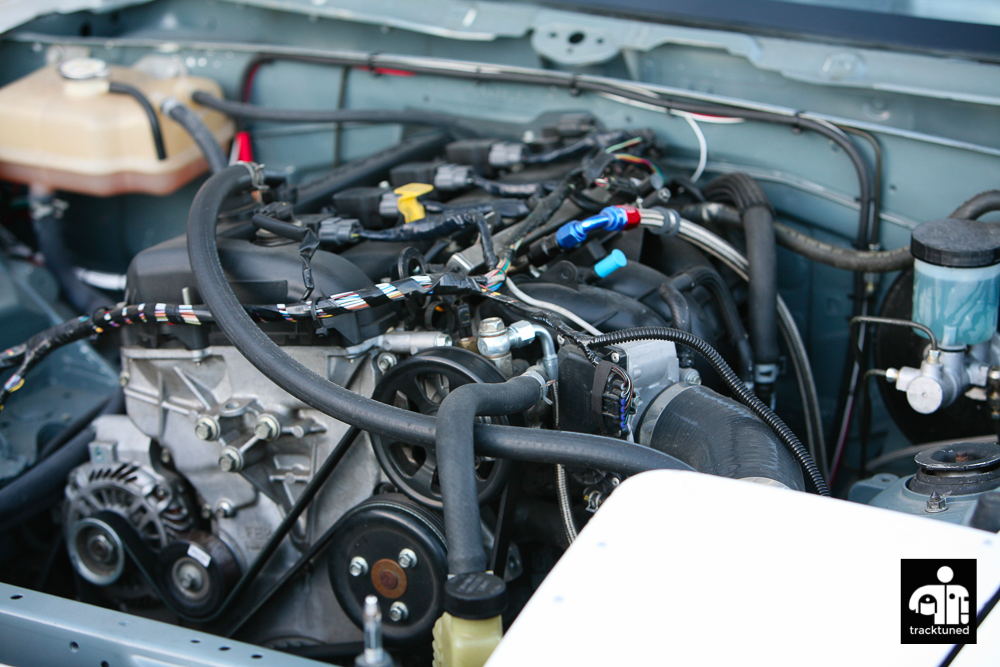

real question. how did you get ate blue.

Donkey-MZR swapped NA-xcnuxk6.png
aidandj is offline   Reply With Quote
Old 07-09-2016, 09:03 AM   #7
Junior Member
Thread Starter

Join Date: Jan 2009
Posts: 142
Total Cats: 23
Default

Quote:
Originally Posted by asmasm View Post
Can you take pictures showing the oil pan to rack clearance? Leafy has been doing a 2.5 swap - which has a lot more potential than the 2.0, but he had to move the rack forward for it to clear.
ill go through the pictures I have and see if I can find one, but the motor sits pretty far back and the firewall is modified up top by the cowl.
unk577 is offline   Reply With Quote
Old 07-09-2016, 09:13 AM   #8
Junior Member
Thread Starter

Join Date: Jan 2009
Posts: 142
Total Cats: 23
Default

Once we got the car back to Florida we started building the suspension. We put on a full set of control arms from V8R and took it to The FIRM for a test day and thoroughly thrashed the car, finding every piece of curbing we could as well as a few off road excursions. It became very apparent that shocks were needed as the SM setup on the car was long pass needing to be rebuilt. Even though shocks done the car performed well. It was entertaining watching other cars try to follow us into T1 at the end of the long straight as we were able to brake much later than anyone else.

unk577 is offline   Reply With Quote
Old 07-12-2016, 03:31 PM   #9
Junior Member
Thread Starter

Join Date: Jan 2009
Posts: 142
Total Cats: 23
Default

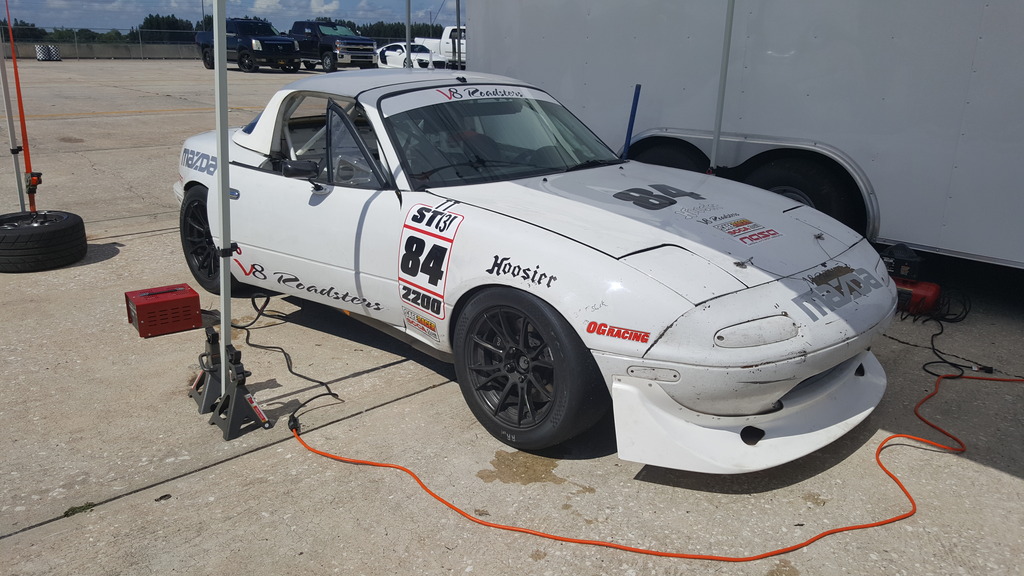

Added CCP Fabrication's light weight hardtop, trunk lid and and front air dam for some aero help. We have a APR wing and a front splitter we made sitting in the shop but didn't have time to get it on the car before the last race.

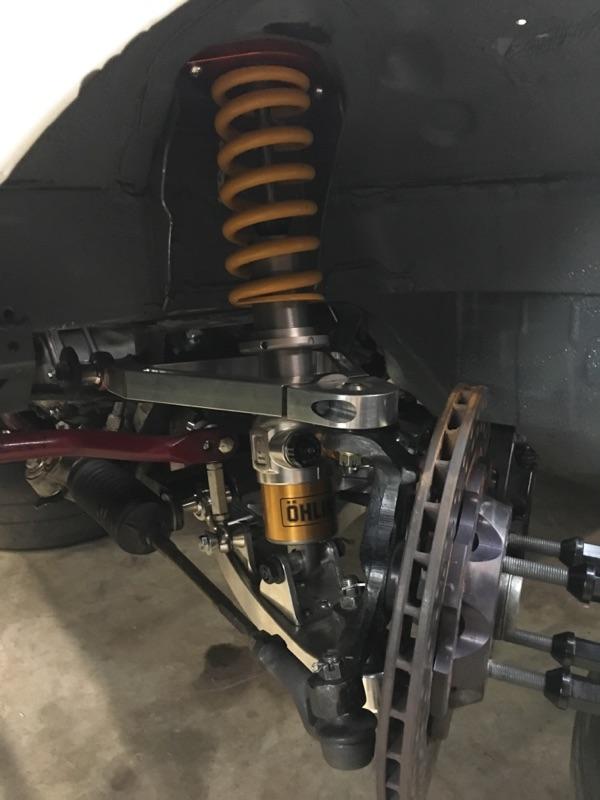

Also stepped up the suspension from the worn out Bilsteins to Ohlins TTX's and V8R's X-Lite control arms which do well around our rough home track of Sebring






Attached Thumbnails
Donkey-MZR swapped NA-image_22.jpeg   Donkey-MZR swapped NA-image_24.jpeg
unk577 is offline   Reply With Quote
Old 07-12-2016, 07:45 PM   #10
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 670
Total Cats: 41
Default

I bet this car is a blast to drive. In for more pictures of the swap.
jpreston is offline   Reply With Quote
Old 07-12-2016, 09:06 PM   #11
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,918
Total Cats: 93
Default

Quote:
Originally Posted by asmasm View Post
Can you take pictures showing the oil pan to rack clearance? Leafy has been doing a 2.5 swap - which has a lot more potential than the 2.0, but he had to move the rack forward for it to clear.
The real question is how deep is that step you added to the firewall. I noticed it after spending an hour analyzing the pics I saw of the car in the MLRS coverage. Looks to be about exactly as far as I moved the rack forward.

For the DIZI if you're already going to section the firewall to get the timing cover behind the steering rack you might as well put a cutout for that too.
Leafy is offline   Reply With Quote
Old 07-12-2016, 09:12 PM   #12
Junior Member
Thread Starter

Join Date: Jan 2009
Posts: 142
Total Cats: 23
Default

Lol, sorry I haven't been around the car in a few days. I'll be working on it tomorrow, I'll grab some more pictures
unk577 is offline   Reply With Quote
Old 07-12-2016, 09:49 PM   #13
Junior Member

Join Date: Jan 2015
Posts: 73
Total Cats: 6
Default

In for more Ohlins TTX on a miata action
Junkwhale is online now   Reply With Quote
Old 07-13-2016, 05:38 PM   #14
Junior Member
Thread Starter

Join Date: Jan 2009
Posts: 142
Total Cats: 23
Default

Pics of the firewall mods. Could have got away with less, as you can fit your hand behind the motor. I'll take another picture once we put the motor back in.






unk577 is offline   Reply With Quote
Old 07-18-2016, 09:08 AM   #15
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,650
Total Cats: 64
Default

the Donkey!
OGRacing is offline   Reply With Quote
Old 07-18-2016, 09:19 AM   #16
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,516
Total Cats: 1,566
Default

is that a 1.6L you couldn't out accelerate at the 0:35 mark?
Braineack is offline   Reply With Quote
Old 07-19-2016, 09:06 AM   #17
Junior Member
Thread Starter

Join Date: Jan 2009
Posts: 142
Total Cats: 23
Default

Not sure what that car had in it, but we would guess that at that time we were somewhere around 140whp on a tired MZR. On the other track from the videos we were a lil over a second faster than a well built/prepared S2000, and much quicker than some slightly modded S2000's. The last motor we had in the car dyno'd at 187whp with more left in it.
unk577 is offline   Reply With Quote
Old 07-19-2016, 11:53 AM   #18
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 670
Total Cats: 41
Default

Any pictures or details on the dry sump yet?
jpreston is offline   Reply With Quote
Old 07-19-2016, 09:03 PM   #19
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,918
Total Cats: 93
Default

Quote:
Originally Posted by jpreston View Post
Any pictures or details on the dry sump yet?
I thought they were using the NC pan like me. Without cutting the firewall like they did even the timing cover and no oil pan installed would hit the steering rack.
Leafy is offline   Reply With Quote
Old 07-20-2016, 09:12 AM   #20
Junior Member
Thread Starter

Join Date: Jan 2009
Posts: 142
Total Cats: 23
Default

First motor was a wet sump. Then we went dry sump. Modding the fire wall and moving the motor back also line up the shifter in the stock location .
unk577 is offline   Reply With Quote
