Finally my 1st (water cooled) turbo build
02-07-2016, 06:47 PM
#481
Elite Member
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: A cave in Va
Posts: 3,395
Total Cats: 456
Well the snow slowed me down for a while, but I got back to working on stuff again. Allow me to share some of my aluminum ****.

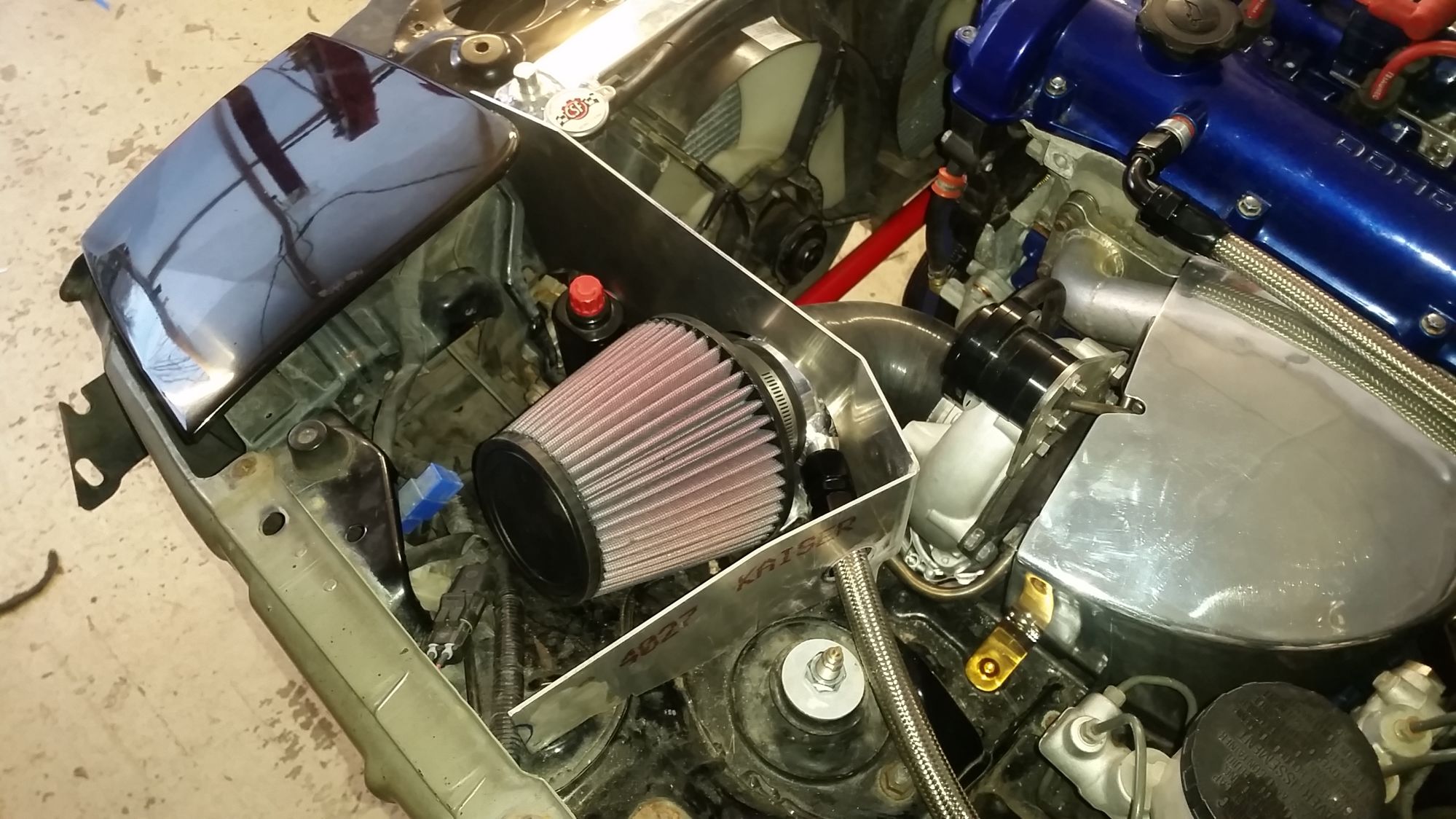

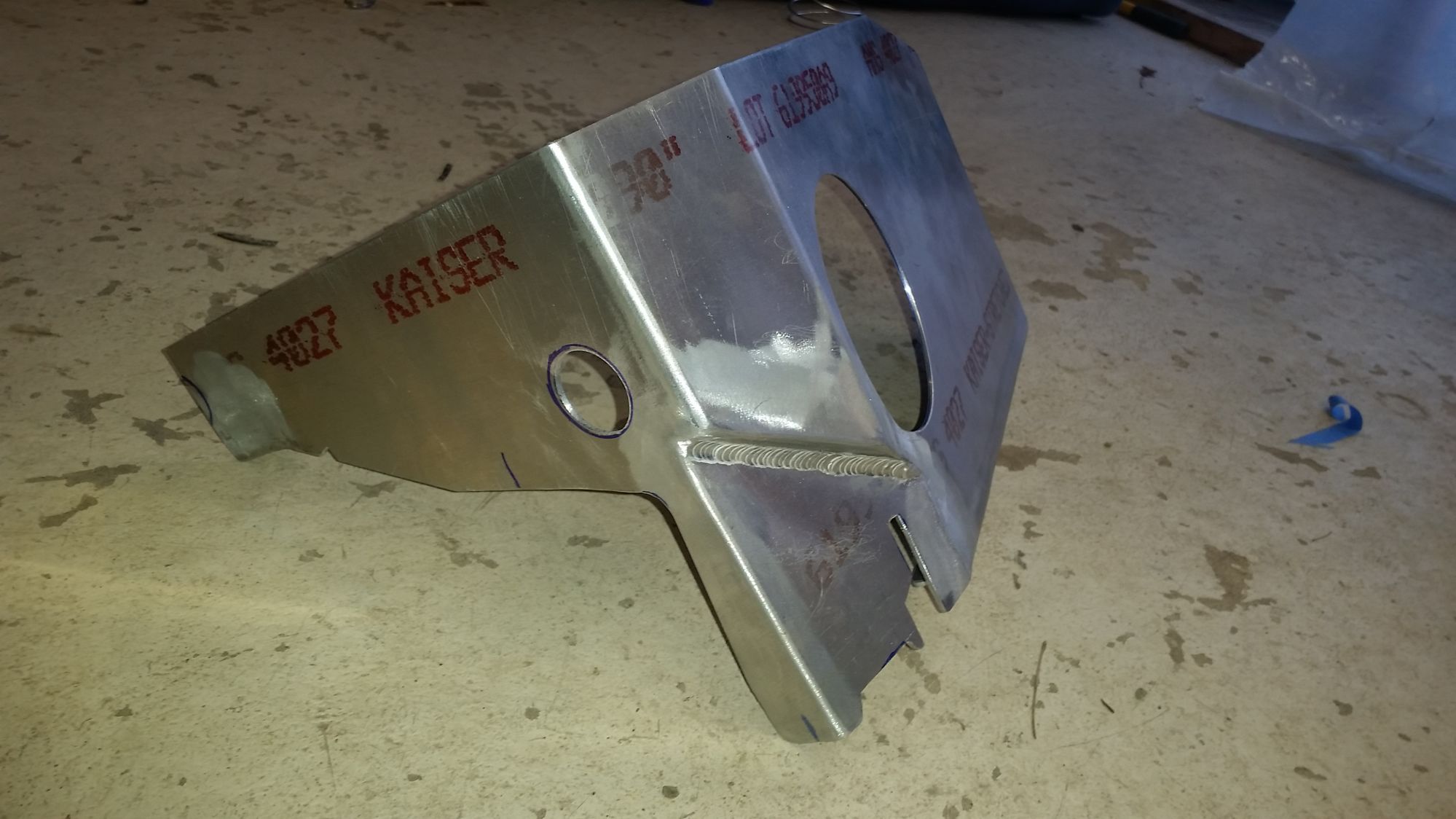

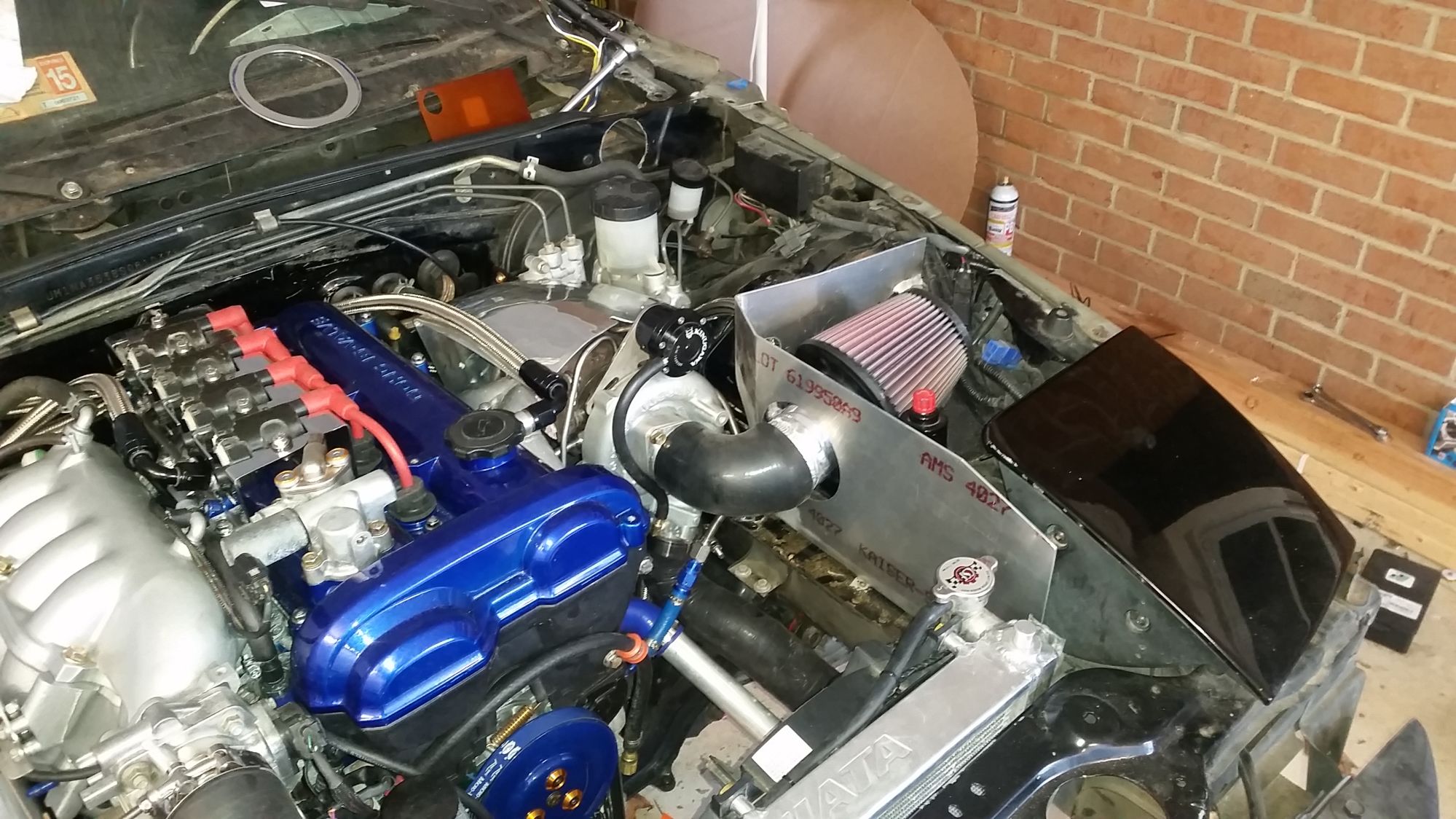

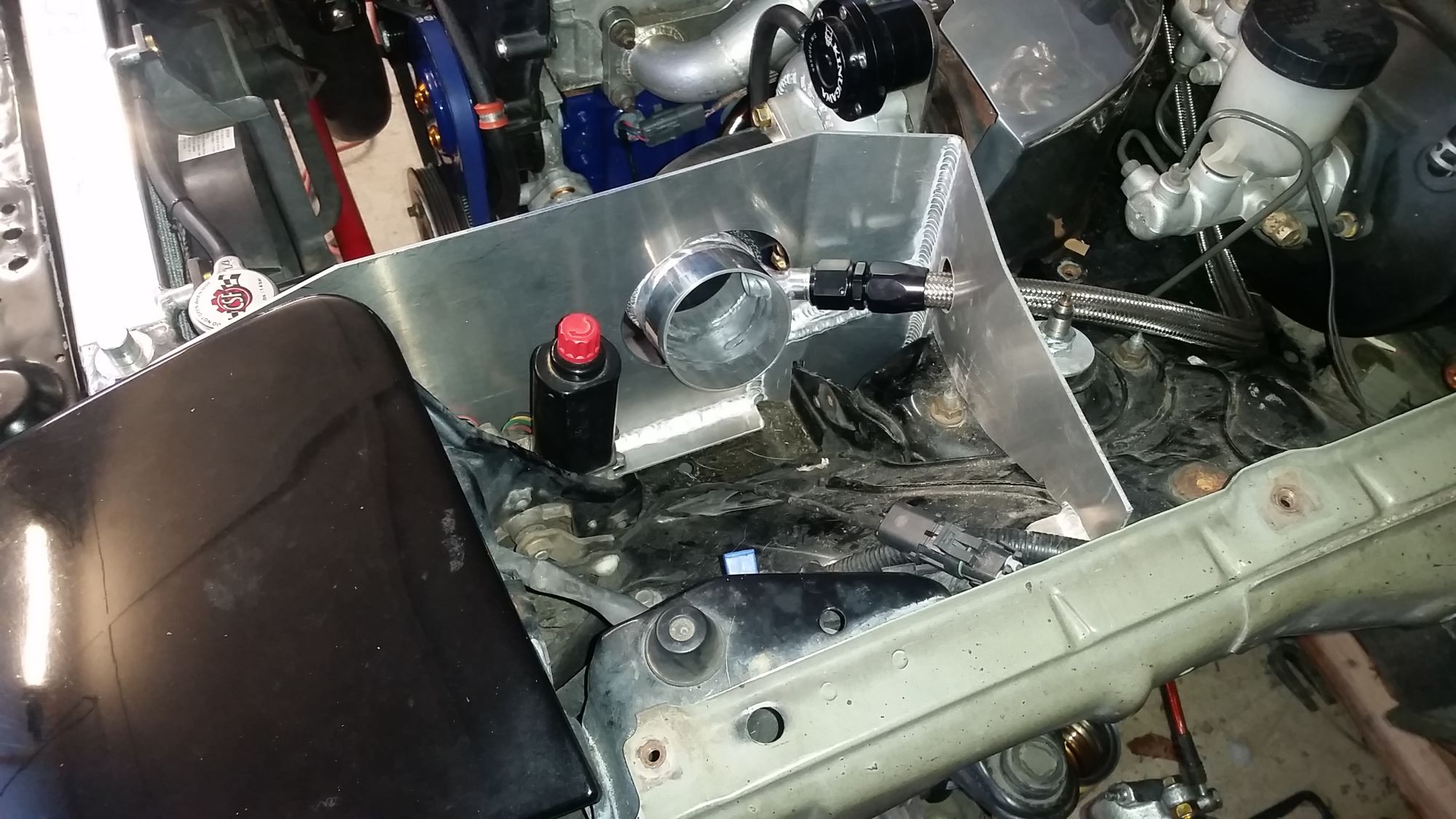

The intake heat shield thing.

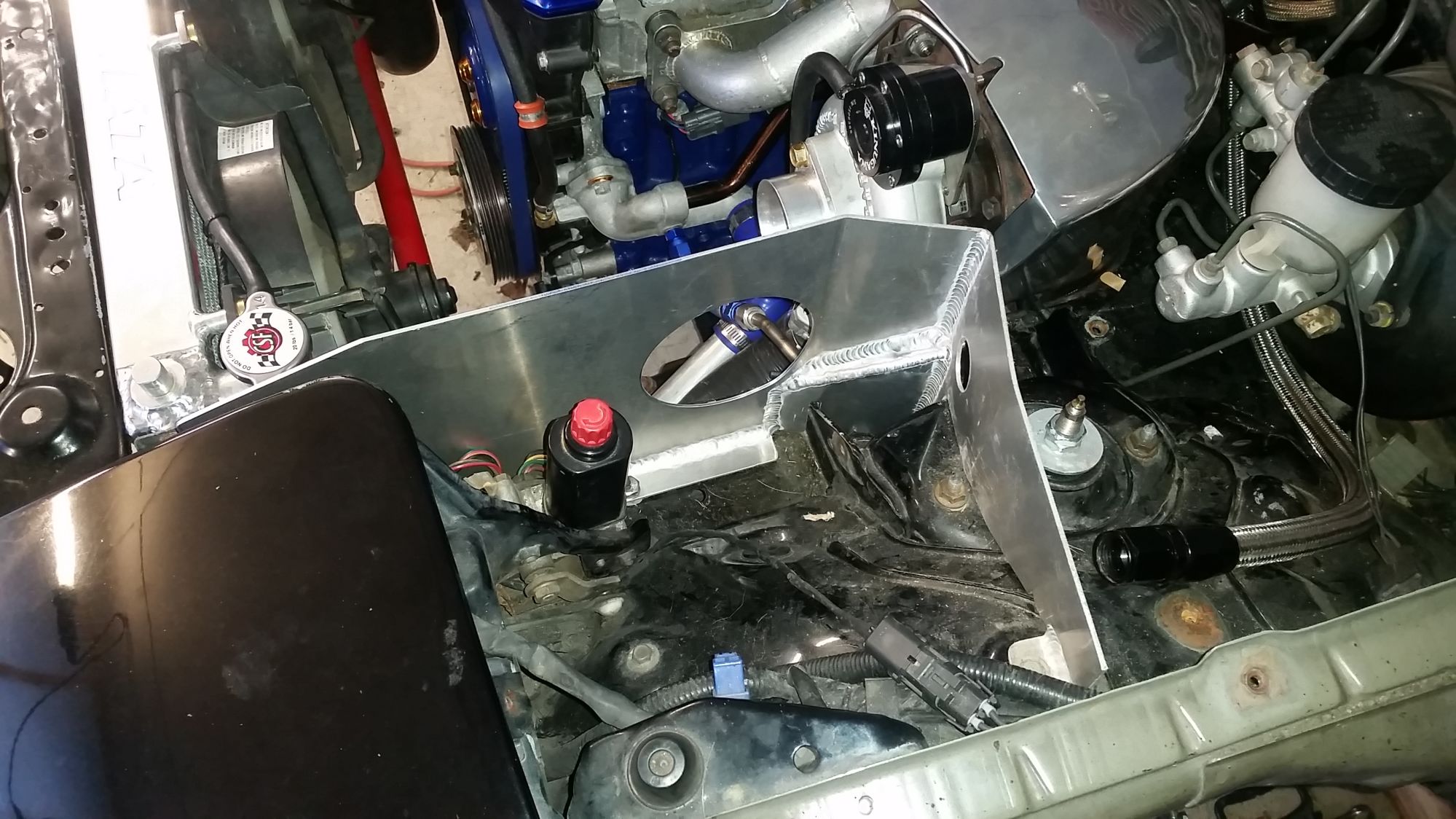

Working on a gasket to fill the void around the intake tube. I'll finish later this week.
The intake heat shield thing.
Working on a gasket to fill the void around the intake tube. I'll finish later this week.
Reply
1
1
02-16-2016, 09:35 PM
#483
Elite Member
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: A cave in Va
Posts: 3,395
Total Cats: 456

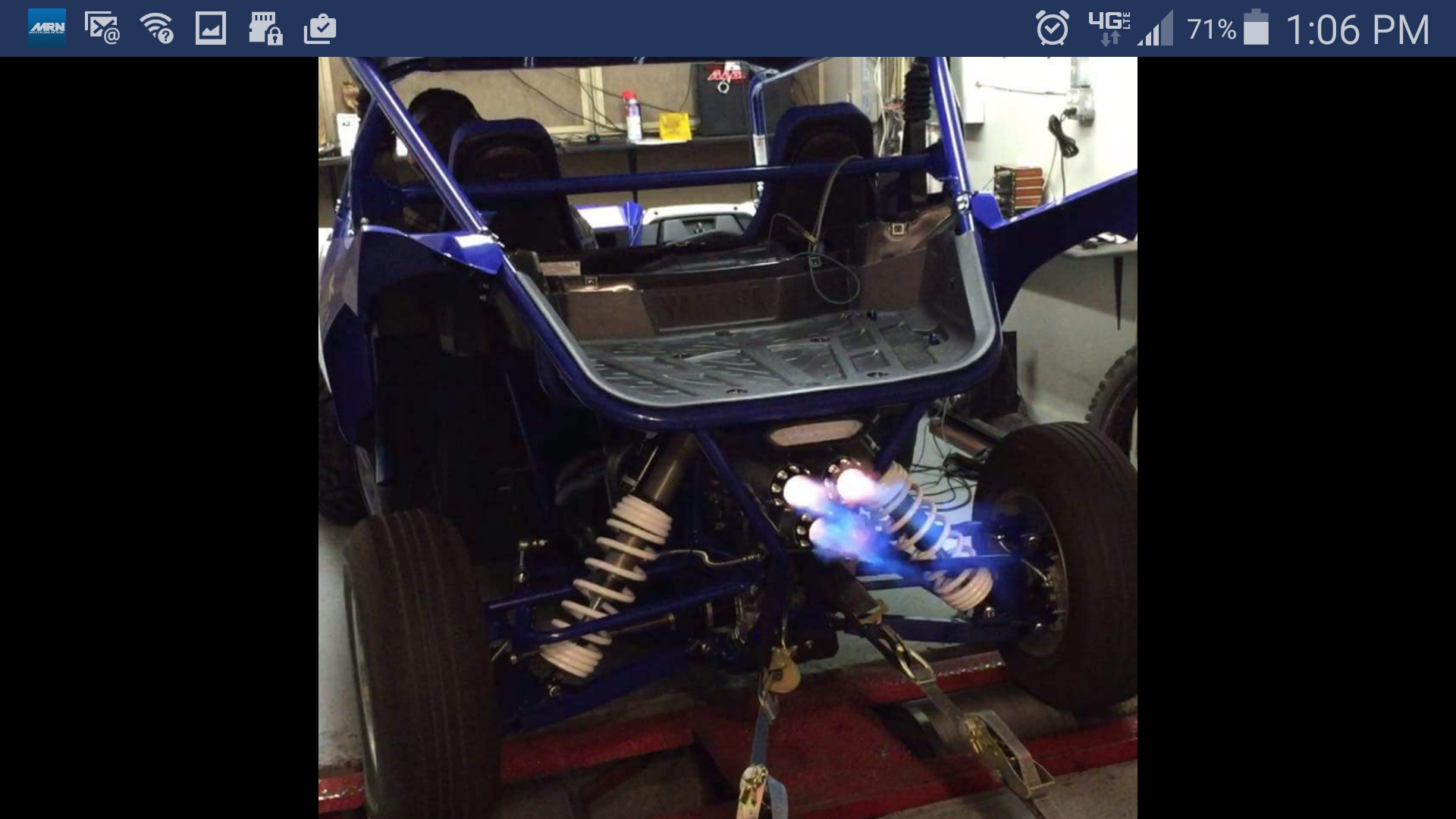

My buddies toy he is working on. The new Yamaha 1000cc side by side.
Three cylinder
GTX 2870?
20 psi
300 to the wheels.
Thrice pipes
Flames.
Three cylinder
GTX 2870?
20 psi
300 to the wheels.
Thrice pipes
Flames.
Last edited by ryansmoneypit; 02-17-2016 at 11:13 PM.
Reply
1
1
02-16-2016, 09:49 PM
#485
Junior Member
Join Date: Nov 2014
Location: Hoschton, GA
Posts: 131
Total Cats: 1
Skimmed through your thread today! Your build is awesome! I need to start my build thread on here sometime soon, just don't have the time.
Btw, let me know about that oil pan tonight so I know to get it boxed up or not!
Btw, let me know about that oil pan tonight so I know to get it boxed up or not!
Reply
0
0
02-16-2016, 10:24 PM
#486
Elite Member
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: A cave in Va
Posts: 3,395
Total Cats: 456
Thanks for the compliment. It has been a journey. I'm on the fence with the pan. I have a ton of leftover partz, so I was just going buy it, weld a -10 bung on, then flip it to the MT community. Not sure what the market is like though. I think most people just drill n tap.
Reply
0
0
02-19-2016, 08:07 PM
#496
Elite Member
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: A cave in Va
Posts: 3,395
Total Cats: 456

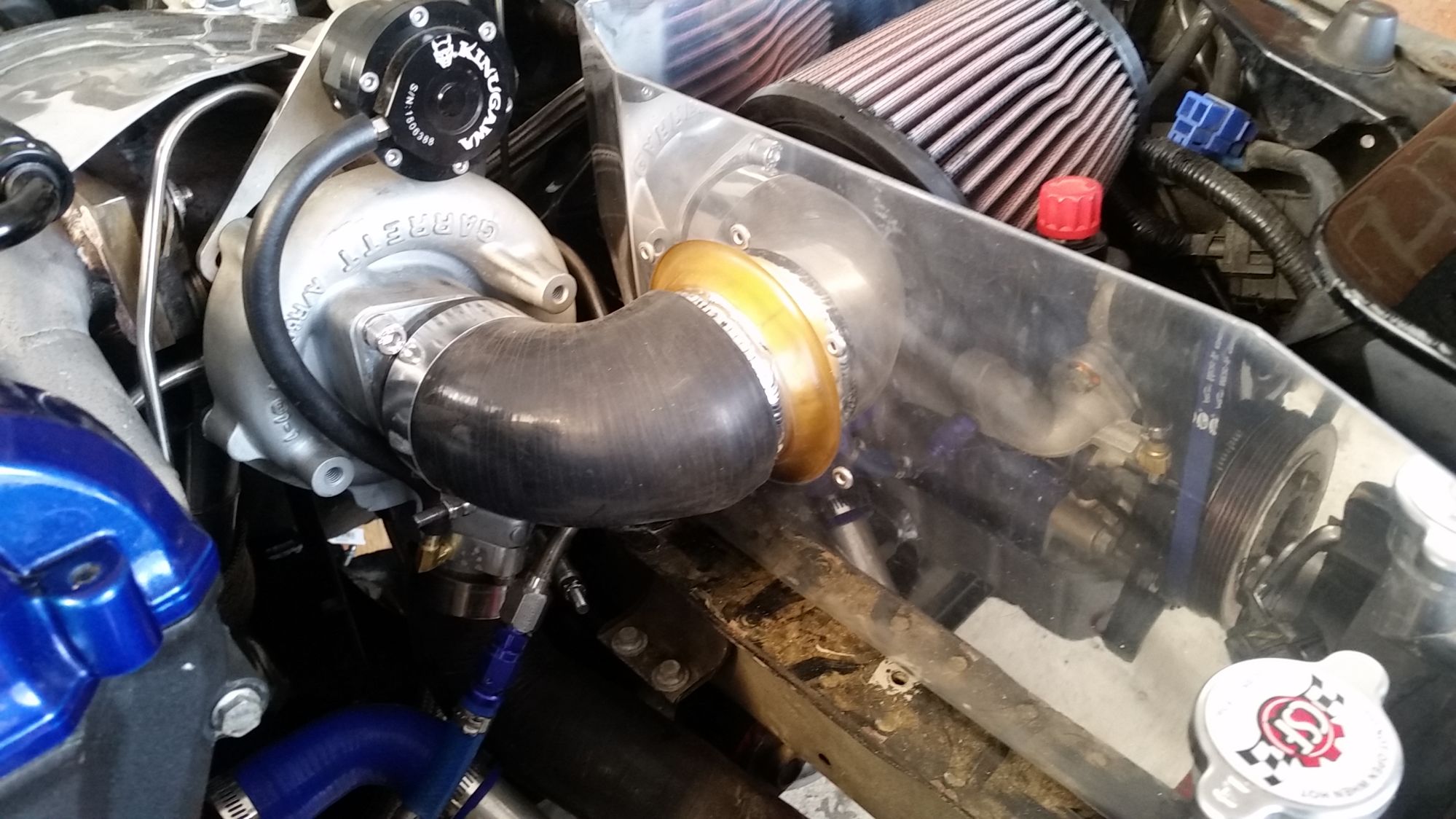

This is my solution to sealing the space between the intake and the heat shield. A piece of 1/8" urethane. I don't think it will melt. Probably not. Maybe.

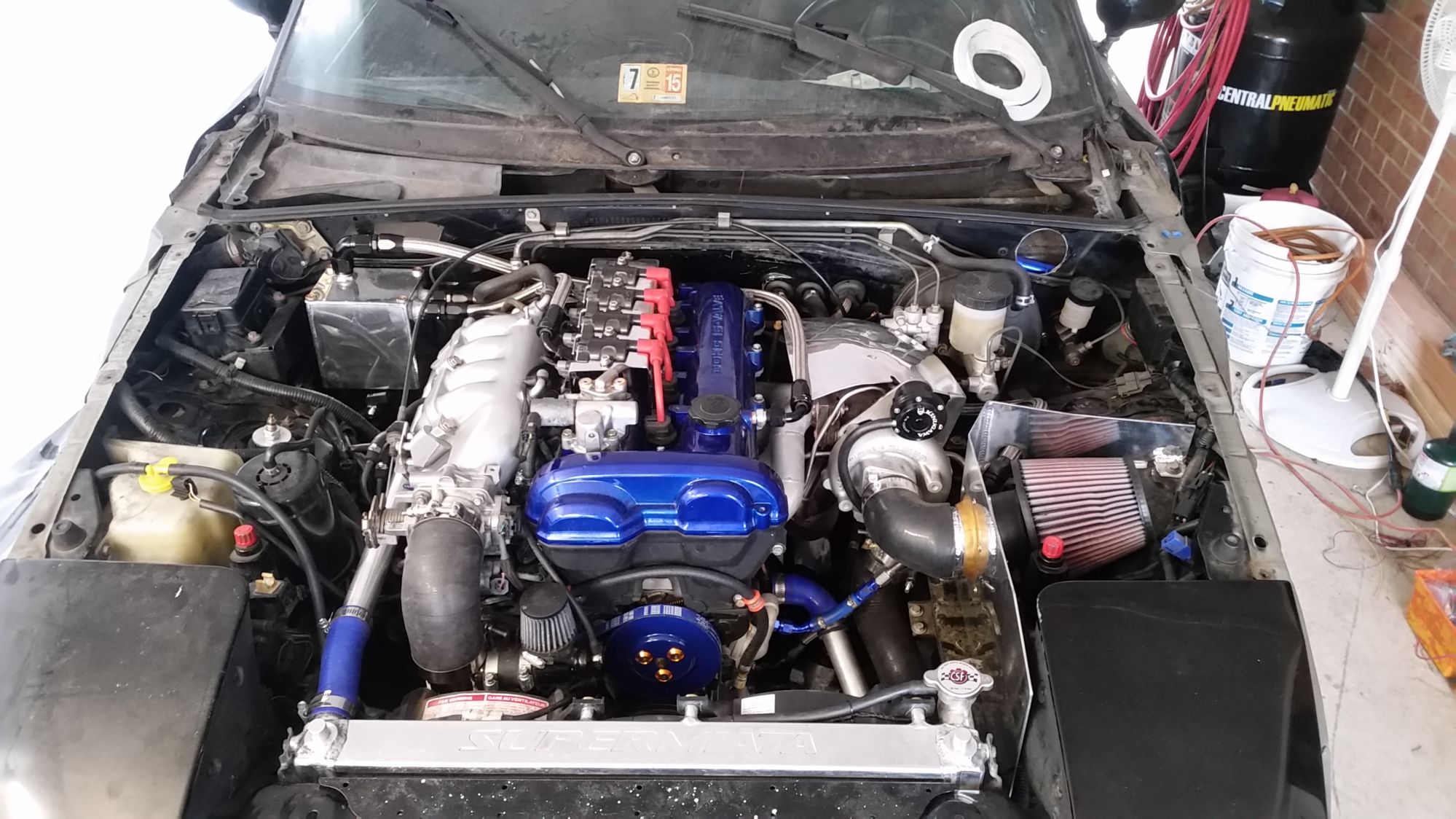

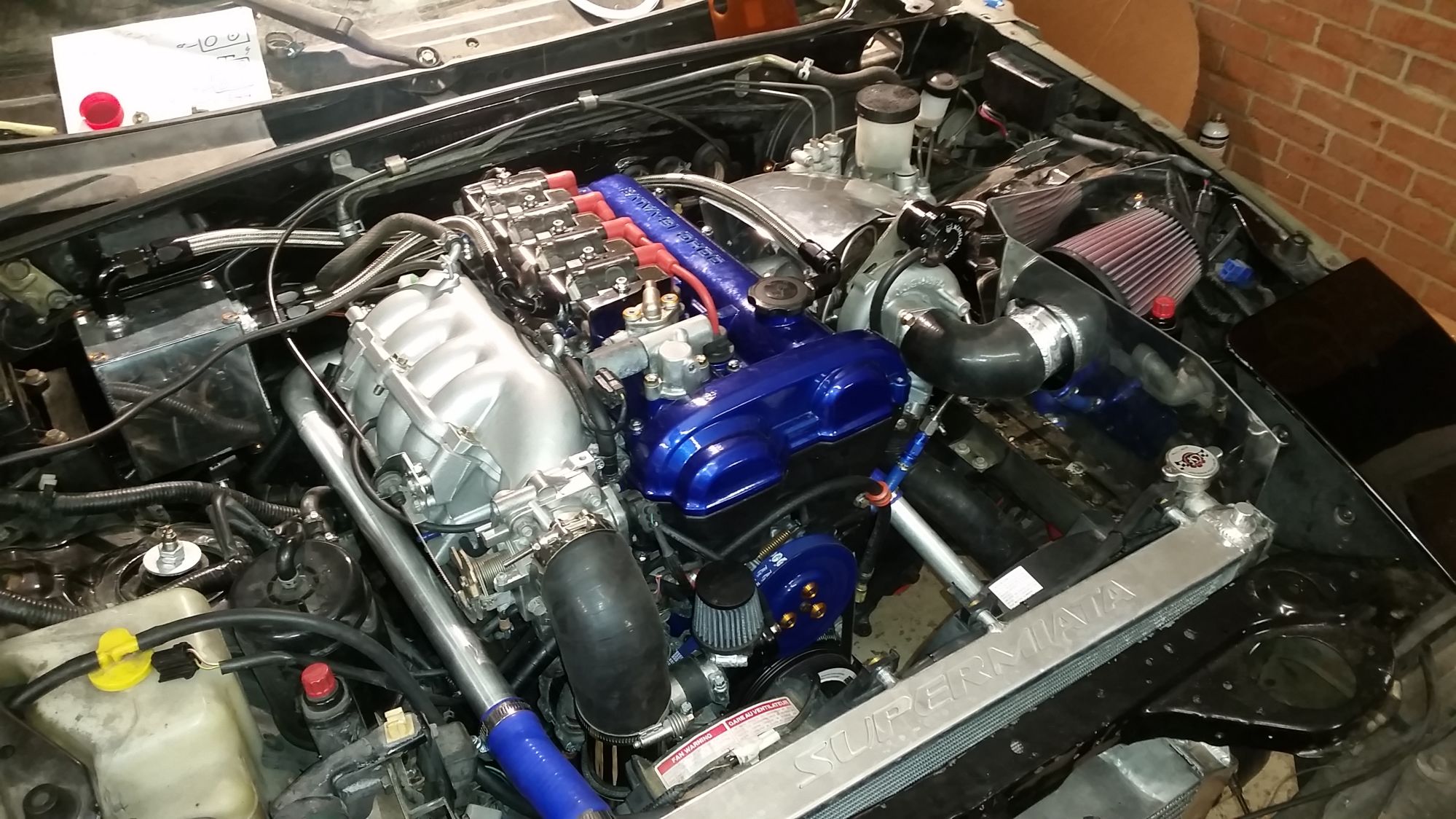

And one last engine pic.
I tried to drive the damn thing for the first time on 14 months. Brake master cylinder pooped all over the floor. I'm getting used to this sort of thing.
And one last engine pic.
I tried to drive the damn thing for the first time on 14 months. Brake master cylinder pooped all over the floor. I'm getting used to this sort of thing.
Reply
0
0
02-20-2016, 06:20 PM
#499
Retired Mech Design Engr
iTrader: (3)
Join Date: Jan 2013
Location: Seneca, SC
Posts: 5,009
Total Cats: 857
Traditional Urethanes, or actually Polyurethanes are themosets. TPU's are blends of Urethanes in a matrix of thermoplastics that have properties of both. Not sure what you have. Many TPU's are automotive grade materials. There may be other classes, but I'm not aware.
And you you are certainly correct that time will tell.
Glad you are getting so close.
And you you are certainly correct that time will tell.
Glad you are getting so close.
