Old 10-21-2015, 12:54 PM   #341
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

I had the same question on my midpipe's v band flange. Turns out it's a flange used in food processing that Abe @ ARTech uses, email him and he can get you the aluminum gasket that goes in the slot.

Quote:
They’re sanitary flanges and clamps, used in food processing plants, manufactured by Dixon Valve. I can sell you a set if you’d can’t find them. $7/ea for the flanges, $13 for the clamp, and $1 for the o-ring gasket.

Thanks,

Abe Beltran
Artech Fabrication
(214) 923-3710
Artechfabrication.com
Jeffbucc is offline   Reply With Quote
Old 10-21-2015, 01:10 PM   #342
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,974
Total Cats: 145
Default

So back to my original question. Do they not leak at the cut in the o ring, and drive the o2 sensor crazy?
ryansmoneypit is offline   Reply With Quote
Old 10-21-2015, 01:10 PM   #343
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,860
Total Cats: 1,257
Default

If I were to guess the o-ring expands when hot and seals.

Just a guess.
aidandj is offline   Reply With Quote
Old 10-21-2015, 01:31 PM   #344
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,388
Total Cats: 183
Default

Quote:
Originally Posted by ryansmoneypit View Post
So back to my original question. Do they not leak at the cut in the o ring, and drive the o2 sensor crazy?
If it's designed to leak a bit (which I would hope not) then I would change it so that it does not leak before the O2 sensor for your reason mentioned. Yes a leak will drive the O2 sensor nuts. So gasket with no break in it, or a different V-band connection like most that you surface flat after welding and then bolt together gasketless.
patsmx5 is online now   Reply With Quote
Old 10-24-2015, 09:29 PM   #345
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,974
Total Cats: 145
Default

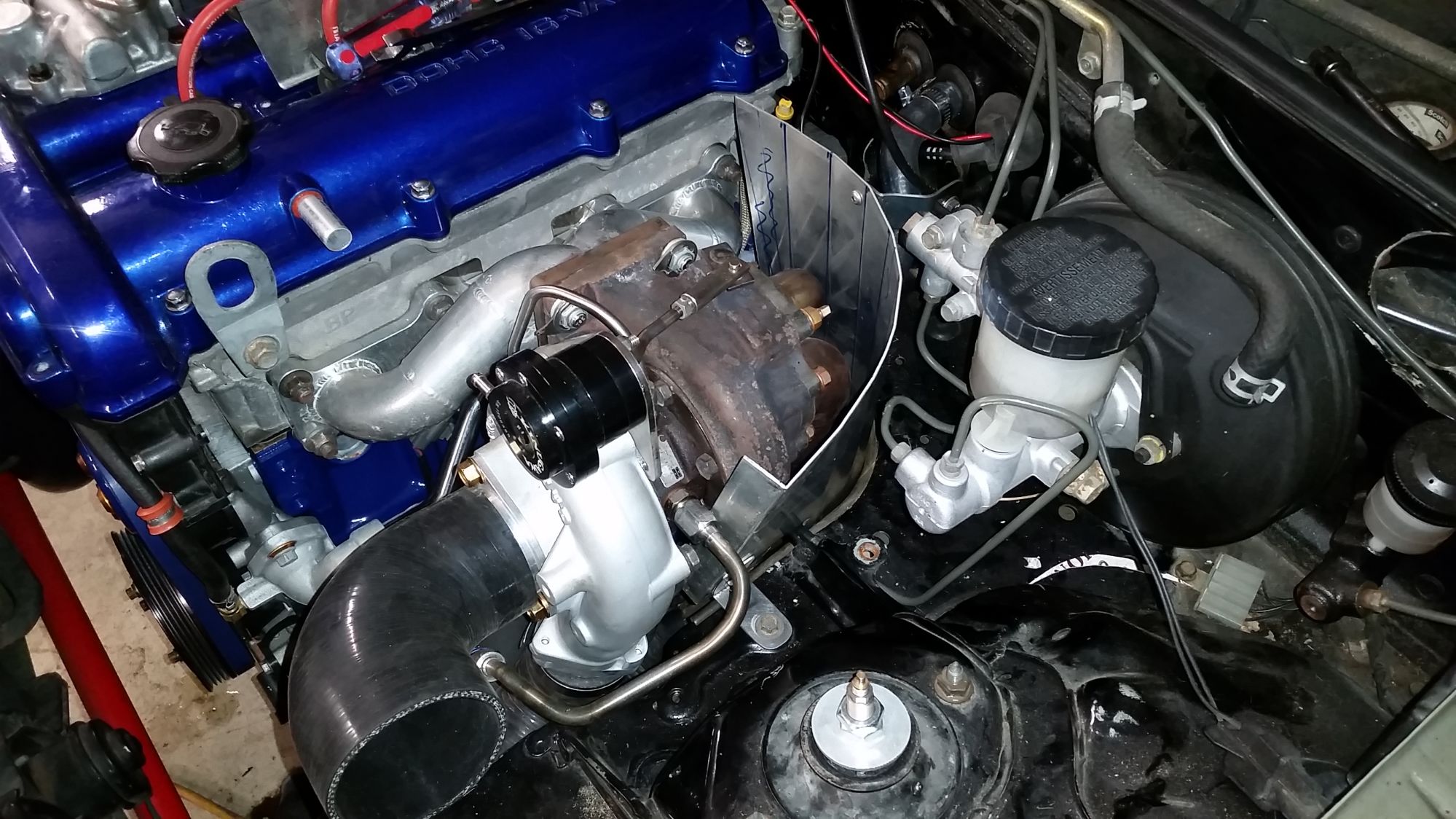

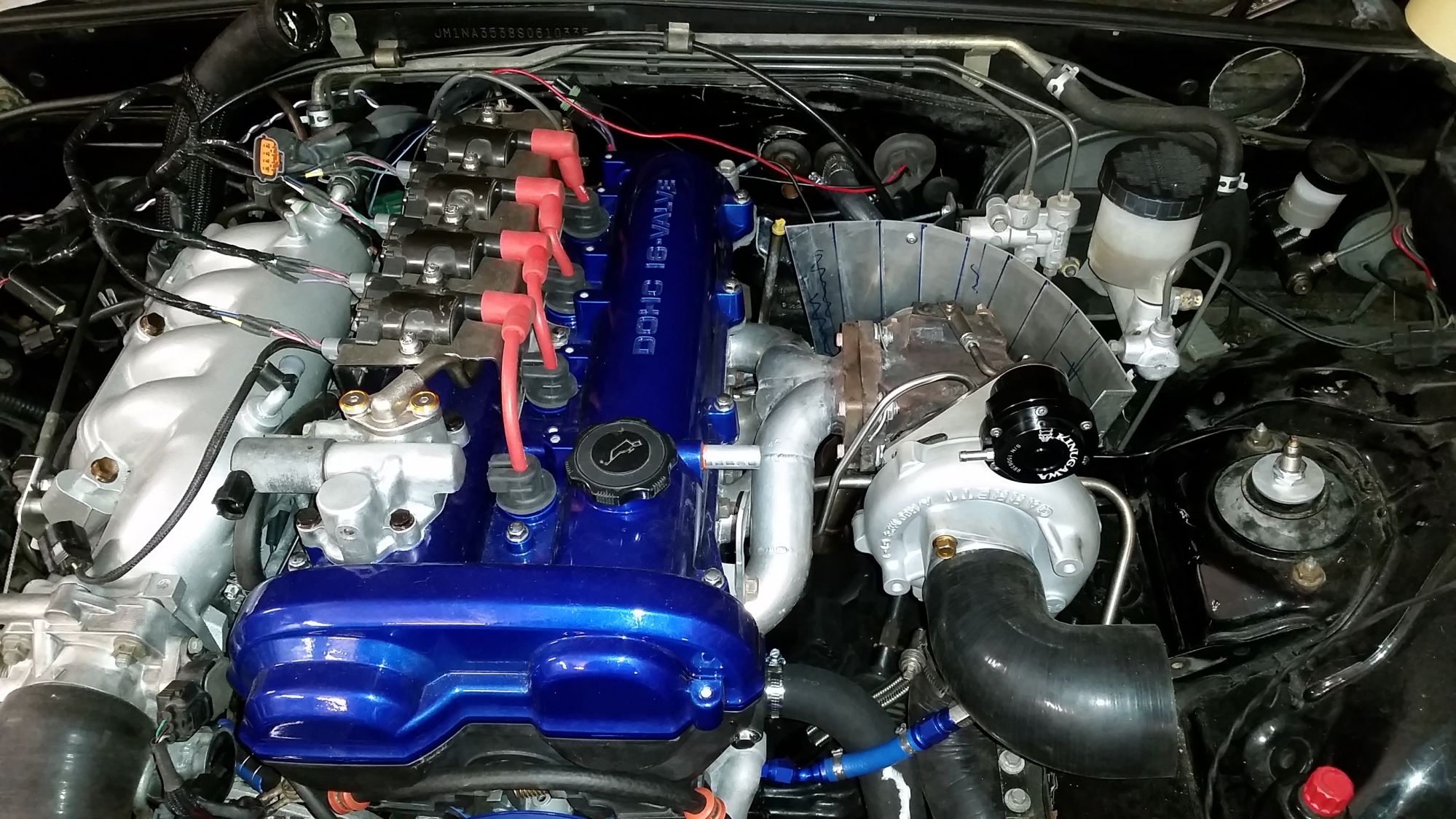

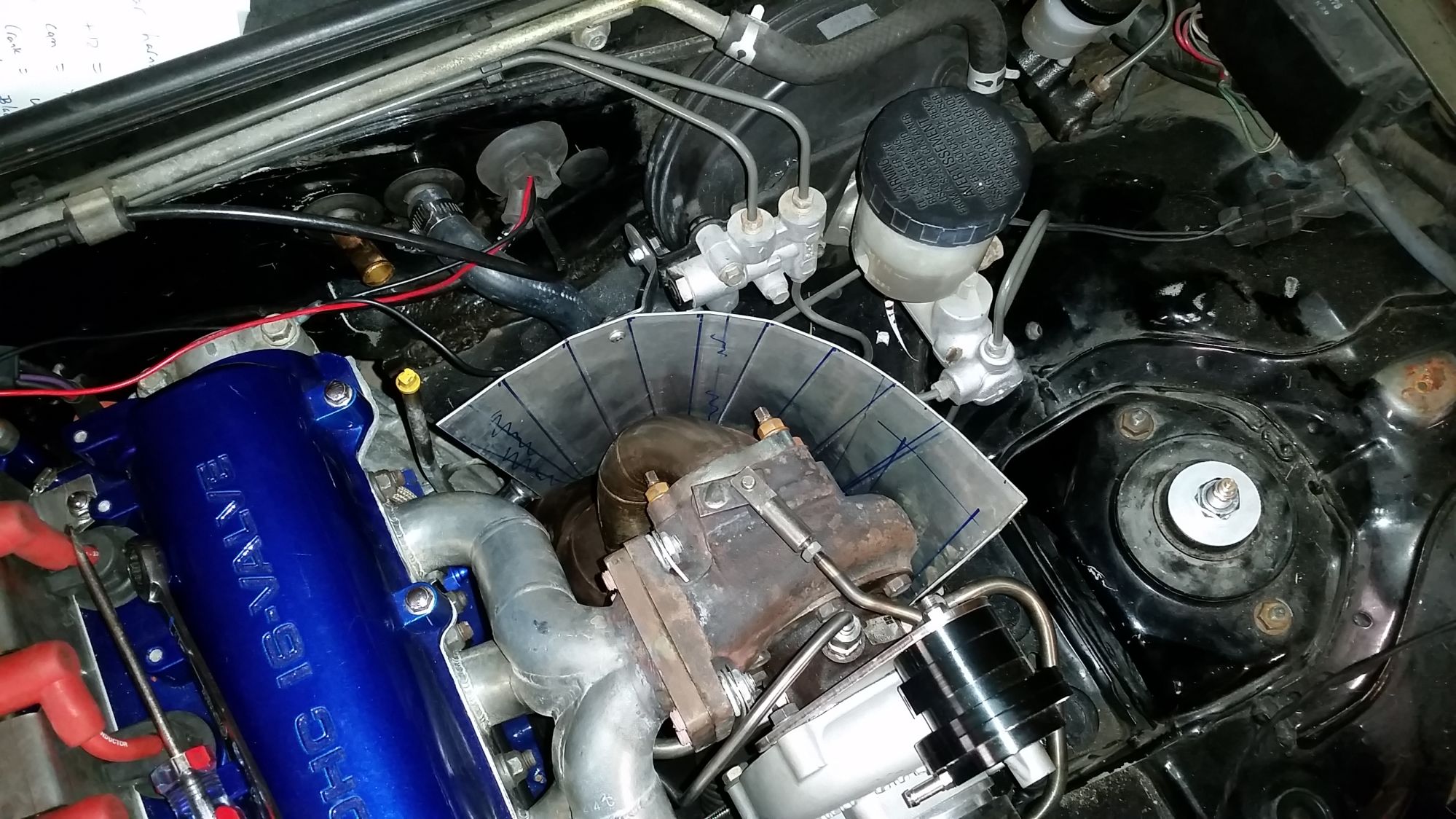

Since my computer is on hiatus, I decided to move to other tedious things. Like a turbo heat shield. Does this look super lame? It's a tough spot, not much room.









Attached Thumbnails
Finally my 1st (water cooled) turbo build-80-20151024_212305_e6fa7bb21a7e4fedba8f1ba1bf24be38dfdfaf9f.jpg   Finally my 1st (water cooled) turbo build-80-20151024_212138_9f1338e6b26dd9a35f8a5867d78a987e4056be37.jpg   Finally my 1st (water cooled) turbo build-80-20151024_212129_cc594115d40042fbaabd100d1995280cffefb9ae.jpg
ryansmoneypit is offline   Reply With Quote
Old 10-24-2015, 09:30 PM   #346
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,860
Total Cats: 1,257
Default

Looks badass. Just like my license plates. The curve is pretty good. I think a roof for it is supposed to help too.
aidandj is offline   Reply With Quote
Old 10-24-2015, 09:31 PM   #347
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,974
Total Cats: 145
Default

Can I change my title to " All this for a 2560" ?
ryansmoneypit is offline   Reply With Quote
Old 10-24-2015, 09:32 PM   #348
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,974
Total Cats: 145
Default

Hahah, I saw your plate, that's where this was born from. I think I will add a roof.
ryansmoneypit is offline   Reply With Quote
Old 10-24-2015, 09:34 PM   #349
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,974
Total Cats: 145
Default

Quote:
Originally Posted by aidandj View Post
Looks badass. Just like my license plates. The curve is pretty good. I think a roof for it is supposed to help too.
I haven't forgotten about you...I have been adding in some detail to the coil mount, so when you have it cut, you won't have to screw with much.
ryansmoneypit is offline   Reply With Quote
Old 10-24-2015, 09:35 PM   #350
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,388
Total Cats: 183
Default

Looks good. As mentioned build a roof for it. Maybe one for the turbo manifold too.
patsmx5 is online now   Reply With Quote
Old 10-24-2015, 09:37 PM   #351
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,974
Total Cats: 145
Default

Aww ****. Sounds like this might need to be a big piece.
ryansmoneypit is offline   Reply With Quote
Old 10-24-2015, 09:39 PM   #352
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,388
Total Cats: 183
Default

Quote:
Originally Posted by ryansmoneypit View Post
Aww ****. Sounds like this might need to be a big piece.
Could be separate pieces. I did a heat shield for my header a while back and it made an amazing difference in heat management under the hood. If that's your goal, I have to recommend it, it works.

Like this:

patsmx5 is online now   Reply With Quote
Old 10-24-2015, 09:43 PM   #353
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,388
Total Cats: 183
Default

Pretty sure I posted this already, but damn I like the attention to detail on that engine bay. All the little things for reliability... Hardlines, oitkier clamps, clamps to restrain things from moving, etc.
patsmx5 is online now   Reply With Quote
Old 10-24-2015, 09:56 PM   #354
Senior Member
iTrader: (1)

Join Date: Nov 2010
Location: Marylandistan
Posts: 759
Total Cats: 39
Default

Quote:
Originally Posted by ryansmoneypit View Post
Flange with a definite cut for something. ..all of the joints use this same aluminum thing.

I have an Artech side mount that uses those gaskets. They look like aluminum filler rod for tig welding. You could get some rod and cut them slightly longer?
stratosteve is offline   Reply With Quote
Old 10-24-2015, 10:00 PM   #355
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,974
Total Cats: 145
Default

Quote:
Originally Posted by patsmx5 View Post
Pretty sure I posted this already, but damn I like the attention to detail on that engine bay. All the little things for reliability... Hardlines, oitkier clamps, clamps to restrain things from moving, etc.
Haha! Someone else knows Oitiker! Thanks man, it's a sloooooow work in progress. Lots of exposed wire from electronic gremlins. I'll fix it soon enough.
ryansmoneypit is offline   Reply With Quote
Old 10-24-2015, 10:00 PM   #356
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,974
Total Cats: 145
Default

Quote:
Originally Posted by stratosteve View Post
I have an Artech side mount that uses those gaskets. They look like aluminum filler rod for tig welding. You could get some rod and cut them slightly longer?
This was my next try for tomorrow. Good thinking.
ryansmoneypit is offline   Reply With Quote
Old 10-24-2015, 10:01 PM   #357
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,974
Total Cats: 145
Default

Pat, what is that ultra shiny stuff?
ryansmoneypit is offline   Reply With Quote
Old 10-24-2015, 10:02 PM   #358
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,388
Total Cats: 183
Default

Quote:
Originally Posted by ryansmoneypit View Post
Haha! Someone else knows Oitiker! Thanks man, it's a sooooo ow work in progress.
I used those clamps to make A/C lines on my car, and they worked for that. Those things are awesome for anything permanent. I know the slooooow part, same for mine. It's slowly starting to become what I want it to be.
patsmx5 is online now   Reply With Quote
Old 10-24-2015, 10:04 PM   #359
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,388
Total Cats: 183
Default

Quote:
Originally Posted by ryansmoneypit View Post
Pat, what is that ultra shiny stuff?
Mirror polished stainless steel sheet metal I bought on Amazon. Emissivity of ~0.05. Very good at blocking radiant heat.

Thread here with more info on that shield: https://www.miataturbo.net/general-m...uestion-85939/
patsmx5 is online now   Reply With Quote
Old 10-24-2015, 10:10 PM   #360
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,974
Total Cats: 145
Default

I sense a little bit of hate around here. I don't think some people understand that I have sold literally everything that I owned to build this car. As well as following 18's advice and making my full 401/ Roth contributions.
ryansmoneypit is offline   Reply With Quote
