Old 07-06-2015, 02:49 PM   #641
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

I don't hammer on plastic. That's what the sawzall is for.
concealer404 is offline   Reply With Quote
Old 07-06-2015, 08:47 PM   #642
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

I popped those things out for no reason the first time I pulled a diff too. If the stupid sleeve is rusted in or you dont have a M14-1.5 bolt to pull it down you can undo the two bolts that hold that piece of steel to the housing, you know the one that normally breaks. And then you can sneak the PPF off. Then you can use the oxy torch with the diff on a bench and really pound that sleeve out, get all the rust off and then coat the thing in antisieze. Once you've done that the next time you pull the diff you just put the bolt back in and press it cockeyed into the threads in the sleeve and pull it down like nothing.
Leafy is offline   Reply With Quote
Old 07-07-2015, 10:01 AM   #643
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,802
Total Cats: 493
Default

9:01. You better not be late!
Monk is offline   Reply With Quote
Old 07-07-2015, 10:31 AM   #644
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Clocked in at 8:52 awwwwwwwwwwwwwwyiss.

Took awhile to get home, had to explore around East Bumfuck to try to find a gas station that was still open. Derp.
concealer404 is offline   Reply With Quote
Old 07-10-2015, 04:55 PM   #645
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Smells like Emilio.

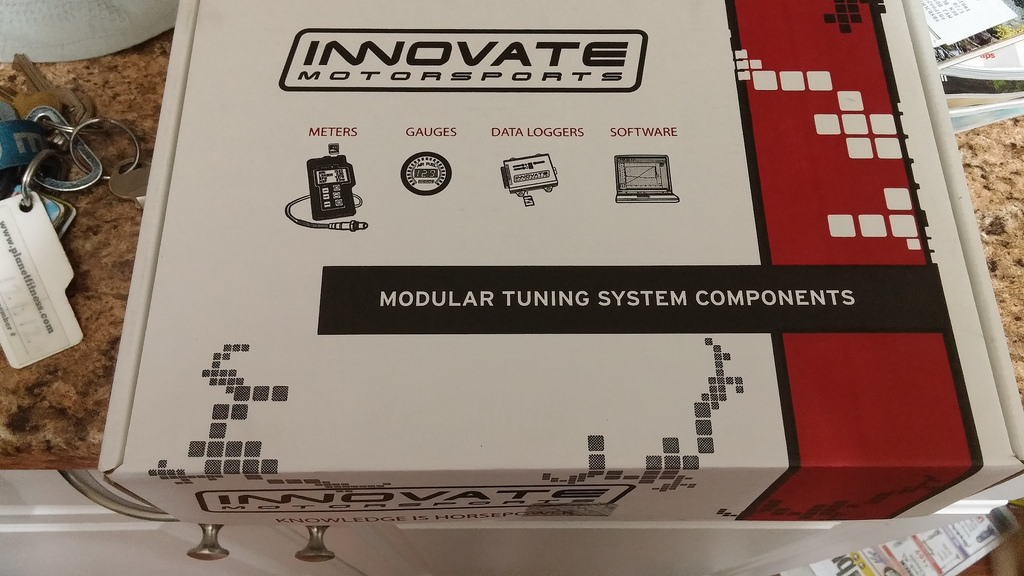

MTX-L w/ lsu4.9 by concealer404, on Flickr
Attached Thumbnails
concealer404 is offline   Reply With Quote
Old 07-10-2015, 05:21 PM   #646
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by concealer404 View Post

1) Spent 7 hours on Friday trying to remove the diff from this ******* car. **** the PPF design. Seriously. **** it. These came out, which Mazda says is bad, bolts stayed in. DA FUQ? Diff still in car. Will re-attack as soon as my rage subsides. Kudos to Monk for providing retard strength. Wouldn't have even gotten this far without him. And my rage would have been far more if we weren't busy laughing at each other.
Protip for the future. Unbolt the PPF from the trans, drop the diff with the PPF attached. Remove PPF with diff from outside of the car. Put PPF back on outside of the car and lift it all up to reinstall.

I have never successfully removed the PPF from the car with the diff installed. I know it is "possible" I just have never seen it happen. Doing it my way is usually quick and painless.
shuiend is offline   Reply With Quote
Old 07-10-2015, 05:34 PM   #647
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

I really didn't want to do that, but it sounds like it's going to be the easiest way.

"The Future" is tomorrow, since i'm still not done, and will be trying it again.

Easy to just pull the axles with the diff/pff with that method, too? I don't like using a slide hammer on things above me.

Appreciate the tip.
concealer404 is offline   Reply With Quote
Old 07-10-2015, 05:40 PM   #648
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

Just wait till you try and get the axles out
aidandj is offline   Reply With Quote
Old 07-10-2015, 05:42 PM   #649
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Quote:
Originally Posted by aidandj View Post
Just wait till you try and get the axles out

You shut your ***** mouth. I'm hoping that i'll get lucky because the car has less than 100k miles on it?
concealer404 is offline   Reply With Quote
Old 07-10-2015, 05:43 PM   #650
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

Quote:
Originally Posted by concealer404 View Post
I really didn't want to do that, but it sounds like it's going to be the easiest way.

"The Future" is tomorrow, since i'm still not done, and will be trying it again.

Easy to just pull the axles with the diff/pff with that method, too? I don't like using a slide hammer on things above me.

Appreciate the tip.
You should be using the axle as it's own slide hammer. Compress the inner CV joint, pull til it slams, repeat. Or a small pry bar/large screw driver against the side of the diff housing.
stoves is offline   Reply With Quote
Old 07-10-2015, 05:44 PM   #651
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

Quote:
Originally Posted by concealer404 View Post
You shut your ***** mouth. I'm hoping that i'll get lucky because the car has less than 100k miles on it?
<br />
<br />I'm pretty sure my auction car had less than that and I have one that is still in the spindle. Its not going anywhere.
aidandj is offline   Reply With Quote
Old 07-10-2015, 05:44 PM   #652
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Quote:
Originally Posted by stoves View Post
You should be using the axle as it's own slide hammer. Compress the inner CV joint, pull til it slams, repeat. Or a small pry bar/large screw driver against the side of the diff housing.
.... wut.

Is that just a Miata thing? Every other axle i've ever pulled on like that, ever, has pulled the joint right out of the cup and i'm really not interested in replacing axles at this point. Would sink my MATG trip.
concealer404 is offline   Reply With Quote
Old 07-10-2015, 05:45 PM   #653
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Quote:
Originally Posted by aidandj View Post
<br />
<br />I'm pretty sure my auction car had less than that and I have one that is still in the spindle. Its not going anywhere.
I'm not taking the axles out of the spindle. Driver's side was out about 10 miles ago anyways. I'm only taking them out of the diff.
concealer404 is offline   Reply With Quote
Old 07-10-2015, 05:45 PM   #654
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

Quote:
Originally Posted by stoves View Post
You should be using the axle as it's own slide hammer. Compress the inner CV joint, pull til it slams, repeat. Or a small pry bar/large screw driver against the side of the diff housing.
<br />
<br />I just put a big pry bar in there and give it a pop.
aidandj is offline   Reply With Quote
Old 07-10-2015, 05:50 PM   #655
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

my axle didn't come apart the last time i pulled on it like that, but that was also the 2nd time I had it out to replace the oil seal.

The pry bar against the housing worked really well for me like aidan said.
stoves is offline   Reply With Quote
Old 07-10-2015, 05:54 PM   #656
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Ok i'll do the pry bar haha. Already have new seals.
concealer404 is offline   Reply With Quote
Old 07-10-2015, 11:08 PM   #657
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

yeah pry bar is the ticket there, might have to drop the exhaust first to get the drivers side one out though. I think I said in your other thread how to get the ppf off if the sleeve is frozen in. You just take that piece off the diff housing that bolts on and slip it out.
Leafy is offline   Reply With Quote
Old 07-10-2015, 11:18 PM   #658
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Exhaust was thrown in the trash.
concealer404 is offline   Reply With Quote
Old 07-11-2015, 11:10 AM   #659
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,802
Total Cats: 493
Default

My first day on the department is tomorrow, otherwise I'd come down and give you a hand.
Monk is offline   Reply With Quote
Old 07-11-2015, 11:24 AM   #660
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by concealer404 View Post
I really didn't want to do that, but it sounds like it's going to be the easiest way.

"The Future" is tomorrow, since i'm still not done, and will be trying it again.

Easy to just pull the axles with the diff/pff with that method, too? I don't like using a slide hammer on things above me.

Appreciate the tip.
It is 5 more bolts to do it this way, 3 17mm's and 2 14mm's. Also you need to take the wires attached to the ppf off, which only takes a few min with a small flat head screw driver.

I just used a pry bar to pop out the axles while I am lowering the diff if they are single part axles. If 2 part axles I just unbolt the 2 parts.
shuiend is offline   Reply With Quote
