Old 08-18-2015, 10:50 AM   #801
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,799
Total Cats: 492
Default

Are you refering to my inner beauty?
Monk is offline   Reply With Quote
Old 08-18-2015, 11:03 AM   #802
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,461
Total Cats: 782
Default

No no, on the inside, you're beautiful. And pink.

BTW, buddy wants the white female kitteh with the blue eyes. He's a broke college kid and concerned about vet things, though. (i probably scared him with Peach's $400 vet bill and Kaia (Turbo's new name) and her ~$600 total over the first 6 months.) He's in Lima, OH right now. Think we can make things happen?
concealer404 is online now   Reply With Quote
Old 08-18-2015, 11:22 AM   #803
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,799
Total Cats: 492
Default

Yes, we can do the things. I will give him some moneys for spay.
Monk is offline   Reply With Quote
Old 08-18-2015, 11:28 AM   #804
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,461
Total Cats: 782
Default

Hokay i will let him know.
concealer404 is online now   Reply With Quote
Old 08-18-2015, 11:55 PM   #805
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by concealer404 View Post
Real talk: If i have to **** about with all that, i will go Haltech and just build a new engine harness. **** a bunch of troubleshooting that.



Oh hai dere! I wish to make sweet monkey love to your car because dat F motor. BPs are so lame.




I agree. This is why we love you. Because you're an awesome ugly thing.
Really wasnt much ******* about. When I had the motor out to do the NA8 to VVT swap I took about 8 feet of electrical tape off the car and 1 like 1.5" diameter wire loom off and it was very obvious what the problem was. I have no ******* clue how that wire got fucked up though. It was literally in the inside of the bundle of wires and looks like it was cut with a set of side cutters.
Leafy is offline   Reply With Quote
Old 08-19-2015, 02:31 AM   #806
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by aidandj View Post
<p>NB is 3 wire sensor, with a ground. Shouldn't cause an issue. But if it worked for you its worth a shot.</p>
That is only partially true - the sNB sensor has both sensors for ECU and the gauge cluster included. The ECU sender has a ground wire, the gauge sender needs to be grounded via the housing. So try to ground this and it should be working...
Zaphod is offline   Reply With Quote
Old 08-19-2015, 02:53 AM   #807
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,458
Default

This guy is right. I was wrong.
aidandj is offline   Reply With Quote
Old 08-24-2015, 10:26 AM   #808
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,461
Total Cats: 782
Default

Figured out the gauge issue.

NB1, or at least 2000s do NOT have an additional ground back there. The temp sender is actually 2 sensors in one.

Black/Red wire is ground, red/blue is signal to ECU, violet/white is signal to gauge. Black/Red wire is for ECU circuit ONLY, and turns out that that was working, or at least i had no indication that it wasn't. Ground wire showed good continuity, and there was no visible damage to red/blue. Didn't both testing it at the ECU, that's annoying.

Turns out that gauge end grounds through the body of the sensor itself (at least one or two of you told me this, i just couldn't brain why that was an issue until i worked on it). Which... let's think about this for a minute. The sensor is in the spacer.

So we have...

1) Head
2) Gasket
3) Spacer
4) Gasket
5) Tstat housing/waterneck

So the ONLY way this spacer will be grounded properly is if the bolts are contacting the spacer. Apparently mine shifted due to the pressure on it from the waterneck not being spaced far enough off that nipple on the back of the head, and the spacer lost contact with the bolts, rendering the sender ungrounded.

I lightly loosened the bolts, smacked the spacer down with a wooden dowel, and retightened the bolts. Voila. Working gauge.

Not super impressed. Thinking i'm going to move to the M-Tuned re-route over winter. Less things stacked there apparently has more advantages than just "less things stacked there."

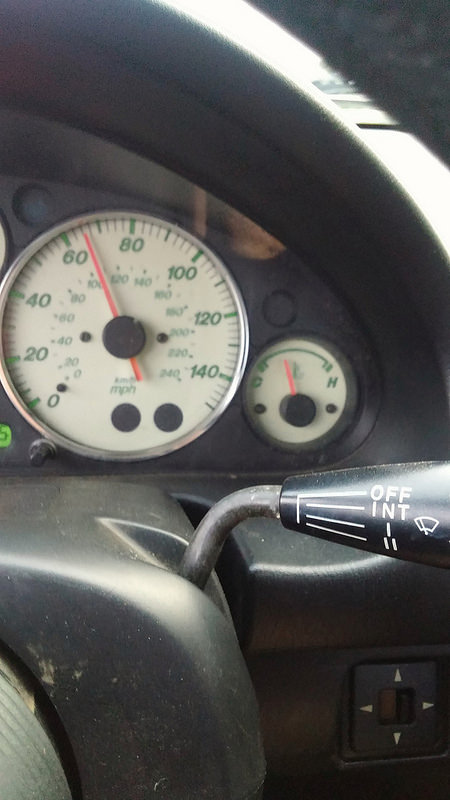

Working temp gauge!

2015-08-24_09-36-33 by concealer404, on Flickr

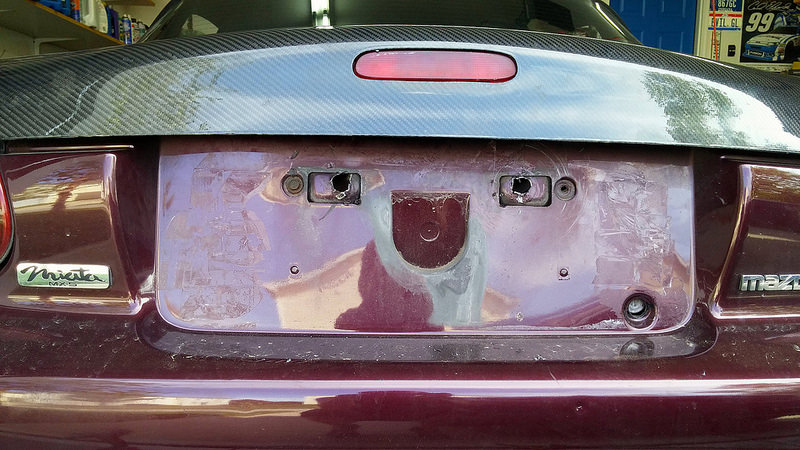

Oh, and i swapped the new license plate on. Required use of an air hammer with a chisel attachment.

2015-08-24_09-36-19 by concealer404, on Flickr
Attached Thumbnails
Gross.-20834452022_d492def902_c.jpg   Gross.-20223030013_c748c5cb8f_c.jpg

Last edited by concealer404; 08-24-2015 at 10:38 AM.
concealer404 is online now   Reply With Quote
Old 08-24-2015, 01:13 PM   #809
Elite Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,511
Total Cats: 142
Default

It's crude, but you can just run a separate ground wire to that sensor. For my goofy VEI gauges I just stripped about 6" of jacket off the end of a wire and wrapped it tightly around the sender units, then added a hose clamp on top of the wrap to clamp it tight; attached the other end to a proper engine ground point and all has been well since. Function over form.
good2go is offline   Reply With Quote
Old 08-24-2015, 01:16 PM   #810
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,458
Default

<p>Ben: Get a real temp gauge, quit bitching about stacks </p><p>good2go: ******* thank you. I had been brainstorming how to ground my vei sensors.</p>
aidandj is offline   Reply With Quote
Old 08-24-2015, 01:27 PM   #811
Elite Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,511
Total Cats: 142
Default

Quote:
Originally Posted by aidandj View Post
<p>Ben: Get a real temp gauge, quit bitching about stacks </p><p>good2go: ******* thank you. I had been brainstorming how to ground my vei sensors.</p>
Since mine are down in the sandwich adapter, I slathered some terminal grease to the bare wire to try and keep corrosion down too.
good2go is offline   Reply With Quote
Old 08-24-2015, 01:31 PM   #812
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,461
Total Cats: 782
Default

Meh. I don't like crude when it comes to wiring. Works now. Fixed it with a hammer.
concealer404 is online now   Reply With Quote
Old 08-24-2015, 06:58 PM   #813
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,458
Default

<p>If you don't want crude then buy me this and I'll send it to you when I'm done with it.</p><p>https://www.pegasusautoracing.com/pr...asp?RecID=5738</p>
aidandj is offline   Reply With Quote
Old 08-24-2015, 07:28 PM   #814
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,461
Total Cats: 782
Default

But why? I already have a solution.
concealer404 is online now   Reply With Quote
Old 08-24-2015, 07:29 PM   #815
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,458
Default

<p>Cuz i want that thing.</p>
aidandj is offline   Reply With Quote
Old 08-24-2015, 10:58 PM   #816
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

You could always man the **** up and solder the ground wire to the sender body.
Leafy is offline   Reply With Quote
Old 08-24-2015, 10:59 PM   #817
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,458
Default

<p style="text-align: right;">I've had bad luck lately with soldered joints in my engine bay.</p>
aidandj is offline   Reply With Quote
Old 09-02-2015, 09:35 AM   #818
Elite Member
Thread Starter
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,461
Total Cats: 782
Default

Anyone know the dimensions/specs on the rodends in the 949 endlinks? I have at least 3 that are pretty worn and noisy, figure i should just replace them all. However, at $96 + shipping from 949, that's a no go. I'd just buy new endlinks from Emilio (and i might go this route).

If not, i can try to get down to AED next week.
concealer404 is online now   Reply With Quote
Old 09-02-2015, 09:55 AM   #819
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,458
Default

Quote:
Originally Posted by concealer404 View Post
Anyone know the dimensions/specs on the rodends in the 949 endlinks? I have at least 3 that are pretty worn and noisy, figure i should just replace them all. However, at $96 + shipping from 949, that's a no go. I'd just buy new endlinks from Emil I to (and i might go this route).<br />
<br /><br />
<br />If not, i can try to get down to AED next week.
<br />
<br /><br />
<br />[Utag]turbofan[/Utag] has one on his workbench right now.
aidandj is offline   Reply With Quote
Old 09-02-2015, 12:18 PM   #820
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

take one out and take it to aed
btabor is offline   Reply With Quote
