Old 09-29-2009, 11:27 AM   #201
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

wow hater.
Braineack is offline   Reply With Quote
Old 09-29-2009, 01:07 PM   #202
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

It's a Flipside Customs manifold that has a Q45 throttle body flange on it. The plenum is bigger than the other versions because that tb is huge. If anyone is interested in a manifold from him he has a more conventional version that will use the Mustang tb as well. It's very similar in design, but will actually have a more finished look and seems like it will be very nice.

What do you guys think? Throttle body too big/small, plenum to big/small, runners too short/long, etc...
JayL is offline   Reply With Quote
Old 09-29-2009, 01:25 PM   #203
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

dyno it and find out!
Braineack is offline   Reply With Quote
Old 09-29-2009, 02:59 PM   #204
I'm Miserable!
iTrader: (4)

Join Date: Nov 2008
Location: Orlando, FL
Posts: 168
Total Cats: 0
Default

Except that one looks like poo compared to his, though the larger plenum might perform better. Is that a q45 tb?
ripracer is offline   Reply With Quote
Old 09-29-2009, 03:05 PM   #205
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

Quote:
Originally Posted by ripracer View Post
Except that one looks like poo compared to his, though the larger plenum might perform better. Is that a q45 tb?
awwww. it's not as pretty

No, it's a Nissan TB 60mm IIRC. (on split's)
Braineack is offline   Reply With Quote
Old 09-29-2009, 03:16 PM   #206
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

ha, I thought that looked an awful lot like Splitimes! Is there any sort of velocity stack on the runners?
mazda/nissan is offline   Reply With Quote
Old 09-29-2009, 03:18 PM   #207
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Yes that's a Q45 throttle body.
JayL is offline   Reply With Quote
Old 09-29-2009, 03:30 PM   #208
I'm Miserable!
iTrader: (4)

Join Date: Nov 2008
Location: Orlando, FL
Posts: 168
Total Cats: 0
Default

Yeah your gonna have to dyno it to see, but where are you looking for power and what kind of power will decide on plenum size and runners. Stick with the TB though, its definitely the right size.
ripracer is offline   Reply With Quote
Old 09-29-2009, 06:43 PM   #209
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
awwww. it's not as pretty

No, it's a Nissan TB 60mm IIRC. (on split's)
Funny thing is that I actually do care how it looks. I've had so many fast cars that looked like **** that this time around I wanted it to be different. When I open the hood, I want to be proud of what I see. When I walk away from the car, I always want to be inclined to turn around and admire it.

The TB is what they call a 90mm, but it's actually tapered inside and only about 85mm or so. Popular on many other cars, just not the Miata, yet.

Quote:
Originally Posted by mazda/nissan View Post
ha, I thought that looked an awful lot like Splitimes! Is there any sort of velocity stack on the runners?

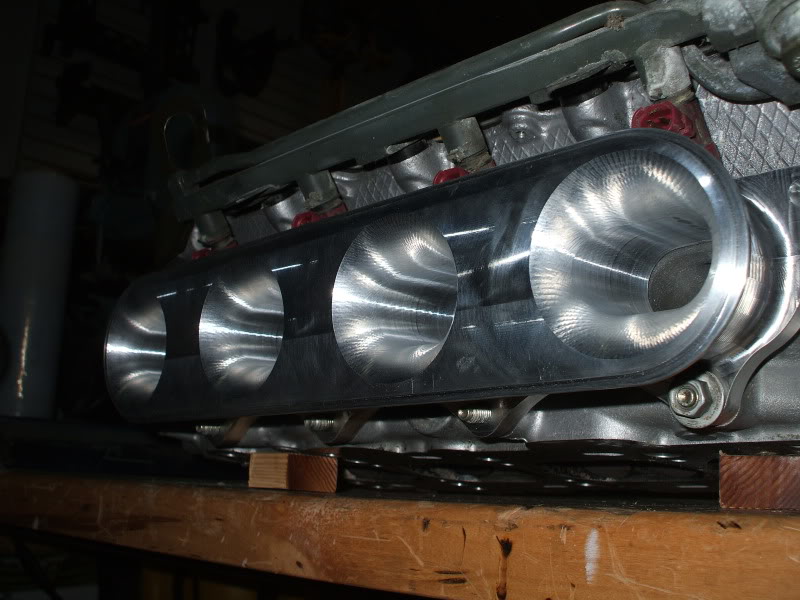

Can't remember what Splitimes looks like, but the picture below shows what the runners look like on the inside.

Quote:
Originally Posted by ripracer View Post
Yeah your gonna have to dyno it to see, but where are you looking for power and what kind of power will decide on plenum size and runners. Stick with the TB though, its definitely the right size.
Looking for more power up top, so if I lose a bit down low it won't concern me. I can't wait to start using the TB and I do agree that it's the right size.
Attached Thumbnails
Jason's reverse Build-intake-2.jpg
JayL is offline   Reply With Quote
Old 10-01-2009, 01:39 PM   #210
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Here's a video from the Corksport dyno day.



Here's a video of a run that same night at PIR.

JayL is offline   Reply With Quote
Old 10-01-2009, 04:31 PM   #211
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

Really interested to see what that IM does to your power. 400whp through a stock IM is damn impressive.
Savington is offline   Reply With Quote
Old 10-01-2009, 05:42 PM   #212
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Sorry I didn't polish that up for you guys . Mine has something a bit closer to velocity stacks inside it. Just didn't do a runner/headflange setup. Didn't have the ease of the injector in head setup. Wish I had that for simplicity though.




Jay: Not starting stuff, just found it fun to see a version very similar to mine. Has worked fine for me. Now go make some crazy power
Splitime is offline   Reply With Quote
Old 10-02-2009, 08:19 PM   #213
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

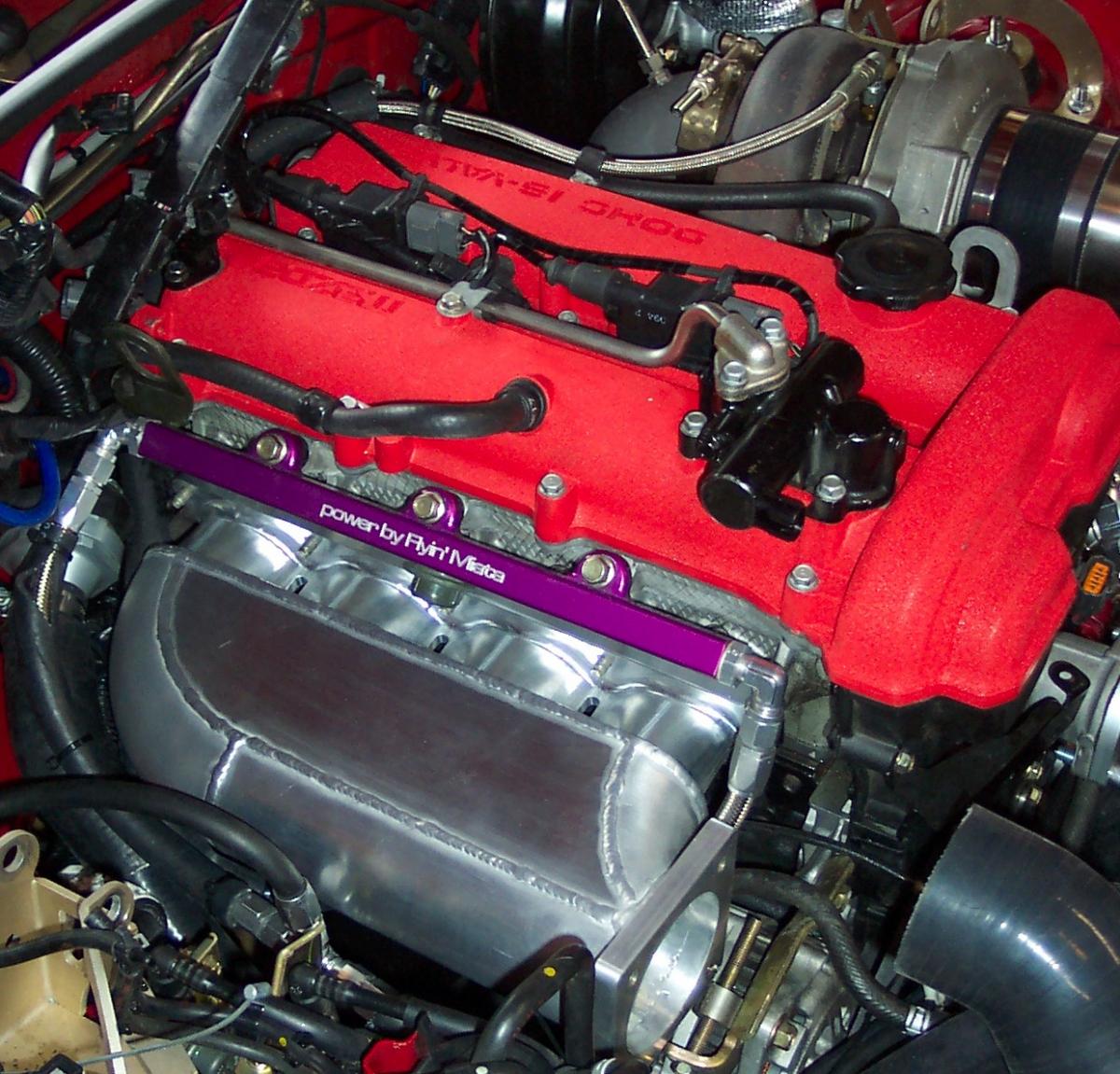

Here's a picture of a test fit that I did earlier. Only thing that I ran into was the alternator bracket will get in the way so I will be having a new bracket fabricated to give me a little more space.

On a side note, anyone watch Pinks All Out at Pacific Raceways last night?
Attached Thumbnails
Jason's reverse Build-intake-manifold-test-fit.jpg
JayL is offline   Reply With Quote
Old 10-02-2009, 08:35 PM   #214
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Nice!

Pinks aired already?!
wayne_curr is offline   Reply With Quote
Old 10-02-2009, 09:08 PM   #215
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

So do all '99 and later heads have the injector in head setup, or just 2001 and later NB's?
mazda/nissan is offline   Reply With Quote
Old 10-02-2009, 09:17 PM   #216
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by mazda/nissan View Post
So do all '99 and later heads have the injector in head setup, or just 2001 and later NB's?
I guess I can go look.

I may have to get one of these made if it delivers mega-torque.

so Jay, how do you know when you have enough power?
hustler is offline   Reply With Quote
Old 10-02-2009, 09:39 PM   #217
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
so Jay, how do you know when you have enough power?
I'll know when I've gone into plaid.
JayL is offline   Reply With Quote
Old 10-11-2009, 11:13 AM   #218
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

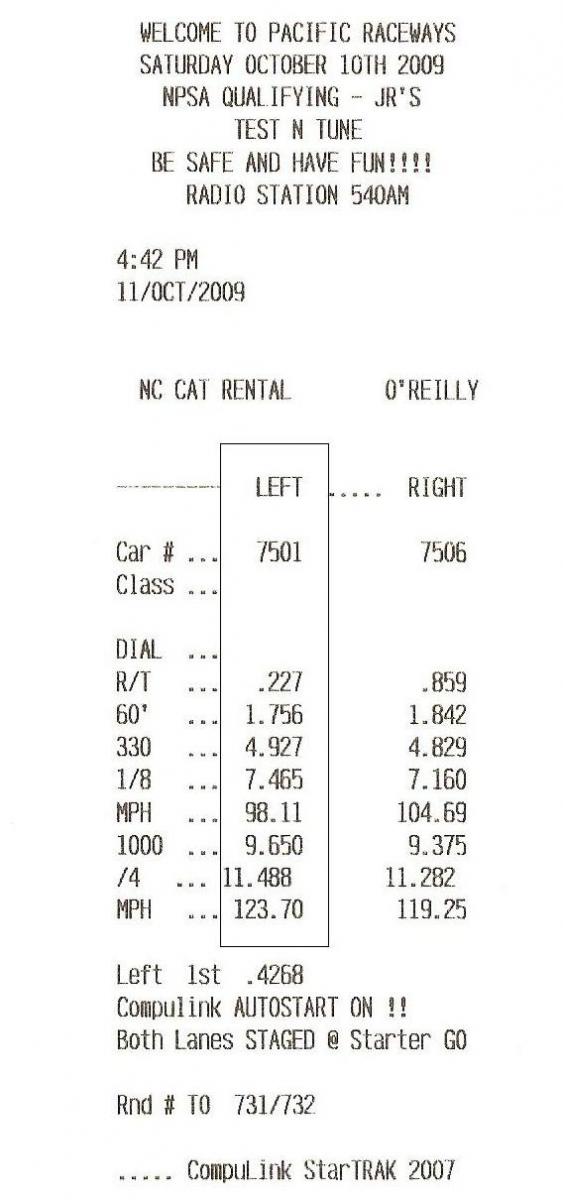

Put the factory intake manifold back on so I could go racing this weekend. Ended up getting a new personal best yesterday. Going back today to see if I can run faster or break the car trying.
Attached Thumbnails
Jason's reverse Build-drag-strip-1010.jpg
JayL is offline   Reply With Quote
Old 10-11-2009, 03:59 PM   #219
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

Good lord that is fast.

You'll be gone to plaid in no time.
viperormiata is offline   Reply With Quote
Old 10-11-2009, 04:22 PM   #220
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

You're into the safety requirements for 11.49 second car, have you met all of them?

**warning, PDF file**
http://www.portlandraceway.com/docs/...ech%202009.pdf
curly is offline   Reply With Quote
