Old 03-21-2010, 11:48 PM   #321
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

It's been awhile since I have done an update on all the changes. Recently decided to make the car quieter so I can get under the limit at a few tracks that I run. The dump tube is now routed back into the exhaust and it's extremely quiet now. The brakes needed to be upgraded so I went with the Trackspeed BBK, thanks Savington. So far getting bit by the track bug has been one of the best things to ever happen to me. It's really changing the way I want to mod the car.

Unfortunately I haven't been able to make a single event in the Miata and today wasn't any different, had to fall back on the SLK again. Last night after finishing up the exhaust I made a few pulls and the intake manifold burst under 17.4# of boost. I'm planning on pulling it this week and will post some pictures when I do. For now, here's a picture of the from when I was test fitting the calipers.

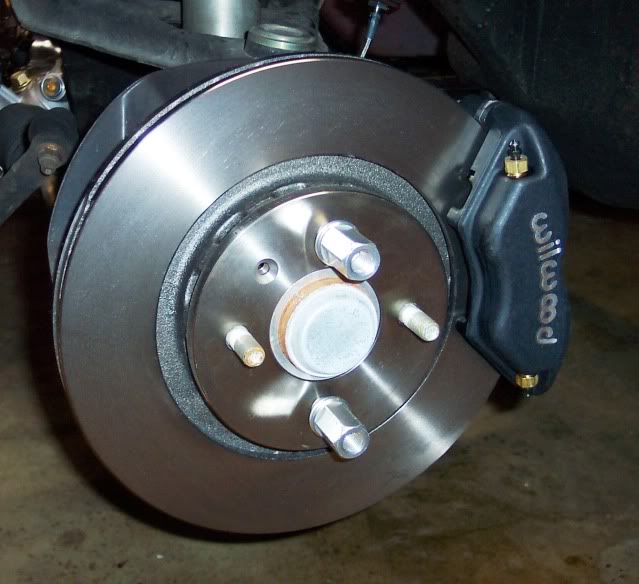

Name:  100_2056.jpg
Views: 3
Size:  56.4 KB
JayL is offline   Reply With Quote
Old 03-22-2010, 12:03 AM   #322
Junior Member
iTrader: (1)

Join Date: Sep 2009
Location: Shoreline, WA
Posts: 143
Total Cats: 0
Default

I hope nothing major happened when the intake bursted. How did the SLK do at the track?
Andifer is offline   Reply With Quote
Old 03-22-2010, 12:19 AM   #323
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

Whoa whoa, wait....The intake manifold that Flipside made for you "Bursted" open?
viperormiata is offline   Reply With Quote
Old 03-22-2010, 12:30 AM   #324
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default



Your car is sick!
Bryce is offline   Reply With Quote
Old 03-22-2010, 12:47 AM   #325
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

How did the school go? Sucks to hear about the manifold. In for pics.
SKMetalworks is offline   Reply With Quote
Old 03-22-2010, 12:53 AM   #326
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by JayL View Post
I made a few pulls and the intake manifold burst under 17.4# of boost.
I told you. You're going to blow the welds.



Maybe that engine bay could use some more uplighting
ZX-Tex is offline   Reply With Quote
Old 03-22-2010, 12:07 PM   #327
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by Andifer View Post
I hope nothing major happened when the intake bursted. How did the SLK do at the track?
So do I, I'll find out more when I pull it apart. The SLK was fun out there, but I should have bought her a Boxster.

Quote:
Originally Posted by viperormiata View Post
Whoa whoa, wait....The intake manifold that Flipside made for you "Bursted" open?
Yes, this is the Flipside manifold and the planned changes to prevent something like this from happening had NOT been done yet. From what I can see it came apart across the entire top seam where the plenum is welded to the runners. I left a message for him this weekend, but I haven't heard back yet. Even though I don't think he wants to continue working with me on this project, I would think he'd be interested in seeing this. That's all I can really say at this point until I get the manifold off and get some trained eyes on it. It's all part of the development process and as disappointed as I am, I was more upset about not having the car for the track yesterday.

Quote:
Originally Posted by Bryce View Post
Your car is sick!
Thank you.

Quote:
Originally Posted by SKMetalworks View Post
How did the school go? Sucks to hear about the manifold. In for pics.
It was awesome, it's been over 12 years since I've driven on the track. I'm learning so much right now and driving on the track is better than crack. Here's a pic from the yesterday.
Name:  slktrackday-1.jpg
Views: 3
Size:  45.6 KB

Last edited by JayL; 03-22-2010 at 12:33 PM.
JayL is offline   Reply With Quote
Old 03-22-2010, 03:46 PM   #328
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

Quote:
Originally Posted by JayL View Post
Yes, this is the Flipside manifold and the planned changes to prevent something like this from happening had NOT been done yet. From what I can see it came apart across the entire top seam where the plenum is welded to the runners. I left a message for him this weekend, but I haven't heard back yet. Even though I don't think he wants to continue working with me on this project, I would think he'd be interested in seeing this. That's all I can really say at this point until I get the manifold off and get some trained eyes on it. It's all part of the development process and as disappointed as I am, I was more upset about not having the car for the track yesterday.
That is really upsetting. I expected more out of FlipSide. Perhaps you could send the manifold to Begi and they might rework it for you.

Do you still have your factory manifold for the time being?
viperormiata is offline   Reply With Quote
Old 03-22-2010, 03:54 PM   #329
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by viperormiata View Post
Do you still have your factory manifold for the time being?
A factory manifold isn't an option. This wasn't a bolt on part so it's setup for this now and would be costly to revert back.
JayL is offline   Reply With Quote
Old 03-22-2010, 04:21 PM   #330
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Quote:
Originally Posted by JayL View Post
It was awesome, it's been over 12 years since I've driven on the track. I'm learning so much right now and driving on the track is better than crack. Here's a pic from the yesterday.

Good to see you turning some corners! That 1/4 mile stuff is a kick in the behind but 1/2 a dozen 11 second runs is not the same rush as several 20-30 minute sessions of flat out driving on a road course.

I'm sure they'll get that Mani buttoned back up and reinforced.
cueball1 is offline   Reply With Quote
Old 03-24-2010, 03:16 PM   #331
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Always post pics of destroyed parts. It's more fun and you already paid for them.
AbeFM is offline   Reply With Quote
Old 03-24-2010, 03:22 PM   #332
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Log laps on that Merc...a 250whp miata is a challenge to maximize. Its like a Chinese puzzle for me from time to time.
hustler is offline   Reply With Quote
Old 03-24-2010, 03:45 PM   #333
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by AbeFM View Post
Always post pics of destroyed parts. It's more fun and you already paid for them.
I'm hoping to have it off tomorrow morning and I will post a pic of where it split. At the latest it will be sometime on Friday because Rob's going to be checking it out this weekend. I'm anxious to hear his thoughts on it.

Quote:
Originally Posted by hustler View Post
Log laps on that Merc...a 250whp miata is a challenge to maximize. Its like a Chinese puzzle for me from time to time.
The V6 in the Benz made it fun to drive, but I could be in a Yugo and it would be more capable than the driver at this point. I have so much respect for the instructors that are helping people like myself learn to drive on the track safely. Hopefully someday I will be able to give back to the sport as well.
JayL is offline   Reply With Quote
Old 03-26-2010, 06:10 PM   #334
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

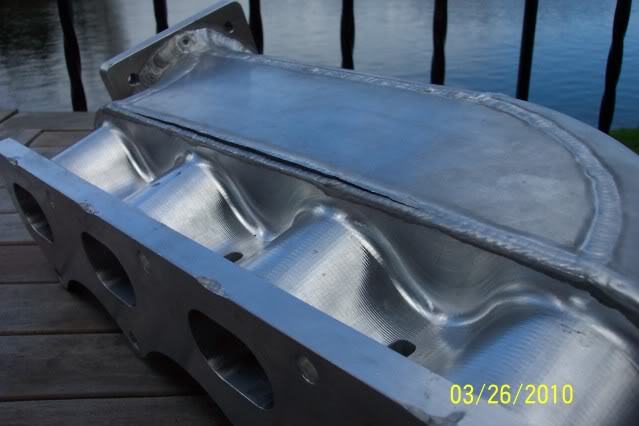

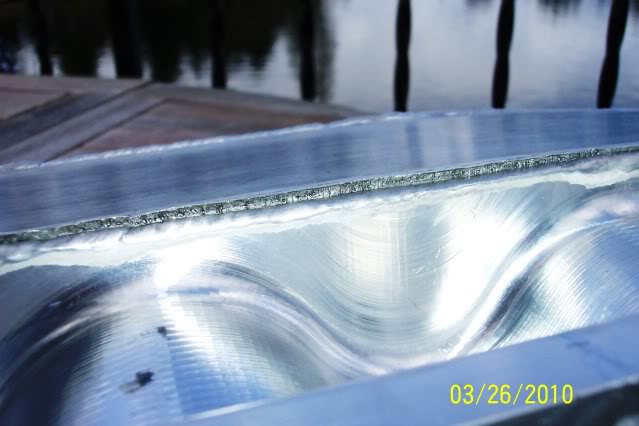

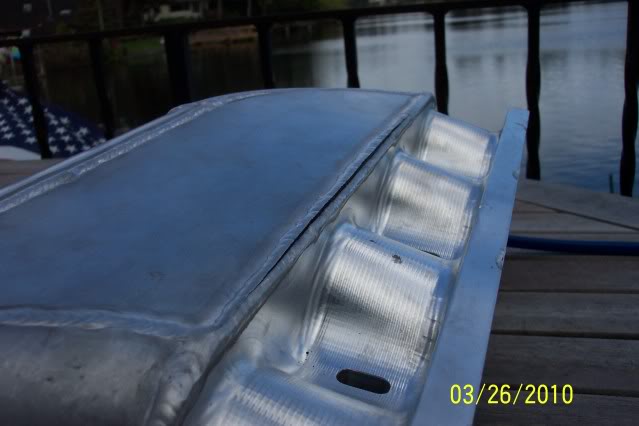

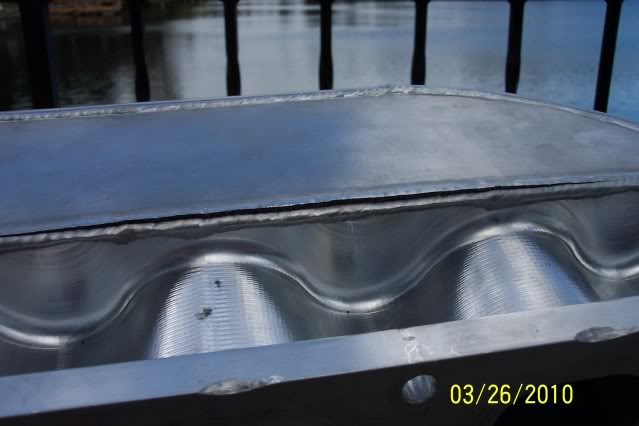

I finally got it off the car today, it wasn't fun as I had to lift the engine up an inch or so to get enough room to remove it. Here's the pics as promised, enjoy.

Name:  100_2065.jpg
Views: 3
Size:  35.8 KB

Name:  100_2066.jpg
Views: 4
Size:  32.6 KB

Name:  100_2068.jpg
Views: 3
Size:  32.5 KB

Name:  100_2071.jpg
Views: 3
Size:  37.9 KB
JayL is offline   Reply With Quote
Old 03-26-2010, 06:20 PM   #335
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Hard to tell from the pic, but it does appear to have ballooned and then 'torn' at the seam due to the weld not penetrating all the way.

<- not a welder, so strictly opinion.
Jeff_Ciesielski is offline   Reply With Quote
Old 03-26-2010, 06:25 PM   #336
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

That makes me worried about my own manifold as I am running over 20psi. Could it have been caused by a backfire maybe? Can you tell how thick the metal is? If it's too thin, Jeff's theory of it ballooning could have put extra stress on the weld seams.

--Ferdi
ftjandra is offline   Reply With Quote
Old 03-26-2010, 06:43 PM   #337
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

I too vote backfire. I am doubtful that 20psi would tear that weld apart in the middle like that.
Faeflora is offline   Reply With Quote
Old 03-26-2010, 06:44 PM   #338
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

I can assure you that it wasn't a backfire.
JayL is offline   Reply With Quote
Old 03-26-2010, 07:02 PM   #339
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Well, as I was the only other person there, I'm going to go ahead and chime in to avoid speculation. It wasn't a backfire. We started up Jason's car and got it to the shop where he had some exhaust work done. After his car got down off of the lift, he did a few WOT pulls to test everything out. Everything worked as expected at that point. On the way home, the car was running fine for a while, but we pulled off when Jason noticed that his maximum boost level kept getting lower and lower. He then proceeded to putt the car home where we then noticed the crack.

To me, this says that it was forced open under boost pressure and then ripped apart. If it had blown open due to a backfire (which once again, the manifold was fine when we started working on the car, and it never once backfired) it would have just blown out, not slowly been torn apart.
Jeff_Ciesielski is offline   Reply With Quote
Old 03-26-2010, 09:08 PM   #340
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

Could it be that they ground the weld down too far, trying to make it look pretty?
TurboRoach is offline   Reply With Quote
