Old 06-22-2009, 06:52 PM   #141
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

A friend shot this video a month or so ago at the track.

JayL is offline   Reply With Quote
Old 06-26-2009, 03:32 AM   #142
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Are you still running the ACT extreme organic disc? How is that holding up? How much power/boost have you run without it slipping?

I have the same disc and I'm upgrading my engine and was assuming that I'd need to go to a different disc. If I could though, I'd like to stay with the extreme organic disc since I drive my car every day in stop and go traffic.
Faeflora is offline   Reply With Quote
Old 06-26-2009, 11:33 AM   #143
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

FWIW I have an ACT XT clutch with the organic disc. 20 psi with a GT2871 and a built motor and it holds just fine.
ZX-Tex is offline   Reply With Quote
Old 06-26-2009, 12:54 PM   #144
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by ZX-Tex View Post
FWIW I have an ACT XT clutch with the organic disc. 20 psi with a GT2871 and a built motor and it holds just fine.
How much whp and torque? I'm guessing 380ish?
Faeflora is offline   Reply With Quote
Old 06-26-2009, 01:13 PM   #145
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

It has not been on the dyno yet, but I would say at least 300 HP is a conservative estimate based on other dyno plots I have seen here.
ZX-Tex is offline   Reply With Quote
Old 06-26-2009, 02:21 PM   #146
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Very conservative-- airbrush hit 300whp with 15psi and a t3/4
Faeflora is offline   Reply With Quote
Old 06-26-2009, 08:19 PM   #147
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

It only has just over 1000 miles on it and has held 330+ rwtq with the FM Level 2 pressure plate just fine. I cranked the boost up to around 20 or so and I started getting spark blowout so I won't be doing that again until I change replace the ignition setup.

Over that 1000 miles it has seen over 50 passes down the quarter mile with over half of them launching at over 4000 rpms (but on street tires), numerous practice launches on the street and plenty of demonstrations of the line lock plus just regular driving. It has never even thought about slipping.

I eventually will be finding out just how much this clutch can take, I just haven't gotten there yet. It's intentionally supposed to be the weak point in my setup.
JayL is offline   Reply With Quote
Old 06-27-2009, 02:12 AM   #148
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Thanks for the info. I've launched mine hundreds of times on street tires and it's doing just fine. This is with about 250whp.


I was wondering--- how do you like your MT tires? Eliminator has said that they're the best for street grip under big power. Have you ever taken them out in the rain? If so, were they ok or terrifying in the rain? I would like to have as much traction as possible but I need a tire that works in the rain since my car is a daily driver.
Faeflora is offline   Reply With Quote
Old 06-27-2009, 02:33 AM   #149
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by faeflora View Post
I was wondering--- how do you like your MT tires? Eliminator has said that they're the best for street grip under big power. Have you ever taken them out in the rain? If so, were they ok or terrifying in the rain? I would like to have as much traction as possible but I need a tire that works in the rain since my car is a daily driver.
Plain and simple, I love these tires.

These tires have completely solved any traction problems my car had at 350+ rwhp. On the street, when they are warm, I roll into the throttle and the tires will hold in every gear. They haven't been to the track yet, so I don't know how they will hold using launch control, but I hope they hook hard enough to break something.

As for the rain, I haven't taken them out in it yet and have no intention to. I drive a POS as a daily so this car only comes out when I feel like giving it a good and proper beating. They do have tread on them so if you are able to take it easy they should be fine. I wouldn't recommend them for a daily driver unless you have a huge tire budget because they won't last very long. I have been told I will see a few thousand miles at the most. They are definitely a tire designed with straight line traction as the focus though.
JayL is offline   Reply With Quote
Old 06-27-2009, 01:21 PM   #150
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

How did the MTs fit in the rear? Did you take out the fender liners and do a roll?
Faeflora is offline   Reply With Quote
Old 06-27-2009, 03:15 PM   #151
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

They are tight. I didn't have to take out the fender liners or do a roll yet, but I haven't done any launches at the strip yet either. If your car isn't slammed, then you should be fine. They did improve the ride quite a bit though, dare I say it's as smooth as a Cadillac while cruising on the highway.
JayL is offline   Reply With Quote
Old 07-09-2009, 02:43 AM   #152
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

What a night. Went out to the strip tonight to see if I could get that 11 second pass. These new tires are awesome and made me feel like I was learning to drag race all over again. First pass out was just a light launch just to get a feel for how sticky they were, it bogged. Second pass, launch control held it at 3500, dumped the clutch and it died. Third pass, launch control held it at 4500, dumped the clutch and it jumped forward and bogged. Fourth pass, same thing. Fifth pass, launch control held it at 5000, dumped the clutch and I broke the drivers side axle. Haven't gotten the car up in the air to inspect the damage, but I'm pretty sure that's the only thing wrong with it. Here's the times from my runs and the damage photos will be coming tomorrow night.

1st 13.7 @ 111
2nd 19.9 @ 115
3rd 12.2 @ 117
4th 12.4 @ 118
5th DNF

Definitely not my best night at the track, but it was fun regardless.
JayL is offline   Reply With Quote
Old 07-09-2009, 08:56 AM   #153
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

MT tires a bit too sticky. Truthfully, you might as well bump up to the Ford 8.8 rear. That will give you a bunch more gearing options (for cheap), a bulletproof rear, and no worries about axles.

Besides, you'll be ready for your eventual V8 swap.

Frank
fmowry is offline   Reply With Quote
Old 07-09-2009, 02:46 PM   #154
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

I'm really not wanting to go down that road quite yet, but I haven't ruled it out either though.

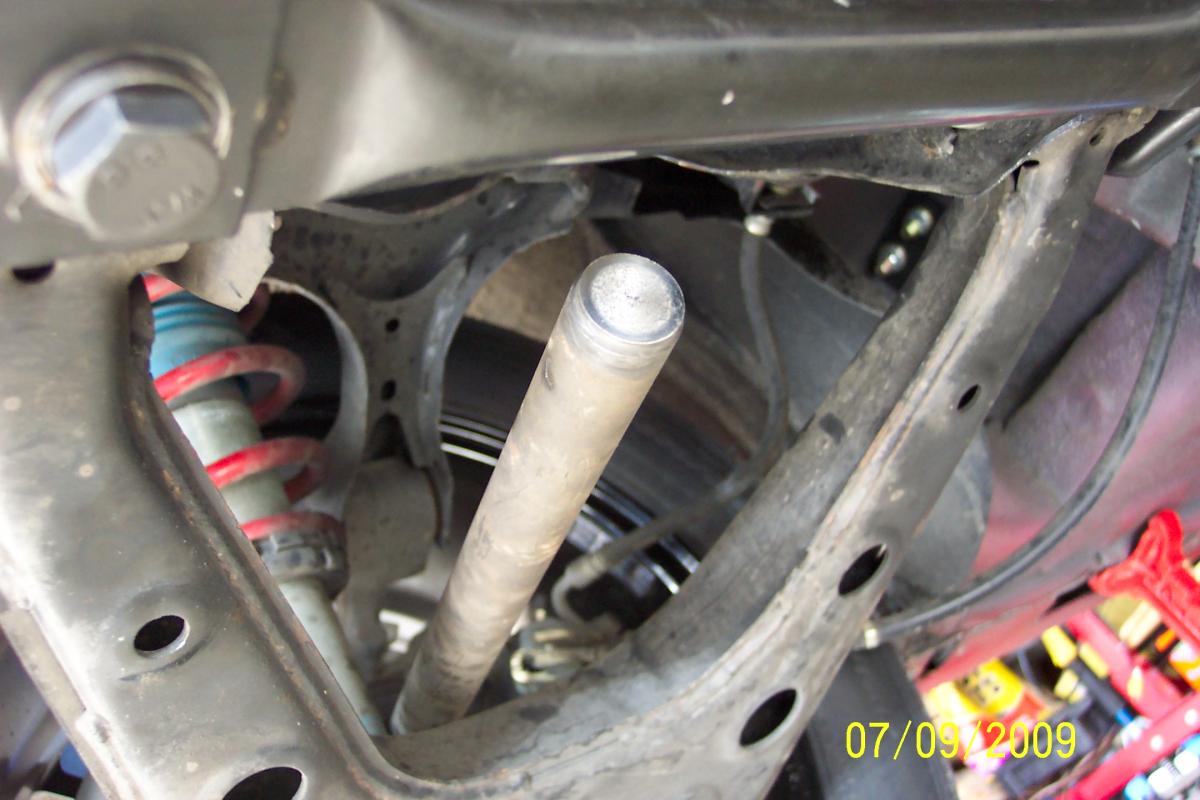

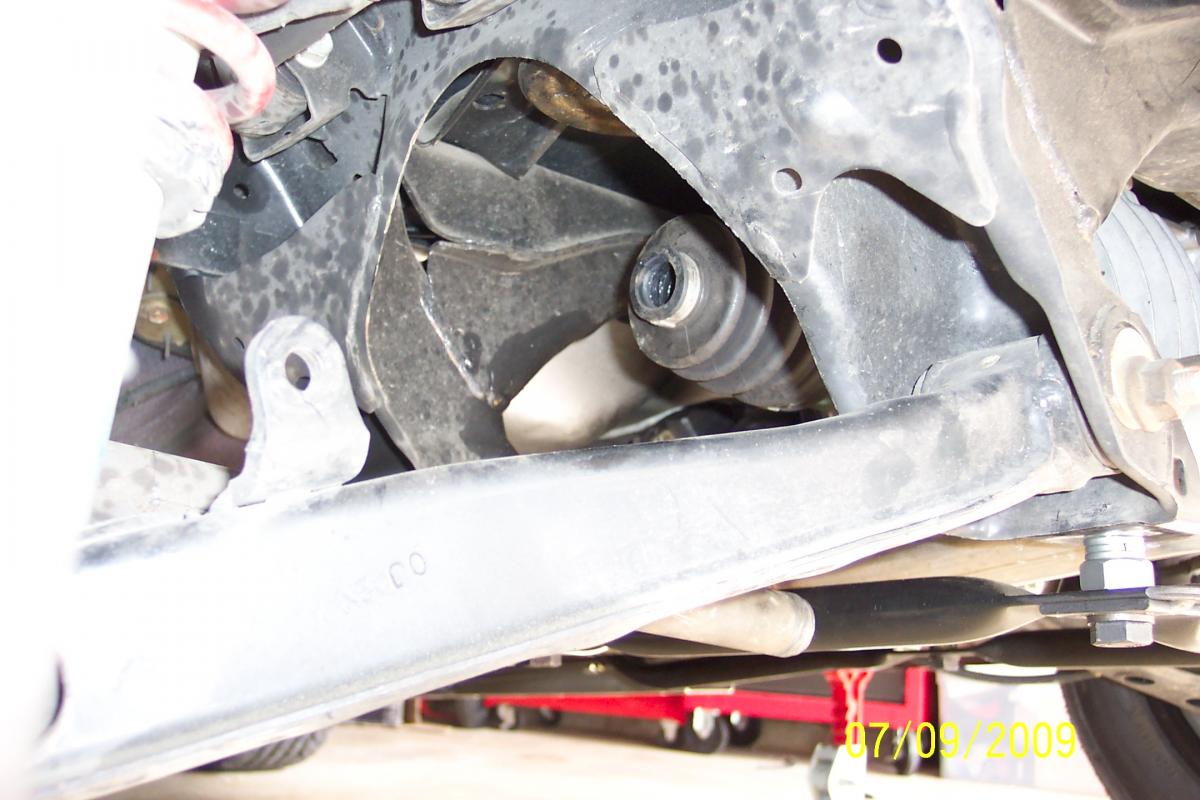

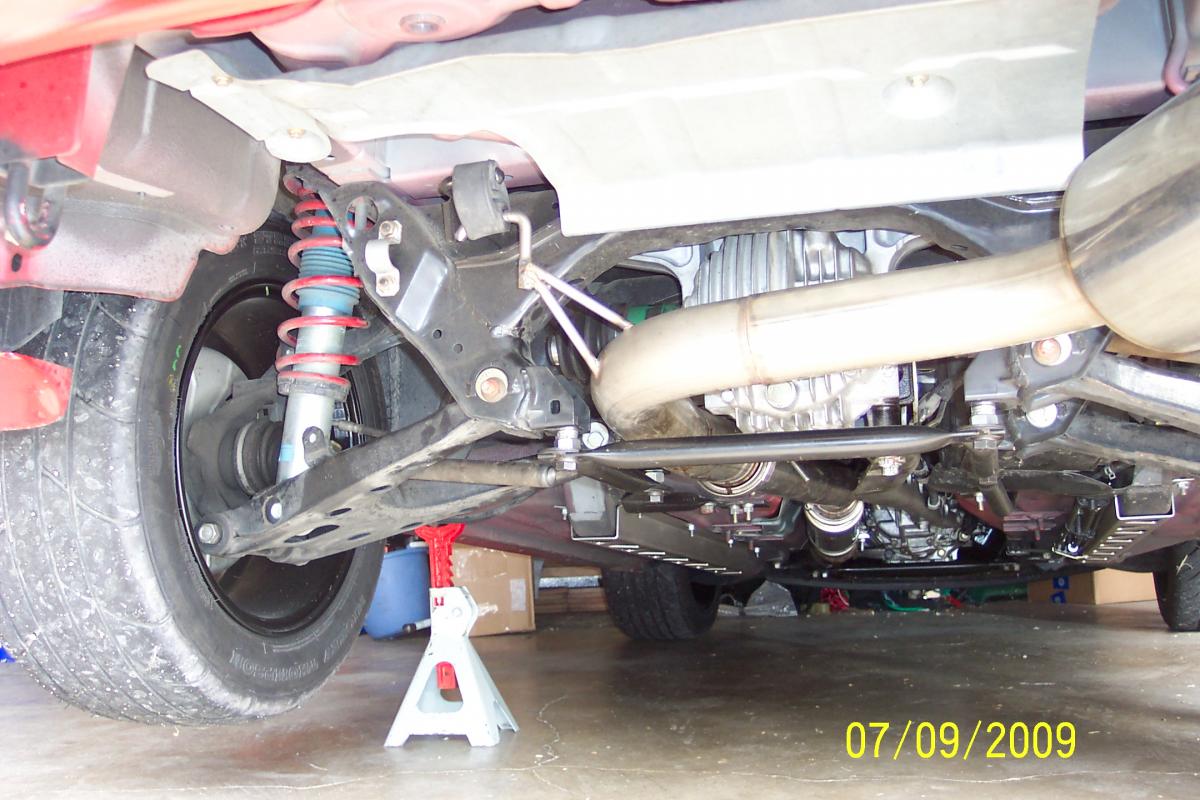

Here's a few pictures of the damage. I did manage to limp it home from the track under it's own power though, try doing that with a torsen...
Attached Thumbnails
Jason's reverse Build-axle.jpg   Jason's reverse Build-axle1.jpg   Jason's reverse Build-axle2.jpg
JayL is offline   Reply With Quote
Old 08-11-2009, 11:10 AM   #155
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Did you replace your entire rear end and axles or or just the axles? What did you go with?
Faeflora is offline   Reply With Quote
Old 08-11-2009, 01:03 PM   #156
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by faeflora View Post
Did you replace your entire rear end and axles or or just the axles? What did you go with?
It currently has an RX7 clutch type lsd with 3.63 gears in the Miata housing and it all was cryo-treated. As of now, I'm still running stock Miata axles even though I've broken two of them.

There's a couple of things that I'm looking at doing as a permanent fix, but that would happen this winter. This Seattle weather has been too nice to be doing anything but driving the car.
JayL is offline   Reply With Quote
Old 08-14-2009, 06:47 AM   #157
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Over the past week I've had the chance to get some things sorted out and also find some new problems. For starters, the meth setup went on the car without any problems and we got everything tuned enough to run Pinks this weekend.

A couple of things might be a problem in the future. For starters, I can't really compare any of my new dyno charts to my old ones. With all the changes in the gearing, tire heights and tire types I just don't know how much it will matter when comparing this run to my previous runs. And finally, very sticky Mickey Thompson tires aren't a good choice for making a bunch of consecutive dyno pulls. The car is also at the limit of the injectors, much in need of an intake manifold and I'm also having spark blowout up top. The spark blowout problems should be fixed by the end of next week hopefully and the work on the intake manifold has already started.

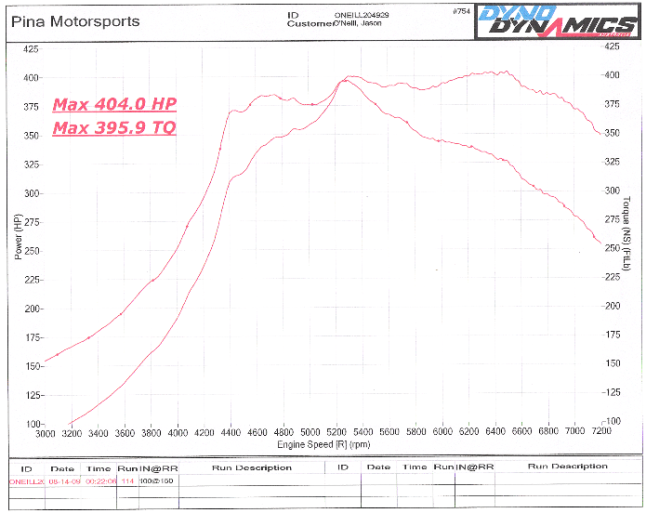

Here's the new numbers from the dyno and I should have some new numbers from the drag strip by the end of the weekend.
Attached Images
File Type: bmp 404 dyno from Pina 0001.bmp (971.9 KB, 575 views)
JayL is offline   Reply With Quote
Old 08-14-2009, 08:42 AM   #158
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Def need a new mani. What did you up the boost to?
SKMetalworks is offline   Reply With Quote
Old 08-14-2009, 10:50 AM   #159
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

would you say you notice a 200ft-lb increase over 1000 rpm?
y8s is offline   Reply With Quote
Old 08-14-2009, 12:47 PM   #160
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Yeah, I can definitely feel it. Probably won't start thinking this is slow for quite awhile. Almost like a whole new car actually. Boost is at 23#.
JayL is offline   Reply With Quote
