Old 03-27-2010, 01:04 AM   #341
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

That manifold really sounds like it has been painful. I'm sorry :( Maybe BEGI had it right when they made their intake out of iron :/
Faeflora is offline   Reply With Quote
Old 03-30-2010, 03:27 PM   #342
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

I'm with the other guy - bad penetration on the welds or the material is too thin. It's a balloon with sharp corners. Bad design idea. :-) Making it thicker (heavier) would work, or even just adding material at the corners would help. Posts through it could help, too.

FYI, the OEM intake can handle serious backfires. :-) A guy once came down the street 6 houses cause he said my garage scared him and he came to offer medical assistance, the last explosion he'd heard like that was in an iraqi war zone. :-)

Perhaps (though I'd hate to mess with the flow) putting a bolt or two through it would really help hold it together, to keep it from ballooning? Or a clamp/strap on the outside? Seems iffy, really good high res close ups of the weld would help someone who knows welding (and I know a few if you don't) tell you if it's the fault of the weld.
AbeFM is offline   Reply With Quote
Old 04-03-2010, 01:40 PM   #343
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,895
Total Cats: 109
Default

From the looks of the pic, it looks like it could easily be fixed.

Are you planning on building another intake?
miata2fast is online now   Reply With Quote
Old 04-03-2010, 03:00 PM   #344
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

I'm fairly certain that it could have been easily welded back up, but it would have just failed again. 17# is what I run on low boost and on high boost it needs to withstand upwards of 32#.

I felt the best course of action is to let the guy that designed it have the first opportunity to come up with a fix for it. So currently the manifold is back at Flipside as of last Monday. Rob took a look at it and listened to my concerns. Not sure what his plan is going to be, but I will post up about it when I get the manifold back.

As much as I like the Flipside manifold, I decided to put a 99 intake manifold on the car this week. I'm in the process of finishing that up this weekend. I wish it was as easy as just bolting it on, but I need to re-work my cold side piping, a bunch of wiring, etc... Having a reliable car that I can actually drive is of utmost importance to me right now. I'll most likely sell the Flipside manifold when I get it back.
JayL is offline   Reply With Quote
Old 04-03-2010, 06:40 PM   #345
Junior Member
iTrader: (1)

Join Date: Sep 2009
Location: Shoreline, WA
Posts: 143
Total Cats: 0
Default

Its funny, because I showed my boss that pic and he thought it was caused by backfire as well. I hope flipside figures it out. Shitty you had to go all this length to find out you don't even want it.
Andifer is offline   Reply With Quote
Old 04-03-2010, 07:00 PM   #346
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

I think a backfire would have completely ripped that manifold apart, after all it's only made out of 1/16" aluminum.
JayL is offline   Reply With Quote
Old 04-03-2010, 07:46 PM   #347
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,895
Total Cats: 109
Default

Have you considered using the Edelbrock manifold. There are some mega horsepower Miatas running them, I bet they are relatively inexpensive compared to sheet metal. It does not look as good a sheet metal intake, but it should handle any amount of boost you can throw at it.

The tubed Miata that is going low 9's at 150+mph is using that manifold. I have seen it on a few other cars. I think it is worth checking to see what kind of flow and boost they can handle, and if it is still available.

I can't wait to see how the car runs when it is back together.
miata2fast is online now   Reply With Quote
Old 04-04-2010, 12:46 AM   #348
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

At this point I'm going to just take it easy for a bit and see what happens. If I don't start driving this car soon, I'm going to end up selling it. With that being said, I finished everything up and the car is ready to drive again. I'll go over it again tomorrow to make sure I didn't miss anything and then it's time for a drive. I hope it doesn't rain.

Name:  DSCF0158.jpg
Views: 2
Size:  77.0 KB
JayL is offline   Reply With Quote
Old 04-04-2010, 11:45 PM   #349
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

What a wonderful day. I took it out and beat the ever living **** out of it, all the way to the gas station and then back home the long way. The plan was to go further, but I left the hood at home and it was starting to rain.

Overall it's a bunch quieter now that I'm not running an open dump tube. I also installed an aftermarket exhaust cam. When I get back on the dyno to do some tuning I'll get it dialed in and see if it will give me any extra power.
JayL is offline   Reply With Quote
Old 04-06-2010, 04:10 PM   #350
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Don't you mean... Seeing what power hit you took with the OEM mani? :-)

I've seen people take a dremel to them and hollow them out. Might be something to consider, though this edelbrock suggestion is a good one.
AbeFM is offline   Reply With Quote
Old 04-06-2010, 04:27 PM   #351
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

If you or anyone wants to buy my mostly polished and hollowed out NB manifold (hollowed top and bottom) it's FS.
Faeflora is offline   Reply With Quote
Old 04-06-2010, 04:50 PM   #352
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

DYNO! What difference did you see before/after/compared to an aftermarket unit?
AbeFM is offline   Reply With Quote
Old 04-11-2010, 03:52 PM   #353
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

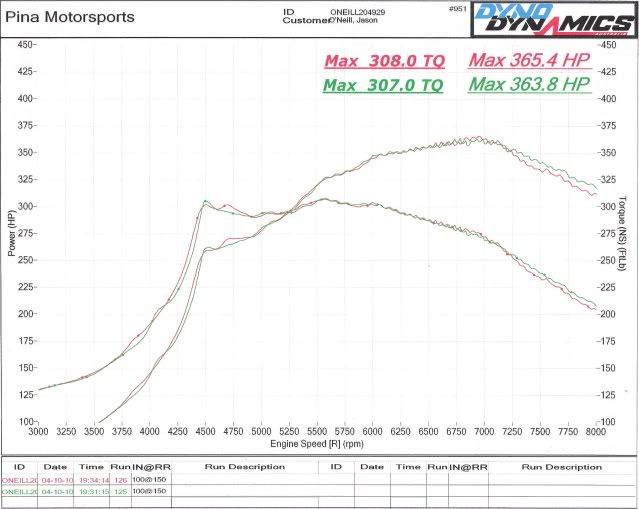

Did a few pulls on the dyno to see what the car is putting down with the 99-00 intake manifold. VICS was locked in the open position and this was at 19# (wastegate).

Name:  dynonwq2010.jpg
Views: 2
Size:  51.5 KB
JayL is offline   Reply With Quote
Old 04-11-2010, 04:40 PM   #354
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

holy ****

Last edited by 18psi; 04-24-2010 at 06:55 PM.
18psi is offline   Reply With Quote
Old 04-11-2010, 10:36 PM   #355
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

It also sounds quite a bit different with the dump tube plumbed back in. Ben was nice enough to do a flyby in it today so I got to hear it from outside the car and I think it sounds awesome.
JayL is offline   Reply With Quote
Old 04-11-2010, 11:11 PM   #356
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

What RPM do you hit 19psi at now? 15psi? 9 psi?
Faeflora is offline   Reply With Quote
Old 04-11-2010, 11:19 PM   #357
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

It's fully spooled at 4500. As for the other boost levels, I'm not sure and I don't have a log available. With a mbc or ebc I should be able to get it spooled a few hundred rpm earlier. When I do put a boost controller on it I will shoot for a solid 20.5 and call it a day on pump gas. I haven't done this yet because my injectors are already maxed out up top.
JayL is offline   Reply With Quote
Old 04-12-2010, 04:46 PM   #358
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Comparison for those that can't scroll back a couple pages...

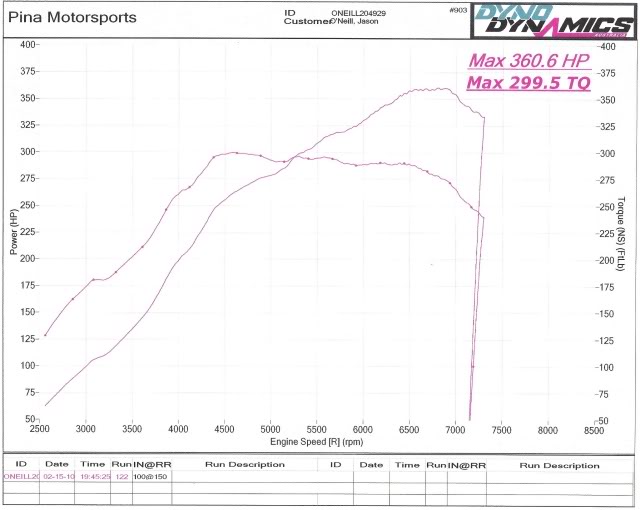

Aftermarket mani at 17.5 psi

Name:  manifolddynosheet10002.jpg
Views: 2
Size:  42.7 KB

99 intake at 19psi

Name:  dynonwq2010.jpg
Views: 2
Size:  51.5 KB
cueball1 is offline   Reply With Quote
Old 04-13-2010, 06:54 PM   #359
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

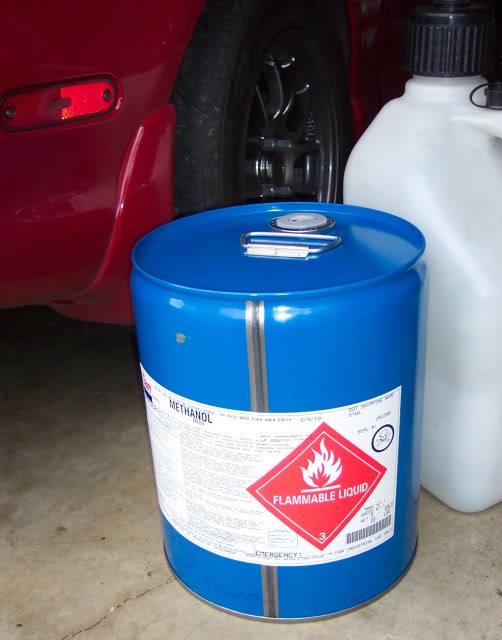

More power coming soon...

Name:  100_2073.jpg
Views: 2
Size:  49.7 KB
JayL is offline   Reply With Quote
Old 04-13-2010, 06:55 PM   #360
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by JayL View Post
More power coming soon...

I thought you kicked the habit?
Jeff_Ciesielski is offline   Reply With Quote
