Old 12-24-2009, 01:49 AM   #281
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Need my expert welding skills?
SKMetalworks is offline   Reply With Quote
Old 01-18-2010, 12:23 AM   #282
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Made a little more progress today.

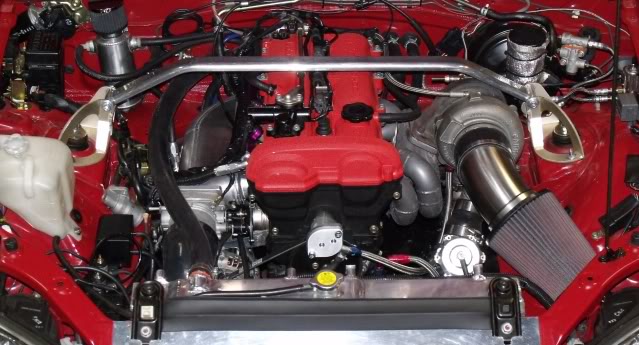

Name:  JayLUpdatedEngineShot.jpg
Views: 3
Size:  61.0 KB
JayL is offline   Reply With Quote
Old 01-18-2010, 12:53 AM   #283
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Lesseee... Looking good! Did you: Get a reroute in, SS water lines, charcoal delete, new manifold in, catch can. Did I miss anything?
Faeflora is offline   Reply With Quote
Old 01-18-2010, 01:36 AM   #284
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Quote:
Originally Posted by JayL View Post
Made a little more progress today.

Hmm. Details?
SKMetalworks is offline   Reply With Quote
Old 01-18-2010, 01:43 AM   #285
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by SKMetalworks View Post
Hmm. Details?
Just the intake manifold and the throttle body, everything else was already there. Going to finish up a few other projects this week. She will be ready for the track very soon.
JayL is offline   Reply With Quote
Old 01-18-2010, 01:53 AM   #286
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

damn looks so much cleaner with the new mani. when's the re-tune?
18psi is offline   Reply With Quote
Old 01-18-2010, 01:59 AM   #287
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Lol i didnt even notice. It was hidden under your coolant hose. Dir.
SKMetalworks is offline   Reply With Quote
Old 01-18-2010, 02:01 AM   #288
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
when's the re-tune?
Probably sometime next month for a re-tune. There's going to be a few big changes made to this manifold before I do any tuning. The way it sits right now I'm very unhappy with it.
JayL is offline   Reply With Quote
Old 01-18-2010, 02:54 AM   #289
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

how so?
18psi is offline   Reply With Quote
Old 01-18-2010, 12:28 PM   #290
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

It needs a separate piece made that will go between the manifold and the head. It will be angled and lengthen the runners by about 3 inches or so. Most importantly it will angle the entire manifold up to help eliminate all the fitment issues. The way it sits now, there's less than .25 inch between the manifold and the starter, it angles down, can't access the bottom bolts to tighten them properly, sloppy welds all the way around that didn't penetrate, aluminum on the plenum is too thin, had to create a new bracket to move the alternator out as far as possible, injectors hit the flange, etc... For what I paid, this thing should have zero fitment issues. Basically, it's just not up to my standards.
JayL is offline   Reply With Quote
Old 01-18-2010, 05:23 PM   #291
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

oh wow. that's a lot of changes. so they're going to have to cut it and reweld pretty much most of it?
18psi is offline   Reply With Quote
Old 01-18-2010, 05:34 PM   #292
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Not really. Think of it like this, the part I have will remain unchanged (I'll reinforce it myself prior to having it powder coated, but that's in the future). A new piece will be bolted to the head that will just be 3-4 inch runners curved upward with a flange on each side. On the end of the new piece there will be another flange with studs just like the head has. I will then bolt on the piece I already have. This will solve a couple of issues, the small runner piece can be bolted onto the head tightly, the upward angle I will allow the use of the factory alternator bracket, it will increase the runner length to about 9-10 inches and finally allow me to access everything under the manifold easily.
JayL is offline   Reply With Quote
Old 01-21-2010, 06:25 PM   #293
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Damn Jason that sucks to hear about that manifold. Andy was telling me you weren't happy with it when I asked him but doesn't know enough to give good details.

I woulda gave it up after I got to the point of having to make an alternator bracket.
wayne_curr is offline   Reply With Quote
Old 01-22-2010, 12:07 PM   #294
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

I'm probably being over critical about it, most people would probably overlook all the the flaws. Either way, I'm probably done doing business with Flipside Customs, Rob doesn't seem to have any interest in working on projects or taking calls. SKMetalworks will be getting a visit soon to see if he's interested in the project.
JayL is offline   Reply With Quote
Old 01-22-2010, 01:08 PM   #295
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,073
Total Cats: 253
Default

Your not being over critical at all. If you paid for the product and it isn't up to your standards then you have the right to ask for it to be re-done or to take your business elsewhere. Everyone on the forum knows that you have very high standards for your performance parts and there is no reason why this IM shouldn't be up to those same standards. I would return it.

The intake manifold that I bought from Braineack was just about flawless(minus the throttle cable bracket, no biggie) as far as fitment. Now I have more then enough access to the oil filter, injectors and I am more than happy with it.
viperormiata is offline   Reply With Quote
Old 01-22-2010, 02:02 PM   #296
Junior Member

Join Date: Jun 2009
Location: Lancaster, PA
Posts: 240
Total Cats: -2
Default

Quote:
Originally Posted by JayL View Post
I'm probably being over critical about it, most people would probably overlook all the the flaws.
This is why I absolutely love this build thread. Everything is done correctly.
TimR is offline   Reply With Quote
Old 01-22-2010, 02:32 PM   #297
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Do the runners on the manifold follow the angle of the ports into the head? The way it sits mounted it looks like the runners are perpendicular to the flange...?
m2cupcar is offline   Reply With Quote
Old 01-23-2010, 02:52 AM   #298
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

The entire manifold actually slopes down a little bit from as seen when I had it mocked up on a spare engine. The runners look to follow a straight path outward from the head so I would say they are perpendicular to the flange. Not sure if this is a bad thing or not, but my stock manifolds follow the same path before the runners start their upward journey.
JayL is offline   Reply With Quote
Old 01-23-2010, 03:10 AM   #299
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Out of curiosity, what size pipe/tube did Flipside use for the runners?
SKMetalworks is offline   Reply With Quote
Old 01-23-2010, 03:12 AM   #300
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

It was a solid chunk of aluminum that was machined.
JayL is offline   Reply With Quote
