Old 06-09-2010, 07:08 PM   #441
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

I'm looking at a couple different options to prevent this from happening again. In the mean time I'll be running putting another 6-speed in the car this weekend so I can get some more seat time.

On a side note, I picked up a hard top this afternoon. It needs some work, but I can't complain for $250 delivered.
JayL is offline   Reply With Quote
Old 06-10-2010, 02:52 AM   #442
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Nice videos! Looks frustrating being stuck behind folks. I was noticing, in the first video, you never made it over say 6,800 indicated, most of the time not over 6,200. And that's indicated, I'd done some testing before (when I noticed in my logs I would shift at 6,700 instead of 7,200 or so as I intended) and found the OEM tach reads several hundred RPM high till about redline, when it starts to catch up again.

Is that cause it was too wet, just the heat of the moment, or more to do with an intentional matching of the shifting to the powerband?

Curious (mostly in my hunt for camshafts) what someone with ANY track time thinks :-)
AbeFM is offline   Reply With Quote
Old 06-10-2010, 02:54 AM   #443
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

PS - for what it's worth, the 6 speeds out of the turbo cars have treated gears. The difference in parts cost is $5, but of course, the cost to replace them is quite a pretty penny more. :-)
AbeFM is offline   Reply With Quote
Old 06-10-2010, 02:54 AM   #444
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

I occasionally shift early just for the heck of it. I'm not getting paid if I win. I am paying if I break the car though.
curly is online now   Reply With Quote
Old 06-10-2010, 04:21 AM   #445
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Quote:
Originally Posted by JayL View Post
I'm looking at a couple different options to prevent this from happening again.
Jay, what kind of options are there in preventing this from happening again?

I'm curious if all that drag racing you used to do played a role in the gearbox failing.
thesnowboarder is offline   Reply With Quote
Old 06-10-2010, 10:28 AM   #446
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by AbeFM View Post
Nice videos! Looks frustrating being stuck behind folks. I was noticing, in the first video, you never made it over say 6,800 indicated, most of the time not over 6,200. And that's indicated, I'd done some testing before (when I noticed in my logs I would shift at 6,700 instead of 7,200 or so as I intended) and found the OEM tach reads several hundred RPM high till about redline, when it starts to catch up again.

Is that cause it was too wet, just the heat of the moment, or more to do with an intentional matching of the shifting to the powerband?

Curious (mostly in my hunt for camshafts) what someone with ANY track time thinks :-)
It was very frustrating because I'm just getting back into driving on a track and want a steeper learning curve. That just doesn't happen if I can't push the car. Felt like I was in a parade for most of the day. In my car the tach is dead on, especially in 3rd and up. Most of it was because it was too wet and it couldn't put the power down.

Quote:
Originally Posted by thesnowboarder View Post
Jay, what kind of options are there in preventing this from happening again?

I'm curious if all that drag racing you used to do played a role in the gearbox failing.
I'm mainly looking at different transmissions, but I haven't ruled out building up a 6-speed with cryo treated MSM gears and stuff.

In all the time I was drag racing I expected the box to fail. I abused this thing bad. One thing that I do suspect is that is might have something to do with the oil I was running and how hot the box got. Won't know until I get it apart.

Last year I was running Redline shock proof, but it didn't shift very well. I drained that fluid and went with the Ford stuff. It shifted better and better with the more miles I put on it and didn't fail. The fluid was changed out 3 full times over a period of about 2000 miles. This spring being the last time and it was evident that any residue from the shock proof was gone. I also took the opportunity to seal up the bottom/sides of the engine bay completely and this extended all the way back to the beginning of the transmission. I'm guessing this definitely caused the temps to run hotter inside the box.

I also did a session, came in and drove 5 miles to a gas station, filled up and then went back out and that's when it failed. Hopefully I can find out more when I get it pulled apart.
JayL is offline   Reply With Quote
Old 06-10-2010, 08:26 PM   #447
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

I was slightly looking into different transmissions as well. It appears that the rx8 6-speeds can be swapped in withe the change of the bell housing. How strong they are is another question.

Gearing is just slightly different, too.

Name:  Screenshot2010-04-30at112026AM.jpg
Views: 2
Size:  28.2 KB
thesnowboarder is offline   Reply With Quote
Old 06-10-2010, 08:56 PM   #448
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

It's my understanding that the RX8 Aisin 6 speed is no stronger than what we have. Probably has very similar internals with a different case.

Most likely I'm going to end up with a TII swap. It just makes sense at the moment from a strength and cost analysis. Just going to go about it a bit different than most people. I'd say that it's stronger than the 6-speed based on the research that I've done and if it does break I can find them all day long for cheap.
JayL is offline   Reply With Quote
Old 06-10-2010, 09:28 PM   #449
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

True, be sure to keep me in the loop. If you decide to get an adapter plate made, im sure quite a few of us would be interested in buying one.

Best of luck Jason! I'm tossing a 99 6-speed in this weekend, lets hope it last long enough for a solid solution.
thesnowboarder is offline   Reply With Quote
Old 06-10-2010, 09:52 PM   #450
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Will do. I'm also tossing in another 6-speed this weekend.
JayL is offline   Reply With Quote
Old 06-11-2010, 12:06 AM   #451
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

That must be it - the traction - I watched a later video (actually, where you lost 3rd) and when it was dry, you really did rev it a lot further.

That's odd. I measured, directly, the tach response. I fed it a pulse train (using the megasquirt to monitor) and recorded the tach at various steady state RPMs.

http://abefm.smugmug.com/Miata/Modif.../4706256_f8xk5

My findings:
I fed the tach known spaced tach pulses, and found that the tach is accurate at low RPM (1000), and from ~1500-~4000 is picks up linearly about 175 rpm of offset (it reads high). Then it stays there until ~7200 (reading ~7375) and by 7500 it's reading correct again, which it retains through 8000 rpm, which is as high as I tested.

Ah, ok, so it's not as BIG as issue as I thought, but it was certainly there. Very repeatable.

I'm hoping to end up right on the safe side of what a 6 spd can handle. :-\
AbeFM is offline   Reply With Quote
Old 06-11-2010, 12:14 AM   #452
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Your method of measuring this is much more precise than my own. I'm only going by the few times that I have looked at the tach and verified what it was doing on the dyno. This was all in 5th gear so it's certainly not climbing as fast as it does in the lower gears.
JayL is offline   Reply With Quote
Old 06-11-2010, 12:37 AM   #453
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,371
Total Cats: 1,332
Default

Jason, if you have some money to **** into the wind, you might consider ditching the 6-puck. It will help with tranny longevity for sure.
Savington is offline   Reply With Quote
Old 06-11-2010, 12:43 AM   #454
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Eventually I'll get to that point, believe me I want that twin disc. For now though, I'm going to throw the money towards a transmission solution of some sort.
JayL is offline   Reply With Quote
Old 06-11-2010, 12:50 AM   #455
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,371
Total Cats: 1,332
Default

You've turned it down to ~300whp for road racing, right? If you put the twin-disc in it, I bet you can make the 6-speed last. The twin-disc is going to be inherently kinder to the transmission since there's less momentum in the system - it's akin to removing your entire flywheel, plus a little bit IIRC. And then the radius is smaller, which is huge as well. No matter what you do, the twin will make it last longer.

I've been road racing at 275-300whp for about a year now, probably like 10-12 events, and my transmission is doing great. 6 months on an ACT HD 6-puck, 6 months on the 949twin.
Savington is offline   Reply With Quote
Old 06-11-2010, 01:01 AM   #456
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Yes, it's at 16# and as little timing as I can run without the egts going through the roof. Unfortunately, I lack the self control to keep it there.

For now I'm thinking about adding a cooler to this 6-speed to see if that will help keep the temps down and add some longevity. I can make it happen for under $400 total and I feel that's very reasonable. But I'd also like to do some tests to see how hot it actually gets prior to adding the cooler.
JayL is offline   Reply With Quote
Old 06-14-2010, 08:15 PM   #457
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

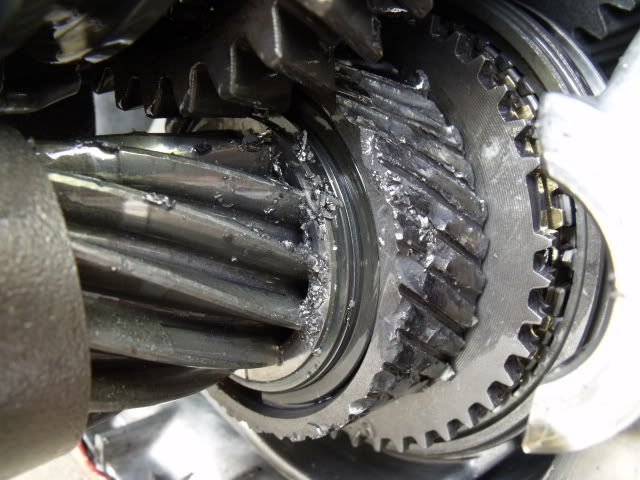

Here's a picture of the carnage.

Name:  BrokenTransmission.jpg
Views: 2
Size:  71.7 KB
JayL is offline   Reply With Quote
Old 06-14-2010, 08:25 PM   #458
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

That doesn't look too bad. A file and like 20 minutes and you'll be good as new; just get some of those burrs off.
skidude is offline   Reply With Quote
Old 06-15-2010, 11:48 AM   #459
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

ewww, what a nightmare.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 06-15-2010, 12:16 PM   #460
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

thats painful to even look at...wow
leatherface24 is offline   Reply With Quote
