Old 07-28-2014, 04:11 AM   #161
Junior Member

Join Date: Sep 2012
Location: New Zealand Christchurch
Posts: 207
Total Cats: -5
Default

Awesome that looks really quite tidy
Good stuff
jimmyneutron is offline   Reply With Quote
Old 07-28-2014, 01:55 PM   #162
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Quote:
Originally Posted by curly View Post
Our one issue: no tach.

I tried the 1k resistor between IG- and B+, still no luck, these are the instructions I followed:

Any ideas?
Your ECU needs to drive the tach now. The stock ECU won't. AEM does. Not sure about MS, although it probably does.
Savington is online now   Reply With Quote
Old 07-29-2014, 12:55 PM   #163
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

sooo....
is it fast?


is there any specs out there on the size of the MSM turbo? I just looked and couldn't find any wheel and trim measurements on it.


sounds quiet in that video.
shlammed is offline   Reply With Quote
Old 07-29-2014, 01:49 PM   #164
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

we will find out on Thursday
turbo specs
Comp. Wheel – 38.5 / 52.15mm
Turbine Wheel – 46.35 / 52.7 mm
Bearing system – Journal Bearing
Cooling System – Water & Oil

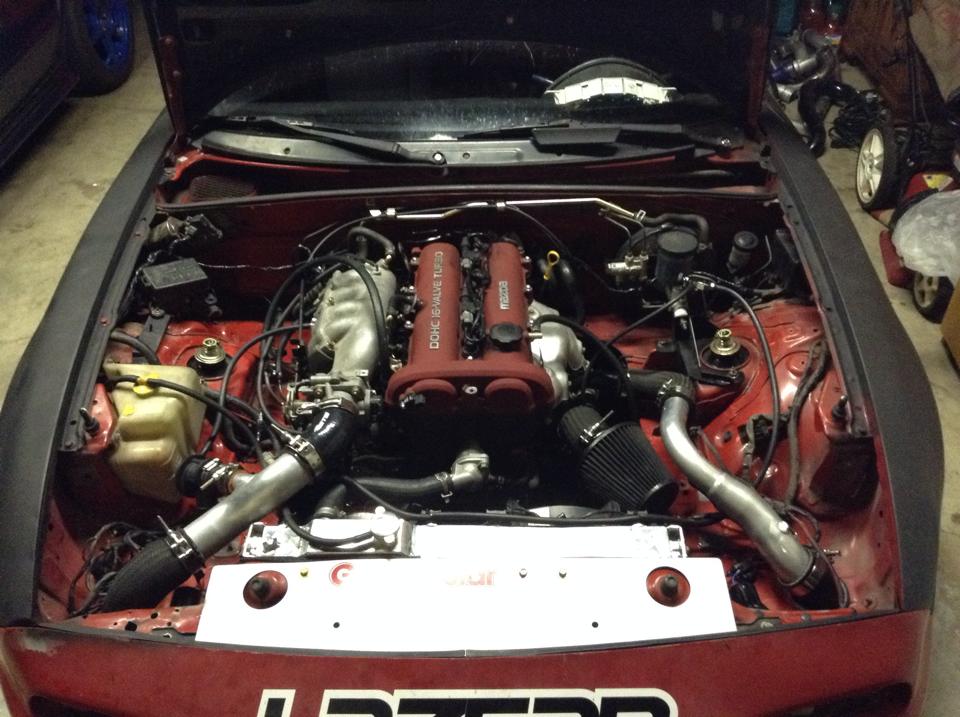

Here's a photo of the temporary intake, I plan to build a duct in an air dam over the winter that feeds directly into a filter mounted just inside the bumper.
Attached Thumbnails
Lazarus:making something out of nothing-10570285_10203967501296884_6287245653258953337_n_zpsafb4c07c.jpg

Last edited by greddygalant; 07-29-2014 at 02:01 PM.
greddygalant is offline   Reply With Quote
Old 07-31-2014, 09:55 PM   #165
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

This was me after riding with martin through the chicane today at PIR:



Damned thing sticks, and pulls. Too bad it got warm. Blowing away the Exige and that irritating Legends car that was losing parts... Just awesome.

I wants MOAR.
Attached Thumbnails
Lazarus:making something out of nothing-7iaxln2.jpg
turbofan is offline   Reply With Quote
Old 07-31-2014, 10:49 PM   #166
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Wow,what a day. Best time was a 1:27.13 according to the AIM in 90ish ambient weather. This is a 5 second improvement and I know the car has more in it considering I was lifting and coasting in some braking zones as I was feeling the car out.

I was only 1 second off John Mans best time today , his car is 320whp with a 350 high boost switch for the straights with aero and 15x9s with nt01s riding on MCS doubles.

Couple issues, car gets warm, needs a cool down every 4-5 hot laps, also, last session of the day as I took known local miata hater Greg Anthony out for a spin one of the heater hoses burst on the back straight at 120mph, boiling fluid came out the hood vents and through the firewall holes and scalded my feet, fortunately I got the car settled it almost lost it when some coolant made it to the rear tires. Ran a 1:27.87 the previous lap with Greg in the car.


Bypassed the heater core and drove it home like a champ. For a first shakedown less than a week after a monumental amount of changes, hats off to Laz and many thanks to all the helping hands along the way. What a car, pics and video coming soon.
greddygalant is offline   Reply With Quote
Old 08-01-2014, 12:09 AM   #167
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

greddygalant is offline   Reply With Quote
Old 08-01-2014, 09:41 AM   #168
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 4
Default

So does this Greg Anthony guy hate miatas even more now that one showered him in a 200 degree golden shower
Efini~FC3S is offline   Reply With Quote
Old 08-01-2014, 10:54 AM   #169
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

He was really impressed actually by Laz actually. It scared the **** out of him in the corners and unfortunately only I managed to have hot coolant land on me :(
greddygalant is offline   Reply With Quote
Old 08-01-2014, 11:04 AM   #170
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,799
Total Cats: 492
Default

What is your power/ weight now?
Monk is offline   Reply With Quote
Old 08-01-2014, 01:03 PM   #171
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

We haven't weighed or dyno'd yet since the turbo's gone in. There's a little more weight to be added with some planned door bars and the MSM rear subframe brace.

We were at 1890ish without driver and 1/4 tank of gas IIRC, and 125hp. So with Martin's 140lbs, .06hp:1lb.

Can't imagine we added more than 150lbs, and we've since lost the second headlight as well, so let's say 2150lbs with Martin, and a butt dyno of 200hp.

Or roughly .09hp:1lb, or 10.75lb/hp.

The 10ish pounds per horsepower is up (down?) there with STIs, Evos, 300hp 3-series, etc.
curly is online now   Reply With Quote
Old 08-01-2014, 01:09 PM   #172
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Except that you're comparing Laz's wheel HP to the other cars' crank HP.
turbofan is offline   Reply With Quote
Old 08-01-2014, 07:38 PM   #173
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Copying this from the CR thread. Ryan (ThePass) is making some new brake ducts.

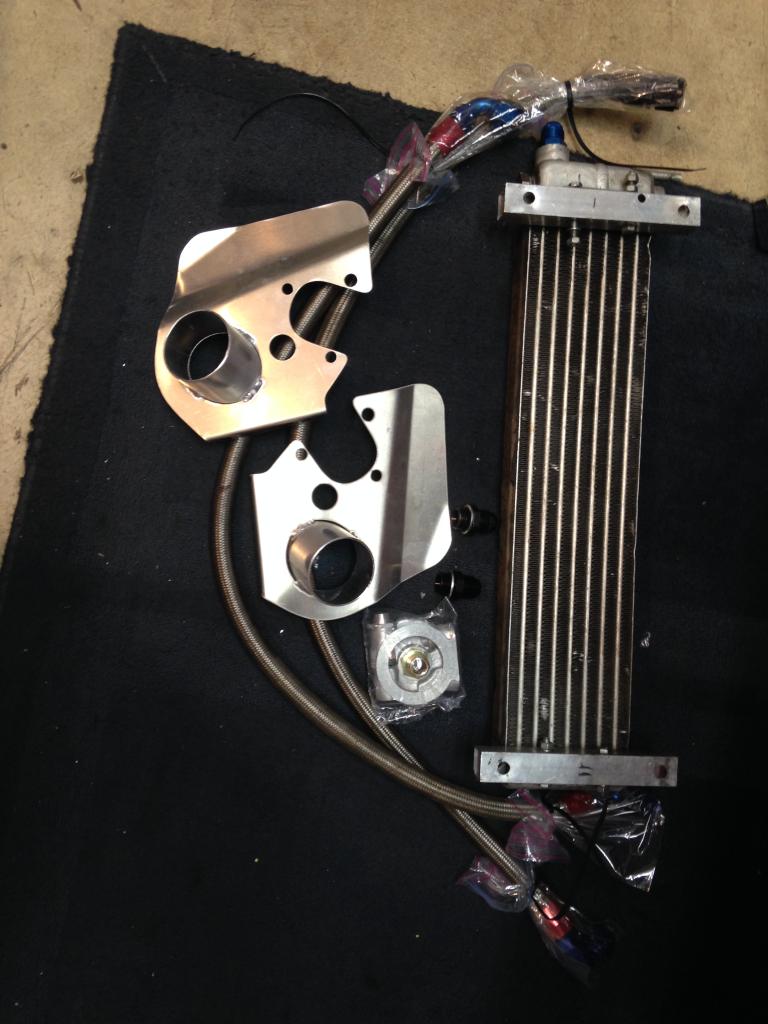

It was a great day at CSTG. Parts galore showed up. The oil cooler is all for my smurf, along with the Singular Motorsports 2.5" brake ducts. The 3" Singular brake ducts on the other hand, are all for Laz.

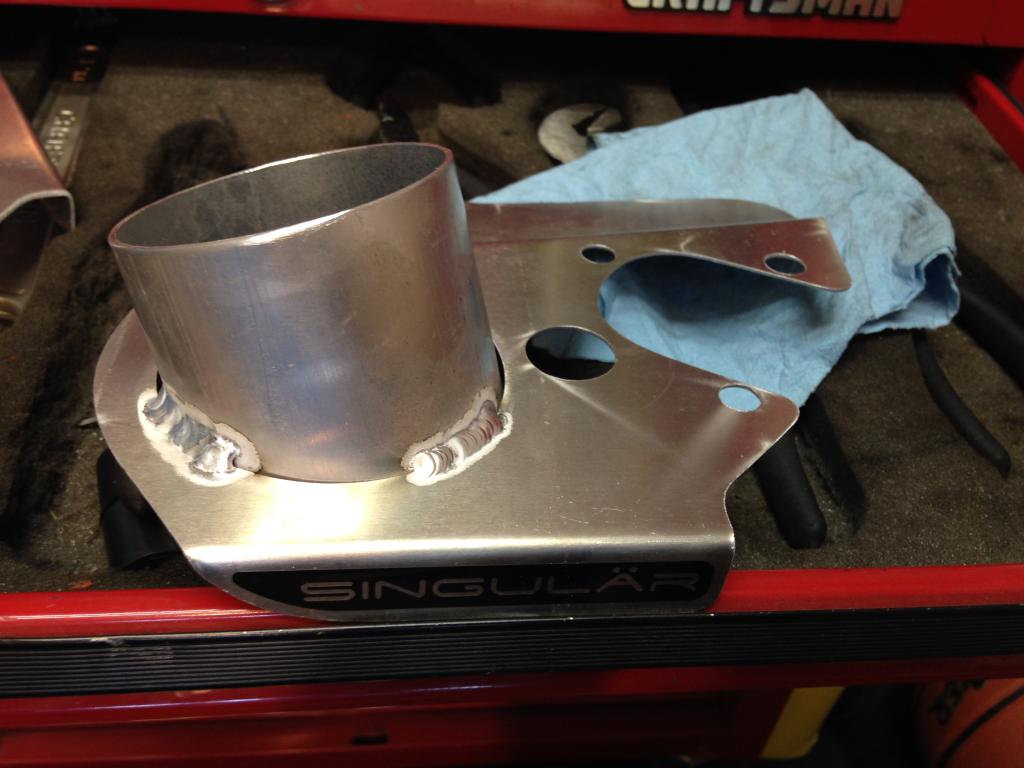

Up close and personal. Ryan (ThePass) says the gap between the pipe and plate will be snugged up. Even so, these look great.

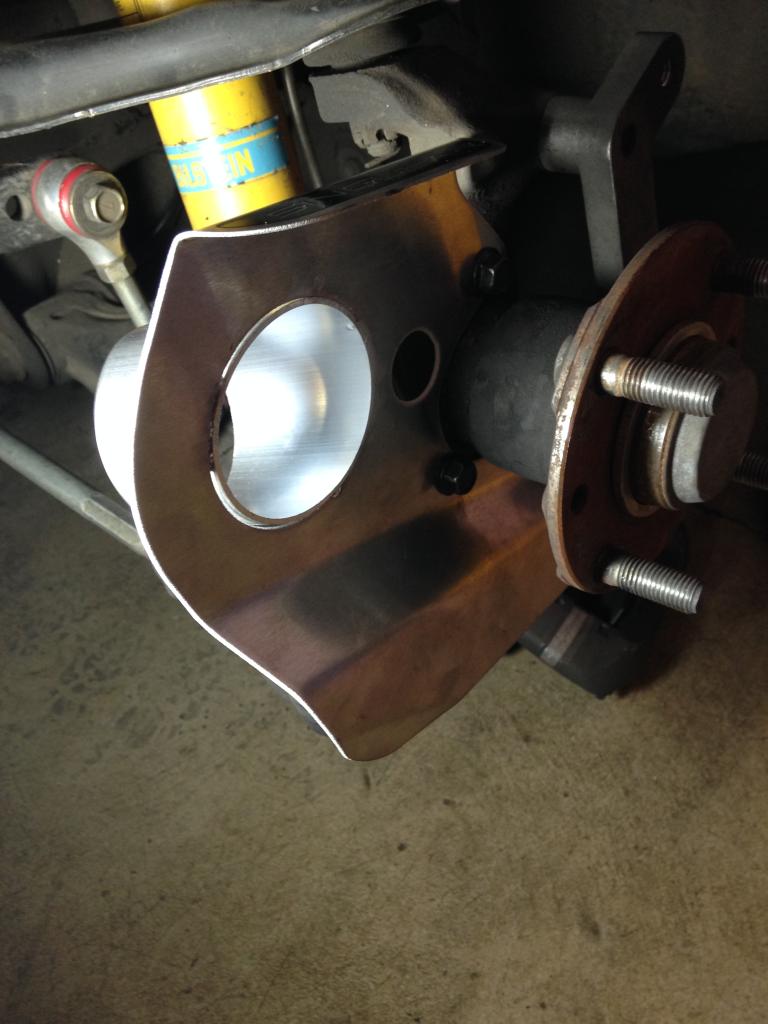

And bolted up. I started a timer as I began all this, the car had just rolled into the garage. I cheated by already having the stock dust shields removed years ago, but still. This picture was taken at 6 minutes 46 seconds.

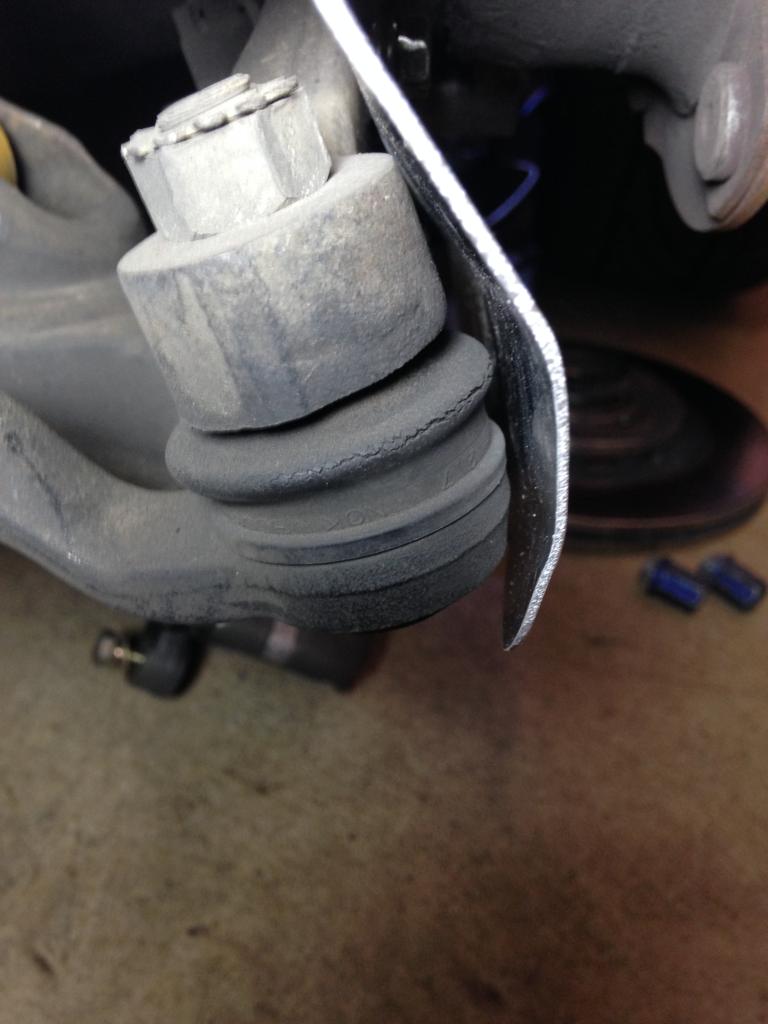

They provide a very helpful barrier between the heat of the rotors and the end link. A heat shield I've apparently been lacking.

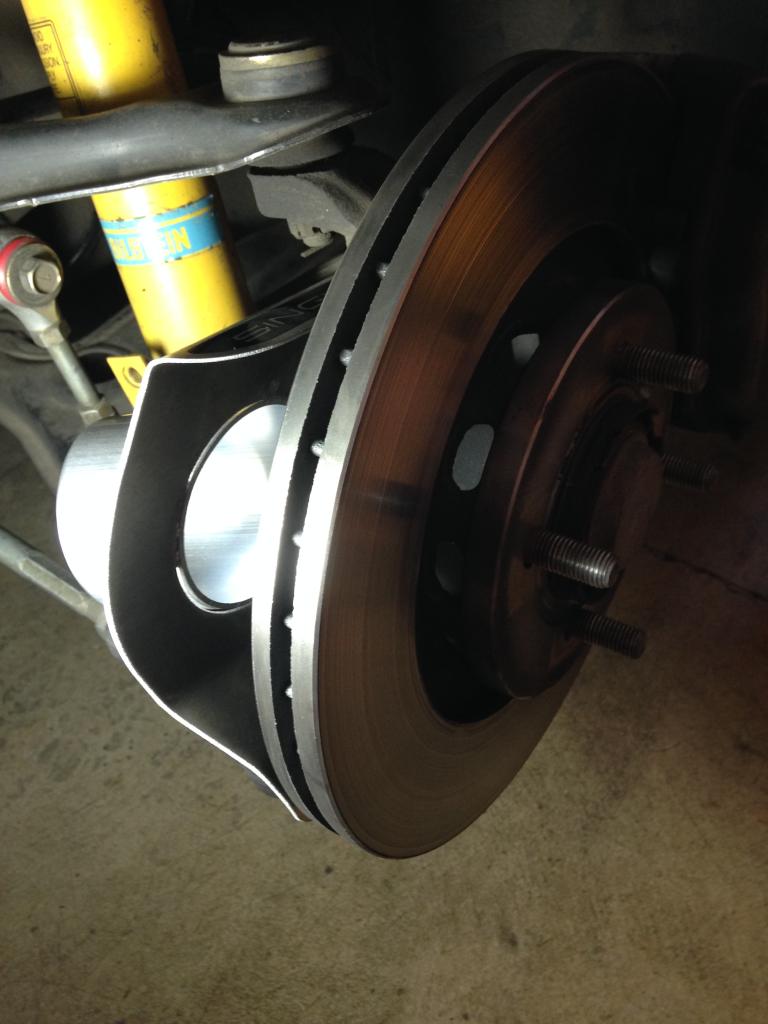

This is about all you can see with the rotors on. Air shoots right at the rotor.

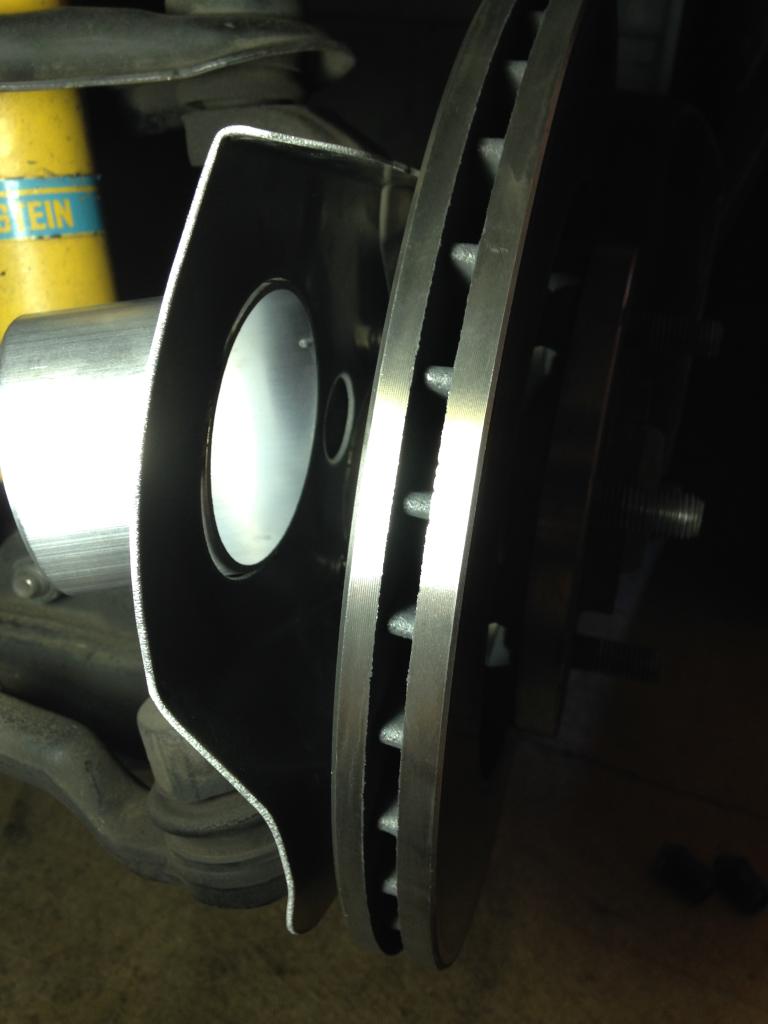

And a better shot more or less straight on. Very tight packaging and design. Love it!



No pictures of it on the ground, since you can't really see anything. It was back down and torqued up at 11 minutes and 3 seconds.
Attached Thumbnails
Lazarus:making something out of nothing-92e8daf5-57a7-47dd-a27f-edd7193813ae_zpsiljbhtg4.jpg   Lazarus:making something out of nothing-d90b8f7e-6a15-4377-a38c-1b47708bd529_zps4ytlkvey.jpg   Lazarus:making something out of nothing-301b5472-5809-4c33-acb7-13fbd7dad1c5_zpsr2wrlomj.jpg   Lazarus:making something out of nothing-948cbea9-4c60-40b6-9849-18db35e44916_zpssxa4wb9w.jpg   Lazarus:making something out of nothing-653ca87a-5388-4f31-94c4-1467e15d3ead_zpsvcwnlwfi.jpg

Lazarus:making something out of nothing-6e365e68-e8d8-471c-80d8-8c1544d95890_zpsqmjfj9av.jpg
curly is online now   Reply With Quote
Old 08-01-2014, 07:48 PM   #174
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Smurf will now have longer lasting brakes. I like.
turbofan is offline   Reply With Quote
Old 08-01-2014, 08:42 PM   #175
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

Now Josh just needs to grow his pair big enough to actually need bigger brakes going into T4

Looks good I are excite for you.
Mobius is offline   Reply With Quote
Old 08-01-2014, 09:12 PM   #176
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Surprisingly the stock 1.6 brakes didn't fade whatsoever despite the extra power that Lazarus had even in 90 degree ambient. This means I can start braking later as I was braking 100+ yards earlier in some spots compared to before.

These ducts will come in handy soon enough, hope to have them installed by BMW club on the 18th.
greddygalant is offline   Reply With Quote
Old 08-01-2014, 09:18 PM   #177
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

You're gonna be at the BMW club event too?? Are you an instructor with them?

I'ma need an instructor...
turbofan is offline   Reply With Quote
Old 08-02-2014, 11:12 AM   #178
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I should be there on the 18th as well. Just gotta sign up. And many many hours of work.
curly is online now   Reply With Quote
Old 08-02-2014, 01:43 PM   #179
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Yep im an instructor with them too Ed.
greddygalant is offline   Reply With Quote
Old 08-02-2014, 03:22 PM   #180
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Quote:
Originally Posted by greddygalant View Post
Surprisingly the stock 1.6 brakes didn't fade whatsoever despite the extra power that Lazarus had even in 90 degree ambient. This means I can start braking later as I was braking 100+ yards earlier in some spots compared to before.

These ducts will come in handy soon enough, hope to have them installed by BMW club on the 18th.
It just occurred to me, why do you still have stock 1.6 brakes on the car when you put the whole undercarriage of the MSM under there?
turbofan is offline   Reply With Quote
