Old 08-10-2014, 05:43 PM   #201
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

Awesome, cooler brakes FTW, thanks for the pics. The 3" looks almost comical next to the little 1.6 brakes, but they should give them the best shot at surviving with the new-found power.

What hose did you go with/what source?

-Ryan
ThePass is offline   Reply With Quote
Old 08-10-2014, 08:50 PM   #202
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Came out of a wreaked E.....92? Martin can answer that question better.

But free and his work is the short answer.

The 3" has only roughly half the pipe portion pointing at the rotor.
curly is offline   Reply With Quote
Old 08-13-2014, 01:30 PM   #203
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Came out of a wrecked E36 PTG widebody race car, I needed so little hose that I just grabbed some from the wreck and it worked perfectly.

As far as upgrading the brakes, I plan to at the very least go to a 1.8 non sport front rotor and more than likely I'll run the bolt on wilwoods from FM's little big brake kit.
greddygalant is offline   Reply With Quote
Old 08-16-2014, 02:15 AM   #204
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

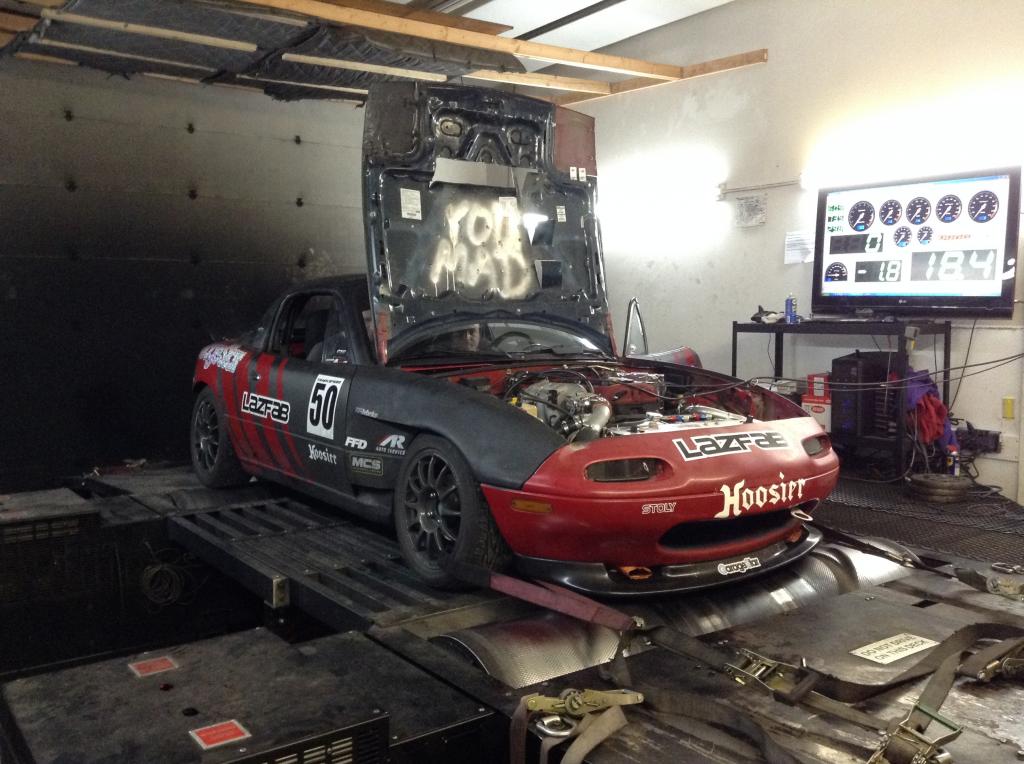

So we hit the English Racing dyno today. First a little photo and video entertainment

Name:  IMG_0715_zpsb96a6f2e.jpg
Views: 3
Size:  109.6 KB

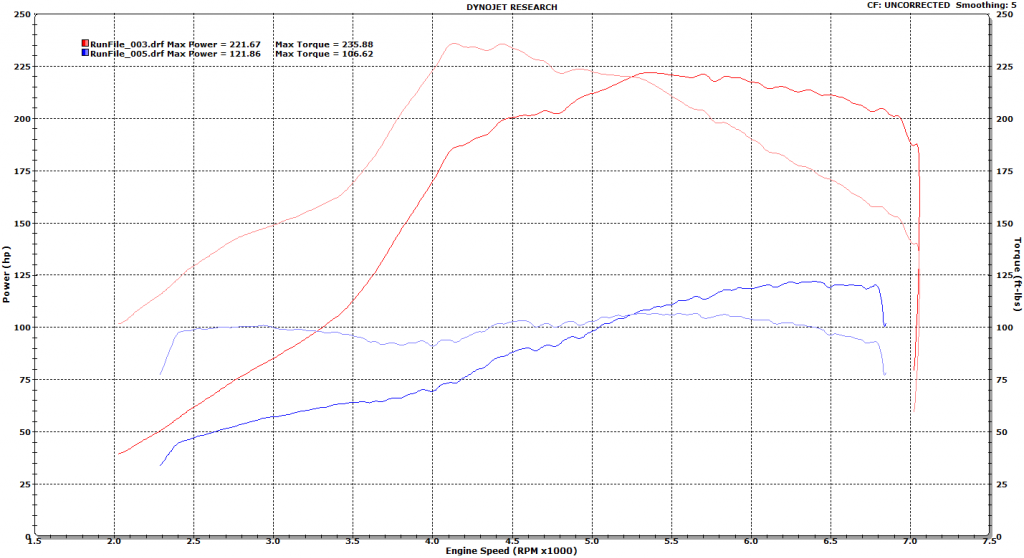

And results

Name:  laz_zpsd7f97fce.png
Views: 3
Size:  221.5 KB

Red is the new msm motor with turbo setup, blue is the old NA 1.6. Numbers are uncorrected to prevent forum drama.



Mods are as follows

stock msm long block/manifold/turbo

Protuning lab 2.5 inch catless downpipe

OEM MSM catback with muffler delete

OEM Evo 8 intercooler, piping, and BOV

MBC set at 12psi

Gen 1 PNP with curly tune



Needless to say I'm quite pleased with the results, I hope to do rods in the future and shoot for 250whp with a better exhaust and perhaps 2 more psi.
Attached Thumbnails
Lazarus:making something out of nothing-img_0715_zpsb96a6f2e.jpg   Lazarus:making something out of nothing-laz_zpsd7f97fce.png
greddygalant is offline   Reply With Quote
Old 08-16-2014, 03:40 AM   #205
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Very cool. The difference between old/new is hilarious lol

I will be shocked if you actually hit 250whp on the stock msm hotside bits, but who knows. Either way, that there is very healthy for what you're working with. I love that you guys actually pushed the midrange, that's the 1st time I see it spike up that much in teh midrange

I'm curious to see the spark map......
18psi is offline   Reply With Quote
Old 08-16-2014, 10:00 AM   #206
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

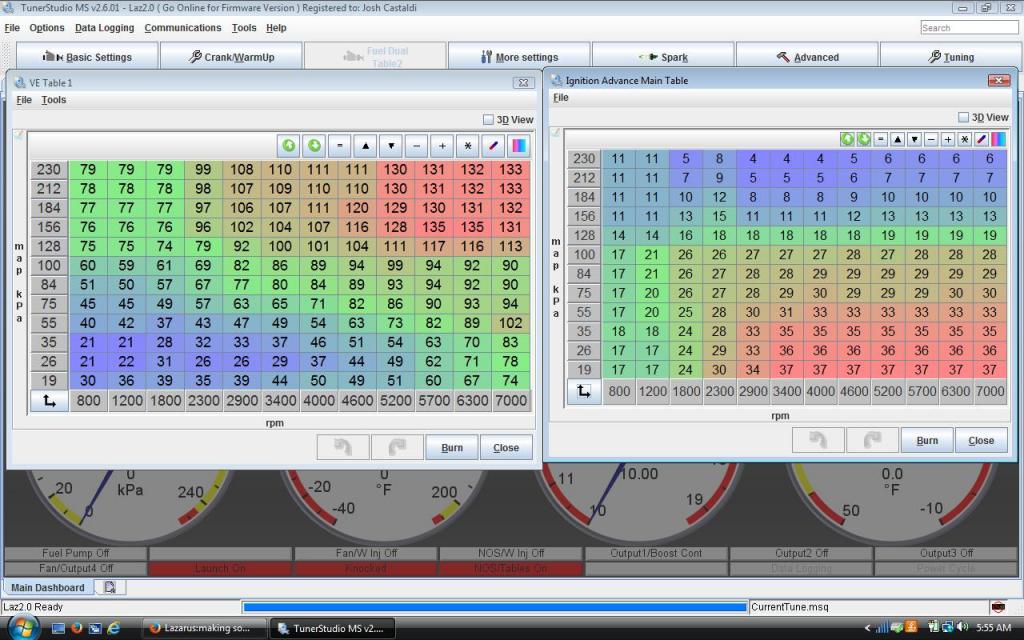

Spark map is pathetic.

There's SO much more left, but our first run was basically what Martin posted. We took 2 degrees out in the 2900-4600 range to try and kill the torque spike, looks like we could do another 2 degrees in the 4000-4600 range to keep it below 225ft/lbs for the transmission. But the setup is begging for 3" exhaust, more spark, and more boost.

Attached Thumbnails
Lazarus:making something out of nothing-lazsturbomaps_zpsaffb88d8.jpg
curly is offline   Reply With Quote
Old 08-16-2014, 10:37 AM   #207
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,799
Total Cats: 492
Default

Holy peak torque Batman! It looks like it's right where you need it too. That is awesome.
Monk is offline   Reply With Quote
Old 08-16-2014, 03:18 PM   #208
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

wow that is very interesting curly.
you're not kidding about that spark map. its running almost nothing in the midrange

I'm even more impressed now
18psi is offline   Reply With Quote
Old 08-16-2014, 04:28 PM   #209
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Get me a set of rods and I'll push this ****** well past 250wtq
greddygalant is offline   Reply With Quote
Old 08-16-2014, 04:40 PM   #210
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Easily.

That's the bone stock base map from back when the original mspnp9093 came out, with timing pulled OUT in the midrange.
curly is offline   Reply With Quote
Old 08-17-2014, 01:12 AM   #211
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Yeah, although part of me wants to keep it where it is and potentially have a chance of not bricking 5 speeds every other track day.
Attached Thumbnails
Lazarus:making something out of nothing-e0de6764db82da1534d7ebf8ddc1256c_zpsdebe349b.jpg
greddygalant is offline   Reply With Quote
Old 08-17-2014, 01:19 AM   #212
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Nonsense. We love transmission swaps on our backs.
curly is offline   Reply With Quote
Old 08-17-2014, 02:46 AM   #213
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Just a heads-up: be careful on what you do with the exhaust. The design on the manifold/turbo combined with a open exhaust makes for a sharp tone that has the perfect frequency (combined with heat) to cause manifold nuts to come loose and kill exhaust gaskets. I speak from experience.
Doppelgänger is offline   Reply With Quote
Old 08-17-2014, 01:17 PM   #214
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 256
Default

What is this, an ignition map for ants?
soviet is offline   Reply With Quote
Old 08-18-2014, 08:07 PM   #215
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Even the ignition map for ants didn't save the transmission at the track today. Sounds like a dead TO bearing in all gears, but silent in neutral. Local 6-speed transmission hoarder Mobius has offered one of his 3 for Laz. I think in the end a MSM box will end up in his car, and his current '01 tranny is going in mine?

Mobius, I'm thinking we do all 3 of these swaps at your house, in one day.
curly is offline   Reply With Quote
Old 08-18-2014, 09:58 PM   #216
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 264
Default

Umm, yes. That was exactly what was discussed today, including the part about you getting one of my transmissions that I had forgotten.

Oddly enough, I have also forgotten you offering to blow me for my six speed plus miata roadster short shifter, tall angled handle.

Amazing what the mind can forget!

Mobius is offline   Reply With Quote
Old 08-18-2014, 09:58 PM   #217
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Agreed, car was great, ran a new personal best of 1:26.3 around Portland, clicked over 235k miles in the odo, and I had to gingerly rev match all the way home with a trans that was making wonderful noises. Time for a 6spd.

More positives:
Cooling was much improved with the new ducting Mobius helped me install and my transmission failure occured with a rather nicely proportioned redhead riding shotgun so we got to spend some more time together on the ride back into the paddock. All in all a solid day.

And the baby 1.6 brakes once again held up to a beating.
greddygalant is offline   Reply With Quote
Old 08-18-2014, 10:04 PM   #218
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 264
Default

I have three transmissions.

1) known-good (but a bit notchy), in my car, using it now, OEM to my car 01 w/narrow-ball shifter.
2) shifted-good-when-parked MSM trans from locally parted out MSM.
3) shifted-good-when-parked MSM trans from elsewhere, that shifted-not-so-good when swapped into my car (5th grinding and/or unavailable). Proper diagnosis of that trans has yet to occur. 1-4 and 6 were fine.

We will get something worked out to get Laz back on the road and for Martin to owe me eternal favors. Well, more eternally than he does now
Mobius is offline   Reply With Quote
Old 08-18-2014, 10:59 PM   #219
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Babysitting?????
greddygalant is offline   Reply With Quote
Old 08-18-2014, 11:18 PM   #220
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 264
Default

Think twice before offering me that - I will abuse you like the pedophile piano teacher you never had ...
