Old 09-28-2015, 12:55 PM   #261
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

I think I have decided to pull the trigger on a water/meth injection kit. Probably going to go with the AEM v2 kit. I just wish they had an option between a 1 gallon tank and the 5 gallon tank.

Quote:
Originally Posted by shuiend View Post
Awesome. Glad you got it running good on it.
Me too, thanks for the help with it!

Quote:
Originally Posted by sixshooter View Post
I have no idea, but I'll do something.
Okay, I might go back and do the same if the tape doesn't hold up.

Last edited by FrankB; 09-28-2015 at 03:10 PM.
FrankB is offline   Reply With Quote
Old 09-28-2015, 02:05 PM   #262
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

Quote:
Originally Posted by FrankB View Post
AMAZING UPDATE: I finally got the car tuned on the MS3 Basic and it runs great! I also tried out the launch control and that was a blast! Car is running 20psi now!
18psi is offline   Reply With Quote
Old 09-28-2015, 03:16 PM   #263
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by 18psi View Post
Now I just need a real Megasquirt Guru to fine tune it for ALLOFIT! If only there was someone here who could do such a thing... Or maybe someone who could cretic my tune.
FrankB is offline   Reply With Quote
Old 09-28-2015, 03:21 PM   #264
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default



I'm happy to help
18psi is offline   Reply With Quote
Old 09-30-2015, 04:36 PM   #265
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

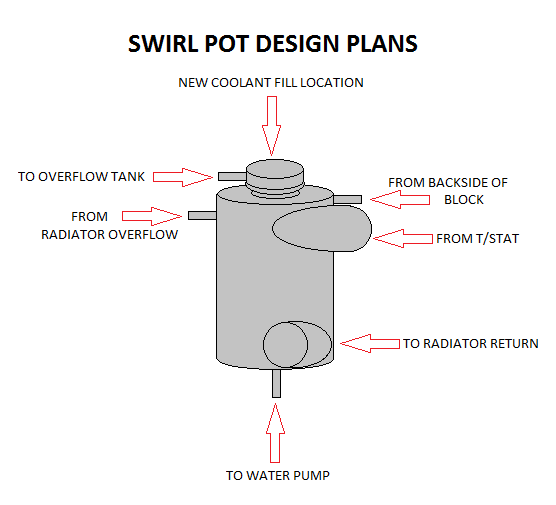

I'm planning on building a swirl pot to mount next to the ABS unit. This will double as my new coolant fill location as well. I will probably post this picture in the racing prep section for design cretic.

Attached Thumbnails
Mazdaspeed meets EFR, ARTech, MS2E-swirl%2520pot_zpspvsrltv6.png
FrankB is offline   Reply With Quote
Old 10-06-2015, 11:07 PM   #266
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

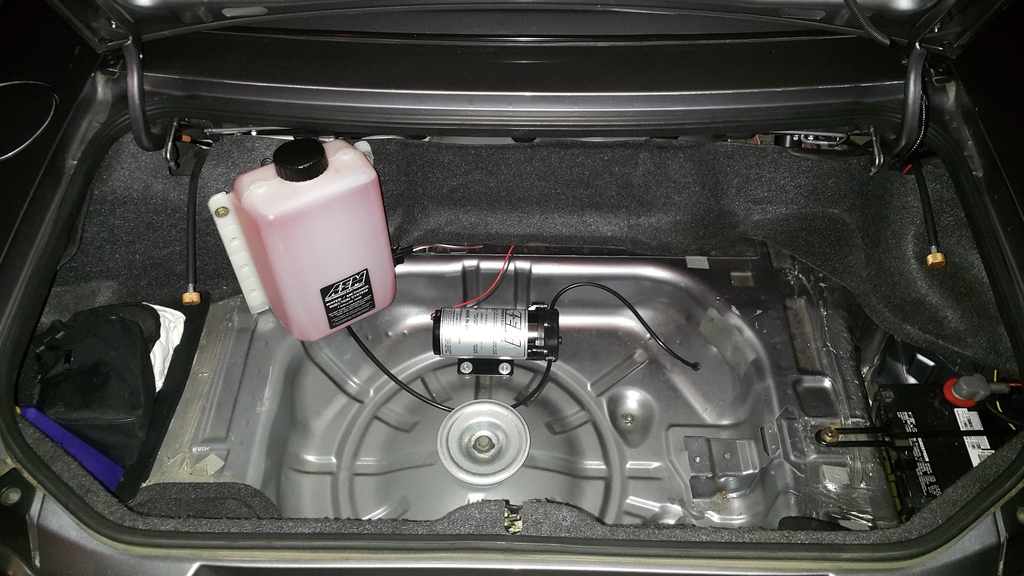

Alright I got my AEM V2 water/methanol injection kit all installed today and I took the car out the adjust the VE table afterwards.

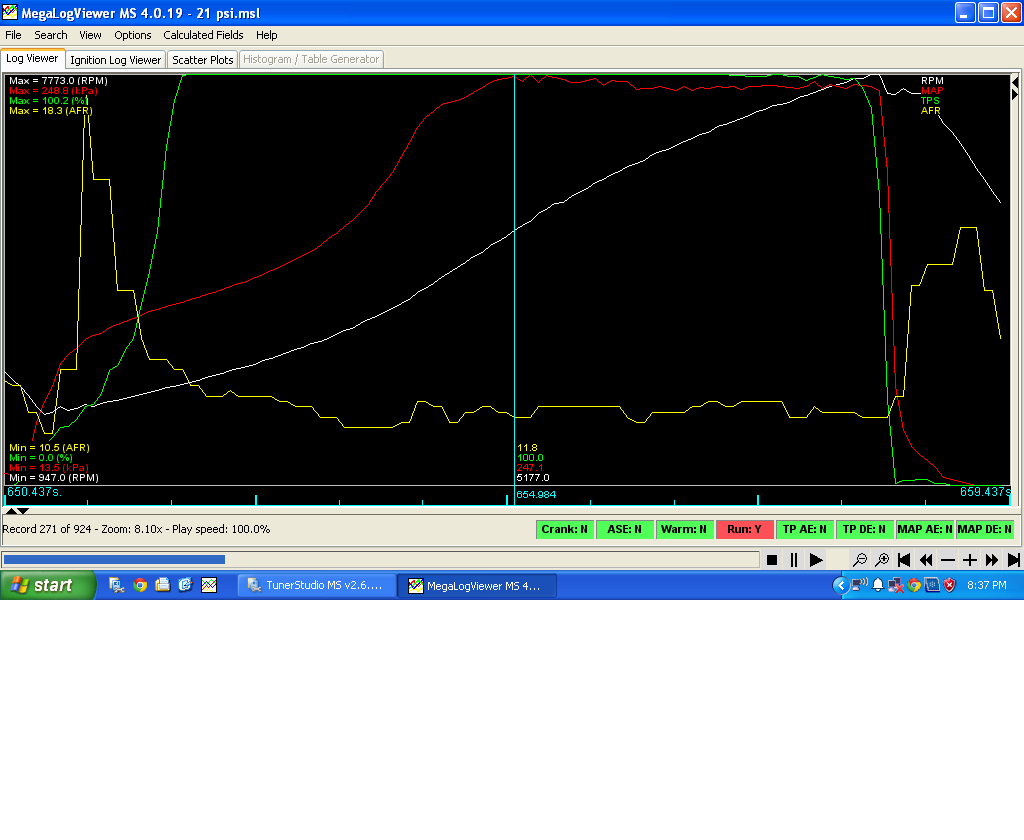

Below is a log of a 3rd gear pull at 248kpa... Maxing out my MAP sensor in the MS3. Meth is set to start to taper on at 11psi and come on full at 15psi (I'm using the #500 nozzle)

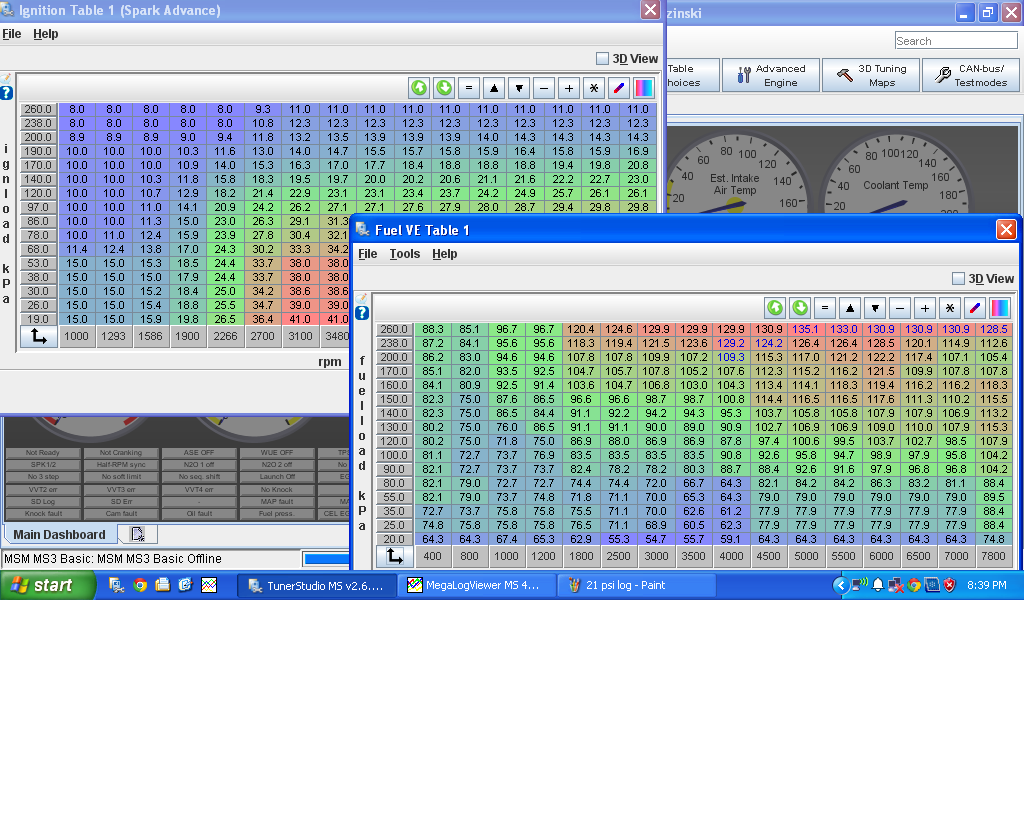

Here are my VE and Spark tables as of right now (99% sure my spark is beyond conservative as ****)



Thinking of installing the #1000 nozzle instead. according to AEM's chart I'm right in between the 500 and the 1000... go figure...

I also need to get to a dyno to tune my spark table.
Attached Thumbnails
Mazdaspeed meets EFR, ARTech, MS2E-20151006_204834_zpsrcrxpt8g.jpg   Mazdaspeed meets EFR, ARTech, MS2E-21%2520psi%2520log_zpsuucnnjyy.png   Mazdaspeed meets EFR, ARTech, MS2E-tables_zpse8m8hbc6.png
FrankB is offline   Reply With Quote
Old 10-07-2015, 12:16 AM   #267
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

that's gotta be good for at least 350
18psi is offline   Reply With Quote
Old 10-07-2015, 12:33 AM   #268
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by 18psi View Post
that's gotta be good for at least 350
I hope so!

BTW the level of the fluid in the methanol tank in that picture is after about 2 and a half hours of pulls tuning . That's not bad.

That's one of the reasons why I am thinking of going back out to tune with the 1000 nozzle. I'm looking forward to seeing how this kit will help my engine temps on the track too. My next DE is on the 17th and 18th of this month.
I'm curious to see how much fluid I'll be using during the 25 minute sessions too.
FrankB is offline   Reply With Quote
Old 10-12-2015, 01:30 AM   #269
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

As my luck would have it. I am getting a weird terrible grinding, roaring noise from the right rear, but only on hard right hand turns. I know that generally if you are getting a wheel bearing noise it will be exaggerated on the outer most side of the car where all the weight transfer is, but this is coming from the inside wheel. There is no noticeable play on the wheels and there is no noise while driving straight or while driving and turning from side to side to load the bearings...

I'm going to try to see about getting some rear wheel bearings anyways and seeing if the fixes the issue. What sucks is I have a track event this upcoming weekend.

On another note: This passed week my wife was rear ended in our other car on the interstate and was pushed into the car in front of her (she's fine) so this just isn't my week...
FrankB is offline   Reply With Quote
Old 10-12-2015, 09:27 AM   #270
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

FWIW, I just replaced my fronts under the same conditions. I noticed them roaring initially when I balanced new tires on the car. I noticed the passenger front was much louder than the driver's front while spinning them up. No noticeable play in either side, or resistance of any kind. I could here it grinding at slow speeds in parking lots as well, turning and such.

Ordered a pair of Moog units and some Amsoil grease, replaced them both in about an hour, and they are silent now.

Once the old bearings were off the car, I identified definite play in them.
NBoost is offline   Reply With Quote
Old 10-12-2015, 12:08 PM   #271
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

I was able to get a set of FM front hubs that were instock and hadn't made it to their website yet. They will be here Thursday.

I ordered the rear bearings(KOYO), hubs (DORMAN) and oil seals from NAPA and they should be in this afternoon!

Last edited by FrankB; 10-12-2015 at 12:59 PM.
FrankB is offline   Reply With Quote
Old 10-12-2015, 12:53 PM   #272
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by FrankB View Post
Here are my VE and Spark tables as of right now (99% sure my spark is beyond conservative as ****)


I also need to get to a dyno to tune my spark table.
Let's hope so. Because I run a table pretty close to yours on pump gas only. lol
Schuyler is offline   Reply With Quote
Old 10-12-2015, 12:59 PM   #273
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by Schuyler View Post
Let's hope so. Because I run a table pretty close to yours on pump gas only. lol
That table was before I changed anything for the meth. I add 2 degrees of timing on the cells from 200kpa up and 3100 RPM's up.
FrankB is offline   Reply With Quote
Old 10-12-2015, 01:02 PM   #274
Senior Member
iTrader: (15)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 263
Default

Frank, I have posted my tune in my build thread in case you want to compare timing maps.
99mx5 is online now   Reply With Quote
Old 10-12-2015, 01:07 PM   #275
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by 99mx5 View Post
Frank, I have posted my tune in my build thread in case you want to compare timing maps.
I saw that, thanks. I actually meant to post a reply in your thread thanking you but I got side tracked and forgot. I took a look at your tables shortly after you posted it. I was curious as to why you don't run all the maps all the way out to your red line?
FrankB is offline   Reply With Quote
Old 10-12-2015, 04:50 PM   #276
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by FrankB View Post
I ordered the rear bearings(KOYO), hubs (DORMAN) and oil seals from NAPA and they should be in this afternoon!
I went to pick up my rear hubs and bearings and the sent (1) hub that was made in Taiwan and (1) that was made in China. If you follow the the and on rear hubs in the racing section you'll understand. They're going to try and get me another Chinese hub tomorrow.

Last edited by FrankB; 10-12-2015 at 07:58 PM.
FrankB is offline   Reply With Quote
Old 10-16-2015, 10:42 AM   #277
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

If anything, Arlington Mazda in VA has OEM SKF bearings for $36 a pop and ships quick. Hubs they are way expensive on however.
Mazdaspeeder is offline   Reply With Quote
Old 10-16-2015, 11:04 AM   #278
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by Mazdaspeeder View Post
If anything, Arlington Mazda in VA has OEM SKF bearings for $36 a pop and ships quick. Hubs they are way expensive on however.
Thanks, yeah NAPA sent another two Taiwanese hubs. I ended up lucking out because O' Reillys had one Chinese hub on the shelf and he rears are done now. I should get the fronts in tonight and swapped out.
FrankB is offline   Reply With Quote
Old 10-16-2015, 11:32 AM   #279
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Did you repack the rear hubs or throwing them on as is?
shuiend is offline   Reply With Quote
Old 10-17-2015, 01:35 AM   #280
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by shuiend View Post
Did you repack the rear hubs or throwing them on as is?
Threw them on as is, with my time crunch I wasn't about to **** up a bearing trying to take it apart. I literally just got finished installing the fronts and the noise is gone now.(it was the fronts, go figure)

At least I have a little piece of mind knowing how old all of my bearings and hubs are.

The car is packed and ready to go for tomorrow. I have to wake up in 4 hours to head that way...
FrankB is offline   Reply With Quote
